TOYOTA AVALON 2021 (in English) Owner's Manual

19
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Clock

1VTIiMENU” button next to the screen.

4FMFDUiSetup” or “General” in the touch screen to access the general settings
screen.

4FMFDUiClock.”

5IFOTFMFDUEFTJSFEJUFNTUPCFSFTFU

Refer to the “Navigation and Multimedia System Owner’s Manual” for more details.
*
Premium Audio only
Select to change the time zone.
Select to set daylight saving
time ON/OFF/AUTO*.
Select to set to automatic
GPS adjustment of clock.
Select to set the 24 hour
time format on/off.
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
* HomeLink® is a registered trademark of Gentex Corporation.
Garage door opener (HomeLink®) (if equipped)
HomeLink® indicator light
Buttons
Garage door operation indicators
HomeLink® icon: Illuminates
while HomeLink is operating.
MY21_Avalon_QRG_V2_ML_0709.indd 197/13/20 1:15 PM

20

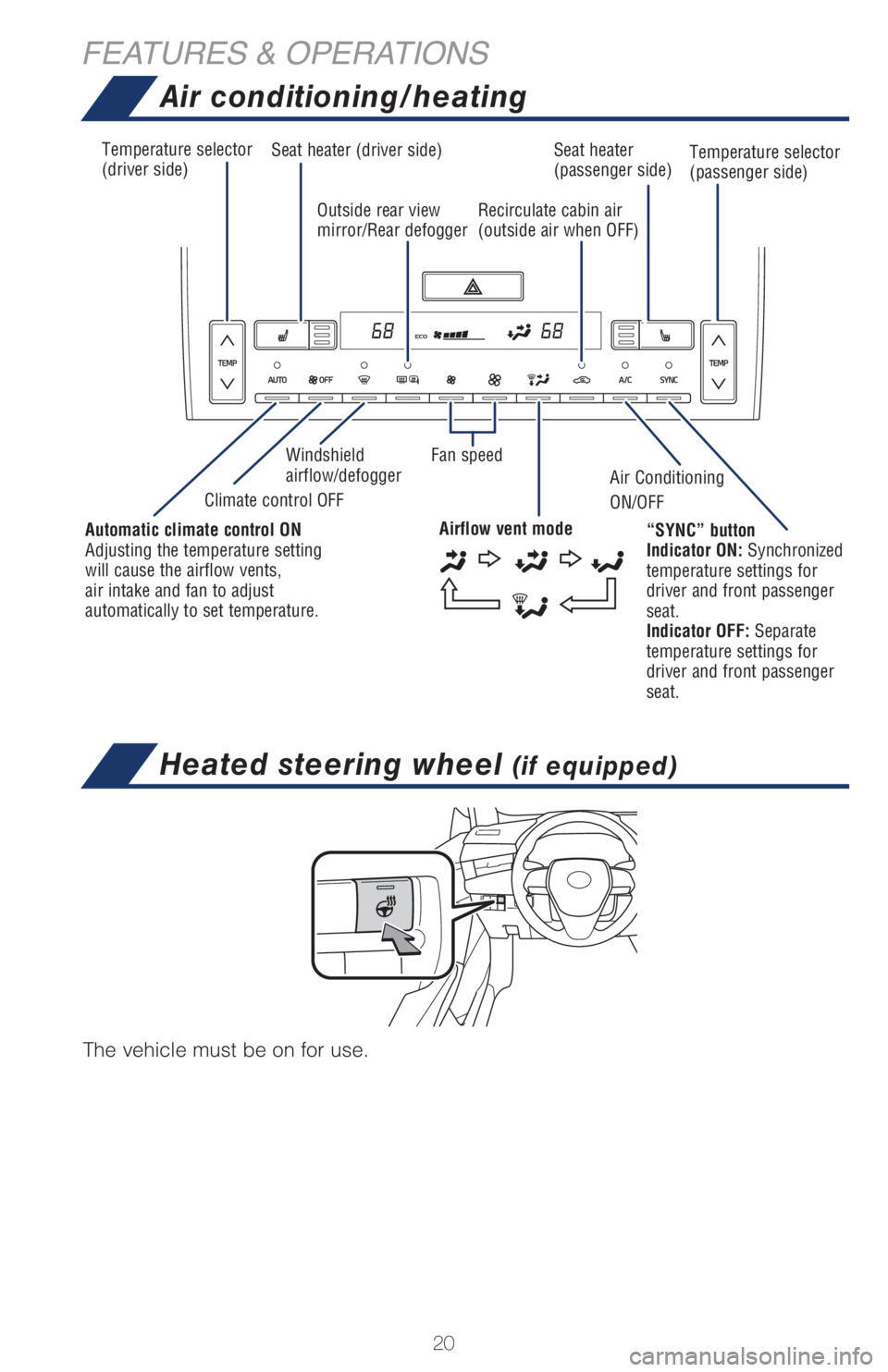

Temperature selector
(driver side)Seat heater (driver side) Seat heater
(passenger side)
Windshield
airflow/defogger
Air Conditioning
ON/OFF Climate control OFFFan speed Outside rear view
mirror/Rear defoggerRecirculate cabin air
(outside air when OFF)Temperature selector
(passenger side)
“SYNC” button
Indicator ON: Synchronized
temperature settings for
driver and front passenger
seat.
Indicator OFF: Separate
temperature settings for
driver and front passenger
seat. Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically to set temperature.
Airflow vent mode
Air conditioning/heating
The vehicle must be on for use.
Heated steering wheel (if equipped)
FEATURES & OPERATIONS
MY21_Avalon_QRG_V2_ML_0709.indd 207/13/20 1:15 PM

21

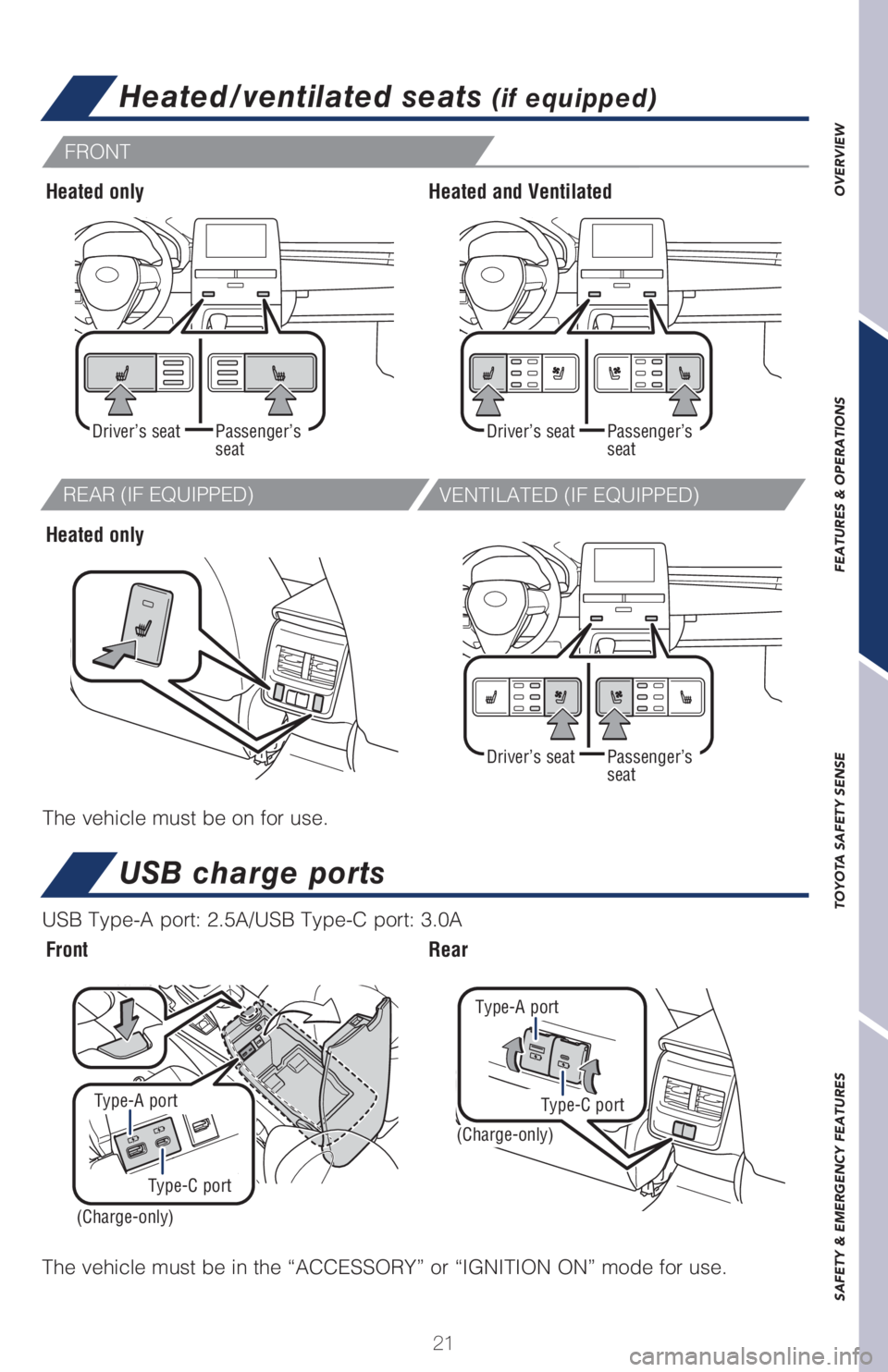

Heated only
Heated onlyHeated and Ventilated
Driver’s seatPassenger’s
seatPassenger’s
seat
Passenger’s
seat
Driver’s seat
Driver’s seat
The vehicle must be on for use.
USB charge ports
FrontRear
(Charge-only)
3&"3 *'&26*11&%

7&/5*-"5&% *'&26*11&%

Heated/ventilated seats (if equipped)
FRONT
The vehicle must be in the “ACCESSORY” or “IGNITION ON” mode for use. USB Type-A port: 2.5A/USB Type-C port: 3.0A
(Charge-only)Type-A port
Type-A port
Type-C portType-C port
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
MY21_Avalon_QRG_V2_ML_0709.indd 217/13/20 1:15 PM

22
FEATURES & OPERATIONS
Bluetooth® technology allows dialing or receipt of calls without removing your hands
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Always use safe driving practices and follow all traffic rules.
Return to previous screen
Volume control
Microphone Voice command
switch Start and end call“MODE”
Push to change audio mode.
Push and hold to mute or
pause the audio.
“ ”
Use to search within the
selected audio feature.
Steering wheel switches
& telephone controls (Bluetooth®)
MY21_Avalon_QRG_V2_ML_0709.indd 227/13/20 1:15 PM

23
Audio
Touchscreen display
Access
AUDIO screen
Push to turn ON/OFF or
turn to adjust volumeTurn to tune radio stations
manually or select tracks or filesAccess
Bluetooth
hands-free system Seek station/
track/file
select Access
HOME screen
Access
MENU screen
Access
Apps screen
Access
MAP screen
Connecting a compatible device and cable into the USB media port will support
charging and music playback through the audio multimedia system.
Open
USB media port
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
NOTE: Always use safe driving practices and follow all traffic rules.
USB media port
MY21_Avalon_QRG_V2_ML_0709.indd 237/13/20 1:15 PM

24
FEATURES & OPERATIONS
Qi Wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch and the green operation indicator light turns on. (2) Place
a compatible mobile device on the tray as shown in the illustration. An amber
indicator illuminates while charging is in progress. When charging is complete, the
indicator illuminates green. Some phones, cases or cover type wireless chargers
may not cause the green indicator to illuminate even though it is fully charged.
Refer to the Owner’s Manual for limitations and more details on this system before
attempting to use it.
Power switchCharge area
Operation indicator lightPress
When the engine is turned off, the last state (ON/
OFF) of the charger is memorized.
Place device nearest the center of charging area for
best results. Moving device may result in stopping
or restarting the charging process.
Place
(1)
(2) The vehicle must be in the “ACCESSORY” or “IGNITION ON” mode for use.
Power outlets - 12V DC
MY21_Avalon_QRG_V2_ML_0709.indd 247/13/20 1:15 PM

25
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Vehicle Stability Control (VSC)/
TRAC OFF switch
The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While the vehicle is stopped, press switch to disable the TRAC
system.
To disable both VSC and TRAC systems, press and hold the switch for at least 3
seconds.
Refer to the Owner’s Manual for limitations and more details.
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU” button and
select “Display.” Select “Camera” to adjust the screen contrast and brightness.
Refer to the Navigation and Multimedia Owner’s Manual for limitations and more
details on this system.
MY21_Avalon_QRG_V2_ML_0709.indd 257/13/20 1:15 PM

26
FEATURES & OPERATIONS
The Blind Spot Monitor is a system that has two functions:
t5IF#MJOE4QPU.POJUPSGVODUJPO BTTJTUTUIFESJWFSJONBLJOHUIFEFDJTJPOXIFO
DIBOHJOHMBOFT

t5IF3FBS$SPTT5SBGGJD"MFSUGVODUJPO BTTJTUTUIFESJWFSXIFOCBDLJOHVQ

The system is designed to use radar sensors to detect vehicles traveling in the
Avalon’s blind spot. If a vehicle is detected, the driver will be alerted via the outside
rear view side mirror indicators.
Rear Cross Traffic Alert function:
While in reverse, when a vehicle approaching from the right or left rear of the
Avalon is detected, the outside rear view mirror indicators will flash. Also, the RCTA
icon for the detected side will be displayed on the audio system display, and the
RCTA buzzer will sound.
Blind Spot Monitor with Rear
Cross
Traffic Alert (BSM w/RCTA)
Indicators
DisplayBuzzer*
Audio system
screen*
* RCTA only Outside rear view mirror indicators

1SFTTi” switches and select “wGSPNUIF.VMUJ*OGPSNBUJPO%JTQMBZ .*%


1SFTTi
” switches and select “” or “” and then press “.” The
setting screen is displayed.

1SFTTi
” switches and select the “On/Off” setting function and then press
“
.”

1SFTTi
” to go back to the menu.
Refer to the Owner’s Manual for limitations and more details on this system before
attempting to use it.
SYSTEM ON/OFF
MY21_Avalon_QRG_V2_ML_0709.indd 267/13/20 1:15 PM

27 Display mode change switch Display mode change switchRotation pause switch Body color setting switch Body color setting switch
Rotation pause switch
The Bird’s Eye View Camera with Perimeter Scan function assists the driver in
viewing the surroundings, when operating at low speeds or parking, by combining
front, side and rear cameras and displaying an overhead image on the screen.
When you press the camera switch or shift the shift lever to the “R” position while
the vehicle is on, the panoramic view monitor operates.

Refer to the “Navigation and Multimedia System Owner’s Manual” for limitations and
more details.
Moving viewSee through view
Bird’s Eye View Camera
with Perimeter Scan
(if equipped)
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
MY21_Avalon_QRG_V2_ML_0709.indd 277/13/20 1:15 PM

28
FEATURES & OPERATIONS
When parking, this available system scans for stationary objects, like walls or
lampposts. Should the system anticipate a collision, it will emit an audible and
visible alert, reduce engine or motor output, and automatically apply the brakes
if needed. If your vehicle is equipped with ICS, the RCTA system will also have a
braking function that may apply the vehicle’s brakes if the system detects crossing
vehicles while the Avalon is backing up.
Intelligent Clearance Sonar with Rear Cross
Traffic Braking (ICS w/RCTB)
(if equipped)
When traveling at a low
speed and the brake
pedal is not depressed,
or is depressed late.When the accelerator
pedal is depressed
excessively.When the vehicle moves
in the unintended direction
due to the wrong shift
position being selected.
When reversing, a vehicle is
approaching and the brake pedal is
not depressed, or is depressed late.
For the static object
For the rear-crossing vehicles
EXAMPLES OF FUNCTION OPERATIONS
The system “”/“wXJMMCFEJTQMBZFEPOUIF.VMUJJOGPSNBUJPOEJTQMBZ .*%


Press “
” switches and select “wGSPNUIF.VMUJ*OGPSNBUJPO%JTQMBZ .*%


1SFTTi
” switches and select “” and then press “.” The setting screen
is displayed.

1SFTTi
” switches and select the “On/Off” setting function and then press
“
.”

1SFTTi
” to go back to the menu.
Refer to the Owner’s Manual for limitations and more details on this system.
SYSTEM ON/OFF
