TOYOTA AVENSIS 2002 Repair Manual

022L4±02
02±36

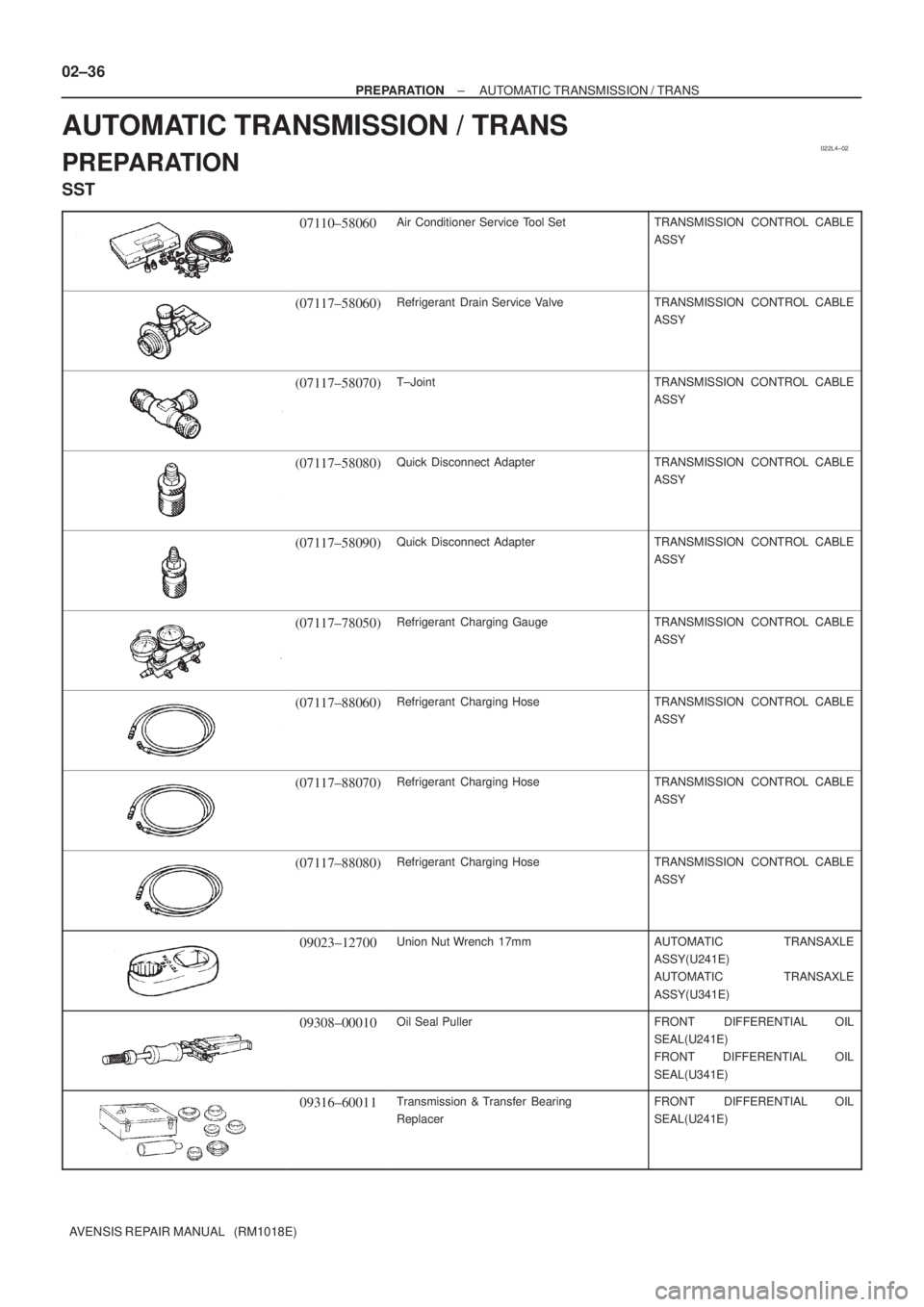

± PREPARATIONAUTOMATIC TRANSMISSION / TRANS
AVENSIS REPAIR MANUAL (RM1018E)
AUTOMATIC TRANSMISSION / TRANS
PREPARATION
SST
07110±58060Air Conditioner Service Tool SetTRANSMISSION CONTROL CABLE
ASSY
(07117±58060)Refrigerant Drain Service ValveTRANSMISSION CONTROL CABLE
ASSY
(07117±58070)T±JointTRANSMISSION CONTROL CABLE
ASSY
(07117±58080)Quick Disconnect AdapterTRANSMISSION CONTROL CABLE
ASSY
(07117±58090)Quick Disconnect AdapterTRANSMISSION CONTROL CABLE
ASSY
(07117±78050)Refrigerant Charging GaugeTRANSMISSION CONTROL CABLE
ASSY
(07117±88060)Refrigerant Charging HoseTRANSMISSION CONTROL CABLE
ASSY
(07117±88070)Refrigerant Charging HoseTRANSMISSION CONTROL CABLE
ASSY
(07117±88080)Refrigerant Charging HoseTRANSMISSION CONTROL CABLE
ASSY
09023±12700Union Nut Wrench 17mmAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
09308±00010Oil Seal PullerFRONT DIFFERENTIAL OIL
SEAL(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09316±60011Transmission & Transfer Bearing
ReplacerFRONT DIFFERENTIAL OIL
SEAL(U241E)

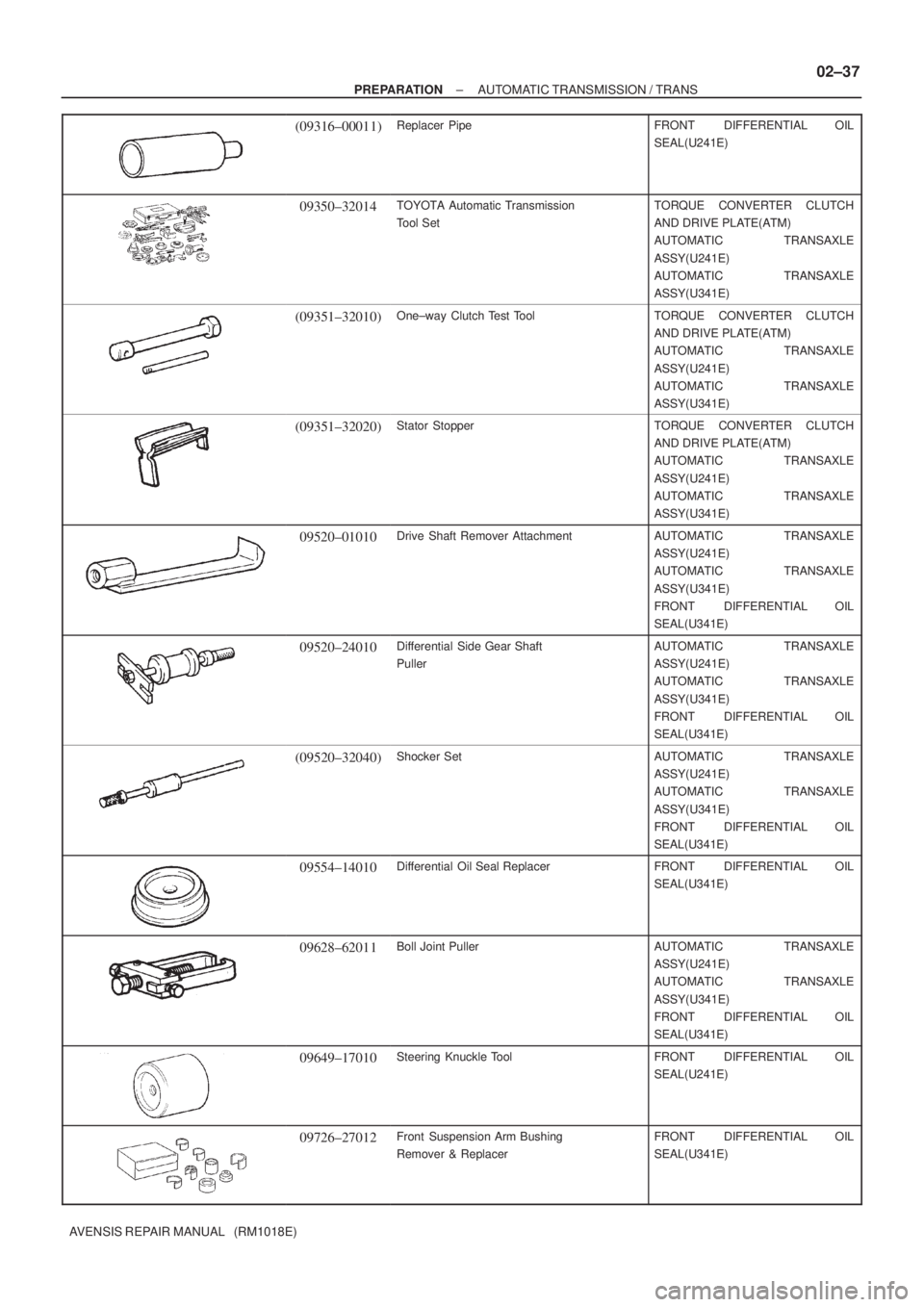

± PREPARATIONAUTOMATIC TRANSMISSION / TRANS
02±37
AVENSIS REPAIR MANUAL (RM1018E)
(09316±00011)Replacer PipeFRONT DIFFERENTIAL OIL
SEAL(U241E)
09350±32014TOYOTA Automatic Transmission
Tool SetTORQUE CONVERTER CLUTCH
AND DRIVE PLATE(ATM)
AUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
(09351±32010)One±way Clutch Test ToolTORQUE CONVERTER CLUTCH
AND DRIVE PLATE(ATM)
AUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
(09351±32020)Stator StopperTORQUE CONVERTER CLUTCH
AND DRIVE PLATE(ATM)
AUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
09520±01010Drive Shaft Remover AttachmentAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09520±24010Differential Side Gear Shaft
PullerAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
(09520±32040)Shocker SetAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09554±14010Differential Oil Seal ReplacerFRONT DIFFERENTIAL OIL
SEAL(U341E)
09628±62011Boll Joint PullerAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09649±17010Steering Knuckle ToolFRONT DIFFERENTIAL OIL
SEAL(U241E)
09726±27012Front Suspension Arm Bushing
Remover & ReplacerFRONT DIFFERENTIAL OIL
SEAL(U341E)

02±38
± PREPARATIONAUTOMATIC TRANSMISSION / TRANS
AVENSIS REPAIR MANUAL (RM1018E)
(09726±02041)ReplacerFRONT DIFFERENTIAL OIL
SEAL(U341E)
09930±00010Drive Shaft Nut ChiselAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09950±70010Handle SetFRONT DIFFERENTIAL OIL
SEAL(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
(09951±07150)Handle 150FRONT DIFFERENTIAL OIL
SEAL(U241E)
(09951±07200)Handle 200FRONT DIFFERENTIAL OIL
SEAL(U341E)

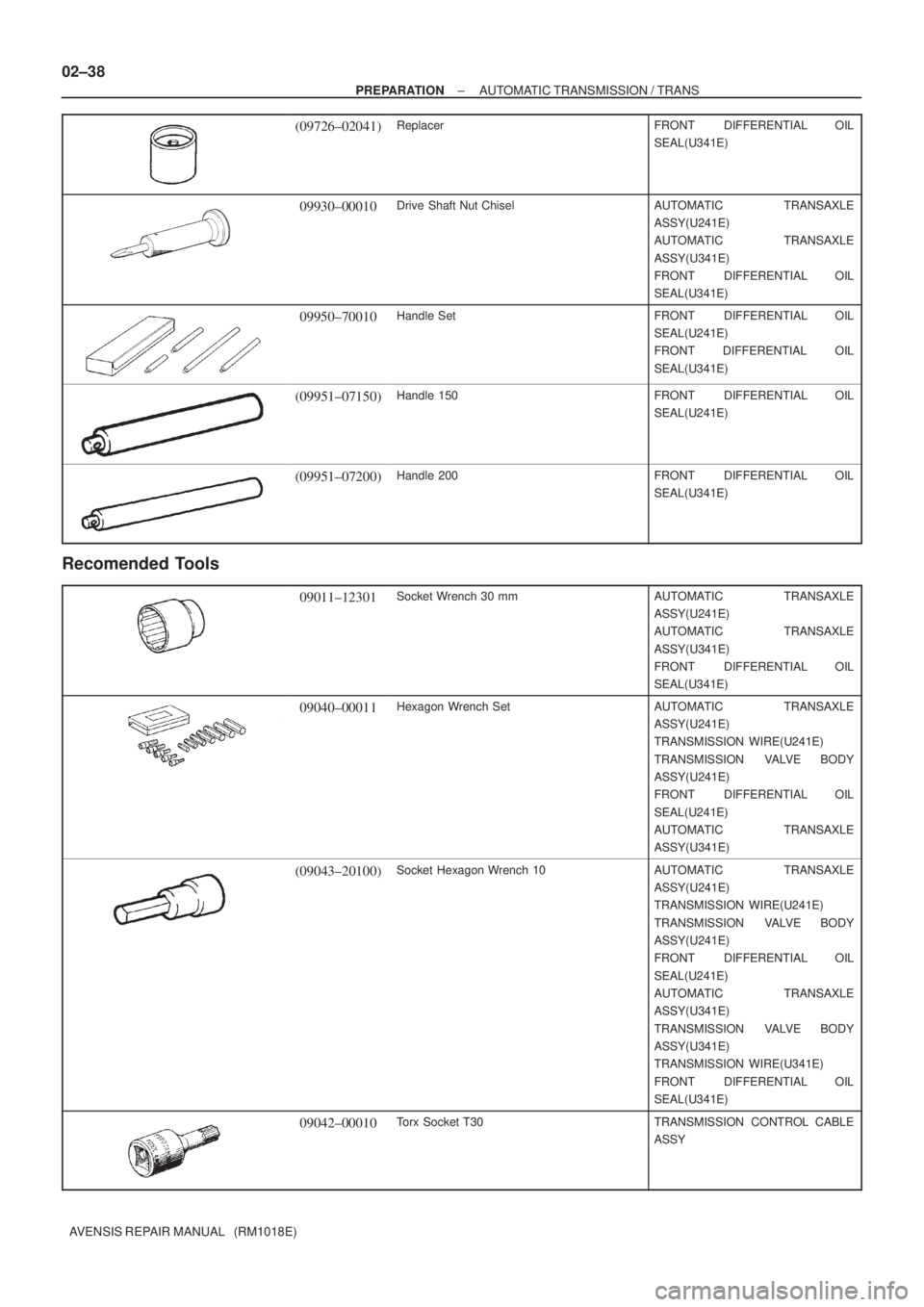

Recomended Tools
09011±12301Socket Wrench 30 mmAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09040±00011Hexagon Wrench SetAUTOMATIC TRANSAXLE
ASSY(U241E)
TRANSMISSION WIRE(U241E)
TRANSMISSION VALVE BODY
ASSY(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
(09043±20100)Socket Hexagon Wrench 10AUTOMATIC TRANSAXLE
ASSY(U241E)
TRANSMISSION WIRE(U241E)
TRANSMISSION VALVE BODY
ASSY(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
TRANSMISSION VALVE BODY
ASSY(U341E)
TRANSMISSION WIRE(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09042±00010Torx Socket T30TRANSMISSION CONTROL CABLE
ASSY

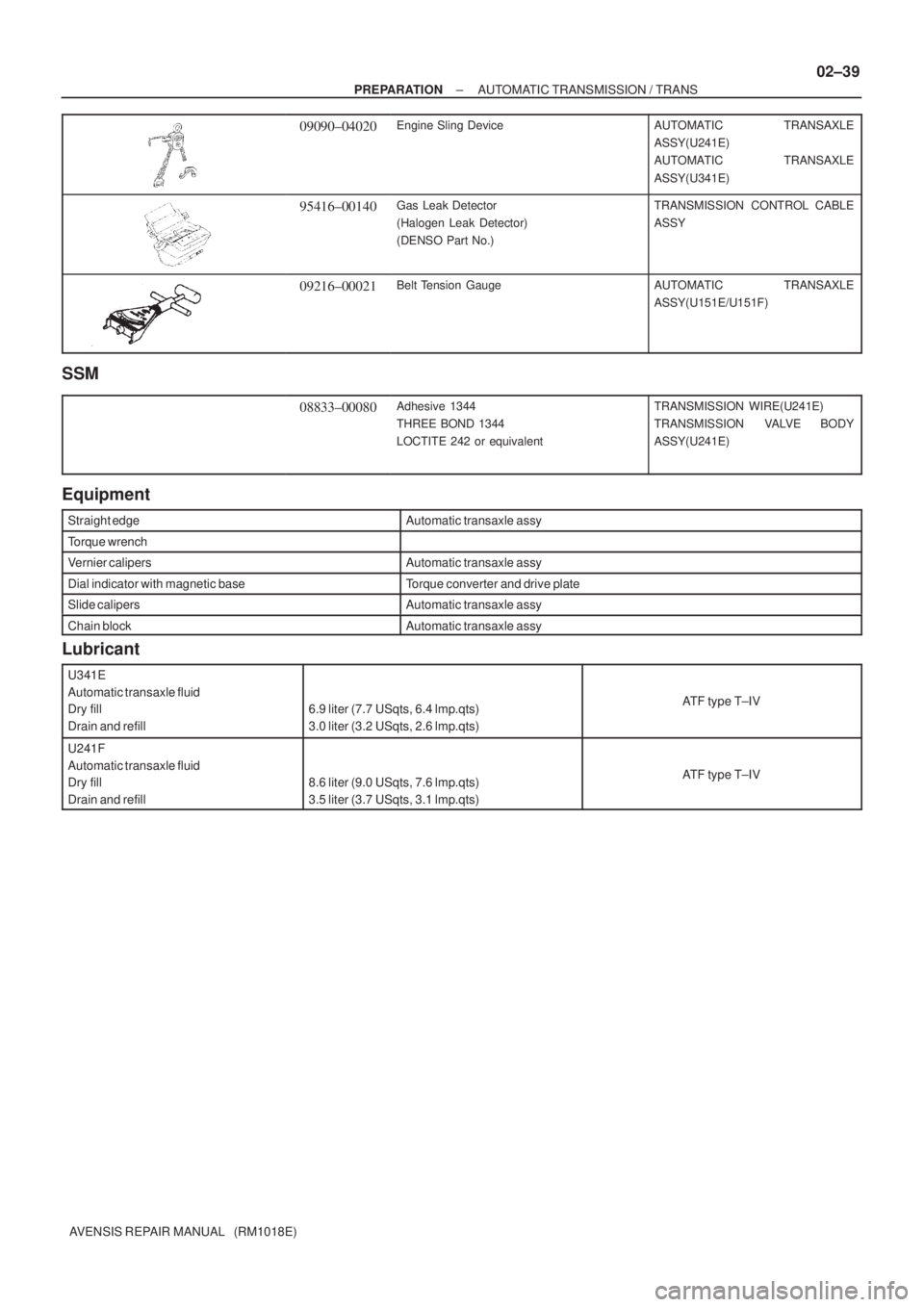

± PREPARATIONAUTOMATIC TRANSMISSION / TRANS
02±39
AVENSIS REPAIR MANUAL (RM1018E)
09090±04020Engine Sling DeviceAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
95416±00140Gas Leak Detector
(Halogen Leak Detector)
(DENSO Part No.)TRANSMISSION CONTROL CABLE
ASSY
09216±00021Belt Tension GaugeAUTOMATIC TRANSAXLE
ASSY(U151E/U151F)
SSM
08833±00080Adhesive 1344
THREE BOND 1344
LOCTITE 242 or equivalentTRANSMISSION WIRE(U241E)
TRANSMISSION VALVE BODY
ASSY(U241E)
Equipment
Straight edgeAutomatic transaxle assy
Torque wrench
Vernier calipersAutomatic transaxle assy
Dial indicator with magnetic baseTorque converter and drive plate
Slide calipersAutomatic transaxle assy
Chain blockAutomatic transaxle assy
Lubricant
U341E
Automatic transaxle fluid
Dry fill
Drain and refill
6.9 liter (7.7 USqts, 6.4 lmp.qts)
3.0 liter (3.2 USqts, 2.6 lmp.qts)ATF type T±IV
U241F
Automatic transaxle fluid
Dry fill
Drain and refill
8.6 liter (9.0 USqts, 7.6 lmp.qts)
3.5 liter (3.7 USqts, 3.1 lmp.qts)ATF type T±IV

022KS±01

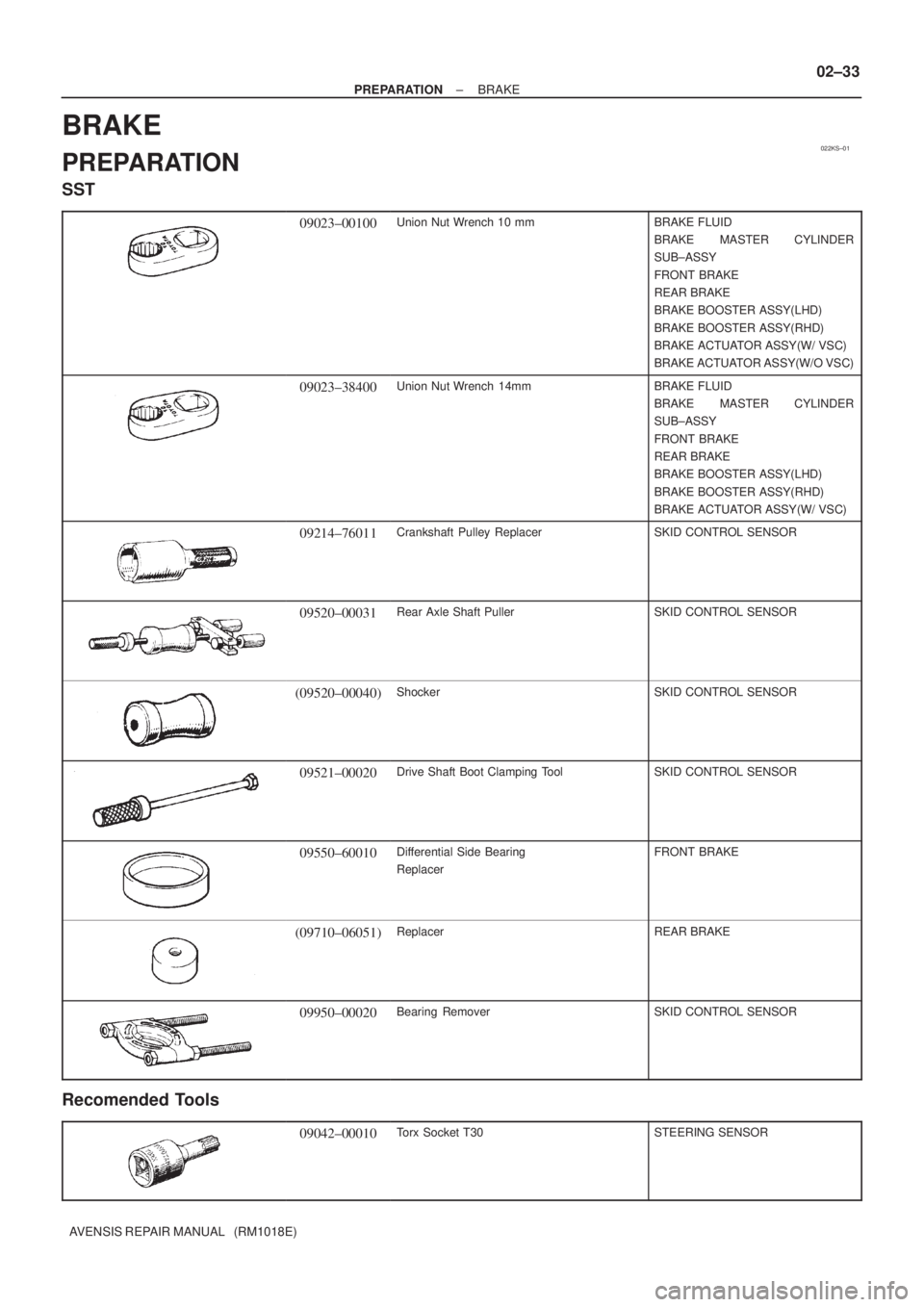

± PREPARATIONBRAKE
02±33
AVENSIS REPAIR MANUAL (RM1018E)
BRAKE
PREPARATION
SST
09023±00100Union Nut Wrench 10 mmBRAKE FLUID
BRAKE MASTER CYLINDER
SUB±ASSY
FRONT BRAKE
REAR BRAKE
BRAKE BOOSTER ASSY(LHD)
BRAKE BOOSTER ASSY(RHD)
BRAKE ACTUATOR ASSY(W/ VSC)
BRAKE ACTUATOR ASSY(W/O VSC)
09023±38400Union Nut Wrench 14mmBRAKE FLUID
BRAKE MASTER CYLINDER
SUB±ASSY
FRONT BRAKE
REAR BRAKE
BRAKE BOOSTER ASSY(LHD)
BRAKE BOOSTER ASSY(RHD)
BRAKE ACTUATOR ASSY(W/ VSC)
09214±76011Crankshaft Pulley ReplacerSKID CONTROL SENSOR
09520±00031Rear Axle Shaft PullerSKID CONTROL SENSOR
(09520±00040)ShockerSKID CONTROL SENSOR
09521±00020Drive Shaft Boot Clamping ToolSKID CONTROL SENSOR
09550±60010Differential Side Bearing
ReplacerFRONT BRAKE
(09710±06051)ReplacerREAR BRAKE
09950±00020Bearing RemoverSKID CONTROL SENSOR
Recomended Tools
09042±00010Torx Socket T30STEERING SENSOR

02±34
± PREPARATIONBRAKE
AVENSIS REPAIR MANUAL (RM1018E)

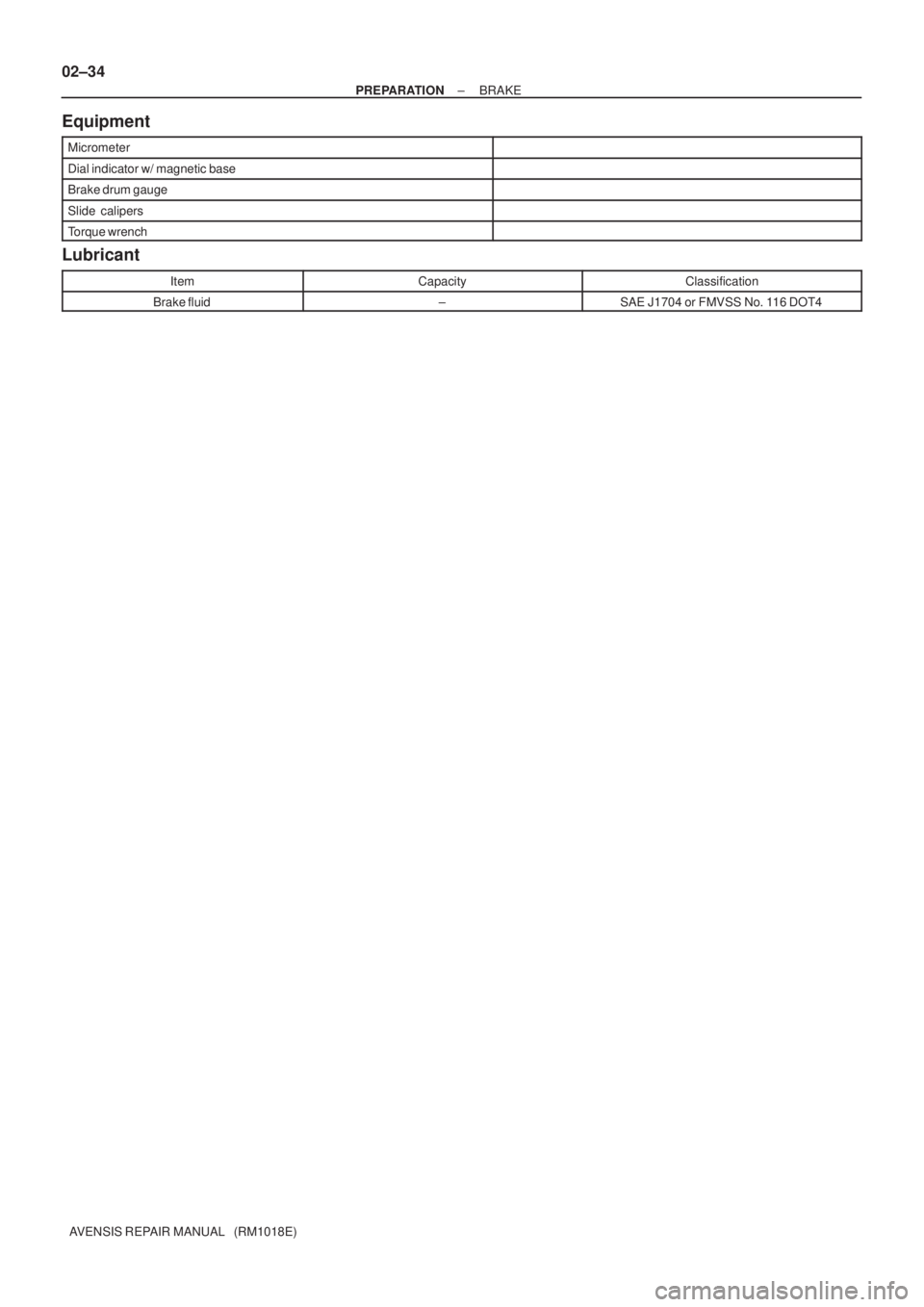

Equipment
Micrometer
Dial indicator w/ magnetic base
Brake drum gauge
Slide calipers
Torque wrench
Lubricant
ItemCapacityClassification
Brake fluid±SAE J1704 or FMVSS No. 116 DOT4

022KZ±01

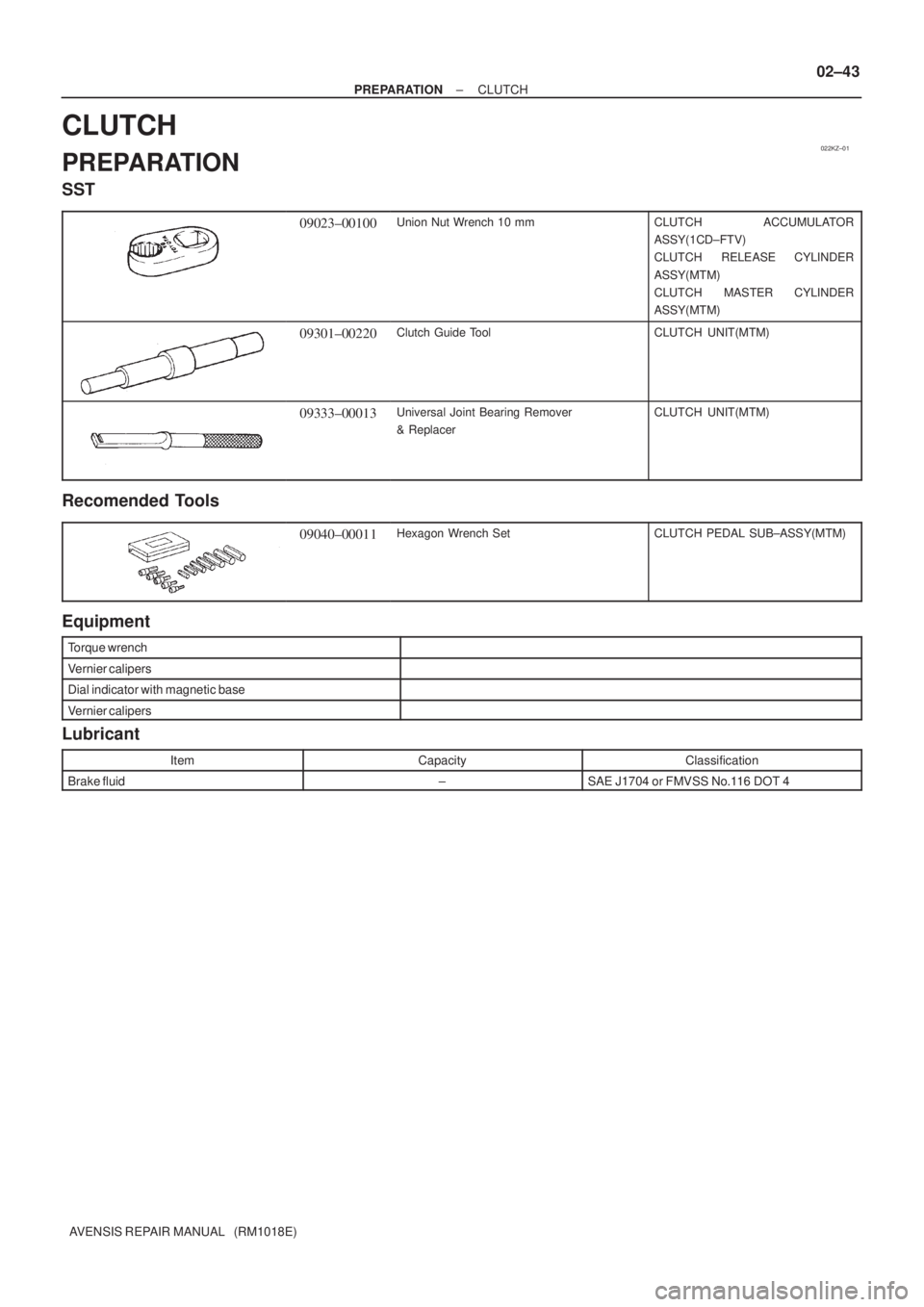

± PREPARATIONCLUTCH
02±43
AVENSIS REPAIR MANUAL (RM1018E)
CLUTCH
PREPARATION
SST
09023±00100Union Nut Wrench 10 mmCLUTCH ACCUMULATOR
ASSY(1CD±FTV)
CLUTCH RELEASE CYLINDER
ASSY(MTM)
CLUTCH MASTER CYLINDER
ASSY(MTM)
09301±00220Clutch Guide ToolCLUTCH UNIT(MTM)
09333±00013Universal Joint Bearing Remover
& ReplacerCLUTCH UNIT(MTM)
Recomended Tools
09040±00011Hexagon Wrench SetCLUTCH PEDAL SUB±ASSY(MTM)
Equipment
Torque wrench
Vernier calipers
Dial indicator with magnetic base
Vernier calipers
Lubricant
ItemCapacityClassification
Brake fluid±SAE J1704 or FMVSS No.116 DOT 4

022L2±01
02±56

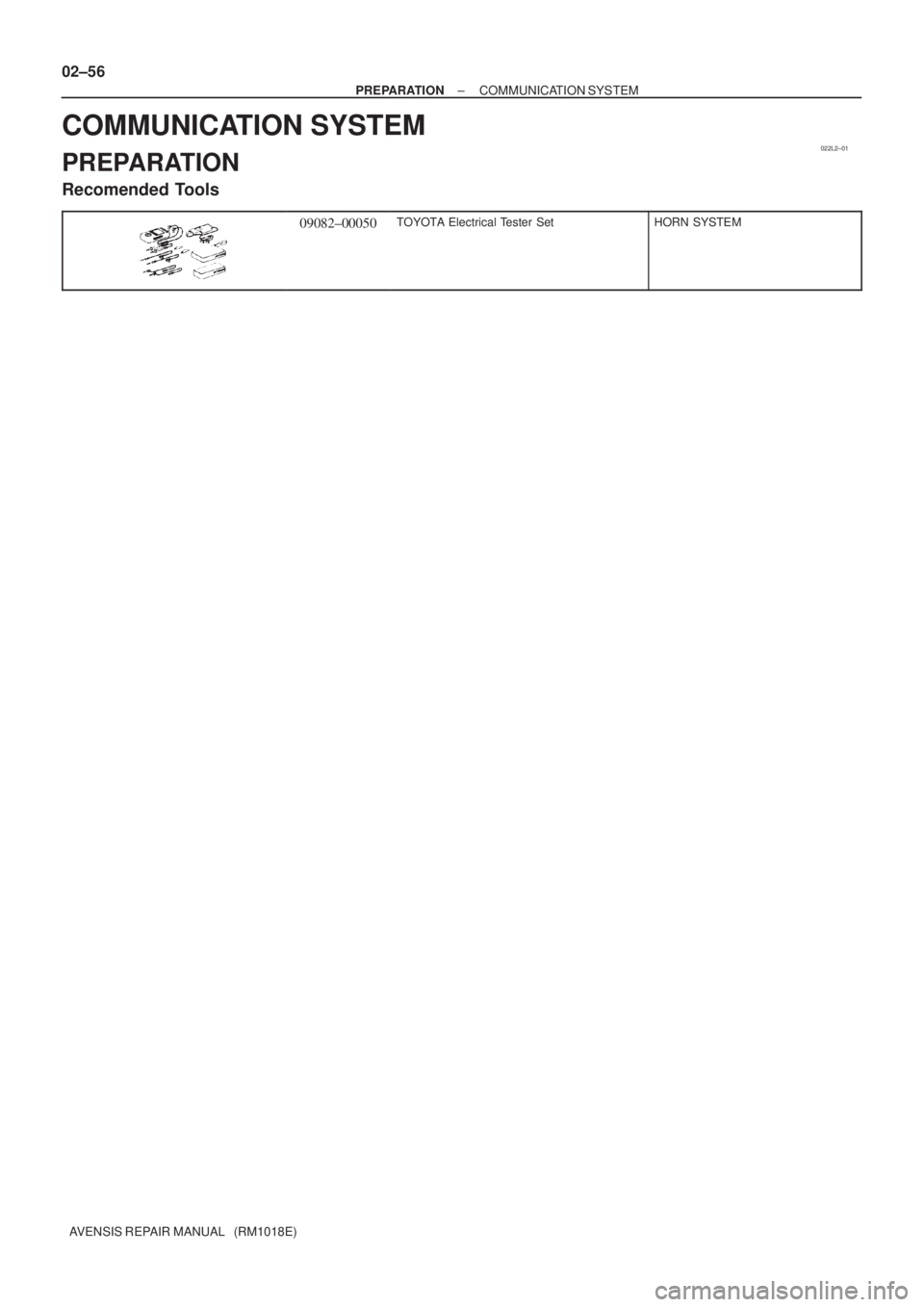

± PREPARATIONCOMMUNICATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
COMMUNICATION SYSTEM
PREPARATION
Recomended Tools
09082±00050TOYOTA Electrical Tester SetHORN SYSTEM

022KA±01
02±18
± PREPARATIONCOOLING
AVENSIS REPAIR MANUAL (RM1018E)
COOLING
PREPARATION
SST
09023±12700Union Nut Wrench 17mmWATER PUMP ASSY(1CD±FTV)
09213±54015Crankshaft Pulley Holding ToolWATER PUMP ASSY(1CD±FTV)
(90105±08076)BoltWATER PUMP ASSY(1CD±FTV)
09249±63010Torque Wrench AdaptorWATER PUMP ASSY(1AZ±FE)
THERMOSTAT(1AZ±FE)
WATER PUMP ASSY(1AZ±FSE)
THERMOSTAT(1AZ±FSE)
09330±00021Companion Flange Holding ToolWATER PUMP ASSY(1CD±FTV)
09950±50013Puller C SetWATER PUMP ASSY(1CD±FTV)
(09951±05010)Hanger 150WATER PUMP ASSY(1CD±FTV)
(09952±05010)Slide ArmWATER PUMP ASSY(1CD±FTV)
(09953±05020)Center Bolt 150WATER PUMP ASSY(1CD±FTV)
(09954±05021)Claw No.2WATER PUMP ASSY(1CD±FTV)
(09954±05031)Claw No.3WATER PUMP ASSY(1CD±FTV)
09960±10010Variable Pin Wrench SetWATER PUMP ASSY(1AZ±FE)
WATER PUMP ASSY(1AZ±FSE)
WATER PUMP ASSY(1CD±FTV)

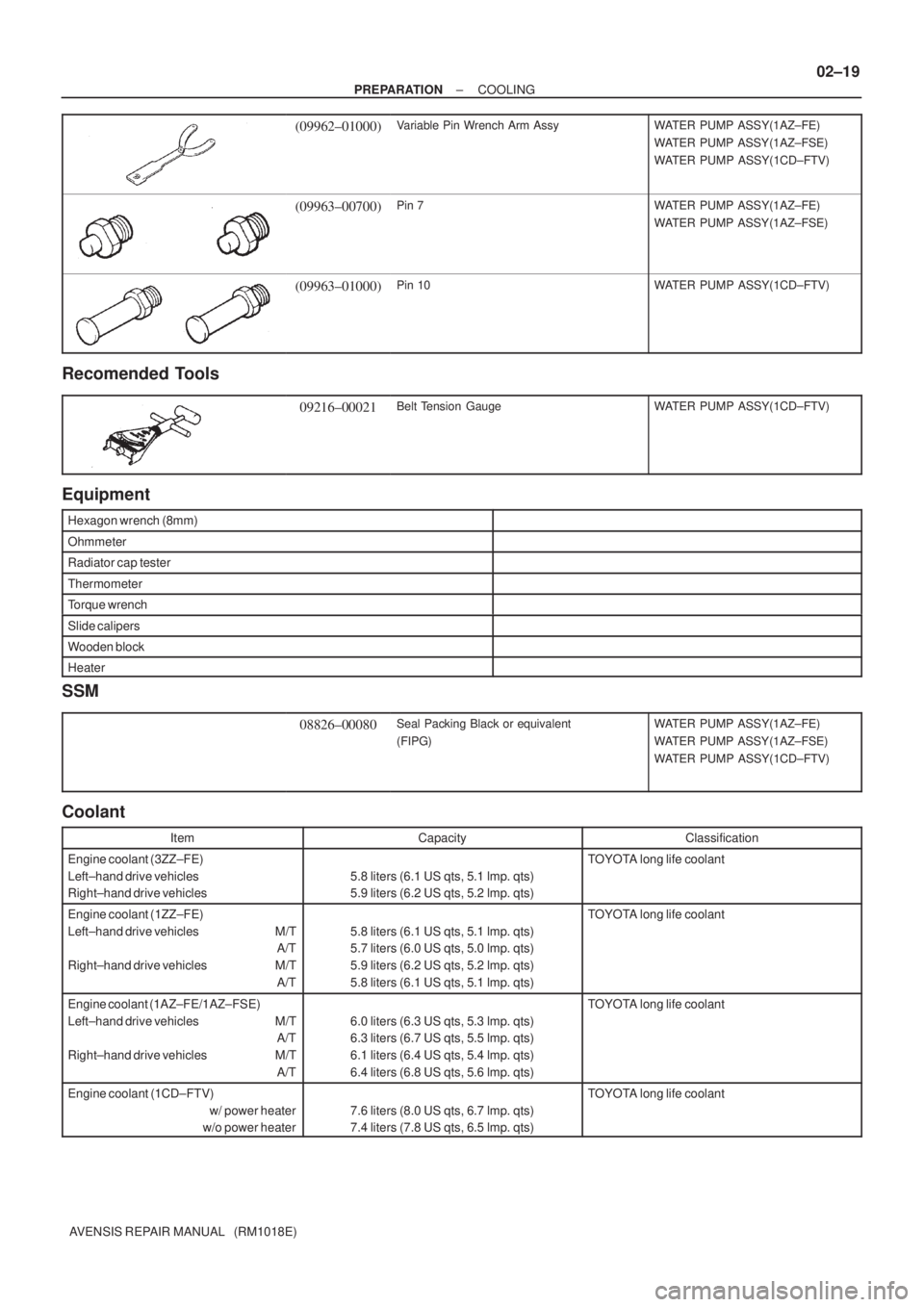

± PREPARATIONCOOLING
02±19
AVENSIS REPAIR MANUAL (RM1018E)
(09962±01000)Variable Pin Wrench Arm AssyWATER PUMP ASSY(1AZ±FE)
WATER PUMP ASSY(1AZ±FSE)
WATER PUMP ASSY(1CD±FTV)
(09963±00700)Pin 7WATER PUMP ASSY(1AZ±FE)
WATER PUMP ASSY(1AZ±FSE)
(09963±01000)Pin 10WATER PUMP ASSY(1CD±FTV)
Recomended Tools
09216±00021Belt Tension GaugeWATER PUMP ASSY(1CD±FTV)
Equipment
Hexagon wrench (8mm)
Ohmmeter
Radiator cap tester
Thermometer
Torque wrench
Slide calipers
Wooden block
Heater
SSM
08826±00080Seal Packing Black or equivalent
(FIPG)WATER PUMP ASSY(1AZ±FE)
WATER PUMP ASSY(1AZ±FSE)
WATER PUMP ASSY(1CD±FTV)
Coolant
ItemCapacityClassification
Engine coolant (3ZZ±FE)
Left±hand drive vehicles
Right±hand drive vehicles
5.8 liters (6.1 US qts, 5.1 lmp. qts)
5.9 liters (6.2 US qts, 5.2 lmp. qts)
TOYOTA long life coolant
Engine coolant (1ZZ±FE)
Left±hand drive vehicles M/T
A/T
Right±hand drive vehicles M/T
A/T
5.8 liters (6.1 US qts, 5.1 lmp. qts)
5.7 liters (6.0 US qts, 5.0 lmp. qts)
5.9 liters (6.2 US qts, 5.2 lmp. qts)
5.8 liters (6.1 US qts, 5.1 lmp. qts)
TOYOTA long life coolant
Engine coolant (1AZ±FE/1AZ±FSE)
Left±hand drive vehicles M/T
A/T
Right±hand drive vehicles M/T
A/T
6.0 liters (6.3 US qts, 5.3 lmp. qts)
6.3 liters (6.7 US qts, 5.5 lmp. qts)
6.1 liters (6.4 US qts, 5.4 lmp. qts)
6.4 liters (6.8 US qts, 5.6 lmp. qts)
TOYOTA long life coolant
Engine coolant (1CD±FTV)
w/ power heater
w/o power heater
7.6 liters (8.0 US qts, 6.7 lmp. qts)
7.4 liters (7.8 US qts, 6.5 lmp. qts)
TOYOTA long life coolant
