TOYOTA AVENSIS 2005 Service Repair Manual

±
DIAGNOSTICS POWER DOOR LOCK CONTROL SYSTEM
05±1549
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
1 INSPECT FUSE (ECU±B 2, DOOR)
(a)Inspect the ECU±B 2 and DOOR fuses (See page 68±1).
NG REPLACE FUSE
OK
2 PERFORM ACTIVE TEST USING HAND±HELD TESTER
(a) Select the ACTIVE TEST, use the hand±held tester to generate a control command and then check that the power door lock operates.
HINT:
During the ACTIVE TEST, the hand±held tester sends a signal to the body ECU to drive all th\
e power door
lock motors. If the power door lock operates, the power door lock motor itse\
lf and the wire harness between
the power door lock motor and body ECU are considered to be functioning nor\
mally. Standard (Multiplex network body ECU):
ItemTest DetailsDiagnostic Note
DOOR LOCKOperate door lock motor for all doors
OFF/LOCK/UNLOCKAll doors are closed
NG REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY (INTEGRATION RELAY)
OK
3 CHECK MASTER SWITCH OR KEY CYLINDER OPERATION
(a) When manual door lock/unlock operation via the master switch cannot be p\
erformed, proceed to A.
(b) When manual door lock/unlock operation interlocked with the driver side door\
lock key cylinder cannot be performed, proceed to B.
B Go to step 6
A

B68460
LOCK
UNLOCK
Door Control Switch
123 6 745 8918 19 22 2320 21 24
10 11 14 15
12 13 16 17
05±1550
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

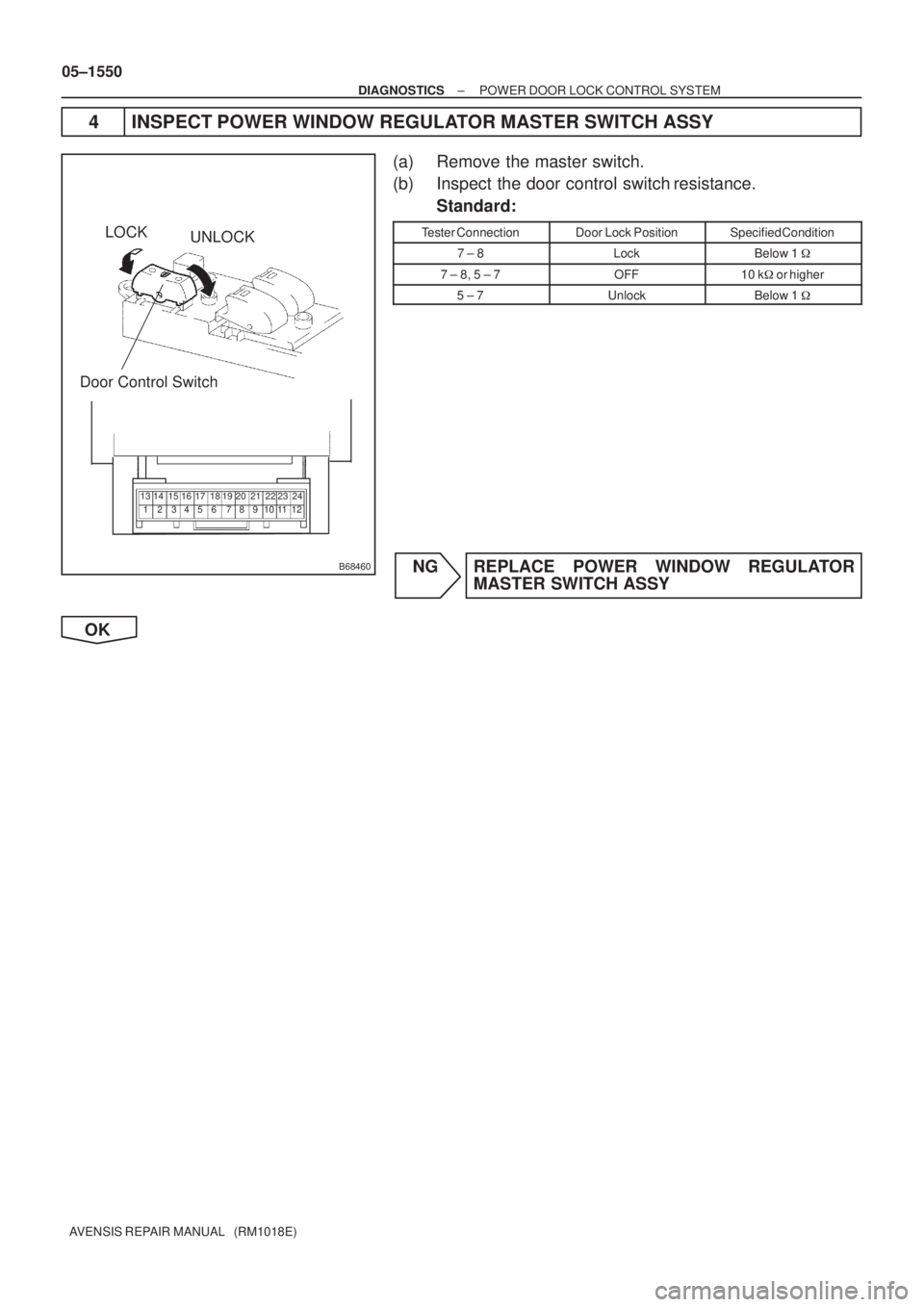

4 INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY
(a) Remove the master switch.
(b) Inspect the door control switch resistance.
Standard:
Tester ConnectionDoor Lock PositionSpecified Condition
7 ± 8LockBelow 1
7 ± 8, 5 ± 7OFF10 kor higher
5 ± 7UnlockBelow 1
NG REPLACE POWER WINDOW REGULATOR
MASTER SWITCH ASSY
OK

17
34
16
33
1532
14 31
13 30
1229
11 2 8
1027
926
825
724
623
522
4
21
320
2
19
118
B70497
DA
Instrument Panel J/B Assy Wire Harness Side
D17
Power Window Regulator
Master Switch Assy
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
05±1551
AVENSIS REPAIR MANUAL (RM1018E)

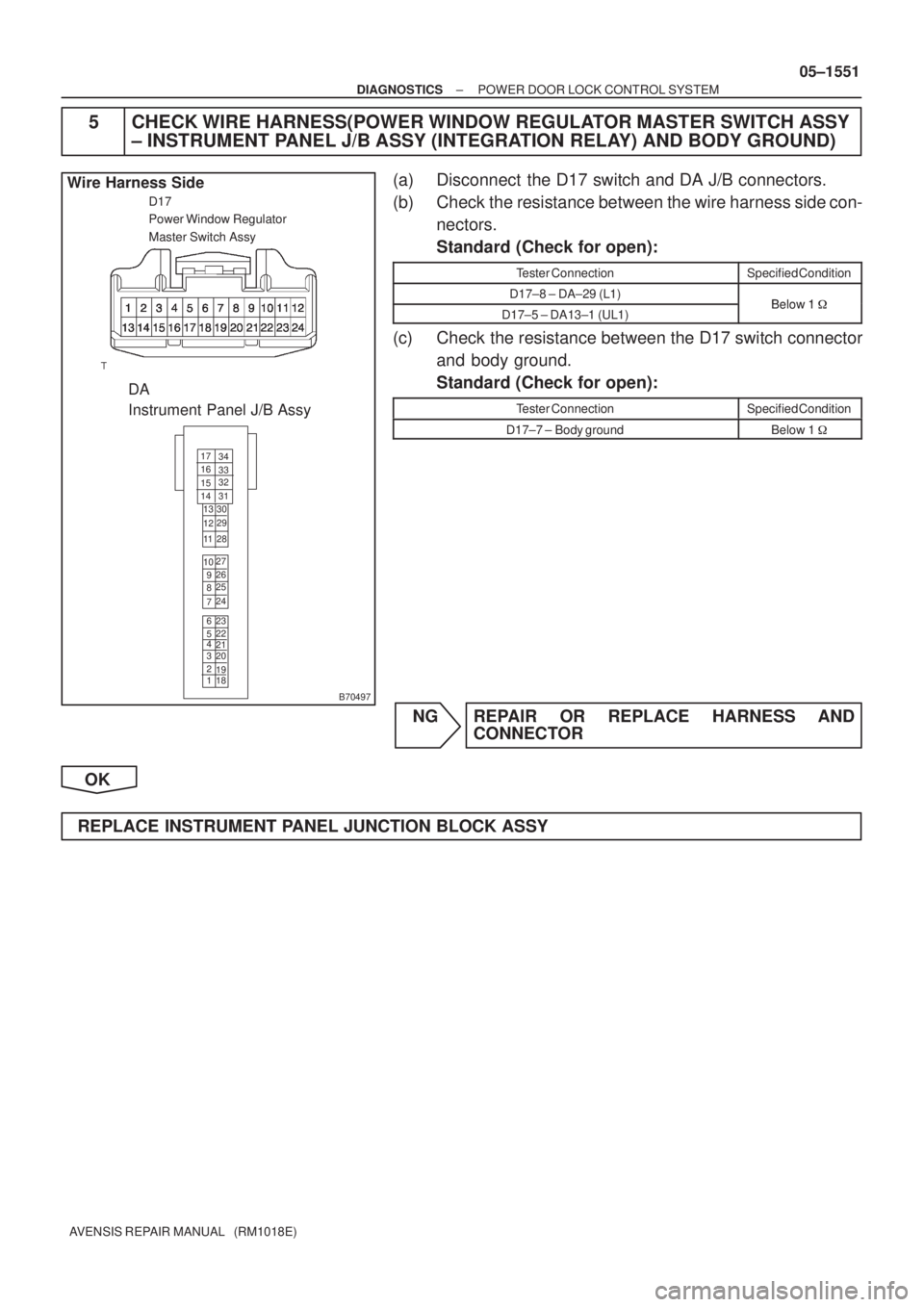

5 CHECK WIRE HARNESS(POWER WINDOW REGULATOR MASTER SWITCH ASSY
± INSTRUMENT PANEL J/B ASSY (INTEGRATION RELAY) AND BODY GROUND)
(a) Disconnect the D17 switch and DA J/B connectors.
(b) Check the resistance between the wire harness side con-
nectors.
Standard (Check for open):
Tester ConnectionSpecified Condition
D17±8 ± DA±29 (L1)Below 1
D17±5 ± DA13±1 (UL1)Below 1

(c) Check the resistance between the D17 switch connector
and body ground.
Standard (Check for open):
Tester ConnectionSpecified Condition
D17±7 ± Body groundBelow 1

NG REPAIR OR REPLACE HARNESS AND
CONNECTOR
OK
REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY

B65427
Unlock
Lock LHD models
B65428
UnlockLock LHD models 05±1552
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

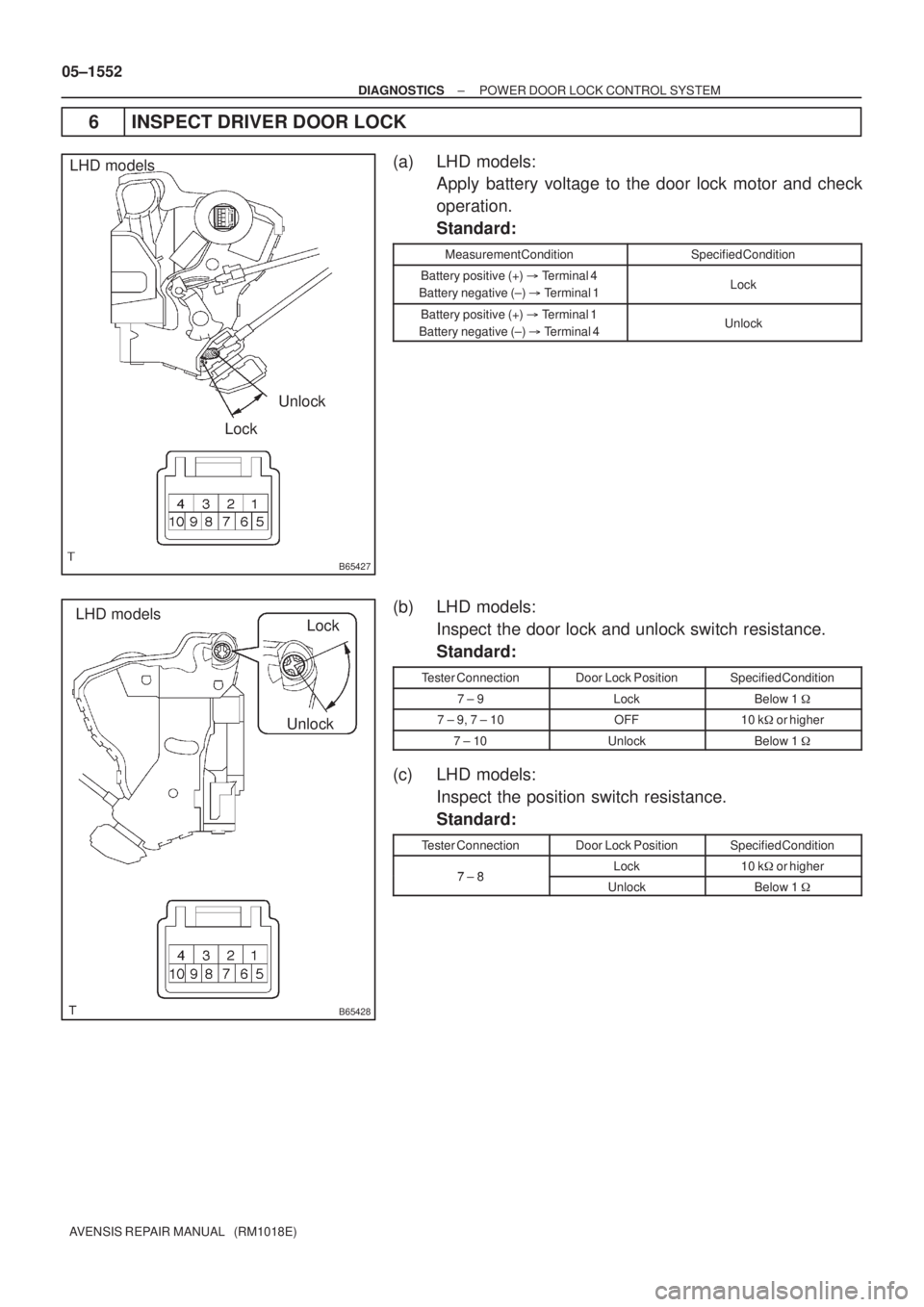

6 INSPECT DRIVER DOOR LOCK
(a) LHD models:
Apply battery voltage to the door lock motor and check
operation.
Standard:
Measurement ConditionSpecified Condition
Battery positive (+)  Terminal 4
Battery negative (±)  Terminal 1Lock
Battery positive (+)  Terminal 1
Battery negative (±)  Terminal 4Unlock
(b) LHD models:
Inspect the door lock and unlock switch resistance.
Standard:
Tester ConnectionDoor Lock PositionSpecified Condition
7 ± 9LockBelow 1
7 ± 9, 7 ± 10OFF10 kor higher
7 ± 10UnlockBelow 1
(c) LHD models:
Inspect the position switch resistance.
Standard:
Tester ConnectionDoor Lock PositionSpecified Condition
78Lock10 kor higher7 ± 8UnlockBelow 1

B65429
Unlock
Lock RHD models
B65430
Unlock
LockRHD models
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
05±1553
AVENSIS REPAIR MANUAL (RM1018E)

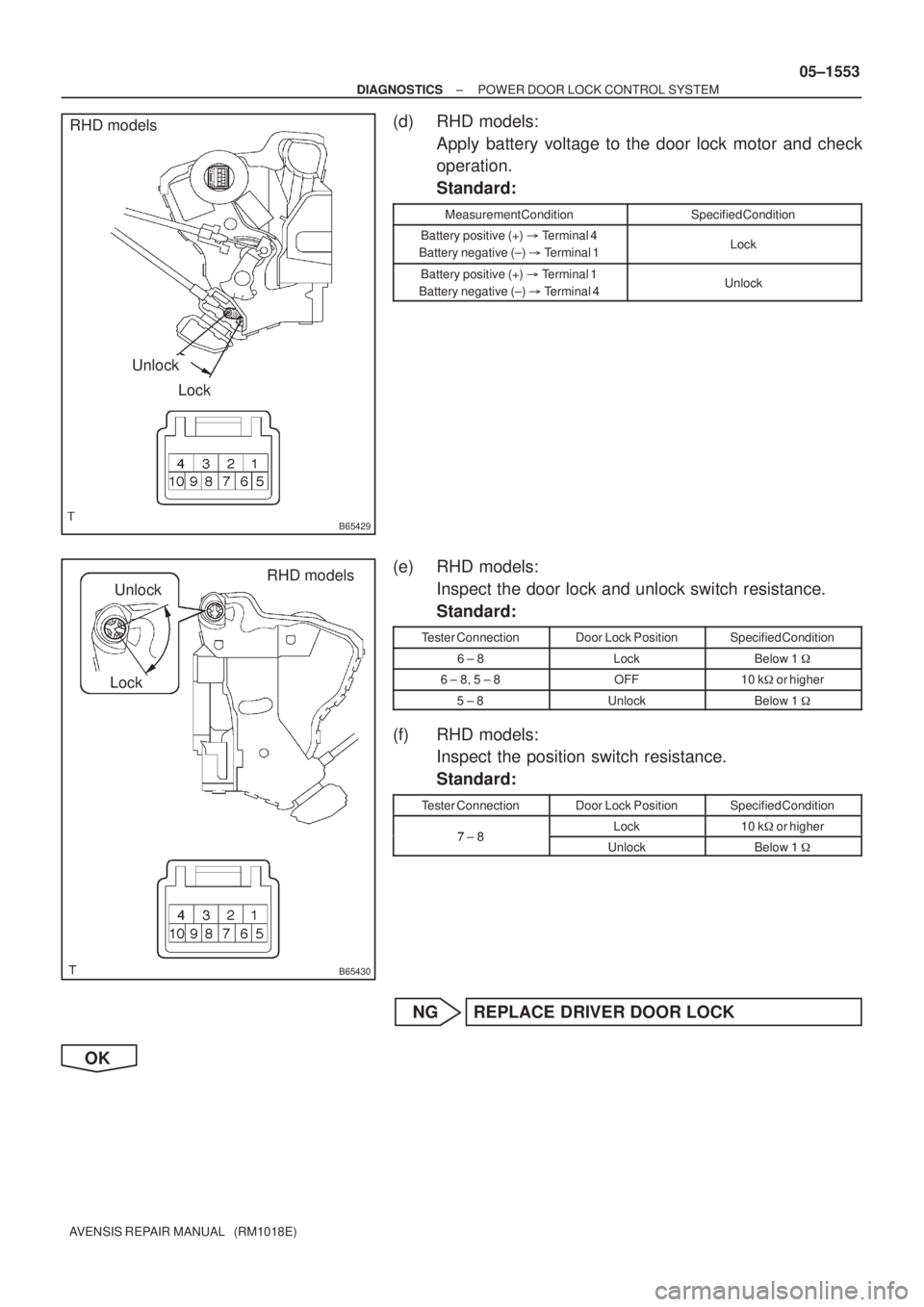

(d) RHD models:
Apply battery voltage to the door lock motor and check
operation.
Standard:
Measurement ConditionSpecified Condition
Battery positive (+)  Terminal 4
Battery negative (±)  Terminal 1Lock
Battery positive (+)  Terminal 1
Battery negative (±)  Terminal 4Unlock
(e) RHD models:
Inspect the door lock and unlock switch resistance.
Standard:
Tester ConnectionDoor Lock PositionSpecified Condition
6 ± 8LockBelow 1
6 ± 8, 5 ± 8OFF10 kor higher
5 ± 8UnlockBelow 1
(f) RHD models:
Inspect the position switch resistance.
Standard:
Tester ConnectionDoor Lock PositionSpecified Condition
78Lock10 kor higher7 ± 8UnlockBelow 1
NG REPLACE DRIVER DOOR LOCK
OK

B70498
D13*1, D14*2
Driver Side Door Lock Wire Harness Side
I14
Instrument Panel J/B Assy
*
1: w/o Double Lock
*2: w/ Double LockDB
Instrument Panel J/B Assy
DJ
Instrument Panel J/B Assy
56 12
783
49
05±1554
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

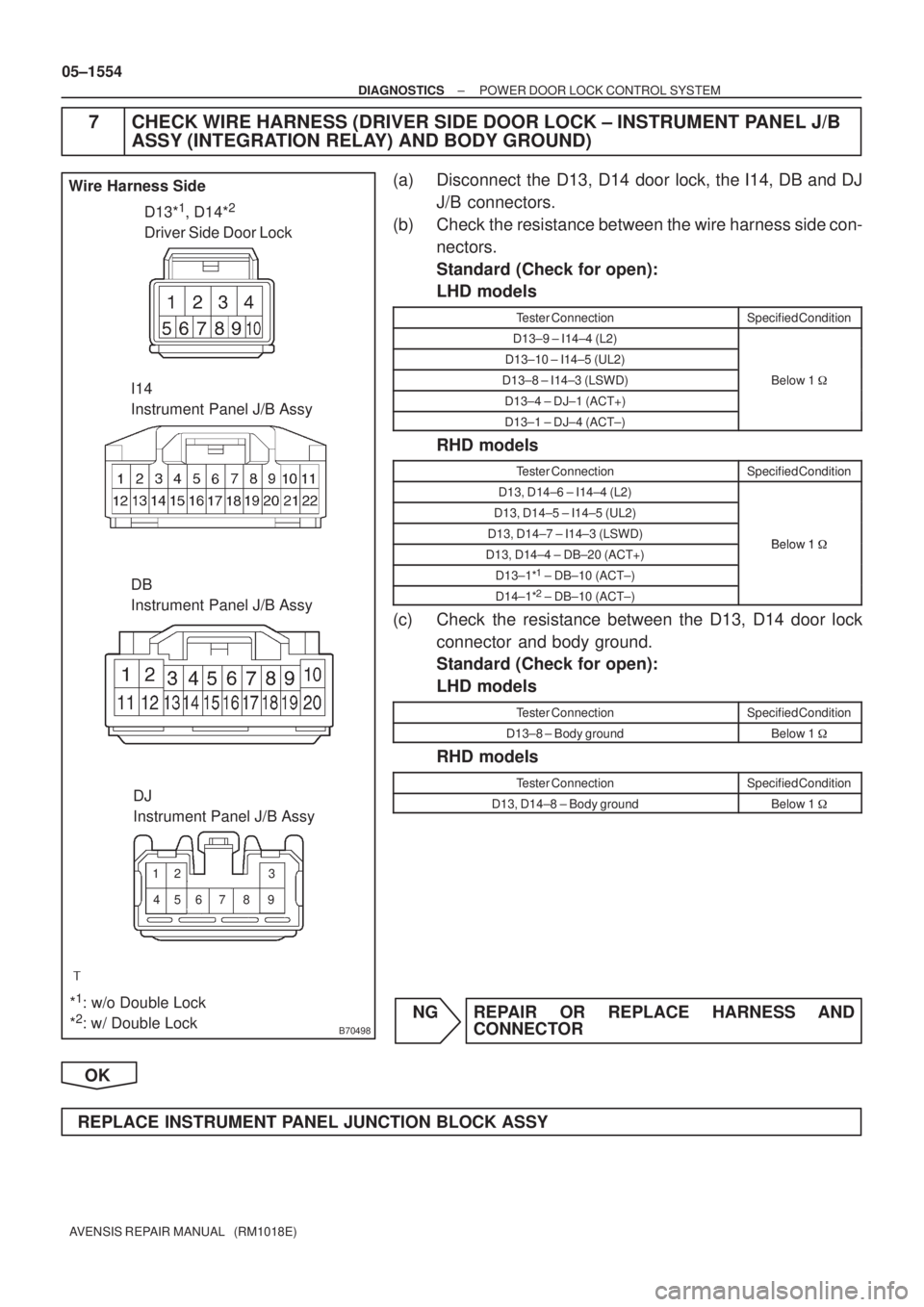

7 CHECK WIRE HARNESS (DRIVER SIDE DOOR LOCK ± INSTRUMENT PANEL J/B
ASSY (INTEGRATION RELAY) AND BODY GROUND)
(a) Disconnect the D13, D14 door lock, the I14, DB and DJ
J/B connectors.
(b) Check the resistance between the wire harness side con-
nectors.
Standard (Check for open):
LHD models
Tester ConnectionSpecified Condition
D13±9 ± I14±4 (L2)
D13±10 ± I14±5 (UL2)
D13±8 ± I14±3 (LSWD)Below 1

D13±4 ± DJ±1 (ACT+)
D13±1 ± DJ±4 (ACT±)
RHD models
Tester ConnectionSpecified Condition
D13, D14±6 ± I14±4 (L2)
D13, D14±5 ± I14±5 (UL2)
D13, D14±7 ± I14±3 (LSWD)Below 1
D13, D14±4 ± DB±20 (ACT+)Below 1

D13±1*1 ± DB±10 (ACT±)
D14±1*2 ± DB±10 (ACT±)
(c) Check the resistance between the D13, D14 door lock
connector and body ground.
Standard (Check for open):
LHD models
Tester ConnectionSpecified Condition
D13±8 ± Body groundBelow 1

RHD models
Tester ConnectionSpecified Condition
D13, D14±8 ± Body groundBelow 1

NG REPAIR OR REPLACE HARNESS AND
CONNECTOR
OK
REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY

05C8A±01
±
DIAGNOSTICS POWER DOOR LOCK CONTROL SYSTEM
05±1545
AVENSIS REPAIR MANUAL (RM1018E)

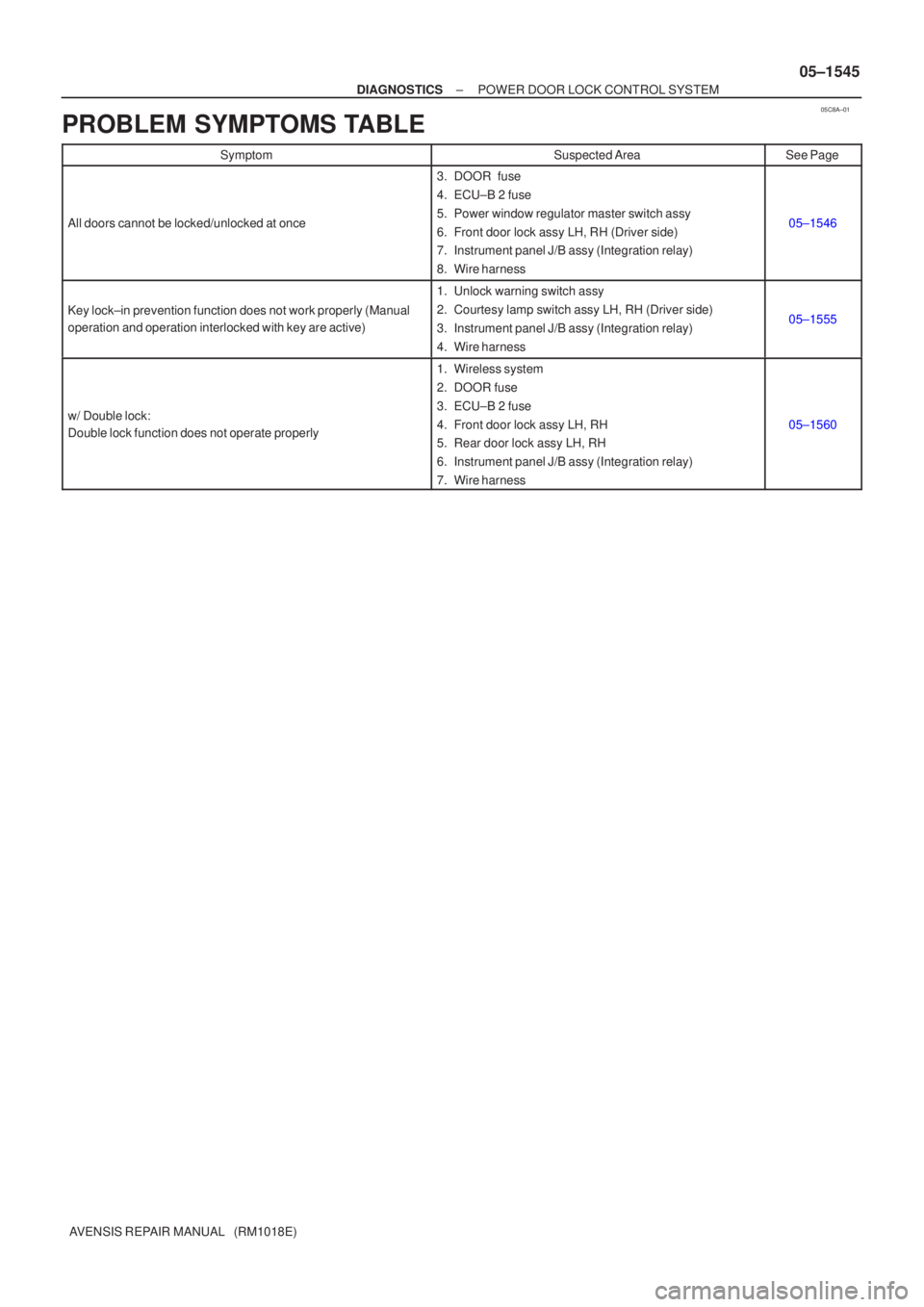

PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
All doors cannot be locked/unlocked at once
3. DOOR fuse
4. ECU±B 2 fuse
5. Power window regulator master switch assy
6. Front door lock assy LH, RH (Driver side)
7. Instrument panel J/B assy (Integration relay)
8. Wire harness
05±1546
Key lock±in prevention function does not work properly (Manual
operation and operation interlocked with key are active)
1. Unlock warning switch assy
2. Courtesy lamp switch assy LH, RH (Driver side)
3. Instrument panel J/B assy (Integration relay)
4. Wire harness
05±1555
w/ Double lock:
Double lock function does not operate properly
1. Wireless system
2. DOOR fuse
3. ECU±B 2 fuse
4. Front door lock assy LH, RH
5. Rear door lock assy LH, RH
6. Instrument panel J/B assy (Integration relay)
7. Wire harness
05±1560

05C89±01
B70502
DADBDM
Vehicle Front Side Vehicle Rear Side
DB
DA
DHDC
I14
DN
DC
DH
I14
DM
DN
Integration Relay
DJ
DJ
05±1542
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

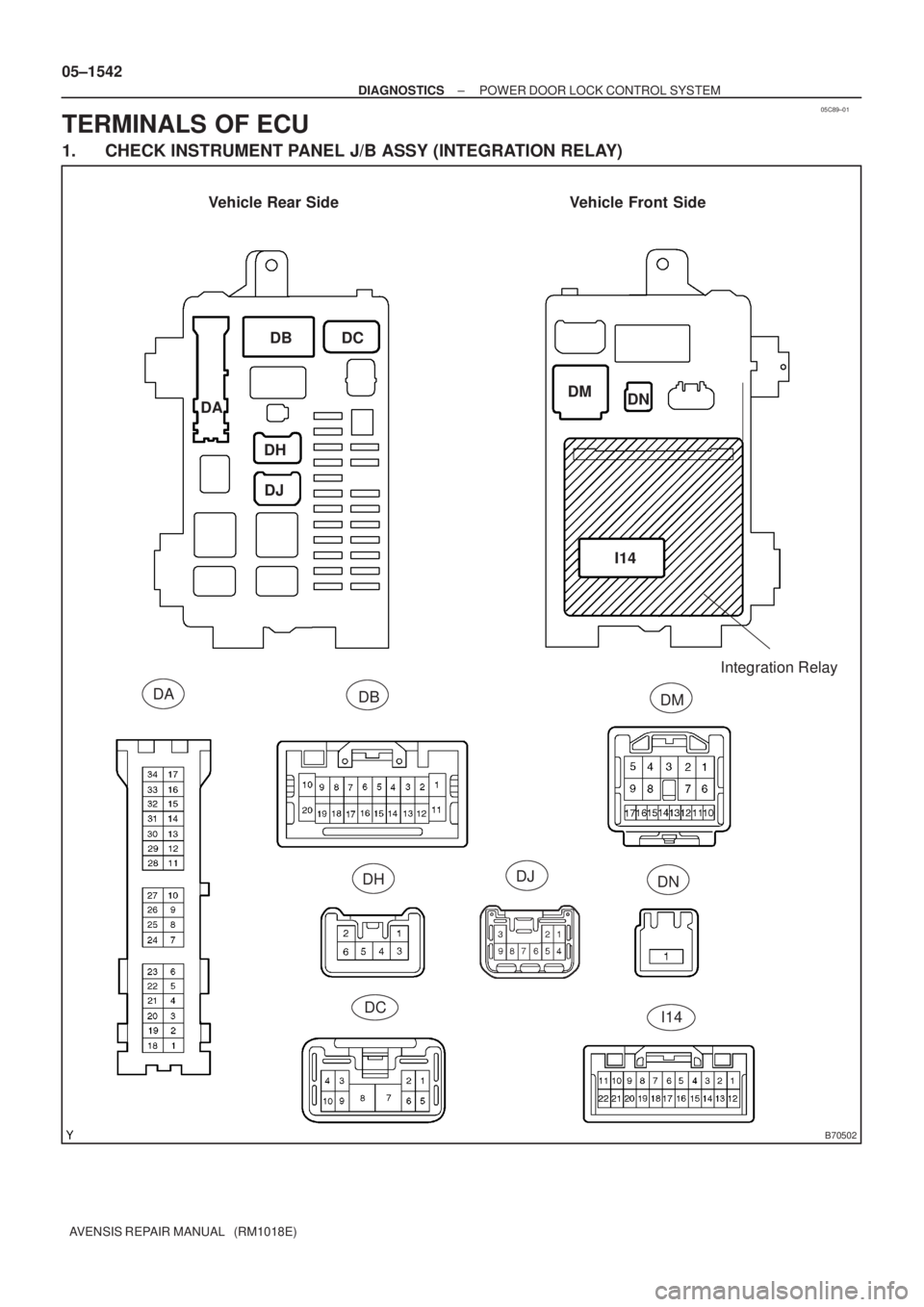

TERMINALS OF ECU
1. CHECK INSTRUMENT PANEL J/B ASSY (INTEGRATION RELAY)

± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
05±1543
AVENSIS REPAIR MANUAL (RM1018E)

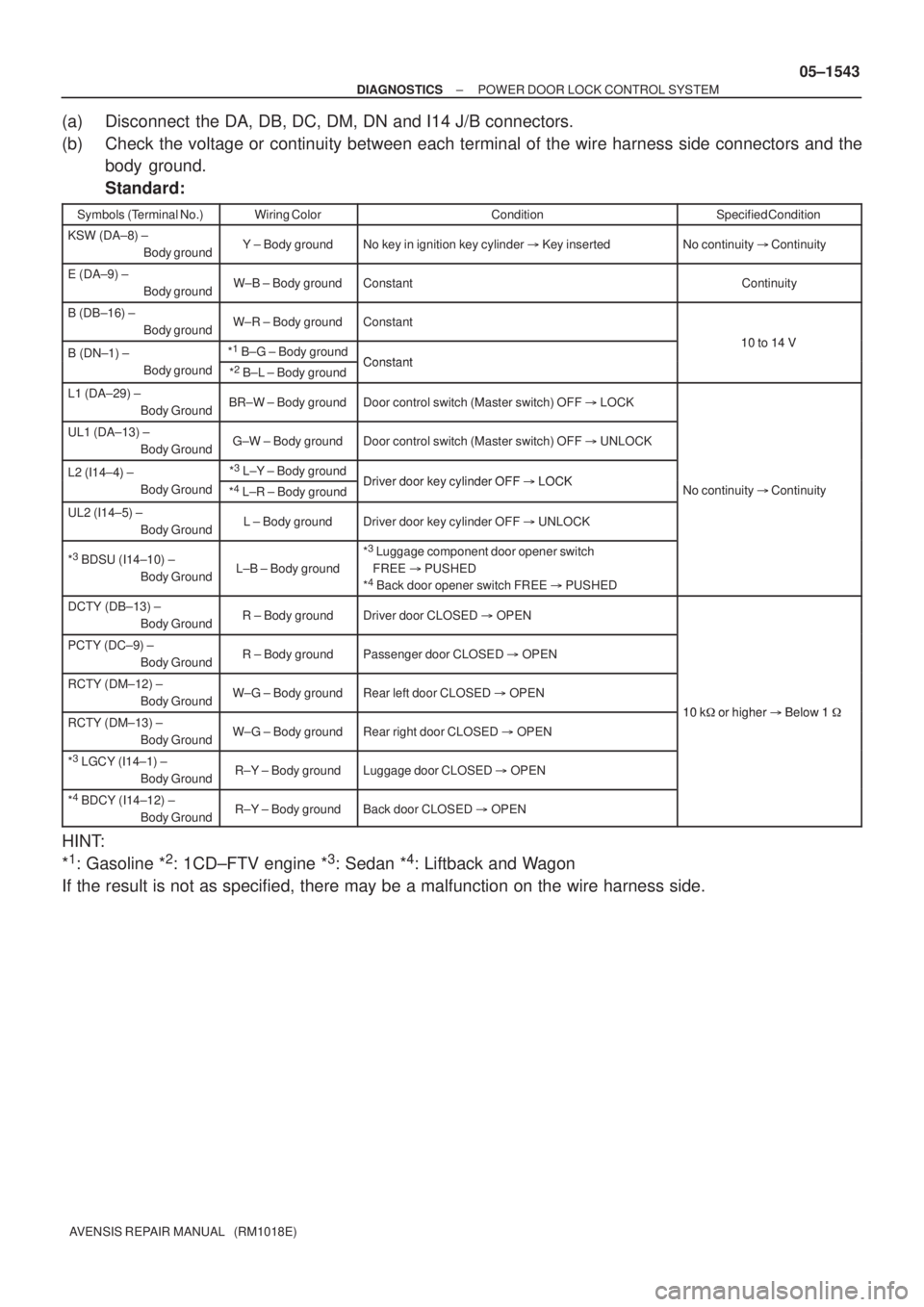

(a) Disconnect the DA, DB, DC, DM, DN and I14 J/B connectors.
(b) Check the voltage or continuity between each terminal of the wire harness side connectors and the
body ground.
Standard:
Symbols (Terminal No.)Wiring ColorConditionSpecified Condition
KSW (DA±8) ±
Body groundY ± Body groundNo key in ignition key cylinder
Key insertedNo continuity
Continuity
E (DA±9) ±
Body groundW±B ± Body groundConstantContinuity
B (DB±16) ±
Body groundW±R ± Body groundConstant
10 to 14 VB (DN±1) ± *1
B±G ± Body groundConstant
10 to 14 VB (DN 1)
Body ground
*2
B±L ± Body groundConstant
L1 (DA±29) ±
Body GroundBR±W ± Body groundDoor control switch (Master switch) OFF
LOCK
UL1 (DA±13) ±
Body GroundG±W ± Body groundDoor control switch (Master switch) OFF
UNLOCK
L2 (I14±4) ± *3
L±Y ± Body groundDriver door key cylinder OFF
LOCKL2 (I14 4)
Body Ground
*4
L±R ± Body groundDriver door key cylinder OFF
LOCKNo continuity
Continuity
UL2 (I14±5) ±
Body GroundL ± Body groundDriver door key cylinder OFF
UNLOCK
yy
*3 BDSU (I14±10) ±
Body GroundL±B ± Body ground
*3 Luggage component door opener switch
FREE
PUSHED
*
4 Back door opener switch FREE
PUSHED
DCTY (DB±13) ±
Body GroundR ± Body groundDriver door CLOSED
OPEN
PCTY (DC±9) ±
Body GroundR ± Body groundPassenger door CLOSED
OPEN
RCTY (DM±12) ±
Body GroundW±G ± Body groundRear left door CLOSED
OPEN
10 k
or higher
Below 1
RCTY (DM±13) ±
Body GroundW±G ± Body groundRear right door CLOSED
OPEN
10 k
or higher
Below 1

*3 LGCY (I14±1) ±
Body GroundR±Y ± Body groundLuggage door CLOSED
OPEN
*4 BDCY (I14±12) ±
Body GroundR±Y ± Body groundBack door CLOSED
OPEN
HINT:
*
1: Gasoline *2: 1CD±FTV engine *3: Sedan *4: Liftback and Wagon
If the result is not as specified, there may be a malfunction on the wire harness side.

05±1544
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

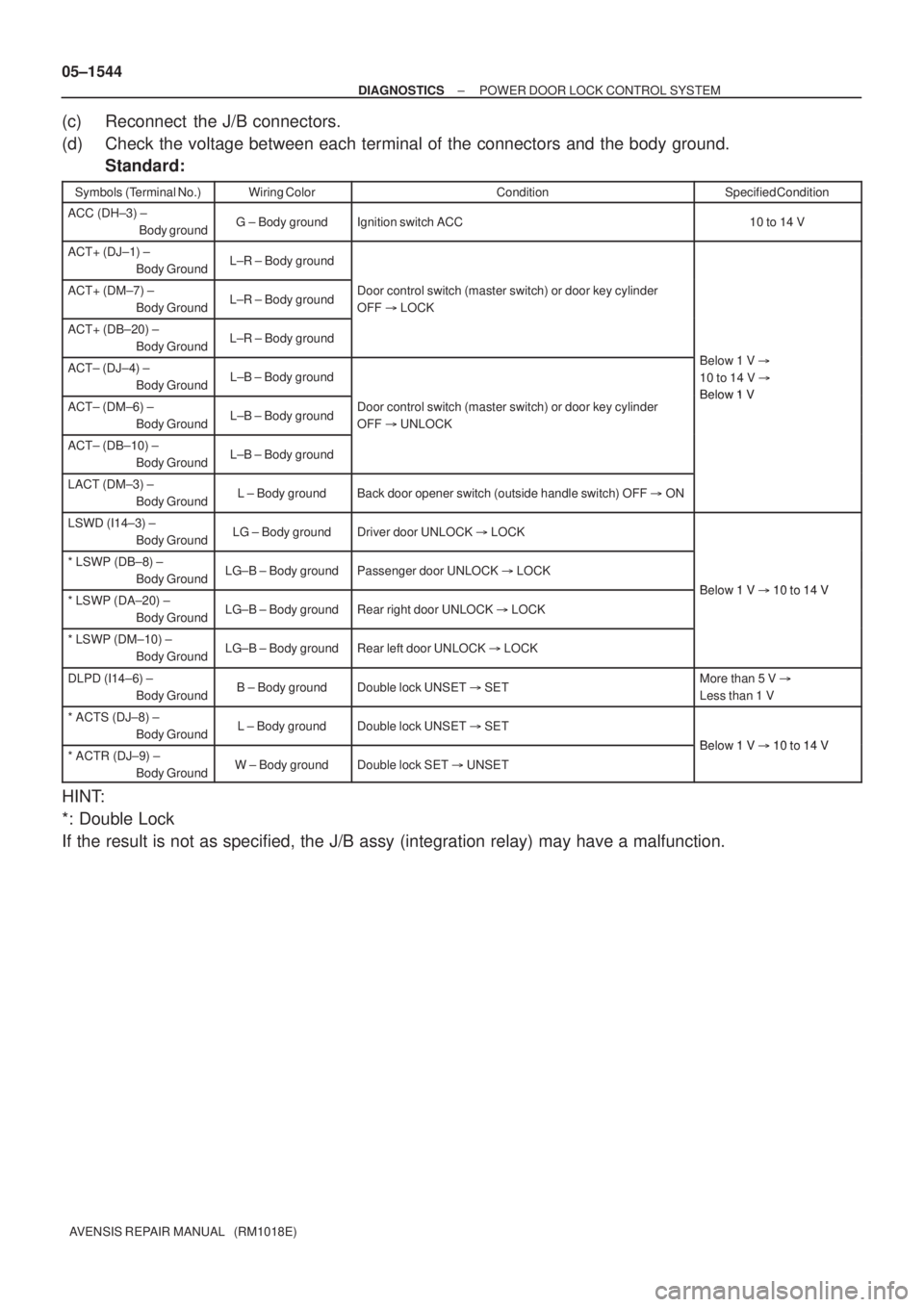

(c) Reconnect the J/B connectors.
(d) Check the voltage between each terminal of the connectors and the body ground.
Standard:
Symbols (Terminal No.)Wiring ColorConditionSpecified Condition
ACC (DH±3) ±
Body groundG ± Body groundIgnition switch ACC10 to 14 V
ACT+ (DJ±1) ±
Body GroundL±R ± Body ground
ACT+ (DM±7) ±
Body GroundL±R ± Body groundDoor control switch (master switch) or door key cylinder
OFF  LOCK
ACT+ (DB±20) ±
Body GroundL±R ± Body ground
Bl 1VACT± (DJ±4) ±
Body GroundL±B ± Body ground
Below 1 V
10 to 14 V
Below 1 VACT± (DM±6) ±
Body GroundL±B ± Body groundDoor control switch (master switch) or door key cylinder
OFF  UNLOCKBelow 1 V
ACT± (DB±10) ±
Body GroundL±B ± Body ground
LACT (DM±3) ±
Body GroundL ± Body groundBack door opener switch (outside handle switch) OFF  ON
LSWD (I14±3) ±
Body GroundLG ± Body groundDriver door UNLOCK  LOCK
* LSWP (DB±8) ±
Body GroundLG±B ± Body groundPassenger door UNLOCK  LOCK
Below 1 V10 to 14 V* LSWP (DA±20) ±
Body GroundLG±B ± Body groundRear right door UNLOCK  LOCK
Below 1 V  10 to 14 V
* LSWP (DM±10) ±
Body GroundLG±B ± Body groundRear left door UNLOCK  LOCK
DLPD (I14±6) ±
Body GroundB ± Body groundDouble lock UNSET  SETMore than 5 V
Less than 1 V
* ACTS (DJ±8) ±
Body GroundL ± Body groundDouble lock UNSET  SET
Below 1 V10 to 14 V* ACTR (DJ±9) ±
Body GroundW ± Body groundDouble lock SET  UNSET
Below 1 V  10 to 14 V
HINT:
*: Double Lock
If the result is not as specified, the J/B assy (integration relay) may have a malfunction.
