TOYOTA AVENSIS 2005 Service Repair Manual

A65743
RSD
E13ECM Connector
E01
123
A66264
DUTY ISC valve Connector
Wire Harness SideGND
I10
05±102
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
3CHECK HARNESS AND CONNECTOR(RSD CIRCUIT)
(a)Disconnect the ISC valve connector.
(b)Disconnect the E13 ECM connector.
(c)Check for continuity between the wire harness side con- nectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
DUTY (I10±1) ± RSD (E13±5)ContinuityGND (I10±3) ± E01 (E13±7)Continuity
Standard (Check for short):
Symbols (Terminal No.)Specified condition
DUTY (I10±1)or RSD (E13±5) ± Body groundrNo continuity
NGREPAIR OR REPLACE HARNESS OR CONNECTOR
OK
4INSPECT THLOTTLE BODY IDLE SPEED CONTROL VALVE ASSY (See page 10±1)
NG REPLACE THLOTTLE BODY IDLE SPEED CONTROL VALVE ASSY
OK
CHECK AND REPLACE ECM (See page 01±32)

A79413
From
Speed SensorSkid
Control
ECU4±Pulse
Combination
Meter4±Pulse
ECM
A79092
C11
Combination Meter
Junction Connector
17
V±W
E10ECM
V±W
SPD 18
J10
J20 H
*1*2
*1: LHD
*2: RHD J20 J10
*1 *2 HHH 05±98
± DIAGNOSTICSSFI SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

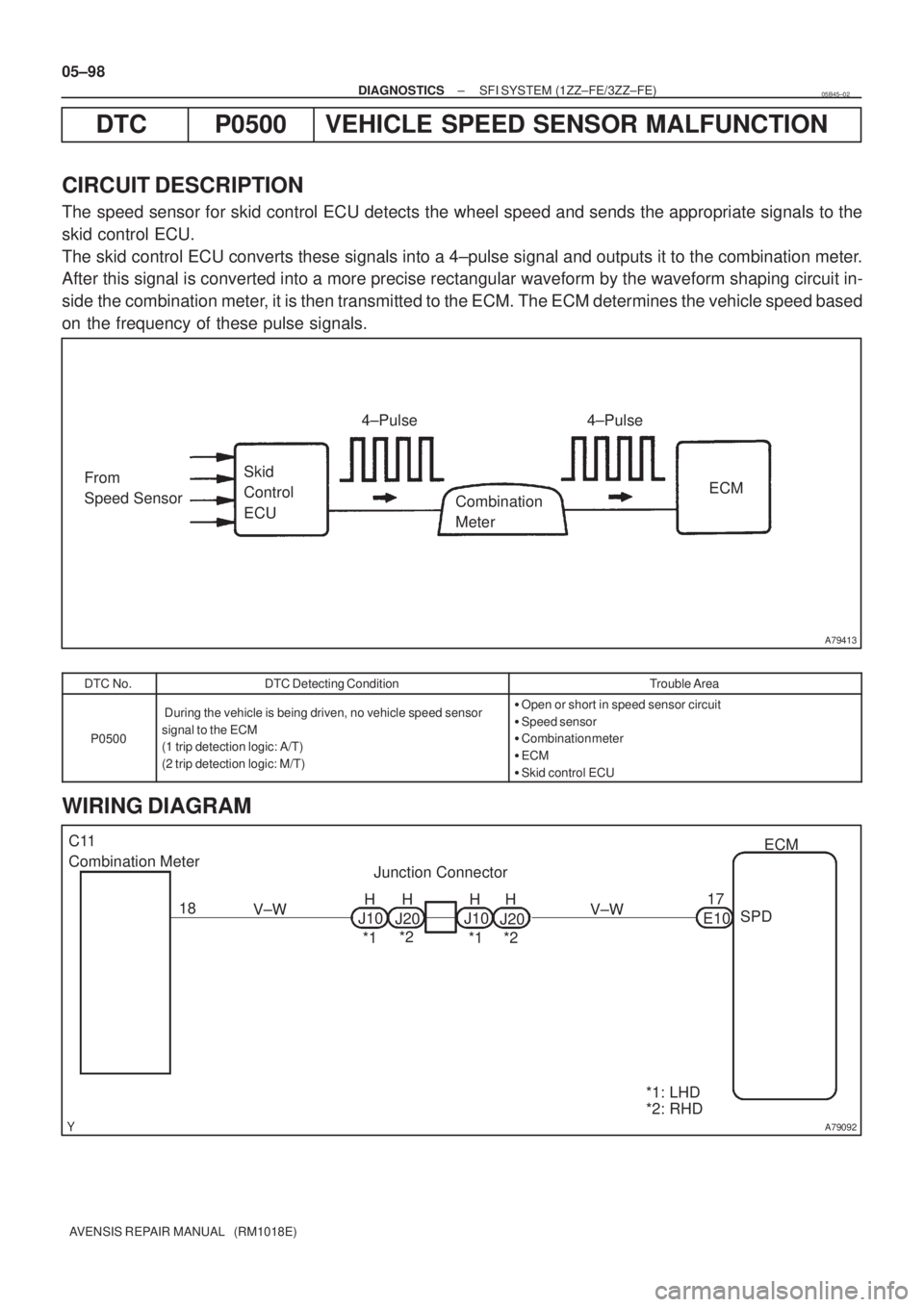

DTC P0500 VEHICLE SPEED SENSOR MALFUNCTION
CIRCUIT DESCRIPTION
The speed sensor for skid control ECU detects the wheel speed and sends the appropriate signals to the
skid control ECU.
The skid control ECU converts these signals into a 4±pulse signal and outputs it to the combination meter.
After this signal is converted into a more precise rectangular waveform by the waveform shaping circuit in-
side the combination meter, it is then transmitted to the ECM. The ECM determines the vehicle speed based
on the frequency of these pulse signals.
DTC No.DTC Detecting ConditionTrouble Area
P0500
During the vehicle is being driven, no vehicle speed sensor
signal to the ECM
(1 trip detection logic: A/T)
(2 trip detection logic: M/T)
Open or short in speed sensor circuit

Speed sensor

Combination meter

ECM

Skid control ECU
WIRING DIAGRAM
05B45±02

A18294
SPD (+)E1 (±)ECM Connector
E12 E10
A62954
Turn Wheel
4.5±5.5V
0V
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
05±99
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
HINT:
Read freeze frame data using \f \b\f\f
 Freeze frame data records the engine conditions when
a malfunction is detected. When troubleshooting, it is useful for determi\
ning whether the vehicle was running
or stopped, the engine was warmed up or not, the air±fuel ratio was lea\
n or rich, etc. at the time of the mal-
function.

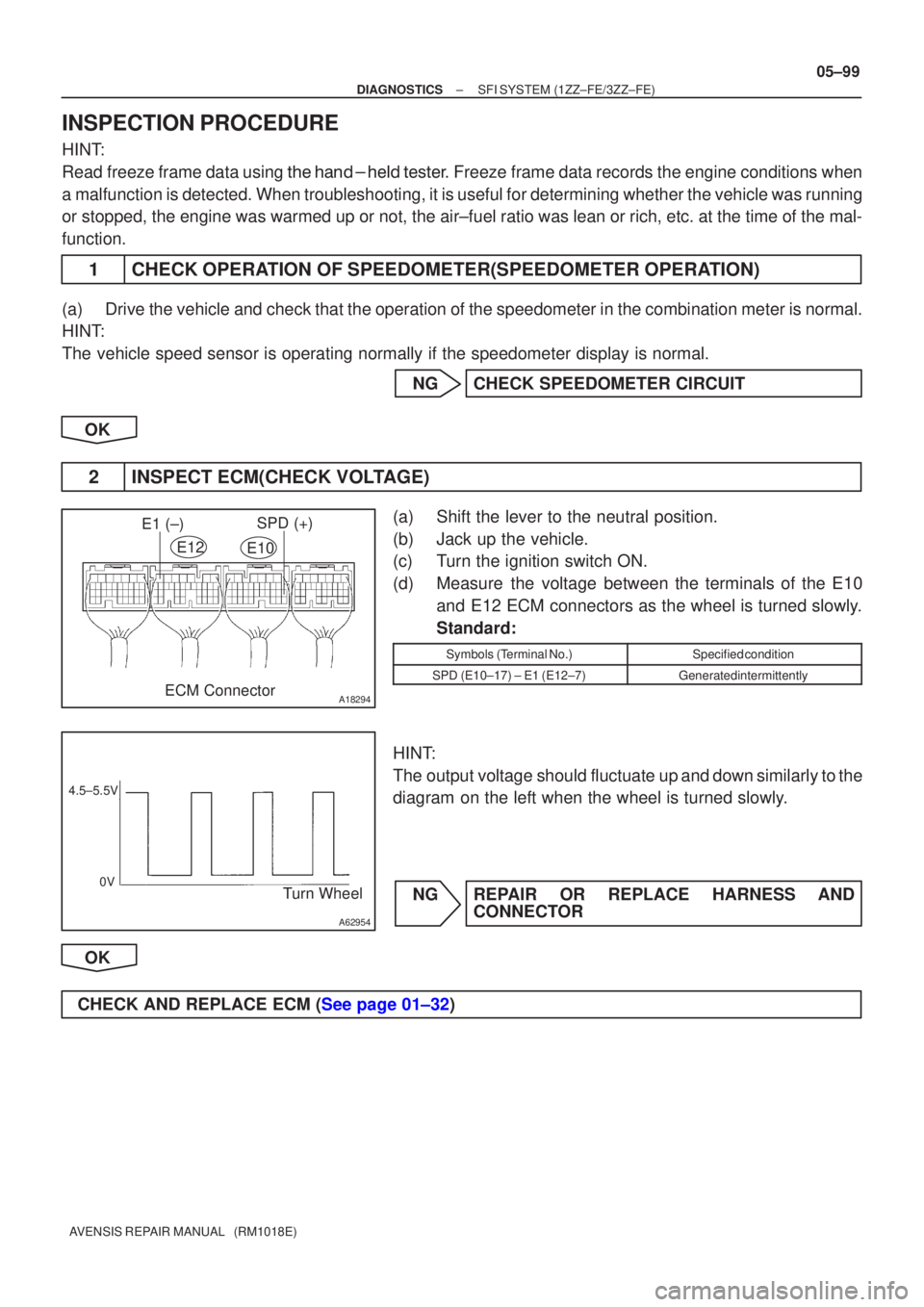

1CHECK OPERATION OF SPEEDOMETER(SPEEDOMETER OPERATION)
(a)Drive the vehicle and check that the operation of the speedometer in the\
combination meter is normal.
HINT:
The vehicle speed sensor is operating normally if the speedometer display i\
s normal.
NGCHECK SPEEDOMETER CIRCUIT
OK
2INSPECT ECM(CHECK VOLTAGE)
(a)Shift the lever to the neutral position.
(b)Jack up the vehicle.
(c)Turn the ignition switch ON.
(d)Measure the voltage between the terminals of the E10 and E12 ECM connectors as the wheel is turned slowly.
Standard:
Symbols (Terminal No.)Specified condition
SPD (E10±17) ± E1 (E12±7)Generated intermittently
HINT:
The output voltage should fluctuate up and down similarly to the
diagram on the left when the wheel is turned slowly.
NGREPAIR OR REPLACE HARNESS AND CONNECTOR
OK
CHECK AND REPLACE ECM (See page 01±32)

A79073
From
Terminal 3 of
EFI Relay
(See Page 05±124)B±W
EA113
B±W 2V5
VSV for EVAP
1 W±G E1312
EVP1ECM
Engine Room R/B No.4 EFI No.2
4 1 2
B±W
4
05±94
±
DIAGNOSTICS SFI SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

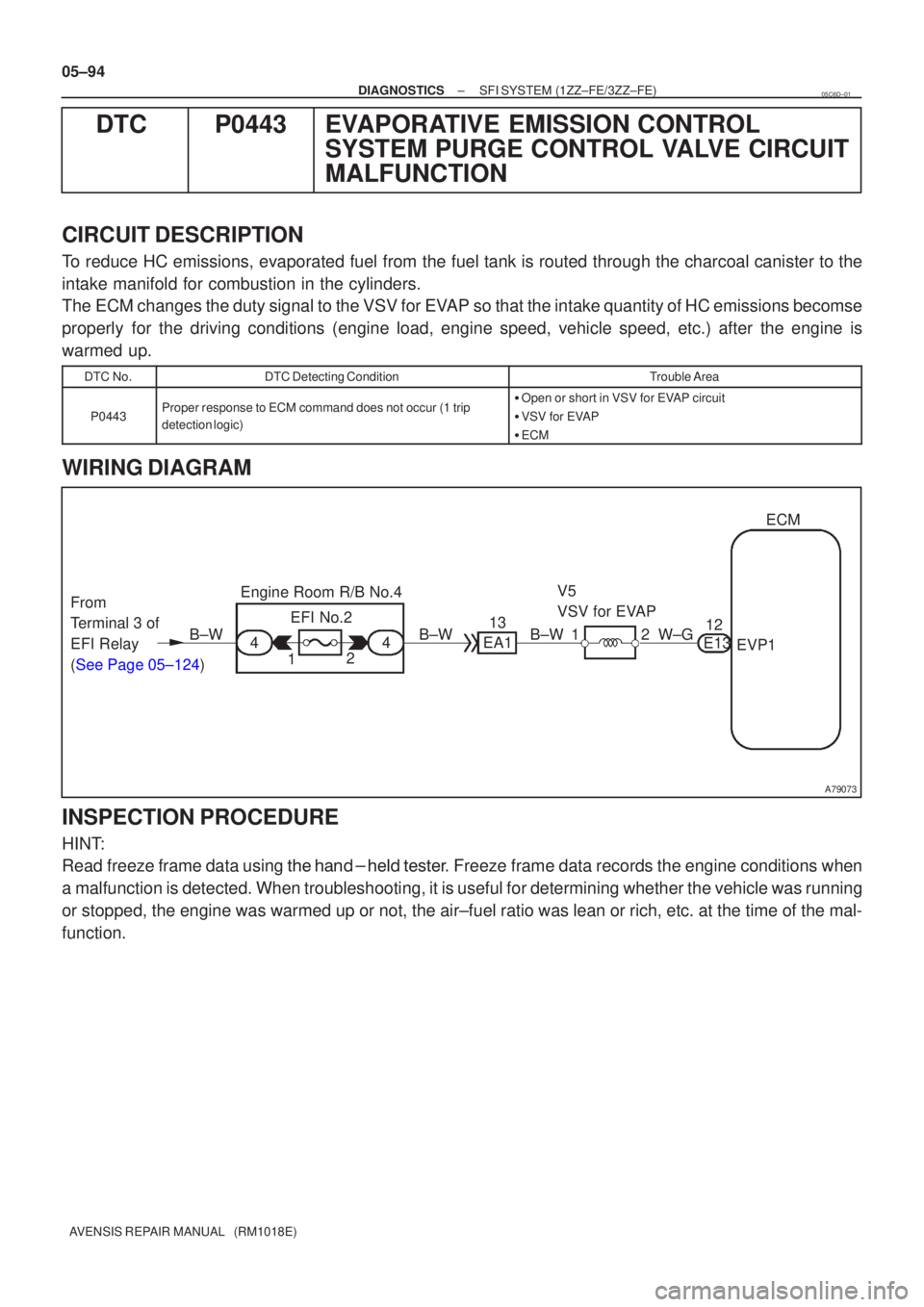

DTC P0443 EVAPORATIVE EMISSION CONTROL SYSTEM PURGE CONTROL VALVE CIRCUIT
MALFUNCTION
CIRCUIT DESCRIPTION
To reduce HC emissions, evaporated fuel from the fuel tank is routed through the charcoal canister to the
intake manifold for combustion in the cylinders.
The ECM changes the duty signal to the VSV for EVAP so that the intake quantity of HC emissions becomse
properly for the driving conditions (engine load, engine speed, vehicle speed, \
etc.) after the engine is
warmed up.
DTC No.DTC Detecting ConditionTrouble Area
P0443Proper response to ECM command does not occur (1 trip
detection logic)
Open or short in VSV for EVAP circuit

VSV for EVAP

ECM
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
Read freeze frame data using \f  \b \f\f
 Freeze frame data records the engine conditions when
a malfunction is detected. When troubleshooting, it is useful for determi\
ning whether the vehicle was running
or stopped, the engine was warmed up or not, the air±fuel ratio was lea\
n or rich, etc. at the time of the mal-
function.
05C6D±01

A79090VSV is ONVSV is OFF
E
F E
F
A18294
E01 (±) ECM Connector
E13
EVP1 (+)
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
05±95
AVENSIS REPAIR MANUAL (RM1018E)

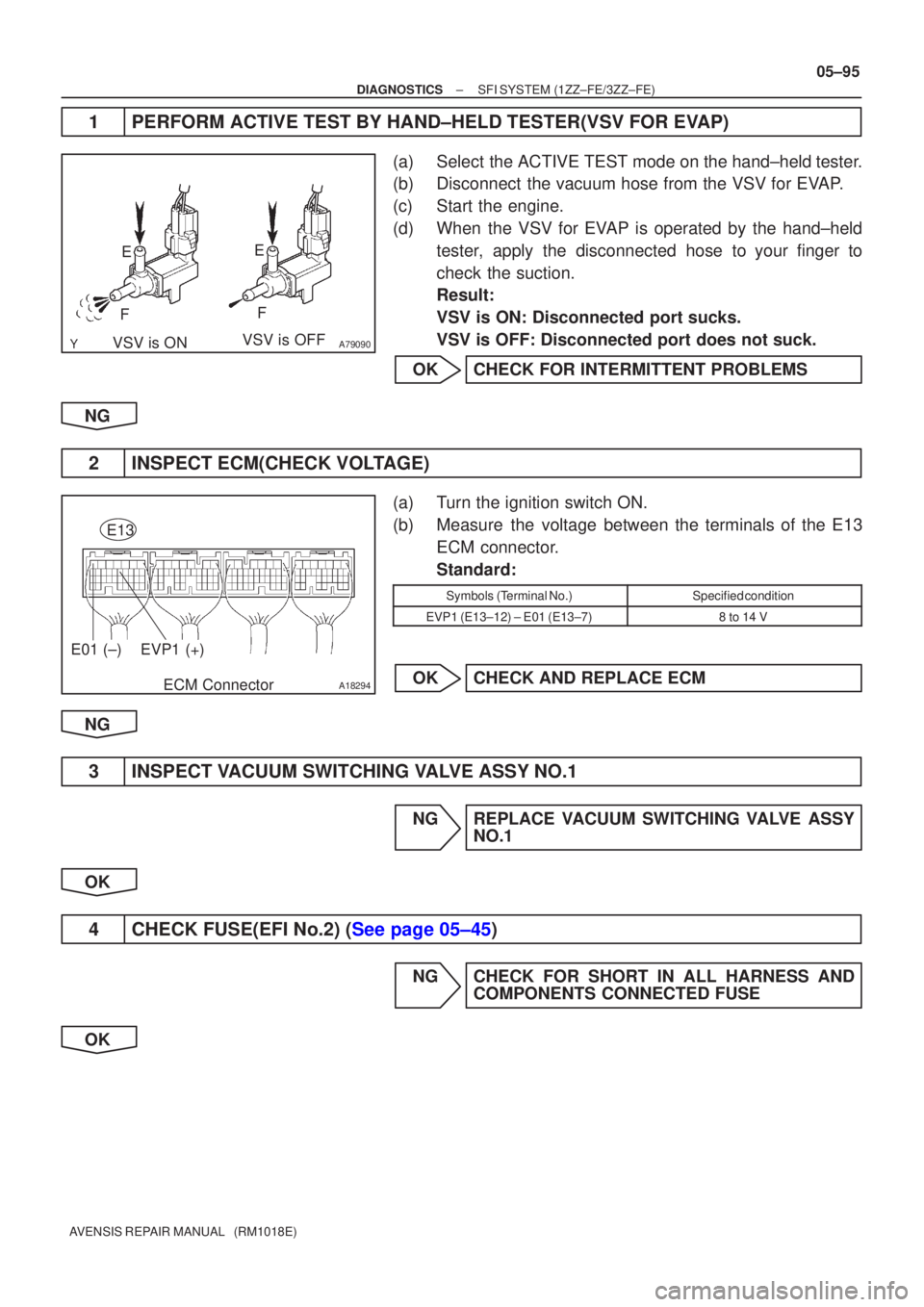

1PERFORM ACTIVE TEST BY HAND±HELD TESTER(VSV FOR EVAP)
(a)Select the ACTIVE TEST mode on the hand±held tester.
(b)Disconnect the vacuum hose from the VSV for EVAP.
(c)Start the engine.
(d)When the VSV for EVAP is operated by the hand±held
tester, apply the disconnected hose to your finger to
check the suction.
Result:
VSV is ON: Disconnected port sucks.
VSV is OFF: Disconnected port does not suck.
OKCHECK FOR INTERMITTENT PROBLEMS
NG
2INSPECT ECM(CHECK VOLTAGE)
(a)Turn the ignition switch ON.
(b)Measure the voltage between the terminals of the E13 ECM connector.
Standard:
Symbols (Terminal No.)Specified condition
EVP1 (E13±12) ± E01 (E13±7)8 to 14 V
OKCHECK AND REPLACE ECM
NG
3INSPECT VACUUM SWITCHING VALVE ASSY NO.1
NGREPLACE VACUUM SWITCHING VALVE ASSY NO.1
OK
4CHECK FUSE(EFI No.2) (See page 05±45)
NG CHECK FOR SHORT IN ALL HARNESS AND COMPONENTS CONNECTED FUSE
OK

A65159EVP1
E13
ECM Connector

A52933
Wire Harness Side
Vacuum Switching Valve Connector
V5
05±96
± DIAGNOSTICSSFI SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

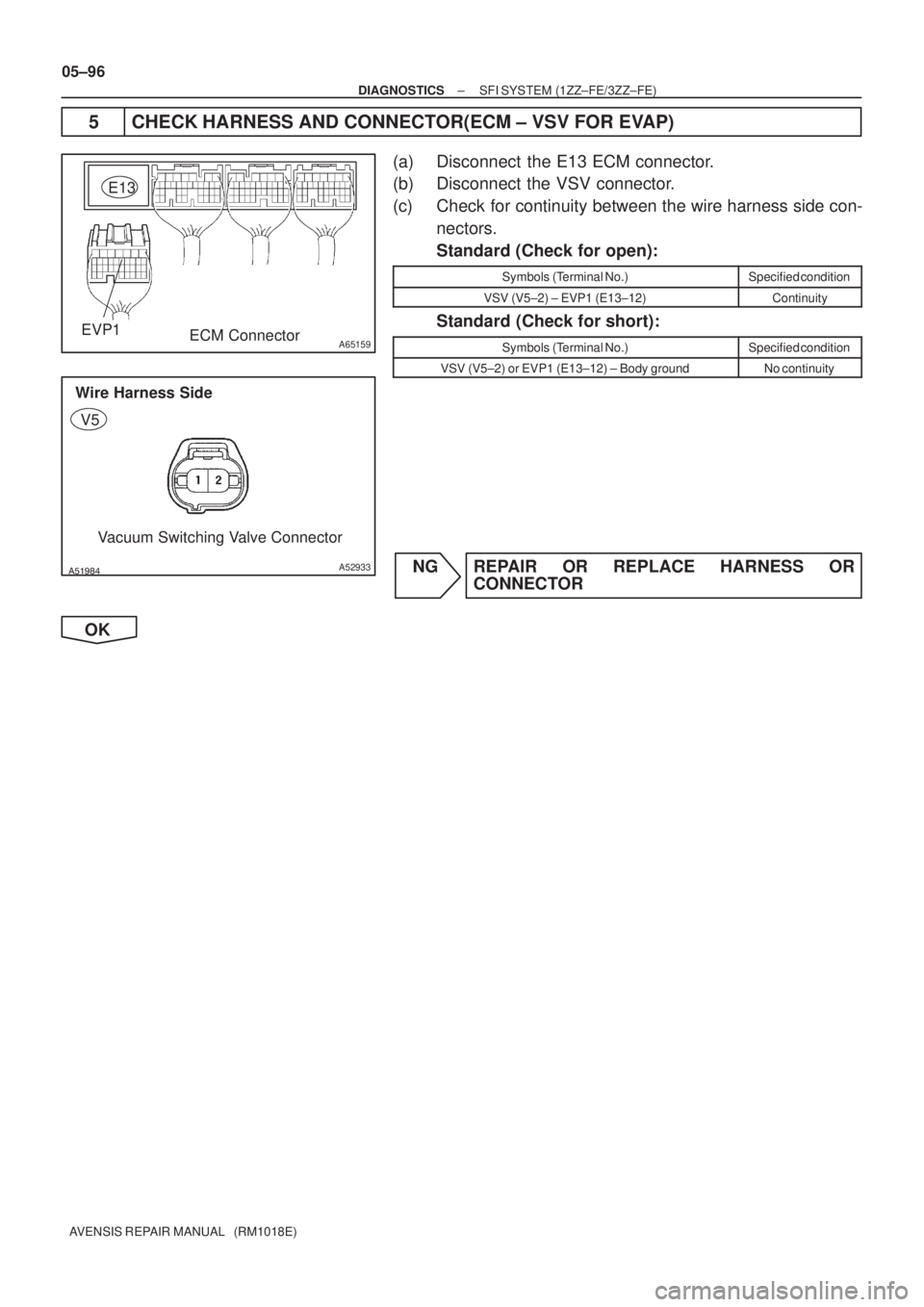

5 CHECK HARNESS AND CONNECTOR(ECM ± VSV FOR EVAP)
(a) Disconnect the E13 ECM connector.
(b) Disconnect the VSV connector.
(c) Check for continuity between the wire harness side con-
nectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
VSV (V5±2) ± EVP1 (E13±12)Continuity
Standard (Check for short):
Symbols (Terminal No.)Specified condition
VSV (V5±2) or EVP1 (E13±12) ± Body groundNo continuity
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK

A66053
Engine Room R/B No.4EFI Relay



A79070
Engine Room R/B No.4EFI No.2 Fuse
1
2
\bA52933
Wire Harness Side
Vacuum Switching Valve Connector
V5
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
05±97
AVENSIS REPAIR MANUAL (RM1018E)

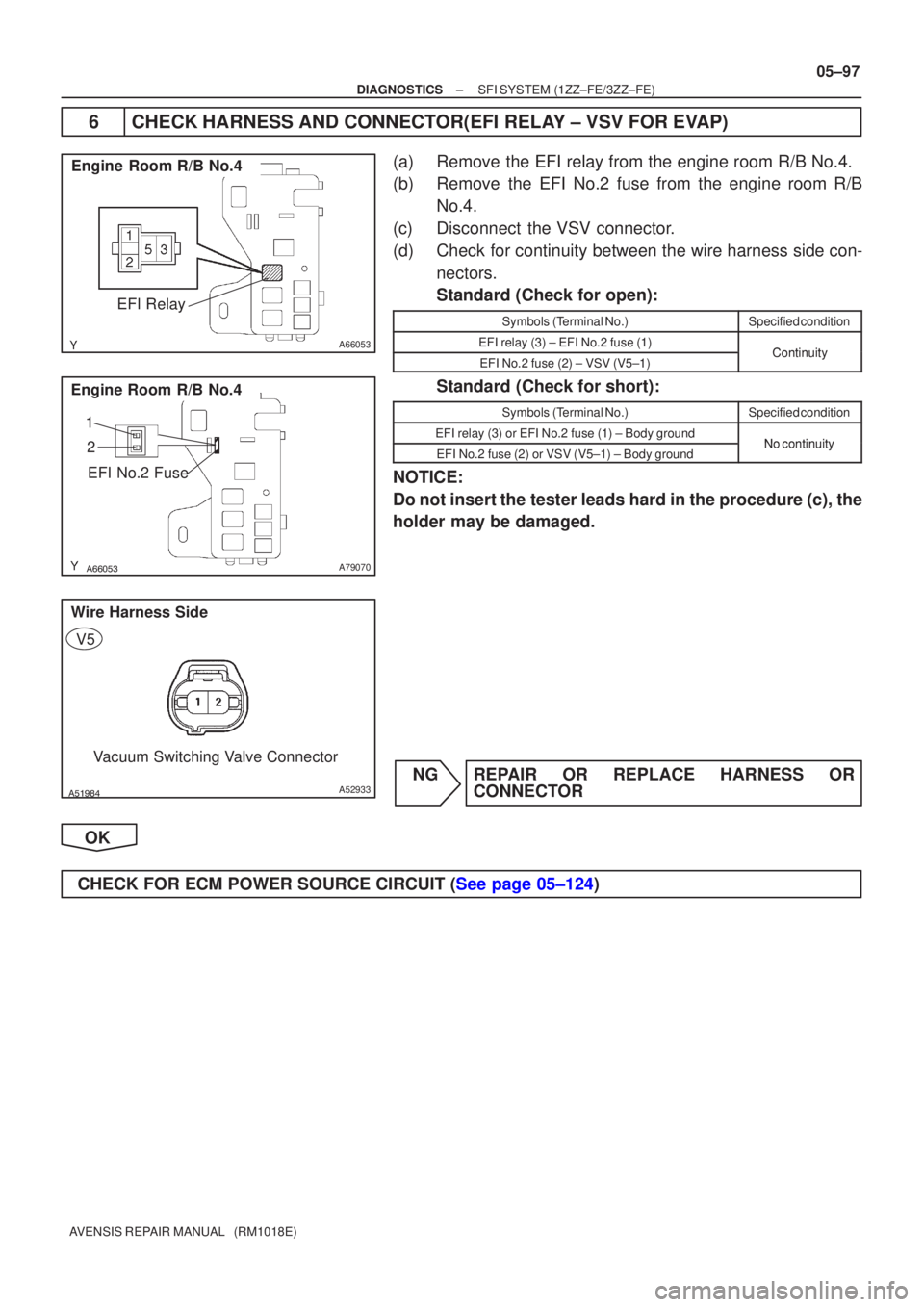

6CHECK HARNESS AND CONNECTOR(EFI RELAY ± VSV FOR EVAP)
(a)Remove the EFI relay from the engine room R/B No.4.
(b)Remove the EFI No.2 fuse from the engine room R/B
No.4.
(c)Disconnect the VSV connector.
(d)Check for continuity between the wire harness side con- nectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
EFI relay (3) ± EFI No.2 fuse (1)ContinuityEFI No.2 fuse (2) ± VSV (V5±1)Continuity
Standard (Check for short):
Symbols (Terminal No.)Specified condition
EFI relay (3) or EFI No.2 fuse (1) ± Body groundNocontinuityEFI No.2 fuse (2) or VSV (V5±1) ± Body groundNo continuity
NOTICE:
Do not insert the tester leads hard in the procedure (c), the
holder may be damaged.
NGREPAIR OR REPLACE HARNESS OR CONNECTOR
OK
CHECK FOR ECM POWER SOURCE CIRCUIT (See page 05±124)

A58692
Waveform of heated oxygen
Sensor in front of CatalystNormal CatalystWaveform of Heated Oxygen
Sensor behind Catalyst
A58693
Engine Speed
2,500 ± 3,000 rpm
Idling
IG SW OFF
Warmed up 3 min. Check Time (a)(b)(c) (d)
± DIAGNOSTICSSFI SYSTEM (1ZZ±FE/3ZZ±FE)
05±91
AVENSIS REPAIR MANUAL (RM1018E)

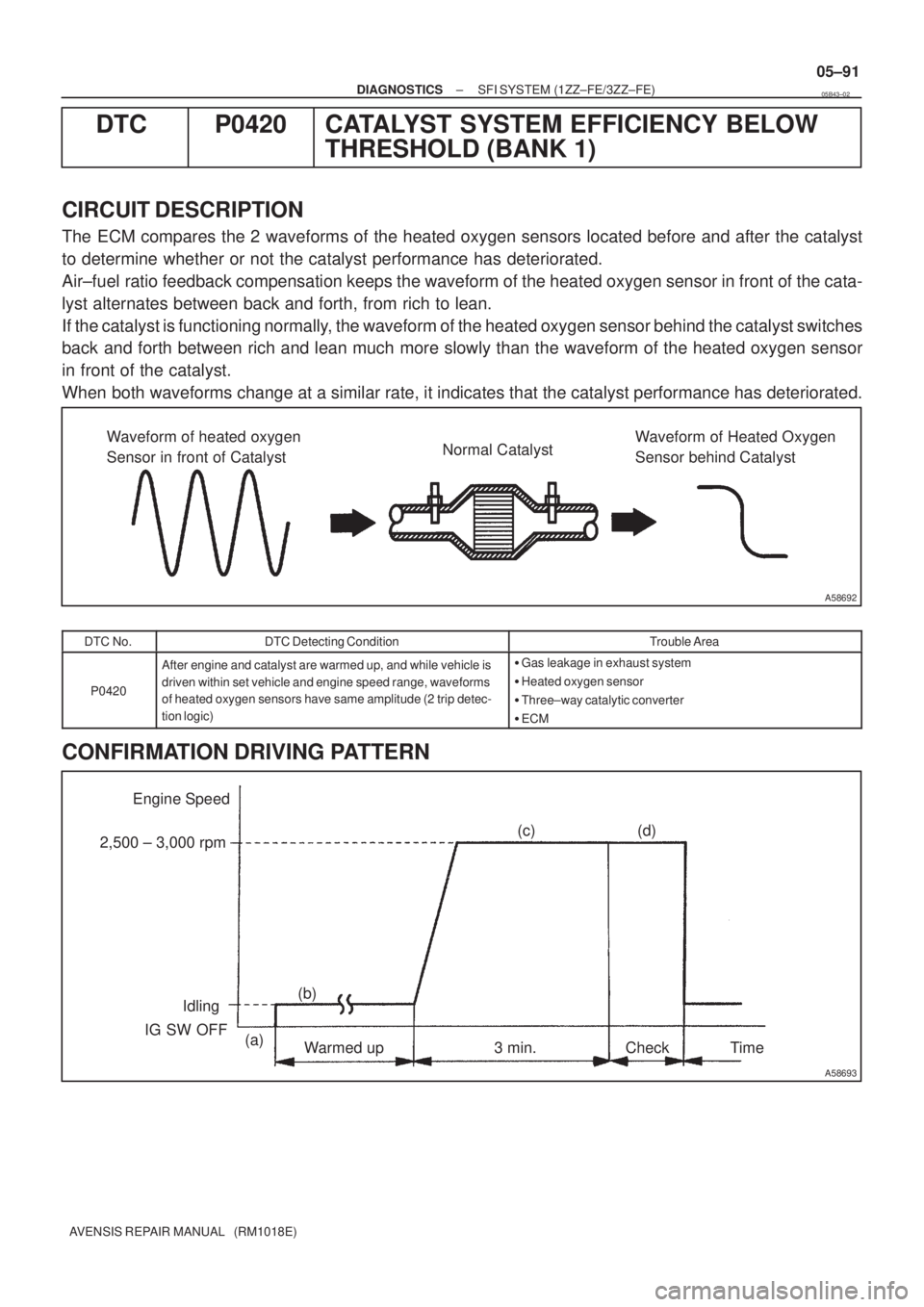

DTC P0420 CATALYST SYSTEM EFFICIENCY BELOW
THRESHOLD (BANK 1)
CIRCUIT DESCRIPTION
The ECM compares the 2 waveforms of the heated oxygen sensors located before and after the catalyst
to determine whether or not the catalyst performance has deteriorated.
Air±fuel ratio feedback compensation keeps the waveform of the heated oxygen sensor in front of the cata-
lyst alternates between back and forth, from rich to lean.
If the catalyst is functioning normally, the waveform of the heated oxygen sensor behind the catalyst switches
back and forth between rich and lean much more slowly than the waveform of the heated oxygen sensor
in front of the catalyst.
When both waveforms change at a similar rate, it indicates that the catalyst performance has deteriorated.
DTC No.DTC Detecting ConditionTrouble Area
P0420
After engine and catalyst are warmed up, and while vehicle is
driven within set vehicle and engine speed range, waveforms
of heated oxygen sensors have same amplitude (2 trip detec-
tion logic)
Gas leakage in exhaust system

Heated oxygen sensor

Three±way catalytic converter

ECM
CONFIRMATION DRIVING PATTERN
05B43±02

A58694
OX Signal Waveform (Oscilloscope)
1.0 V
0 V 200 msec. /Division
05±92
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

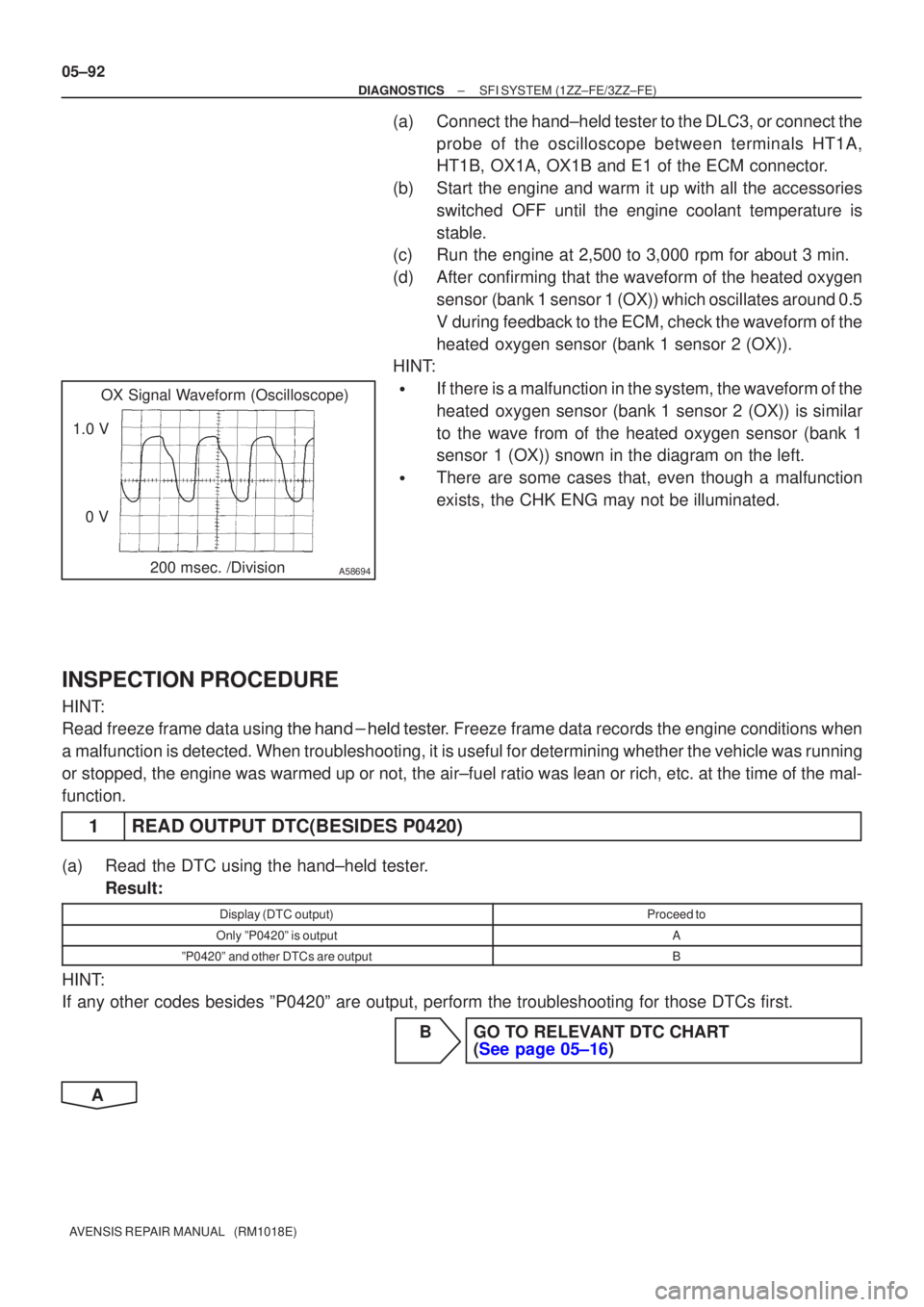

(a)Connect the hand±held tester to the DLC3, or connect the probe of the oscilloscope between terminals HT1A,
HT1B, OX1A, OX1B and E1 of the ECM connector.
(b)Start the engine and warm it up with all the accessories switched OFF until the engine coolant temperature is
stable.
(c)Run the engine at 2,500 to 3,000 rpm for about 3 min.
(d)After confirming that the waveform of the heated oxygen
sensor (bank 1 sensor 1 (OX)) which oscillates around 0.5
V during feedback to the ECM, check the waveform of the
heated oxygen sensor (bank 1 sensor 2 (OX)).
HINT:

If there is a malfunction in the system, the waveform of the
heated oxygen sensor (bank 1 sensor 2 (OX)) is similar
to the wave from of the heated oxygen sensor (bank 1
sensor 1 (OX)) snown in the diagram on the left.

There are some cases that, even though a malfunction
exists, the CHK ENG may not be illuminated.
INSPECTION PROCEDURE
HINT:
Read freeze frame data using \f \b\f\f
 Freeze frame data records the engine conditions when
a malfunction is detected. When troubleshooting, it is useful for determi\
ning whether the vehicle was running
or stopped, the engine was warmed up or not, the air±fuel ratio was lea\
n or rich, etc. at the time of the mal-
function.
1READ OUTPUT DTC(BESIDES P0420)
(a)Read the DTC using the hand±held tester. Result:
Display (DTC output)Proceed to
Only ºP0420º is outputA
ºP0420º and other DTCs are outputB
HINT:
If any other codes besides ºP0420º are output, perform the troublesh\
ooting for those DTCs first.
BGO TO RELEVANT DTC CHART(See page 05±16)
A

±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
05±93
AVENSIS REPAIR MANUAL (RM1018E)

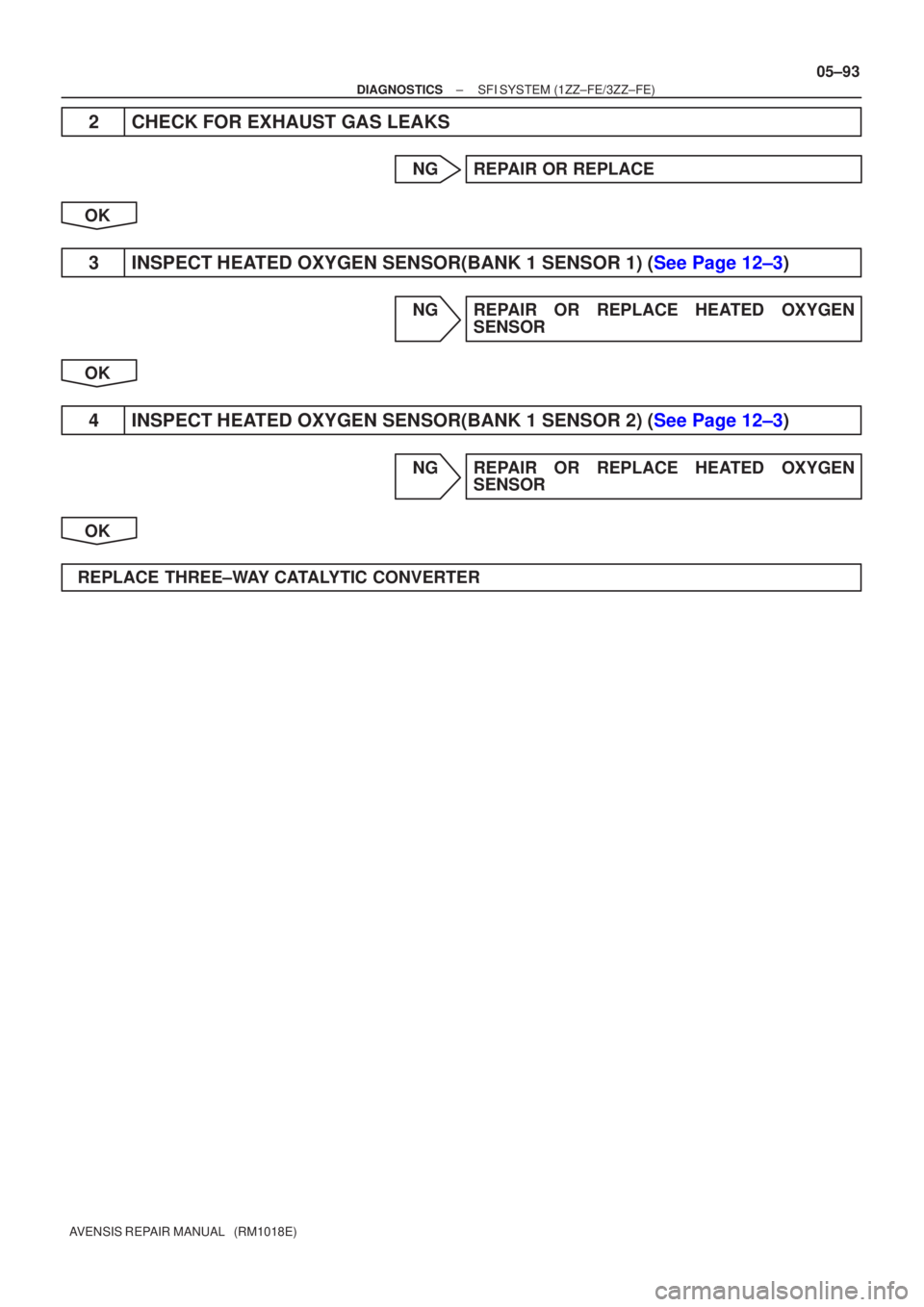

2CHECK FOR EXHAUST GAS LEAKS
NGREPAIR OR REPLACE
OK
3INSPECT HEATED OXYGEN SENSOR(BANK 1 SENSOR 1) (See Page 12±3)
NG REPAIR OR REPLACE HEATED OXYGEN SENSOR
OK
4INSPECT HEATED OXYGEN SENSOR(BANK 1 SENSOR 2) (See Page 12±3)
NG REPAIR OR REPLACE HEATED OXYGEN SENSOR
OK
REPLACE THREE±WAY CATALYTIC CONVERTER
