SEAT FRONT POWER SEAT CONTROL SYSTEM
72±3
AVENSIS REPAIR MANUAL (RM1018E)

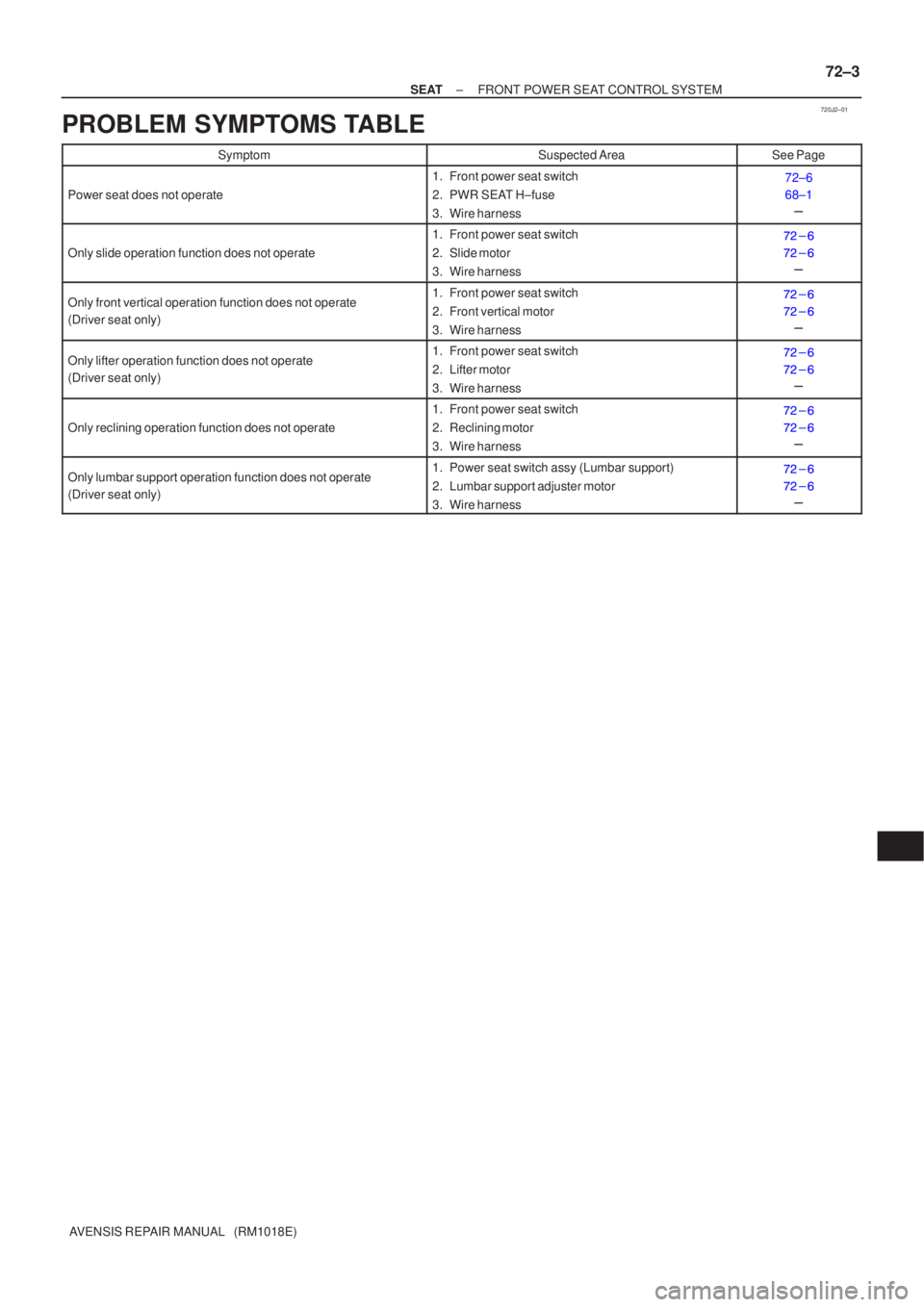

PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
Power seat does not operate
1. Front power seat switch
2. PWR SEAT H±fuse
3. Wire harness72±6
68±1


Only slide operation function does not operate
1. Front power seat switch
2. Slide motor
3. Wire harness




Only front vertical operation function does not operate
(Driver seat only)1. Front power seat switch
2. Front vertical motor
3. Wire harness




Only lifter operation function does not operate
(Driver seat only)1. Front power seat switch
2. Lifter motor
3. Wire harness




Only reclining operation function does not operate
1. Front power seat switch
2. Reclining motor
3. Wire harness




Only lumbar support operation function does not operate
(Driver seat only)1. Power seat switch assy (Lumbar support)
2. Lumbar support adjuster motor
3. Wire harness




720J1±01
B70987
LHD Models
RHD ModelsInstrument Panel J/B Assy

PWR SEAT H±fuse
Fuse Block Assy

PWR SEAT H±fuse
Instrument Panel J/B Assy

PWR SEAT H±fuse
Fuse Block Assy

PWR SEAT H±fuse
± SEATFRONT POWER SEAT CONTROL SYSTEM
72±1
AVENSIS REPAIR MANUAL (RM1018E)
FRONT POWER SEAT CONTROL SYSTEM

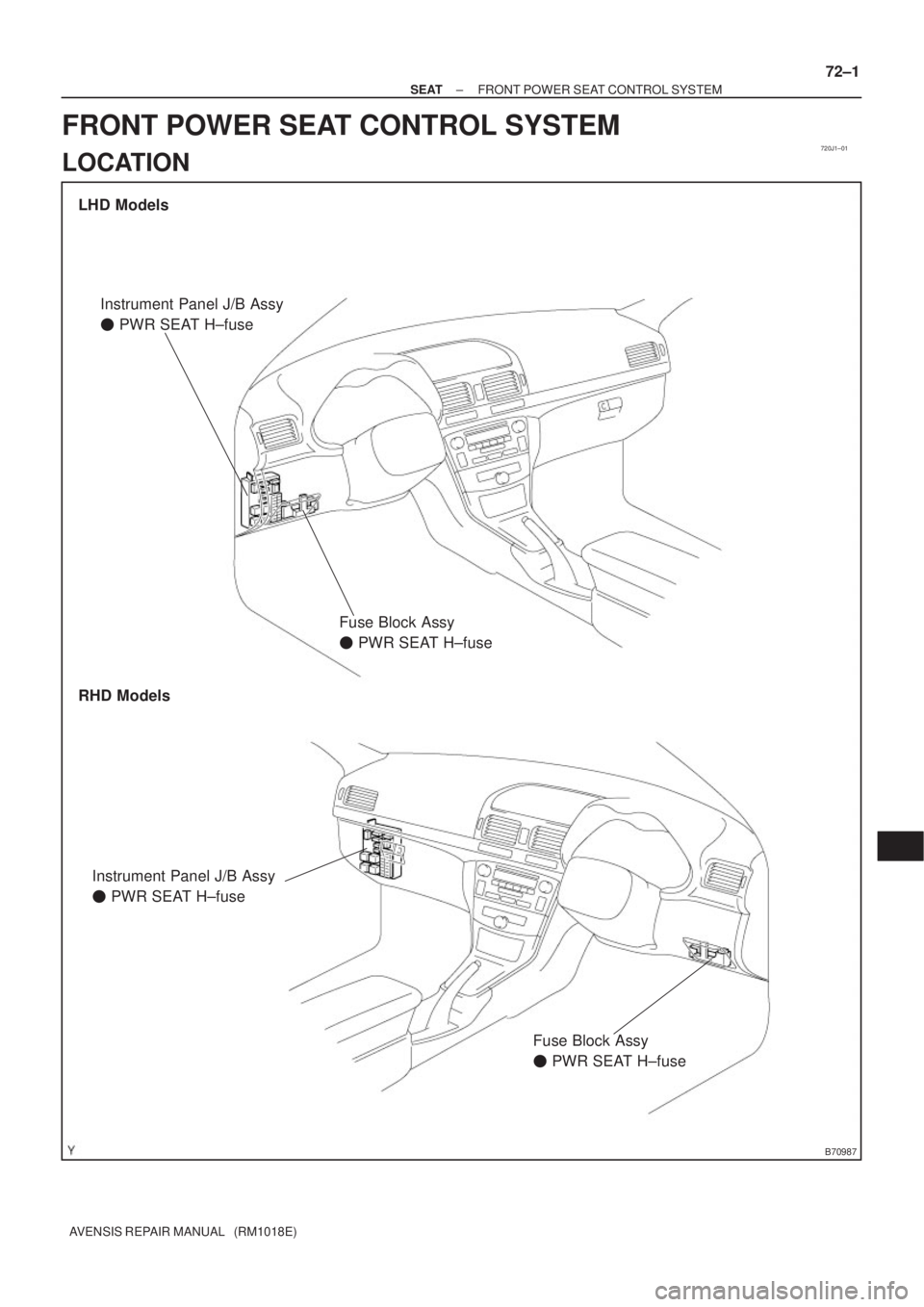

LOCATION

B70314
Slide Motor
Lifter Motor
Slide MotorFront Vertical Motor Reclining MotorReclining Motor
Power Seat Switch Assy
(Lumbar Support) Front Power Seat Switch RHLumbar Support Adjuster Motor
Front Power Seat Switch LH
72±2
± SEATFRONT POWER SEAT CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

7408U±01
±
SLIDING ROOF/CONVERTIBLE SLIDING ROOF SYSTEM
74±5
AVENSIS REPAIR MANUAL (RM1018E)

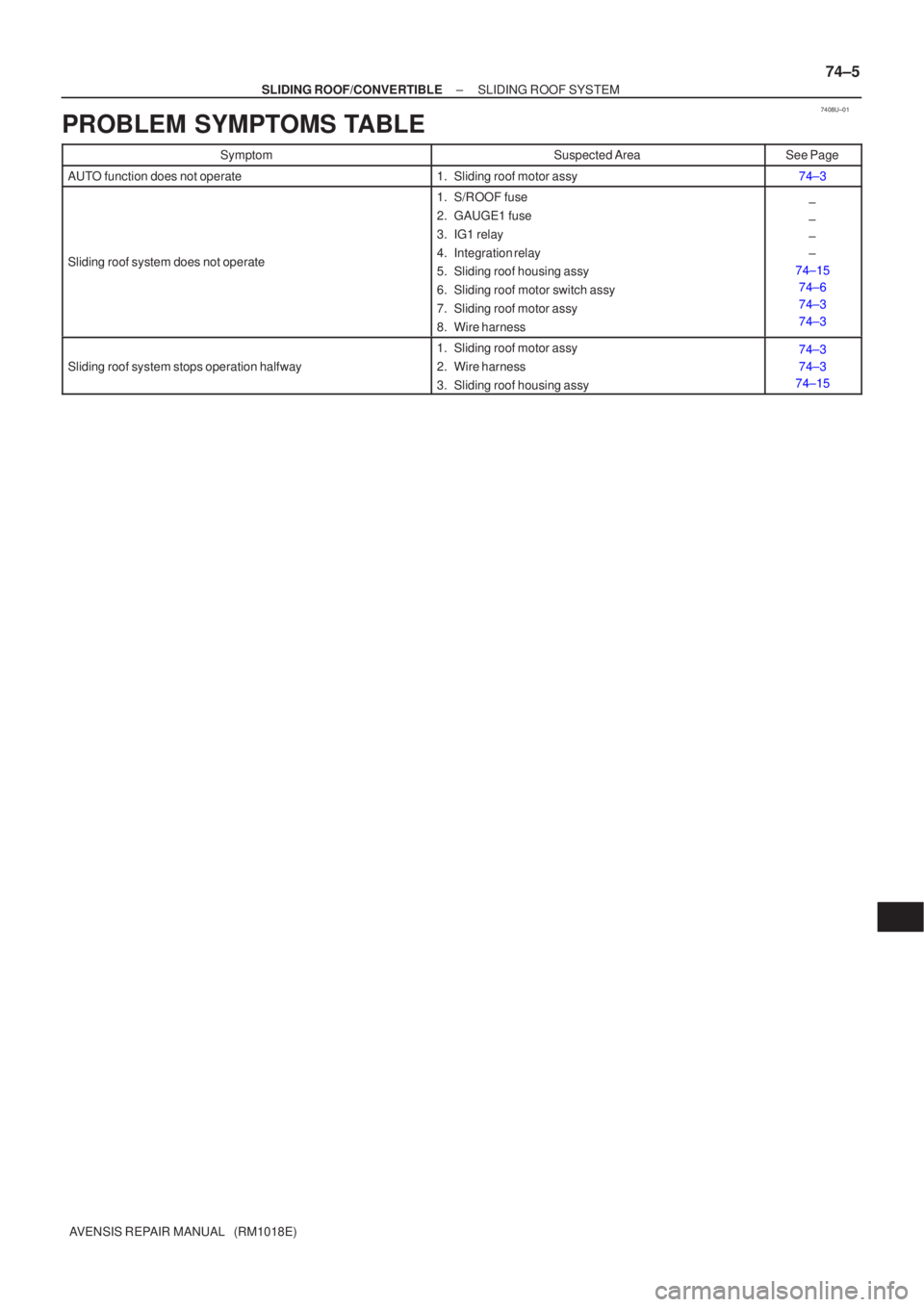

PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
AUTO function does not operate1. Sliding roof motor assy74±3
Sliding roof system does not operate
1. S/ROOF fuse
2. GAUGE1 fuse
3. IG1 relay
4. Integration relay
5. Sliding roof housing assy
6. Sliding roof motor switch assy
7. Sliding roof motor assy
8. Wire harness±
±
±
±
74±15 74±6
74±3
74±3
Sliding roof system stops operation halfway
1. Sliding roof motor assy
2. Wire harness
3. Sliding roof housing assy74±3
74±3
74±15

7408T±01
± SLIDING ROOF/CONVERTIBLESLIDING ROOF SYSTEM
74±3
AVENSIS REPAIR MANUAL (RM1018E)

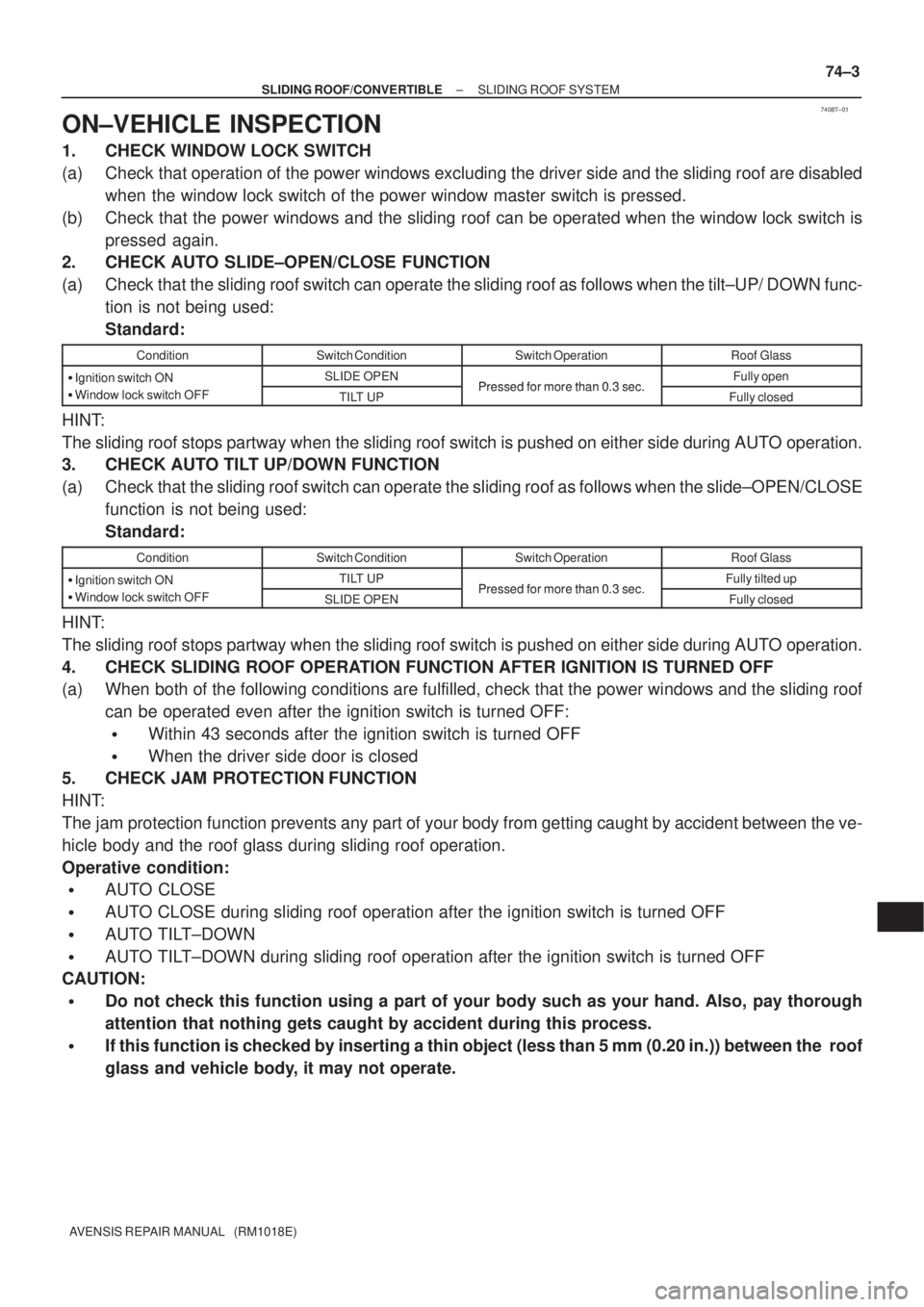

ON±VEHICLE INSPECTION
1. CHECK WINDOW LOCK SWITCH
(a) Check that operation of the power windows excluding the driver side and the sliding roof are disabled
when the window lock switch of the power window master switch is pressed.
(b) Check that the power windows and the sliding roof can be operated when the window lock switch is
pressed again.
2. CHECK AUTO SLIDE±OPEN/CLOSE FUNCTION
(a) Check that the sliding roof switch can operate the sliding roof as follows when the tilt±UP/ DOWN func-
tion is not being used:
Standard:
ConditionSwitch ConditionSwitch OperationRoof Glass

Ignition switch ONSLIDE OPENPressed for more than 0 3 secFully openIgnition switch ON

Window lock switch OFFTILT UPPressed for more than 0.3 sec.Fully closed
HINT:
The sliding roof stops partway when the sliding roof switch is pushed on either side during AUTO operation.
3. CHECK AUTO TILT UP/DOWN FUNCTION
(a) Check that the sliding roof switch can operate the sliding roof as follows when the slide±OPEN/CLOSE
function is not being used:
Standard:
ConditionSwitch ConditionSwitch OperationRoof Glass

Ignition switch ONTILT UPPressed for more than 0 3 secFully tilted upIgnition switch ON

Window lock switch OFFSLIDE OPENPressed for more than 0.3 sec.Fully closed
HINT:
The sliding roof stops partway when the sliding roof switch is pushed on either side during AUTO operation.
4. CHECK SLIDING ROOF OPERATION FUNCTION AFTER IGNITION IS TURNED OFF
(a) When both of the following conditions are fulfilled, check that the power windows and the sliding roof
can be operated even after the ignition switch is turned OFF:

Within 43 seconds after the ignition switch is turned OFF

When the driver side door is closed
5. CHECK JAM PROTECTION FUNCTION
HINT:
The jam protection function prevents any part of your body from getting caught by accident between the ve-
hicle body and the roof glass during sliding roof operation.
Operative condition:

AUTO CLOSE

AUTO CLOSE during sliding roof operation after the ignition switch is turned OFF

AUTO TILT±DOWN

AUTO TILT±DOWN during sliding roof operation after the ignition switch is turned OFF
CAUTION:

Do not check this function using a part of your body such as your hand. Also, pay thorough
attention that nothing gets caught by accident during this process.

If this function is checked by inserting a thin object (less than 5 mm (0.20 in.)) between the roof
glass and vehicle body, it may not operate.

B68295
B68296
74±4
±
SLIDING ROOF/CONVERTIBLE SLIDING ROOF SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

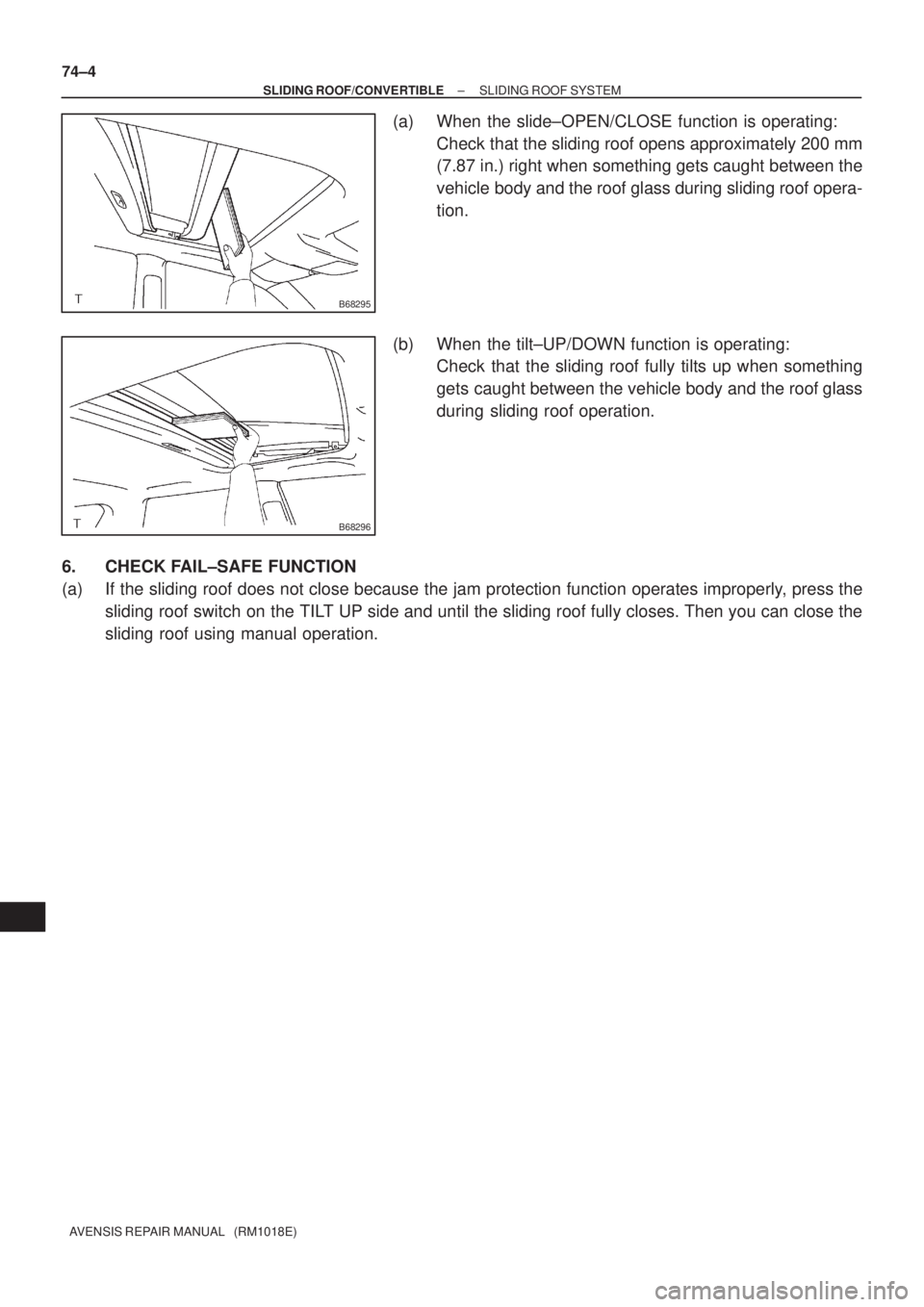

(a) When the slide±OPEN/CLOSE function is operating: Check that the sliding roof opens approximately 200 mm
(7.87 in.) right when something gets caught between the
vehicle body and the roof glass during sliding roof opera-
tion.
(b) When the tilt±UP/DOWN function is operating: Check that the sliding roof fully tilts up when something
gets caught between the vehicle body and the roof glass
during sliding roof operation.
6.CHECK FAIL±SAFE FUNCTION
(a) If the sliding roof does not close because the jam protection function o\
perates improperly, press the sliding roof switch on the TILT UP side and until the sliding roof fully closes. Then you can close th\
e
sliding roof using manual operation.

7408S±01
B67836
Combination Meter AssyRoof Console Box

Sliding Roof Motor Switch Assy
Sliding Roof Drive
Gear Sub±assy
± SLIDING ROOF/CONVERTIBLESLIDING ROOF SYSTEM
74±1
AVENSIS REPAIR MANUAL (RM1018E)
SLIDING ROOF SYSTEM

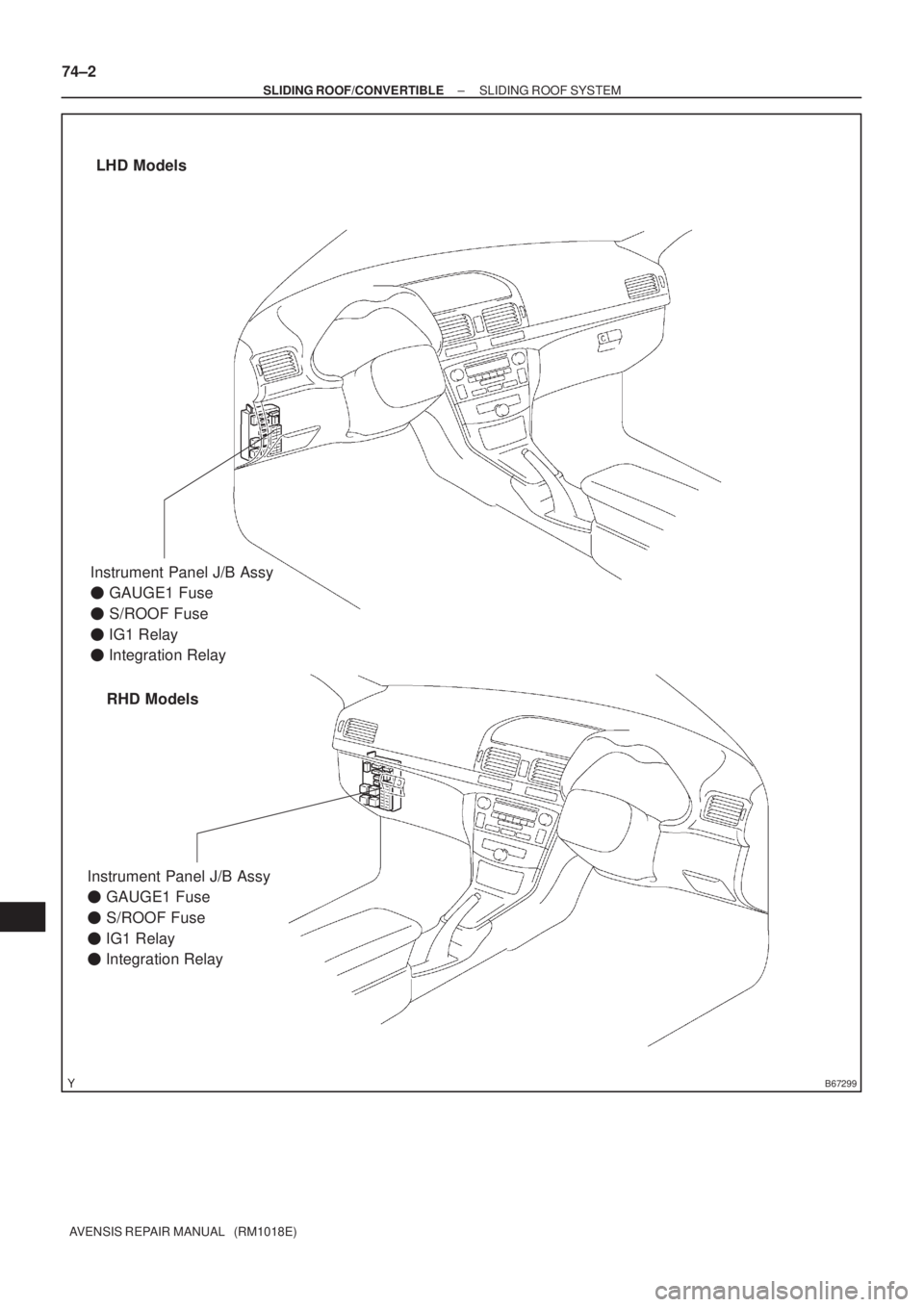

LOCATION

B67299
LHD Models
RHD Models
Instrument Panel J/B Assy

GAUGE1 Fuse

S/ROOF Fuse

IG1 Relay

Integration Relay
Instrument Panel J/B Assy

GAUGE1 Fuse

S/ROOF Fuse

IG1 Relay

Integration Relay
74±2
± SLIDING ROOF/CONVERTIBLESLIDING ROOF SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

730G8±01
± THEFT DETERRENT & DOOR LOCKTHEFT DETERRENT SYSTEM
73±31
AVENSIS REPAIR MANUAL (RM1018E)

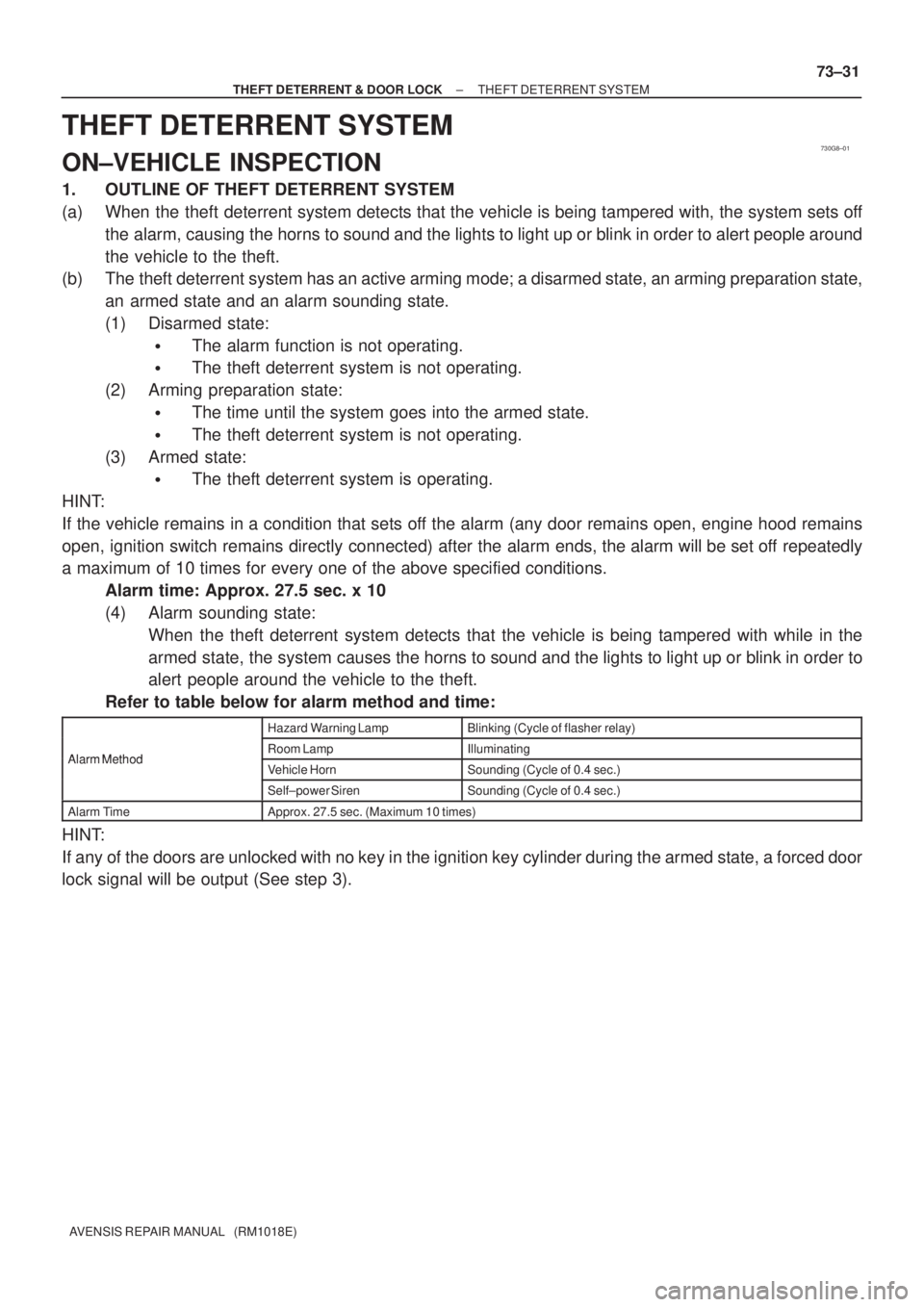

THEFT DETERRENT SYSTEM
ON±VEHICLE INSPECTION
1. OUTLINE OF THEFT DETERRENT SYSTEM
(a) When the theft deterrent system detects that the vehicle is being tampered with, the system sets off
the alarm, causing the horns to sound and the lights to light up or blink in order to alert people around
the vehicle to the theft.
(b) The theft deterrent system has an active arming mode; a disarmed state, an arming preparation state,
an armed state and an alarm sounding state.
(1) Disarmed state:

The alarm function is not operating.

The theft deterrent system is not operating.
(2) Arming preparation state:

The time until the system goes into the armed state.

The theft deterrent system is not operating.
(3) Armed state:

The theft deterrent system is operating.
HINT:
If the vehicle remains in a condition that sets off the alarm (any door remains open, engine hood remains
open, ignition switch remains directly connected) after the alarm ends, the alarm will be set off repeatedly
a maximum of 10 times for every one of the above specified conditions.
Alarm time: Approx. 27.5 sec. x 10
(4) Alarm sounding state:
When the theft deterrent system detects that the vehicle is being tampered with while in the
armed state, the system causes the horns to sound and the lights to light up or blink in order to
alert people around the vehicle to the theft.
Refer to table below for alarm method and time:
Hazard Warning LampBlinking (Cycle of flasher relay)
Alarm MethodRoom LampIlluminatingAlarm MethodVehicle HornSounding (Cycle of 0.4 sec.)
Self±power SirenSounding (Cycle of 0.4 sec.)
Alarm TimeApprox. 27.5 sec. (Maximum 10 times)
HINT:
If any of the doors are unlocked with no key in the ignition key cylinder during the armed state, a forced door
lock signal will be output (See step 3).

Disarmed state
(No key in ignition key cylinder.)
Continued from next page Continued on next pagePerforming the following will cause the system to go into arming preparation state.

With all doors and engine hood closed, lock all doors by wireless operation.
Arming preparation state
Performing any of the following will cause the
system to return to disarmed state.

Unlock any door by wireless operation.

Unlock any door.

Open any door.

Open engine hood.

Insert key into ignition key cylinder.

Reconnect battery.

Turn ignition switch from OFF to ON.With all doors and engine hood closed,
lock all doors. Allow approx. 27.5 sec.
to elapse.
Performing the following will cause the
system to go into armed state.

73±32
± THEFT DETERRENT & DOOR LOCKTHEFT DETERRENT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

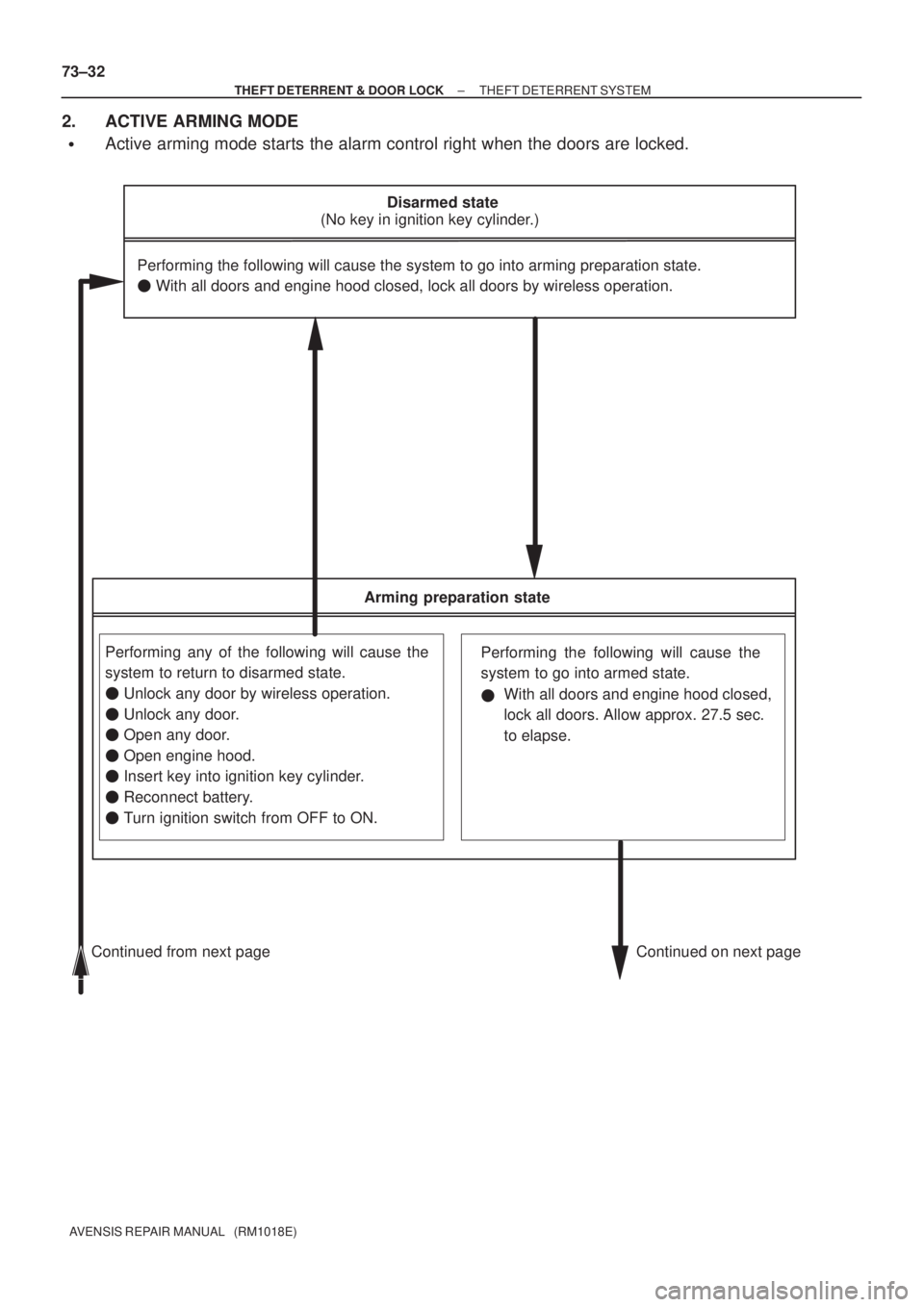

2. ACTIVE ARMING MODE
Active arming mode starts the alarm control right when the doors are locked.
