ENGINE HOOD/DOOR FRONT DOOR
75±15
AVENSIS REPAIR MANUAL (RM1018E)

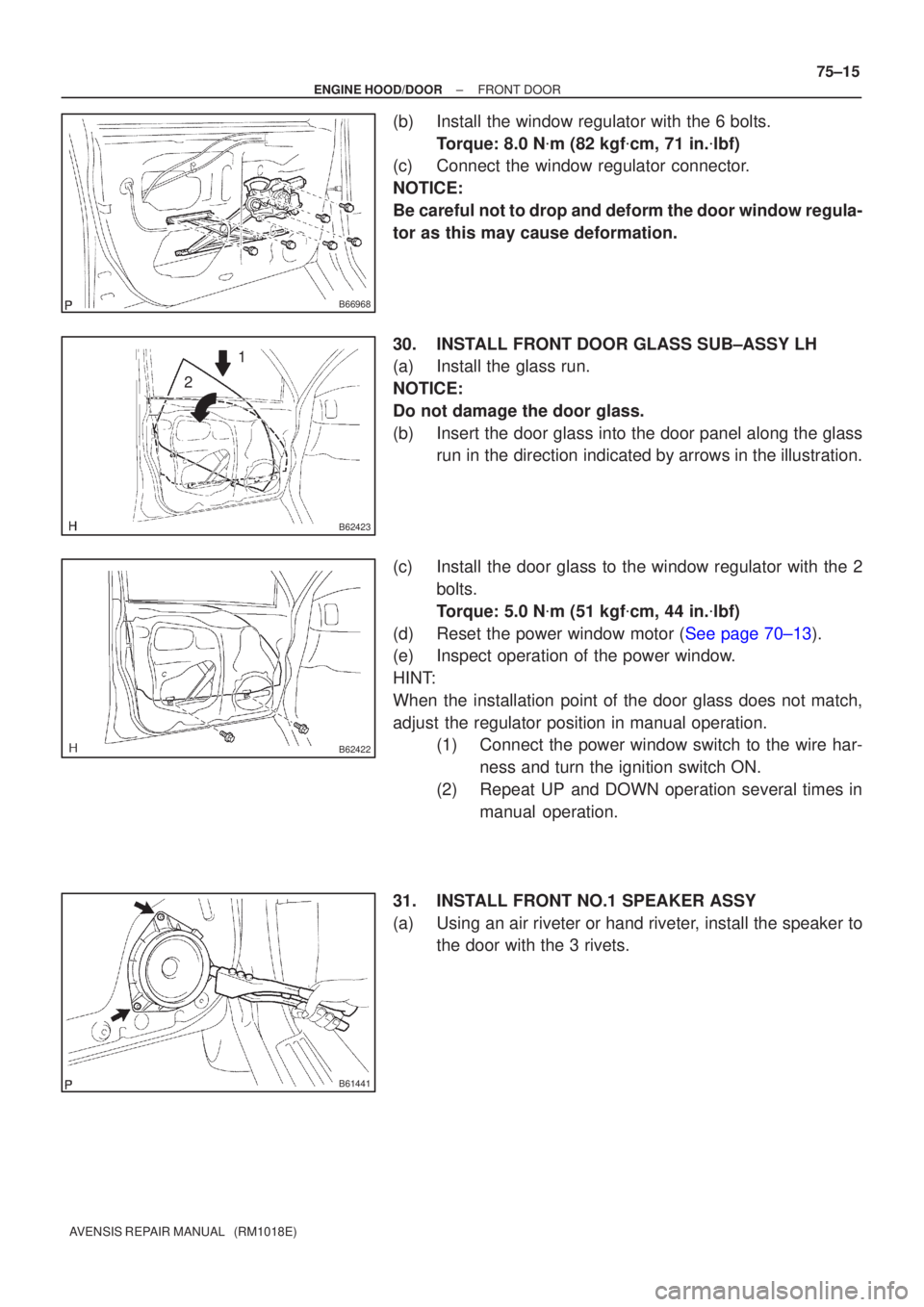

(b)Install the window regulator with the 6 bolts.
Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
(c)Connect the window regulator connector.
NOTICE:
Be careful not to drop and deform the door window regula-
tor as this may cause deformation.
30.INSTALL FRONT DOOR GLASS SUB±ASSY LH
(a)Install the glass run.
NOTICE:
Do not damage the door glass.
(b)Insert the door glass into the door panel along the glass run in the direction indicated by arrows in the illustration.
(c)Install the door glass to the window regulator with the 2 bolts.
Torque: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
(d)Reset the power window motor (See page 70±13).
(e) Inspect operation of the power window.
HINT:
When the installation point of the door glass does not match,
adjust the regulator position in manual operation. (1) Connect the power window switch to the wire har-
ness and turn the ignition switch ON.
(2) Repeat UP and DOWN operation several times in manual operation.
31. INSTALL FRONT NO.1 SPEAKER ASSY
(a) Using an air riveter or hand riveter, install the speaker to the door with the 3 rivets.

H02440Mandrel
RiveterWRONG
H02441
Riveter
Riveter
WRONG
WRONG
H02442
Riveter
WRONG
B68929
B69067
Butyl Tape
75±16
± ENGINE HOOD/DOORFRONT DOOR
AVENSIS REPAIR MANUAL (RM1018E)

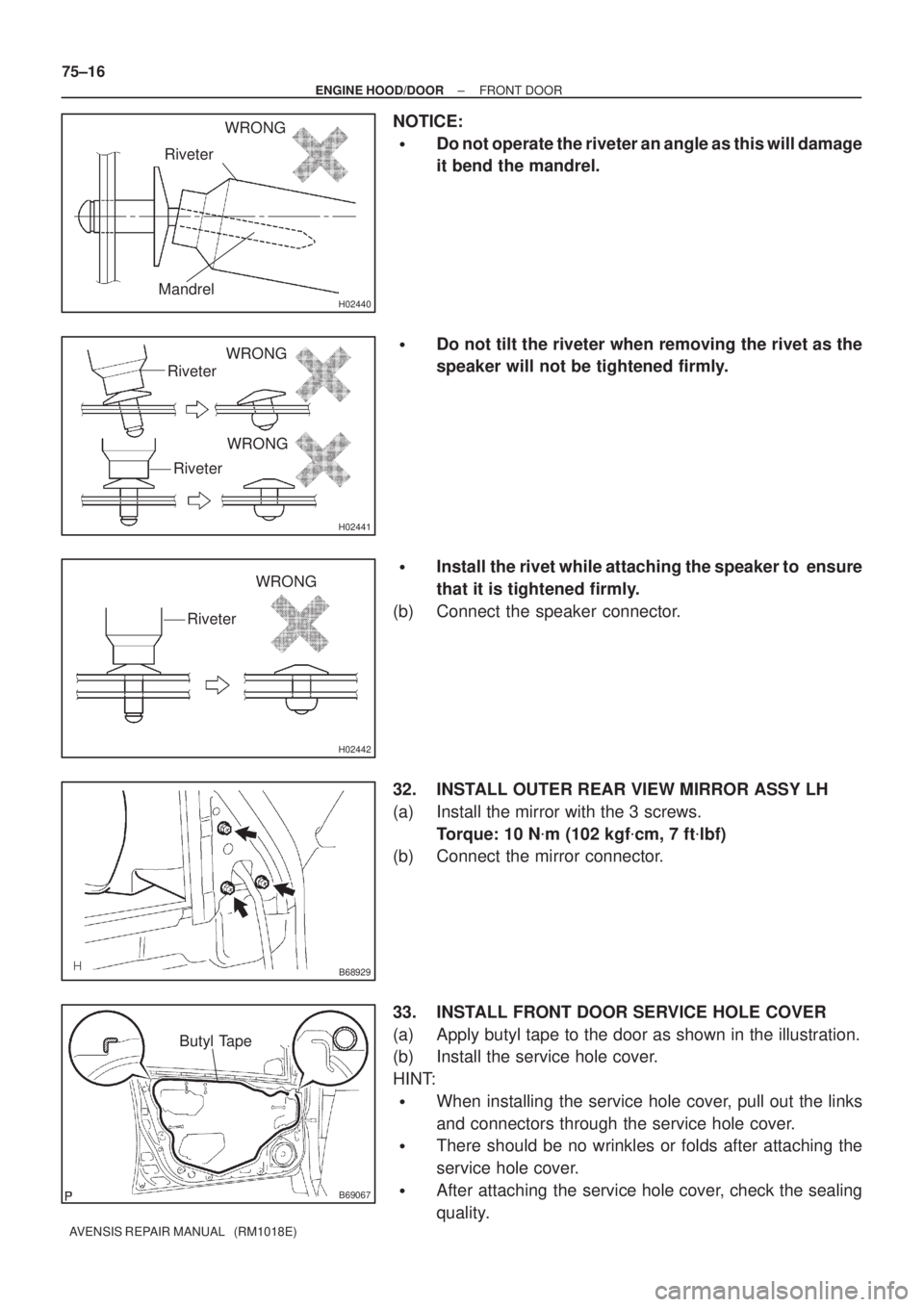

NOTICE:

Do not operate the riveter an angle as this will damage
it bend the mandrel.

Do not tilt the riveter when removing the rivet as the
speaker will not be tightened firmly.

Install the rivet while attaching the speaker to ensure
that it is tightened firmly.
(b) Connect the speaker connector.
32. INSTALL OUTER REAR VIEW MIRROR ASSY LH
(a) Install the mirror with the 3 screws.
Torque: 10 N
m (102 kgf
cm, 7 ft
lbf)
(b) Connect the mirror connector.
33. INSTALL FRONT DOOR SERVICE HOLE COVER
(a) Apply butyl tape to the door as shown in the illustration.
(b) Install the service hole cover.
HINT:

When installing the service hole cover, pull out the links
and connectors through the service hole cover.

There should be no wrinkles or folds after attaching the
service hole cover.

After attaching the service hole cover, check the sealing
quality.

B66981
± ENGINE HOOD/DOORFRONT DOOR
75±17
AVENSIS REPAIR MANUAL (RM1018E)

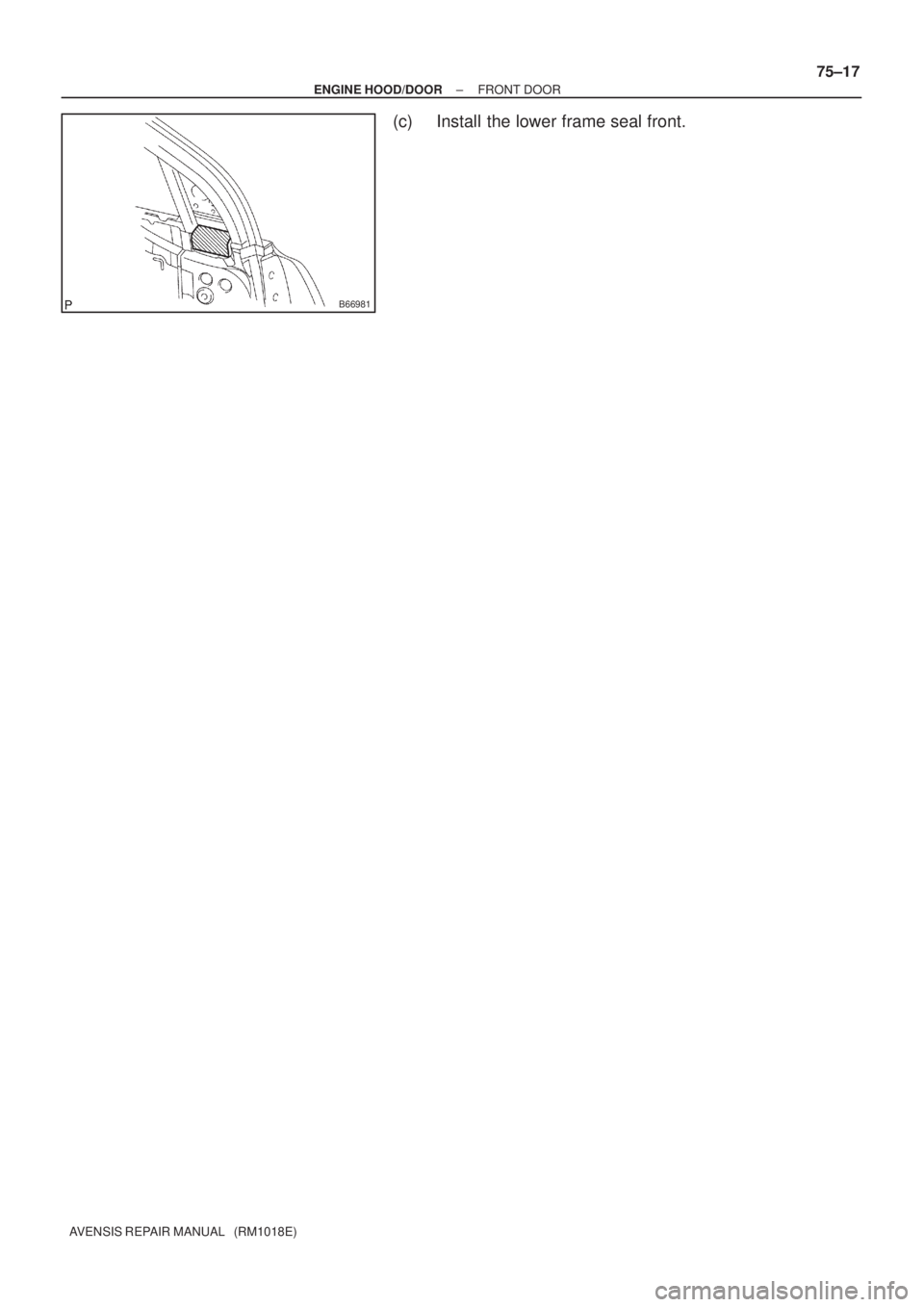

(c) Install the lower frame seal front.

750MW±01
B57104
Centering BoltStandard Bolt
B66965
A
B
C
ED
B66966
75±6
± ENGINE HOOD/DOORFRONT DOOR
AVENSIS REPAIR MANUAL (RM1018E)

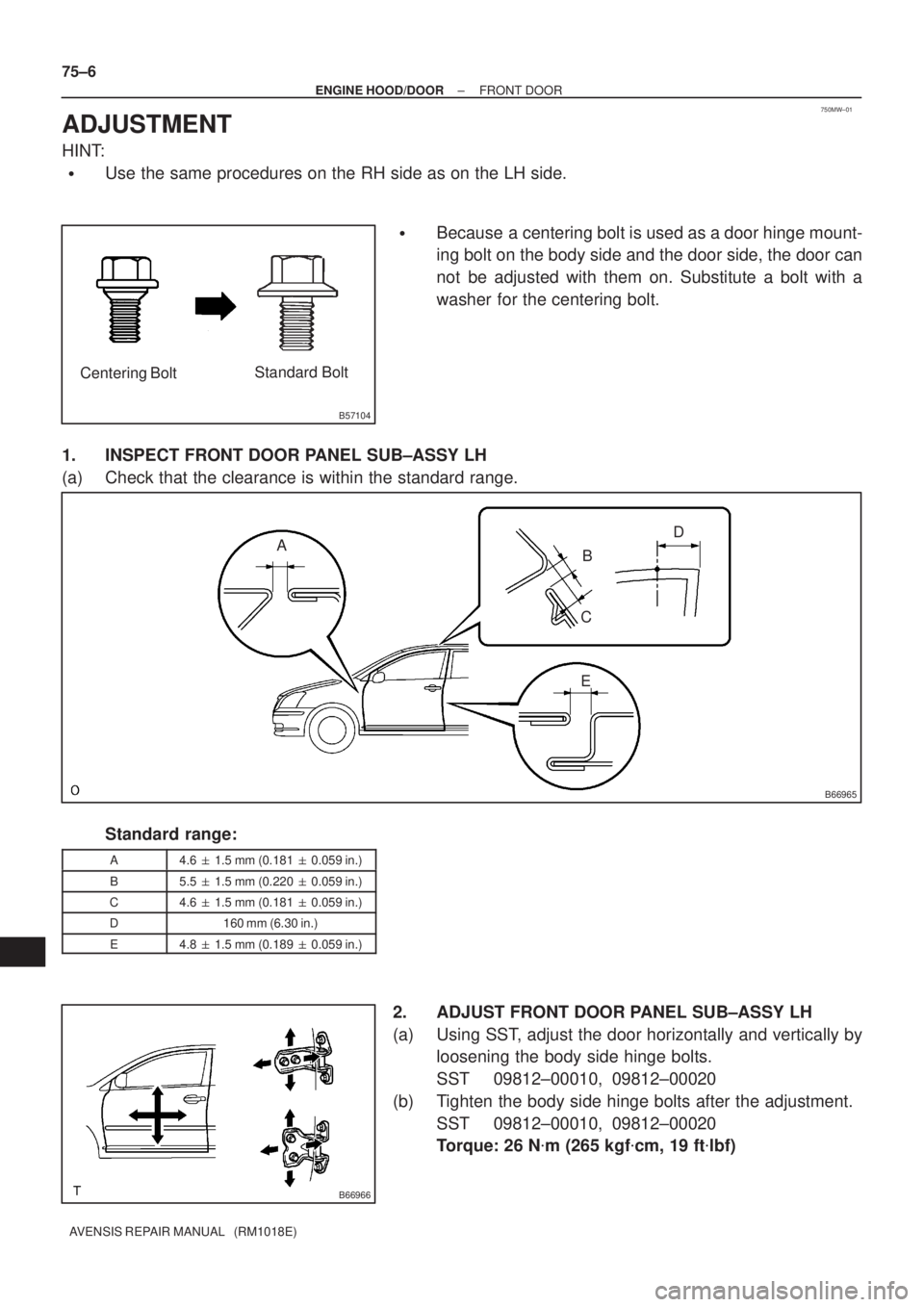

ADJUSTMENT
HINT:

Use the same procedures on the RH side as on the LH side.

Because a centering bolt is used as a door hinge mount-
ing bolt on the body side and the door side, the door can
not be adjusted with them on. Substitute a bolt with a
washer for the centering bolt.
1. INSPECT FRONT DOOR PANEL SUB±ASSY LH
(a) Check that the clearance is within the standard range.
Standard range:
A4.6
1.5 mm (0.181
0.059 in.)
B5.5
1.5 mm (0.220
0.059 in.)
C4.6
1.5 mm (0.181
0.059 in.)
D160 mm (6.30 in.)
E4.8
1.5 mm (0.189
0.059 in.)
2. ADJUST FRONT DOOR PANEL SUB±ASSY LH
(a) Using SST, adjust the door horizontally and vertically by
loosening the body side hinge bolts.
SST 09812±00010, 09812±00020
(b) Tighten the body side hinge bolts after the adjustment.
SST 09812±00010, 09812±00020
Torque: 26 N
m (265 kgf
cm, 19 ft
lbf)

B66967
B62411
± ENGINE HOOD/DOORFRONT DOOR
75±7
AVENSIS REPAIR MANUAL (RM1018E)

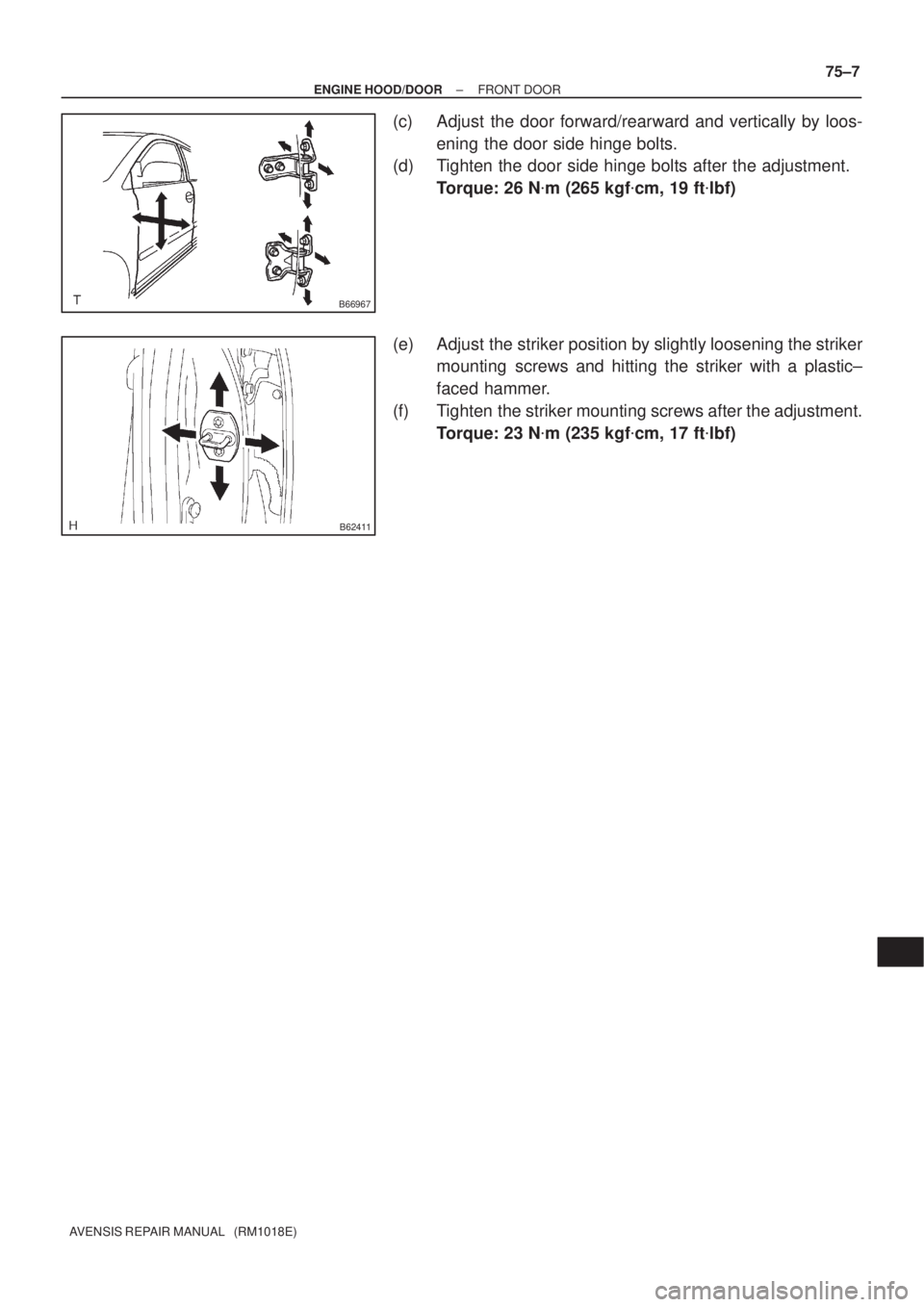

(c) Adjust the door forward/rearward and vertically by loos-
ening the door side hinge bolts.
(d) Tighten the door side hinge bolts after the adjustment.
Torque: 26 N
m (265 kgf
cm, 19 ft
lbf)
(e) Adjust the striker position by slightly loosening the striker
mounting screws and hitting the striker with a plastic±
faced hammer.
(f) Tighten the striker mounting screws after the adjustment.
Torque: 23 N
m (235 kgf
cm, 17 ft
lbf)

750MV±01
B67988
Front Door Glass
Sub±assy LH Front Door Glass Run LH
Front Door Frame Sub±assy Rear Lower LH
8.0 (82, 71 in.´lbf)
Front Door Glass Weatherstrip Inner LH
Front Door Trim Board Sub±assy LH Front Door Armrest
Base Panel Upper
Courtesy Lamp
: Specified torque
N´m (kgf´cm, ft´lbf)Front No. 1 Speaker Assy Front Door Inside Handle Sub±assy LH
Fuel Lid Opener Switch
Front Door Trim Base LHClip
Power Window Regulator
Switch Assy Front Door Armrest Base Panel Upper
w/o Rear Power Window
Front Door Window Regulator
Sub±assy LH
8.0 (82, 71 in.´lbf)
Power Window Regulator
Master Switch Assy
Rivet
Non±reusable part


5.5 (56, 49 in.´lbf)
75±4
± ENGINE HOOD/DOORFRONT DOOR
AVENSIS REPAIR MANUAL (RM1018E)

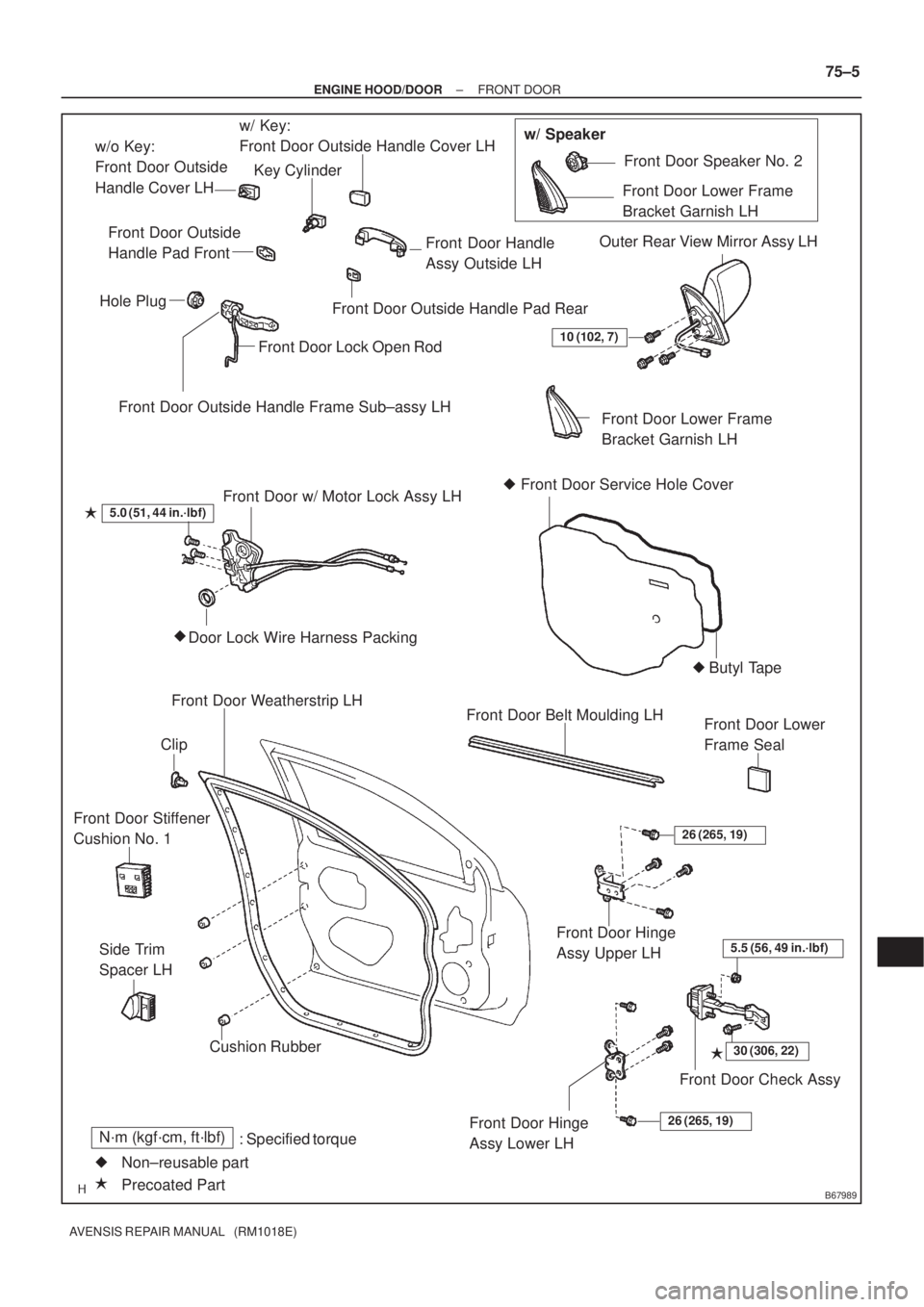

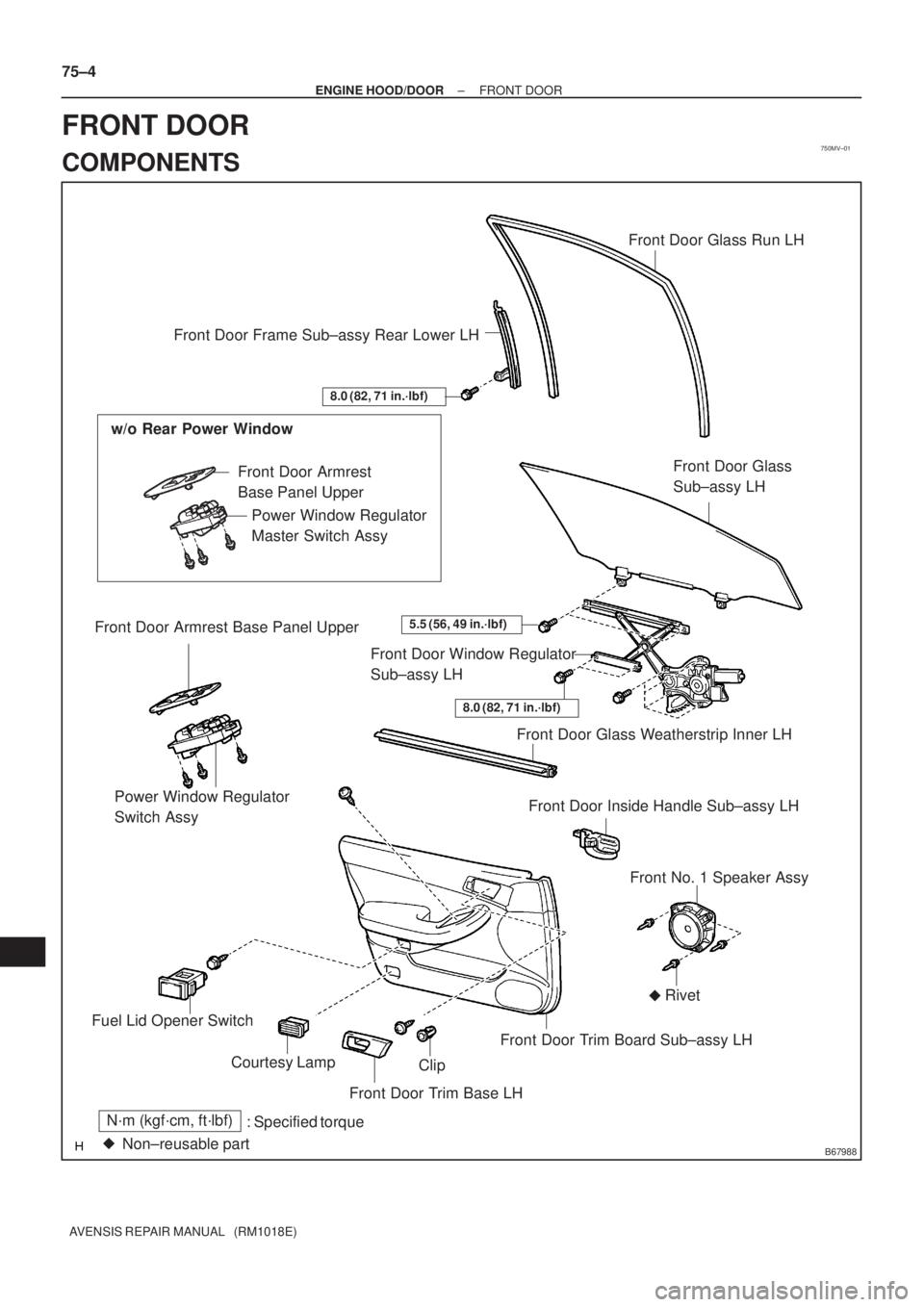

FRONT DOOR
COMPONENTS

B67989
Front Door Outside Handle Frame Sub±assy LHw/ Key:
Front Door Outside Handle Cover LH
Front Door Handle
Assy Outside LH
Front Door Outside Handle Pad Rear Front Door Outside
Handle Pad Front
Hole Plug
Front Door Lock Open Rod
Front Door w/ Motor Lock Assy LH
Door Lock Wire Harness Packing 5.0 (51, 44 in.´lbf)
Front Door Belt Moulding LH
Front Door Hinge
Assy Upper LH
Front Door Check Assy
30 (306, 22)

5.5 (56, 49 in.´lbf)
Front Door Hinge
Assy Lower LH26 (265, 19)
Front Door Weatherstrip LH
Cushion RubberFront Door Lower Frame
Bracket Garnish LH Outer Rear View Mirror Assy LH
Front Door Speaker No. 2
Front Door Service Hole Cover
: Specified torqueN´m (kgf´cm, ft´lbf)


Precoated Part Non±reusable part Clip
26 (265, 19)
Front Door Lower
Frame Seal


Butyl Tape

10 (102, 7)
Front Door Stiffener
Cushion No. 1
Side Trim
Spacer LH
Key Cylinder
w/o Key:
Front Door Outside
Handle Cover LHw/ Speaker
Front Door Lower Frame
Bracket Garnish LH
± ENGINE HOOD/DOORFRONT DOOR
75±5
AVENSIS REPAIR MANUAL (RM1018E)

750MU±01
B57104
Centering BoltStandard Bolt
B66962
AB
B61420
75±2
± ENGINE HOOD/DOORHOOD
AVENSIS REPAIR MANUAL (RM1018E)
ADJUSTMENT
HINT:
Because a centering bolt is used as a hood hinge mounting bolt
and hood lock mounting bolt, the hood and hood lock can not
be adjusted with them on. Substitute a bolt with a washer for the
centering bolt.
1. INSPECT HOOD SUB±ASSY
(a) Check that the clearance is within the standard range.
Standard range:
A3.5
1.5 mm (0.138
0.059 in.)
B3.5 ± 1.5 or +2.5 mm
(0.138 ± 0.059 or + 0.098 in.)
2. ADJUST HOOD SUB±ASSY
(a) Horizontally and vertically adjust the hood.
(1) Loosen the 4 hood hinge bolts on the hood side.

B66963
A
Aligned
B66964
B62401
±
ENGINE HOOD/DOOR HOOD
75±3
AVENSIS REPAIR MANUAL (RM1018E)

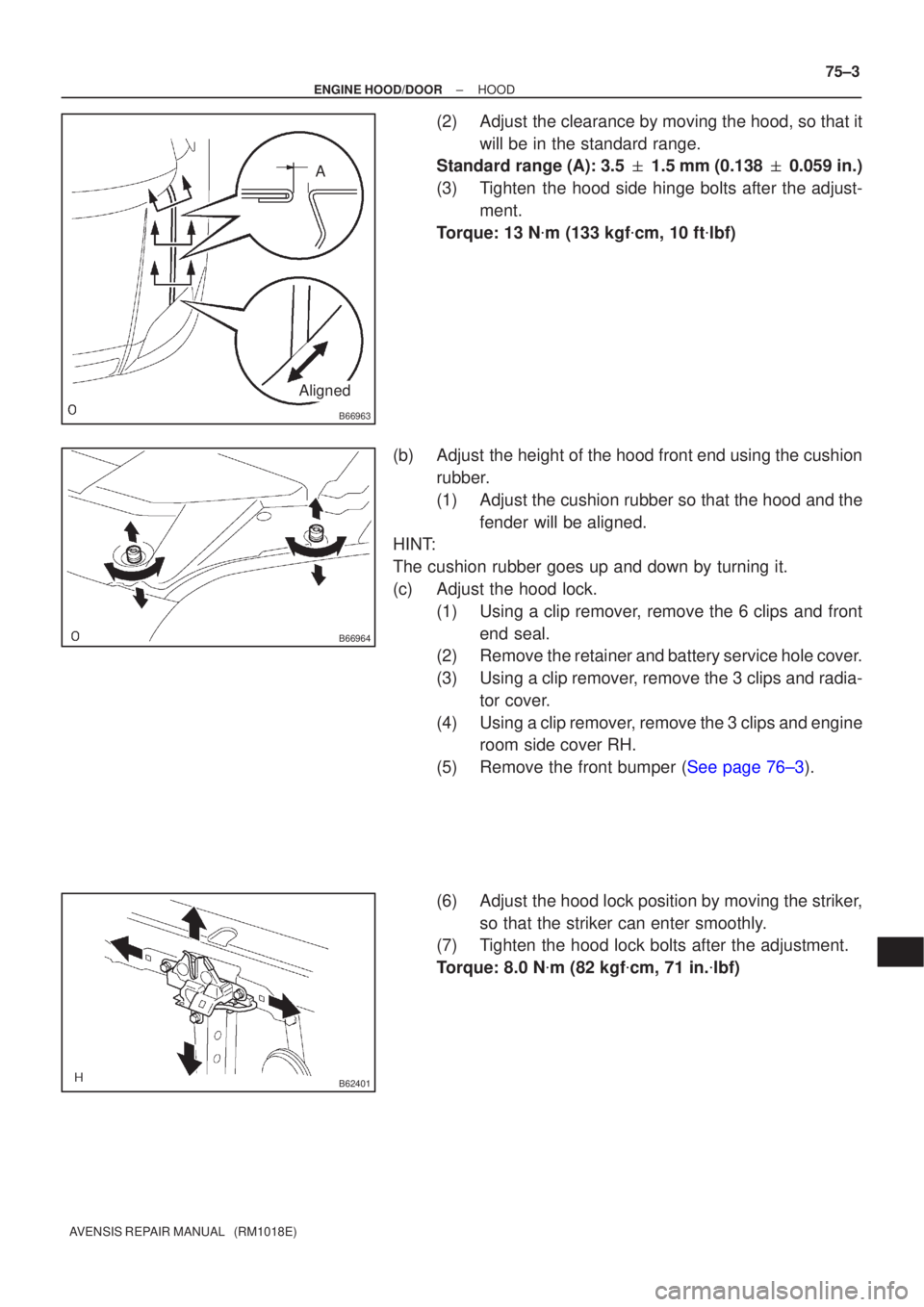

(2)Adjust the clearance by moving the hood, so that it
will be in the standard range.
Standard range (A): 3.5
1.5 mm (0.138
0.059 in.)
(3)Tighten the hood side hinge bolts after the adjust- ment.
Torque: 13 N
m (133 kgf
cm, 10 ft
lbf)
(b)Adjust the height of the hood front end using the cushion rubber.
(1)Adjust the cushion rubber so that the hood and thefender will be aligned.
HINT:
The cushion rubber goes up and down by turning it.
(c)Adjust the hood lock.
(1)Using a clip remover, remove the 6 clips and frontend seal.
(2)Remove the retainer and battery service hole cover.
(3)Using a clip remover, remove the 3 clips and radia-
tor cover.
(4)Using a clip remover, remove the 3 clips and engine room side cover RH.
(5)Remove the front bumper (See page 76±3).
(6) Adjust the hood lock position by moving the striker, so that the striker can enter smoothly.
(7) Tighten the hood lock bolts after the adjustment.
Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)

750MT±01
B67533
Hood Sub±assy
Hood Insulator
Engine Room Side Cover RH
Radiator CoverBattery Service Hole Cover
Hood Hinge Assy RH
Hood to Front Fender Seal RH Hood Lock Assy
Front Bumper Assy
Hood to Front Fender Seal LH
Hood Hinge Assy LH x 8
Hood to Front End Panel Seal
8.0 (82, 71 in.´lbf)
13 (133, 10)
13 (133, 10)
: Specified torqueN´m (kgf´cm, ft´lbf)Cushion Rubber
Cushion Rubber
Clip
± ENGINE HOOD/DOORHOOD
75±1
AVENSIS REPAIR MANUAL (RM1018E)

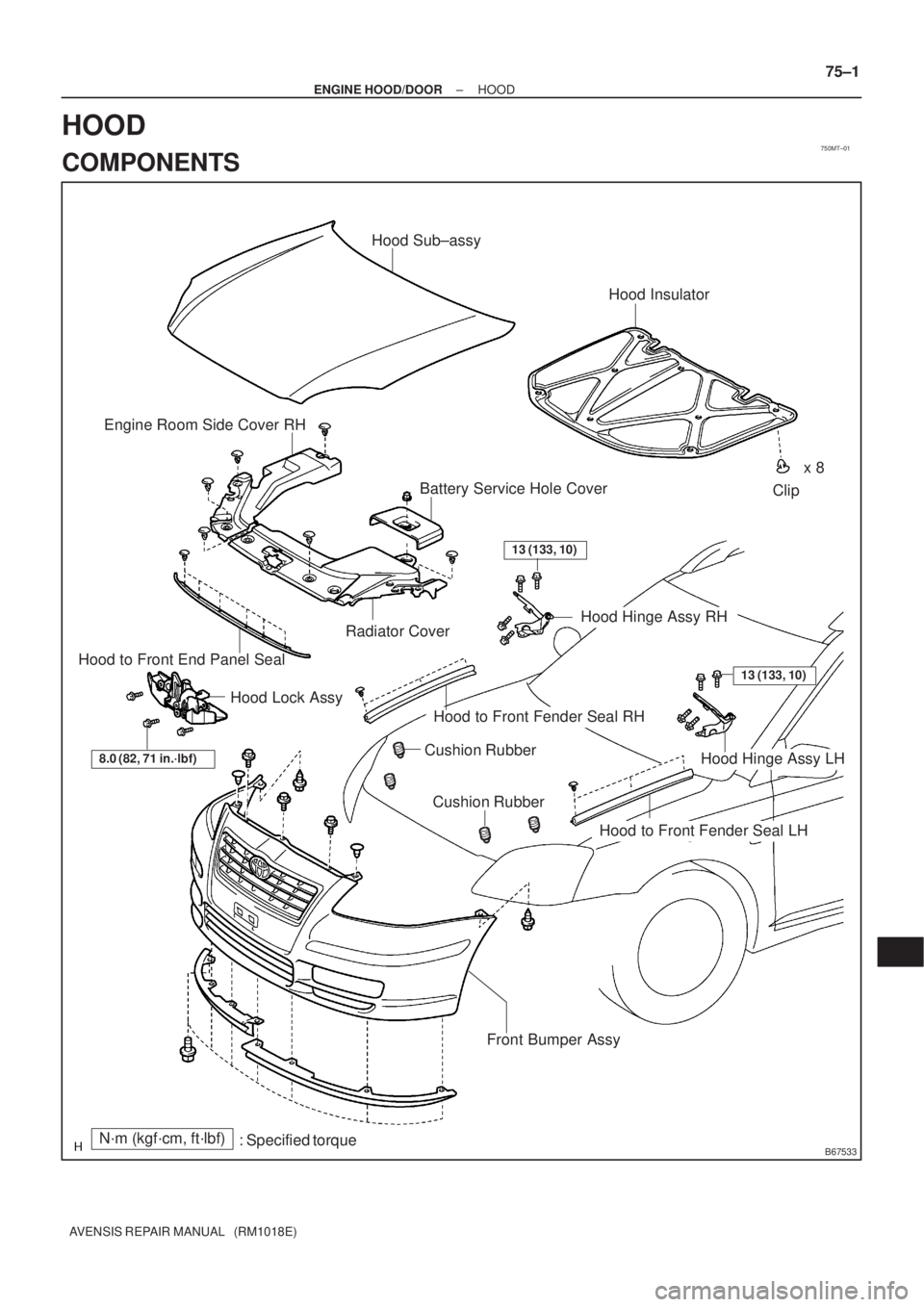

HOOD
