± ENGINE MECHANICALCYLINDER HEAD ASSY (1CD±FTV)
1CD±FTV ENGINE REPAIR MANUAL (RM927E)

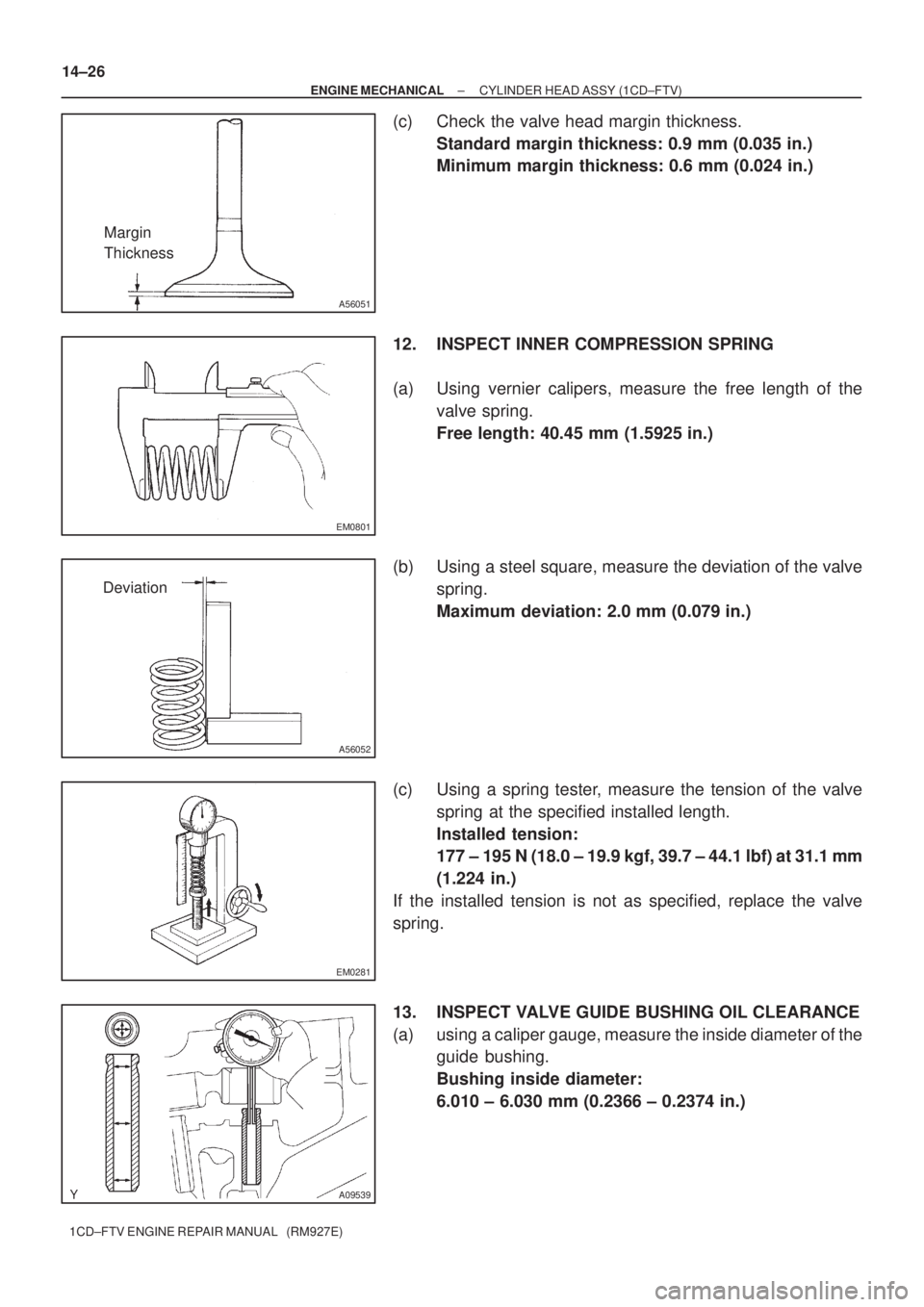

(c) Check the valve head margin thickness.
Standard margin thickness: 0.9 mm (0.035 in.)
Minimum margin thickness: 0.6 mm (0.024 in.)
12. INSPECT INNER COMPRESSION SPRING
(a) Using vernier calipers, measure the free length of the
valve spring.
Free length: 40.45 mm (1.5925 in.)
(b) Using a steel square, measure the deviation of the valve
spring.
Maximum deviation: 2.0 mm (0.079 in.)
(c) Using a spring tester, measure the tension of the valve
spring at the specified installed length.
Installed tension:
177 ± 195 N (18.0 ± 19.9 kgf, 39.7 ± 44.1 lbf) at 31.1 mm
(1.224 in.)
If the installed tension is not as specified, replace the valve
spring.
13. INSPECT VALVE GUIDE BUSHING OIL CLEARANCE
(a) using a caliper gauge, measure the inside diameter of the
guide bushing.
Bushing inside diameter:
6.010 ± 6.030 mm (0.2366 ± 0.2374 in.)

A56674
SST
A56675
SST
± ENGINE MECHANICALCYLINDER HEAD ASSY (1CD±FTV)
14±27
1CD±FTV ENGINE REPAIR MANUAL (RM927E)

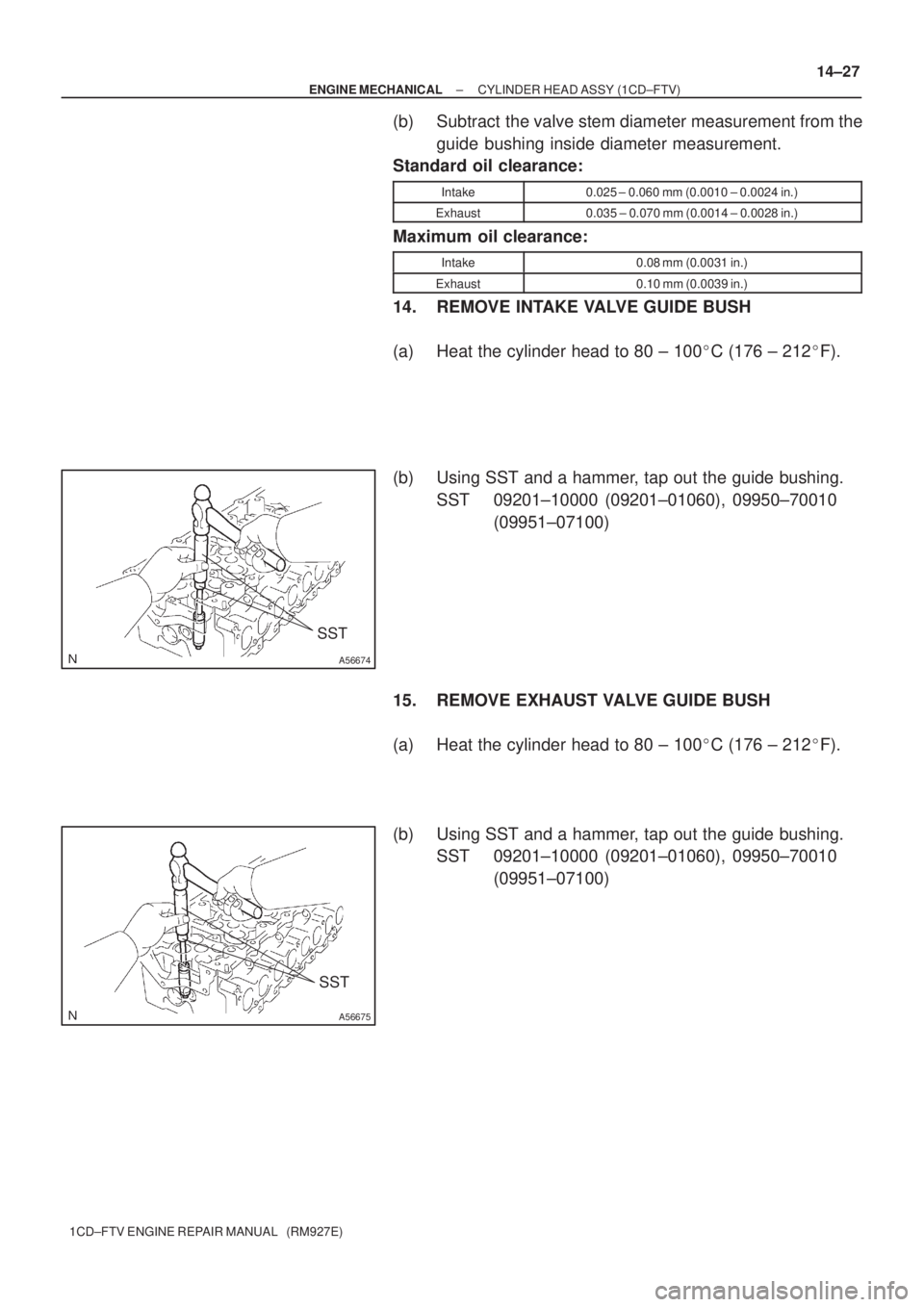

(b) Subtract the valve stem diameter measurement from the
guide bushing inside diameter measurement.
Standard oil clearance:
Intake0.025 ± 0.060 mm (0.0010 ± 0.0024 in.)
Exhaust0.035 ± 0.070 mm (0.0014 ± 0.0028 in.)
Maximum oil clearance:
Intake0.08 mm (0.0031 in.)
Exhaust0.10 mm (0.0039 in.)
14. REMOVE INTAKE VALVE GUIDE BUSH
(a) Heat the cylinder head to 80 ± 100
C (176 ± 212
F).
(b) Using SST and a hammer, tap out the guide bushing.
SST 09201±10000 (09201±01060), 09950±70010
(09951±07100)
15. REMOVE EXHAUST VALVE GUIDE BUSH
(a) Heat the cylinder head to 80 ± 100
C (176 ± 212
F).
(b) Using SST and a hammer, tap out the guide bushing.
SST 09201±10000 (09201±01060), 09950±70010
(09951±07100)

A09543
SSTSST
A09541
A09540
Sharp 6 mm
Reamer 14±28
± ENGINE MECHANICALCYLINDER HEAD ASSY (1CD±FTV)
1CD±FTV ENGINE REPAIR MANUAL (RM927E)

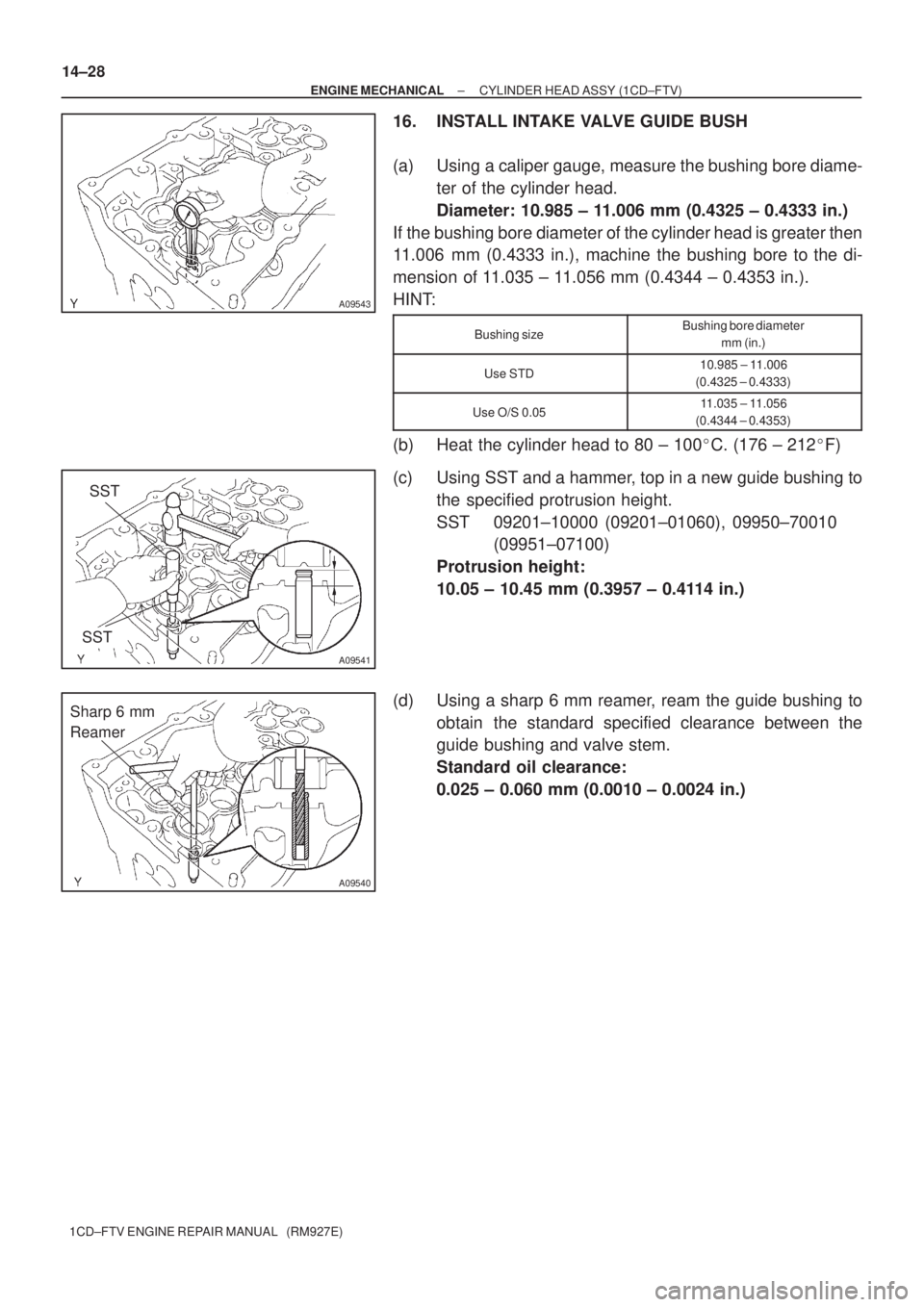

16. INSTALL INTAKE VALVE GUIDE BUSH
(a) Using a caliper gauge, measure the bushing bore diame-
ter of the cylinder head.
Diameter: 10.985 ± 11.006 mm (0.4325 ± 0.4333 in.)
If the bushing bore diameter of the cylinder head is greater then
11.006 mm (0.4333 in.), machine the bushing bore to the di-
mension of 11.035 ± 11.056 mm (0.4344 ± 0.4353 in.).
HINT:
Bushing sizeBushing bore diameter
mm (in.)
Use STD10.985 ± 11.006
(0.4325 ± 0.4333)
Use O/S 0.0511.035 ± 11.056
(0.4344 ± 0.4353)
(b) Heat the cylinder head to 80 ± 100
C. (176 ± 212
F)
(c) Using SST and a hammer, top in a new guide bushing to
the specified protrusion height.
SST 09201±10000 (09201±01060), 09950±70010
(09951±07100)
Protrusion height:
10.05 ± 10.45 mm (0.3957 ± 0.4114 in.)
(d) Using a sharp 6 mm reamer, ream the guide bushing to
obtain the standard specified clearance between the
guide bushing and valve stem.
Standard oil clearance:
0.025 ± 0.060 mm (0.0010 ± 0.0024 in.)

A56676
A56677
SST
A56678
Sharp 6 mm
Reamer
± ENGINE MECHANICALCYLINDER HEAD ASSY (1CD±FTV)
14±29
1CD±FTV ENGINE REPAIR MANUAL (RM927E)

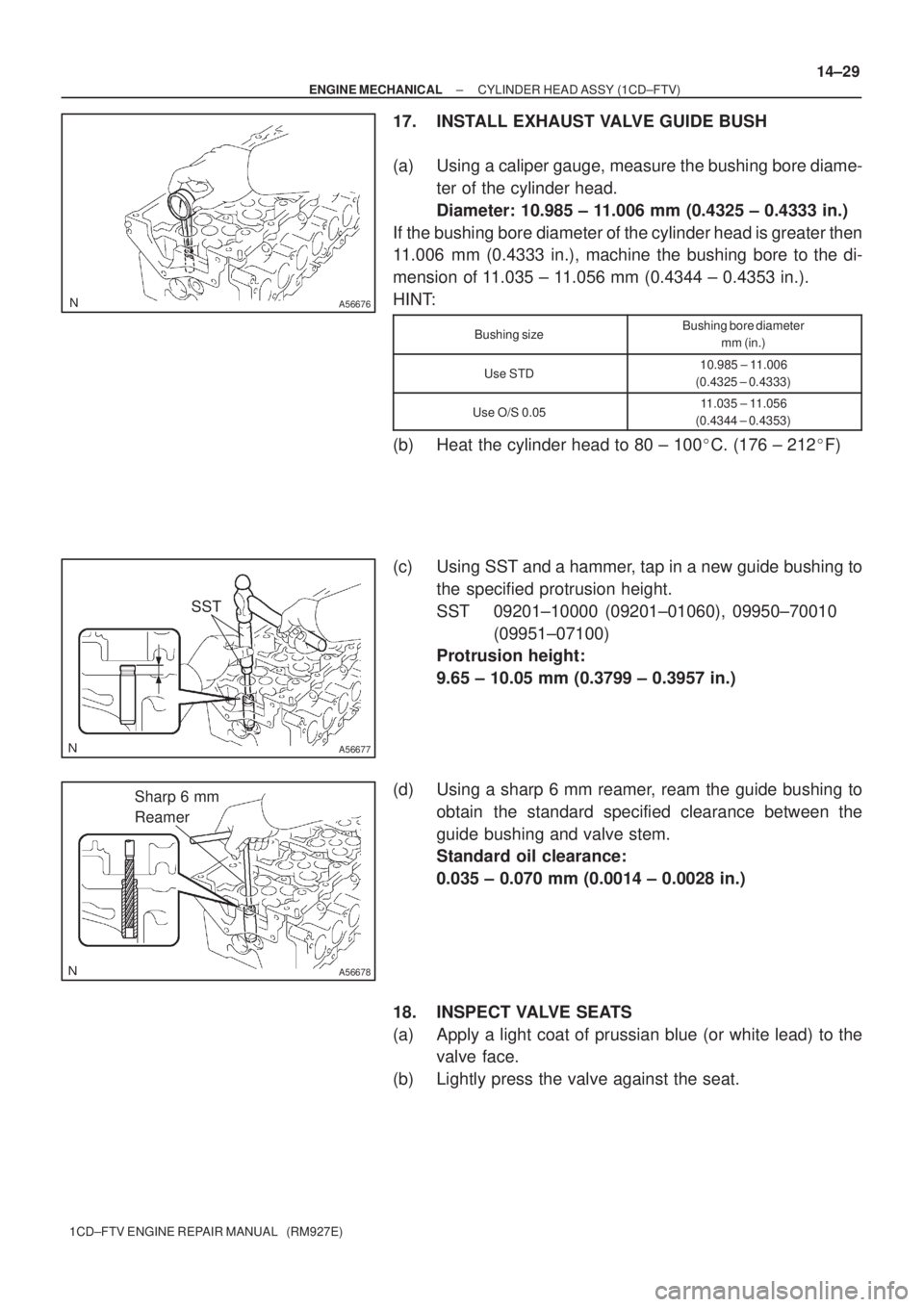

17. INSTALL EXHAUST VALVE GUIDE BUSH
(a) Using a caliper gauge, measure the bushing bore diame-
ter of the cylinder head.
Diameter: 10.985 ± 11.006 mm (0.4325 ± 0.4333 in.)
If the bushing bore diameter of the cylinder head is greater then
11.006 mm (0.4333 in.), machine the bushing bore to the di-
mension of 11.035 ± 11.056 mm (0.4344 ± 0.4353 in.).
HINT:
Bushing sizeBushing bore diameter
mm (in.)
Use STD10.985 ± 11.006
(0.4325 ± 0.4333)
Use O/S 0.0511.035 ± 11.056
(0.4344 ± 0.4353)
(b) Heat the cylinder head to 80 ± 100
C. (176 ± 212
F)
(c) Using SST and a hammer, tap in a new guide bushing to
the specified protrusion height.
SST 09201±10000 (09201±01060), 09950±70010
(09951±07100)
Protrusion height:
9.65 ± 10.05 mm (0.3799 ± 0.3957 in.)
(d) Using a sharp 6 mm reamer, ream the guide bushing to
obtain the standard specified clearance between the
guide bushing and valve stem.
Standard oil clearance:
0.035 ± 0.070 mm (0.0014 ± 0.0028 in.)
18. INSPECT VALVE SEATS
(a) Apply a light coat of prussian blue (or white lead) to the
valve face.
(b) Lightly press the valve against the seat.

A56053
Width
45
25

Z03988
45

70

A57105Contacting Width
A09537
14±30
± ENGINE MECHANICALCYLINDER HEAD ASSY (1CD±FTV)
1CD±FTV ENGINE REPAIR MANUAL (RM927E)

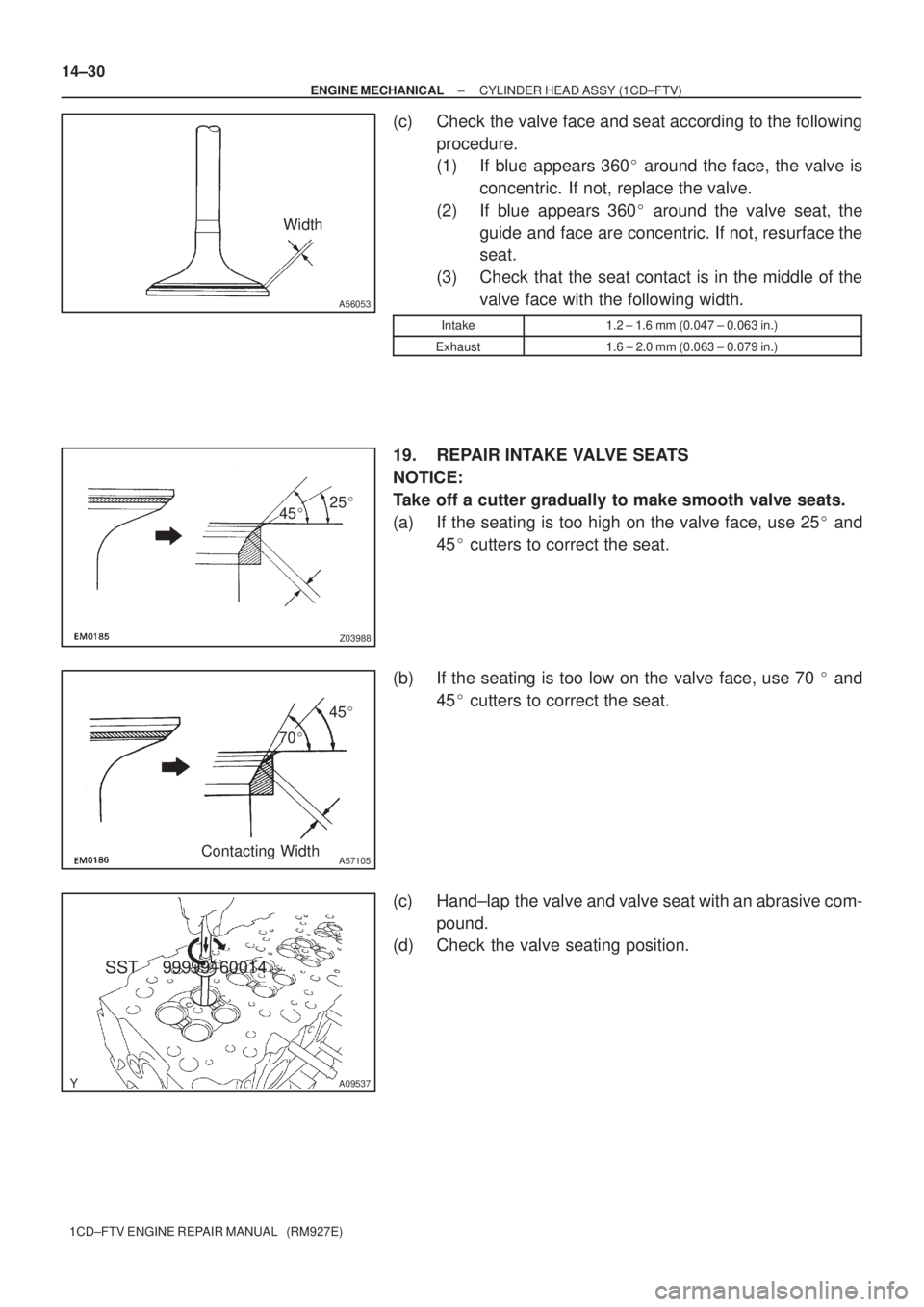

(c) Check the valve face and seat according to the following
procedure.
(1) If blue appears 360
around the face, the valve is
concentric. If not, replace the valve.
(2) If blue appears 360
around the valve seat, the
guide and face are concentric. If not, resurface the
seat.
(3) Check that the seat contact is in the middle of the
valve face with the following width.
Intake1.2 ± 1.6 mm (0.047 ± 0.063 in.)
Exhaust1.6 ± 2.0 mm (0.063 ± 0.079 in.)
19. REPAIR INTAKE VALVE SEATS
NOTICE:
Take off a cutter gradually to make smooth valve seats.
(a) If the seating is too high on the valve face, use 25
and
45
cutters to correct the seat.
(b) If the seating is too low on the valve face, use 70
and
45
cutters to correct the seat.
(c) Hand±lap the valve and valve seat with an abrasive com-
pound.
(d) Check the valve seating position.
SST 99999±60014

45
25

Z03988
45

65

A57106
A56679
EM2196
A09544
± ENGINE MECHANICALCYLINDER HEAD ASSY (1CD±FTV)
14±31
1CD±FTV ENGINE REPAIR MANUAL (RM927E)

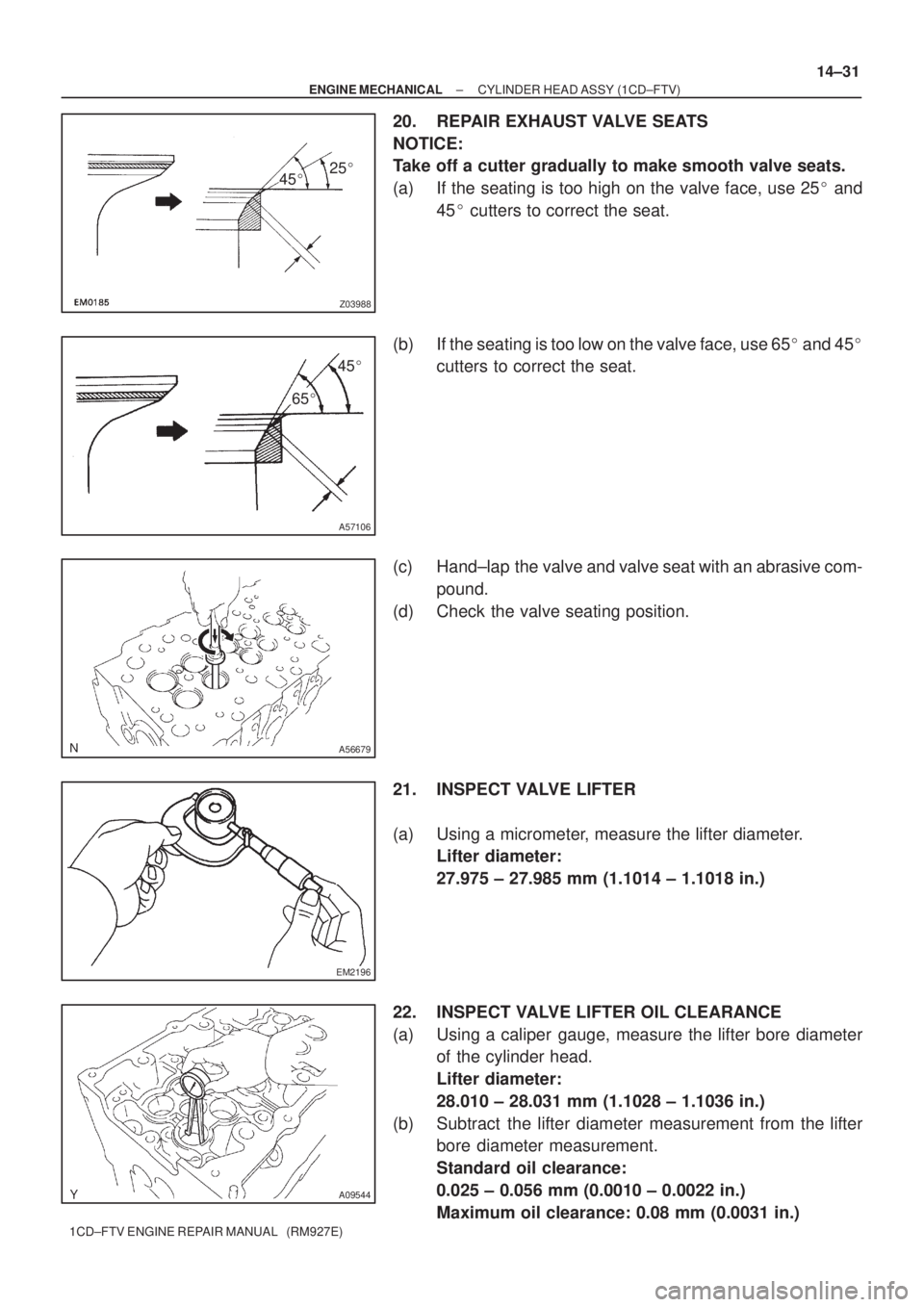

20. REPAIR EXHAUST VALVE SEATS
NOTICE:
Take off a cutter gradually to make smooth valve seats.
(a) If the seating is too high on the valve face, use 25
and
45
cutters to correct the seat.
(b) If the seating is too low on the valve face, use 65
and 45

cutters to correct the seat.
(c) Hand±lap the valve and valve seat with an abrasive com-
pound.
(d) Check the valve seating position.
21. INSPECT VALVE LIFTER
(a) Using a micrometer, measure the lifter diameter.
Lifter diameter:
27.975 ± 27.985 mm (1.1014 ± 1.1018 in.)
22. INSPECT VALVE LIFTER OIL CLEARANCE
(a) Using a caliper gauge, measure the lifter bore diameter
of the cylinder head.
Lifter diameter:
28.010 ± 28.031 mm (1.1028 ± 1.1036 in.)
(b) Subtract the lifter diameter measurement from the lifter
bore diameter measurement.
Standard oil clearance:
0.025 ± 0.056 mm (0.0010 ± 0.0022 in.)
Maximum oil clearance: 0.08 mm (0.0031 in.)

A09550
A09551
A09552
A09546
Plastigage
A09557
14±32
± ENGINE MECHANICALCYLINDER HEAD ASSY (1CD±FTV)
1CD±FTV ENGINE REPAIR MANUAL (RM927E)

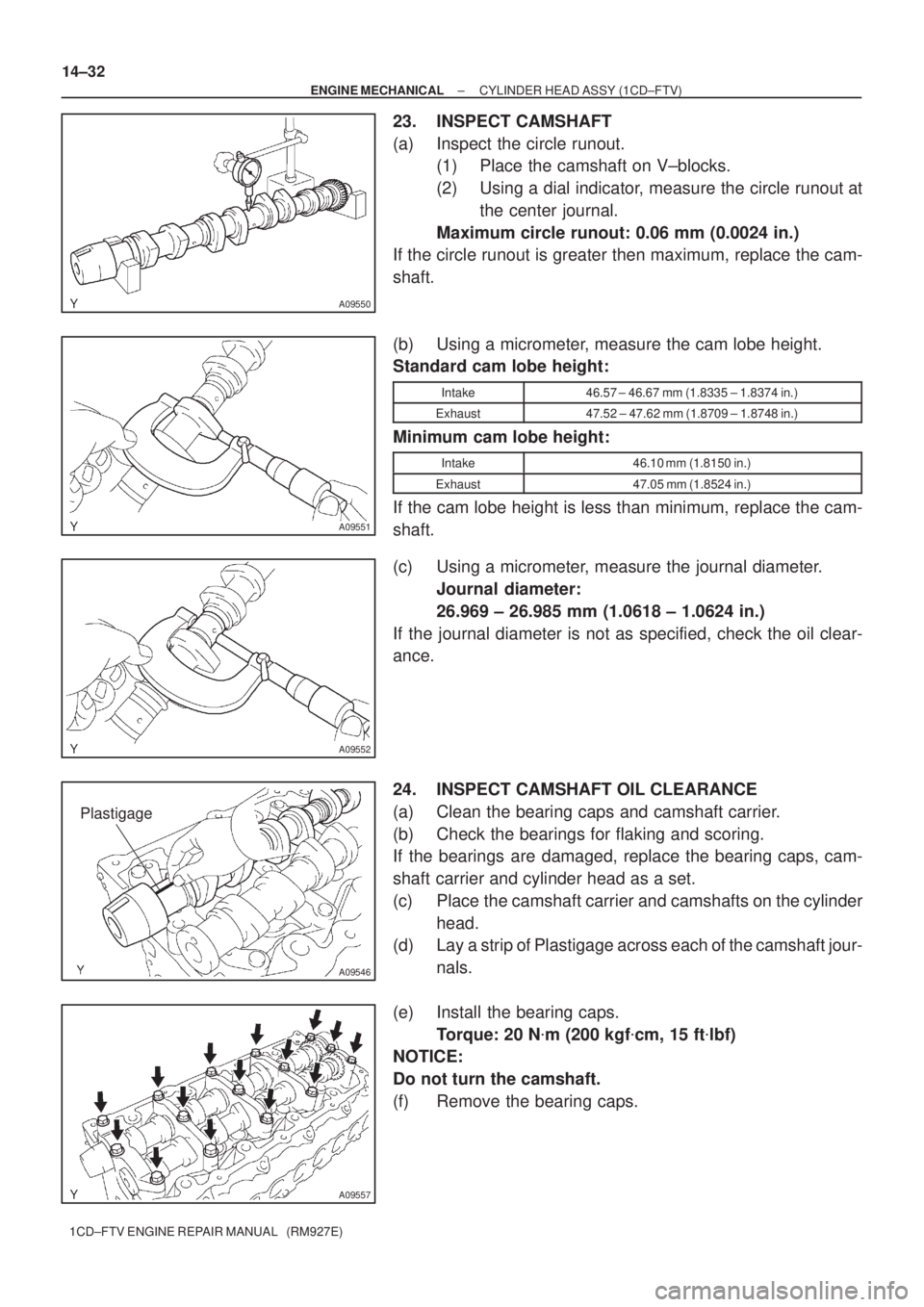

23. INSPECT CAMSHAFT
(a) Inspect the circle runout.
(1) Place the camshaft on V±blocks.
(2) Using a dial indicator, measure the circle runout at
the center journal.
Maximum circle runout: 0.06 mm (0.0024 in.)
If the circle runout is greater then maximum, replace the cam-
shaft.
(b) Using a micrometer, measure the cam lobe height.
Standard cam lobe height:
Intake46.57 ± 46.67 mm (1.8335 ± 1.8374 in.)
Exhaust47.52 ± 47.62 mm (1.8709 ± 1.8748 in.)
Minimum cam lobe height:
Intake46.10 mm (1.8150 in.)
Exhaust47.05 mm (1.8524 in.)
If the cam lobe height is less than minimum, replace the cam-
shaft.
(c) Using a micrometer, measure the journal diameter.
Journal diameter:
26.969 ± 26.985 mm (1.0618 ± 1.0624 in.)
If the journal diameter is not as specified, check the oil clear-
ance.
24. INSPECT CAMSHAFT OIL CLEARANCE
(a) Clean the bearing caps and camshaft carrier.
(b) Check the bearings for flaking and scoring.
If the bearings are damaged, replace the bearing caps, cam-
shaft carrier and cylinder head as a set.
(c) Place the camshaft carrier and camshafts on the cylinder
head.
(d) Lay a strip of Plastigage across each of the camshaft jour-
nals.
(e) Install the bearing caps.
Torque: 20 N
m (200 kgf
cm, 15 ft
lbf)
NOTICE:
Do not turn the camshaft.
(f) Remove the bearing caps.

A09547
A09545
A09548
± ENGINE MECHANICALCYLINDER HEAD ASSY (1CD±FTV)
14±33
1CD±FTV ENGINE REPAIR MANUAL (RM927E)

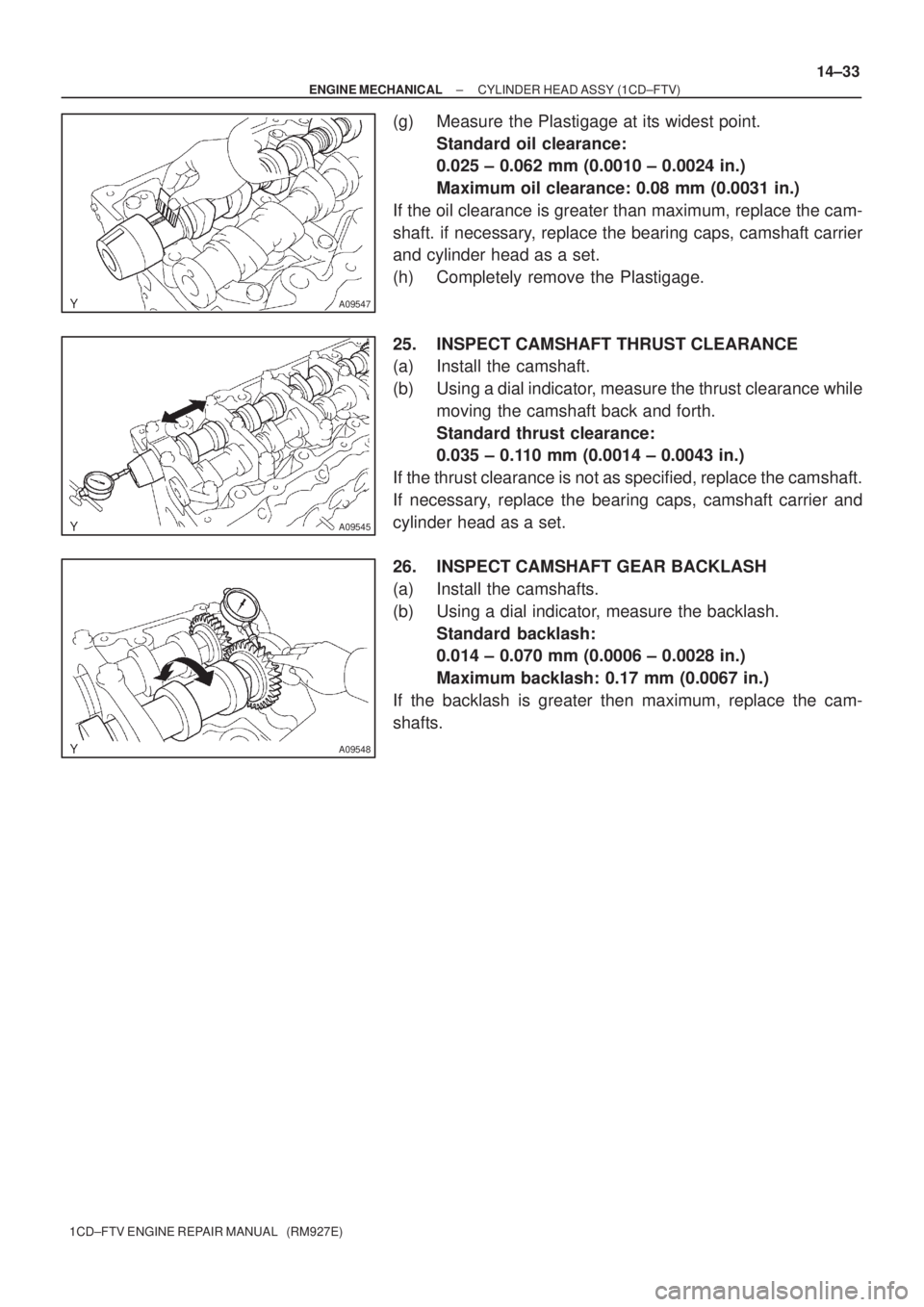

(g) Measure the Plastigage at its widest point.
Standard oil clearance:
0.025 ± 0.062 mm (0.0010 ± 0.0024 in.)
Maximum oil clearance: 0.08 mm (0.0031 in.)
If the oil clearance is greater than maximum, replace the cam-
shaft. if necessary, replace the bearing caps, camshaft carrier
and cylinder head as a set.
(h) Completely remove the Plastigage.
25. INSPECT CAMSHAFT THRUST CLEARANCE
(a) Install the camshaft.
(b) Using a dial indicator, measure the thrust clearance while
moving the camshaft back and forth.
Standard thrust clearance:
0.035 ± 0.110 mm (0.0014 ± 0.0043 in.)
If the thrust clearance is not as specified, replace the camshaft.
If necessary, replace the bearing caps, camshaft carrier and
cylinder head as a set.
26. INSPECT CAMSHAFT GEAR BACKLASH
(a) Install the camshafts.
(b) Using a dial indicator, measure the backlash.
Standard backlash:
0.014 ± 0.070 mm (0.0006 ± 0.0028 in.)
Maximum backlash: 0.17 mm (0.0067 in.)
If the backlash is greater then maximum, replace the cam-
shafts.

A56680
Intake Side:Cylinder Block Side:
Front Side: Rear Side:
1.5 mm 14±34
± ENGINE MECHANICALCYLINDER HEAD ASSY (1CD±FTV)
1CD±FTV ENGINE REPAIR MANUAL (RM927E)

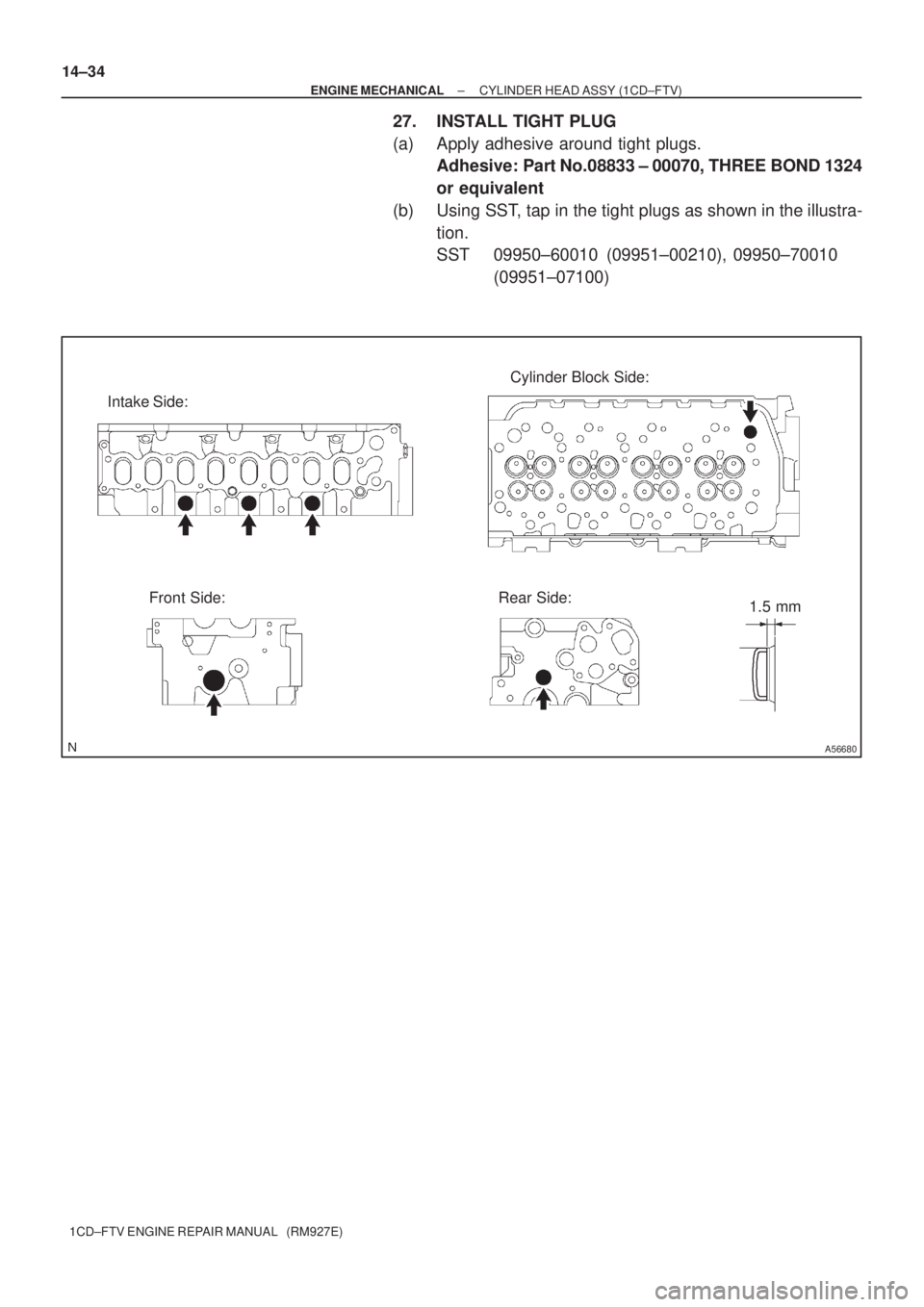

27. INSTALL TIGHT PLUG
(a) Apply adhesive around tight plugs.
Adhesive: Part No.08833 ± 00070, THREE BOND 1324
or equivalent
(b) Using SST, tap in the tight plugs as shown in the illustra-
tion.
SST 09950±60010 (09951±00210), 09950±70010
(09951±07100)

A56681
Intake Side: Upper Side:
Protrusion Height: 3 mm
11 m m8 mm
12.5 mm8 mmProtrusion Height: 3 mm
A56682
Upper Side:
11 m m Front Side:
16 mm
7 mm
7 mm
Protrusion Height: 11 mm Protrusion Height: 6 mm
± ENGINE MECHANICALCYLINDER HEAD ASSY (1CD±FTV)
14±35
1CD±FTV ENGINE REPAIR MANUAL (RM927E)

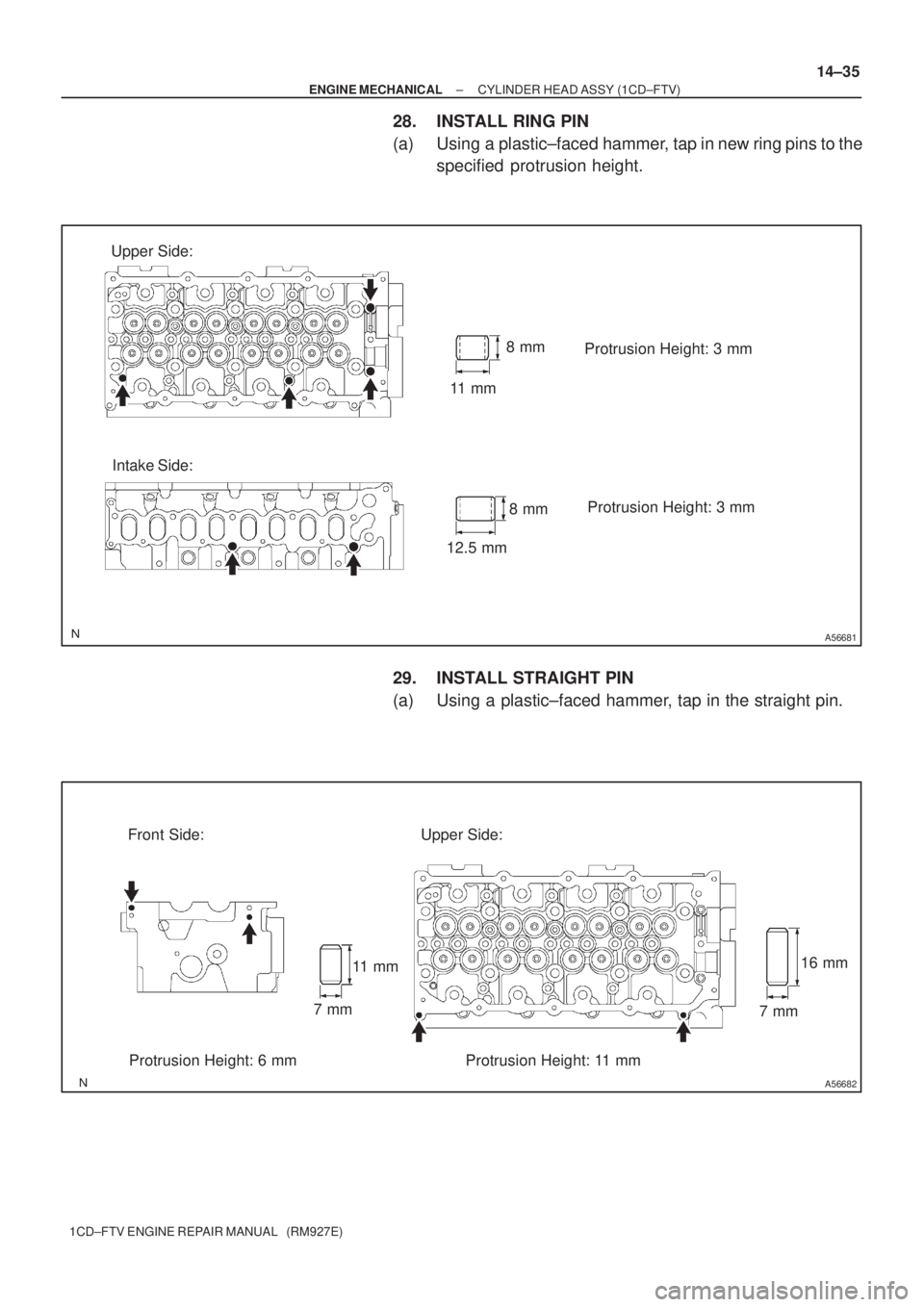

28. INSTALL RING PIN
(a) Using a plastic±faced hammer, tap in new ring pins to the
specified protrusion height.
29. INSTALL STRAIGHT PIN
(a) Using a plastic±faced hammer, tap in the straight pin.
