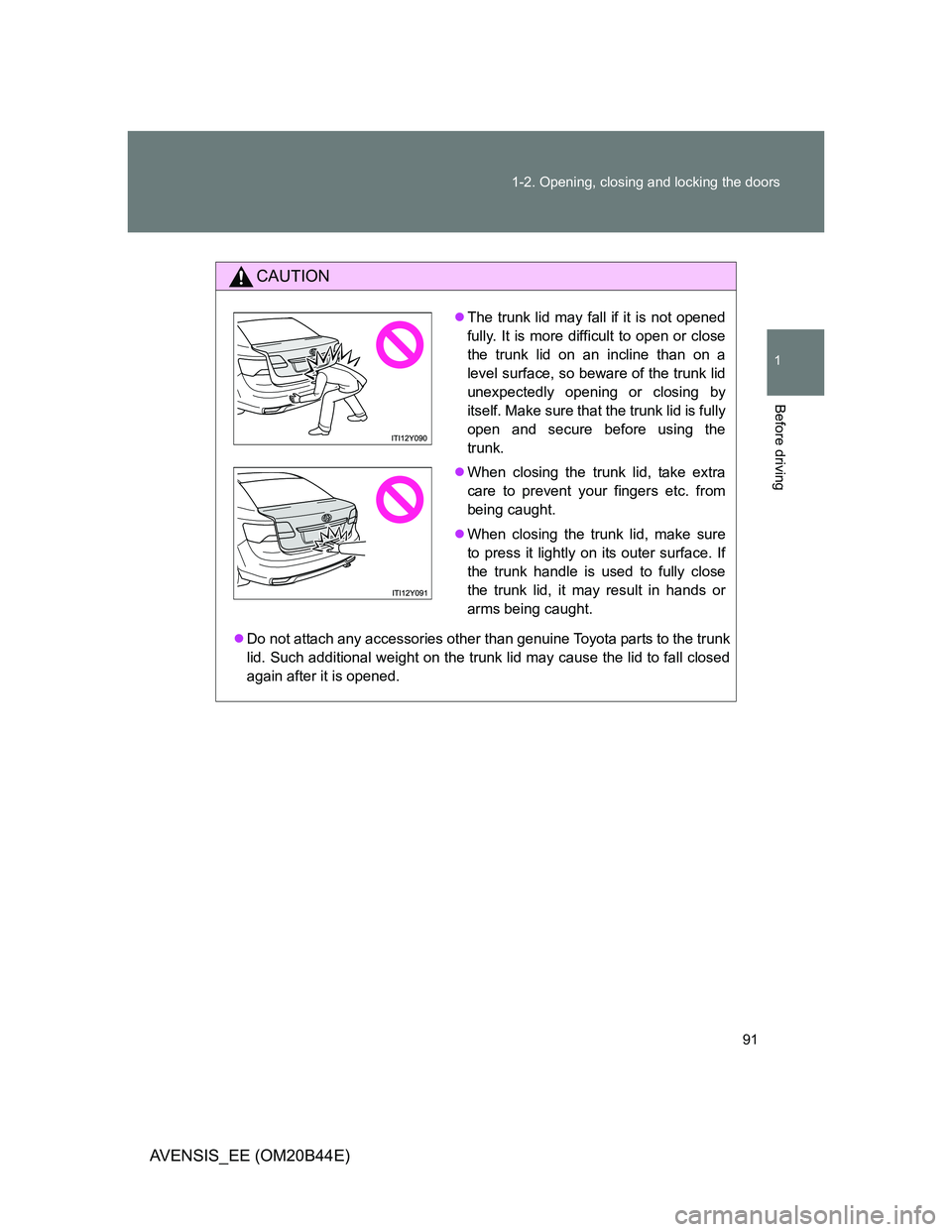

91 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)
CAUTION
Do not attach any accessories other than genuine Toyota parts to the trunk
lid. Such additional weight on the trunk lid may cause the lid to fall closed
again after it is opened.
The trunk lid may fall if it is not opened
fully. It is more difficult to open or close
the trunk lid on an incline than on a
level surface, so beware of the trunk lid
unexpectedly opening or closing by
itself. Make sure that the trunk lid is fully
open and secure before using the
trunk.
When closing the trunk lid, take extra
care to prevent your fingers etc. from
being caught.
When closing the trunk lid, make sure
to press it lightly on its outer surface. If
the trunk handle is used to fully close
the trunk lid, it may result in hands or
arms being caught.

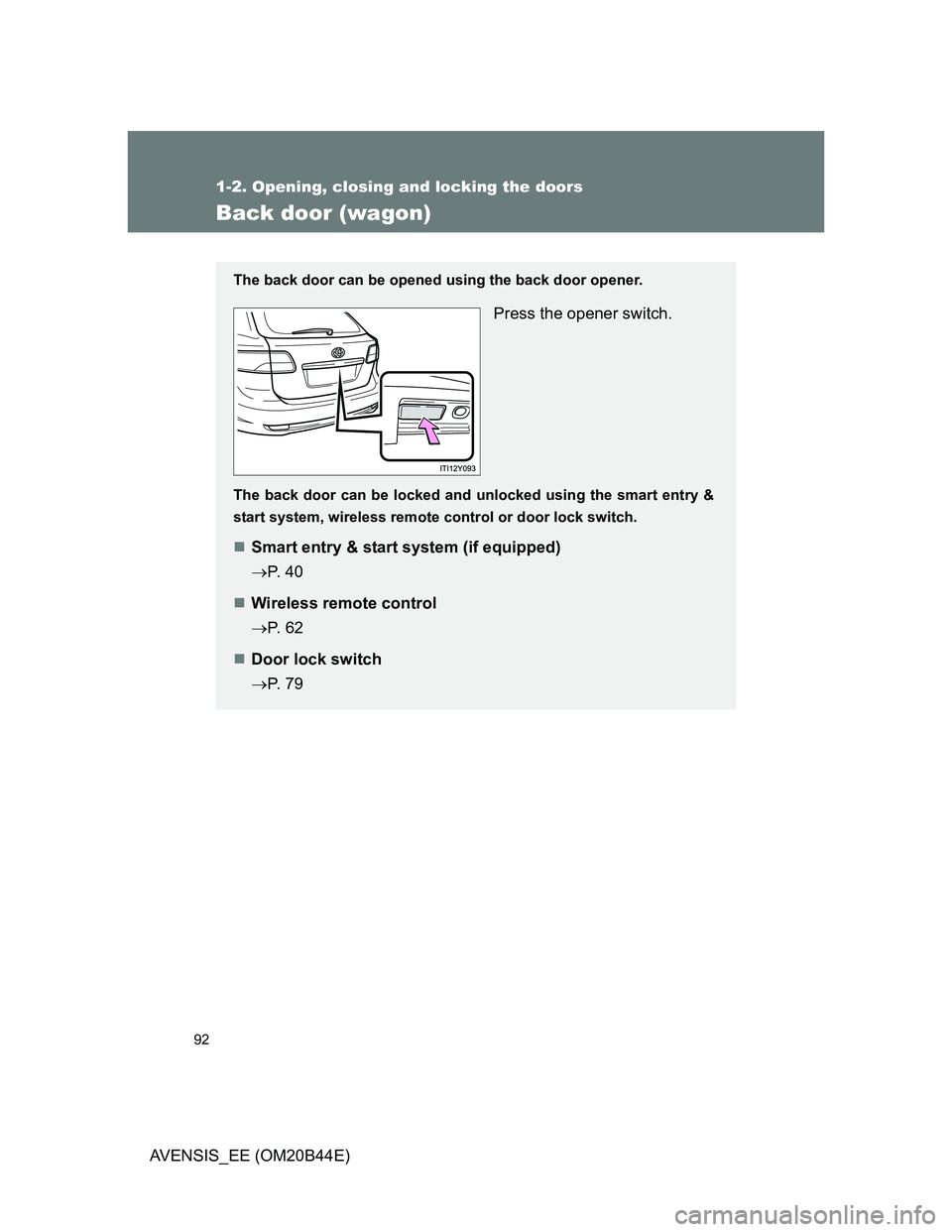

92
1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)
Back door (wagon)
The back door can be opened using the back door opener.
Press the opener switch.
The back door can be locked and unlocked using the smart entry &
start system, wireless remote control or door lock switch.
Smart entry & start system (if equipped)
P. 4 0
Wireless remote control
P. 6 2
Door lock switch
P. 7 9

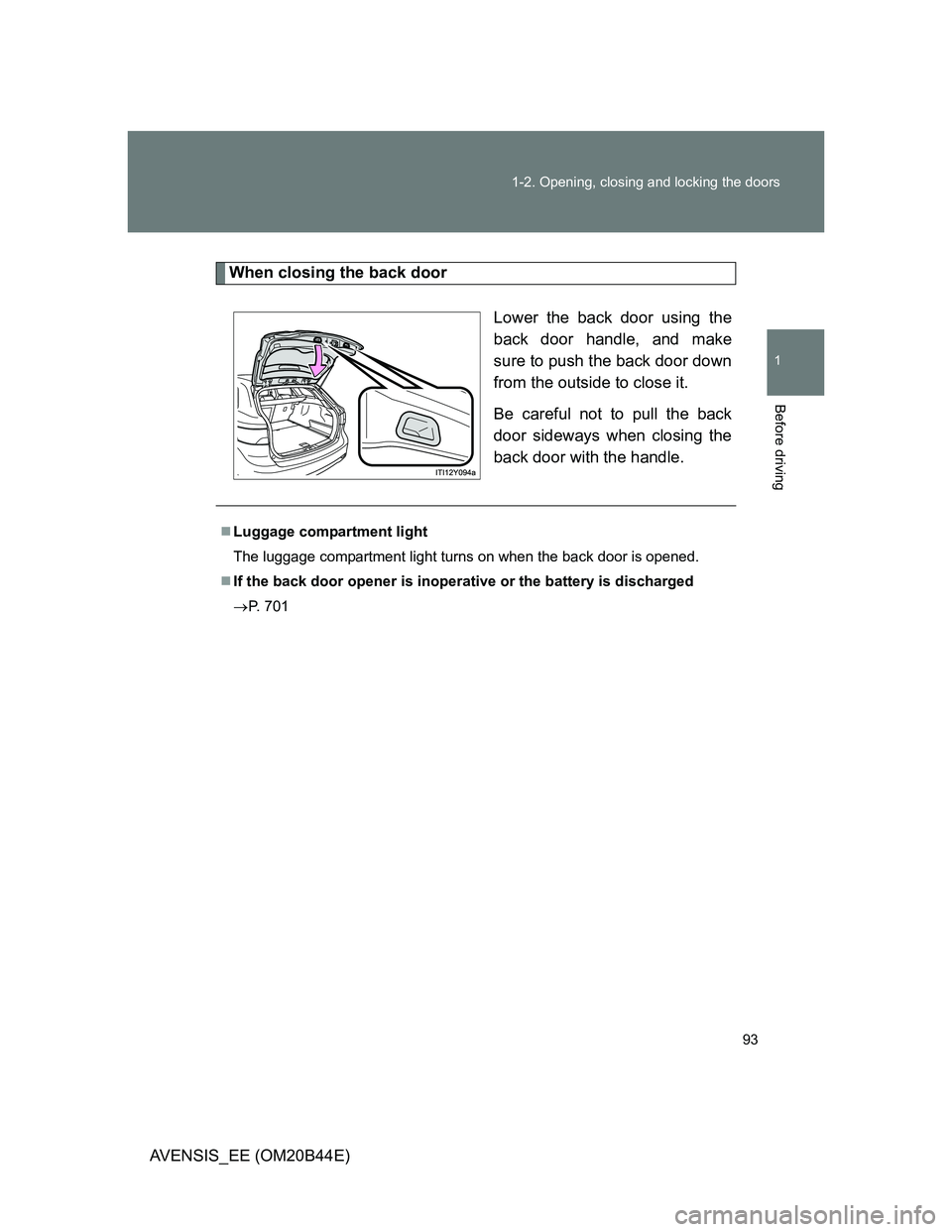

93 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)
When closing the back door
Lower the back door using the
back door handle, and make
sure to push the back door down
from the outside to close it.
Be careful not to pull the back
door sideways when closing the
back door with the handle.
Luggage compartment light
The luggage compartment light turns on when the back door is opened.
If the back door opener is inoperative or the battery is discharged
P. 701

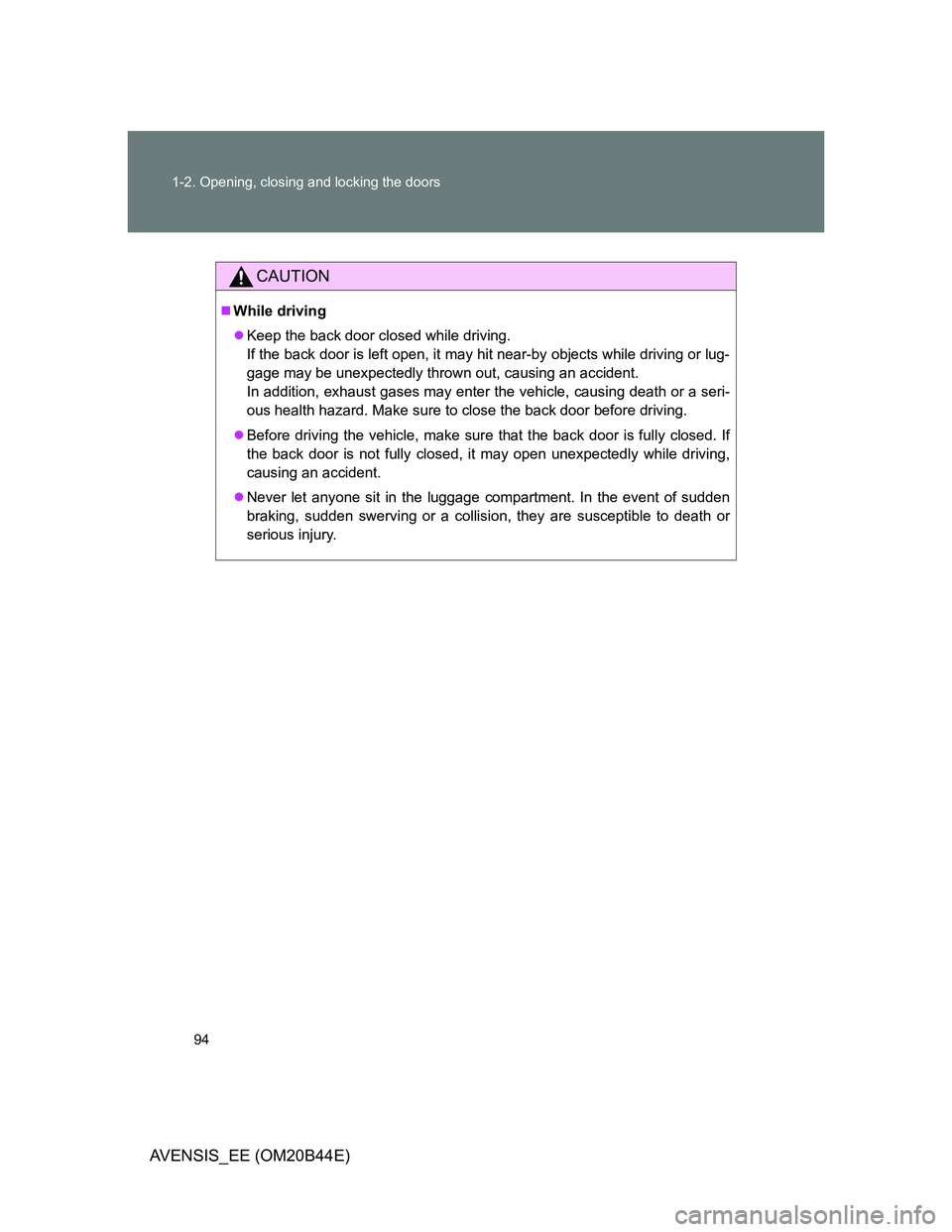

94 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)
CAUTION
While driving
Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or a collision, they are susceptible to death or
serious injury.

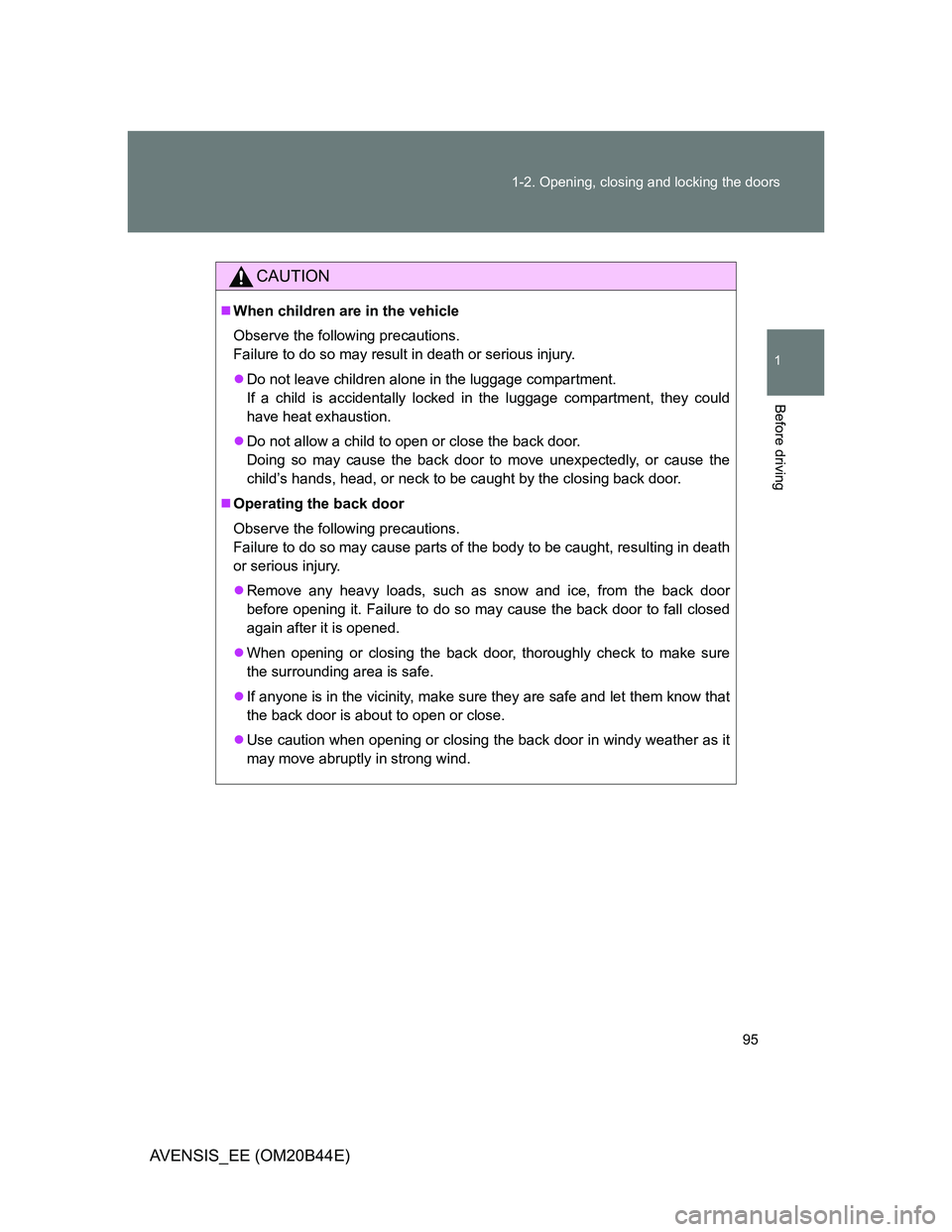

95 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)
CAUTION
When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
Do not leave children alone in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion.
Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to fall closed
again after it is opened.
When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.

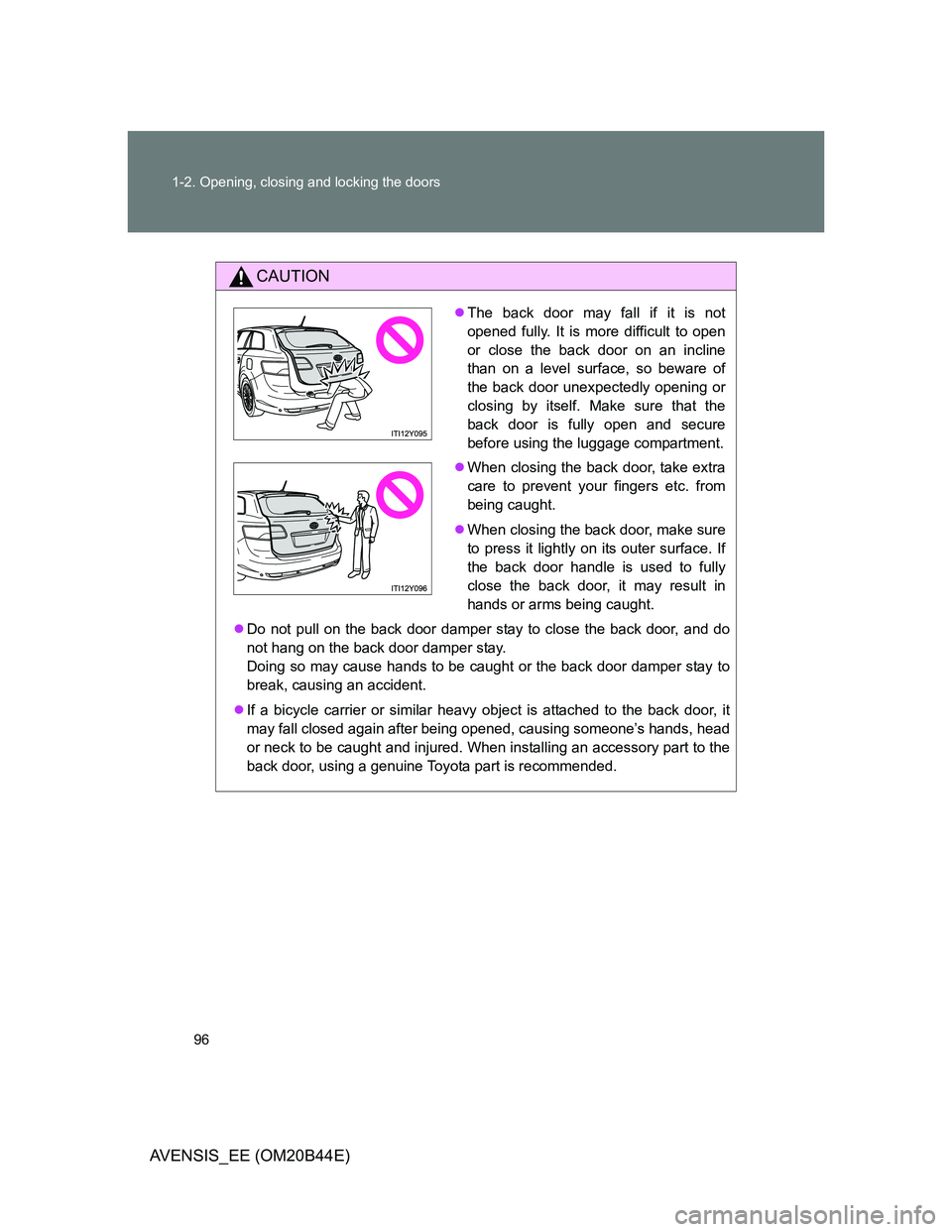

96 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)
CAUTION
Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
If a bicycle carrier or similar heavy object is attached to the back door, it
may fall closed again after being opened, causing someone’s hands, head
or neck to be caught and injured. When installing an accessory part to the
back door, using a genuine Toyota part is recommended.
The back door may fall if it is not
opened fully. It is more difficult to open
or close the back door on an incline
than on a level surface, so beware of
the back door unexpectedly opening or
closing by itself. Make sure that the
back door is fully open and secure
before using the luggage compartment.
When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

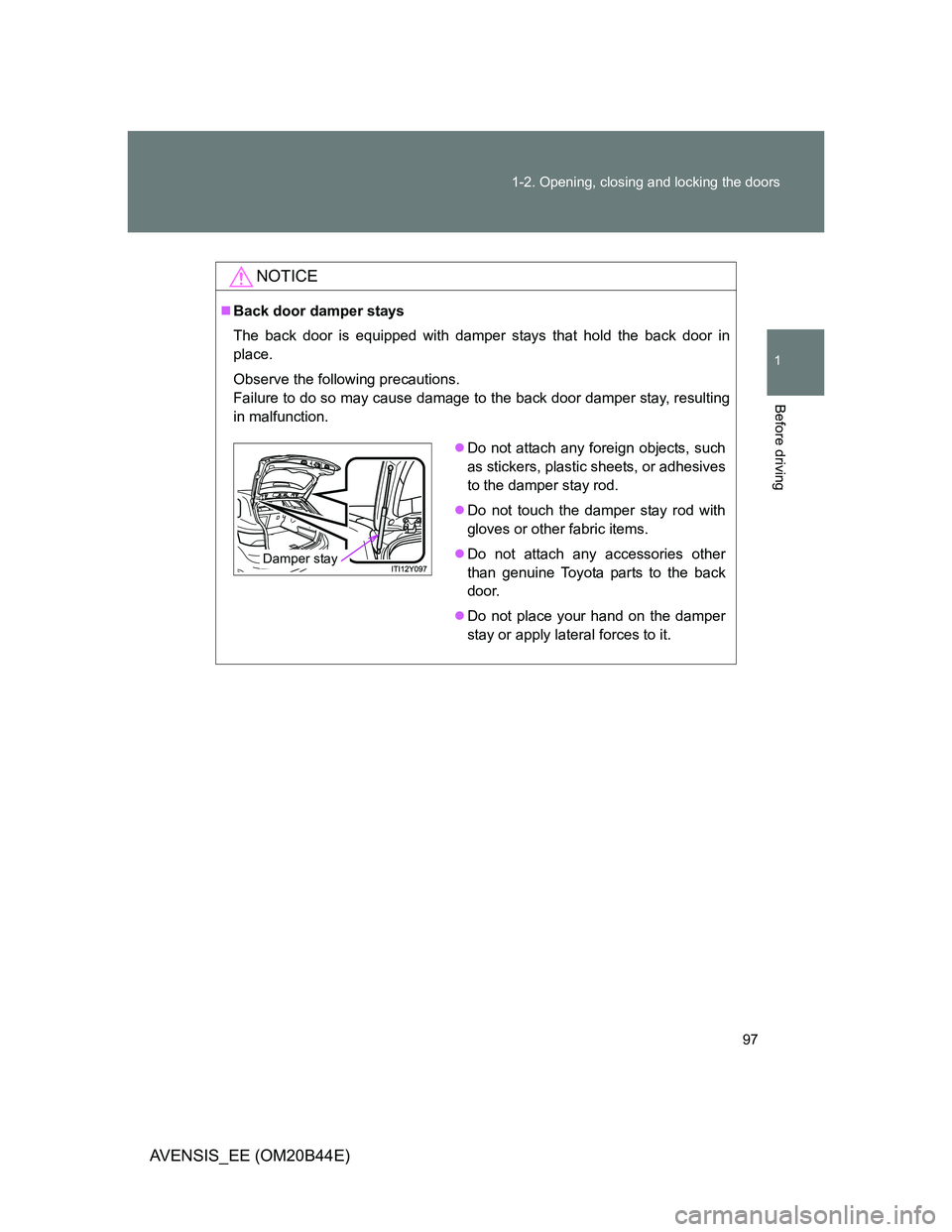

97 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)
NOTICE
Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
Do not touch the damper stay rod with
gloves or other fabric items.
Do not attach any accessories other
than genuine Toyota parts to the back
door.
Do not place your hand on the damper
stay or apply lateral forces to it.
Damper stay

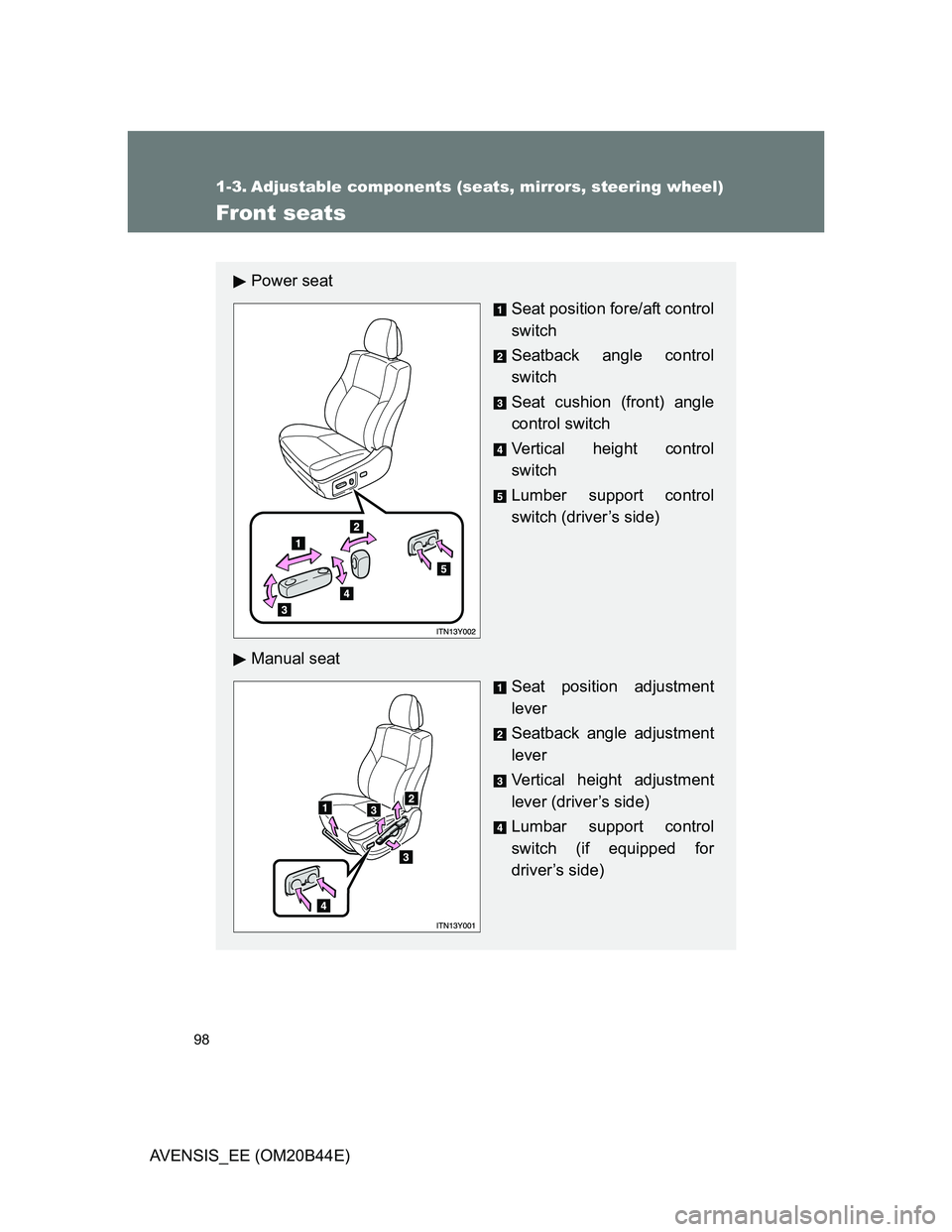

98
AVENSIS_EE (OM20B44E)
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Power seat
Seat position fore/aft control
switch
Seatback angle control
switch
Seat cushion (front) angle
control switch
Vertical height control
switch
Lumber support control
switch (driver’s side)
Manual seat
Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (driver’s side)
Lumbar support control
switch (if equipped for
driver’s side)

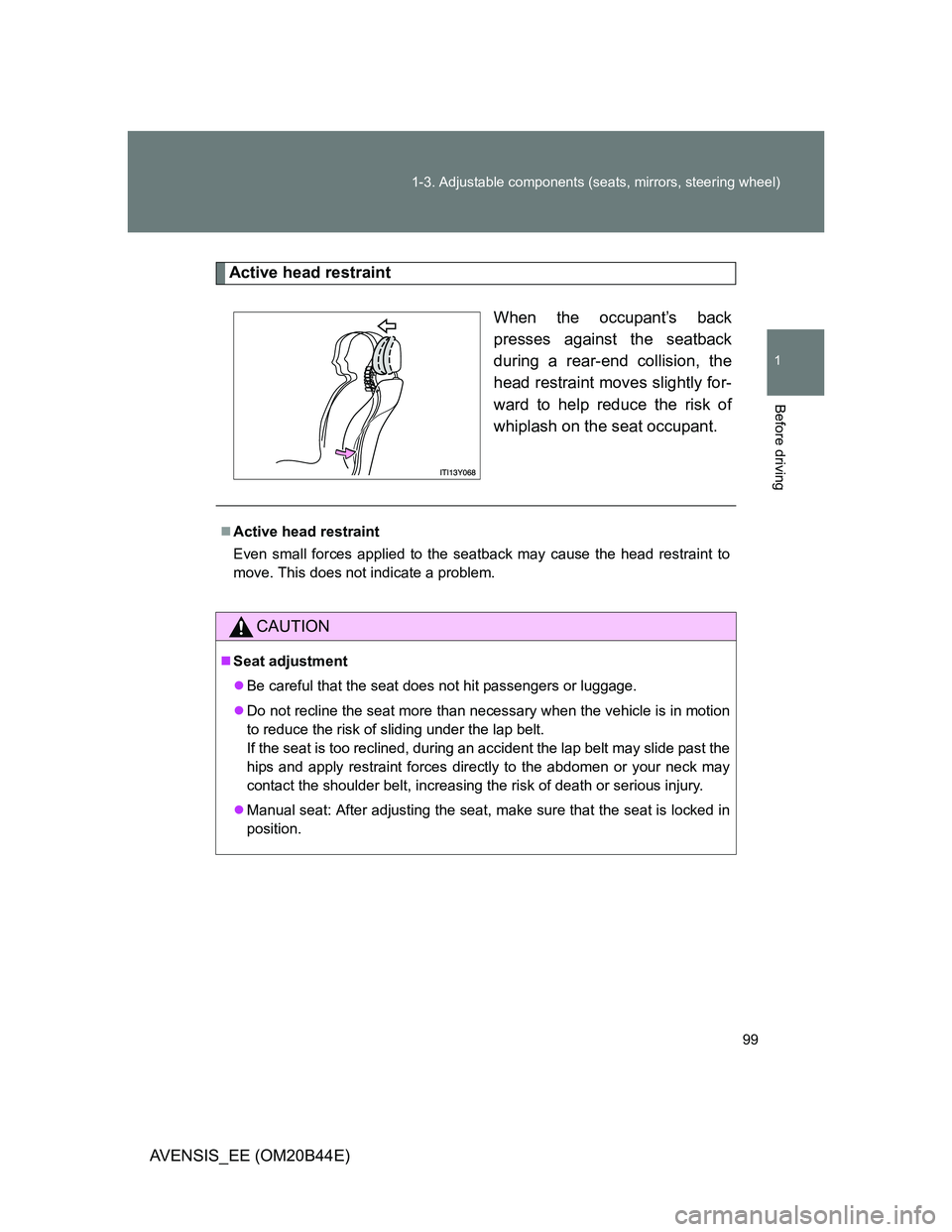

99 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
AVENSIS_EE (OM20B44E)
Active head restraint
When the occupant’s back
presses against the seatback
during a rear-end collision, the
head restraint moves slightly for-
ward to help reduce the risk of
whiplash on the seat occupant.
Active head restraint
Even small forces applied to the seatback may cause the head restraint to
move. This does not indicate a problem.
CAUTION
Seat adjustment
Be careful that the seat does not hit passengers or luggage.
Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.
Manual seat: After adjusting the seat, make sure that the seat is locked in
position.

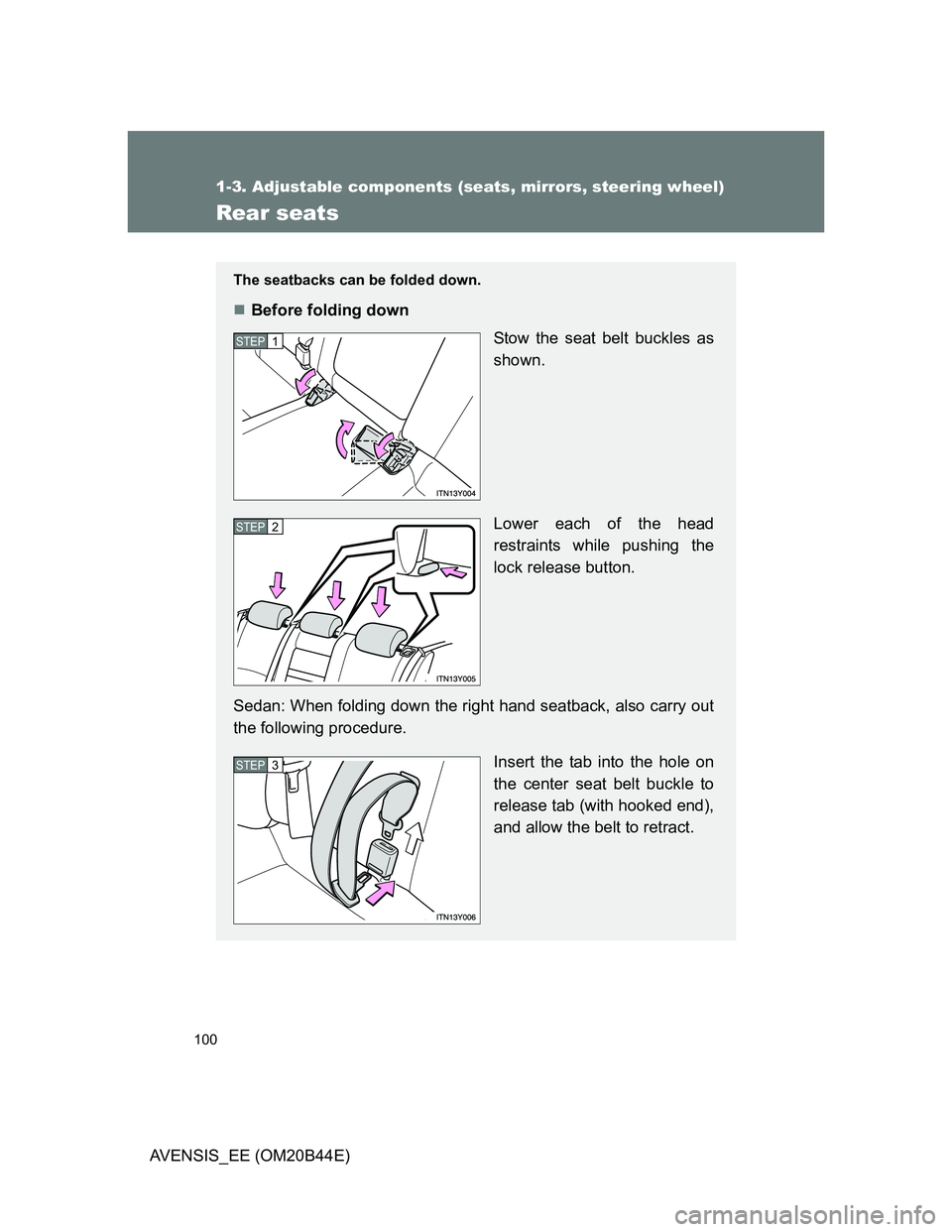

100
1-3. Adjustable components (seats, mirrors, steering wheel)
AVENSIS_EE (OM20B44E)
Rear seats
The seatbacks can be folded down.
Before folding down
Stow the seat belt buckles as
shown.
Lower each of the head
restraints while pushing the
lock release button.
Sedan: When folding down the right hand seatback, also carry out
the following procedure.
Insert the tab into the hole on
the center seat belt buckle to
release tab (with hooked end),
and allow the belt to retract.
STEP1
STEP2
STEP3
