TOYOTA AVENSIS 2013 (in English) Manual PDF

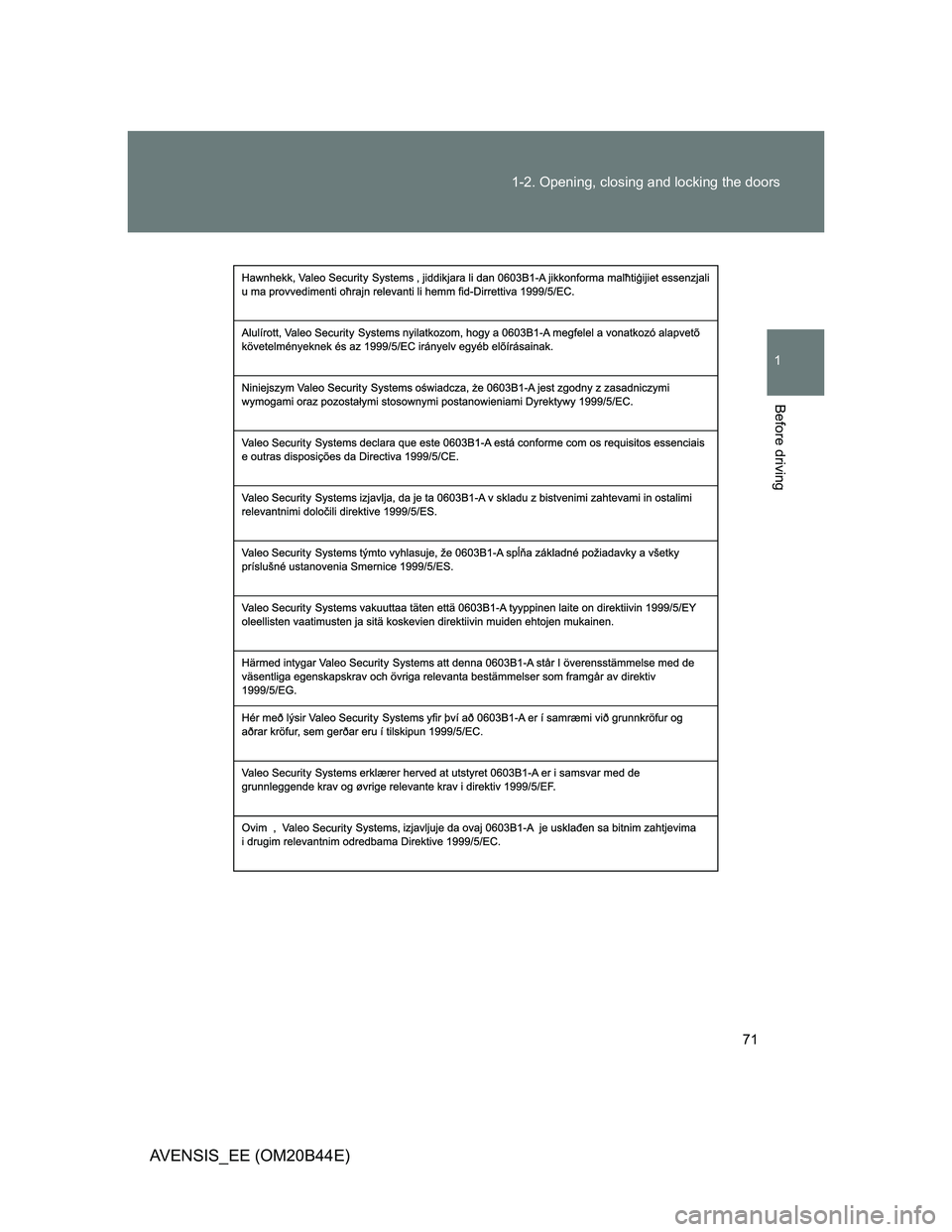

71 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)

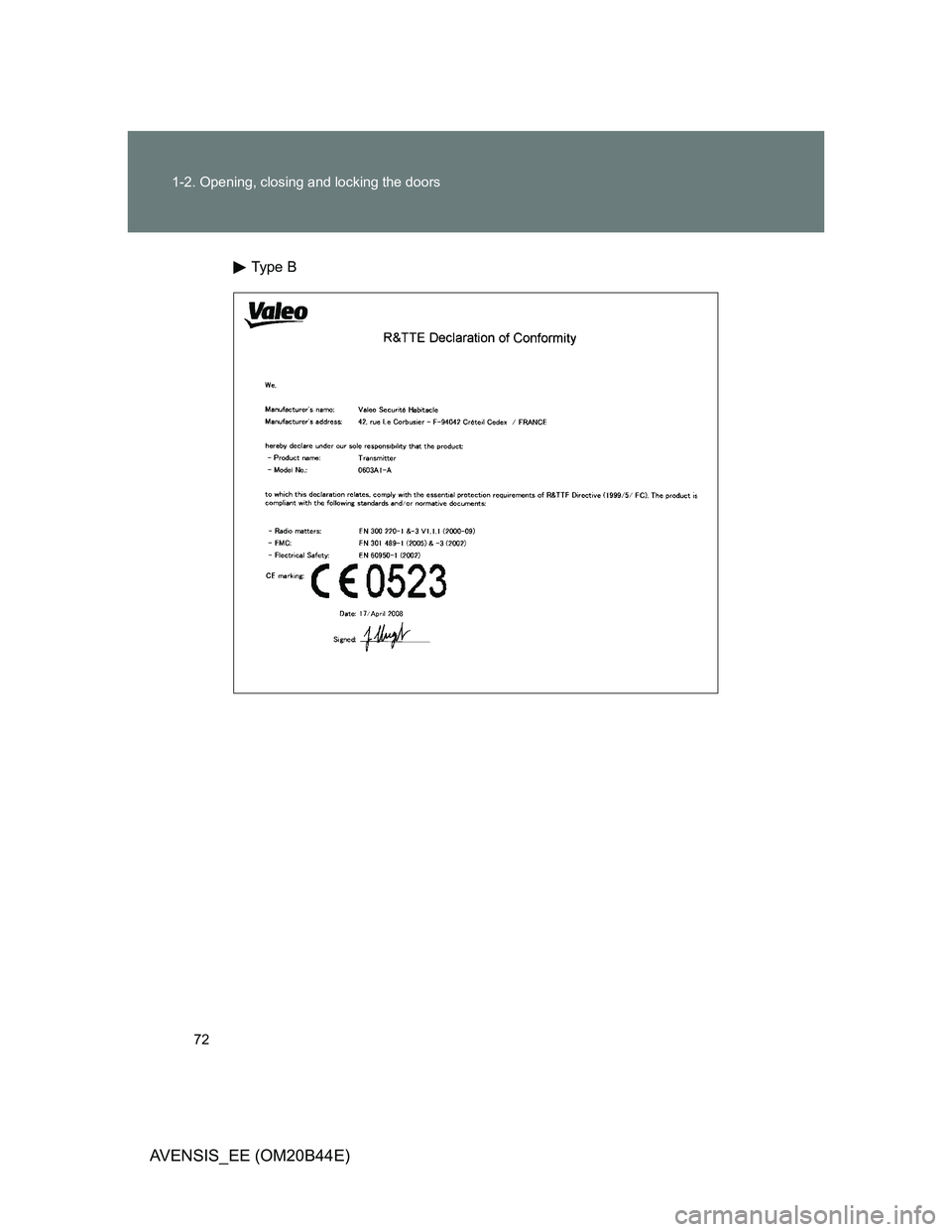

72 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)
Type B

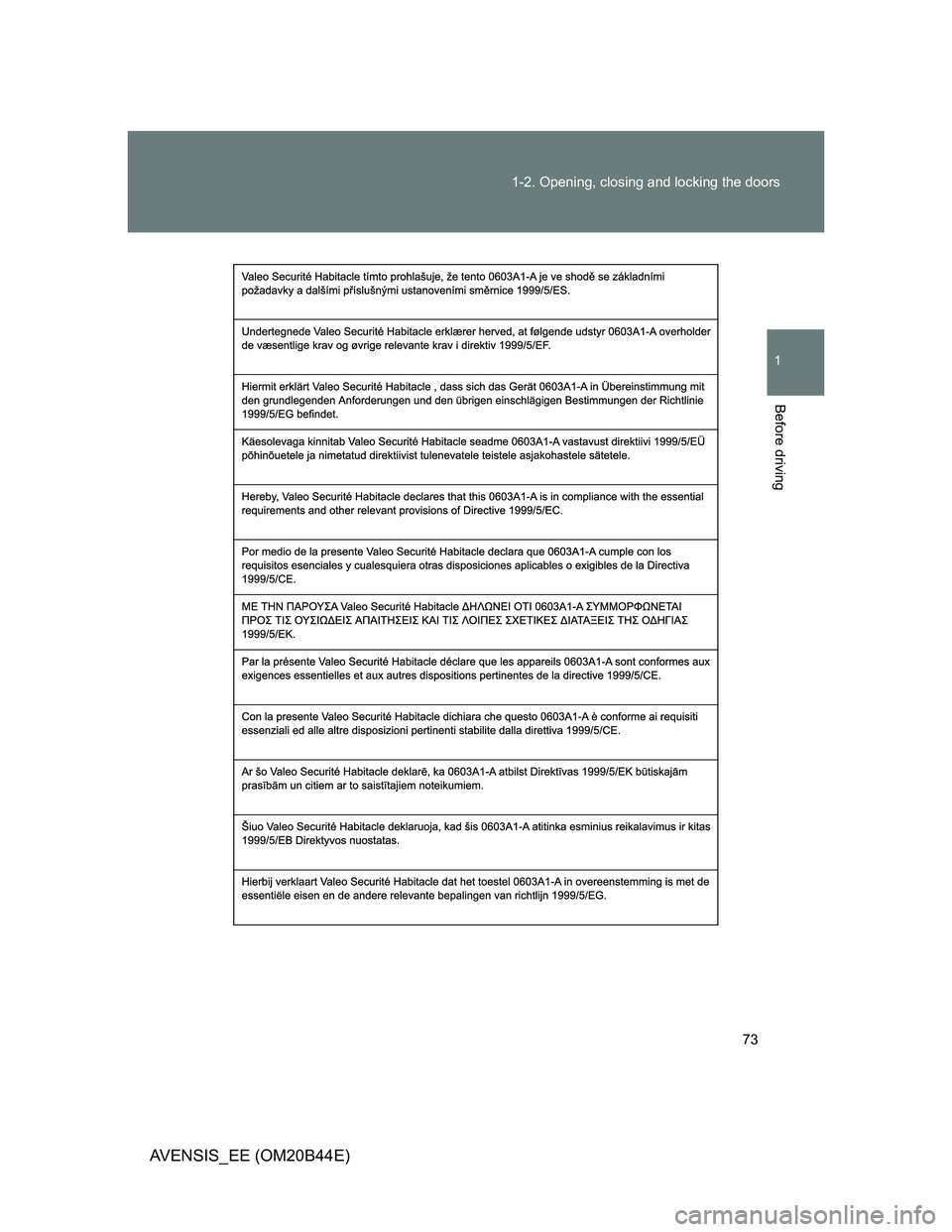

73 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)

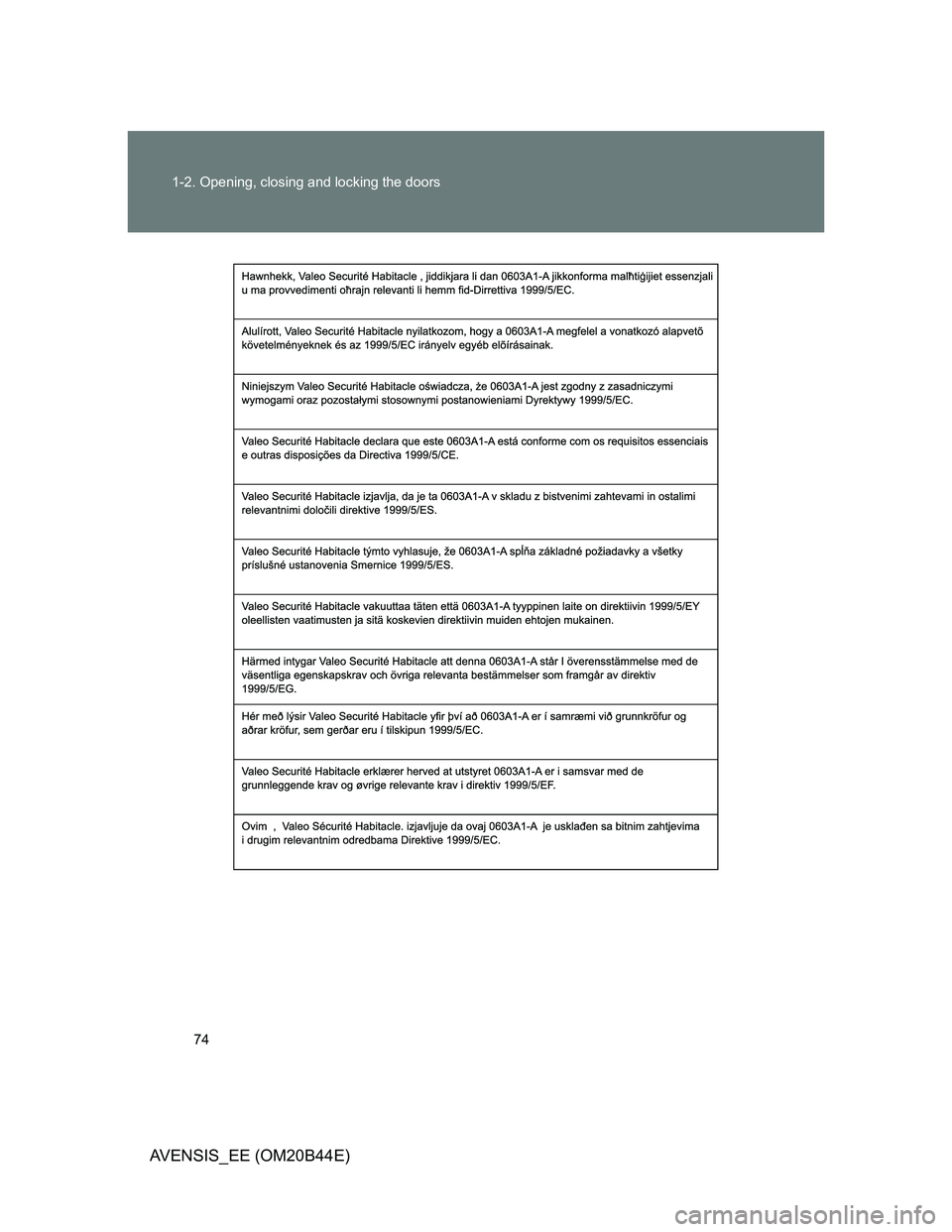

74 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)

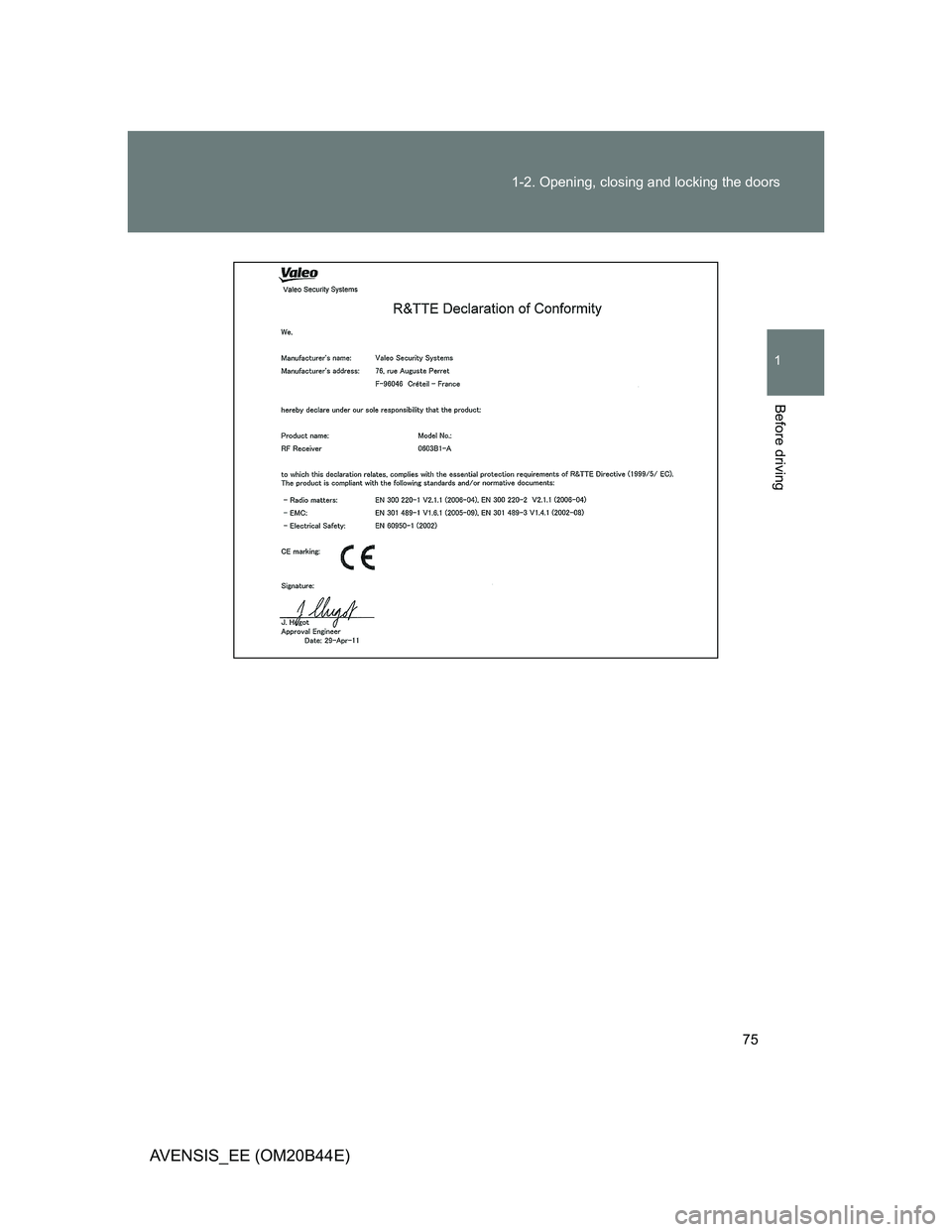

75 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)

76 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)

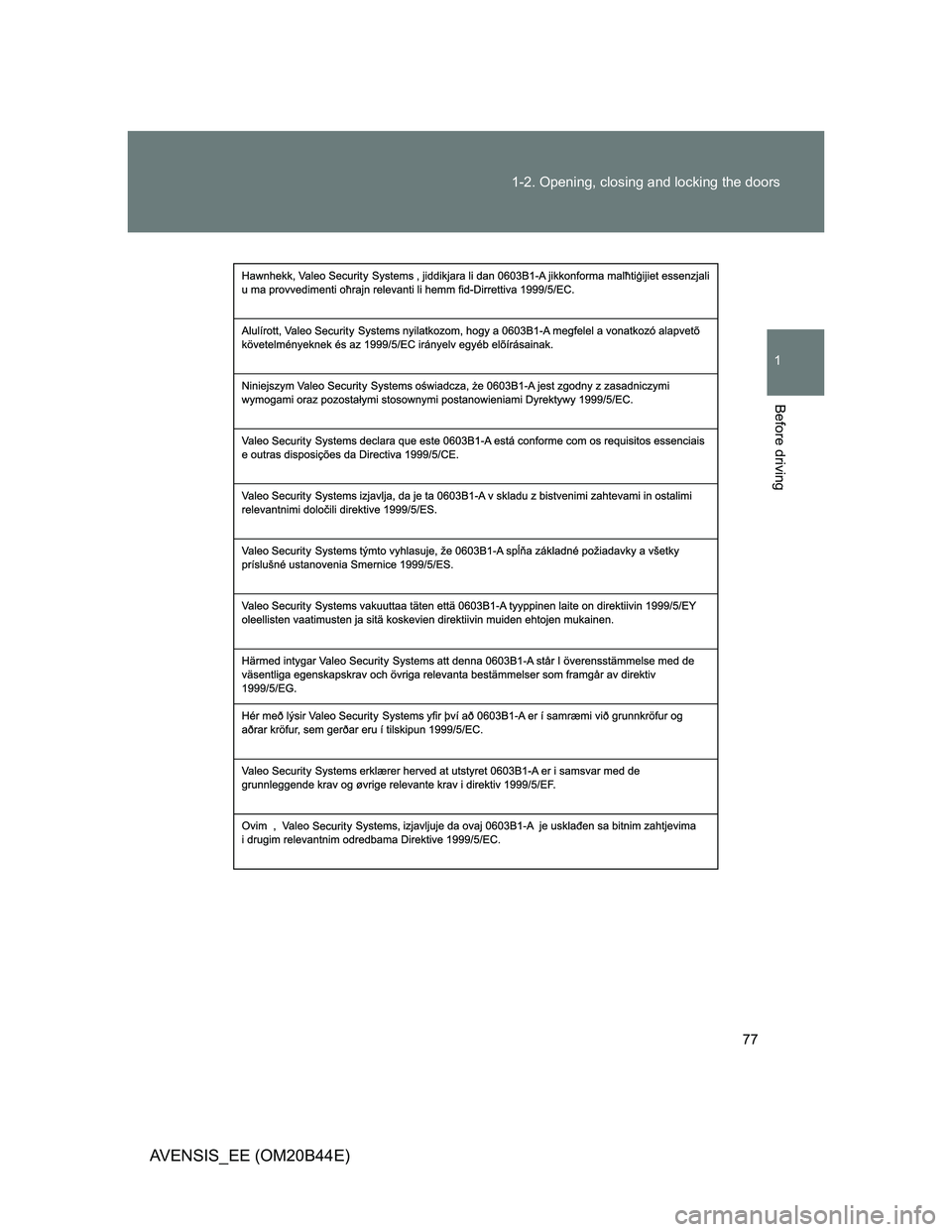

77 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)

78
1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)
Side doors
The vehicle can be locked and unlocked using the smart entry &
start system, wireless remote control or door lock switch.
Smart entry & start system (if equipped)
P. 4 0
Wireless remote control
P. 6 2
Keys
Vehicles with smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. (P. 702)
Vehicles without smart entry & start system
Locks all doors
Unlocks all doors

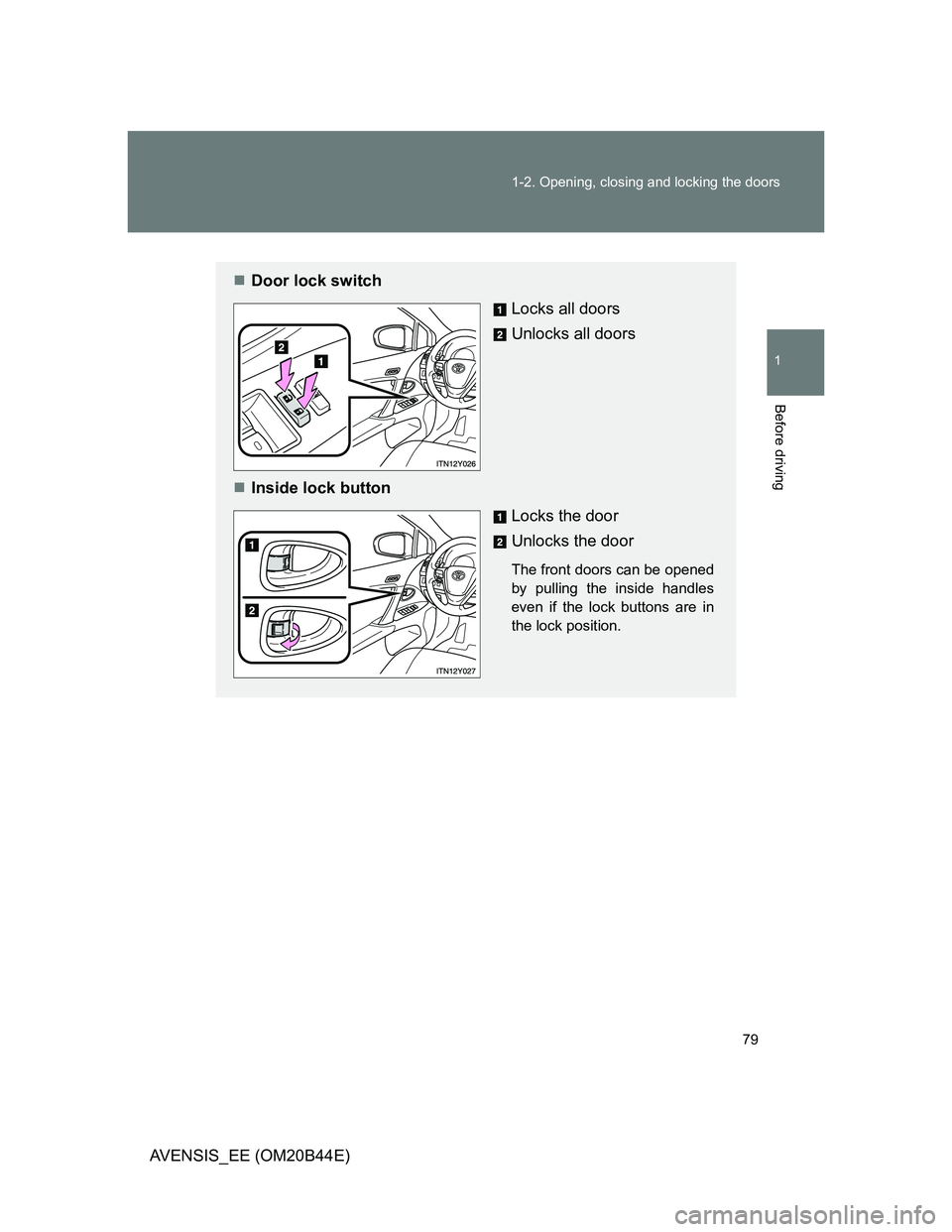

79 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)
Door lock switch
Locks all doors
Unlocks all doors
Inside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handles
even if the lock buttons are in
the lock position.

80 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)
Locking the front doors from the outside without a key
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
Vehicles with smart entry & start system
The door cannot be locked if the “ENGINE START STOP” switch is
in ACCESSORY or IGNITION ON mode, or the electronic key is
left inside the vehicle.
Depending on the position of the electronic key, the key may not be
detected correctly and the door may be locked.
Vehicles without smart entry & start system
The door cannot be locked if the key is in the engine switch.
STEP1
STEP2
