TOYOTA AVENSIS 2013 Owners Manual (in English)

501
3-5. Other interior features
3
Interior features
AVENSIS_EE (OM20B44E)

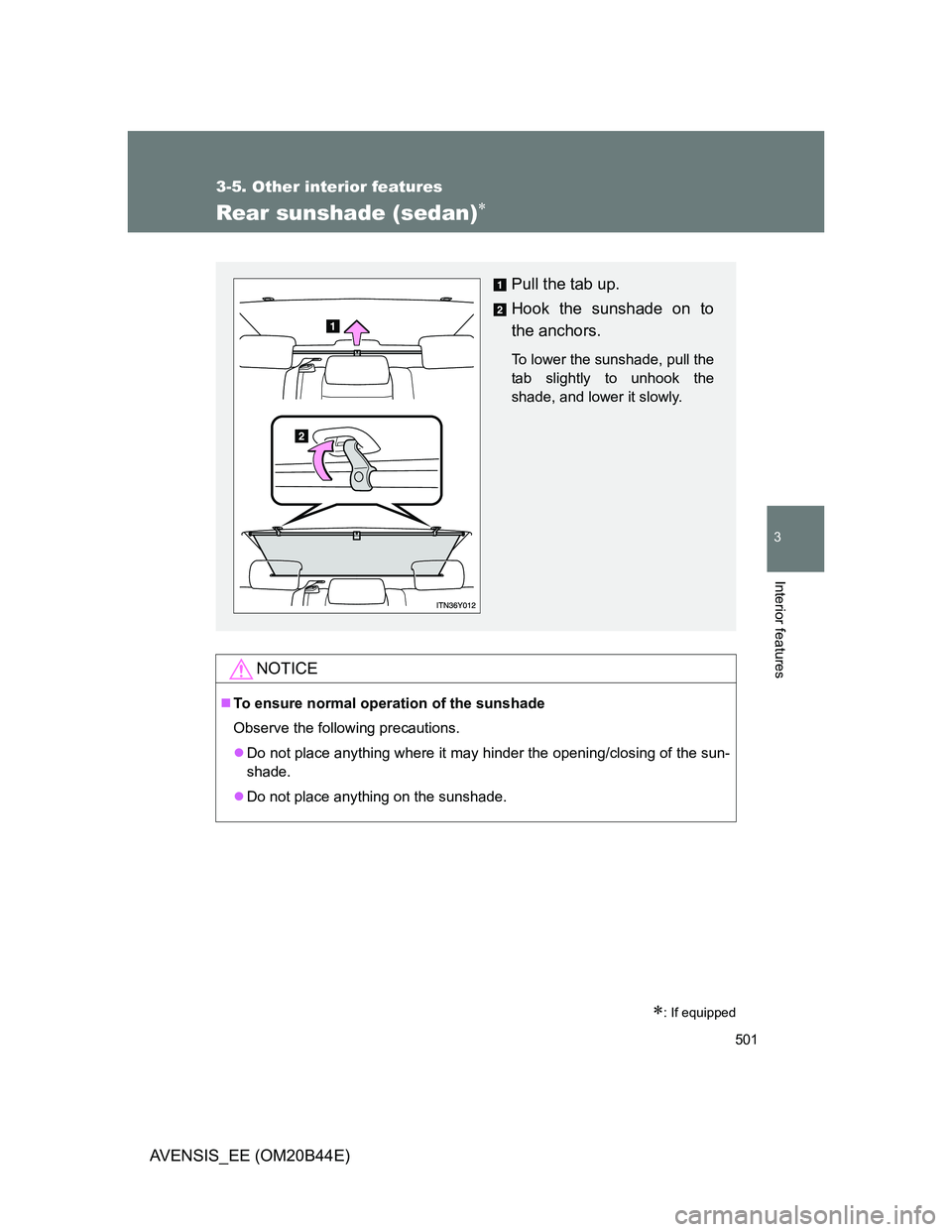

Rear sunshade (sedan)
: If equipped
NOTICE
To ensure normal operation of the sunshade
Observe the following precautions.
Do not place anything where it may hinder the opening/closing of the sun-
shade.
Do not place anything on the sunshade.
Pull the tab up.
Hook the sunshade on to
the anchors.
To lower the sunshade, pull the
tab slightly to unhook the
shade, and lower it slowly.

502
3-5. Other interior features
AVENSIS_EE (OM20B44E)

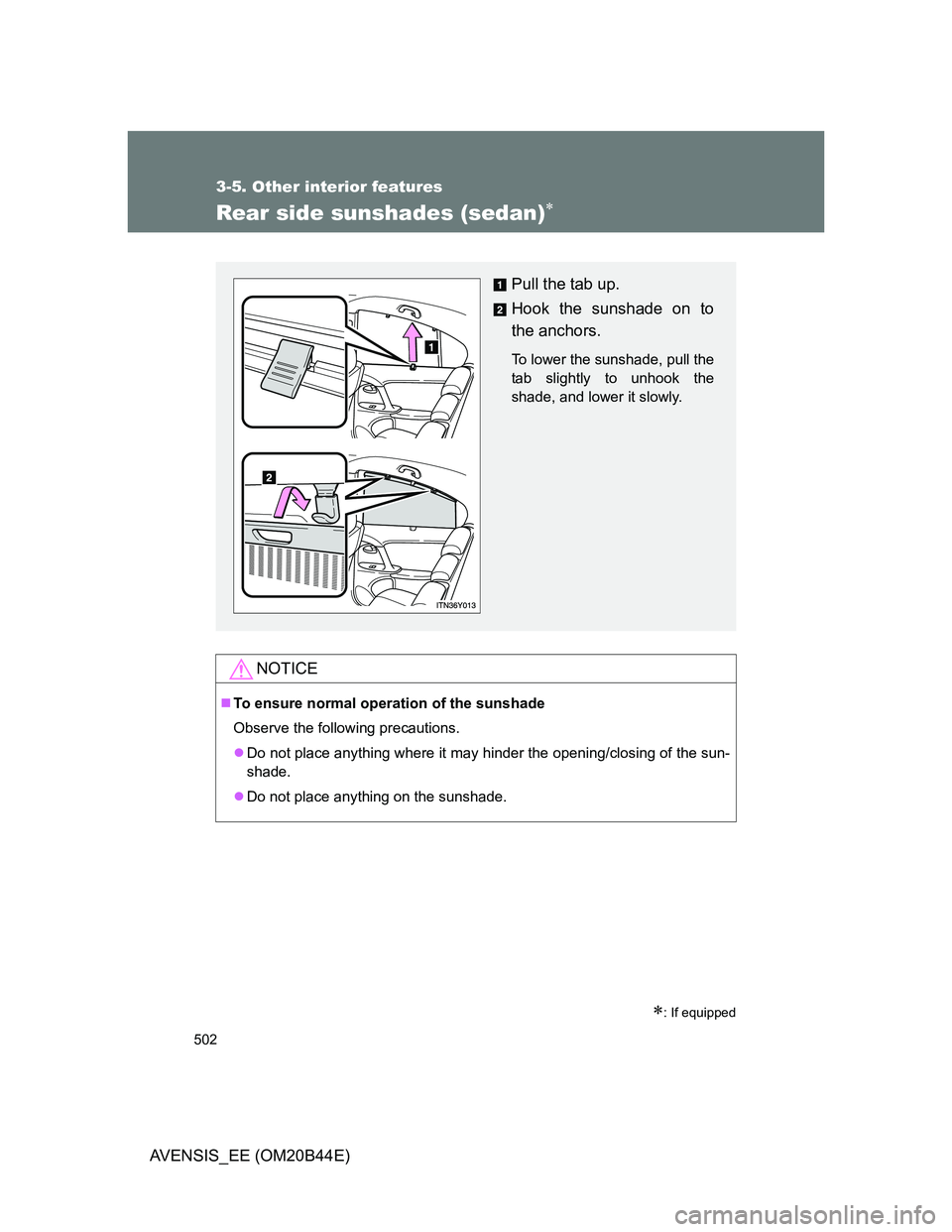

Rear side sunshades (sedan)
: If equipped
NOTICE
To ensure normal operation of the sunshade
Observe the following precautions.
Do not place anything where it may hinder the opening/closing of the sun-
shade.
Do not place anything on the sunshade.
Pull the tab up.
Hook the sunshade on to
the anchors.
To lower the sunshade, pull the
tab slightly to unhook the
shade, and lower it slowly.

503
3-5. Other interior features
3
Interior features
AVENSIS_EE (OM20B44E)

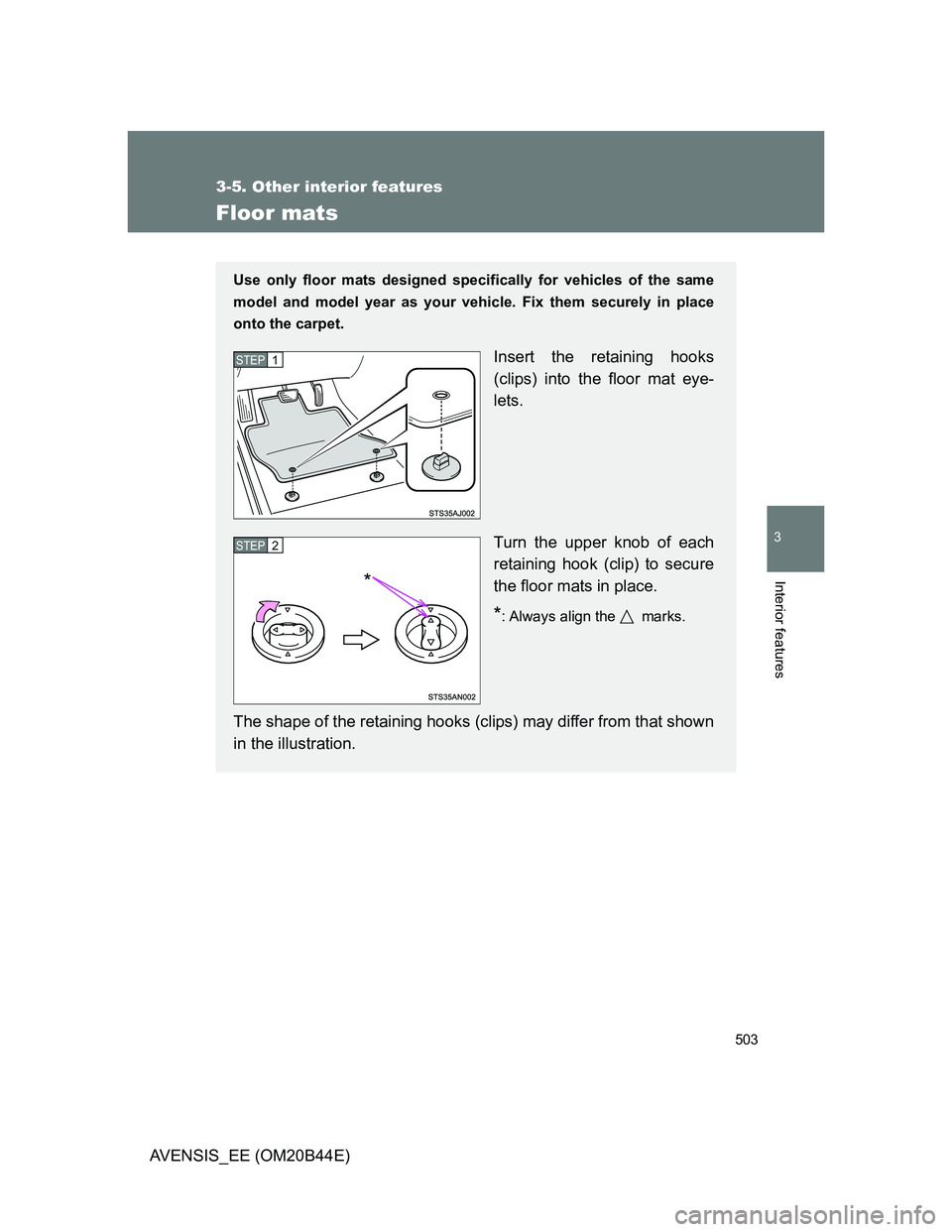

Floor mats
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown
in the illustration.
STEP1
STEP2
*

504 3-5. Other interior features
AVENSIS_EE (OM20B44E)

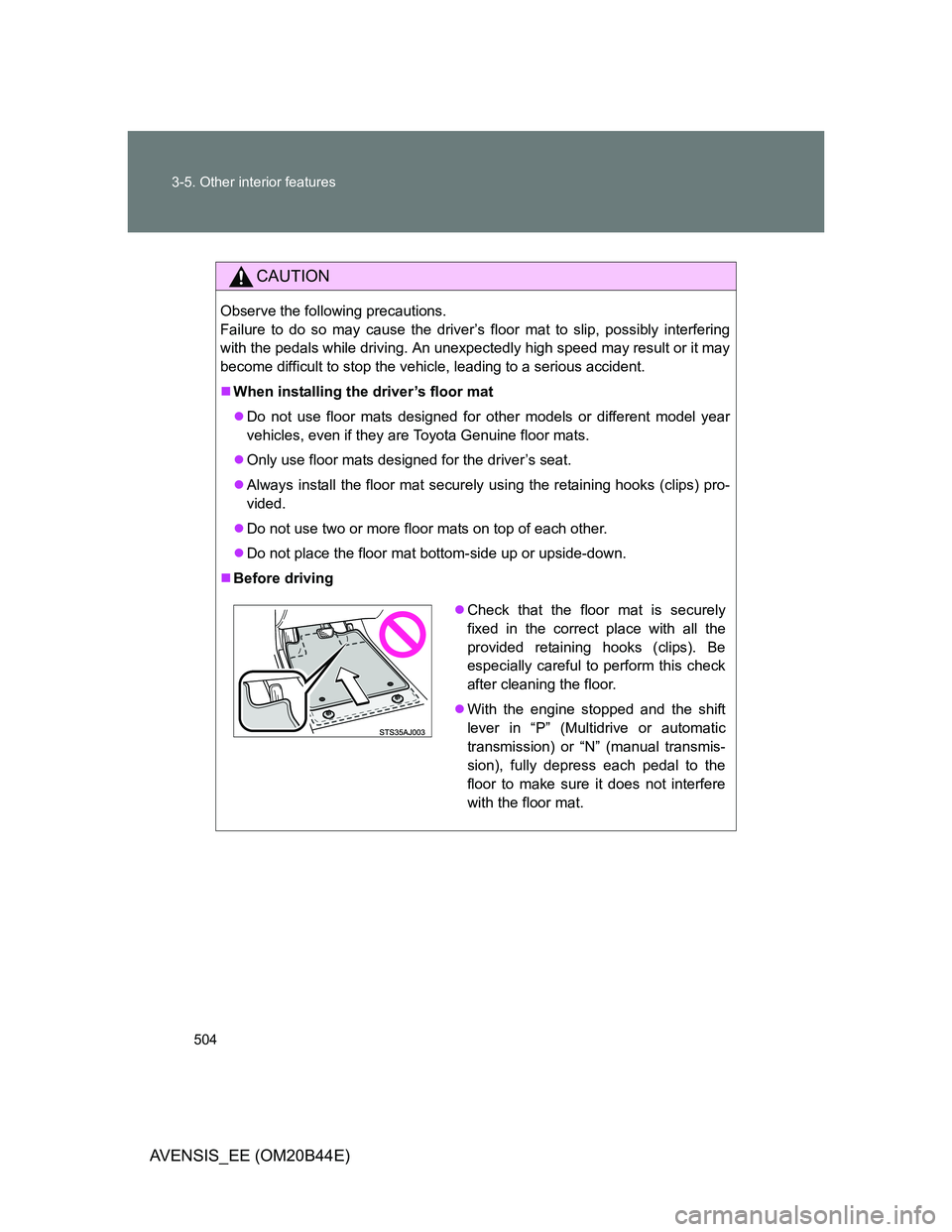

CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in “P” (Multidrive or automatic
transmission) or “N” (manual transmis-
sion), fully depress each pedal to the
floor to make sure it does not interfere
with the floor mat.

505
3-5. Other interior features
3
Interior features
AVENSIS_EE (OM20B44E)

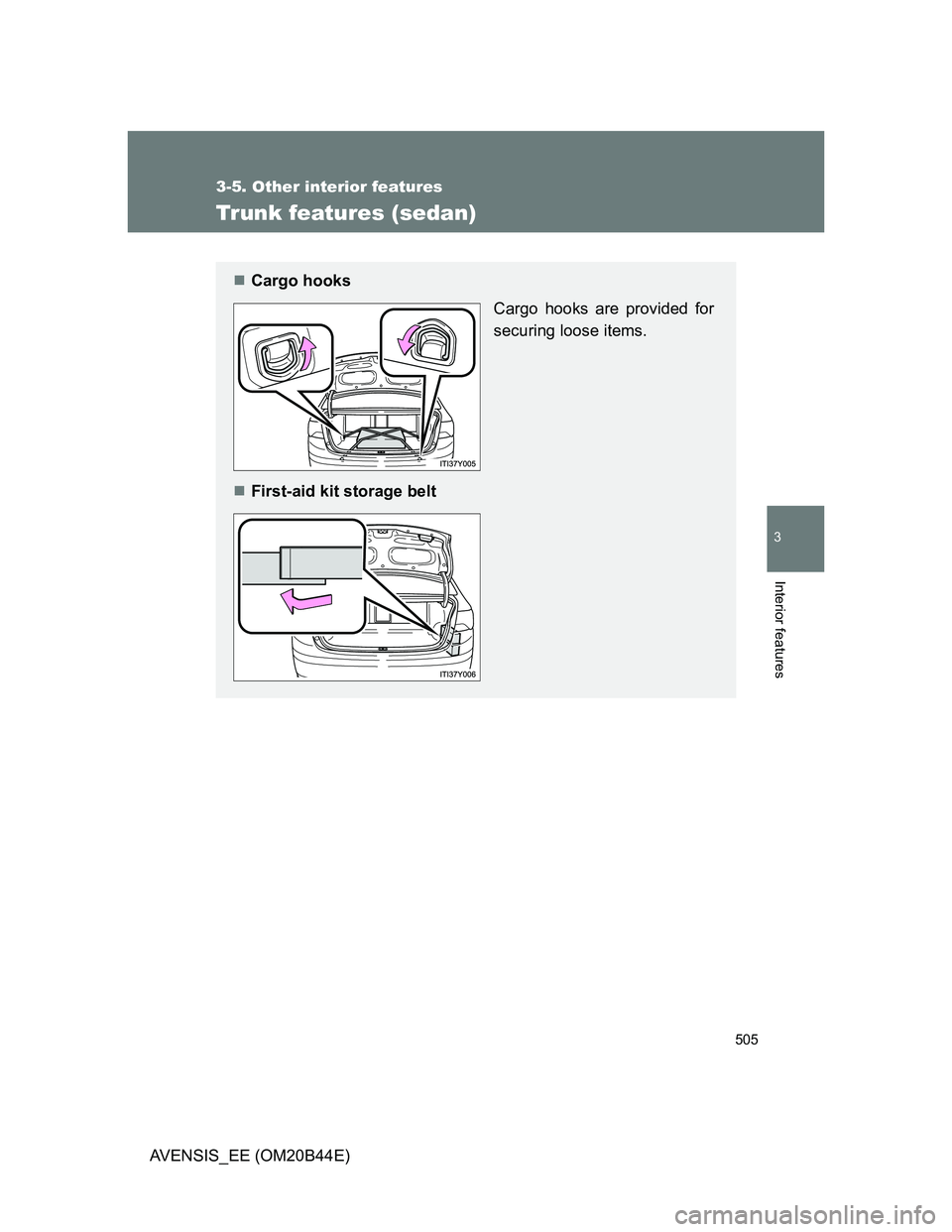

Trunk features (sedan)
Cargo hooks
Cargo hooks are provided for
securing loose items.
First-aid kit storage belt

506 3-5. Other interior features
AVENSIS_EE (OM20B44E)
CAUTION
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
NOTICE
When closing the trunk
Do not leave the luggage mat lever hooked on the edge of the trunk. The
luggage mat may get damaged.

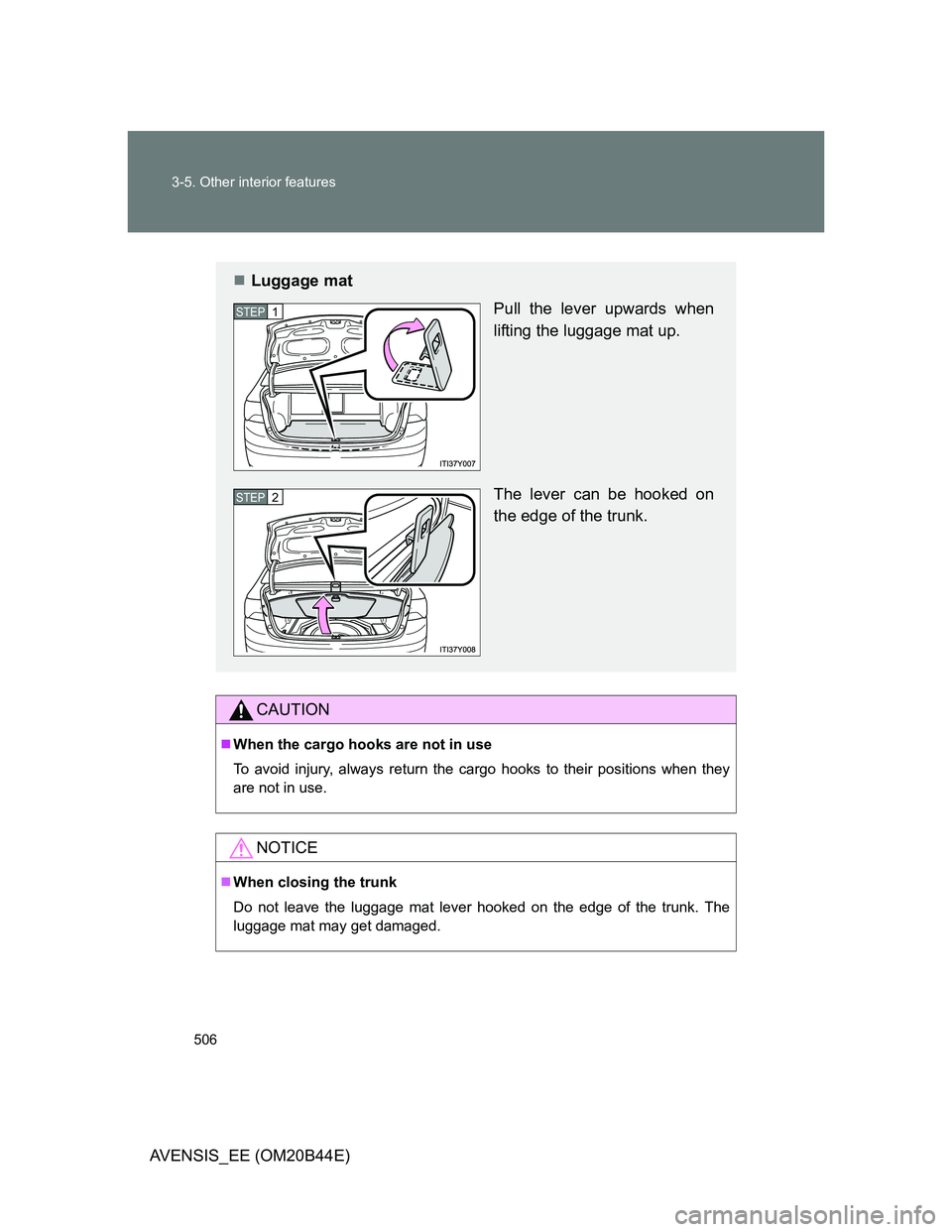

Luggage mat
Pull the lever upwards when
lifting the luggage mat up.
The lever can be hooked on
the edge of the trunk.
STEP1
STEP2

507
3-5. Other interior features
3
Interior features
AVENSIS_EE (OM20B44E)

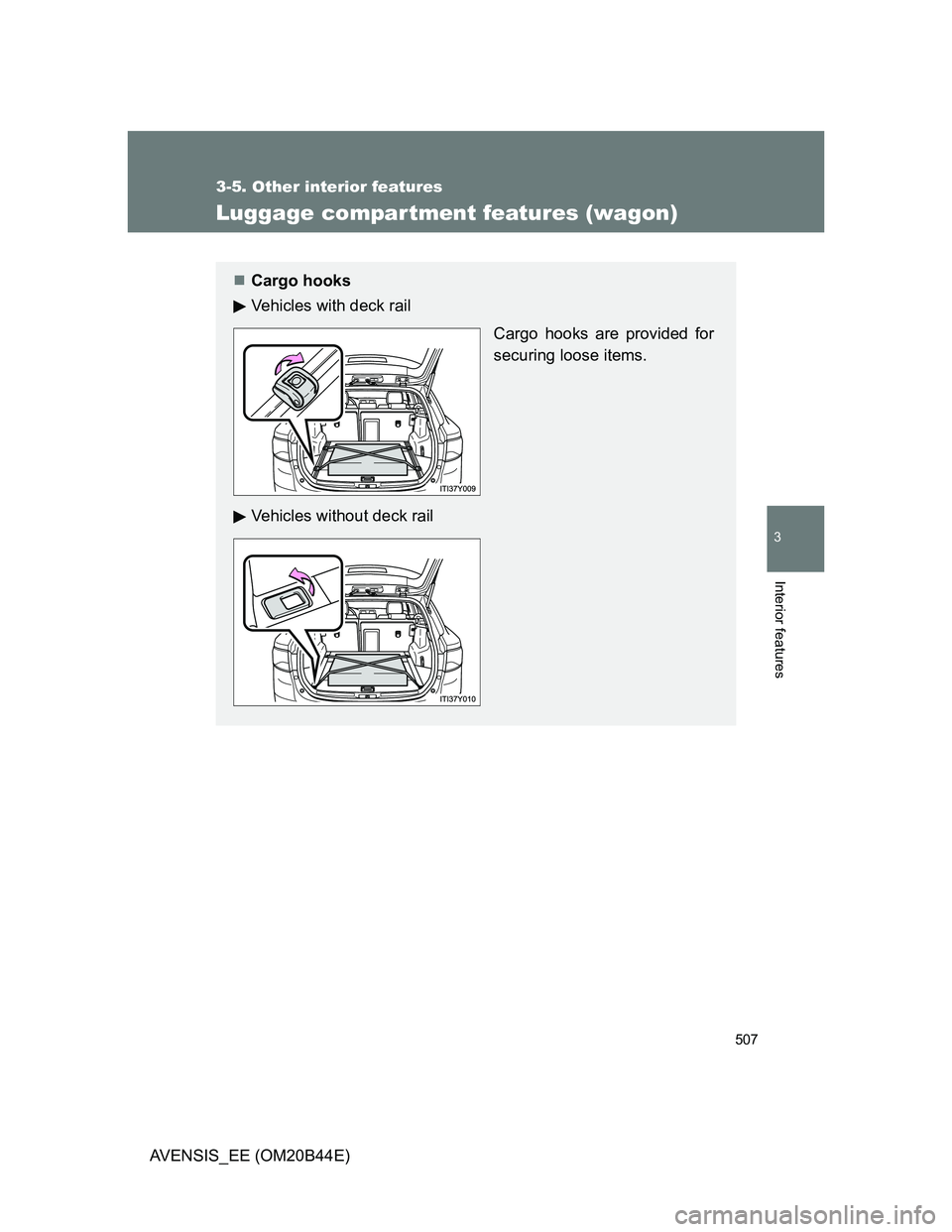

Luggage compar tment features (wagon)
Cargo hooks
Vehicles with deck rail
Cargo hooks are provided for
securing loose items.
Vehicles without deck rail

508 3-5. Other interior features
AVENSIS_EE (OM20B44E)

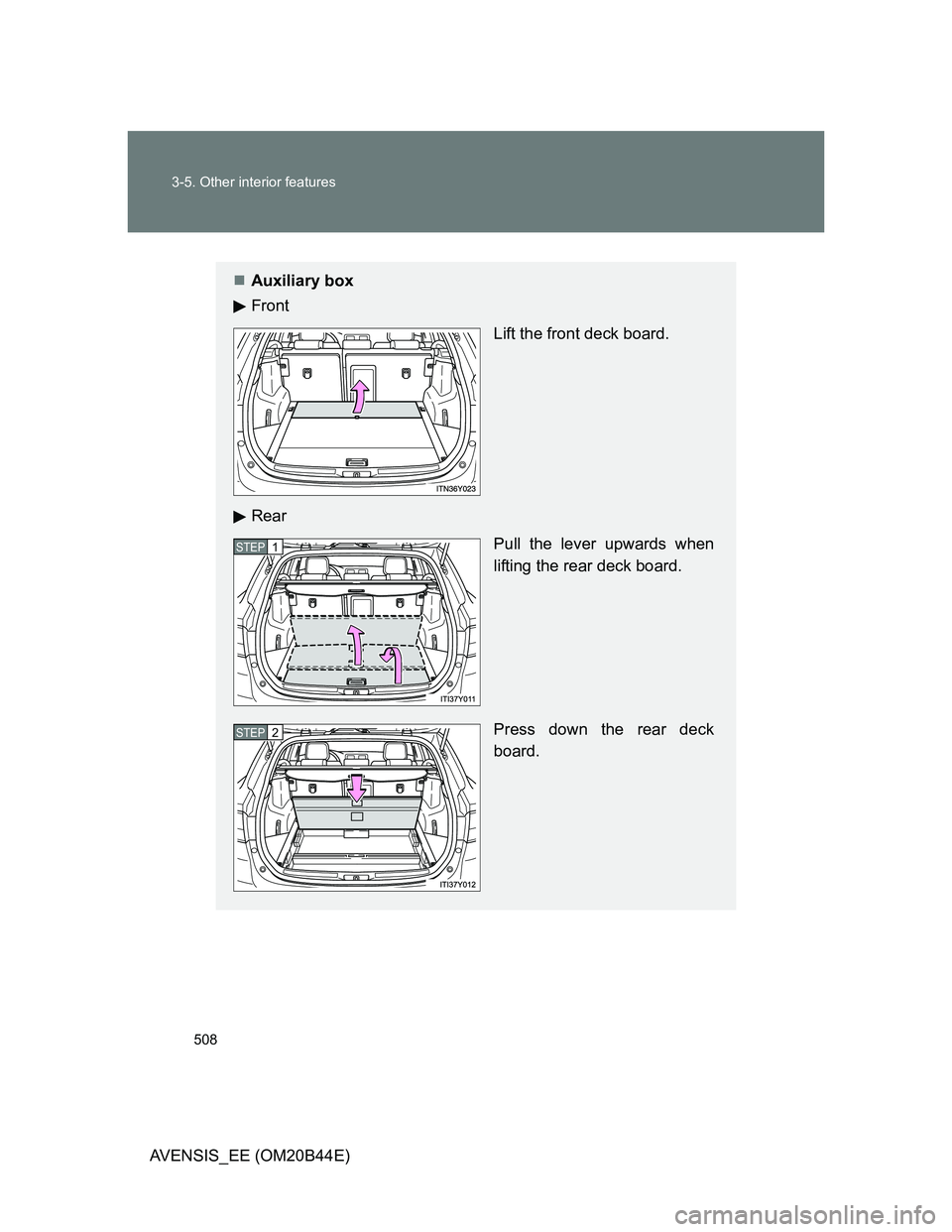

Auxiliary box
Front
Lift the front deck board.
Rear
Pull the lever upwards when
lifting the rear deck board.
Press down the rear deck
board.
STEP1
STEP2

509 3-5. Other interior features
3
Interior features
AVENSIS_EE (OM20B44E)

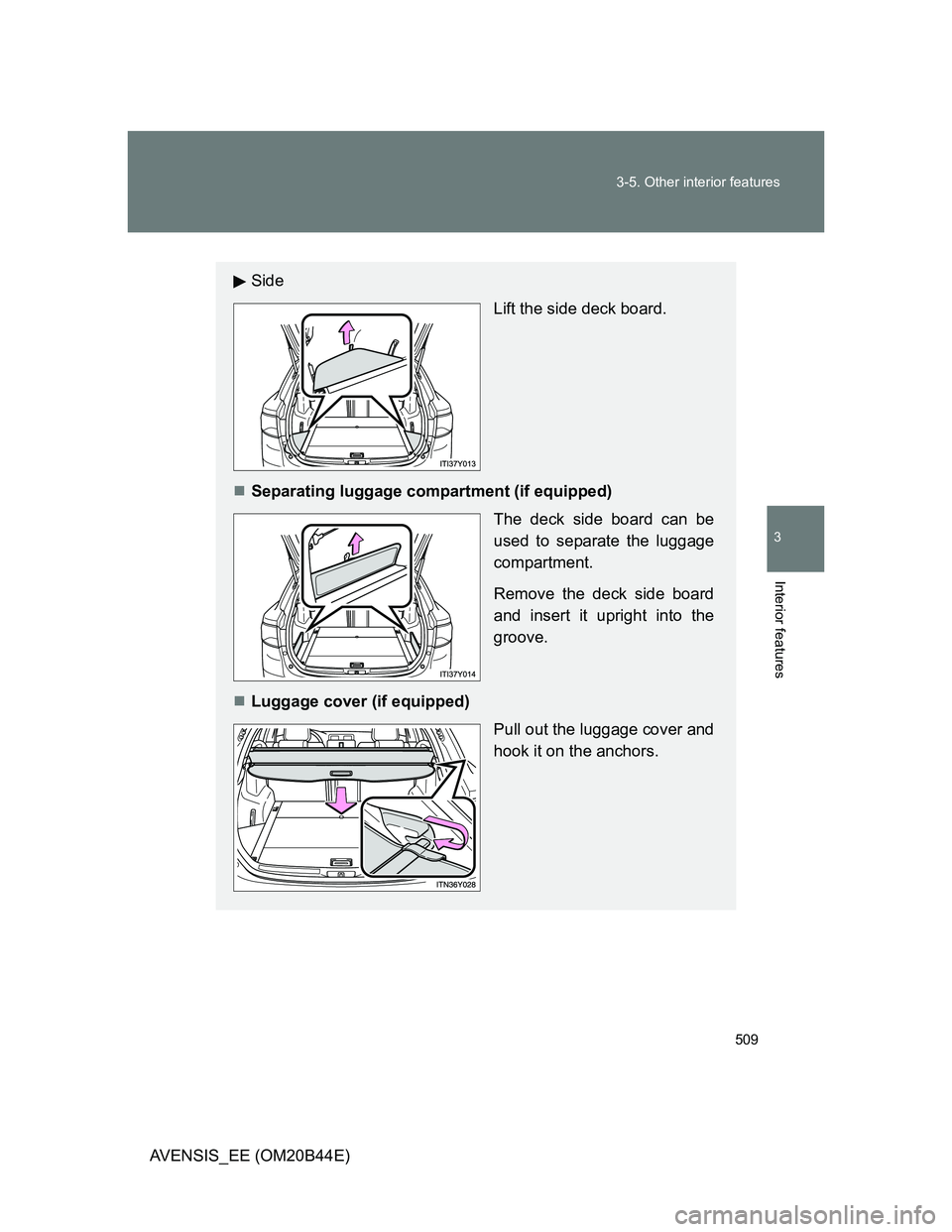

Side
Lift the side deck board.
Separating luggage compartment (if equipped)
The deck side board can be
used to separate the luggage
compartment.
Remove the deck side board
and insert it upright into the
groove.
Luggage cover (if equipped)
Pull out the luggage cover and
hook it on the anchors.

510 3-5. Other interior features
AVENSIS_EE (OM20B44E)

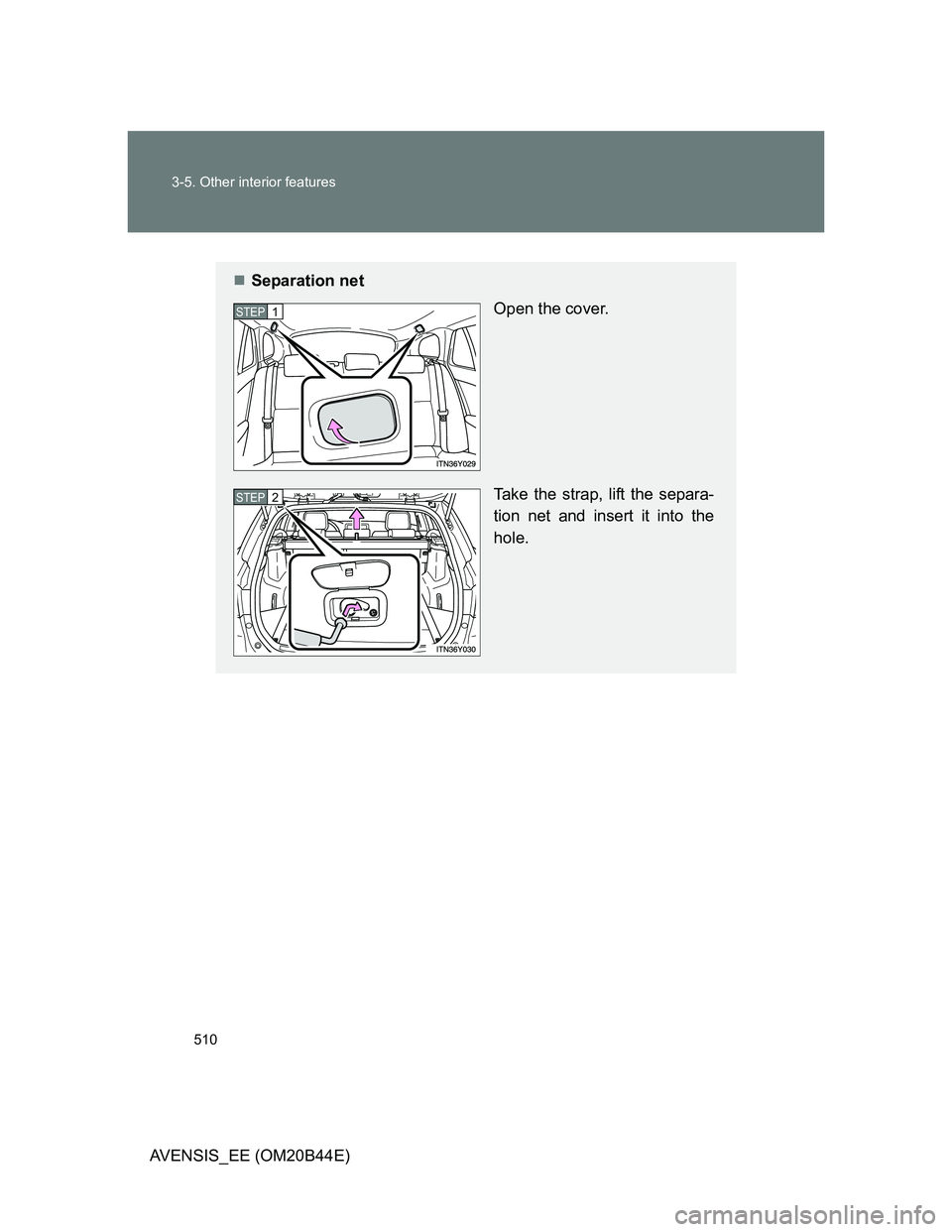

Separation net
Open the cover.
Take the strap, lift the separa-
tion net and insert it into the
hole.
STEP1
STEP2
