Page 541 of 648

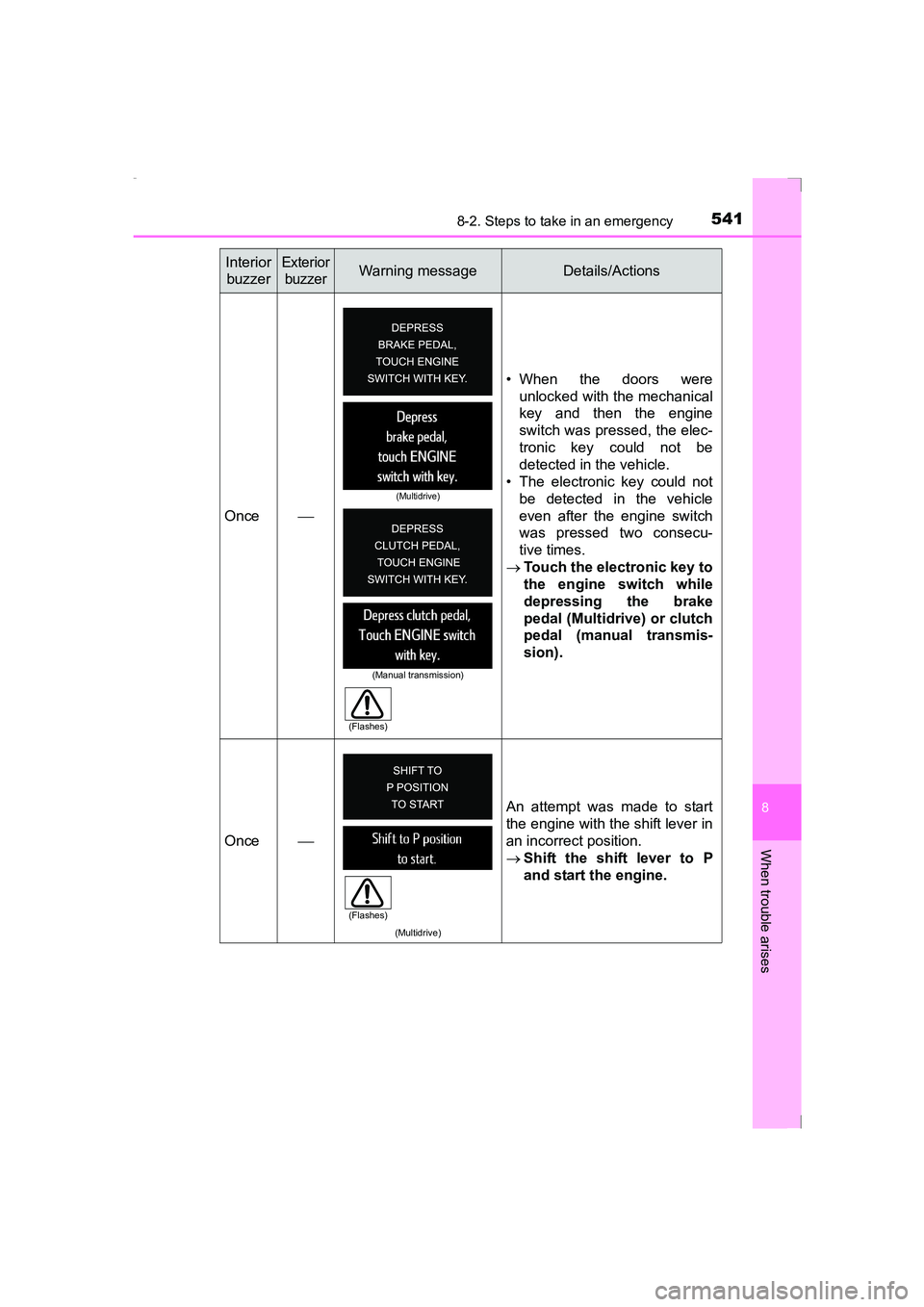

5418-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
Once • When the doors were
unlocked with the mechanical
key and then the engine
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not
be detected in the vehicle
even after the engine switch
was pressed two consecu-
tive times.
→ Touch the electronic key to
the engine switch while
depressing the brake
pedal (Multidrive) or clutch
pedal (manual transmis-
sion).
Once
(Multidrive)
An attempt was made to start
the engine with the shift lever in
an incorrect position.
→Shift the shift lever to P
and start the engine.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Multidrive)
(Manual transmission)
(Flashes)
(Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 541 Thursday, January 29, 2015 1:47 PM
Page 542 of 648

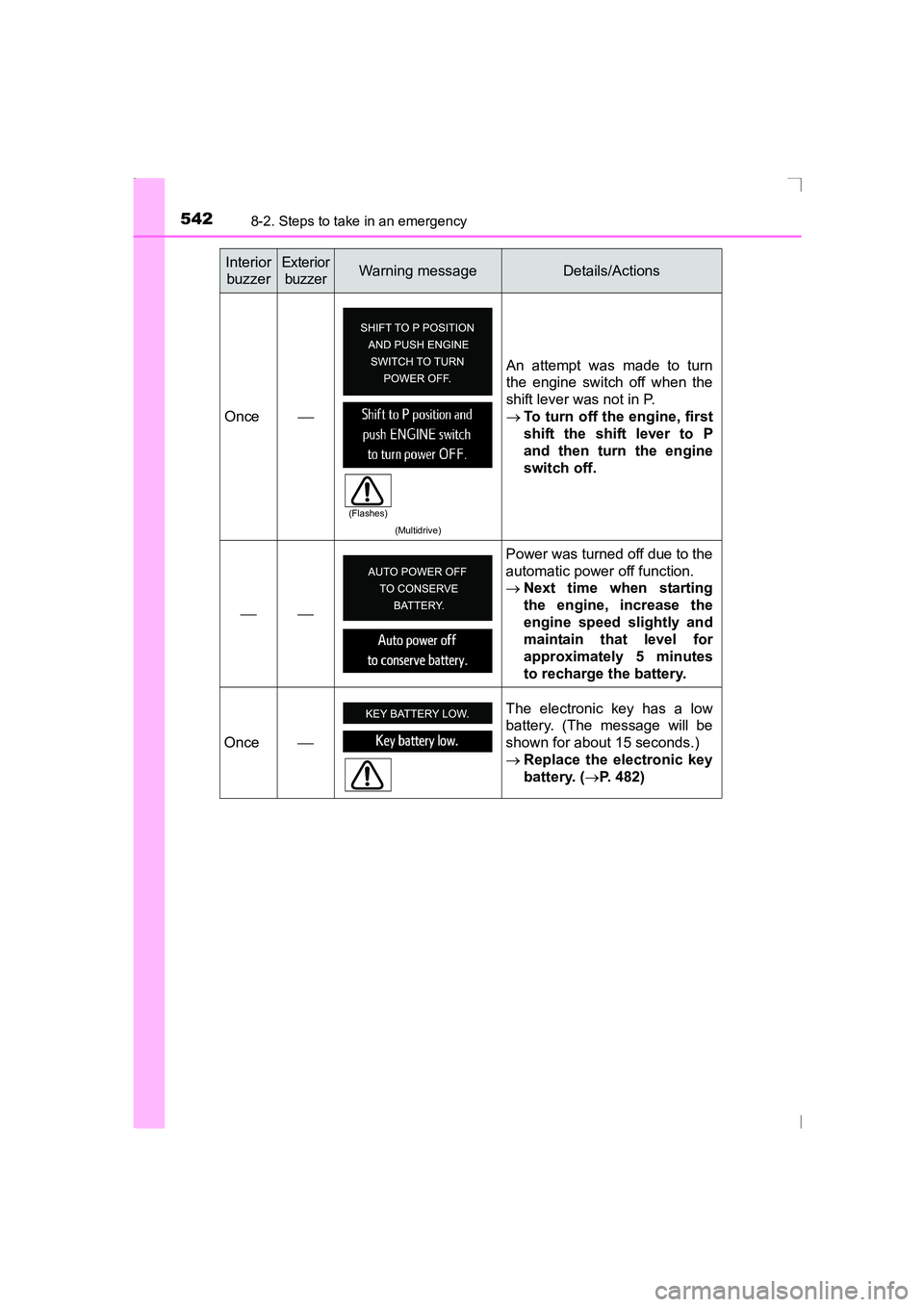

5428-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)Once
(Multidrive)
An attempt was made to turn
the engine switch off when the
shift lever was not in P.
→To turn off the engine, first
shift the shift lever to P
and then turn the engine
switch off.
Power was turned off due to the
automatic power off function.
→
Next time when starting
the engine, increase the
engine speed slightly and
maintain that level for
approximately 5 minutes
to recharge the battery.
Once The electronic key has a low
battery. (The message will be
shown for about 15 seconds.)
→
Replace the electronic key
battery. ( →P. 482)
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 542 Thursday, January 29, 2015 1:47 PM
Page 543 of 648

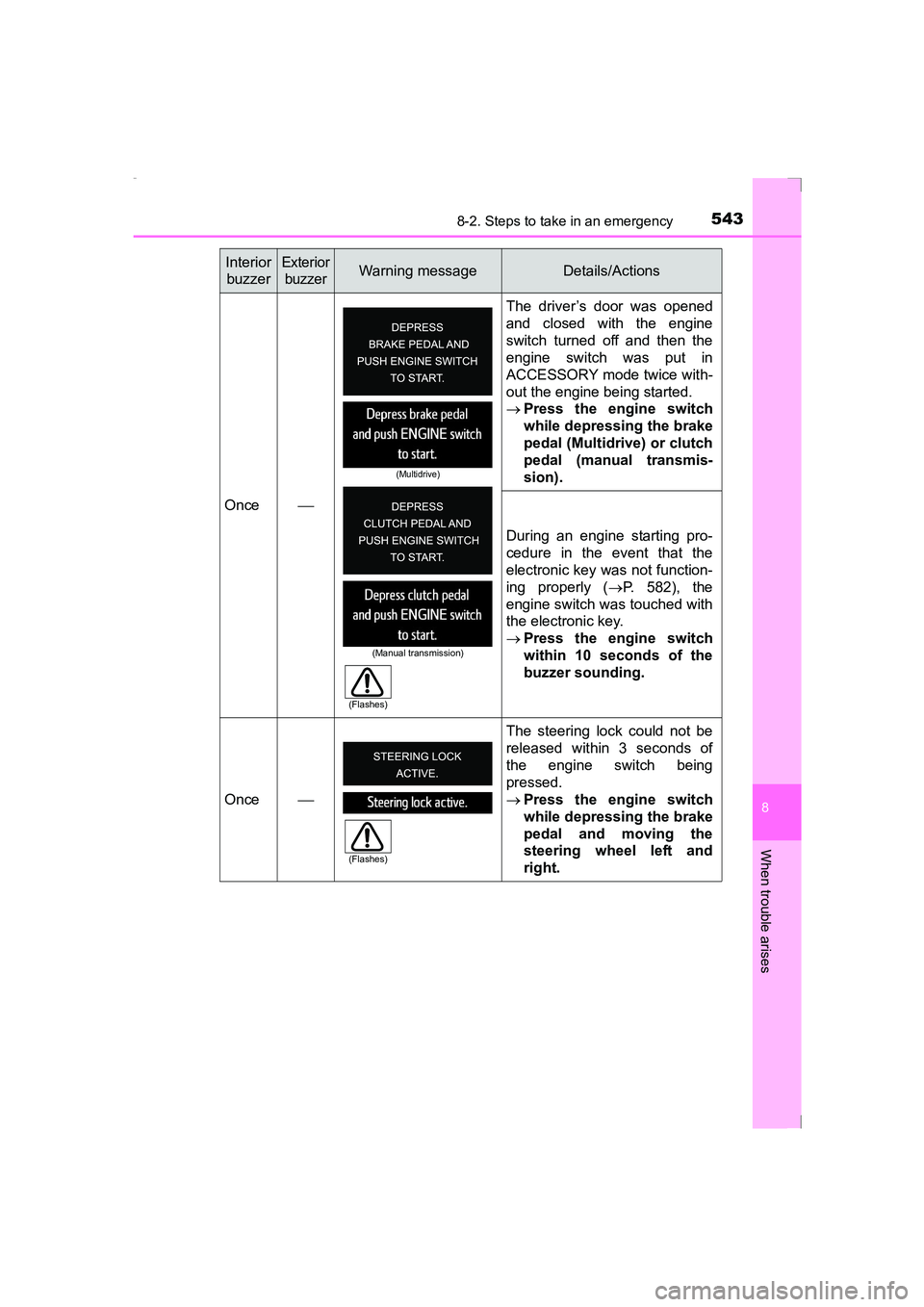

5438-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
Once The driver’s door was opened
and closed with the engine
switch turned off and then the
engine switch was put in
ACCESSORY mode twice with-
out the engine being started.
→
Press the engine switch
while depressing the brake
pedal (Multidrive) or clutch
pedal (manual transmis-
sion).
During an engine starting pro-
cedure in the event that the
electronic key was not function-
ing properly ( →P. 582), the
engine switch was touched with
the electronic key.
→ Press the engine switch
within 10 seconds of the
buzzer sounding.
Once The steering lock could not be
released within 3 seconds of
the engine switch being
pressed.
→
Press the engine switch
while depressing the brake
pedal and moving the
steering wheel left and
right.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Multidrive)
(Manual transmission)
(Flashes)
(Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 543 Thursday, January 29, 2015 1:47 PM
Page 544 of 648

5448-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)

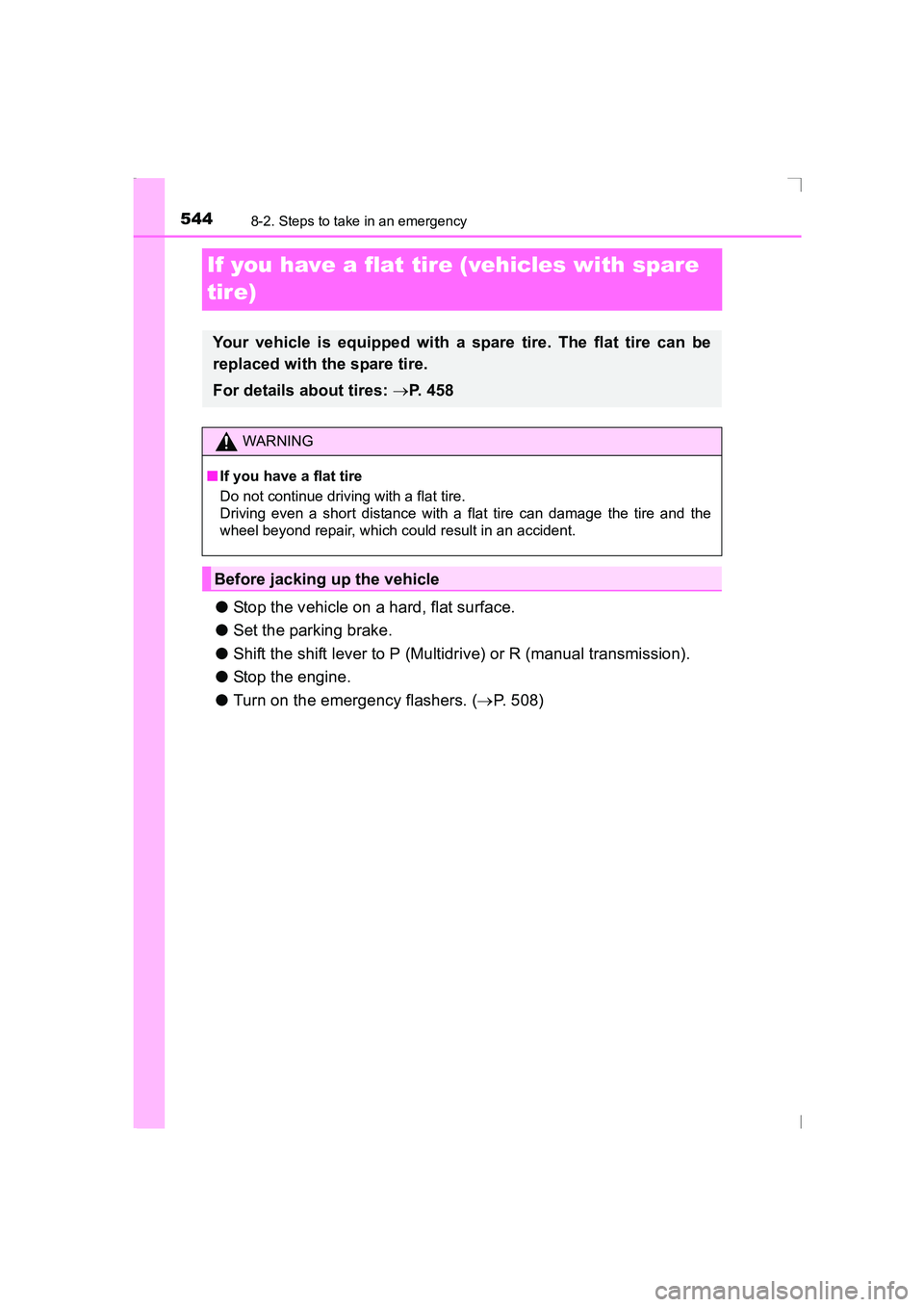

If you have a flat tire (vehicles with spare
tire)
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (Multidrive) or R (manual transmission).
● Stop the engine.
● Turn on the emergency flashers. ( →P. 508)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: →P. 4 5 8
WARNING
■ If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
