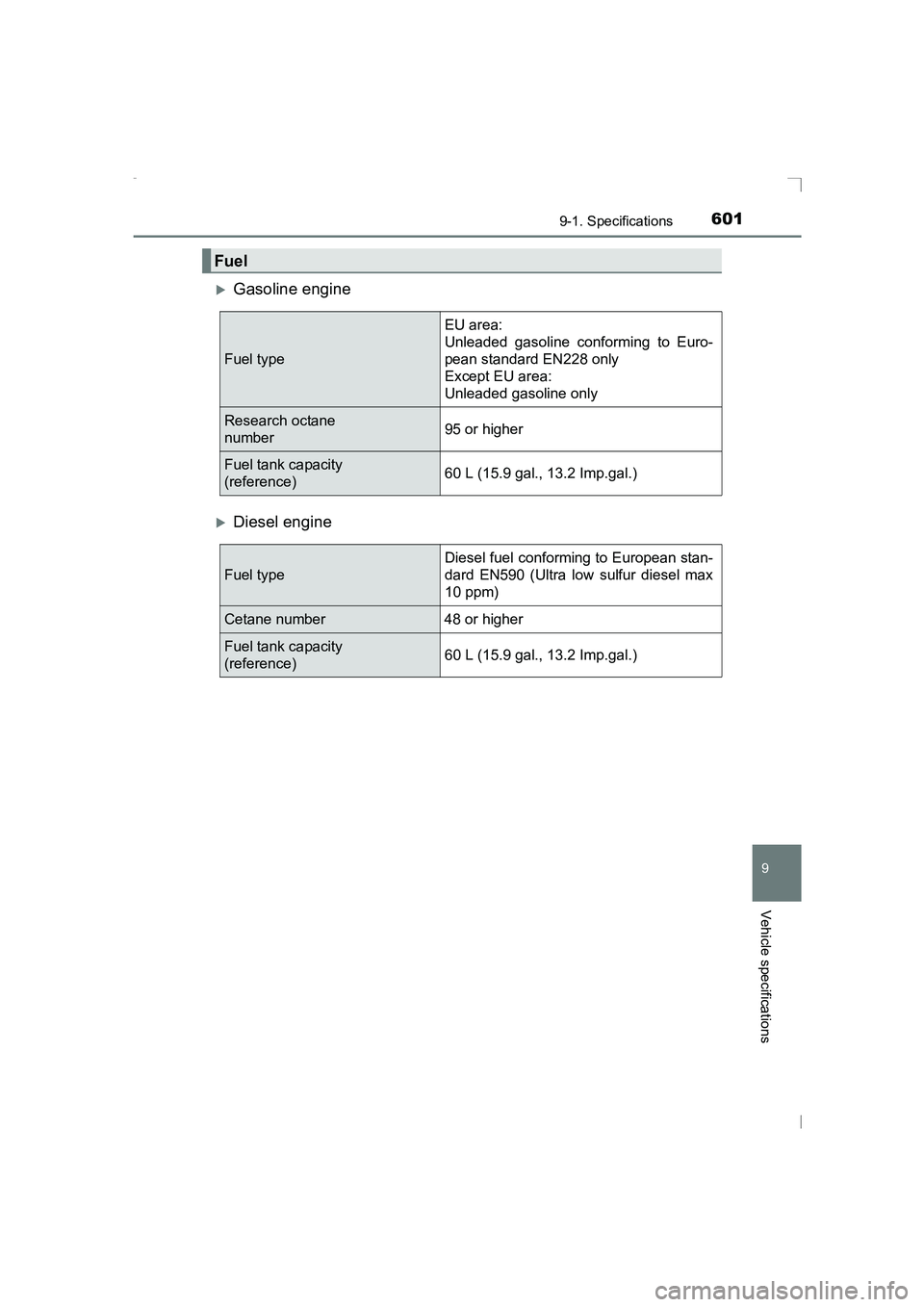

Page 601 of 648

TOYOTA AVENSIS 2015  Owners Manual 6019-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
�XGasoline engine
�XDiesel engine
Fuel
Fuel typeEU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except

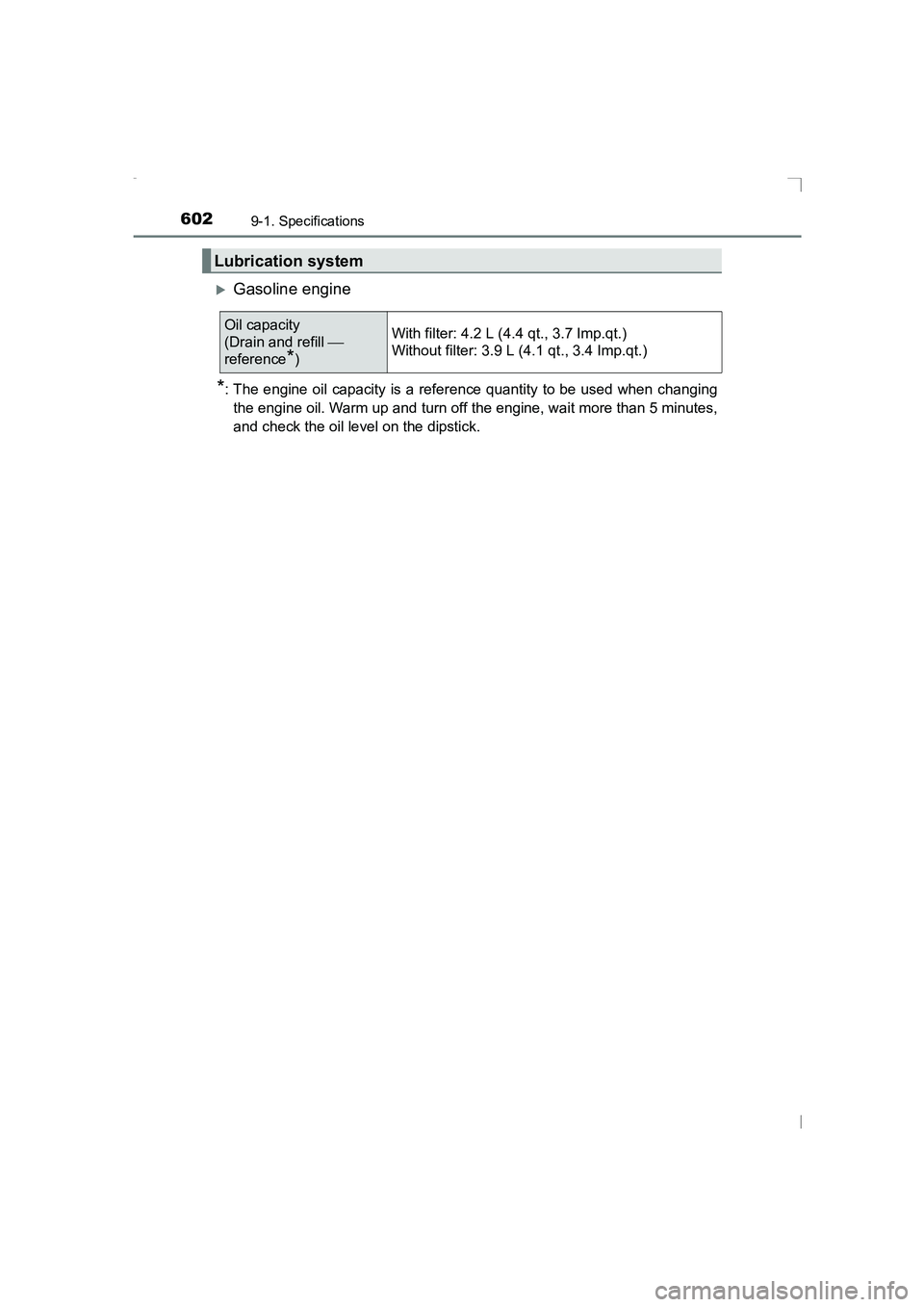

Page 602 of 648

TOYOTA AVENSIS 2015  Owners Manual 6029-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
�XGasoline engine
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more

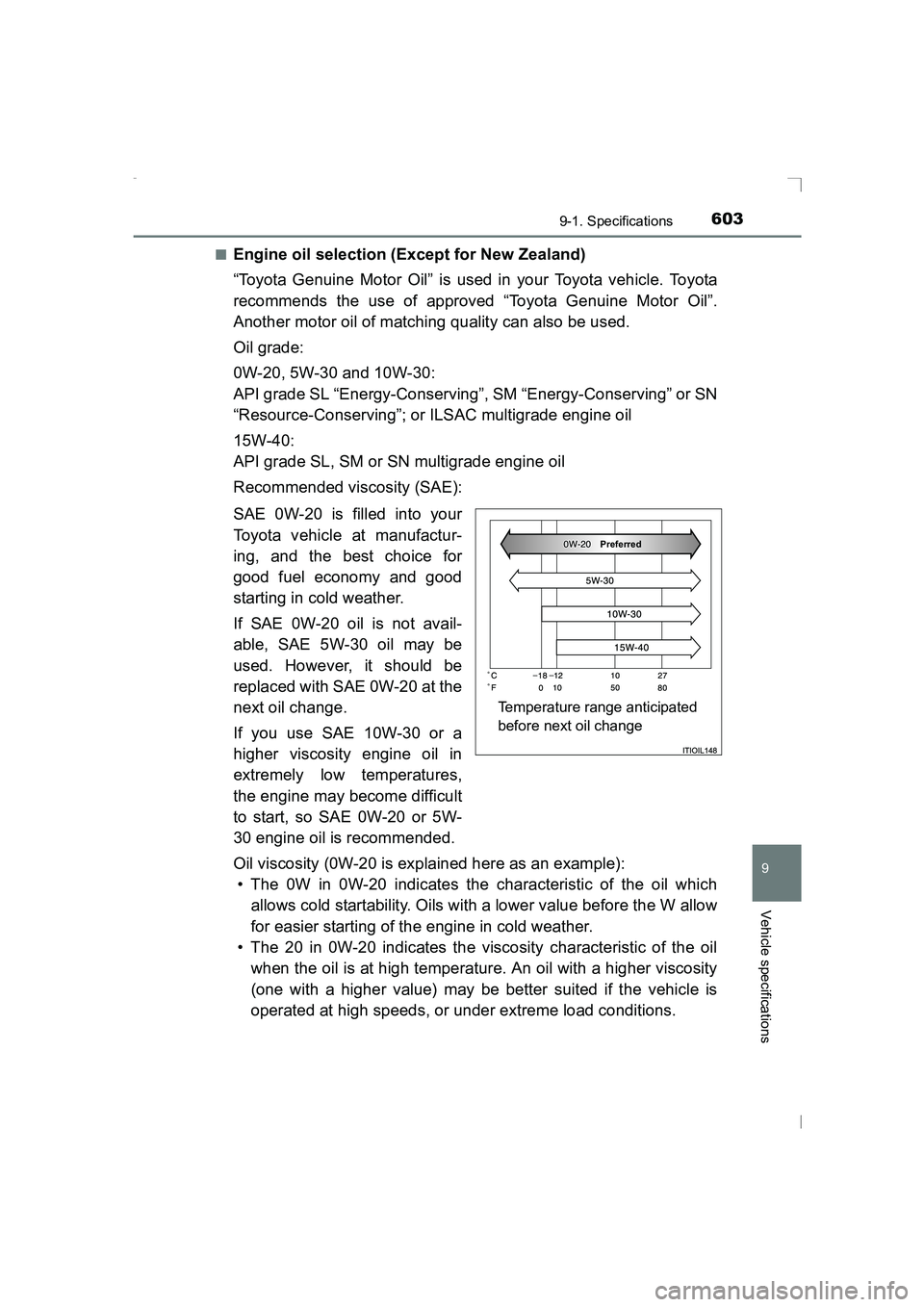

Page 603 of 648

TOYOTA AVENSIS 2015  Owners Manual 6039-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
■Engine oil selection (Except for New Zealand)
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommen

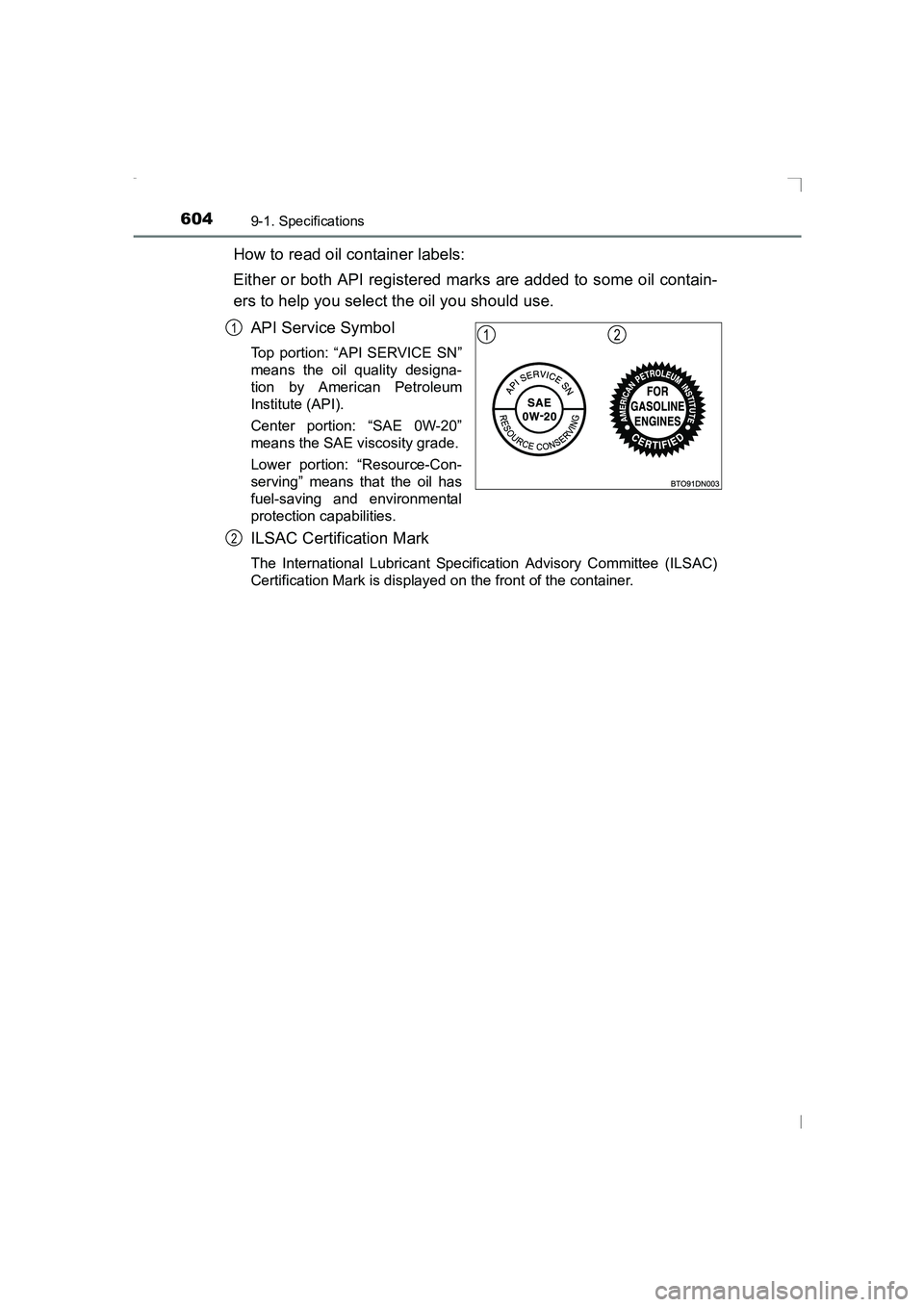

Page 604 of 648

TOYOTA AVENSIS 2015  Owners Manual 6049-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.API S

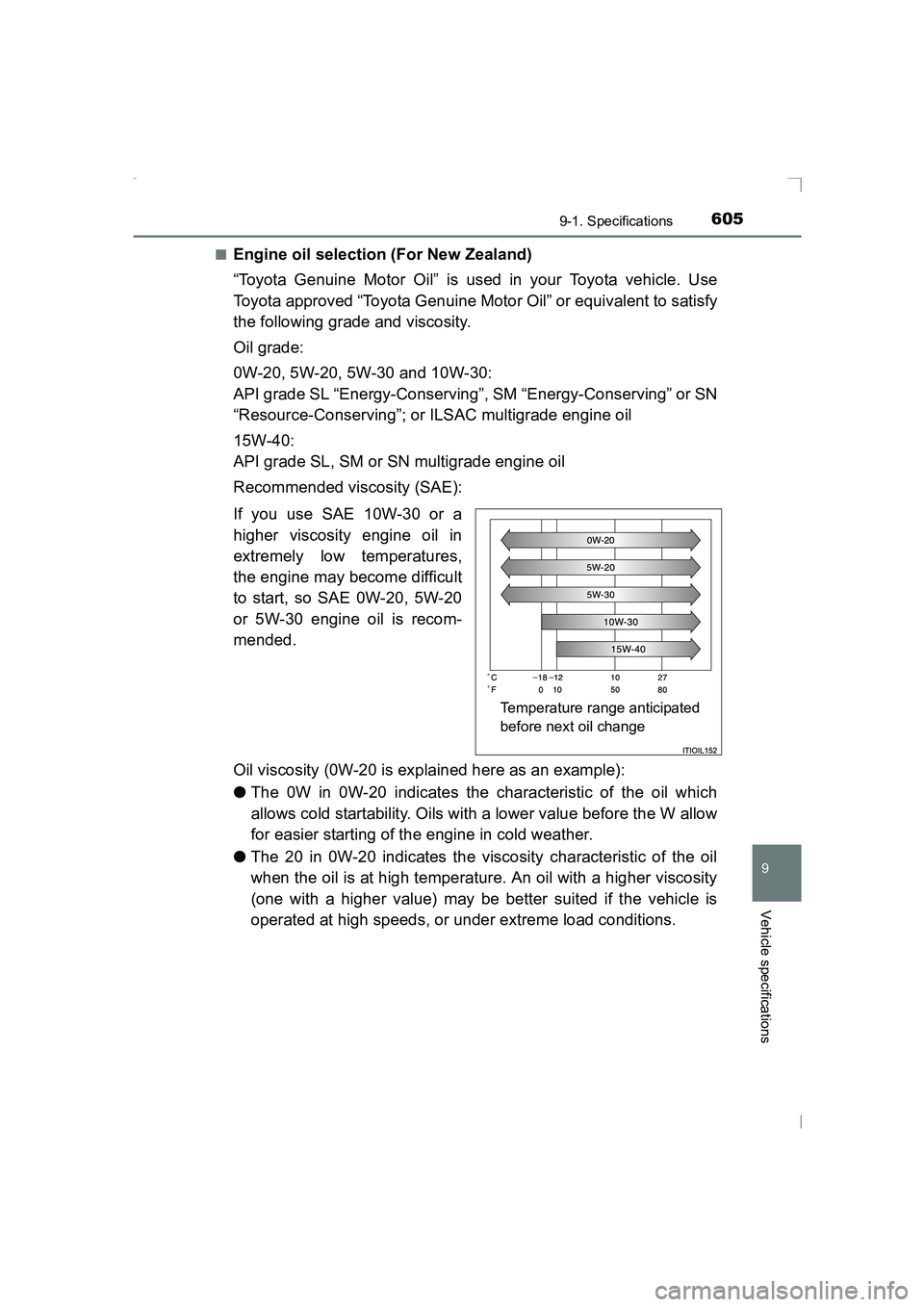

Page 605 of 648

TOYOTA AVENSIS 2015  Owners Manual 6059-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
■Engine oil selection (For New Zealand)
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved

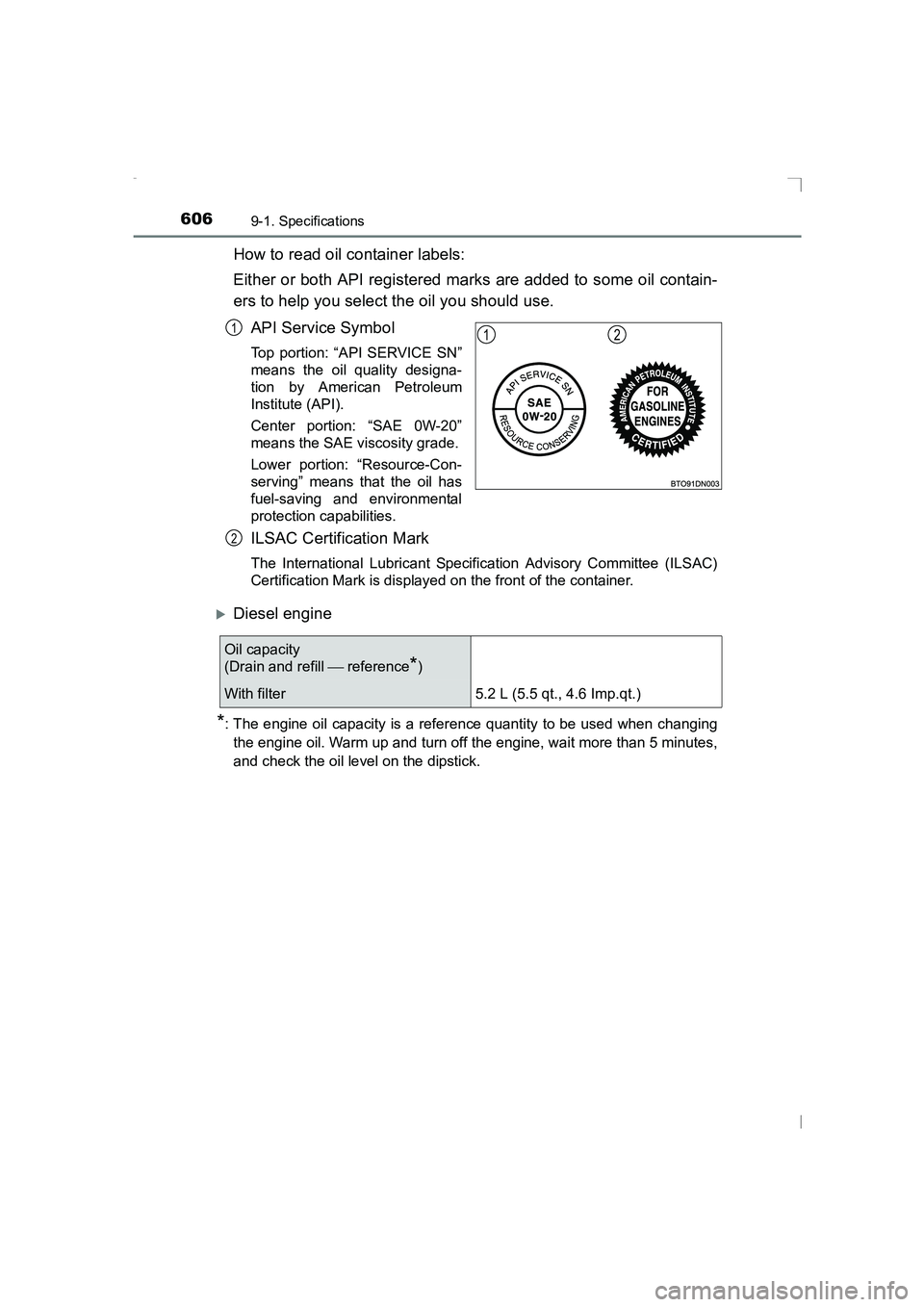

Page 606 of 648

TOYOTA AVENSIS 2015  Owners Manual 6069-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.API S

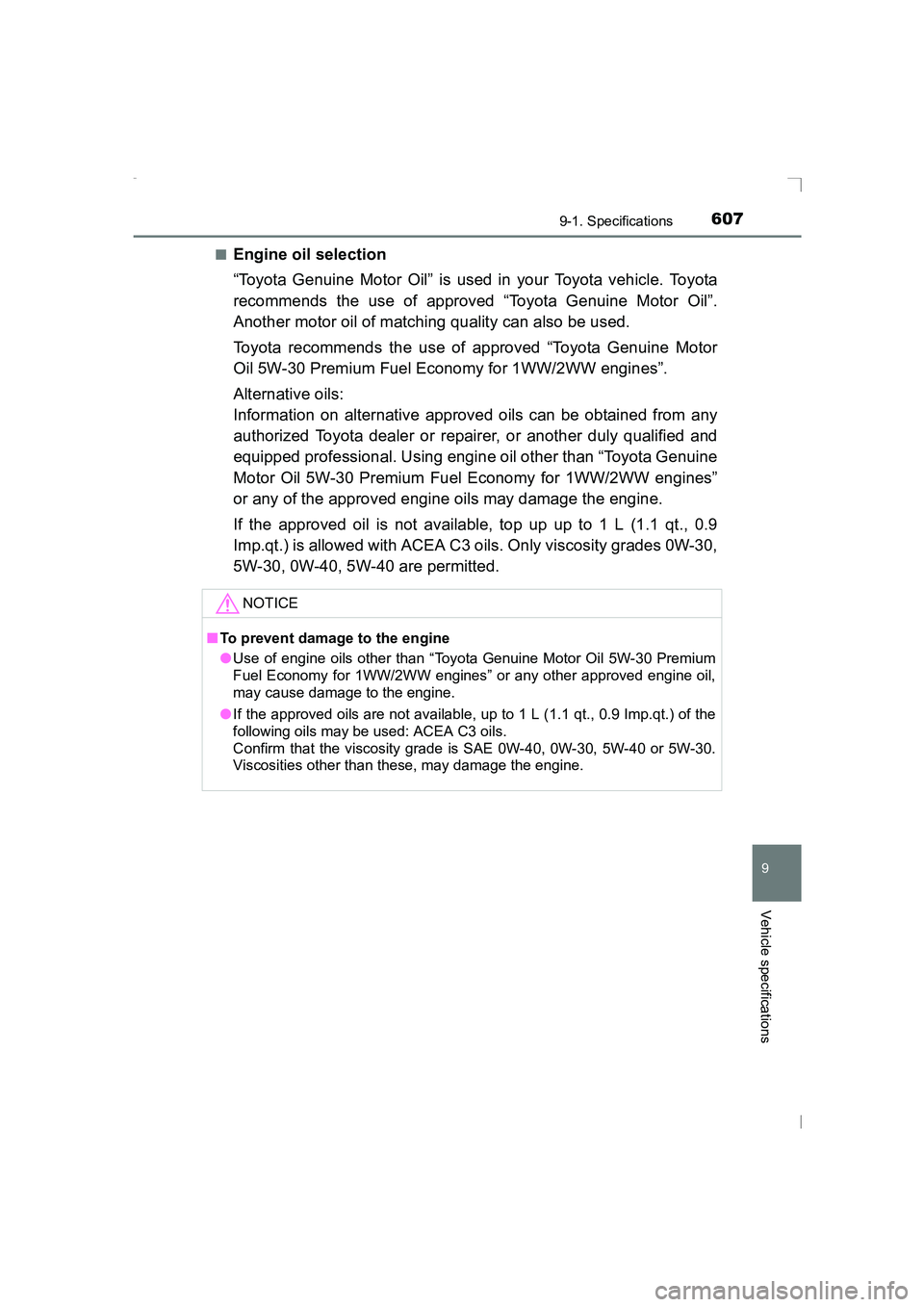

Page 607 of 648

TOYOTA AVENSIS 2015  Owners Manual 6079-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved

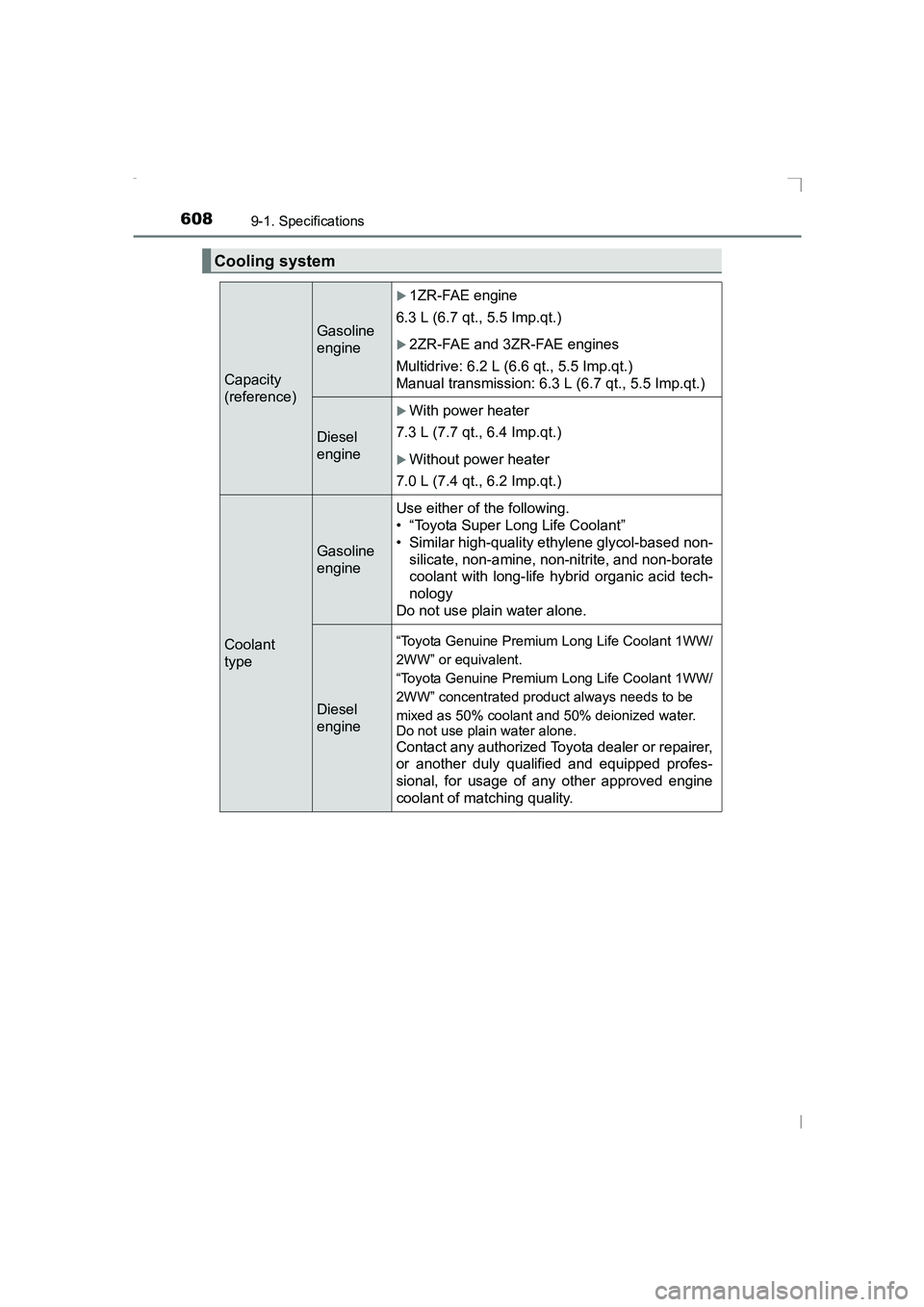

Page 608 of 648

TOYOTA AVENSIS 2015  Owners Manual 6089-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
Cooling system
Capacity
(reference)
Gasoline
engine
�X1ZR-FAE engine
6.3 L (6.7 qt., 5.5 Imp.qt.)
�X2ZR-FAE and 3ZR-FAE engines
Multidrive: 6.2 L (6.6 q

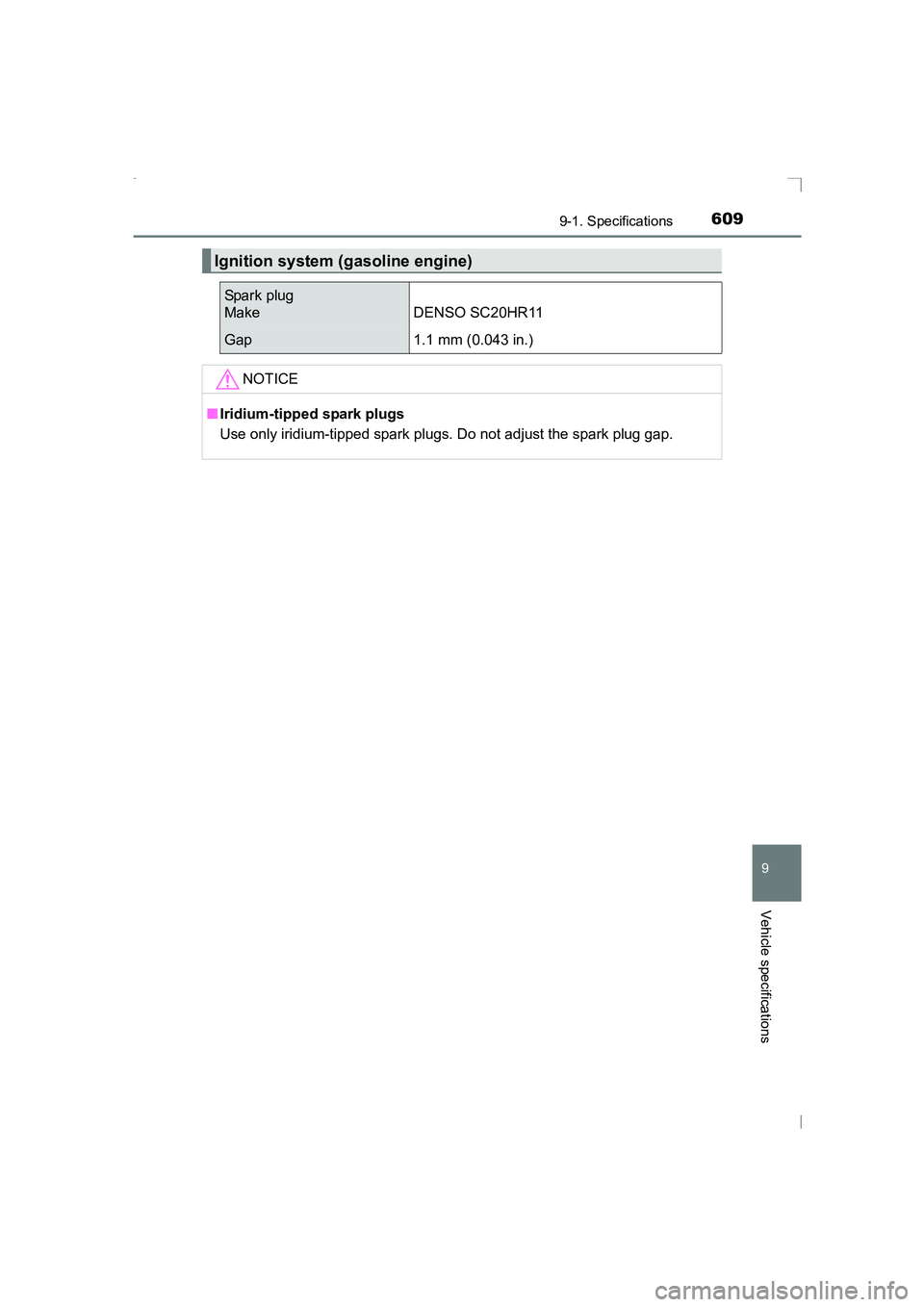

Page 609 of 648

TOYOTA AVENSIS 2015  Owners Manual 6099-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
Ignition system (gasoline engine)
Spark plug
Make DENSO SC20HR11
Gap 1.1 mm (0.043 in.)NOTICE
■Iridium-tipped spark plugs
Use

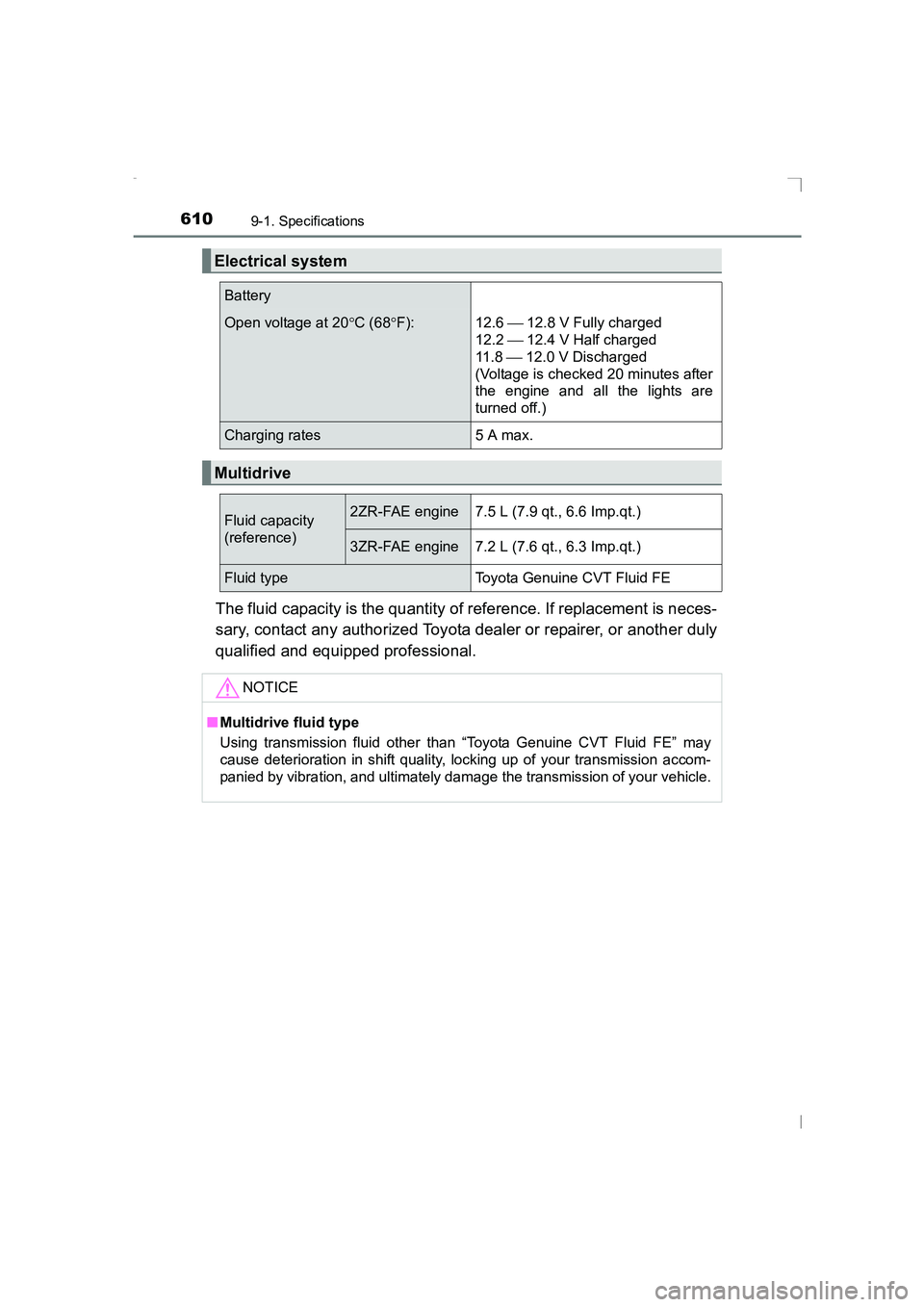

Page 610 of 648

TOYOTA AVENSIS 2015  Owners Manual 6109-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota dealer or repairer, or another duly
qualif
