TOYOTA AVENSIS 2017 Owners Manual (in English)

5117-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care

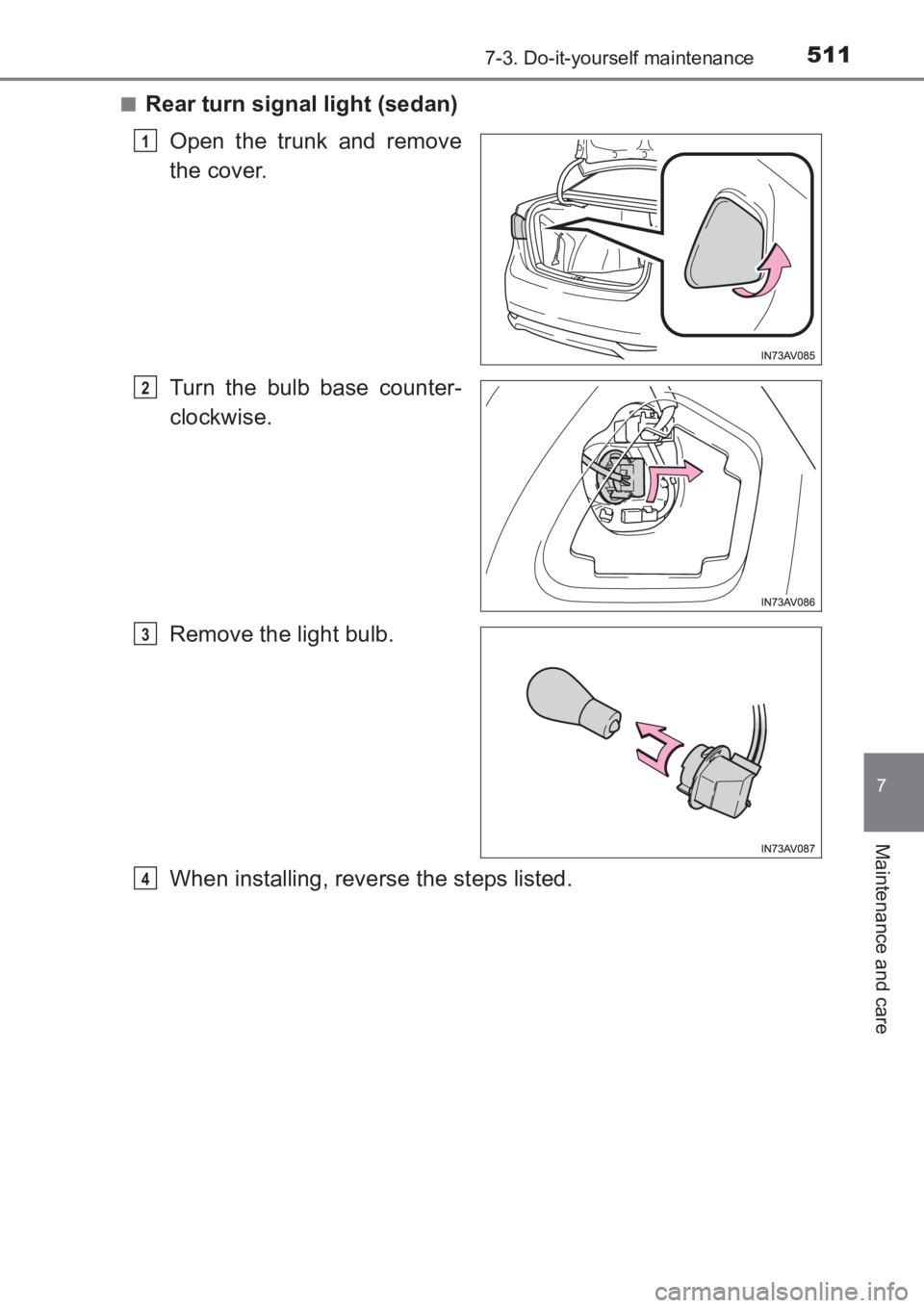

■Rear turn signal light (sedan)Open the trunk and remove
the cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
AVENSIS_OM_OM20C66E_(EE).book Page 511 Wednesday, June 15, 20 16 4:07 PM

5127-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)■

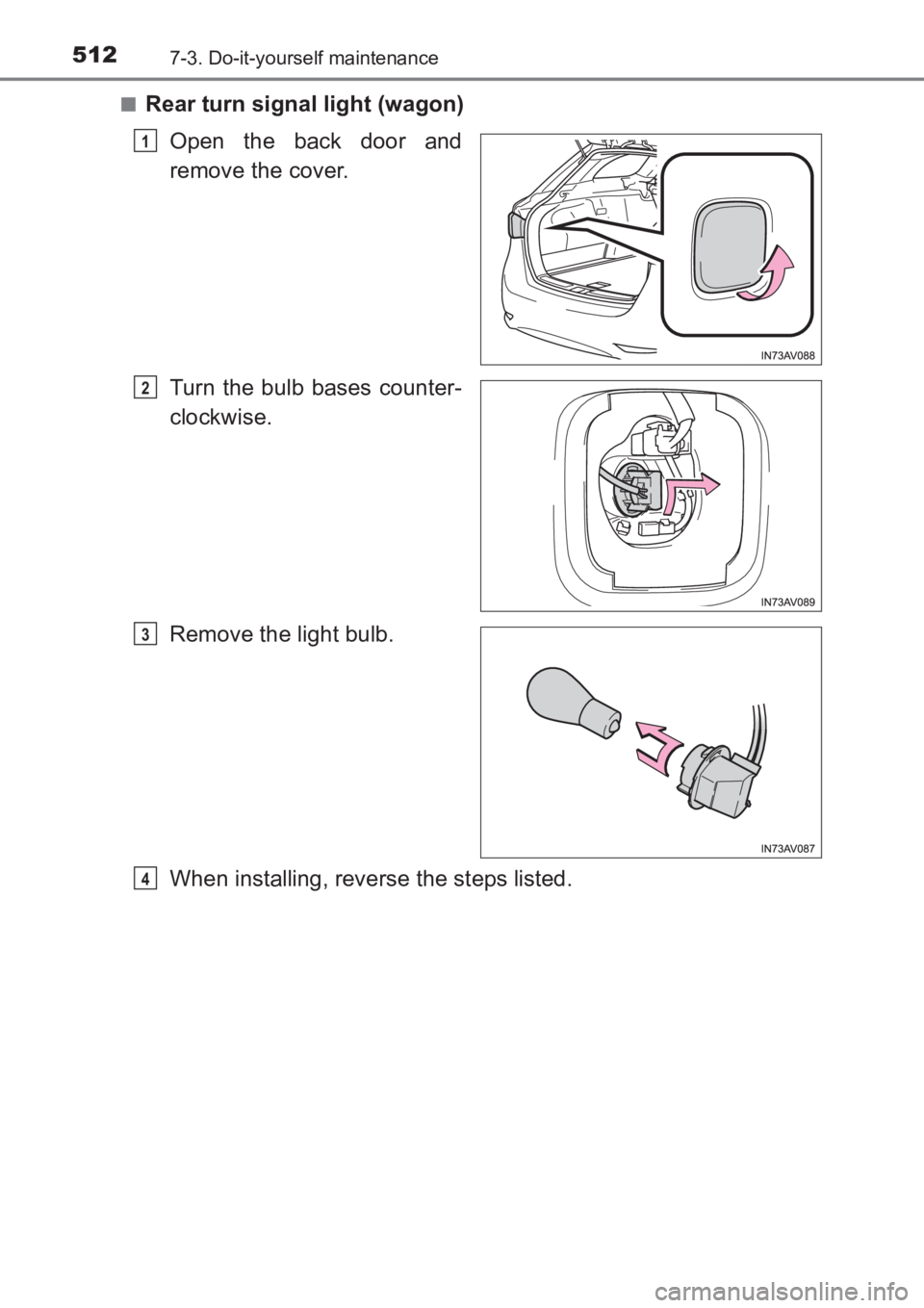

Rear turn signal light (wagon)
Open the back door and
remove the cover.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
AVENSIS_OM_OM20C66E_(EE).book Page 512 Wednesday, June 15, 20 16 4:07 PM

5137-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care

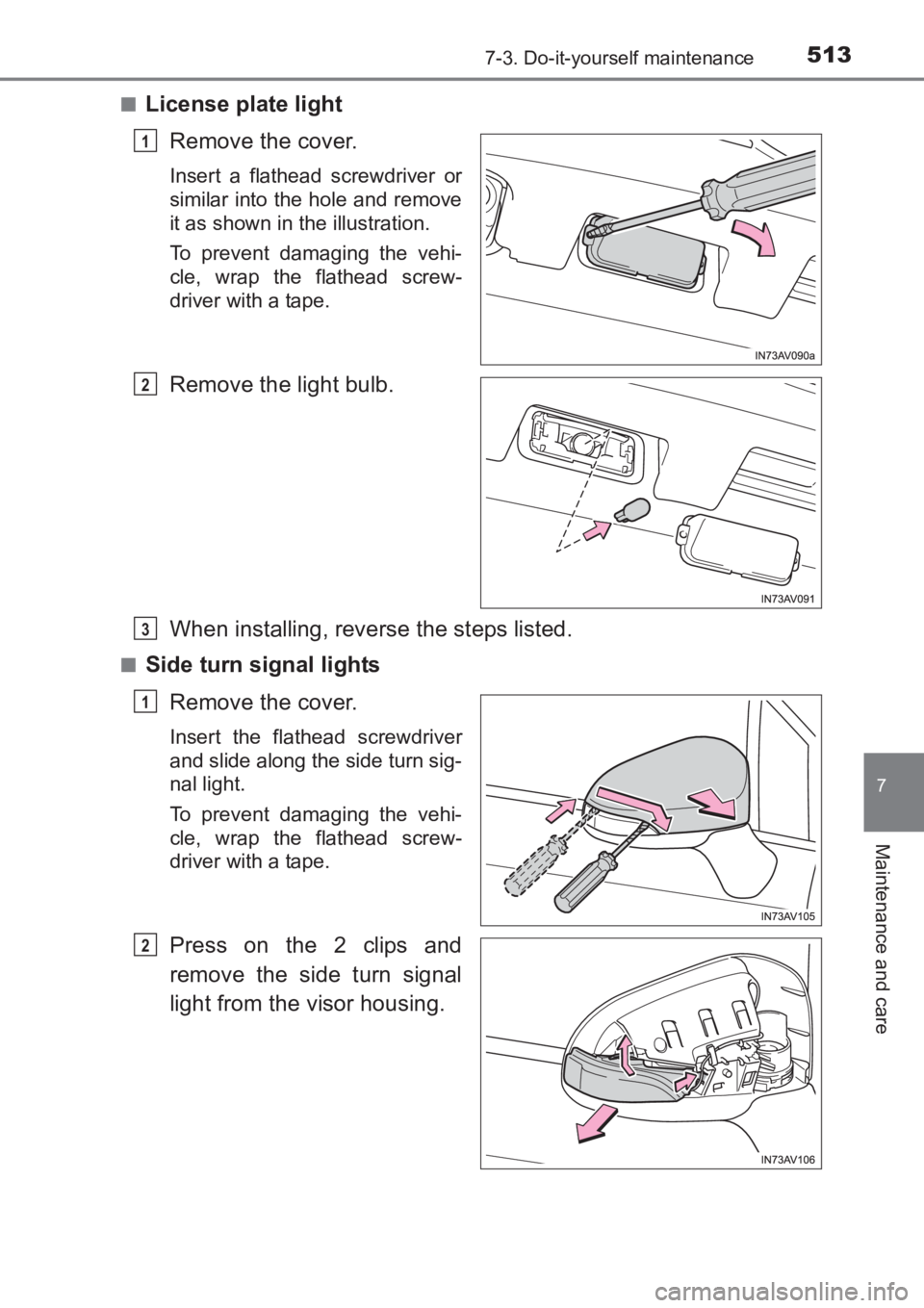

■License plate lightRemove the cover.
Insert a flathead screwdriver or
similar into the hole and remove
it as shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Remove the light bulb.
When installing, reverse the steps listed.
■Side turn signal lights
Remove the cover.
Insert the flathead screwdriver
and slide along the side turn sig-
nal light.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Press on the 2 clips and
remove the side turn signal
light from the visor housing.
1
2
3
1
2
AVENSIS_OM_OM20C66E_(EE).book Page 513 Wednesday, June 15, 20 16 4:07 PM

5147-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)

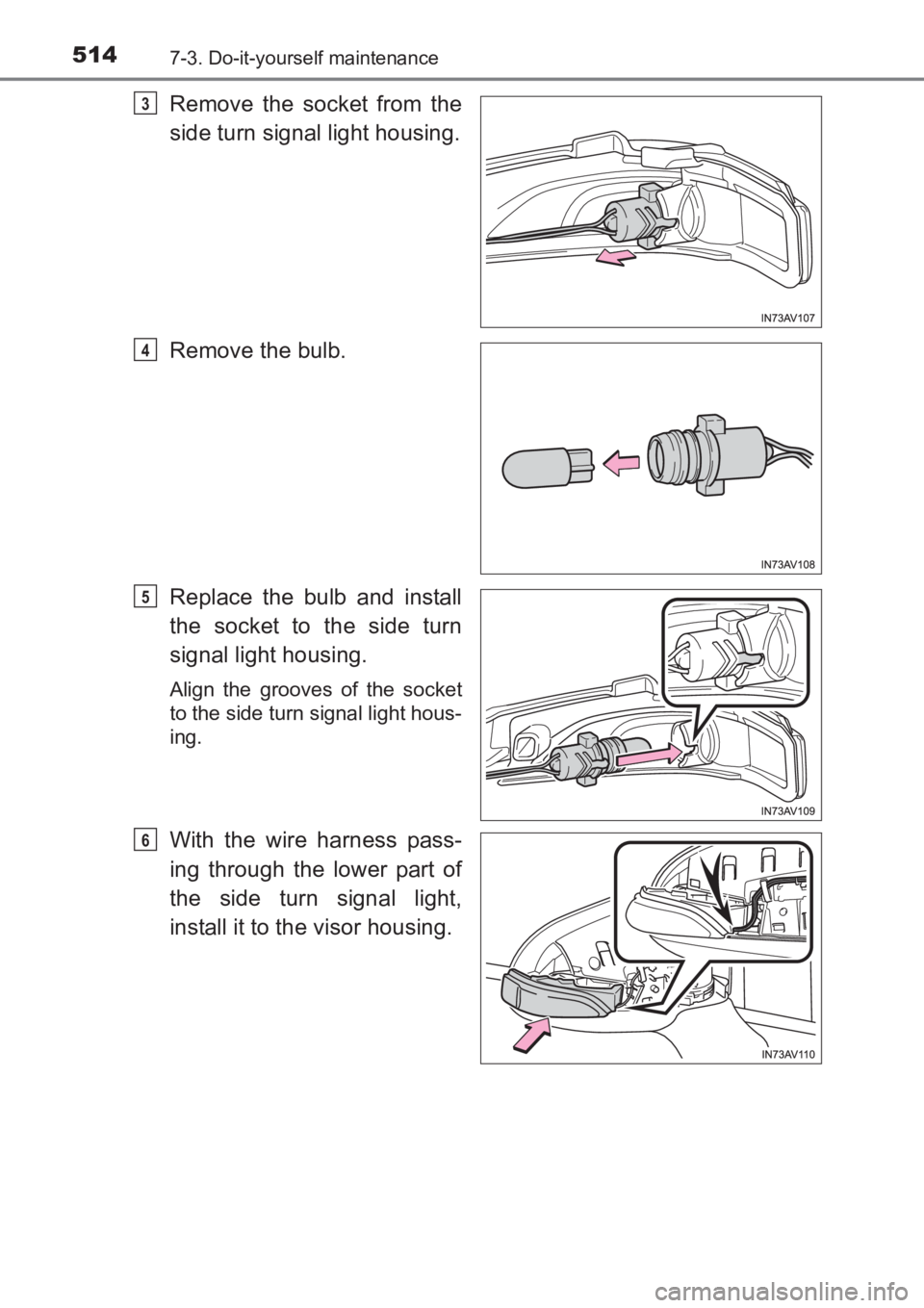

Remove the socket from the
side turn signal light housing.
Remove the bulb.
Replace the bulb and install
the socket to the side turn
signal light housing.
Align the grooves of the socket
to the side turn signal light hous-
ing.
With the wire harness pass-
ing through the lower part of
the side turn signal light,
install it to the visor housing.
3
4
5
6
AVENSIS_OM_OM20C66E_(EE).book Page 514 Wednesday, June 15, 2016 4:07 PM

5157-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care

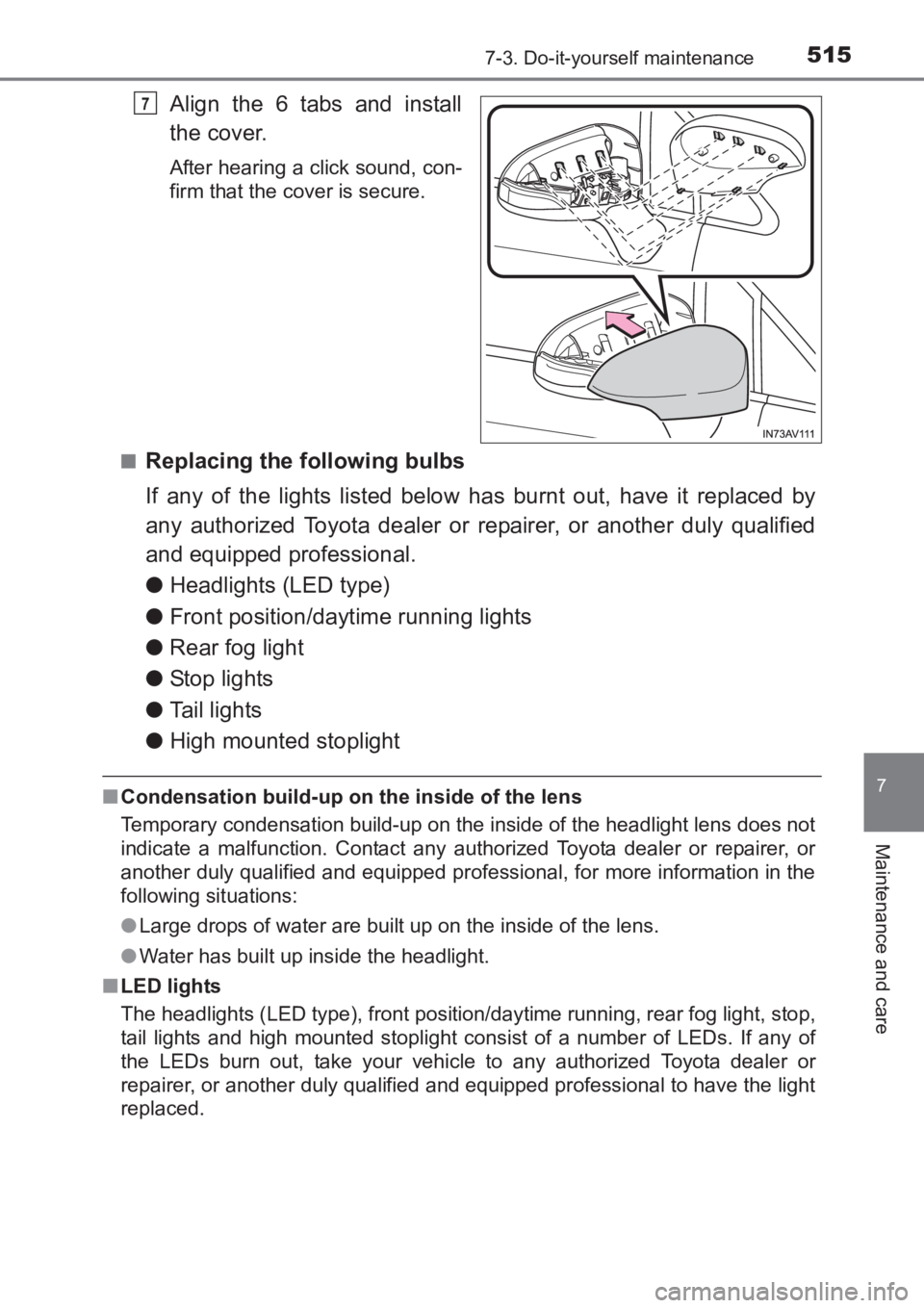

Align the 6 tabs and install
the cover.
After hearing a click sound, con-
firm that the cover is secure.
■
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● Headlights (LED type)
● Front position/daytime running lights
● Rear fog light
● Stop lights
● Tail lights
● High mounted stoplight
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional , for more information in the
following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED lights
The headlights (LED type), front position/ daytime running, rear fog light, stop,
tail lights and high mounted stoplight consist of a number of LEDs. If any of
the LEDs burn out, take your vehicle to any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional to have the light
replaced.
7
AVENSIS_OM_OM20C66E_(EE).book Page 515 Wednesday, June 15, 20 16 4:07 PM

5167-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)

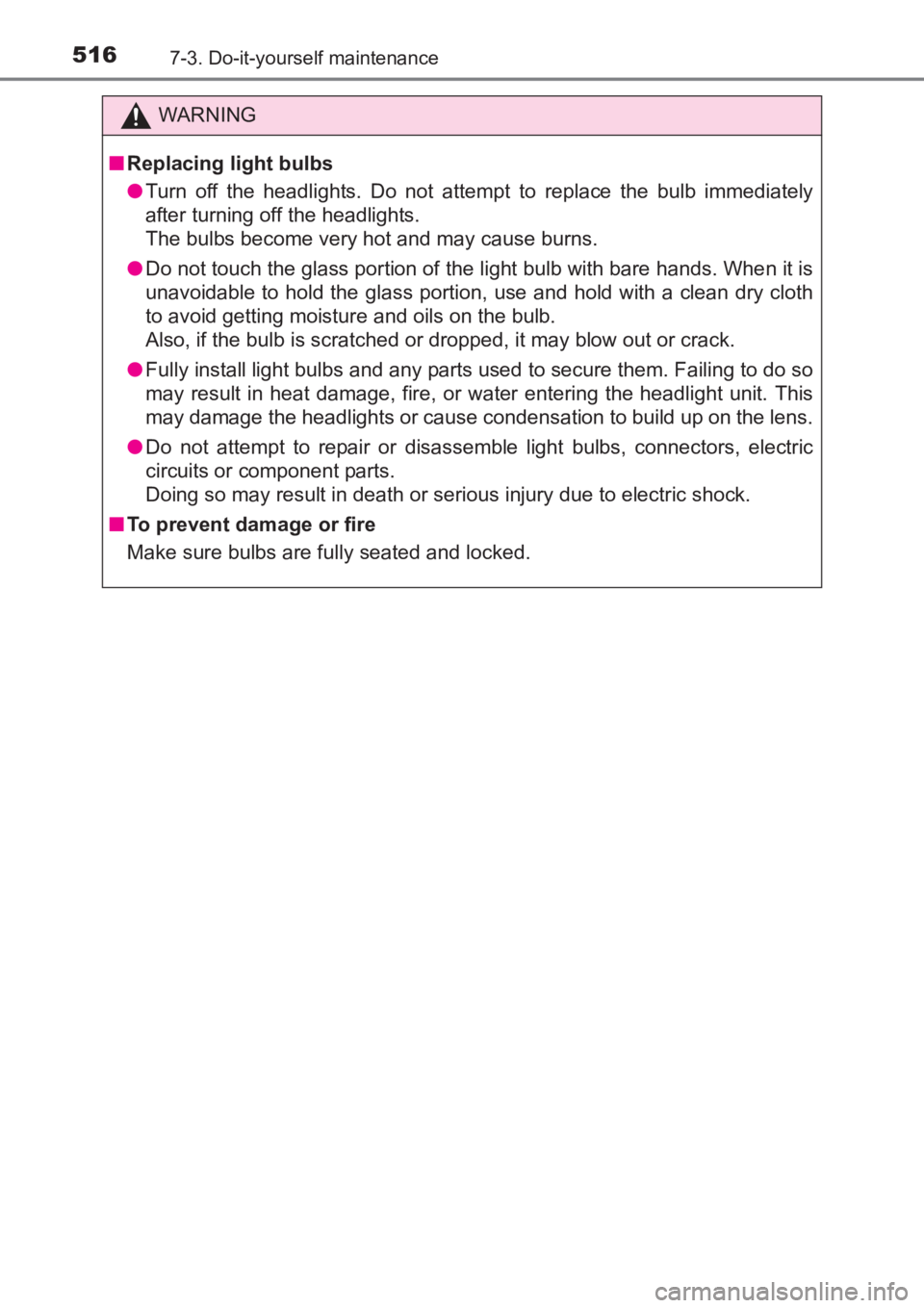

WARNING
■ Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of t he light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
AVENSIS_OM_OM20C66E_(EE).book Page 516 Wednesday, June 15, 20 16 4:07 PM

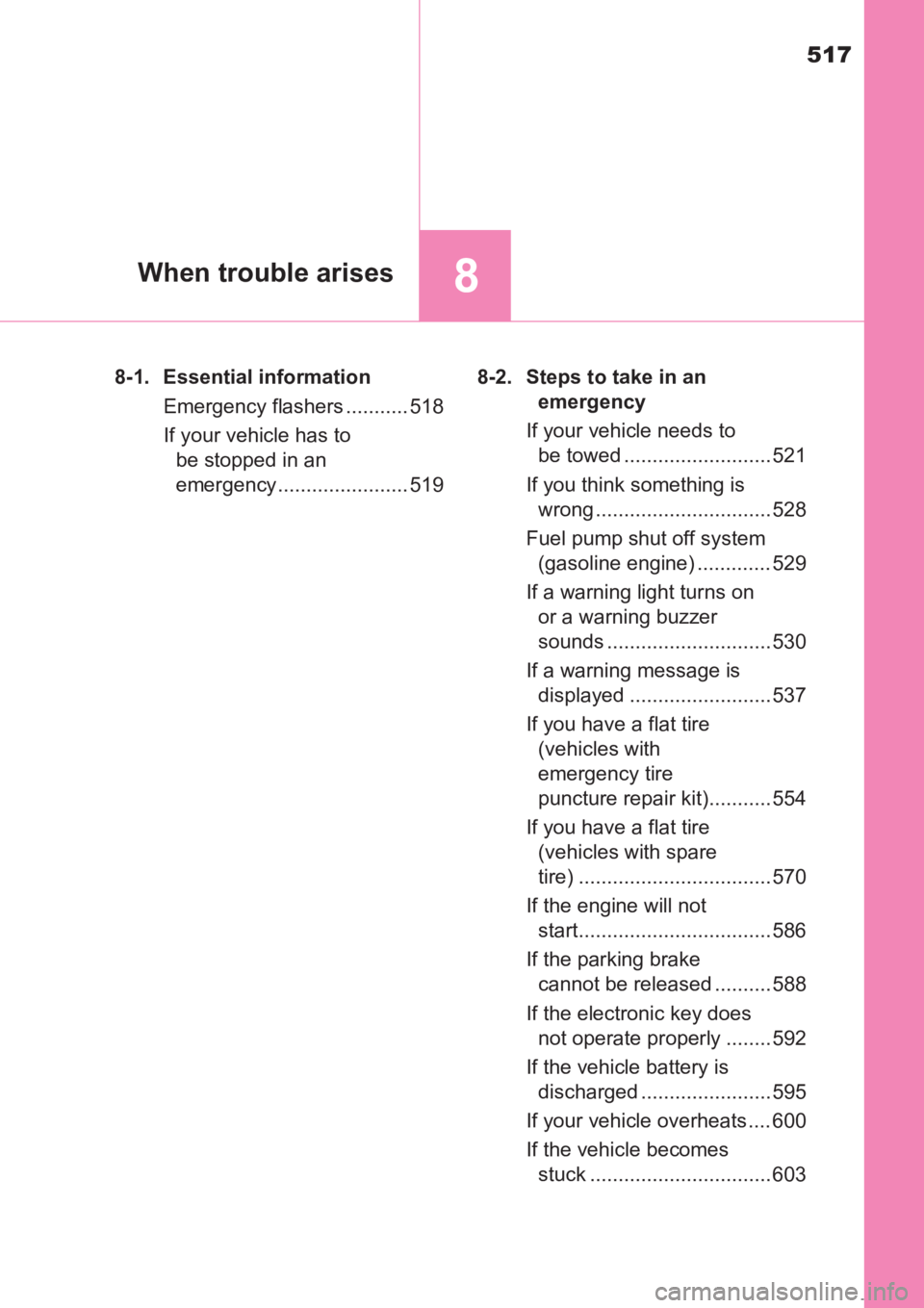

517
8When trouble arises
AVENSIS_OM_OM20C66E_(EE)8-1. Essential information
Emergency flashers ........... 518
If your vehicle has to be stopped in an
emergency ....................... 519 8-2. Steps to take in an
emergency
If your vehicle needs to be towed .......................... 521
If you think something is wrong ............................... 528
Fuel pump shut off system (gasoline engine) ............. 529
If a warning light turns on or a warning buzzer
sounds ............................. 530
If a warning message is displayed ......................... 537
If you have a flat tire (vehicles with
emergency tire
puncture repair kit)........... 554
If you have a flat tire (vehicles with spare
tire) .................................. 570
If the engine will not start.................................. 586
If the parking brake cannot be released .......... 588
If the electronic key does not operate properly ........ 592
If the vehicle battery is discharged ....................... 595
If your vehicle overheats .... 600
If the vehicle becomes stuck ................................ 603
AVENSIS_OM_OM20C66E_(EE).book Page 517 Friday, June 17, 2016 11:27 AM

5188-1. Essential information
AVENSIS_OM_OM20C66E_(EE)

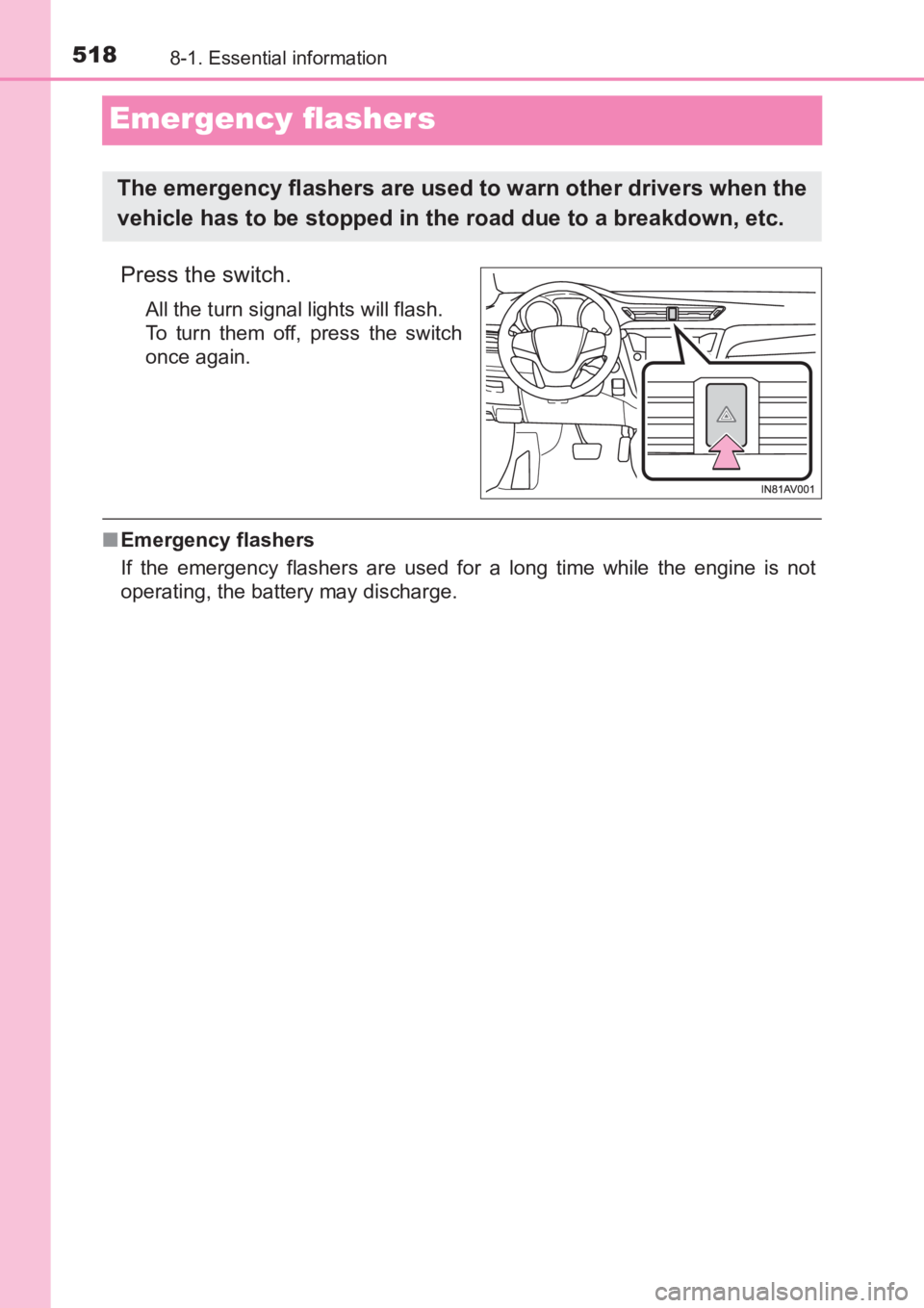

Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
AVENSIS_OM_OM20C66E_(EE).book Page 518 Wednesday, June 15, 20 16 4:07 PM

5198-1. Essential information
AVENSIS_OM_OM20C66E_(EE)
8
When trouble arises

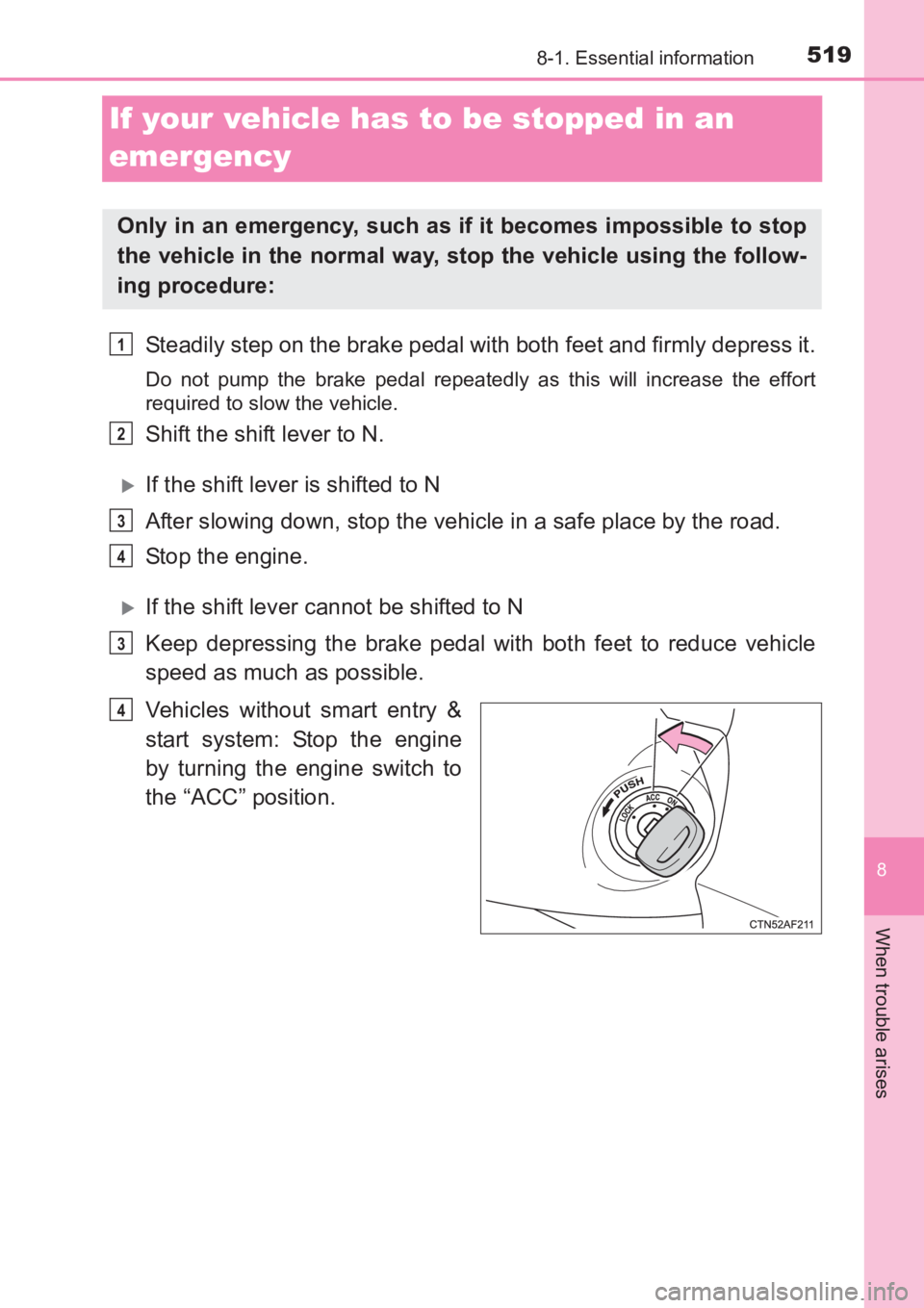

If your vehicle has to be stopped in an
emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
XIf the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
XIf the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without smart entry &
start system: Stop the engine
by turning the engine switch to
the “ACC” position.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
AVENSIS_OM_OM20C66E_(EE).book Page 519 Wednesday, June 15, 2016 4:07 PM

5208-1. Essential information
AVENSIS_OM_OM20C66E_(EE)

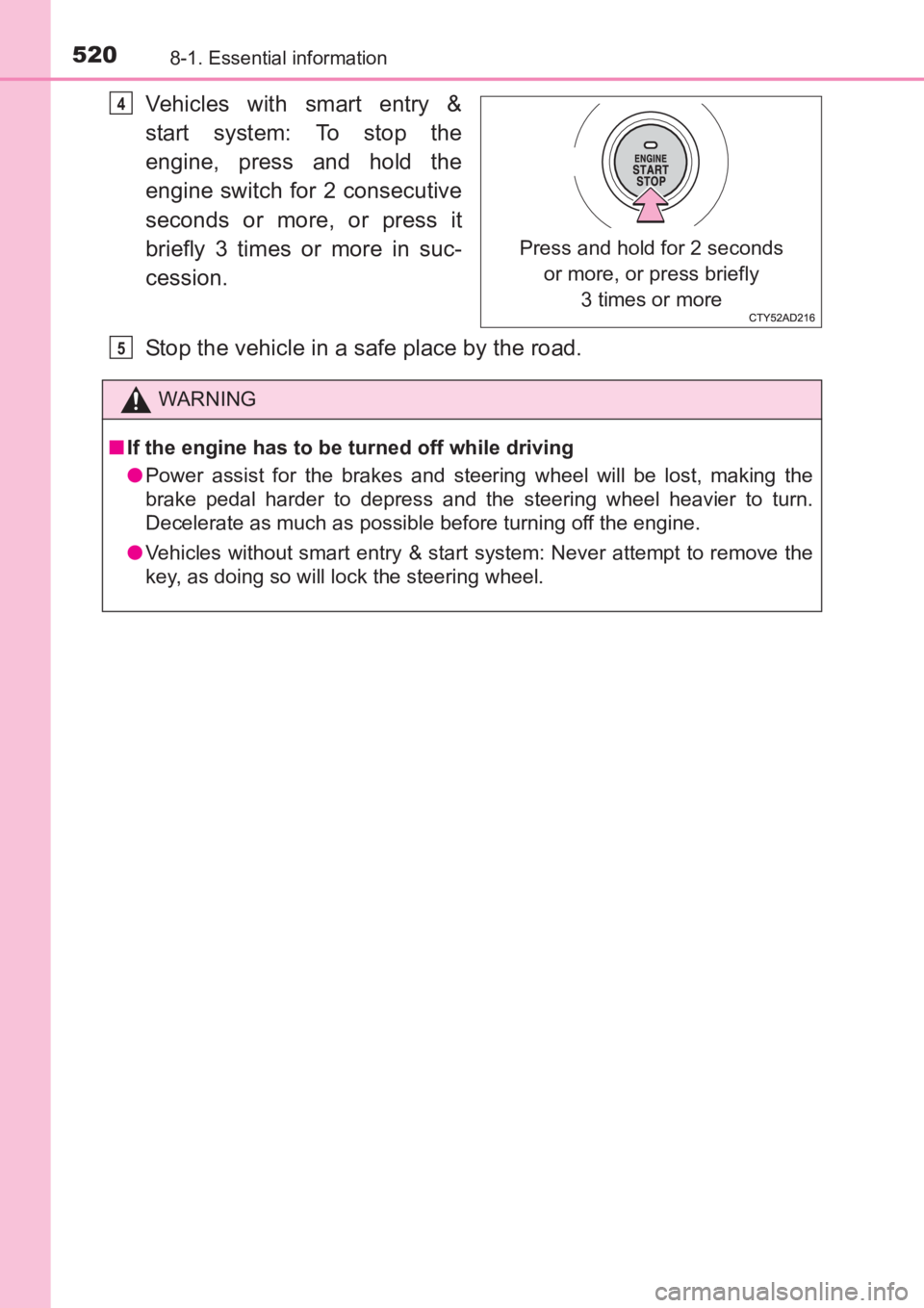

Vehicles with smart entry &
start system: To stop the
engine, press and hold the
engine switch for 2 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
Press and hold for 2 seconds or more, or press briefly 3 times or more
4
WARNING
■ If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without smart entry & start system: Never attempt to remove the
key, as doing so will lock the steering wheel.
5
