TOYOTA AVENSIS 2017 Owners Manual (in English)

4917-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care

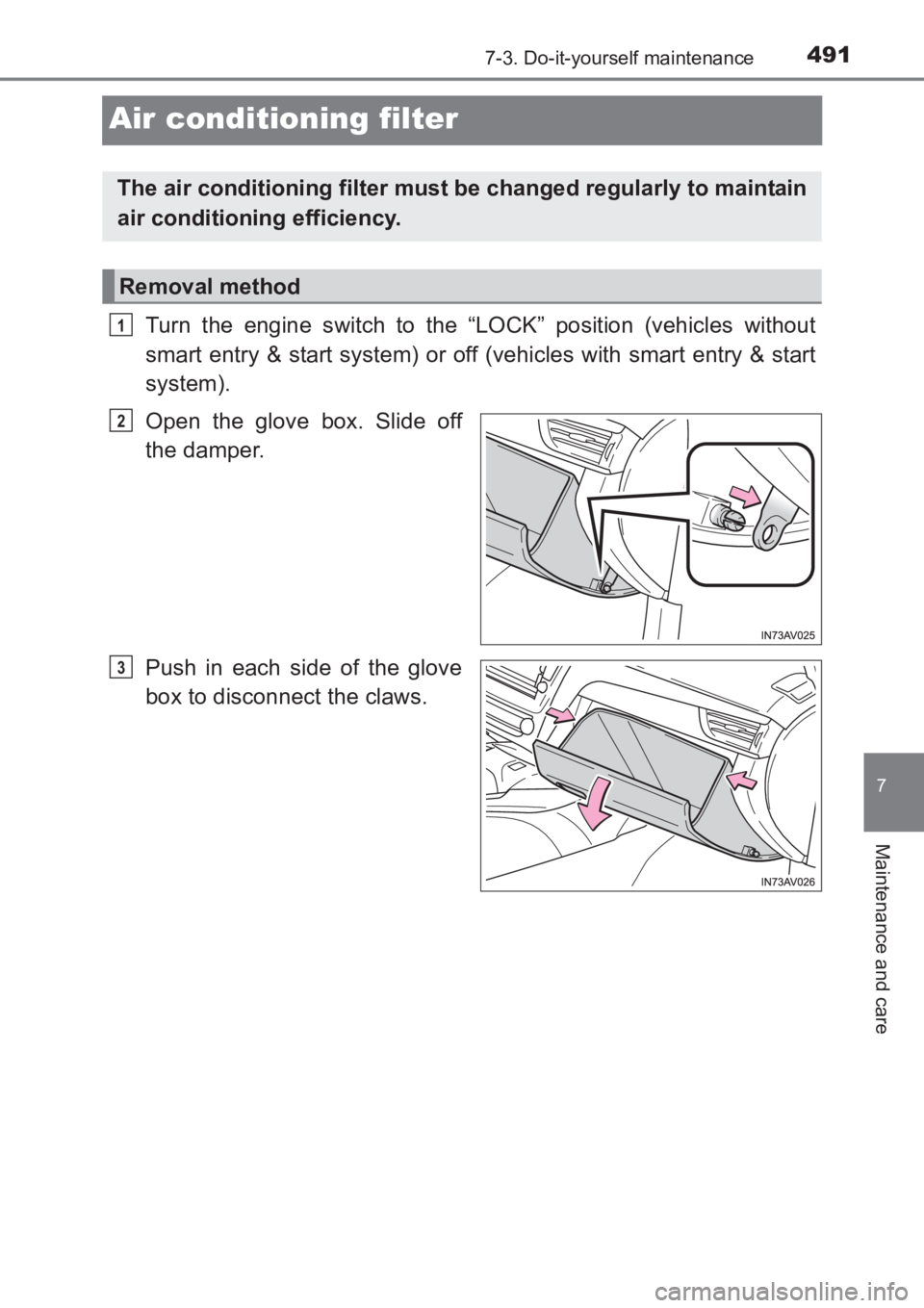

Air conditioning filter
Turn the engine switch to the “LOCK” position (vehicles without
smart entry & start system) or off (vehicles with smart entry & start
system).
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Removal method
1
2
3
AVENSIS_OM_OM20C66E_(EE).book Page 491 Wednesday, June 15, 2016 4:07 PM

4927-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)

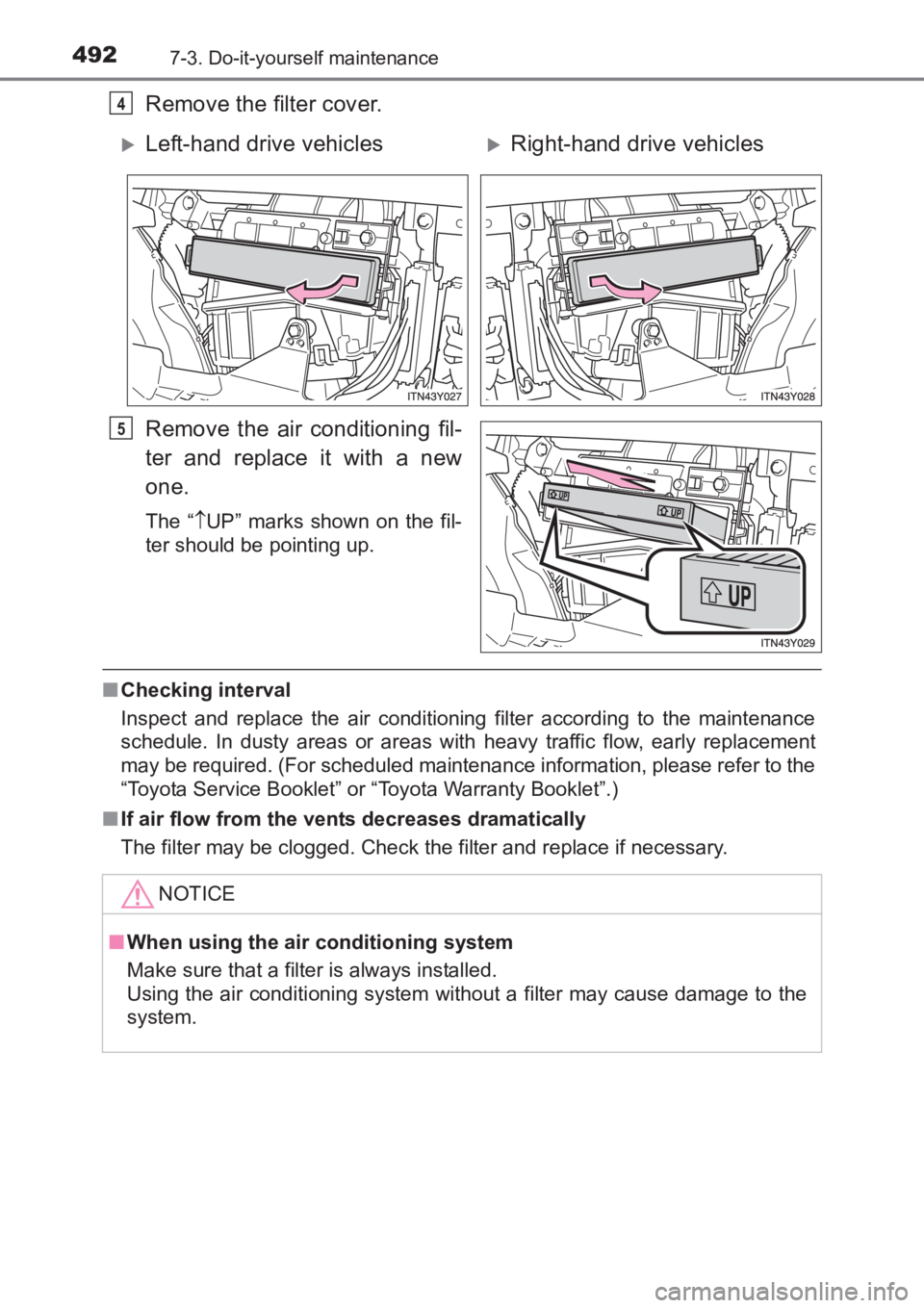

Remove the filter cover.
Remove the air conditioning fil-
ter and replace it with a new
one.
The “↑UP” marks shown on the fil-
ter should be pointing up.
■ Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Toyota Service Booklet” or “Toyota Warranty Booklet”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
4
XLeft-hand drive vehiclesXRight-hand drive vehicles
5
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditi oning system without a filter may cause damage to the
system.
AVENSIS_OM_OM20C66E_(EE).book Page 492 Wednesday, June 15, 20 16 4:07 PM

4937-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care

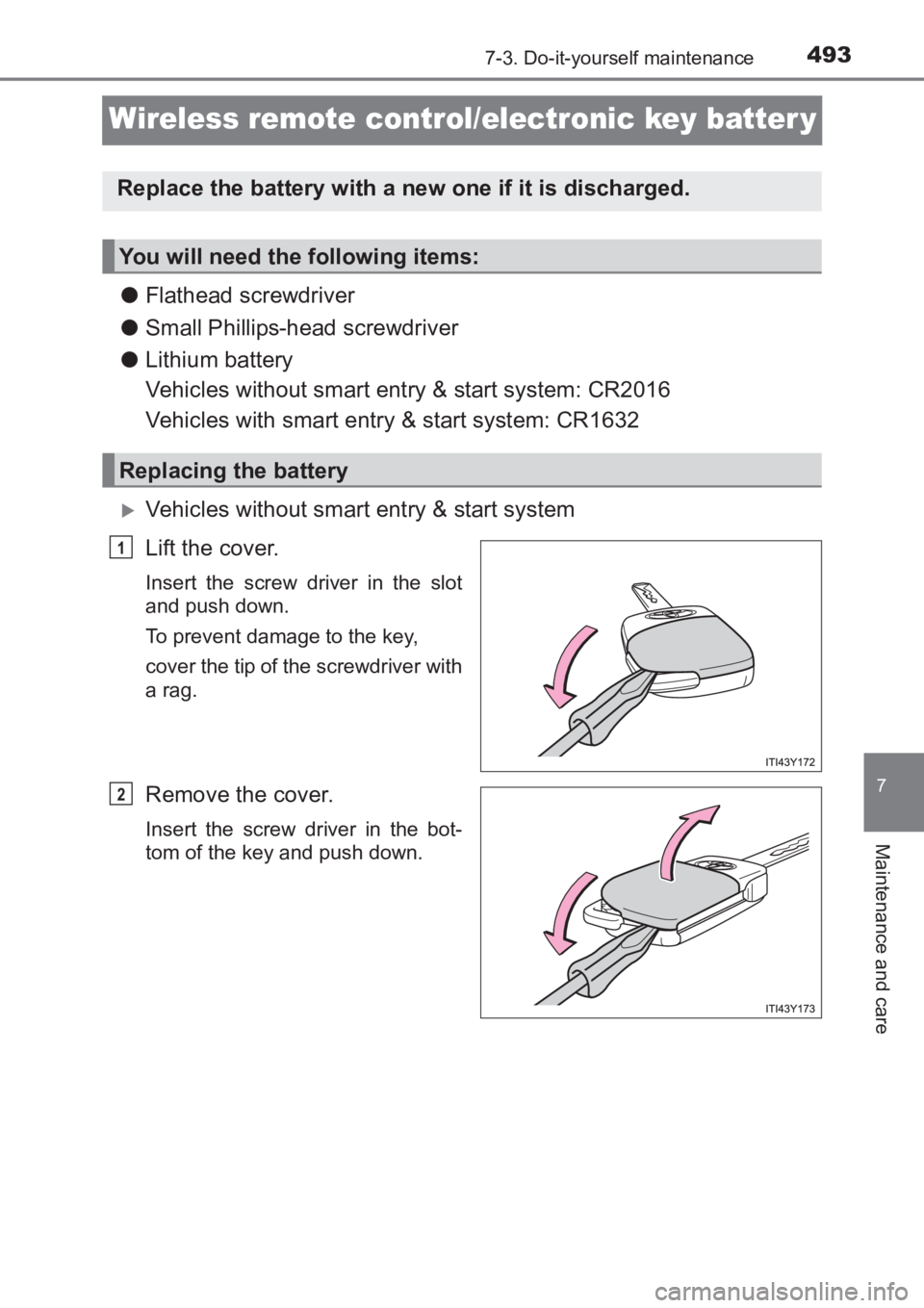

Wireless remote control/electronic key batter y
●Flathead screwdriver
● Small Phillips-head screwdriver
● Lithium battery
Vehicles without smart entry & start system: CR2016
Vehicles with smart entry & start system: CR1632
XVehicles without smart entry & start system
Lift the cover.
Insert the screw driver in the slot
and push down.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the cover.
Insert the screw driver in the bot-
tom of the key and push down.
Replace the battery with a new one if it is discharged.
You will need the following items:
Replacing the battery
1
2
AVENSIS_OM_OM20C66E_(EE).book Page 493 Wednesday, June 15, 20 16 4:07 PM

4947-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)

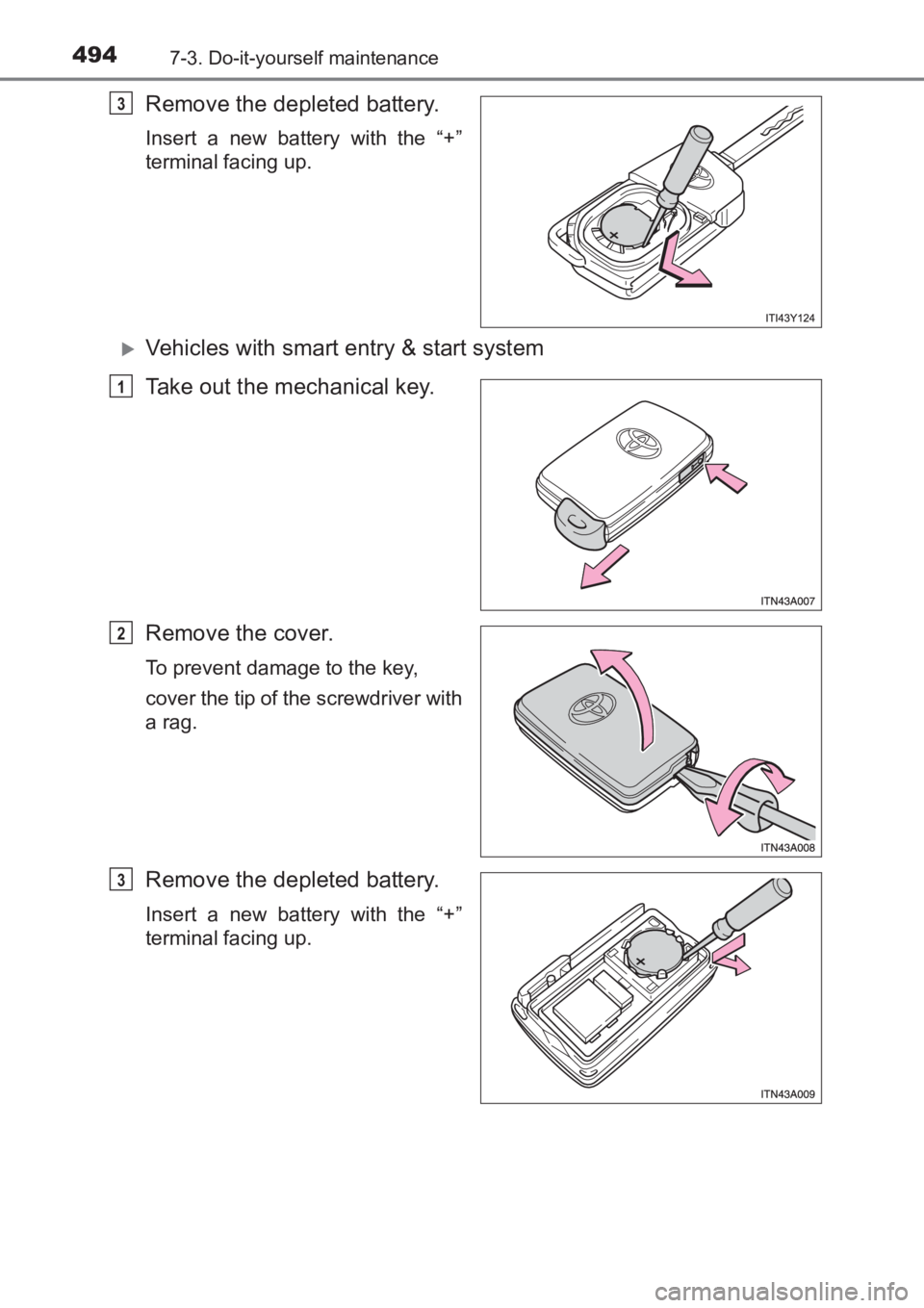

Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
XVehicles with smart entry & start system
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
3
1
2
3
AVENSIS_OM_OM20C66E_(EE).book Page 494 Wednesday, June 15, 2016 4:07 PM

4957-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care

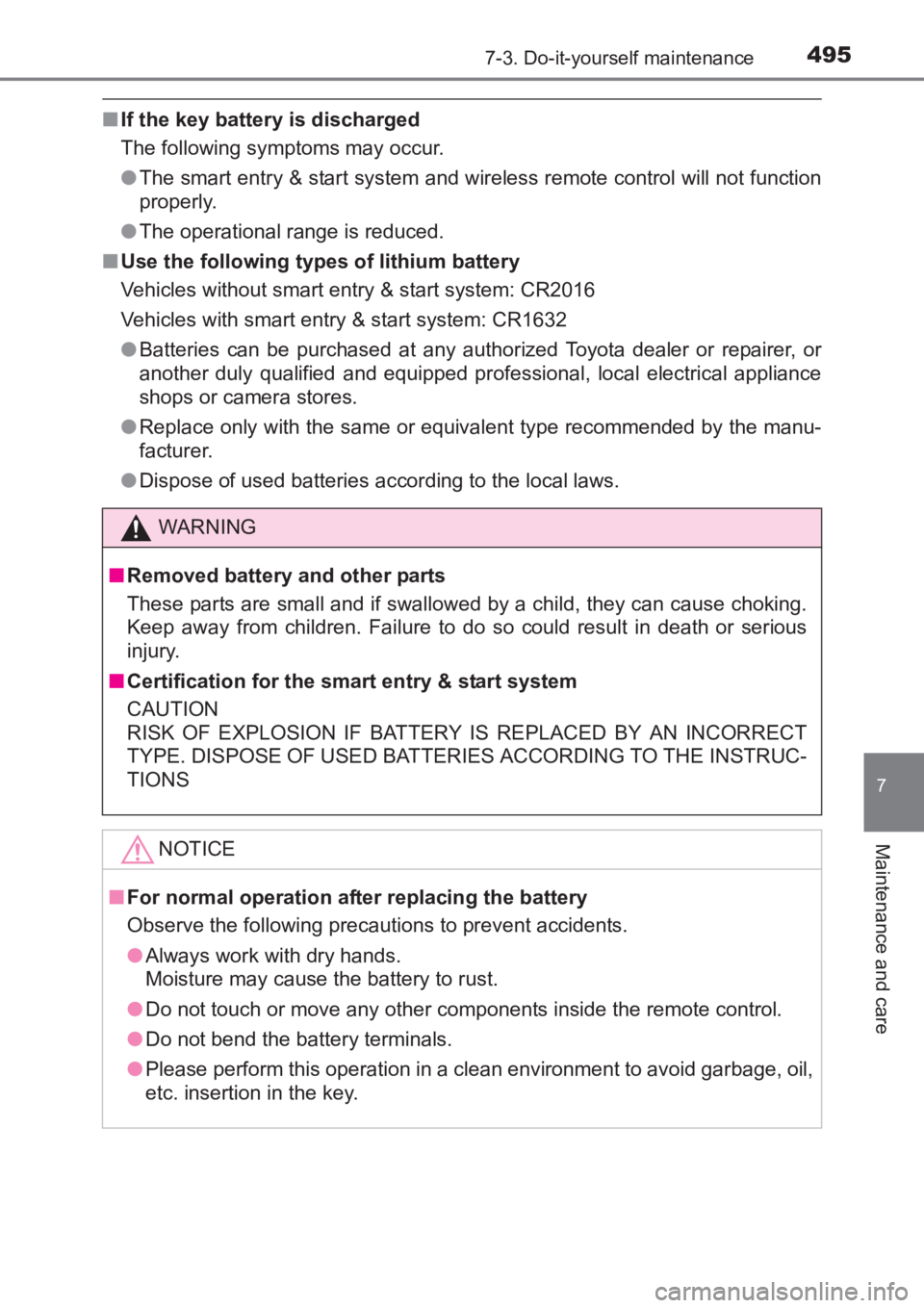

■If the key battery is discharged
The following symptoms may occur.
●The smart entry & start system and wireless remote control will not function
properly.
● The operational range is reduced.
■ Use the following types of lithium battery
Vehicles without smart entry & start system: CR2016
Vehicles with smart entry & start system: CR1632
●Batteries can be purchased at any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to the local laws.
WARNING
■ Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
■ Certification for the smart entry & start system
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUC-
TIONS
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend the battery terminals.
● Please perform this operation in a clean environment to avoid garbage, oil,
etc. insertion in the key.
AVENSIS_OM_OM20C66E_(EE).book Page 495 Wednesday, June 15, 20 16 4:07 PM

4967-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)

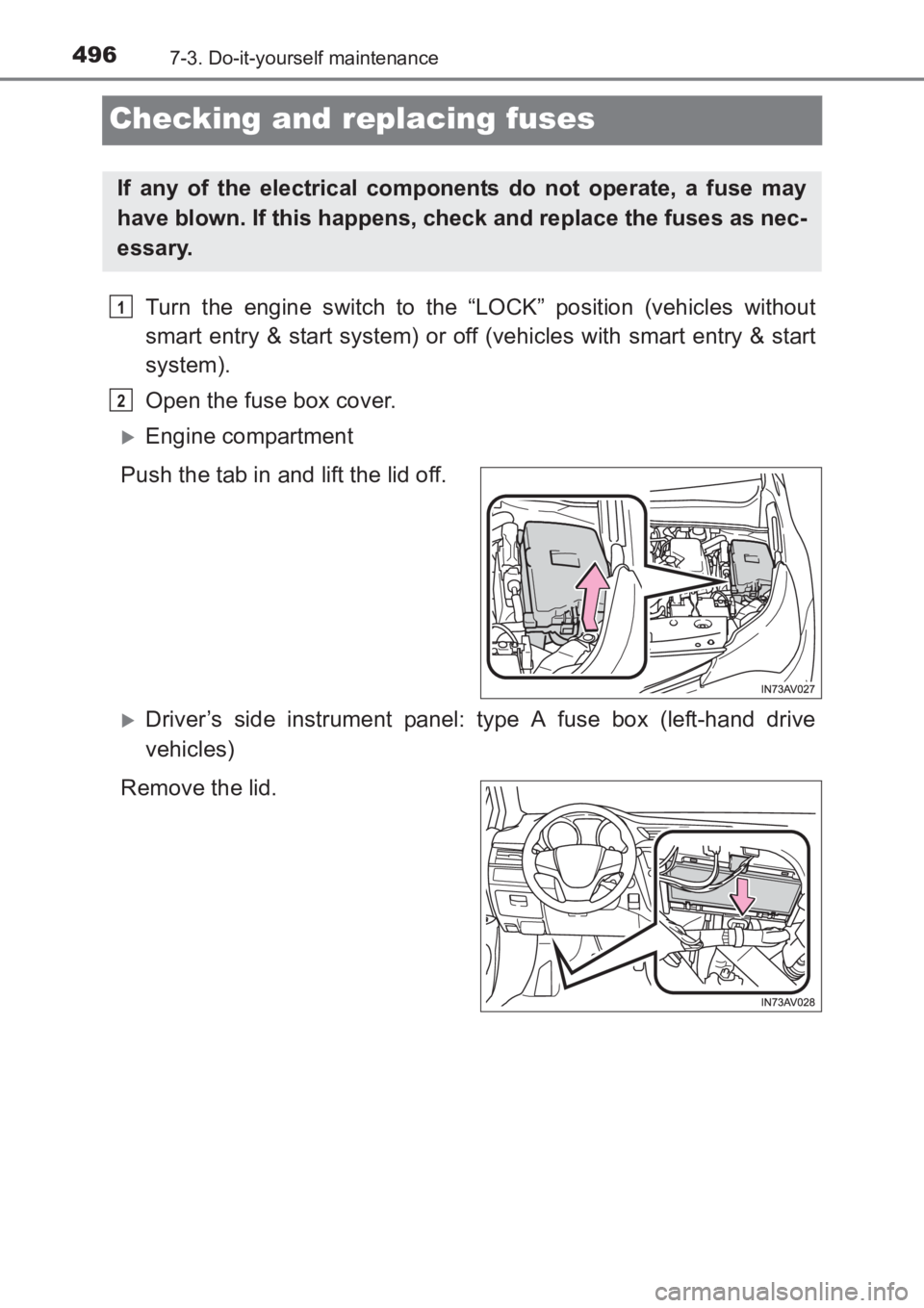

Checking and replacing fuses
Turn the engine switch to the “LOCK” position (vehicles without
smart entry & start system) or off (vehicles with smart entry & start
system).
Open the fuse box cover.
XEngine compartment
Push the tab in and lift the lid off.
XDriver’s side instrument panel: type A fuse box (left-hand drive
vehicles)
Remove the lid.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
AVENSIS_OM_OM20C66E_(EE).book Page 496 Wednesday, June 15, 20 16 4:07 PM

4977-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care

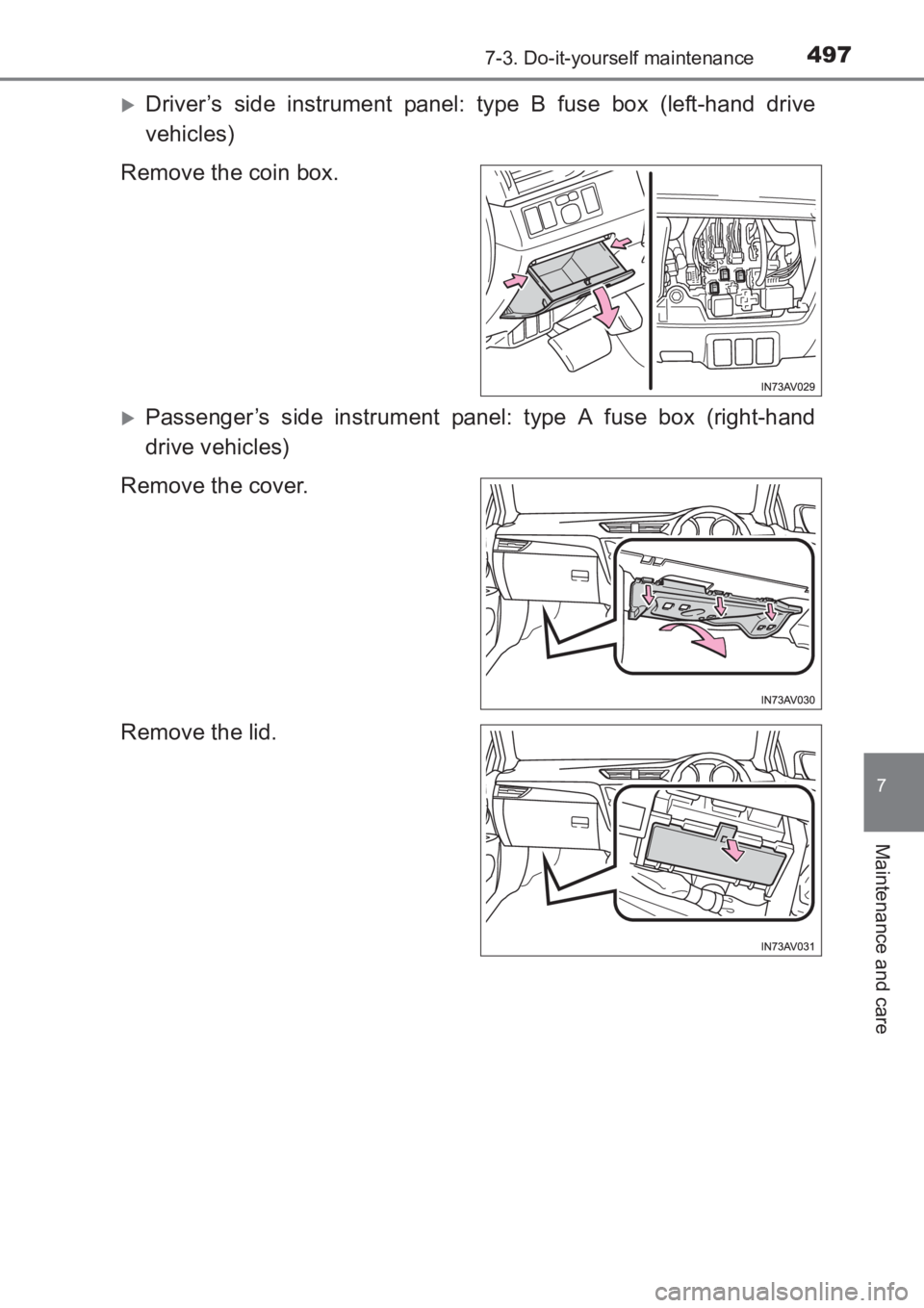

XDriver’s side instrument panel: type B fuse box (left-hand drive
vehicles)
Remove the coin box.
XPassenger’s side instrument panel: type A fuse box (right-hand
drive vehicles)
Remove the cover.
Remove the lid.
AVENSIS_OM_OM20C66E_(EE).book Page 497 Wednesday, June 15, 20 16 4:07 PM

4987-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)

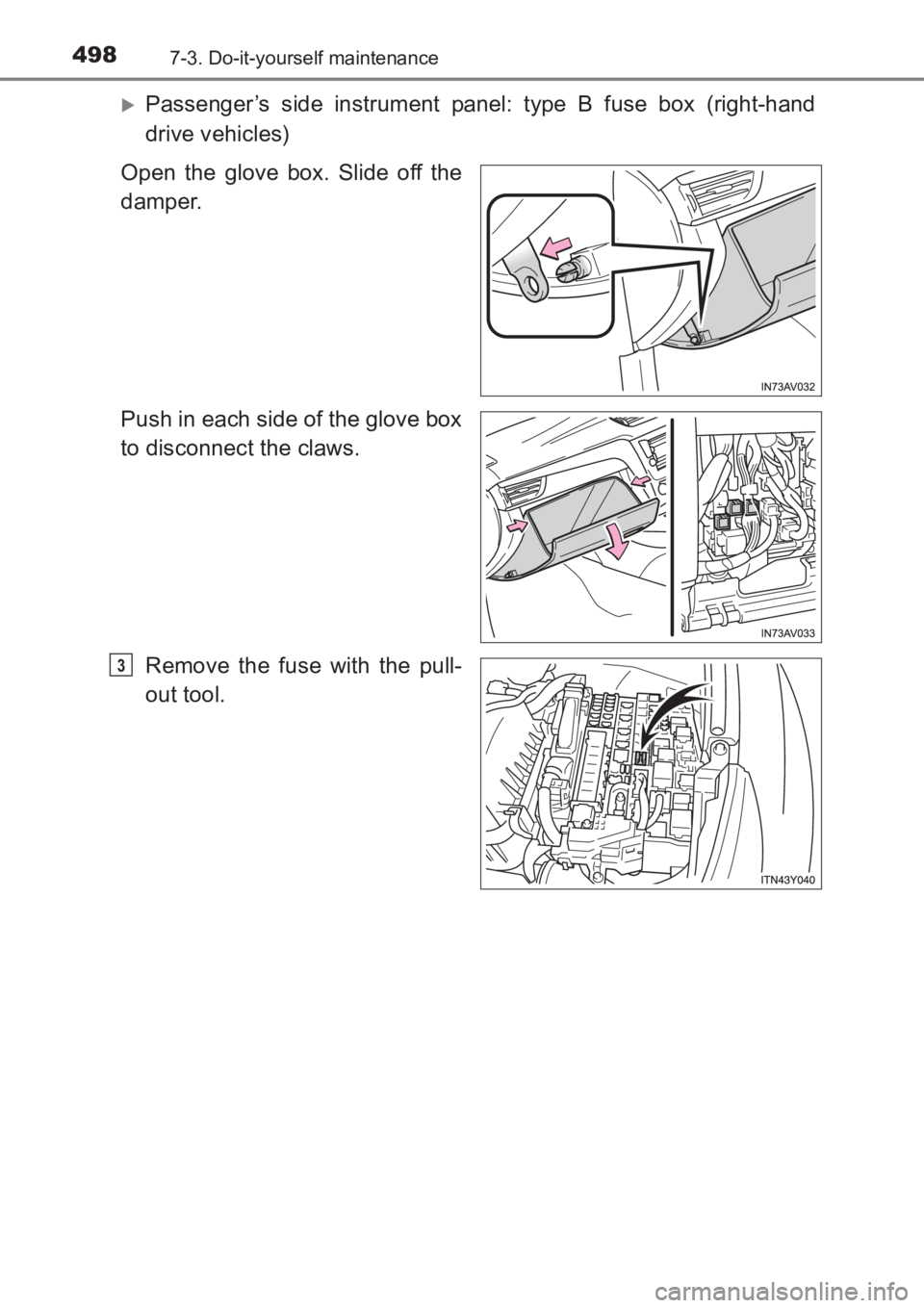

XPassenger’s side instrument panel: type B fuse box (right-hand
drive vehicles)
Open the glove box. Slide off the
damper.
Push in each side of the glove box
to disconnect the claws.
Remove the fuse with the pull-
out tool.
3
AVENSIS_OM_OM20C66E_(EE).book Page 498 Wednesday, June 15, 20 16 4:07 PM

4997-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care

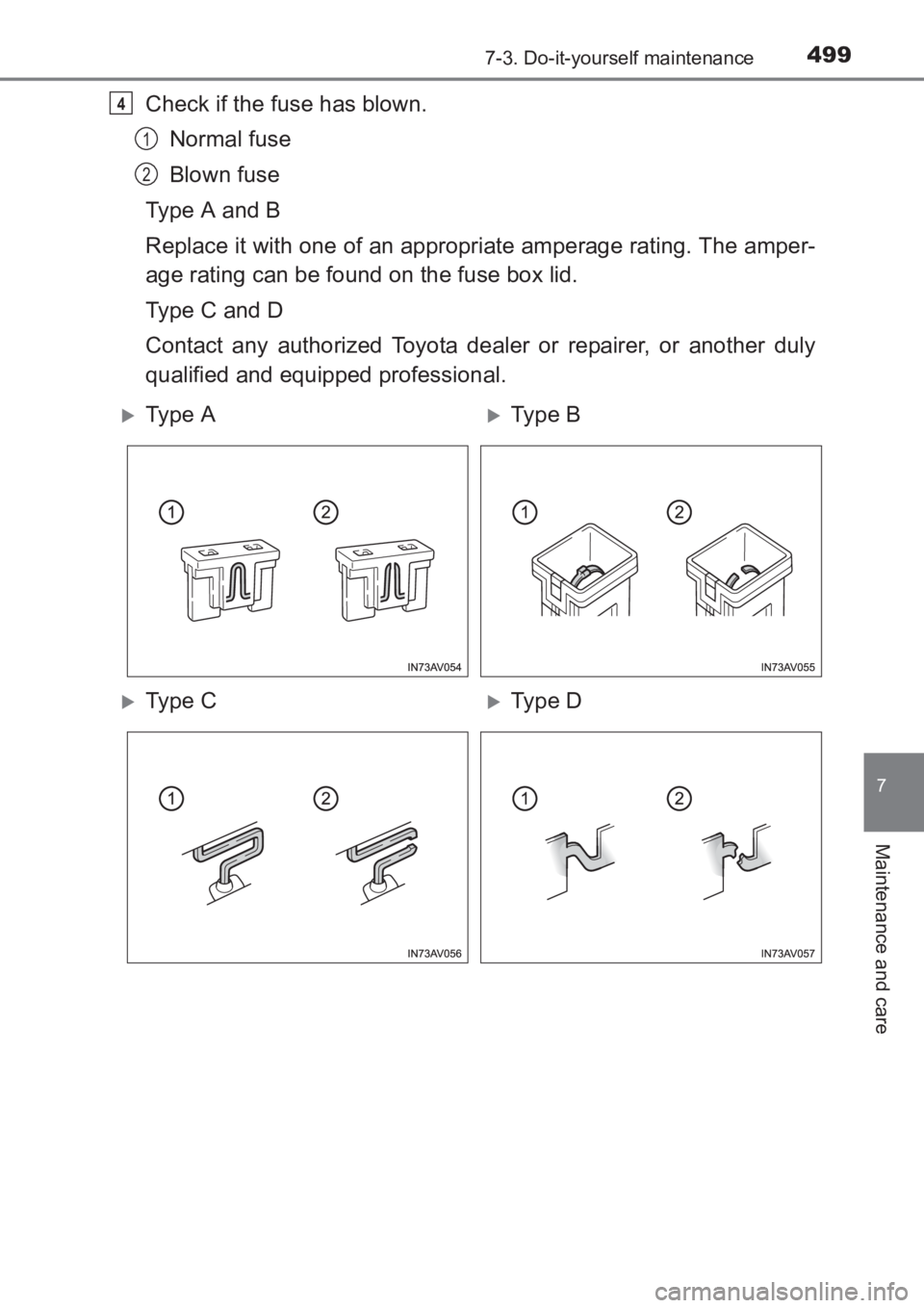

Check if the fuse has blown.Normal fuse
Blown fuse
Type A and B
Replace it with one of an appropriate amperage rating. The amper-
age rating can be found on the fuse box lid.
Type C and D
Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.4
1
2
XTy pe AXType B
XTy pe CXType D
AVENSIS_OM_OM20C66E_(EE).book Page 499 Wednesday, June 15, 20 16 4:07 PM

5007-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)

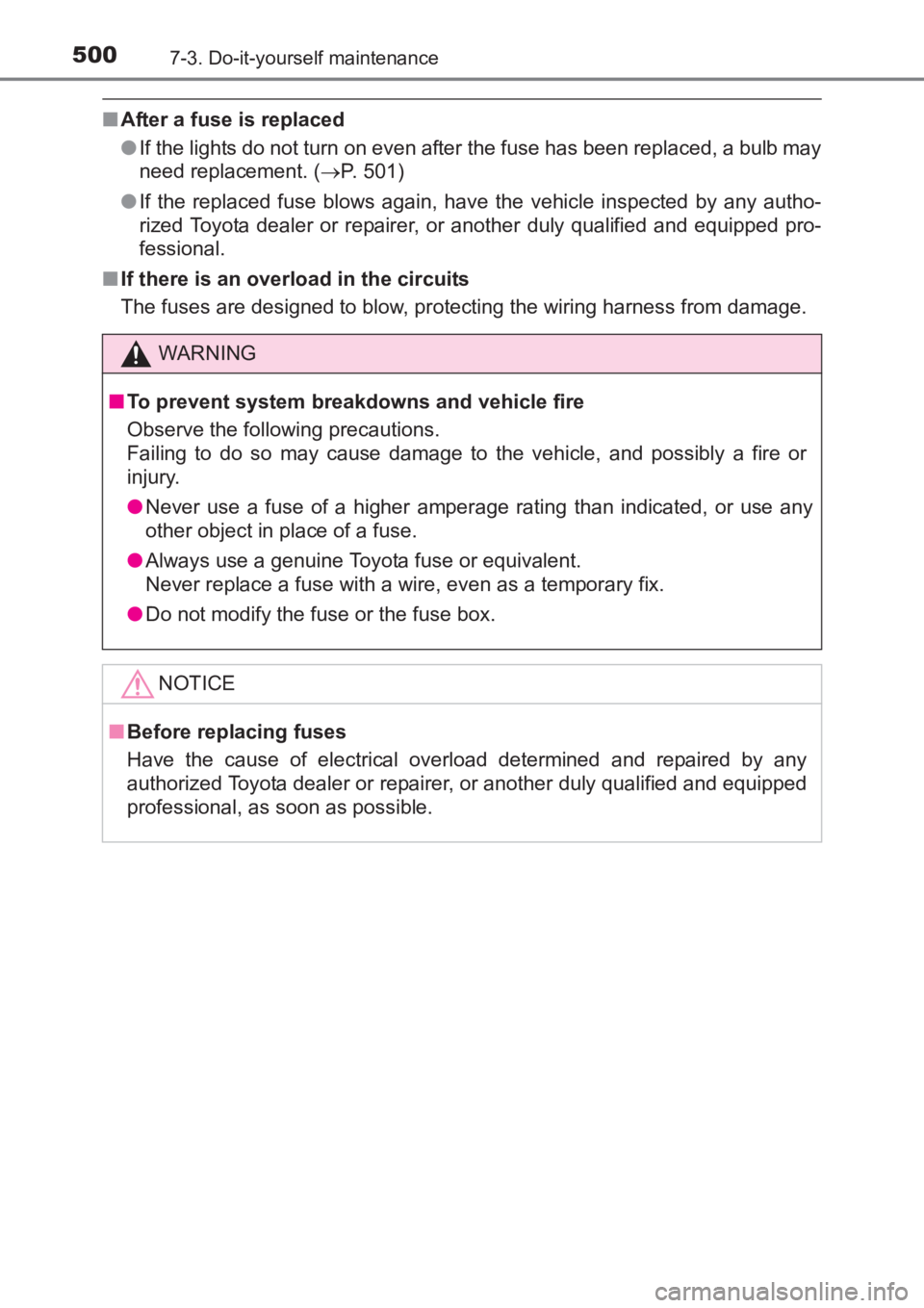

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( →P. 501)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuse or the fuse box.
NOTICE
■ Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional, as soon as possible.
