TOYOTA AYGO 2012 Owners Manual (in English)

181
3-2. Using the audio system (Type A)
3
Interior features
AYGO_WE_99E96E

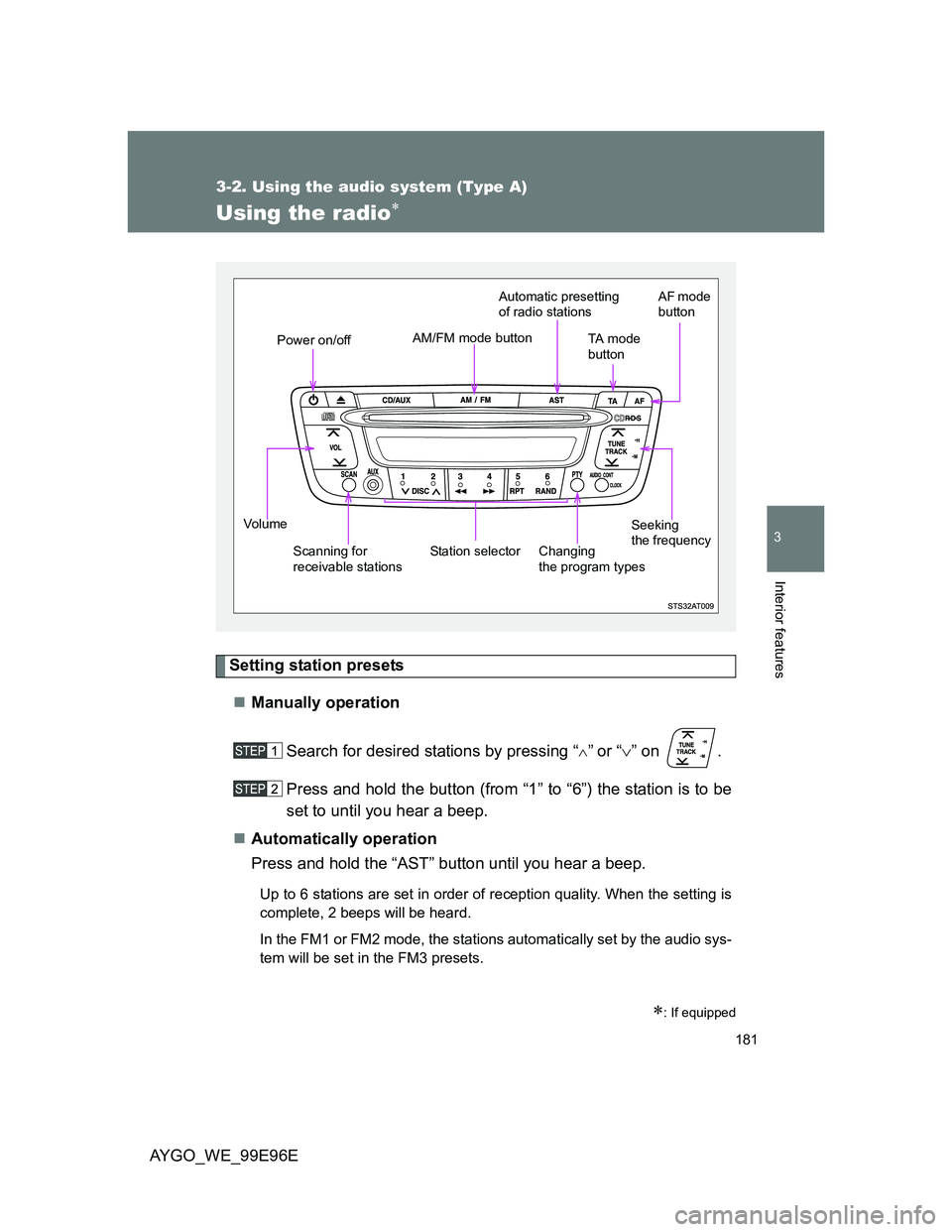

Using the radio
Setting station presets
Manually operation
Search for desired stations by pressing “
”or “” on .
Press and hold the button (from “1” to “6”) the station is to be
set to until you hear a beep.
Automatically operation
Press and hold the “AST” button until you hear a beep.
Up to 6 stations are set in order of reception quality. When the setting is
complete, 2 beeps will be heard.
In the FM1 or FM2 mode, the stations automatically set by the audio sys-
tem will be set in the FM3 presets.
: If equipped
Vo l u m e
Scanning for
receivable stationsStation selectorSeeking
the frequency AM/FM mode button
Power on/offTA m o d e
button
Changing
the program types
AF mode
buttonAutomatic presetting
of radio stations

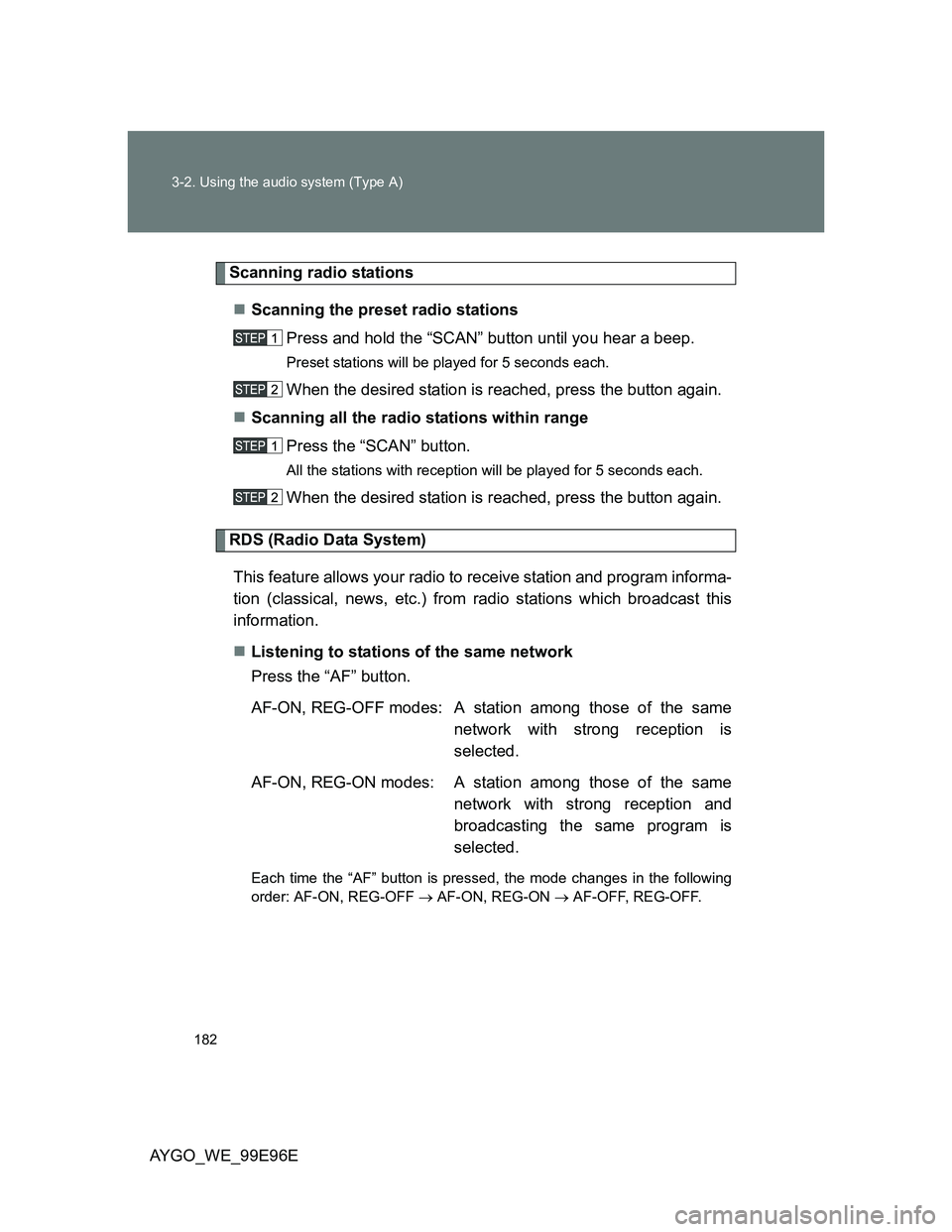

182 3-2. Using the audio system (Type A)
AYGO_WE_99E96E
Scanning radio stations
Scanning the preset radio stations
Press and hold the “SCAN” button until you hear a beep.
Preset stations will be played for 5 seconds each.
When the desired station is reached, press the button again.
Scanning all the radio stations within range
Press the “SCAN” button.
All the stations with reception will be played for 5 seconds each.
When the desired station is reached, press the button again.
RDS (Radio Data System)
This feature allows your radio to receive station and program informa-
tion (classical, news, etc.) from radio stations which broadcast this
information.
Listening to stations of the same network
Press the “AF” button.
AF-ON, REG-OFF modes: A station among those of the same
network with strong reception is
selected.
AF-ON, REG-ON modes: A station among those of the same
network with strong reception and
broadcasting the same program is
selected.
Each time the “AF” button is pressed, the mode changes in the following
order: AF-ON, REG-OFF  AF-ON, REG-ON  AF-OFF, REG-OFF.

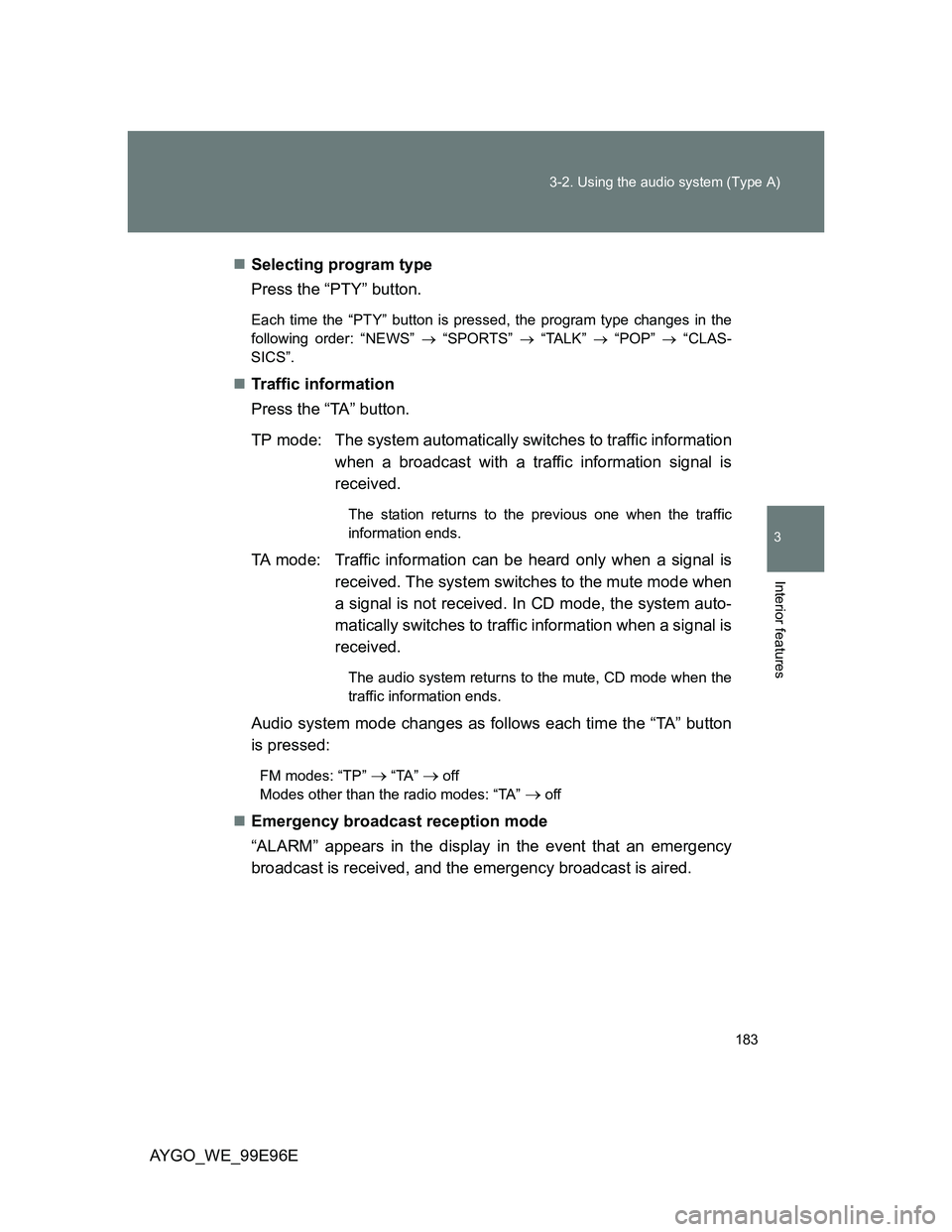

183 3-2. Using the audio system (Type A)
3
Interior features
AYGO_WE_99E96ESelecting program type
Press the “PTY” button.
Each time the “PTY” button is pressed, the program type changes in the
following order: “NEWS”  “SPORTS”  “TALK”  “POP”  “CLAS-
SICS”.
Traffic information
Press the “TA” button.
TP mode: The system automatically switches to traffic information
when a broadcast with a traffic information signal is
received.
The station returns to the previous one when the traffic
information ends.
TA mode: Traffic information can be heard only when a signal is
received. The system switches to the mute mode when
a signal is not received. In CD mode, the system auto-
matically switches to traffic information when a signal is
received.
The audio system returns to the mute, CD mode when the
traffic information ends.
Audio system mode changes as follows each time the “TA” button
is pressed:
FM modes: “TP”  “TA”  off
Modes other than the radio modes: “TA”
 off
Emergency broadcast reception mode
“ALARM” appears in the display in the event that an emergency
broadcast is received, and the emergency broadcast is aired.

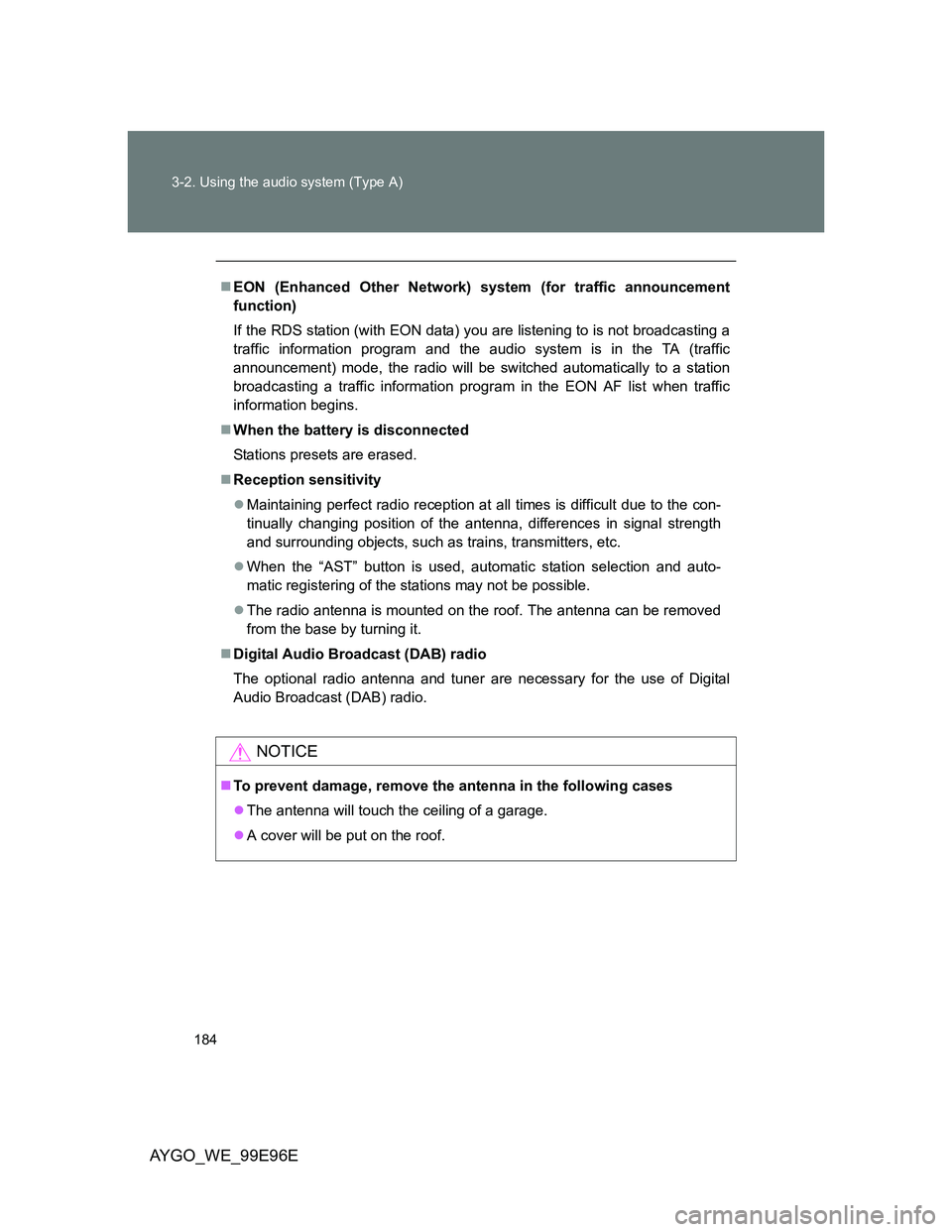

184 3-2. Using the audio system (Type A)
AYGO_WE_99E96E
EON (Enhanced Other Network) system (for traffic announcement
function)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
When the battery is disconnected
Stations presets are erased.
Reception sensitivity
Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
When the “AST” button is used, automatic station selection and auto-
matic registering of the stations may not be possible.
The radio antenna is mounted on the roof. The antenna can be removed
from the base by turning it.
Digital Audio Broadcast (DAB) radio
The optional radio antenna and tuner are necessary for the use of Digital
Audio Broadcast (DAB) radio.
NOTICE
To prevent damage, remove the antenna in the following cases
The antenna will touch the ceiling of a garage.
A cover will be put on the roof.

185
3-2. Using the audio system (Type A)
3
Interior features
AYGO_WE_99E96E
Using the CD player
Loading CD
Insert a CD.
Ejecting CD
Press and remove the CD.
Selecting a tracks
Press “
” to move up or “” to move down using until the
desired track number is displayed.
: If equipped
Vo lu m e Power on/off
Repeat play Playback CD eject Selecting a track,
fast-forwarding or
reversing
Random playbackSearch playback
Fast-forwarding or reversing
Selecting a CD
(with changer only)

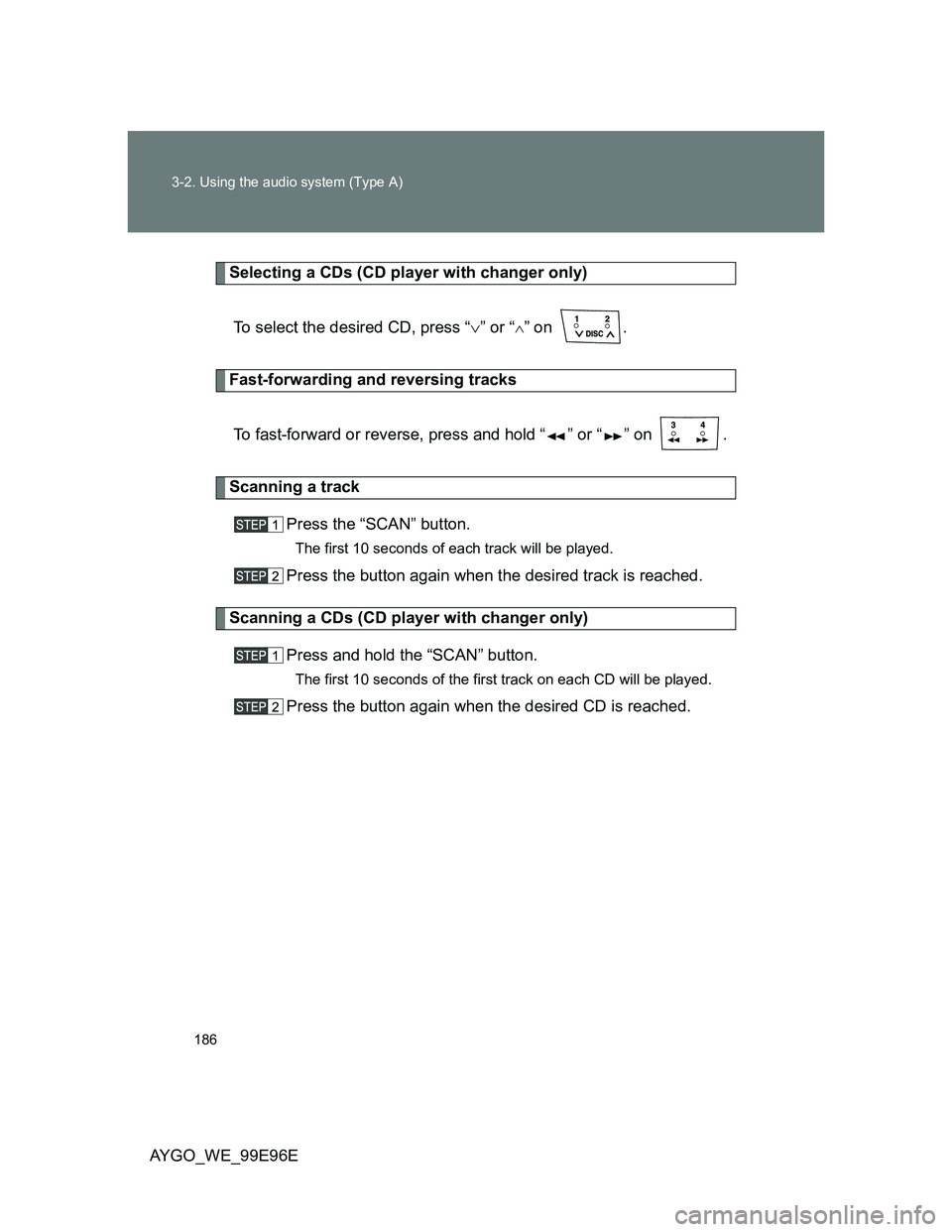

186 3-2. Using the audio system (Type A)
AYGO_WE_99E96E
Selecting a CDs (CD player with changer only)
To select the desired CD, press “” or “
” on .
Fast-forwarding and reversing tracks
To fast-forward or reverse, press and hold “ ” or “ ” on .
Scanning a track
Press the “SCAN” button.
The first 10 seconds of each track will be played.
Press the button again when the desired track is reached.
Scanning a CDs (CD player with changer only)
Press and hold the “SCAN” button.
The first 10 seconds of the first track on each CD will be played.
Press the button again when the desired CD is reached.

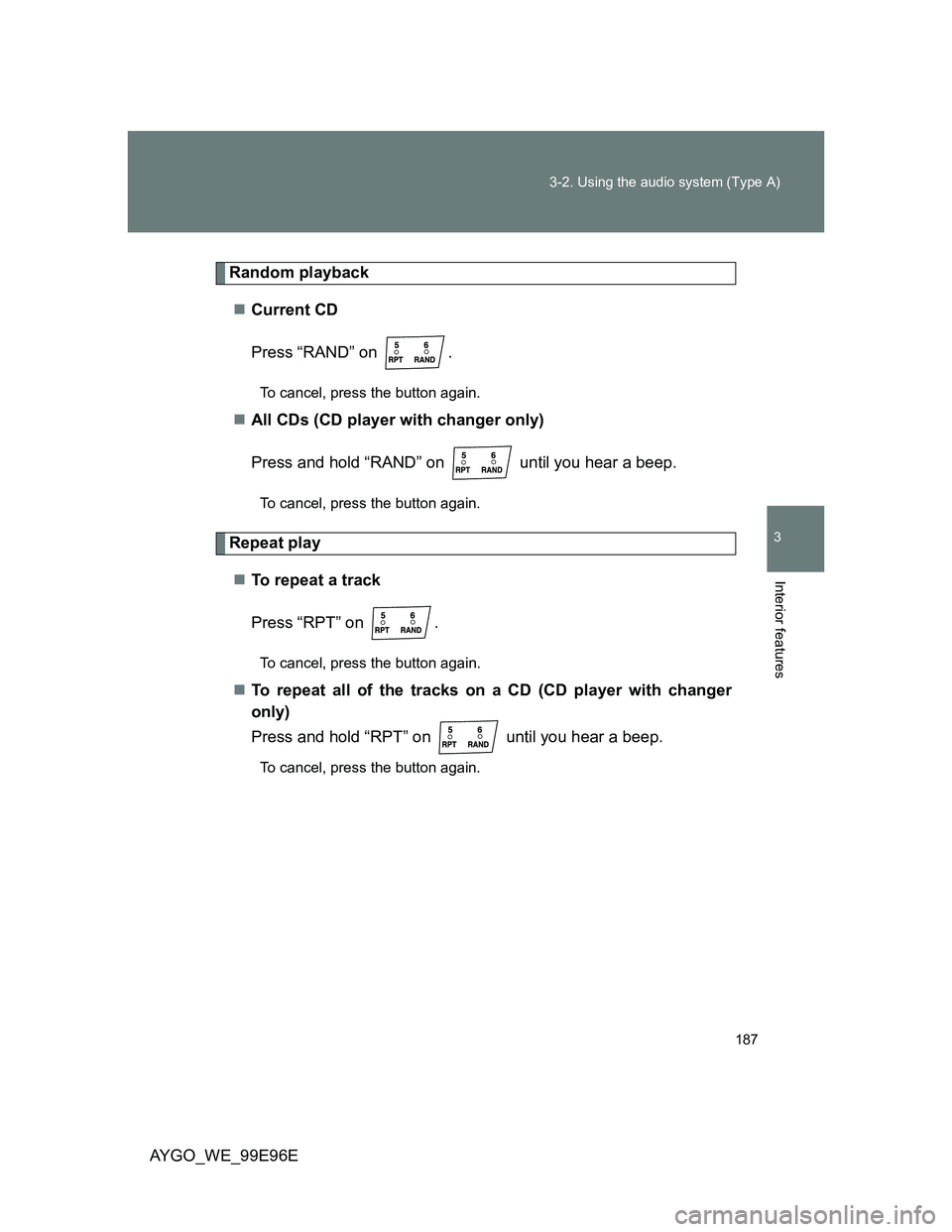

187 3-2. Using the audio system (Type A)
3
Interior features
AYGO_WE_99E96E
Random playback
Current CD
Press “RAND” on .
To cancel, press the button again.
All CDs (CD player with changer only)
Press and hold “RAND” on until you hear a beep.
To cancel, press the button again.
Repeat play
To repeat a track
Press “RPT” on .
To cancel, press the button again.
To repeat all of the tracks on a CD (CD player with changer
only)
Press and hold “RPT” on until you hear a beep.
To cancel, press the button again.

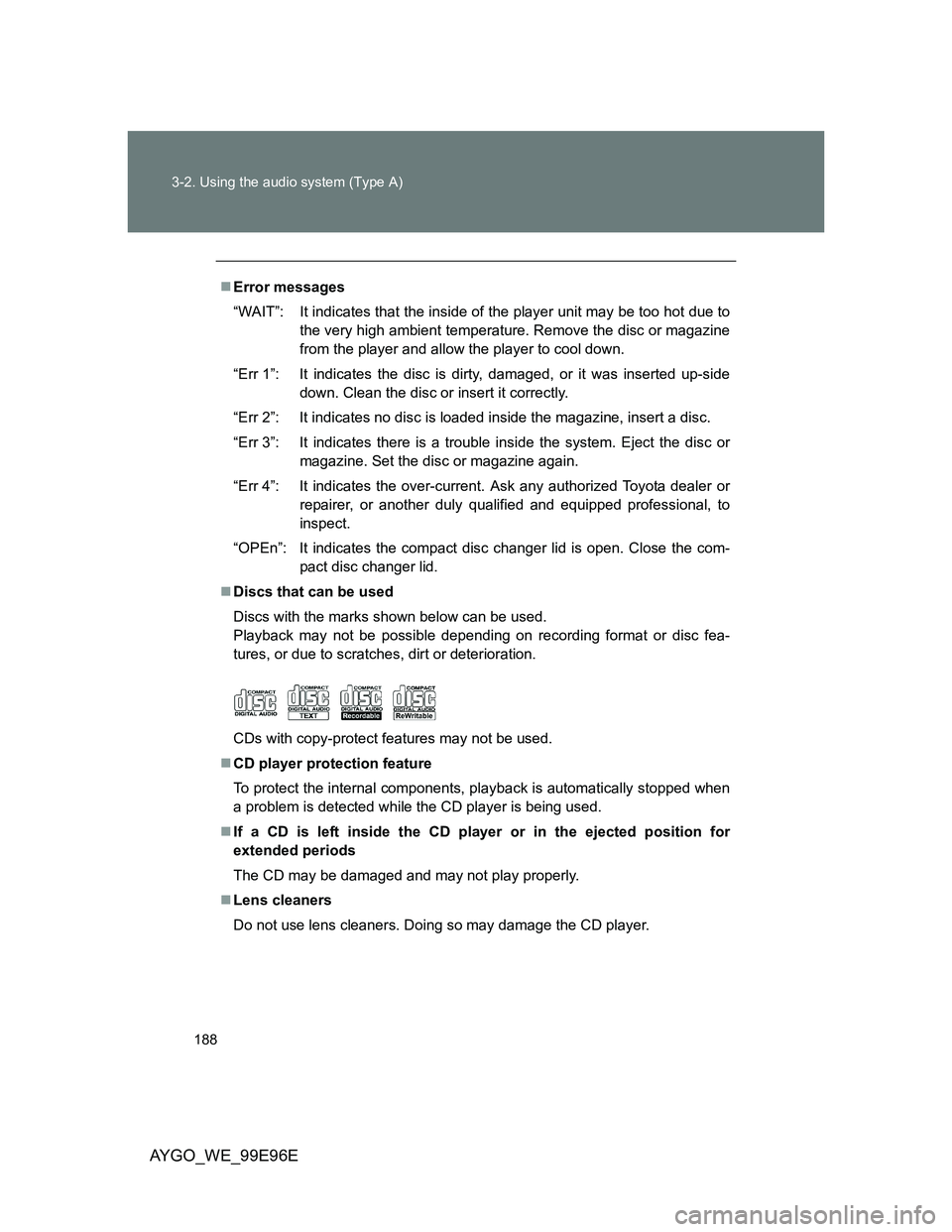

188 3-2. Using the audio system (Type A)
AYGO_WE_99E96E
Error messages
“WAIT”: It indicates that the inside of the player unit may be too hot due to
the very high ambient temperature. Remove the disc or magazine
from the player and allow the player to cool down.
“Err 1”: It indicates the disc is dirty, damaged, or it was inserted up-side
down. Clean the disc or insert it correctly.
“Err 2”: It indicates no disc is loaded inside the magazine, insert a disc.
“Err 3”: It indicates there is a trouble inside the system. Eject the disc or
magazine. Set the disc or magazine again.
“Err 4”: It indicates the over-current. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, to
inspect.
“OPEn”: It indicates the compact disc changer lid is open. Close the com-
pact disc changer lid.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not be used.
CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected while the CD player is being used.
If a CD is left inside the CD player or in the ejected position for
extended periods
The CD may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.

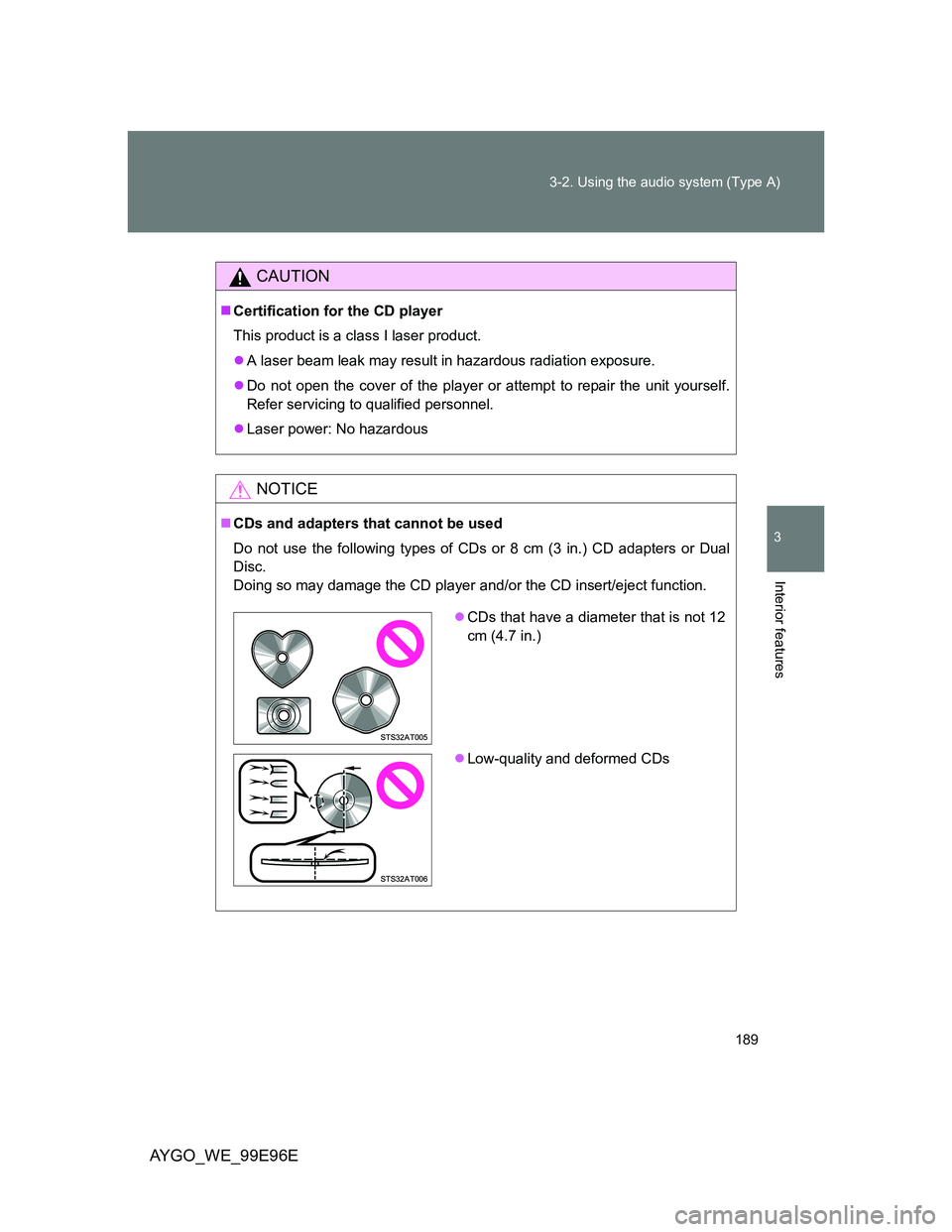

189 3-2. Using the audio system (Type A)
3
Interior features
AYGO_WE_99E96E
CAUTION
Certification for the CD player
This product is a class I laser product.
A laser beam leak may result in hazardous radiation exposure.
Do not open the cover of the player or attempt to repair the unit yourself.
Refer servicing to qualified personnel.
Laser power: No hazardous
NOTICE
CDs and adapters that cannot be used
Do not use the following types of CDs or 8 cm (3 in.) CD adapters or Dual
Disc.
Doing so may damage the CD player and/or the CD insert/eject function.
CDs that have a diameter that is not 12
cm (4.7 in.)
Low-quality and deformed CDs

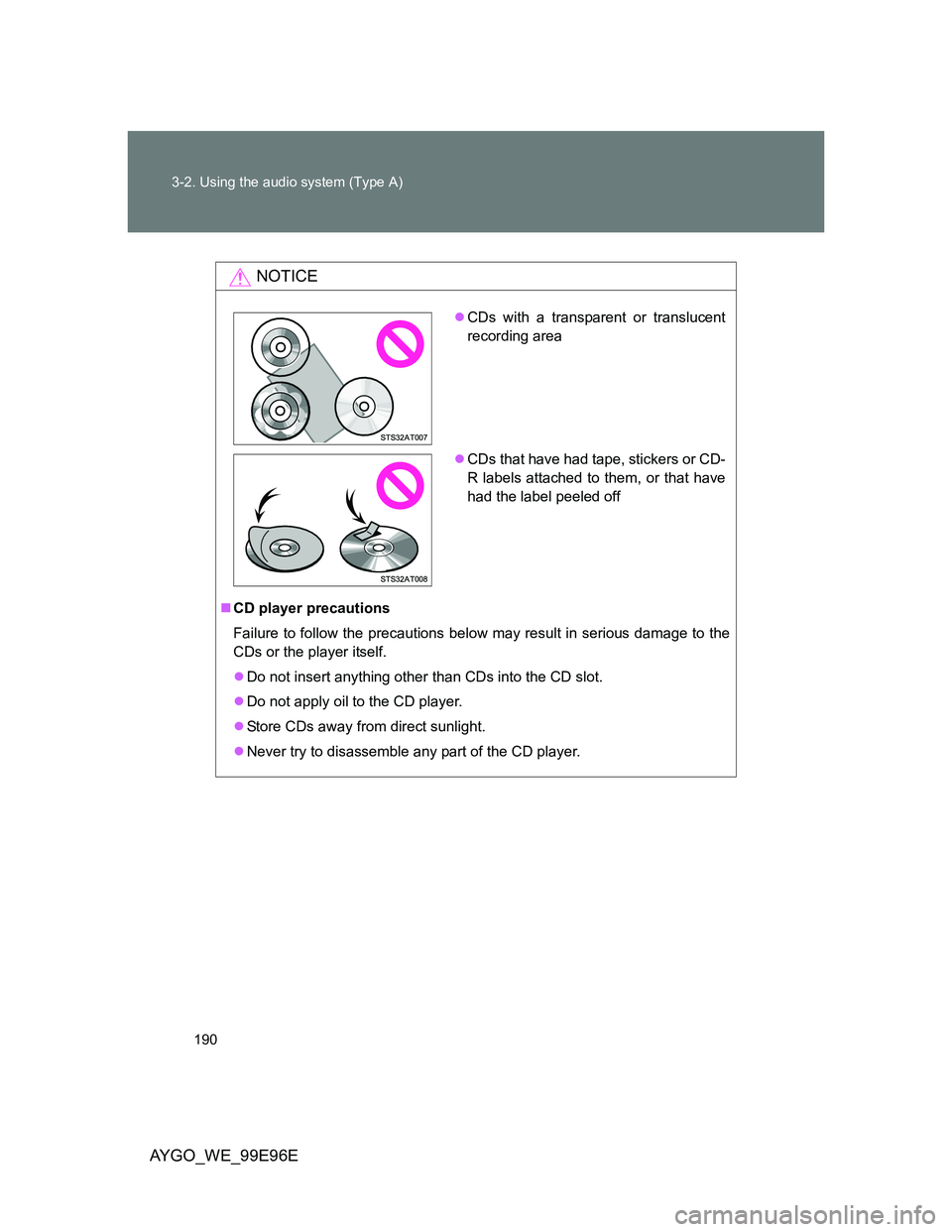

190 3-2. Using the audio system (Type A)
AYGO_WE_99E96E
NOTICE
CD player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
Do not insert anything other than CDs into the CD slot.
Do not apply oil to the CD player.
Store CDs away from direct sunlight.
Never try to disassemble any part of the CD player.
CDs with a transparent or translucent
recording area
CDs that have had tape, stickers or CD-
R labels attached to them, or that have
had the label peeled off
