4-3. Do-it-yourself maintenance

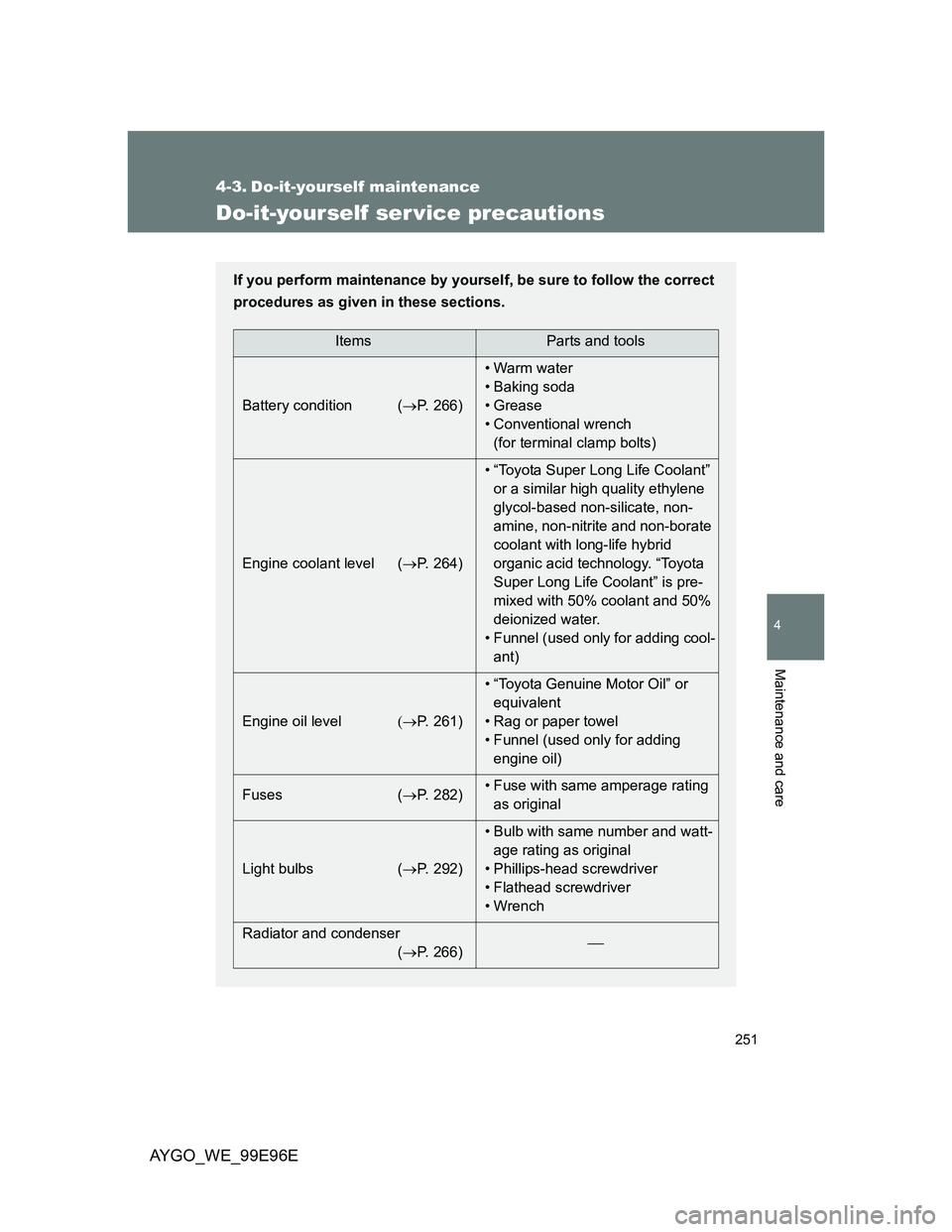

Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the correct
procedures as given in these sections.
ItemsParts and tools
Battery condition (P. 266)•Warm water
• Baking soda
• Grease
• Conventional wrench
(for terminal clamp bolts)
Engine coolant level (P. 264)• “Toyota Super Long Life Coolant”
or a similar high quality ethylene
glycol-based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology. “Toyota
Super Long Life Coolant” is pre-
mixed with 50% coolant and 50%
deionized water.
• Funnel (used only for adding cool-
ant)
Engine oil levelP. 261)• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding
engine oil)
Fuses (P. 282)• Fuse with same amperage rating
as original
Light bulbs (P. 292)• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
• Flathead screwdriver
• Wrench
Radiator and condenser
(P. 266)

252 4-3. Do-it-yourself maintenance
AYGO_WE_99E96E

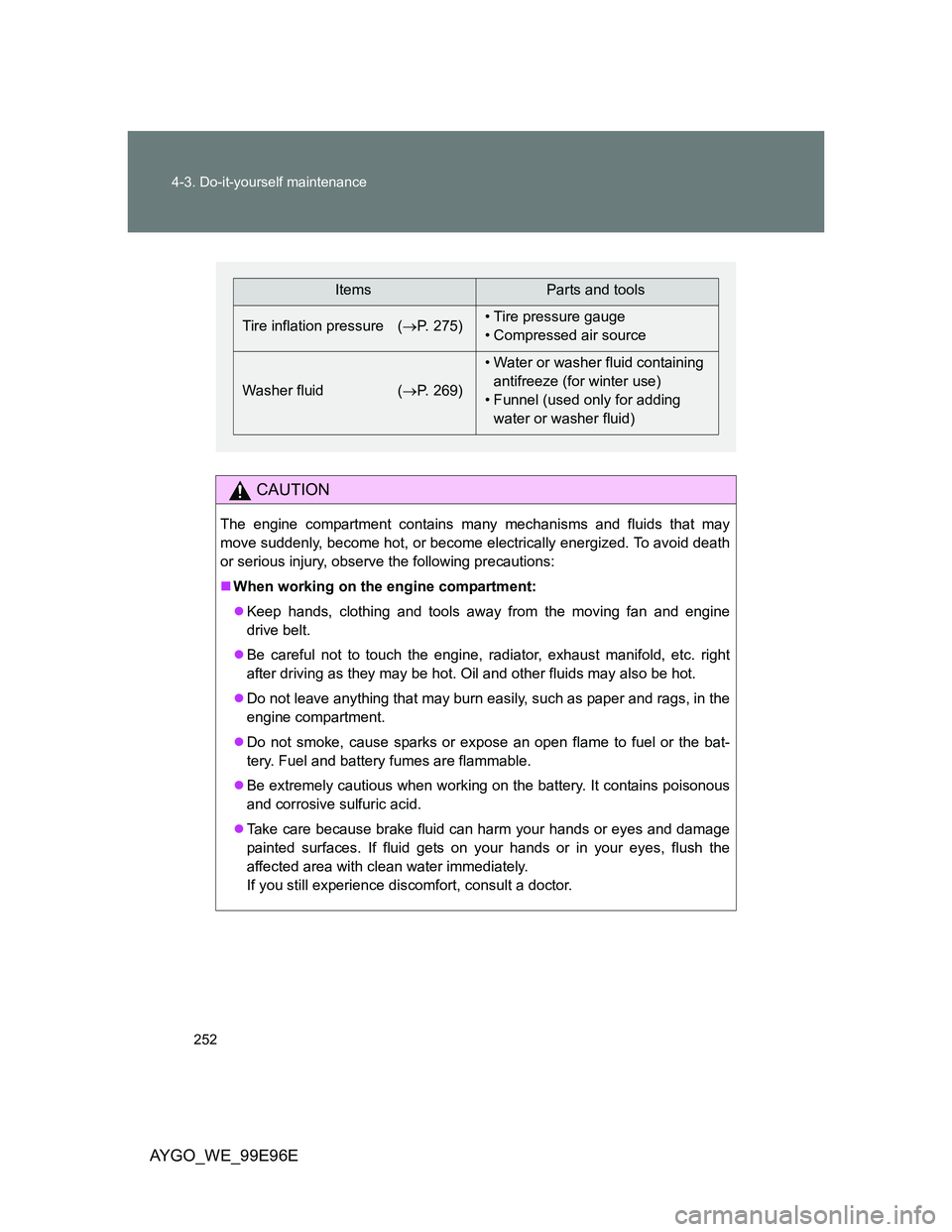

CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions:
When working on the engine compartment:
Keep hands, clothing and tools away from the moving fan and engine
drive belt.
Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately.
If you still experience discomfort, consult a doctor.
ItemsParts and tools
Tire inflation pressure (P. 275)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 269)• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding
water or washer fluid)

253 4-3. Do-it-yourself maintenance
4
Maintenance and care
AYGO_WE_99E96E

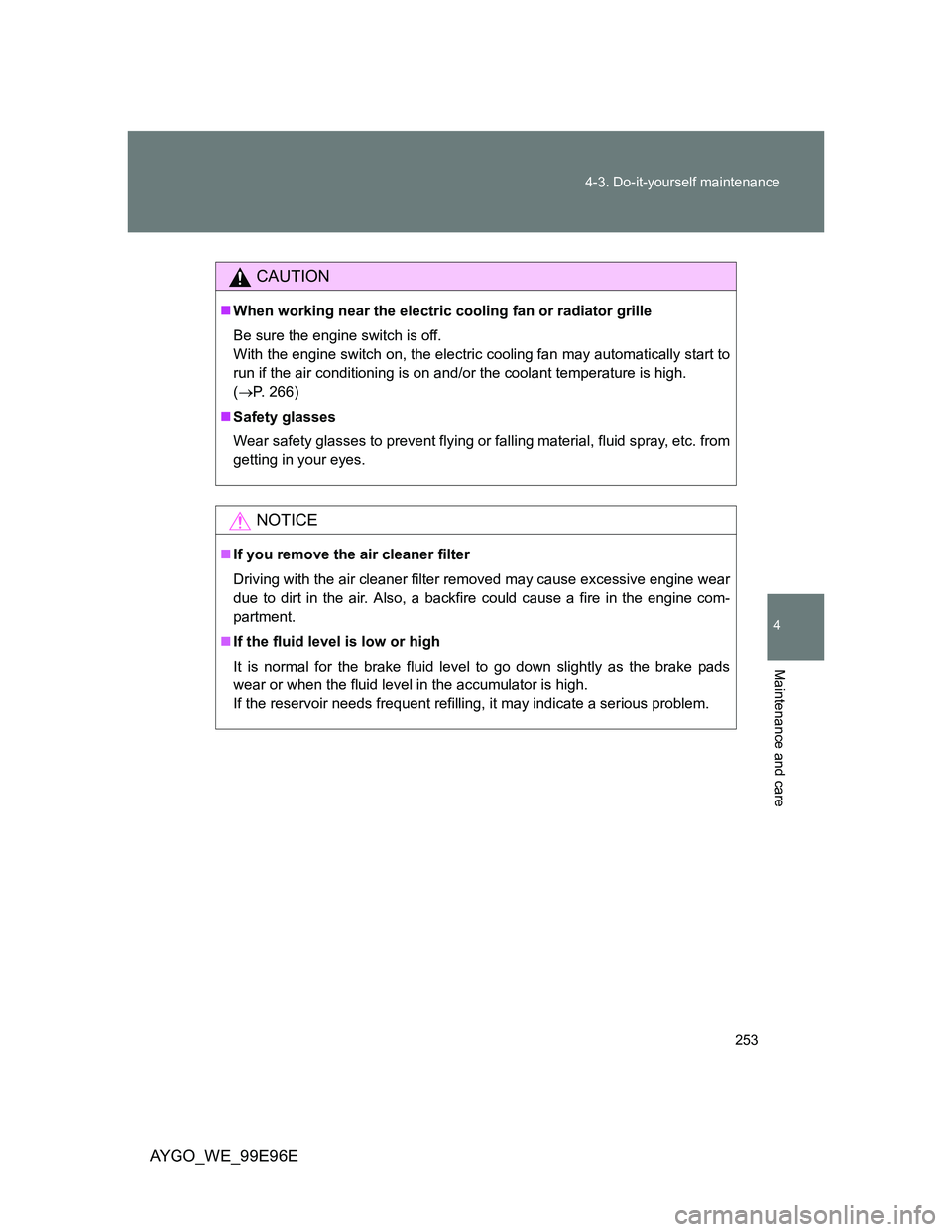

CAUTION
When working near the electric cooling fan or radiator grille
Be sure the engine switch is off.
With the engine switch on, the electric cooling fan may automatically start to
run if the air conditioning is on and/or the coolant temperature is high.
(P. 266)
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in your eyes.
NOTICE
If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air. Also, a backfire could cause a fire in the engine com-
partment.
If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

254
4-3. Do-it-yourself maintenance
AYGO_WE_99E96E

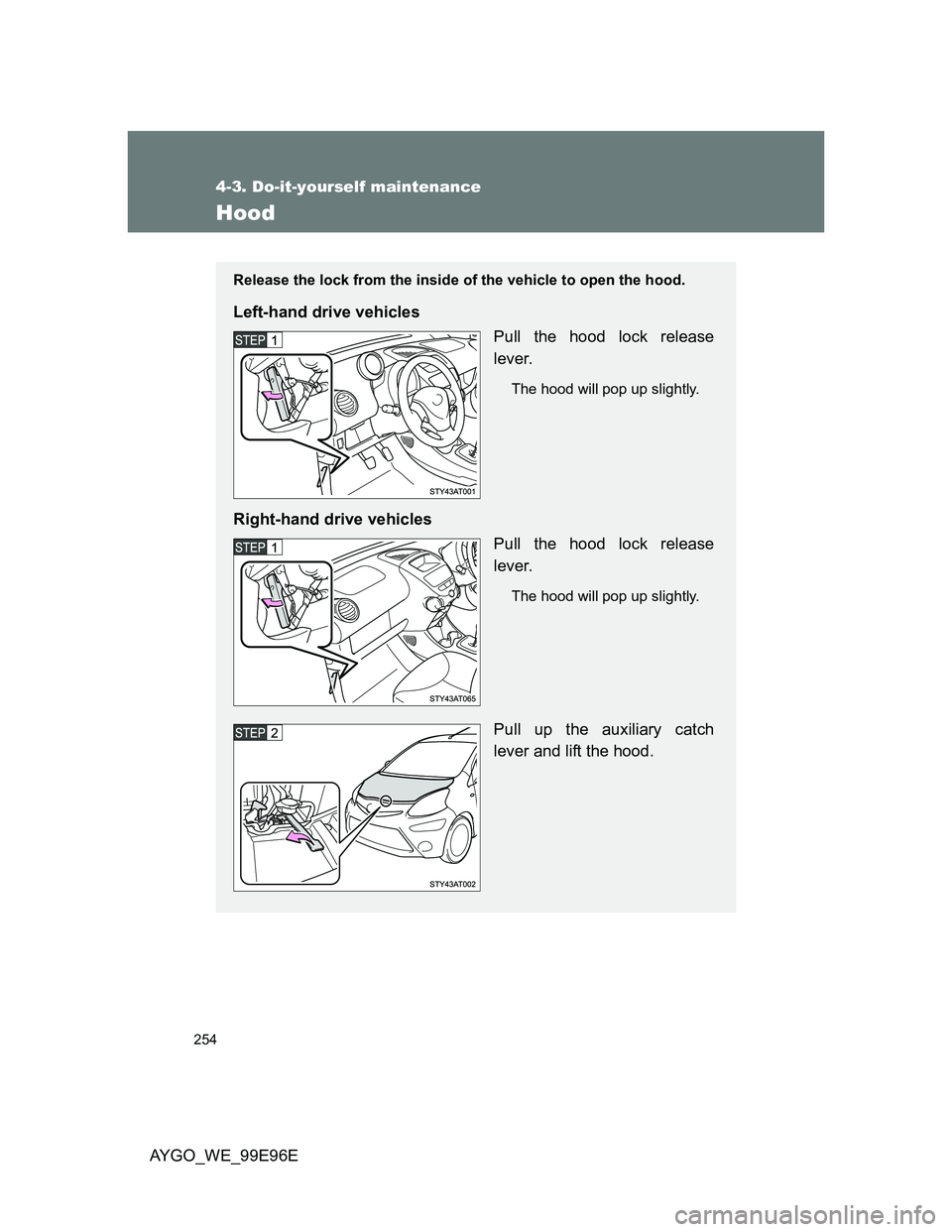

Hood
Release the lock from the inside of the vehicle to open the hood.
Left-hand drive vehicles
Pull the hood lock release
lever.
The hood will pop up slightly.
Right-hand drive vehicles
Pull the hood lock release
lever.
The hood will pop up slightly.
Pull up the auxiliary catch
lever and lift the hood.

255 4-3. Do-it-yourself maintenance
4
Maintenance and care
AYGO_WE_99E96E

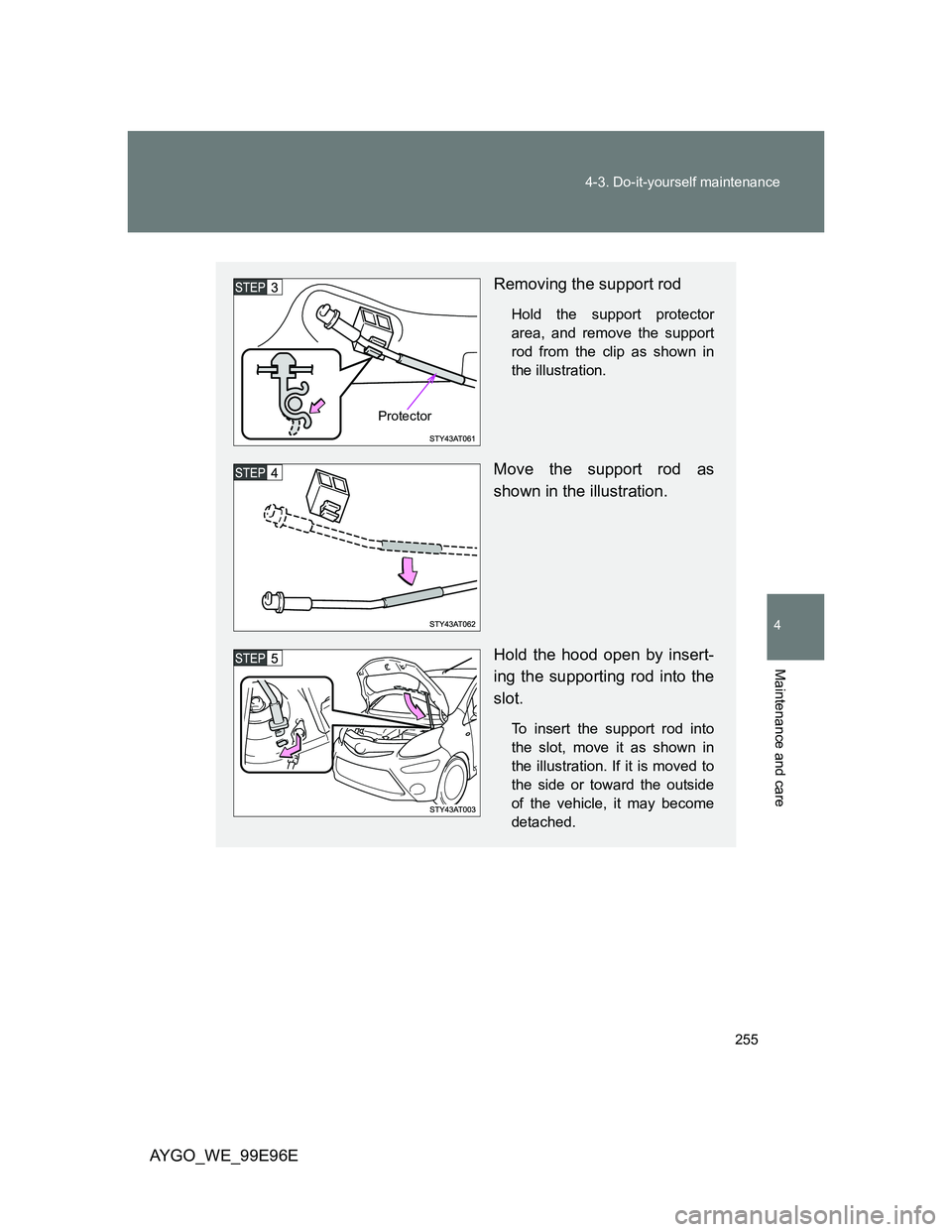

Removing the support rod
Hold the support protector
area, and remove the support
rod from the clip as shown in
the illustration.
Move the support rod as
shown in the illustration.
Hold the hood open by insert-
ing the supporting rod into the
slot.
To insert the support rod into
the slot, move it as shown in
the illustration. If it is moved to
the side or toward the outside
of the vehicle, it may become
detached.
Protector

256 4-3. Do-it-yourself maintenance
AYGO_WE_99E96E

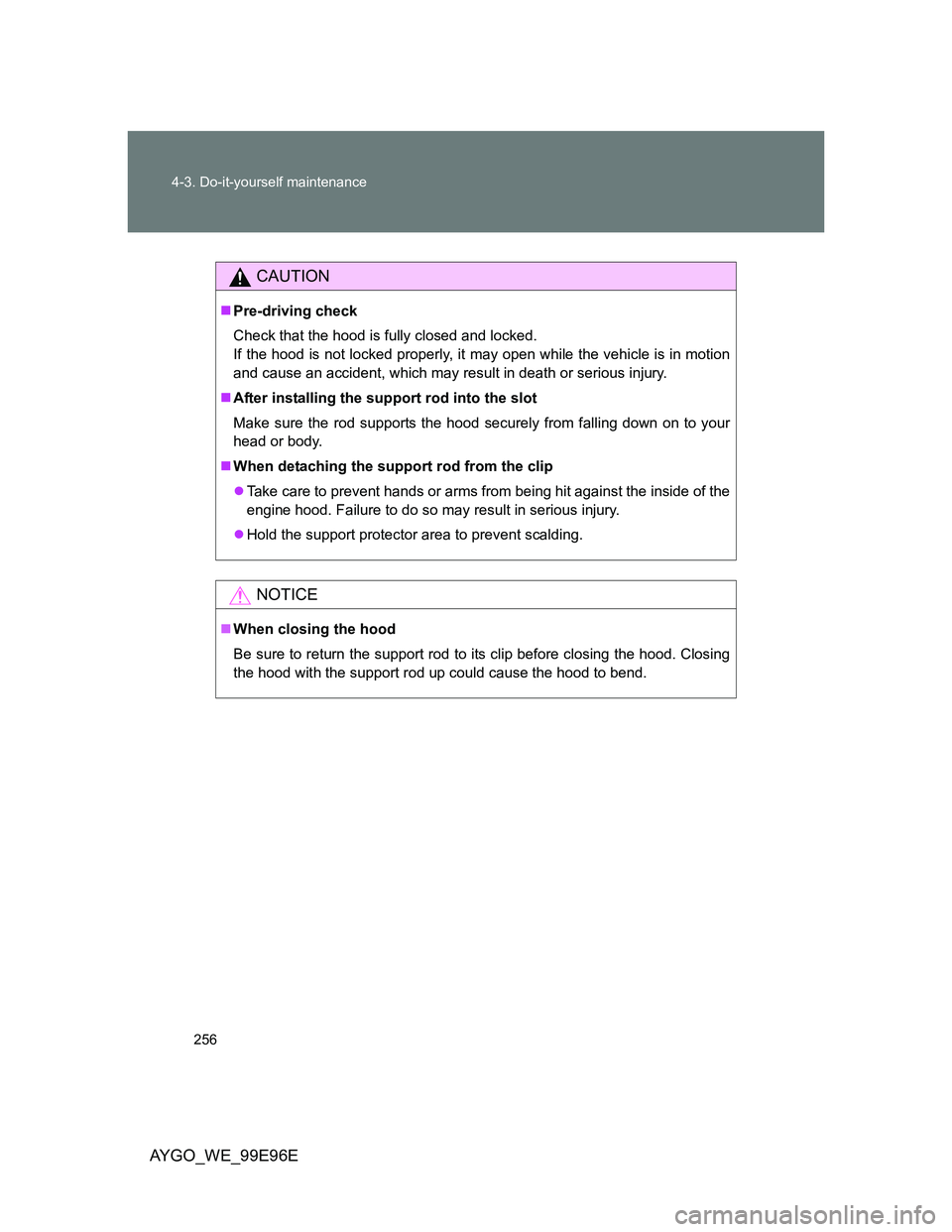

CAUTION
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
When detaching the support rod from the clip
Take care to prevent hands or arms from being hit against the inside of the
engine hood. Failure to do so may result in serious injury.
Hold the support protector area to prevent scalding.
NOTICE
When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.

257
4-3. Do-it-yourself maintenance
4
Maintenance and care
AYGO_WE_99E96E

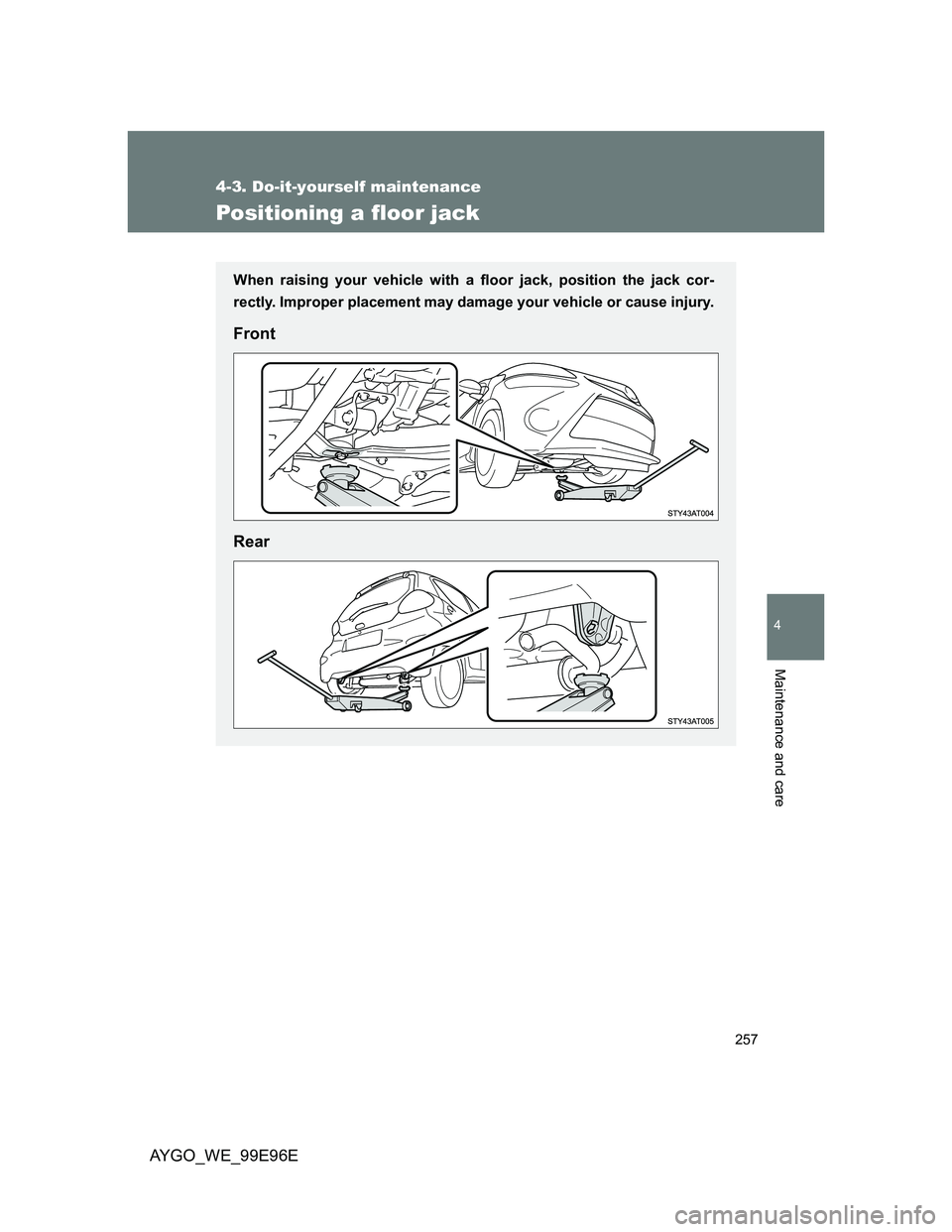

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause injury.
Front
Rear

258 4-3. Do-it-yourself maintenance
AYGO_WE_99E96E
CAUTION

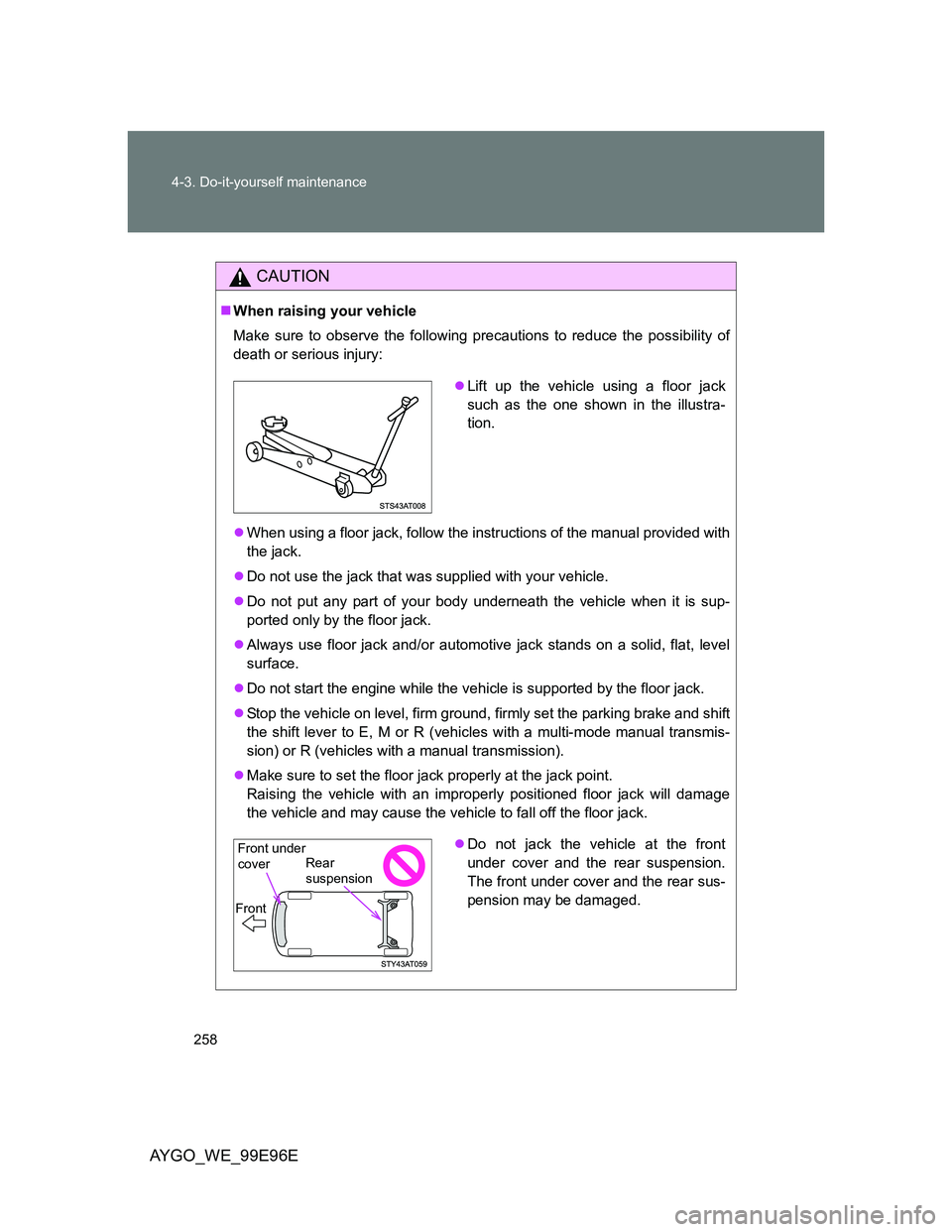

When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of
death or serious injury:
When using a floor jack, follow the instructions of the manual provided with
the jack.
Do not use the jack that was supplied with your vehicle.
Do not put any part of your body underneath the vehicle when it is sup-
ported only by the floor jack.
Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
Do not start the engine while the vehicle is supported by the floor jack.
Stop the vehicle on level, firm ground, firmly set the parking brake and shift
the shift lever to E, M or R (vehicles with a multi-mode manual transmis-
sion) or R (vehicles with a manual transmission).
Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.
Do not jack the vehicle at the front
under cover and the rear suspension.
The front under cover and the rear sus-
pension may be damaged.Front under
cover
FrontRear
suspension

259 4-3. Do-it-yourself maintenance
4
Maintenance and care
AYGO_WE_99E96E

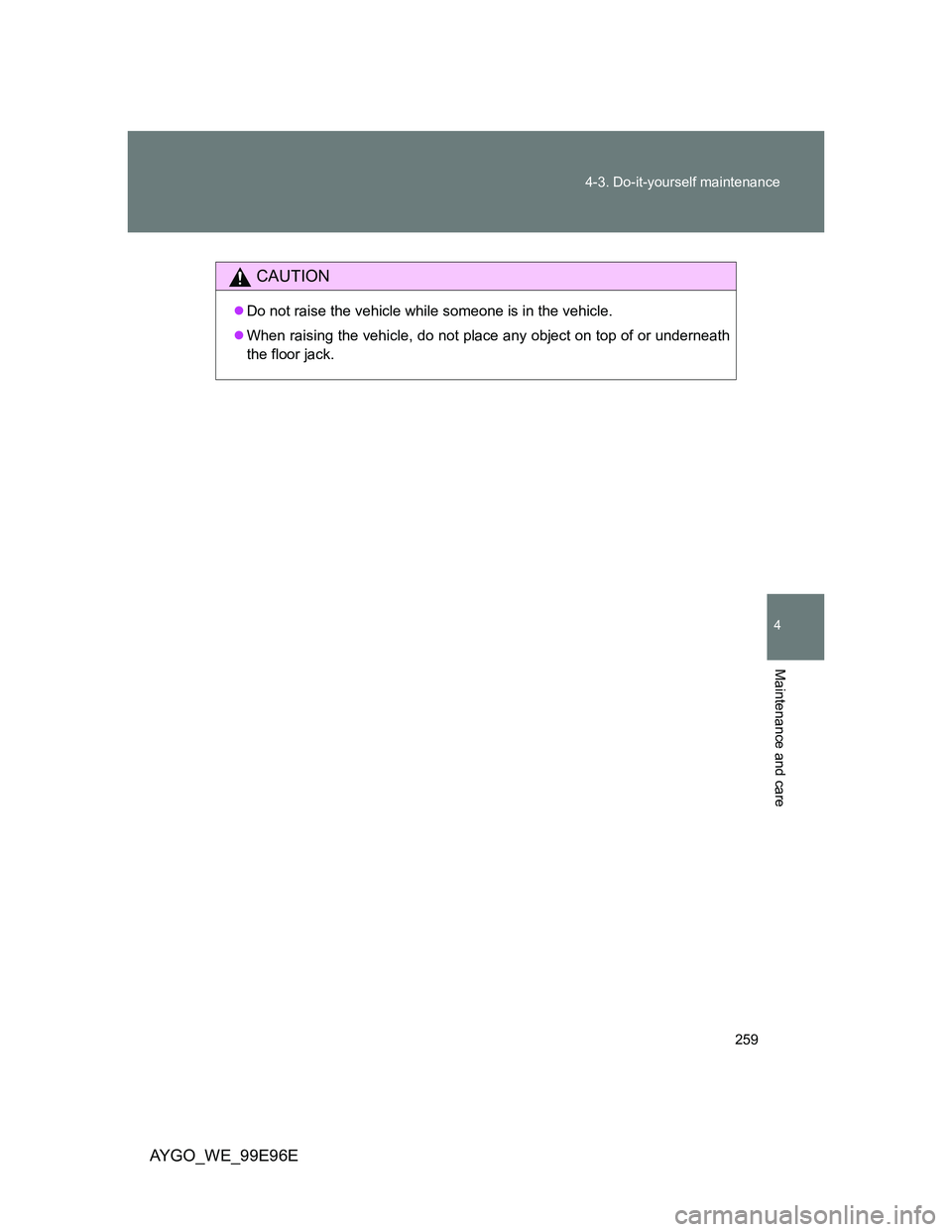

CAUTION
Do not raise the vehicle while someone is in the vehicle.
When raising the vehicle, do not place any object on top of or underneath
the floor jack.

260
4-3. Do-it-yourself maintenance
AYGO_WE_99E96E
Engine compartment
Washer fluid tank (P. 269)
Engine oil level dipstick
(P. 261)
Engine oil filler cap
(P. 262)
Fuse box (P. 282)Battery (P. 266)
Engine coolant reservoir
(P. 264)
Condenser (P. 266)
Electric cooling fan
Radiator (P. 266)
