TOYOTA AYGO 2012 Owners Manual (in English)

211 3-3. Using the audio system (Type B)
3
Interior features
AYGO_WE_99E96E

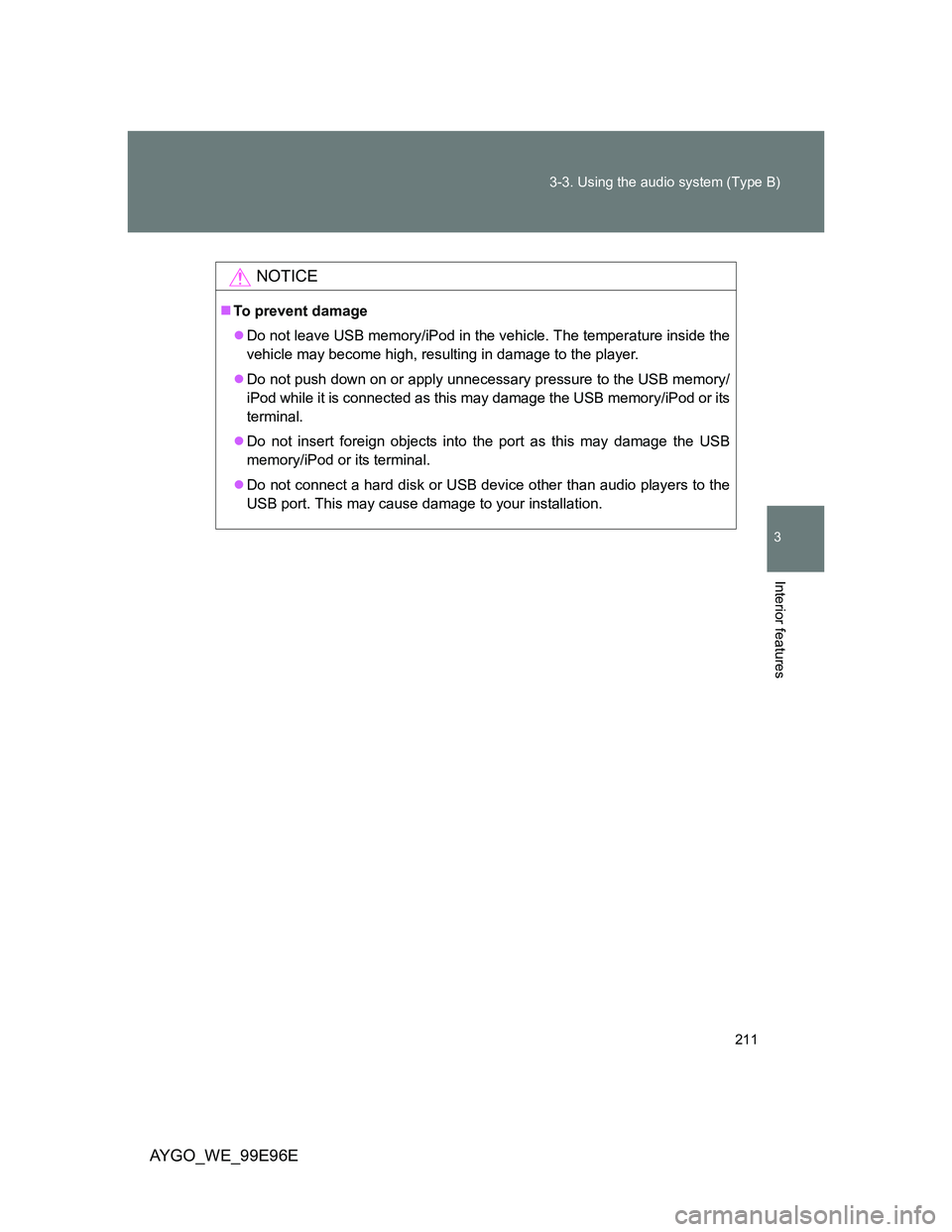

NOTICE
To prevent damage
Do not leave USB memory/iPod in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the player.
Do not push down on or apply unnecessary pressure to the USB memory/
iPod while it is connected as this may damage the USB memory/iPod or its
terminal.
Do not insert foreign objects into the port as this may damage the USB
memory/iPod or its terminal.
Do not connect a hard disk or USB device other than audio players to the
USB port. This may cause damage to your installation.

212
3-3. Using the audio system (Type B)
AYGO_WE_99E96E

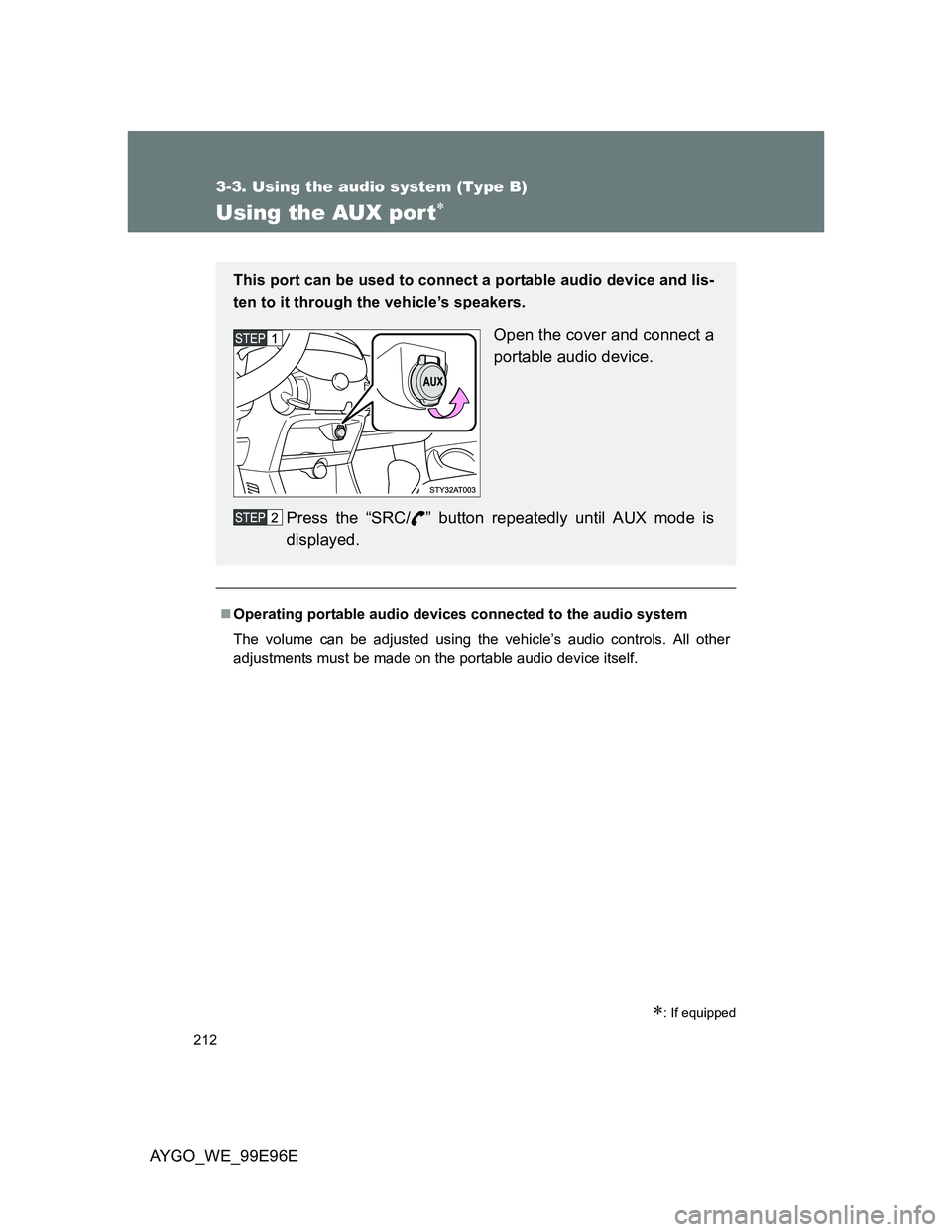

Using the AUX por t
: If equipped
Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
This port can be used to connect a portable audio device and lis-
ten to it through the vehicle’s speakers.
Open the cover and connect a
portable audio device.
Press the “SRC/ ” button repeatedly until AUX mode is
displayed.

213
3-3. Using the audio system (Type B)
3
Interior features
AYGO_WE_99E96E
Using the Bluetooth® audio streaming
: If equipped
Bluetooth® audio streaming functions
The Bluetooth
® audio streaming function is depending on the compatibil-
ity of the telephone.
In certain cases, playing of the audio files must be initiated from the tele-
phone.
The audio quality depends on the quality of the transmission from the
telephone.
CAUTION
Caution while driving
Do not connect Bluetooth
® audio streaming or operate the controls.
NOTICE
To prevent damage
Do not leave the telephone in the vehicle. The temperature inside the vehi-
cle may become high, resulting in damage to the telephone.
Bluetooth® audio streaming allows music files on a telephone to be
heard via the vehicle’s speakers.
Press the “SRC/ ” button repeatedly until Bluetooth
® audio mode
is displayed.
The telephone must support the appropriate Bluetooth
® profiles
(A2DP/AVRCP).
Pairing a telephone/ first connection
P. 215

214
3-3. Using the audio system (Type B)
AYGO_WE_99E96E

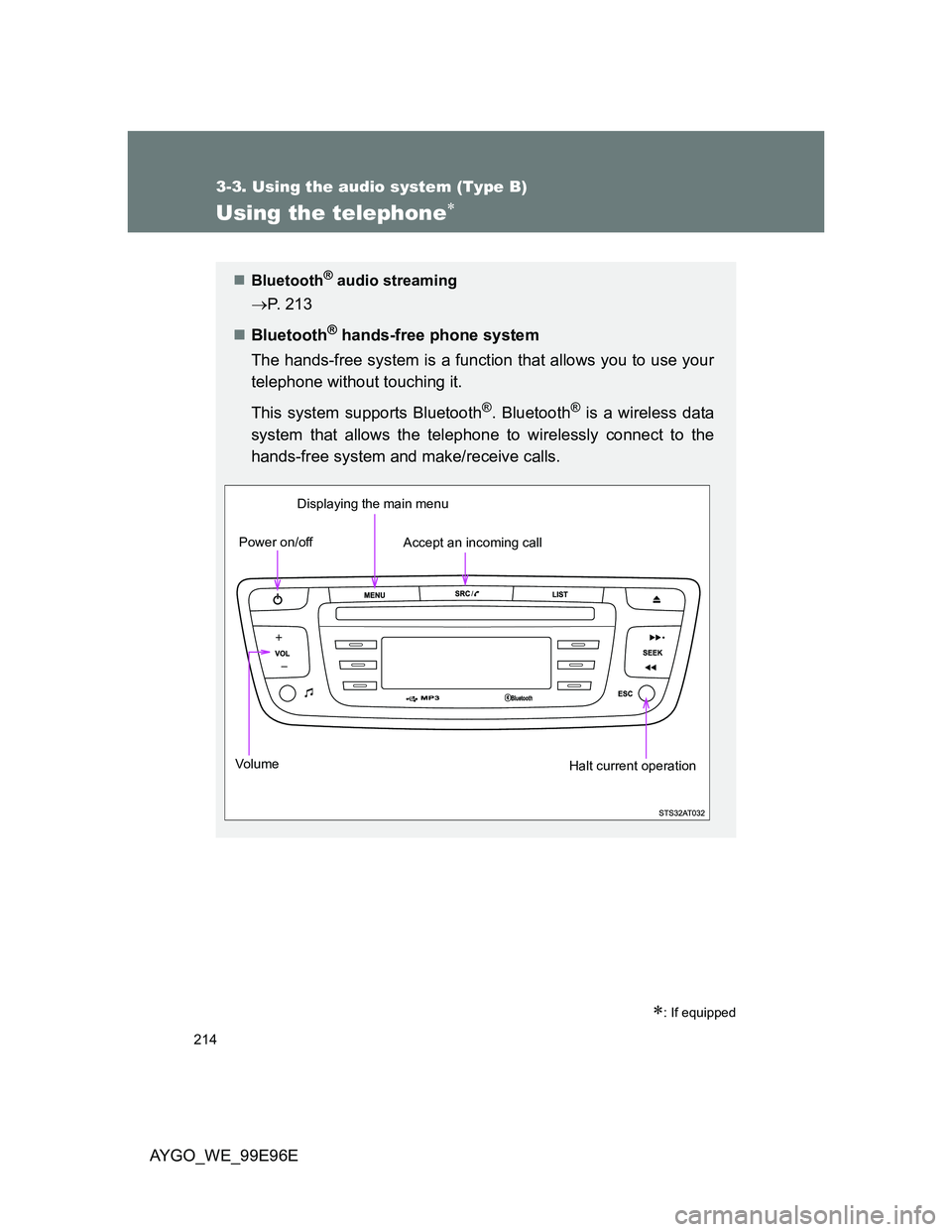

Using the telephone
: If equipped
Bluetooth® audio streaming
P. 213
Bluetooth
® hands-free phone system
The hands-free system is a function that allows you to use your
telephone without touching it.
This system supports Bluetooth
®. Bluetooth® is a wireless data
system that allows the telephone to wirelessly connect to the
hands-free system and make/receive calls.
Vo lu m eDisplaying the main menu
Power on/off
Accept an incoming call
Halt current operation

215 3-3. Using the audio system (Type B)
3
Interior features
AYGO_WE_99E96E
Pairing a telephone/first connection
Activate the telephone’s Bluetooth
® function and ensure that it
is set as visible to all (refer to the telephone instructions).
Press the “MENU” button.
Press (Bluetooth).
Press (Search).
A window is displayed with “Searching device”.
Select the telephone to be paired from the list and press
(OK).
Only one telephone can be paired at a time.
In some cases, the Bluetooth
® address of the telephone may
appear instead of the name of the telephone.
A virtual keypad is displayed on the screen: choose a 4 digit
code then press (OK).
A message is displayed on the screen of the telephone: enter
the same code and confirm.
If pairing fails, try again; the number of attempts is unlimited.
Accept the connection to the telephone.
A message appears in the screen to confirm the result of the
connection.
Pairing can also be initiated from the telephone by searching for
detected Bluetooth® devices.
The directory and the call list can be accessed after the synchroni-
zation period (if the telephone is compatible).
Automatic connection must be configured in the telephone to allow
a connection each time the vehicle is started.

216 3-3. Using the audio system (Type B)
AYGO_WE_99E96E
Managing connections
Press the “MENU” button.
Press (Bluetooth).
Press (BT management) and confirm. The list of paired
telephones is displayed.
: Indicates connection of the audio profile.
: Indicates connection of the hands-free profile.
Press ( or ) to select a telephone and press
(OK).
Select one of to select.
“Tel.”: Hands-free connection
“Audio”: Play audio files
“Delete”: Delete the pairing.
Making a call – recently called numbers*
Press and hold the “SRC/ ” button to display the call list.
For access to the calls list, it is also possible in the following way:
“MENU”“Telephone”“Call”“Calls list”
Press ( or ) to select “Missed calls”, “Dialed calls” or
“Answered calls”.
Press ( or ) to select the desired number.
Press “ ” or “ ” on the “SEEK” button to select the next or pre-
vious page in the call list.
Press (OK) to start the call.
The call list includes the calls sent from and received by the vehicle
via the connected telephone. It is possible to make a call directly
from the telephone; however stop the vehicle in a safe area as a
safety measure.
*: Depending on the compatibility of the telephone

217 3-3. Using the audio system (Type B)
3
Interior features
AYGO_WE_99E96E

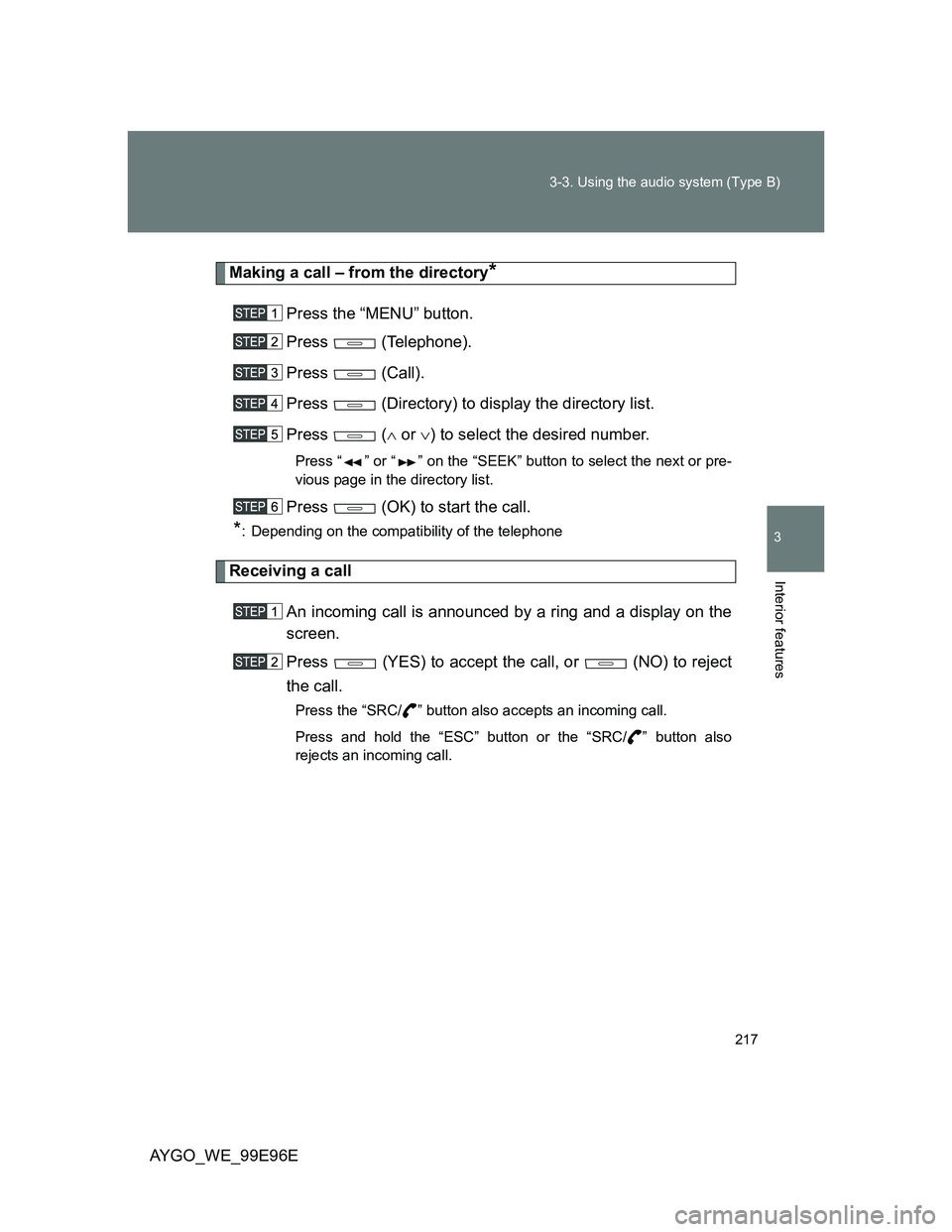

Making a call – from the directory*
Press the “MENU” button.
Press (Telephone).
Press (Call).
Press (Directory) to display the directory list.
Press ( or ) to select the desired number.
Press “ ” or “ ” on the “SEEK” button to select the next or pre-
vious page in the directory list.
Press (OK) to start the call.
*: Depending on the compatibility of the telephone
Receiving a call
An incoming call is announced by a ring and a display on the
screen.
Press (YES) to accept the call, or (NO) to reject
the call.
Press the “SRC/ ” button also accepts an incoming call.
Press and hold the “ESC” button or the “SRC/ ” button also
rejects an incoming call.

218 3-3. Using the audio system (Type B)
AYGO_WE_99E96E

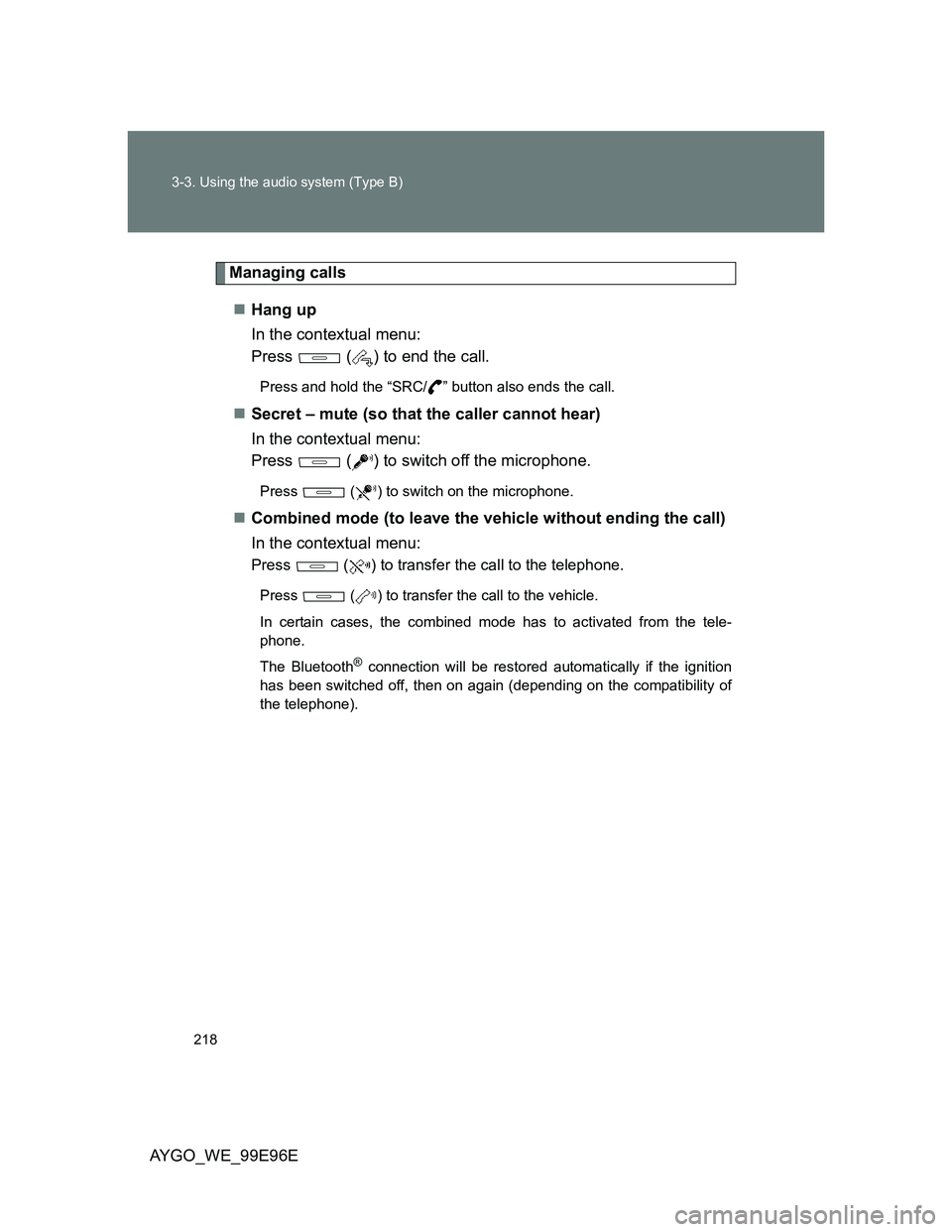

Managing calls
Hang up
In the contextual menu:
Press ( ) to end the call.
Press and hold the “SRC/ ” button also ends the call.
Secret – mute (so that the caller cannot hear)
In the contextual menu:
Press ( ) to switch off the microphone.
Press ( ) to switch on the microphone.
Combined mode (to leave the vehicle without ending the call)
In the contextual menu:
Press ( ) to transfer the call to the telephone.
Press ( ) to transfer the call to the vehicle.
In certain cases, the combined mode has to activated from the tele-
phone.
The Bluetooth
® connection will be restored automatically if the ignition
has been switched off, then on again (depending on the compatibility of
the telephone).

219 3-3. Using the audio system (Type B)
3
Interior features
AYGO_WE_99E96E
Pairing a telephone
The services offered depend on the network, the SIM card and the com-
patibility of the Bluetooth® telephone used. Consult your telephone’s
manual and your operator to find out which services are available to you.
For safety reasons and because they require prolonged attention on the
part of the driver, the operations for pairing of the Bluetooth
® mobile tele-
phone with the Bluetooth® hands-free system of your audio system must
be carried out with the vehicle stationary and the ignition on.
Visit www.toyota-europe.com for more information (compatibility, more
help, ...).
It is not possible to pair more that 5 telephones. If 5 telephones are
already paired, a registered telephone needs to be deleted. (P. 216)
Pairing can also be initiated from the telephone by searching for detected
Bluetooth
® devices.
The directory and the calls list can be accessed after the synchronization
period (if the telephone is compatible). Automatic connection must be
configured in the telephone to allow the connection each time the vehicle
is started.
The telephone connection automatically includes hands-free operation
and audio streaming.
About Bluetooth
®
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.

220 3-3. Using the audio system (Type B)
AYGO_WE_99E96E

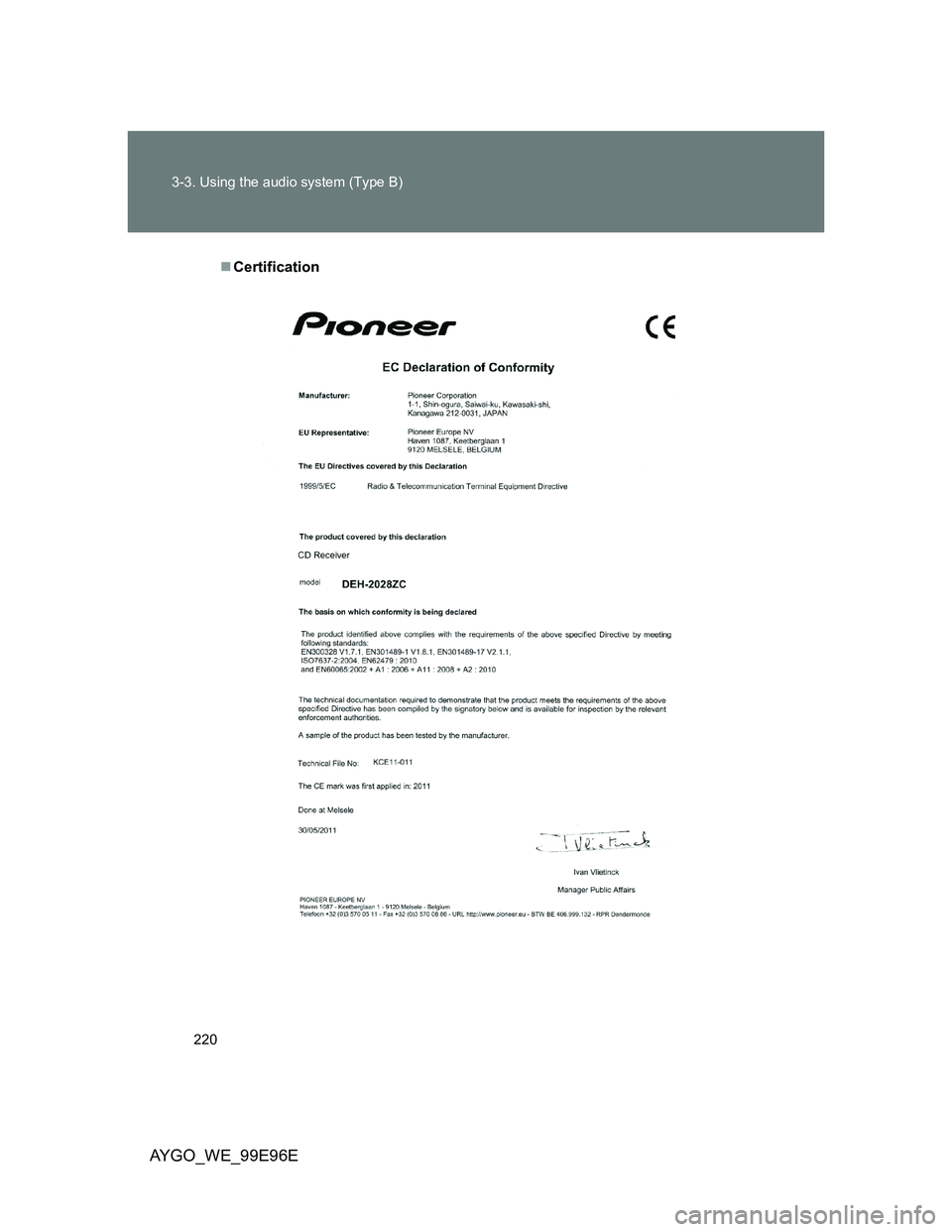

Certification
