TOYOTA AYGO 2012 (in English) Owner's Guide

AYGO_WE_99E96E
31

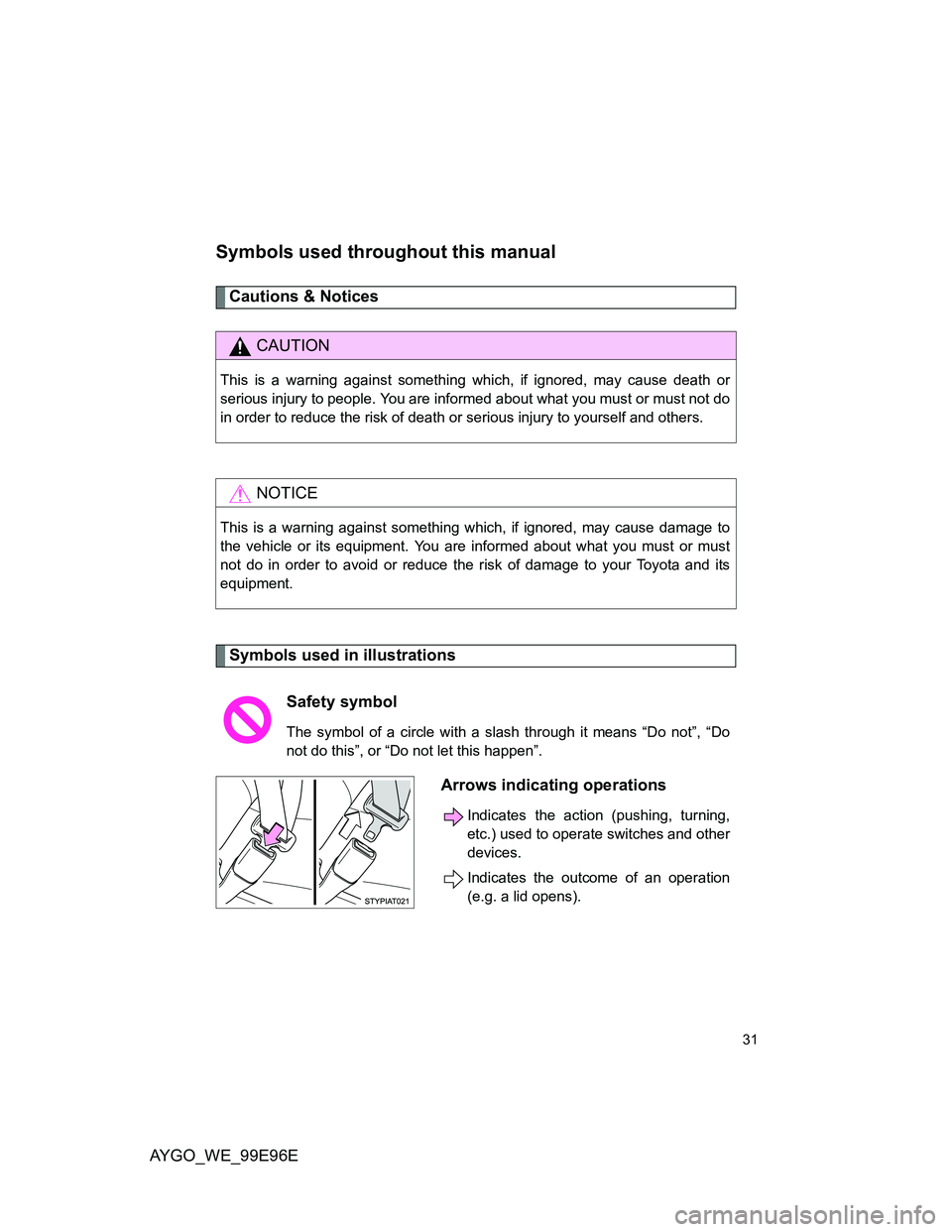

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.
NOTICE
This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Toyota and its
equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.
Indicates the outcome of an operation
(e.g. a lid opens).

AYGO_WE_99E96E
32

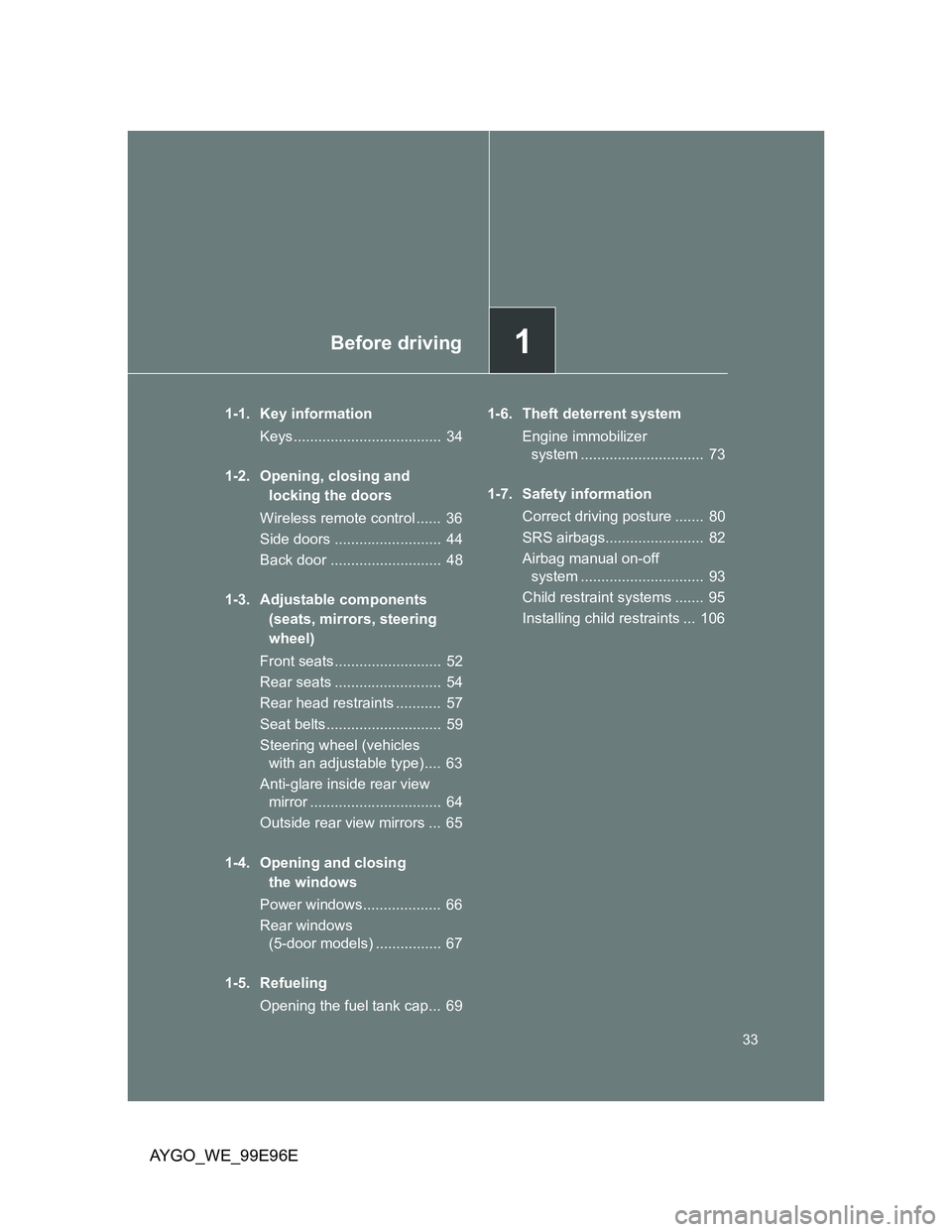

1Before driving
33
AYGO_WE_99E96E
1-1. Key information
Keys.................................... 34
1-2. Opening, closing and
locking the doors
Wireless remote control ...... 36
Side doors .......................... 44
Back door ........................... 48
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats.......................... 52
Rear seats .......................... 54
Rear head restraints ........... 57
Seat belts............................ 59
Steering wheel (vehicles
with an adjustable type) .... 63
Anti-glare inside rear view
mirror ................................ 64
Outside rear view mirrors ... 65
1-4. Opening and closing
the windows
Power windows................... 66
Rear windows
(5-door models) ................ 67
1-5. Refueling
Opening the fuel tank cap... 691-6. Theft deterrent system
Engine immobilizer
system .............................. 73
1-7. Safety information
Correct driving posture ....... 80
SRS airbags........................ 82
Airbag manual on-off
system .............................. 93
Child restraint systems ....... 95
Installing child restraints ... 106

34
AYGO_WE_99E96E
1-1. Key information
Keys
Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional using
the key number plate. (P. 331)
When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button may cause the
key to emit radio waves that could interfere with the operation of the aircraft.
The following keys are provided with the vehicle.
Ty p e A
Keys
Key number plate
Ty p e B
Key (with a wireless remote
control function)
Operating the wireless remote
control function (P. 36)
Key (without a wireless
remote control function)
Key number plate

35 1-1. Key information
1
Before driving
AYGO_WE_99E96E

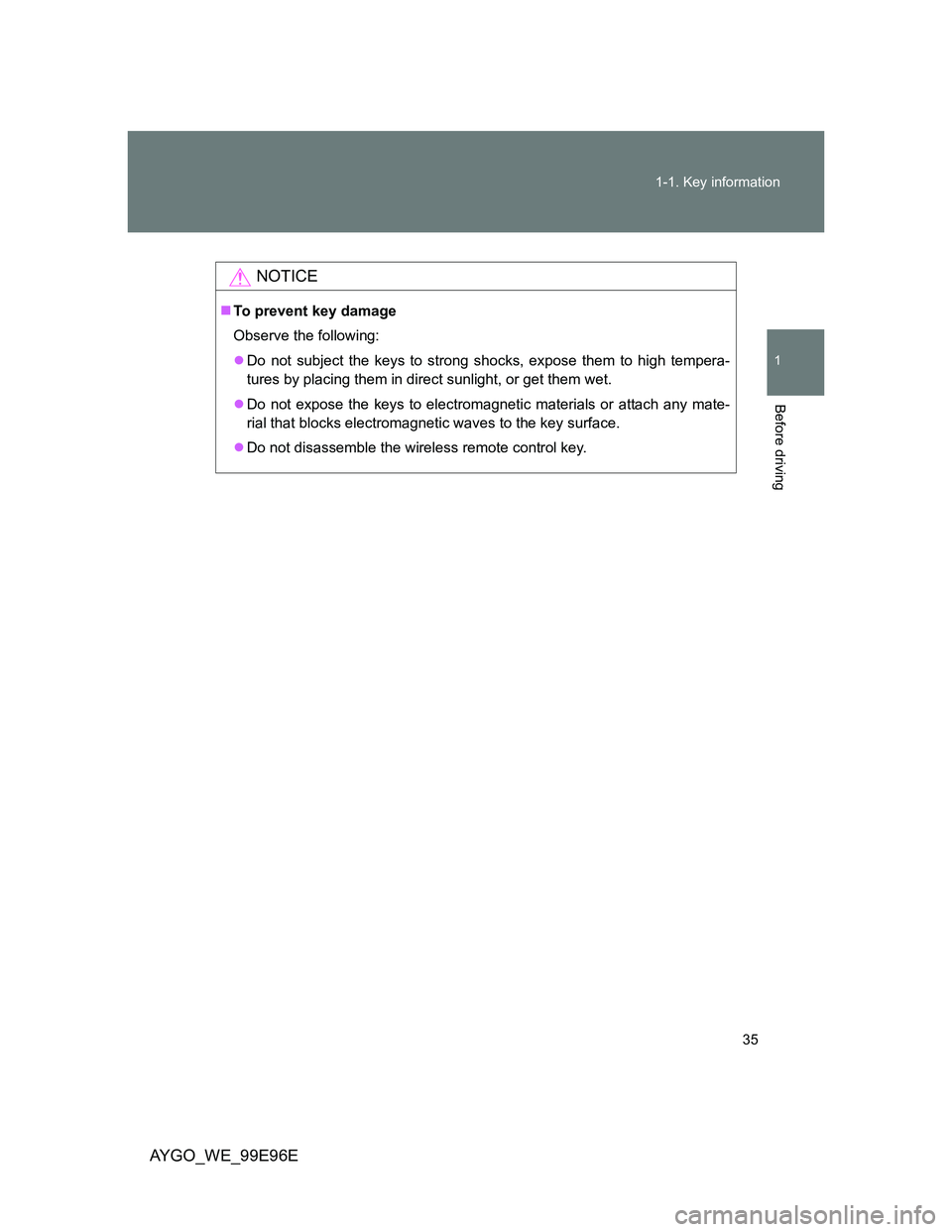

NOTICE
To prevent key damage
Observe the following:
Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
Do not disassemble the wireless remote control key.

36
AYGO_WE_99E96E
1-2. Opening, closing and locking the doors

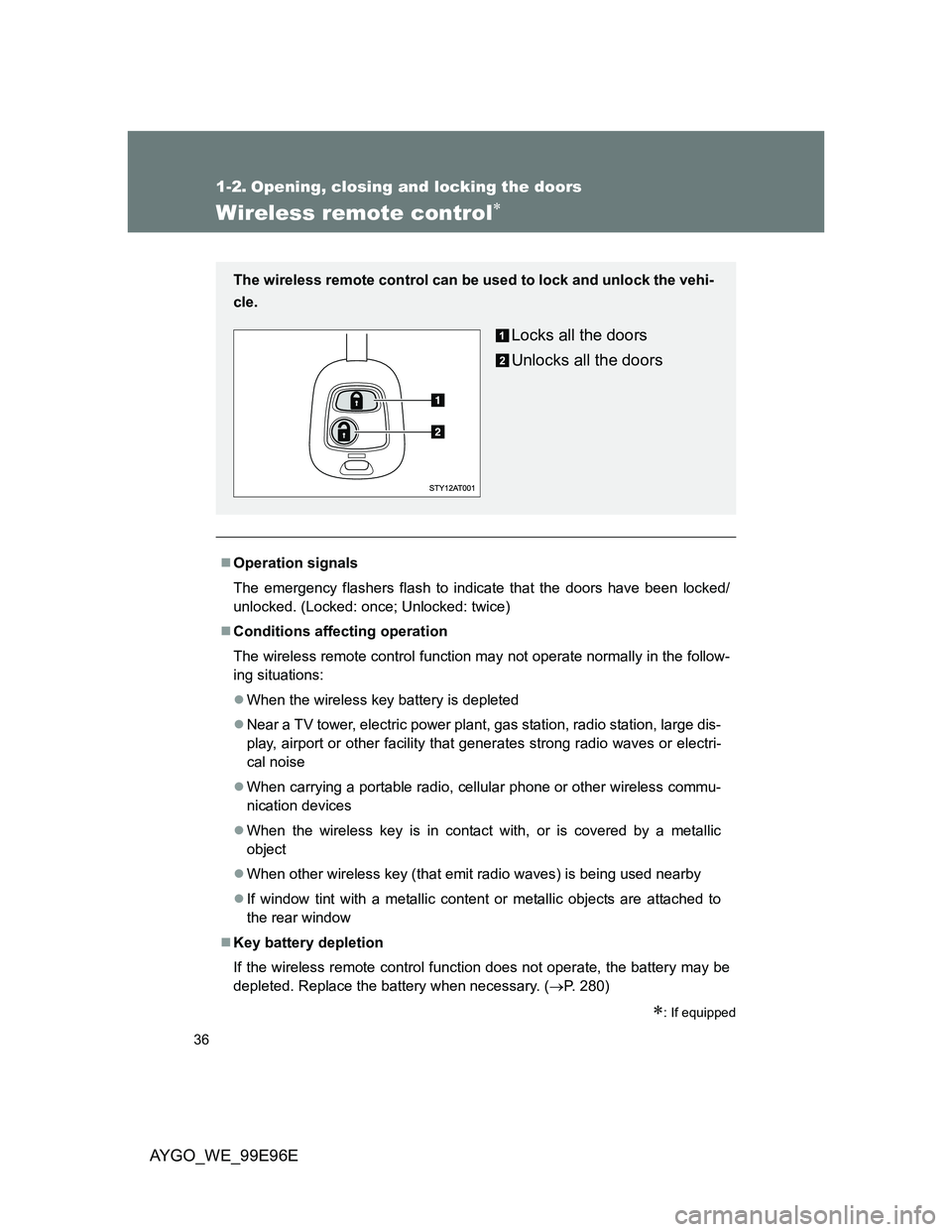

Wireless remote control
: If equipped
Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
Conditions affecting operation
The wireless remote control function may not operate normally in the follow-
ing situations:
When the wireless key battery is depleted
Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
When carrying a portable radio, cellular phone or other wireless commu-
nication devices
When the wireless key is in contact with, or is covered by a metallic
object
When other wireless key (that emit radio waves) is being used nearby
If window tint with a metallic content or metallic objects are attached to
the rear window
Key battery depletion
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 280)
The wireless remote control can be used to lock and unlock the vehi-
cle.
Locks all the doors
Unlocks all the doors

37 1-2. Opening, closing and locking the doors
1
Before driving
AYGO_WE_99E96E

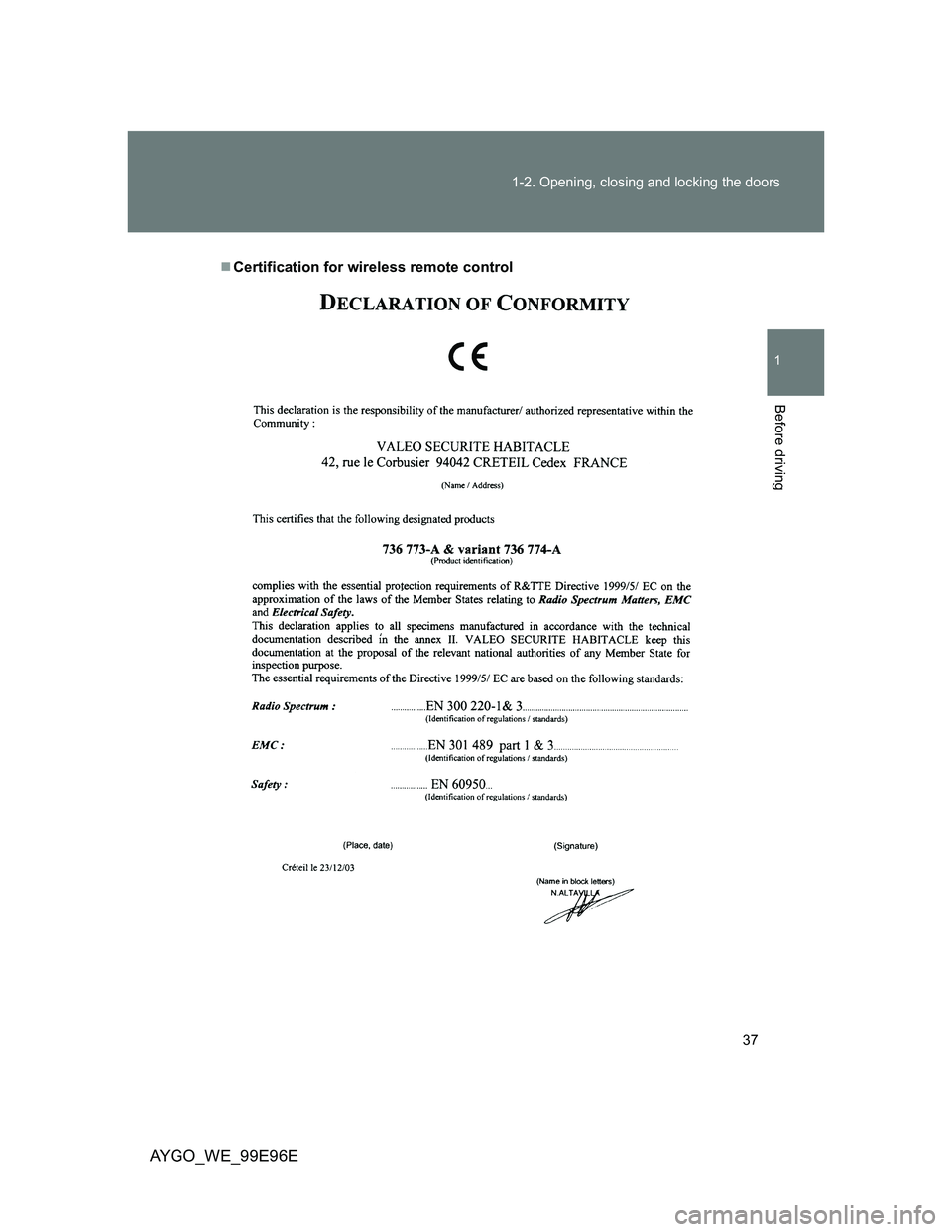

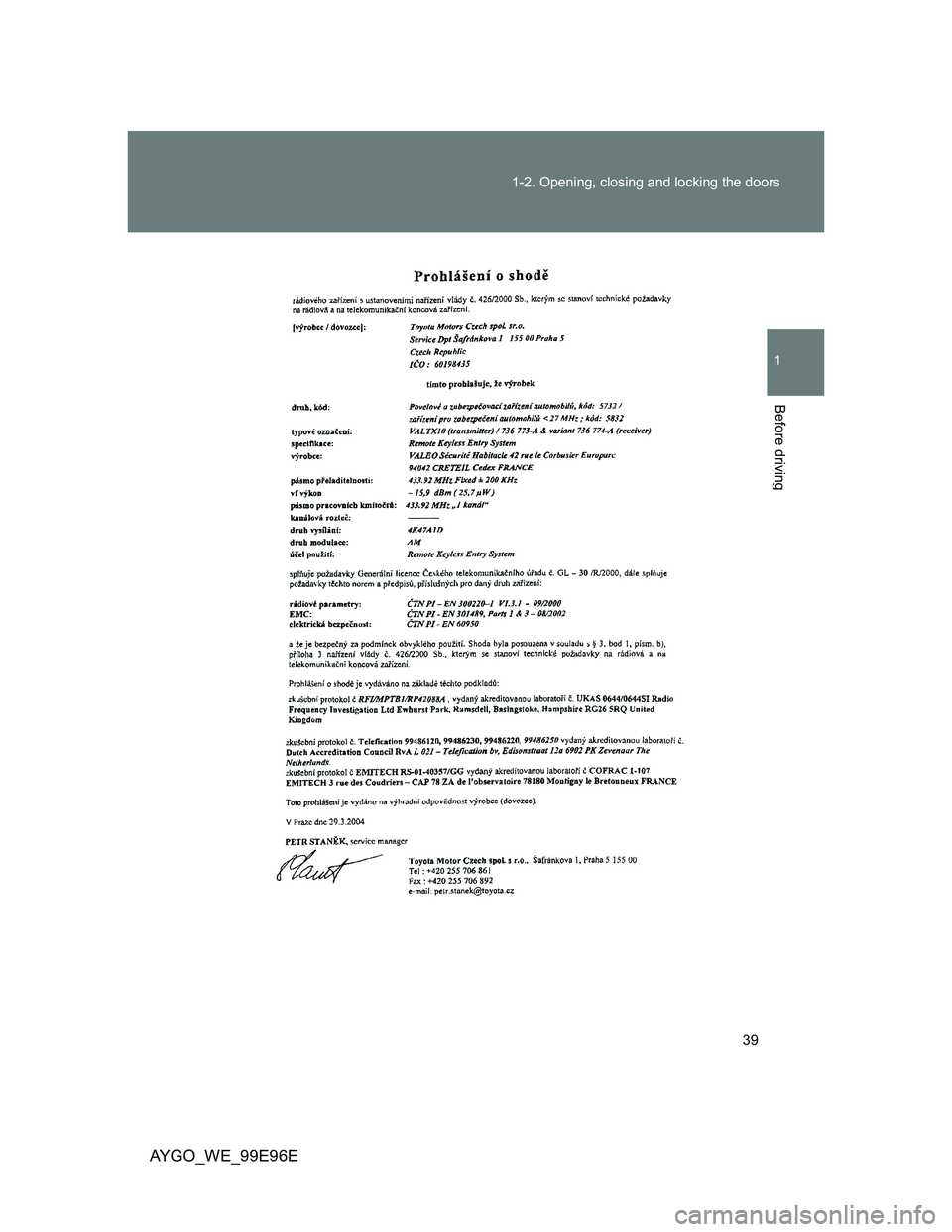

Certification for wireless remote control

38 1-2. Opening, closing and locking the doors
AYGO_WE_99E96E

39 1-2. Opening, closing and locking the doors
1
Before driving
AYGO_WE_99E96E

40 1-2. Opening, closing and locking the doors
AYGO_WE_99E96E
