TOYOTA AYGO 2015 Owners Manual (in English)

2616-1. Using the air conditioning system and defogger
6
Interior features
AYGO_EE_OM99J92E

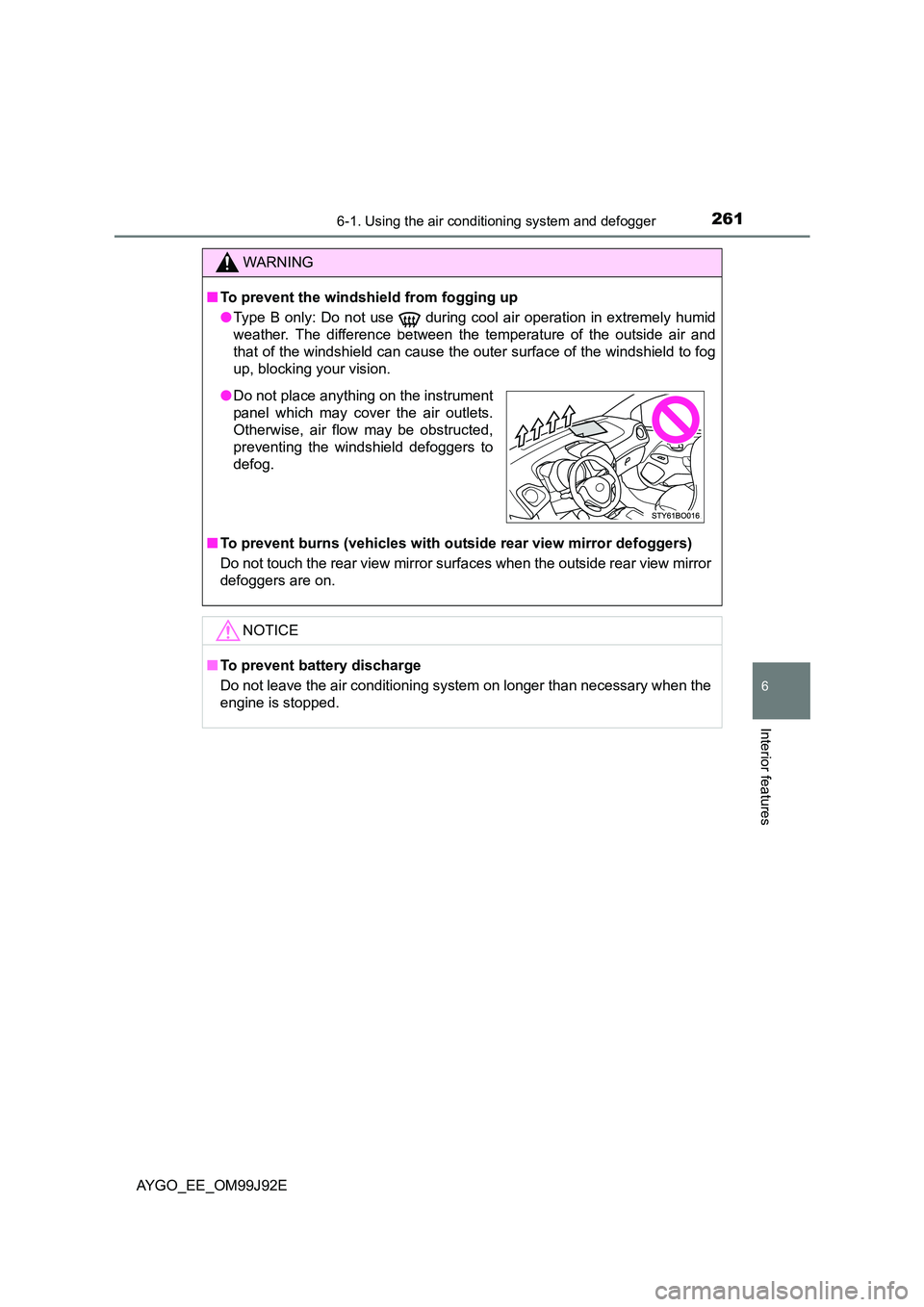

WARNING
■ To prevent the windshield from fogging up
● Type B only: Do not use during cool air operation in extremely humid
weather. The difference between the temperature of the outside air and
that of the windshield can cause the outer surface of the windshield to fog
up, blocking your vision.
■ To prevent burns (vehicles with outside rear view mirror defoggers)
Do not touch the rear view mirror surfaces when the outside rear view mirror
defoggers are on.
NOTICE
■ To prevent battery discharge
Do not leave the air conditioning syst em on longer than necessary when the
engine is stopped.
● Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers to
defog.

2626-1. Using the air conditioning system and defogger
AYGO_EE_OM99J92E
Automatic air conditioning system∗
■Adjusting the temperature setting
To adjust the temperature setting, press “ ∧” on to increase the
temperature and “ ∨” to decrease the temperature.
■Fan speed setting
To adjust the fan speed, press on to increase the fan
speed and to decrease the fan speed.
The fan speed is indicated by the number of fan blades lit.
To turn off the air conditioning syst em, continually press until all
the lit blades turn off.
∗: If equipped
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Air conditioning controls

2636-1. Using the air conditioning system and defogger
6
Interior features
AYGO_EE_OM99J92E

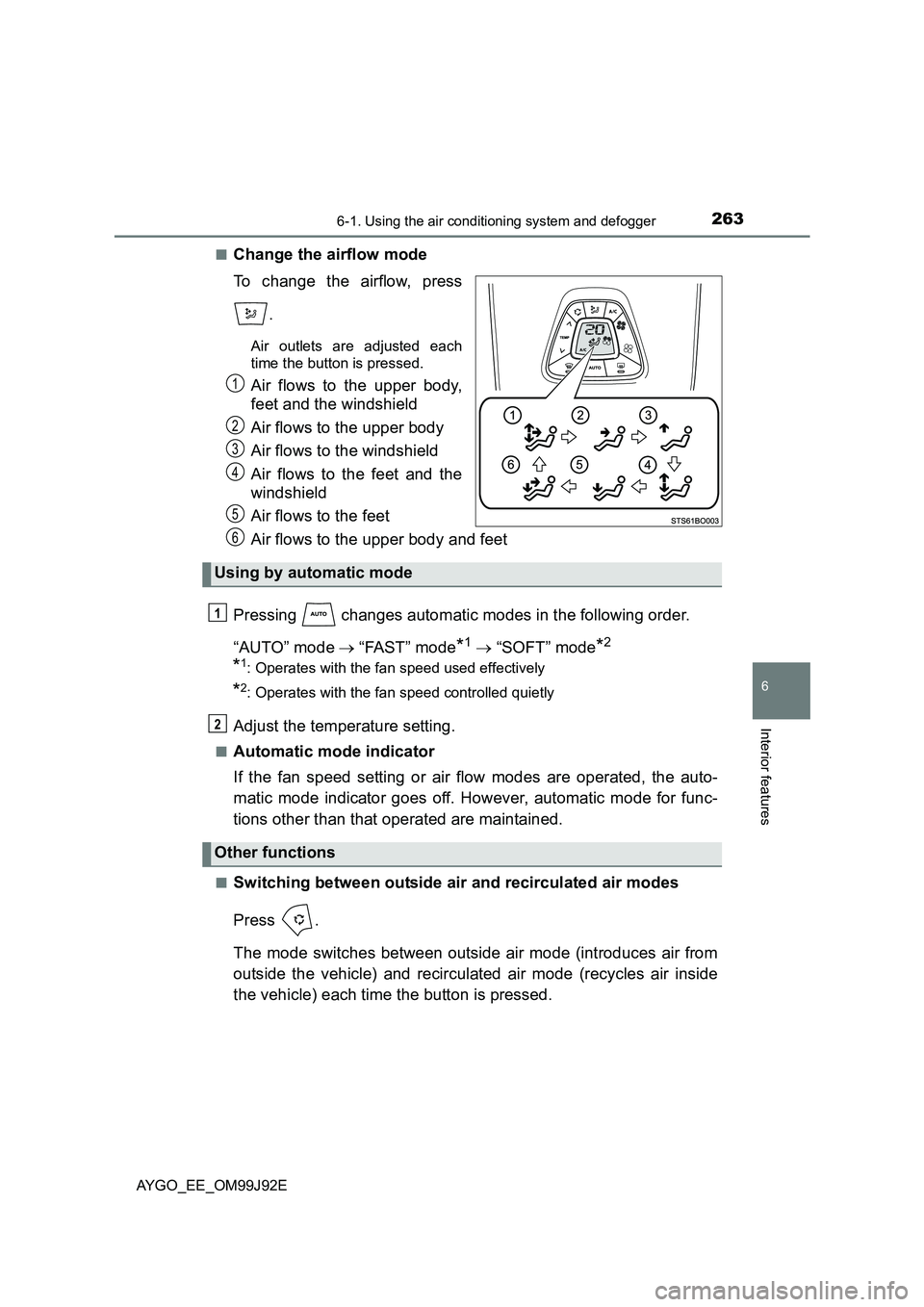

■Change the airflow mode
To change the airflow, press
.
Air outlets are adjusted each
time the button is pressed.
Air flows to the upper body,
feet and the windshield
Air flows to the upper body
Air flows to the windshield
Air flows to the feet and the
windshield
Air flows to the feet
Air flows to the upper body and feet
Pressing changes automatic modes in the following order.
“AUTO” mode → “FAST” mode*1 → “SOFT” mode*2
*1: Operates with the fan speed used effectively
*2: Operates with the fan speed controlled quietly
Adjust the temperature setting.
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated are maintained.
■Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (introduces air from
outside the vehicle) and recirculated air mode (recycles air inside
the vehicle) each time the button is pressed.
1
2
3
4
5
Using by automatic mode
Other functions
6
1
2

2646-1. Using the air conditioning system and defogger
AYGO_EE_OM99J92E

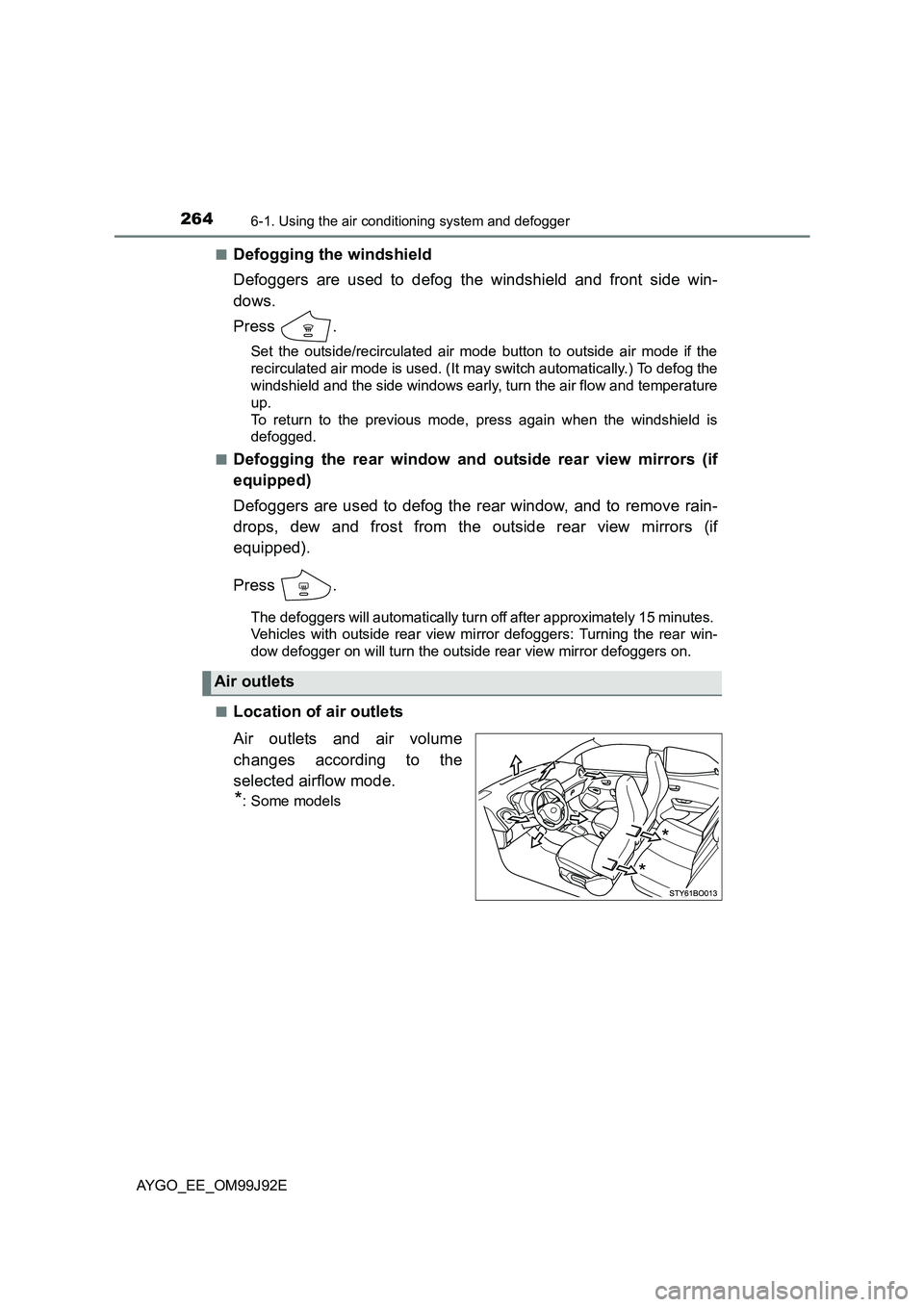

■Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
Set the outside/recirculated air mode button to outside air mode if the
recirculated air mode is used. (It may switch automatically.) To defog the
windshield and the side windows early, turn the air flow and temperature
up.
To return to the previous mode, press again when the windshield is
defogged.
■Defogging the rear window and outside rear view mirrors (if
equipped)
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors (if
equipped).
Press .
The defoggers will automatically turn off after approximately 15 minutes.
Vehicles with outside rear view mi rror defoggers: Turning the rear win-
dow defogger on will turn the outside rear view mirror defoggers on.
[
■Location of air outlets
Air outlets and air volume
changes according to the
selected airflow mode.
*: Some models
Air outlets
*
*

2656-1. Using the air conditioning system and defogger
6
Interior features
AYGO_EE_OM99J92E

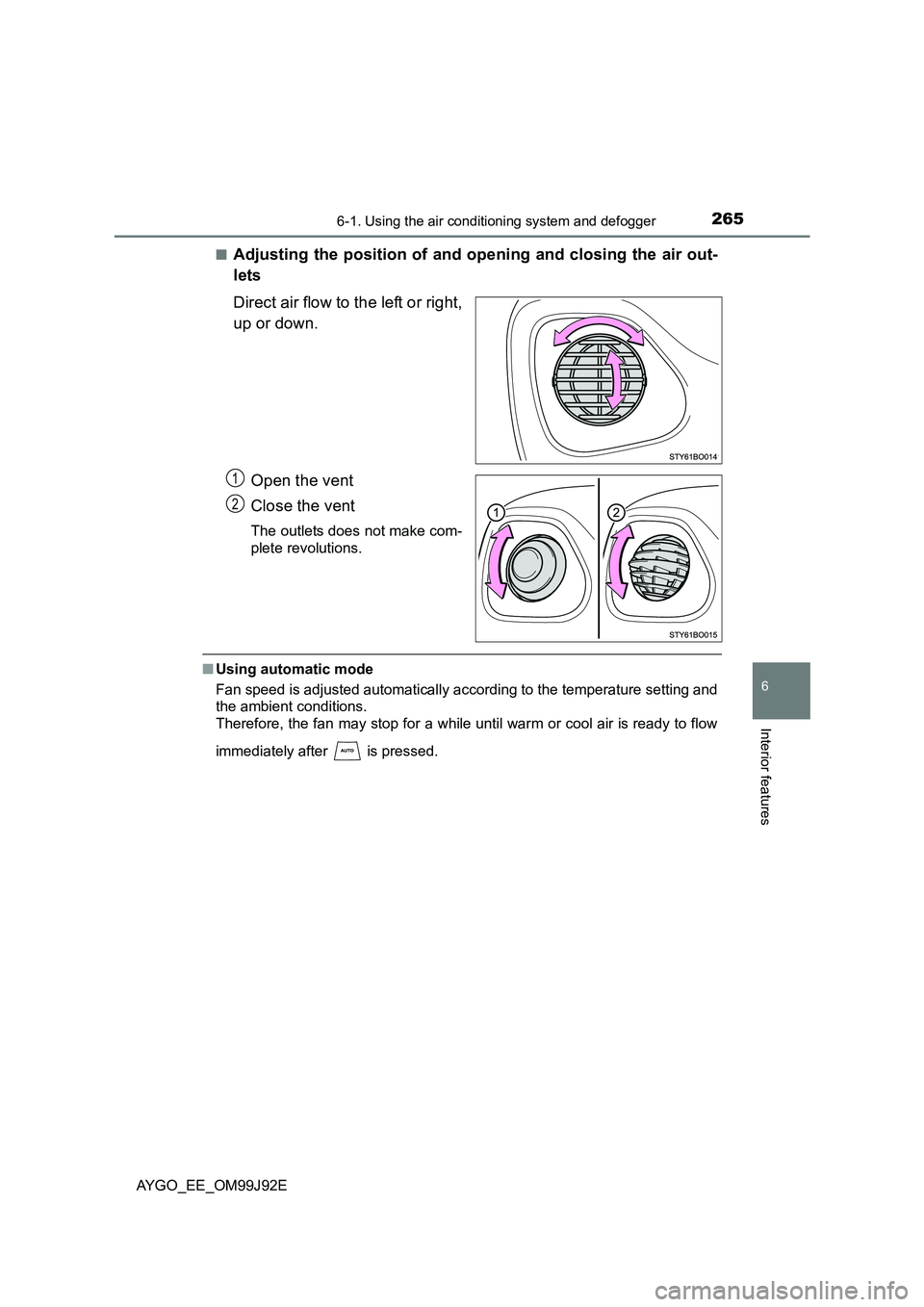

■Adjusting the position of and opening and closing the air out-
lets
Direct air flow to the left or right,
up or down.
Open the vent
Close the vent
The outlets does not make com-
plete revolutions.
■ Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
1
2

2666-1. Using the air conditioning system and defogger
AYGO_EE_OM99J92E
■ Fogging up of the windows
● The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
● If you turn off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
■ Outside/recirculated air mode
● When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effec-
tive in preventing outside air from entering the vehicle interior. During
cooling operation, setting the recirculat ed air mode will also cool the vehicle
interior effectively.
● Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
■ When the outside temperature falls to nearly 0°C (32°F)
The dehumidification function may not operate even when is selected.
■ Ventilation and air conditioning odors
● To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air condi tioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in automatic
mode.
■ An odor comes from the air conditioning system due to the Stop & Start
system operation (vehicles with a Stop & Start system)
When the engine is stopped due to the Stop & Start system, an odor caused
by moisture may be detected. This does not indicate a malfunction.
■ Air conditioning filter
→ P. 318

2676-1. Using the air conditioning system and defogger
6
Interior features
AYGO_EE_OM99J92E

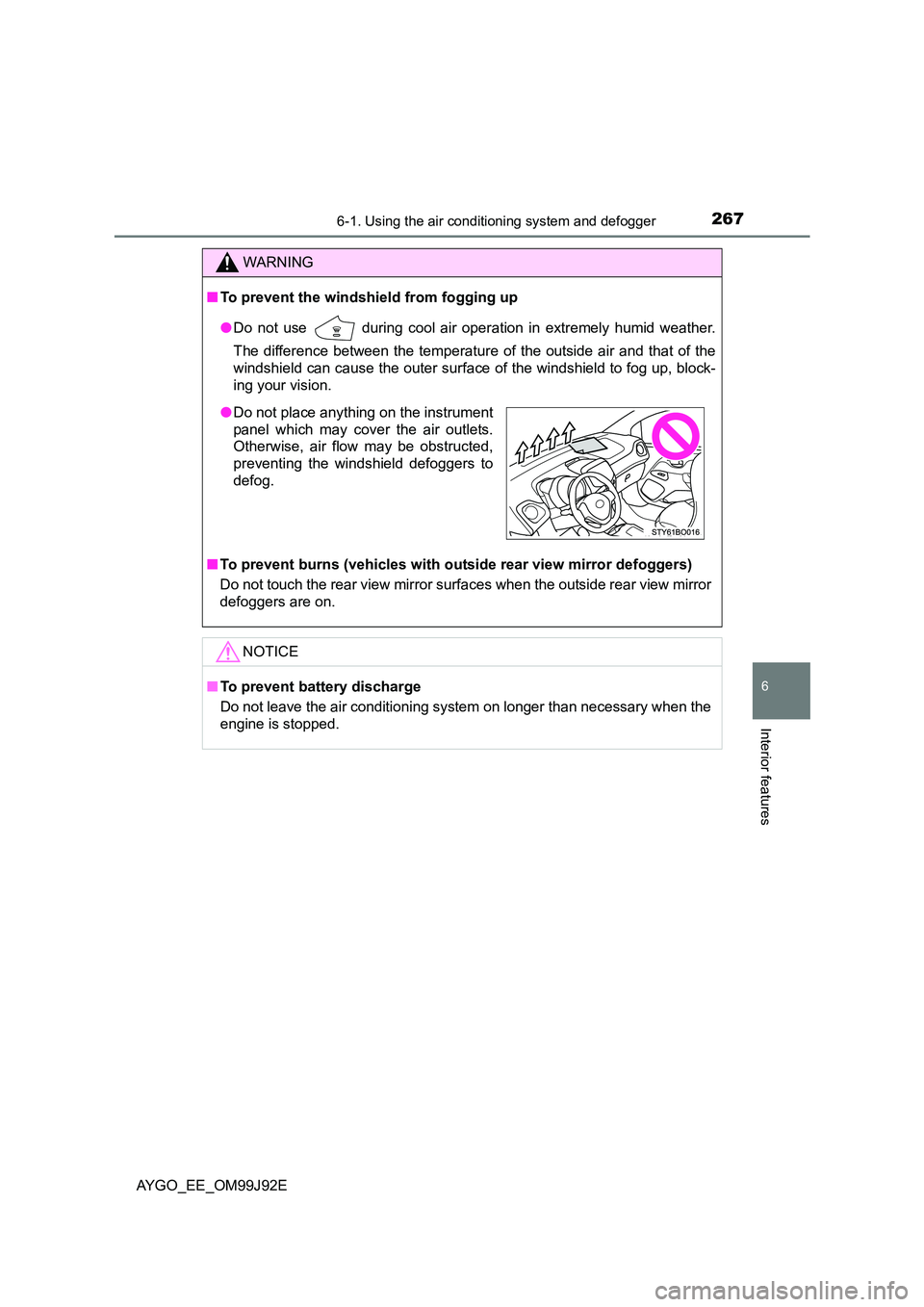

WARNING
■ To prevent the windshield from fogging up
● Do not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.
■ To prevent burns (vehicles with outside rear view mirror defoggers)
Do not touch the rear view mirror surfaces when the outside rear view mirror
defoggers are on.
NOTICE
■ To prevent battery discharge
Do not leave the air conditioning syst em on longer than necessary when the
engine is stopped.
● Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers to
defog.

2686-1. Using the air conditioning system and defogger
AYGO_EE_OM99J92E

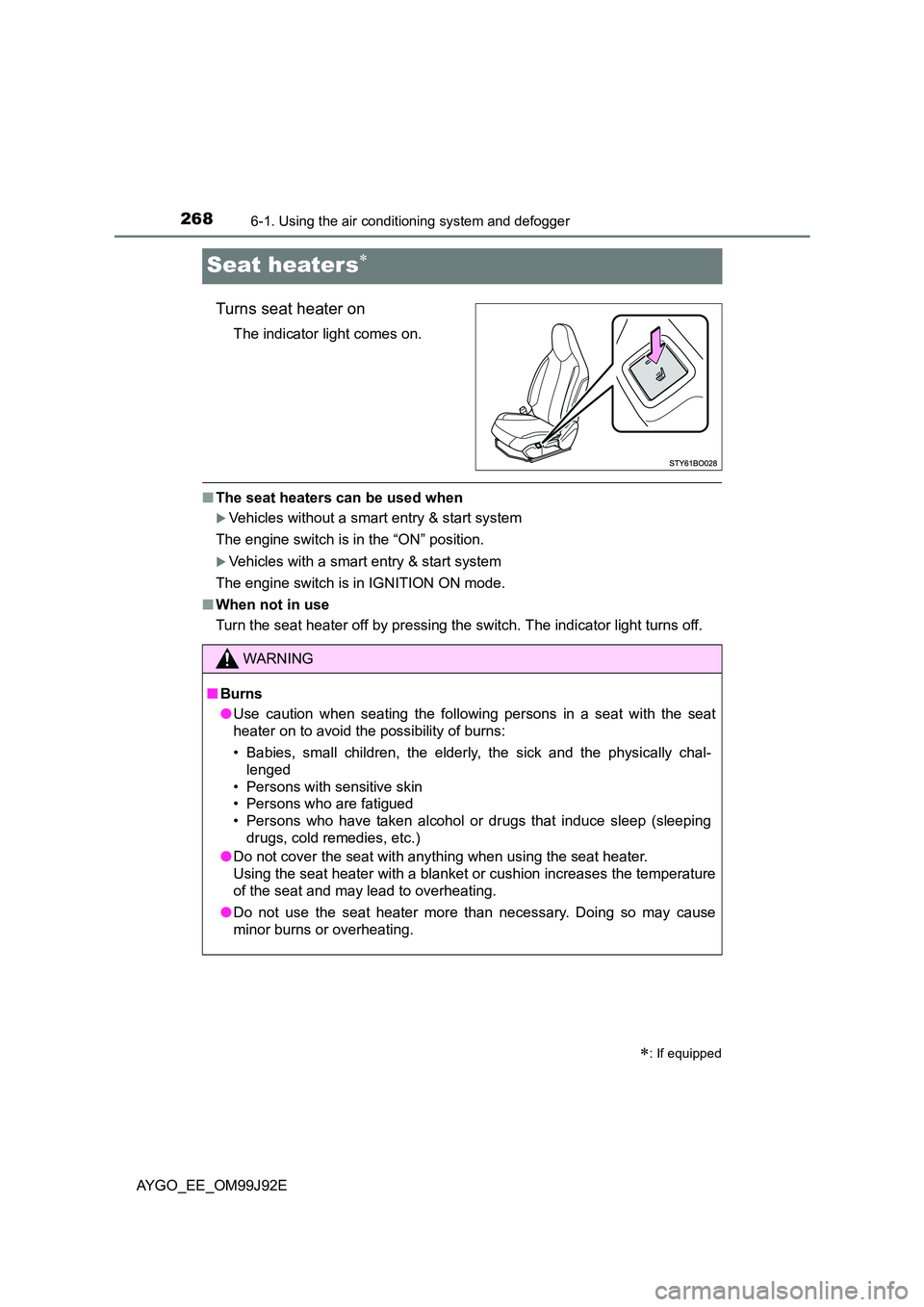

Seat heaters∗
Turns seat heater on
The indicator light comes on.
■The seat heaters can be used when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ When not in use
Turn the seat heater off by pressing the switch. The indicator light turns off.
∗: If equipped
WARNING
■ Burns
● Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
● Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.

2696-1. Using the air conditioning system and defogger
6
Interior features
AYGO_EE_OM99J92E

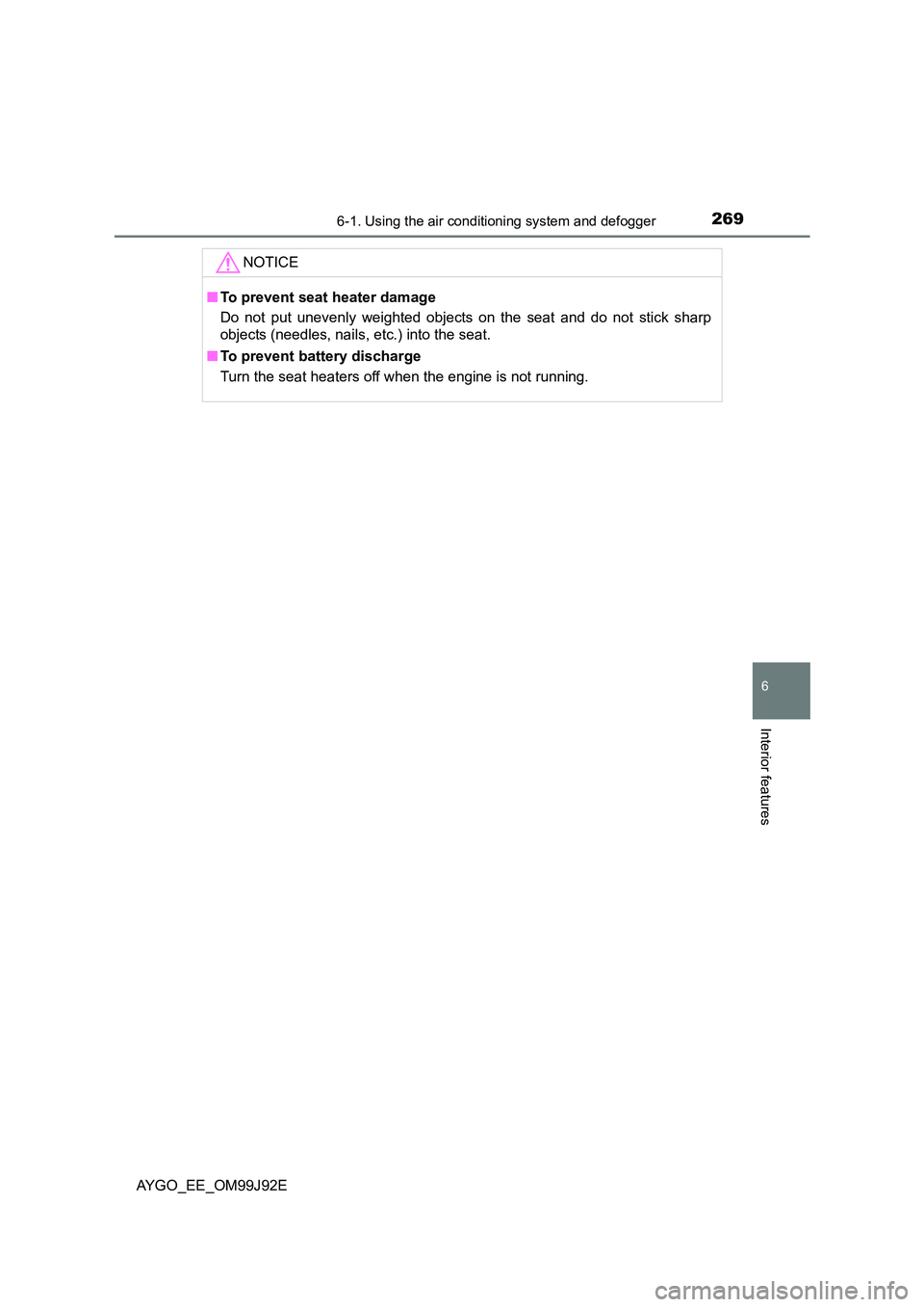

NOTICE
■ To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the seat heaters off when the engine is not running.

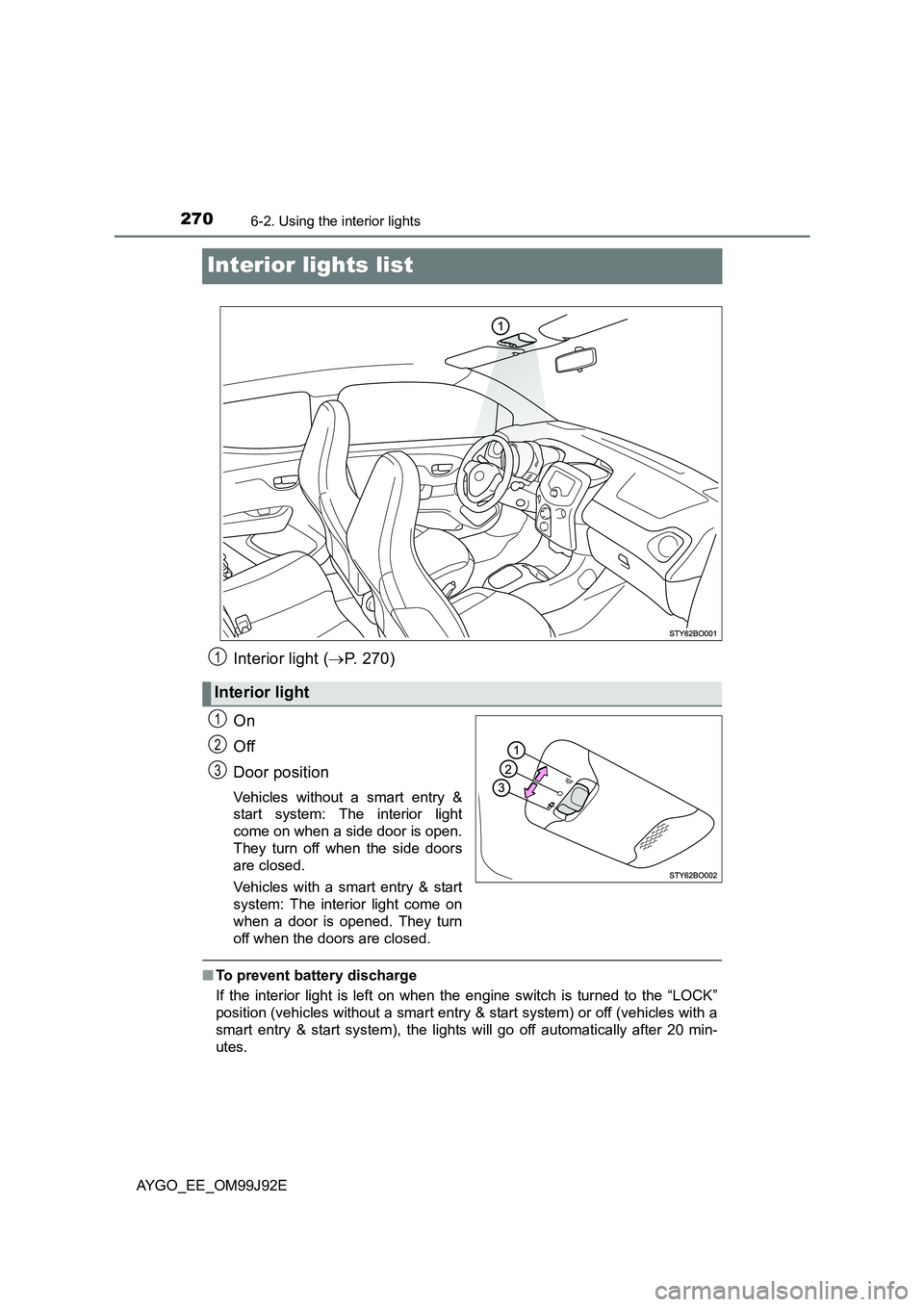

2706-2. Using the interior lights
AYGO_EE_OM99J92E
Interior lights list
Interior light (→P. 270)
On
Off
Door position
Vehicles without a smart entry &
start system: The interior light
come on when a side door is open.
They turn off when the side doors
are closed.
Vehicles with a smart entry & start
system: The interior light come on
when a door is opened. They turn
off when the doors are closed.
■ To prevent battery discharge
If the interior light is left on when the engine switch is turned to the “LOCK”
position (vehicles without a smart entry & start system) or off (vehicles with a
smart entry & start system), the lights will go off automatically after 20 min-
utes.
Interior light
1
1
2
3
