2716-3. Using the storage features
6
Interior features
AYGO_EE_OM99J92E

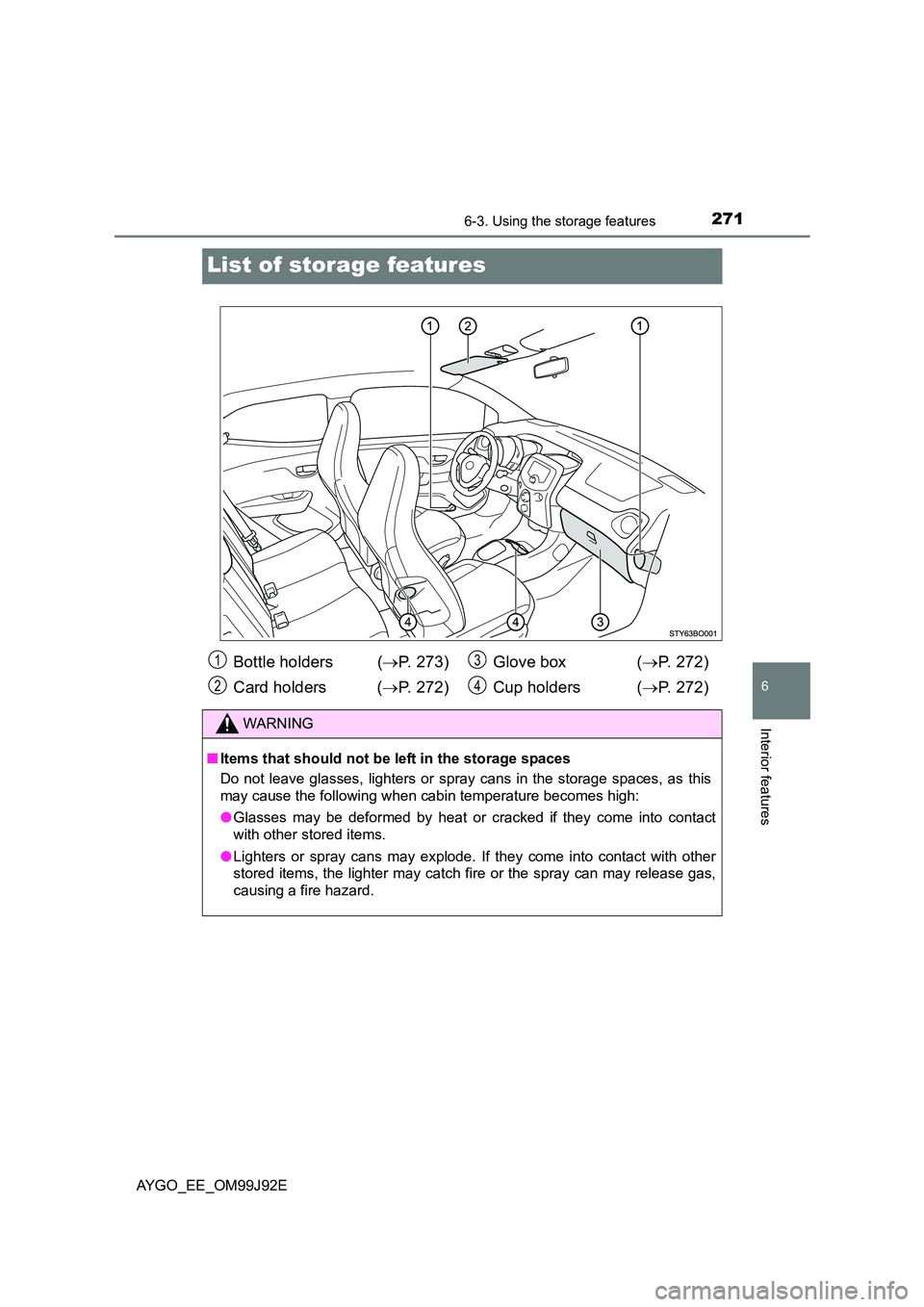

List of storage features
Bottle holders (→P. 273)
Card holders ( →P. 272)
Glove box ( →P. 272)
Cup holders ( →P. 272)
WARNING
■ Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
1
2
3
4

2726-3. Using the storage features
AYGO_EE_OM99J92E

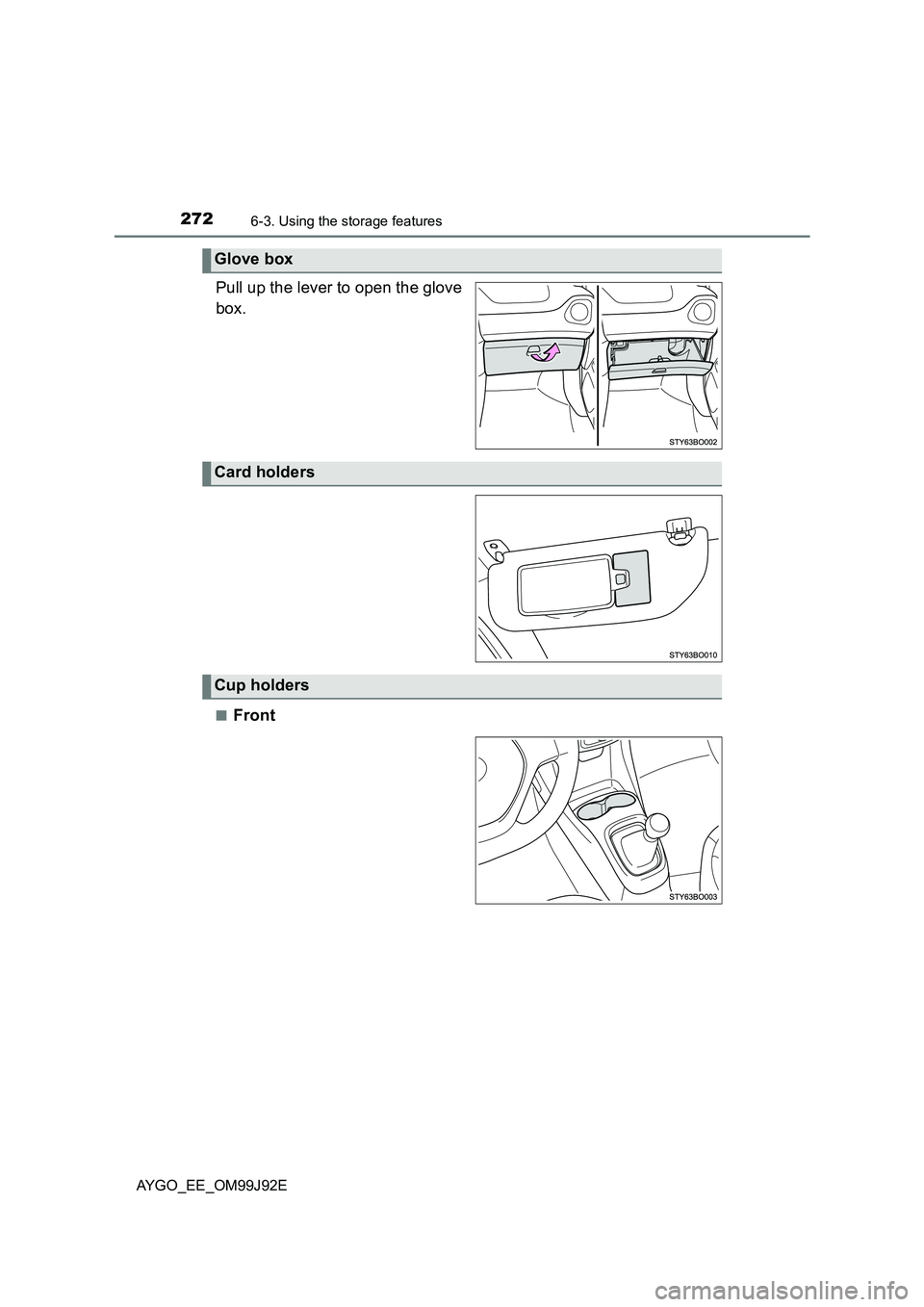

Pull up the lever to open the glove
box.
■Front
Glove box
Card holders
Cup holders

2736-3. Using the storage features
6
Interior features
AYGO_EE_OM99J92E

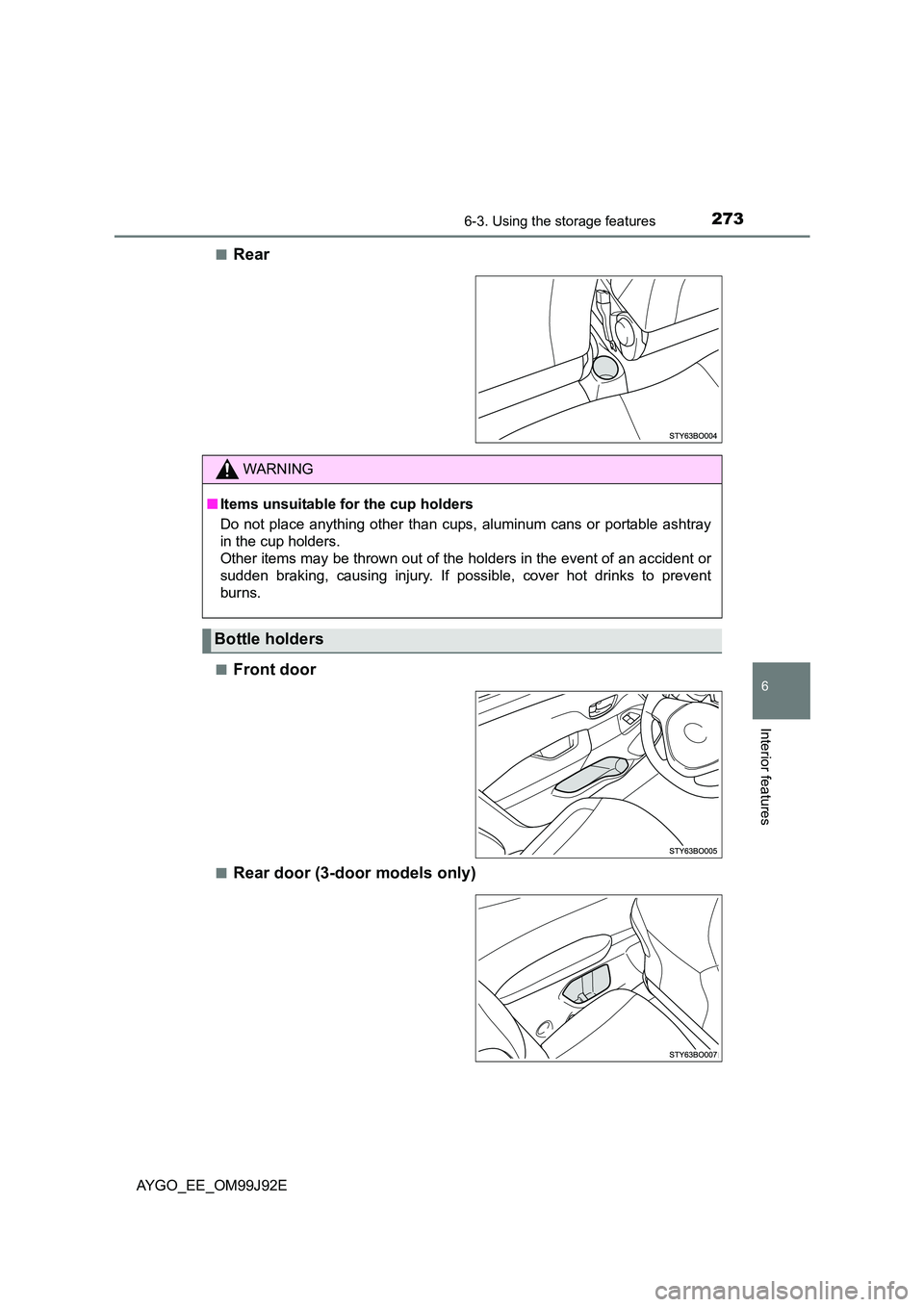

■Rear
■Front door
■Rear door (3-door models only)
WARNING
■ Items unsuitable for the cup holders
Do not place anything other than cups, aluminum cans or portable ashtray
in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.
Bottle holders

2746-3. Using the storage features
AYGO_EE_OM99J92E

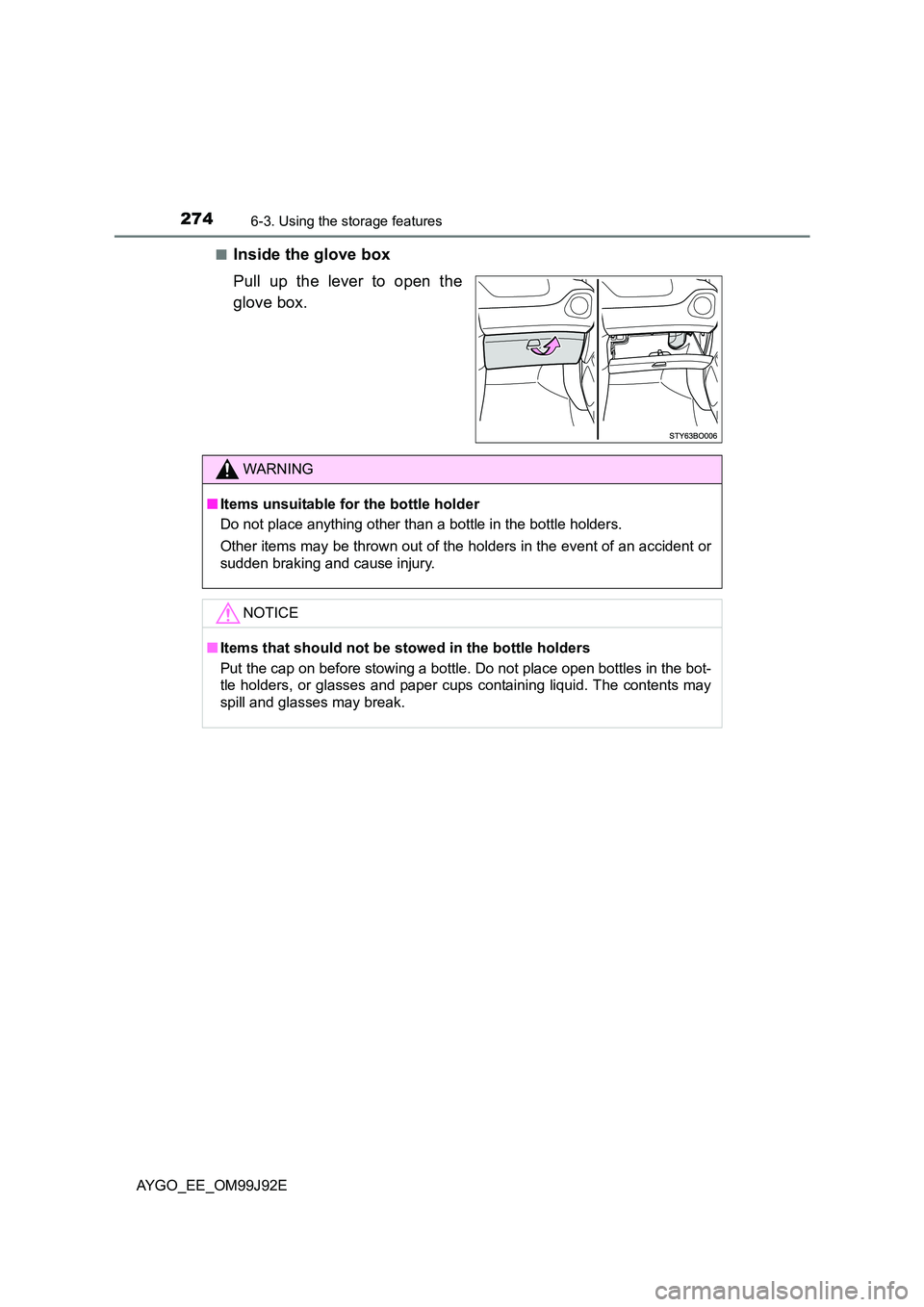

■Inside the glove box
Pull up the lever to open the
glove box.
WARNING
■ Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
■ Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.

2756-3. Using the storage features
6
Interior features
AYGO_EE_OM99J92E

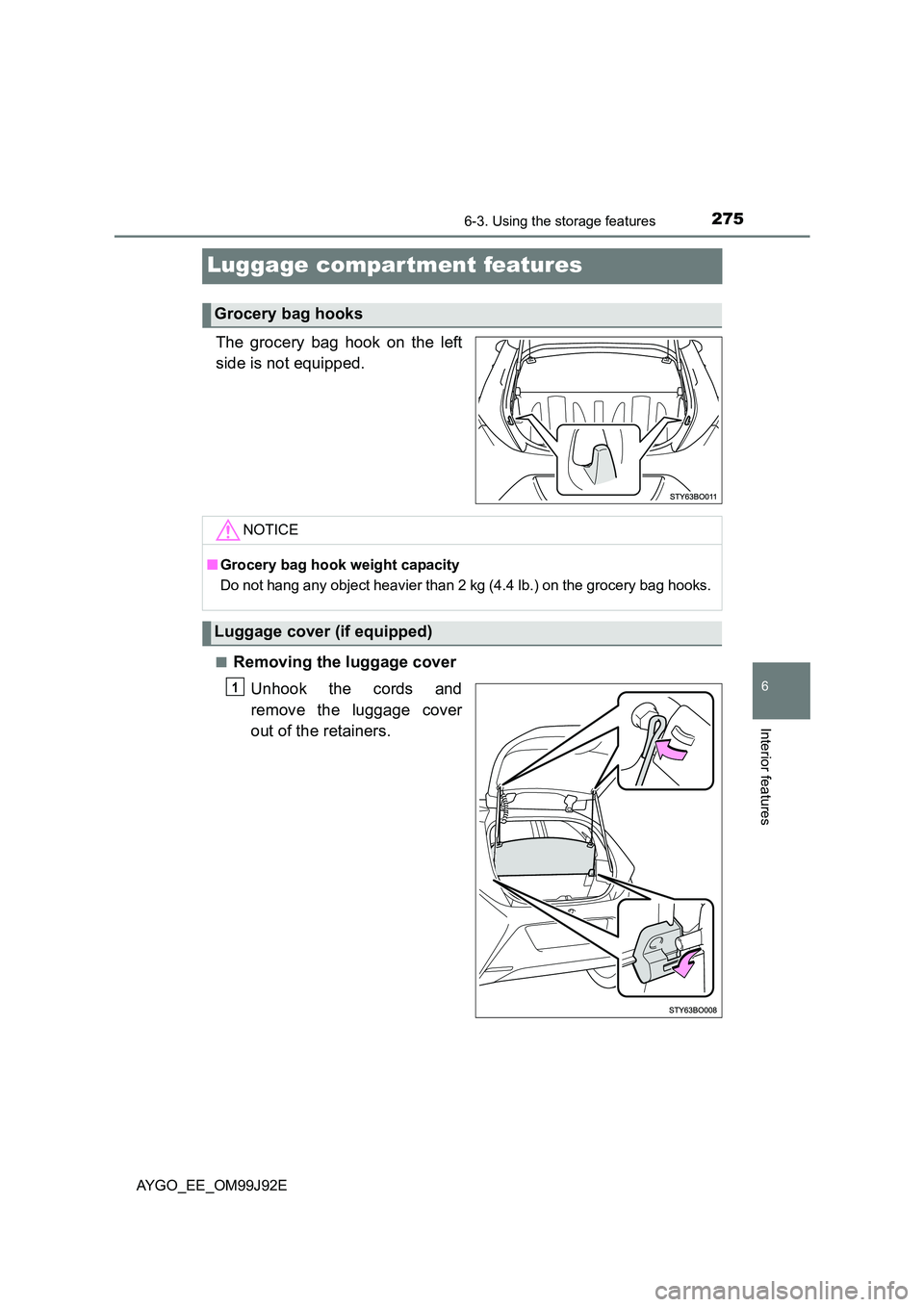

Luggage compartment features
The grocery bag hook on the left
side is not equipped.
■Removing the luggage cover
Unhook the cords and
remove the luggage cover
out of the retainers.
Grocery bag hooks
NOTICE
■ Grocery bag hook weight capacity
Do not hang any object heavier than 2 kg (4.4 lb.) on the grocery bag hooks.
Luggage cover (if equipped)
1

2766-3. Using the storage features
AYGO_EE_OM99J92E

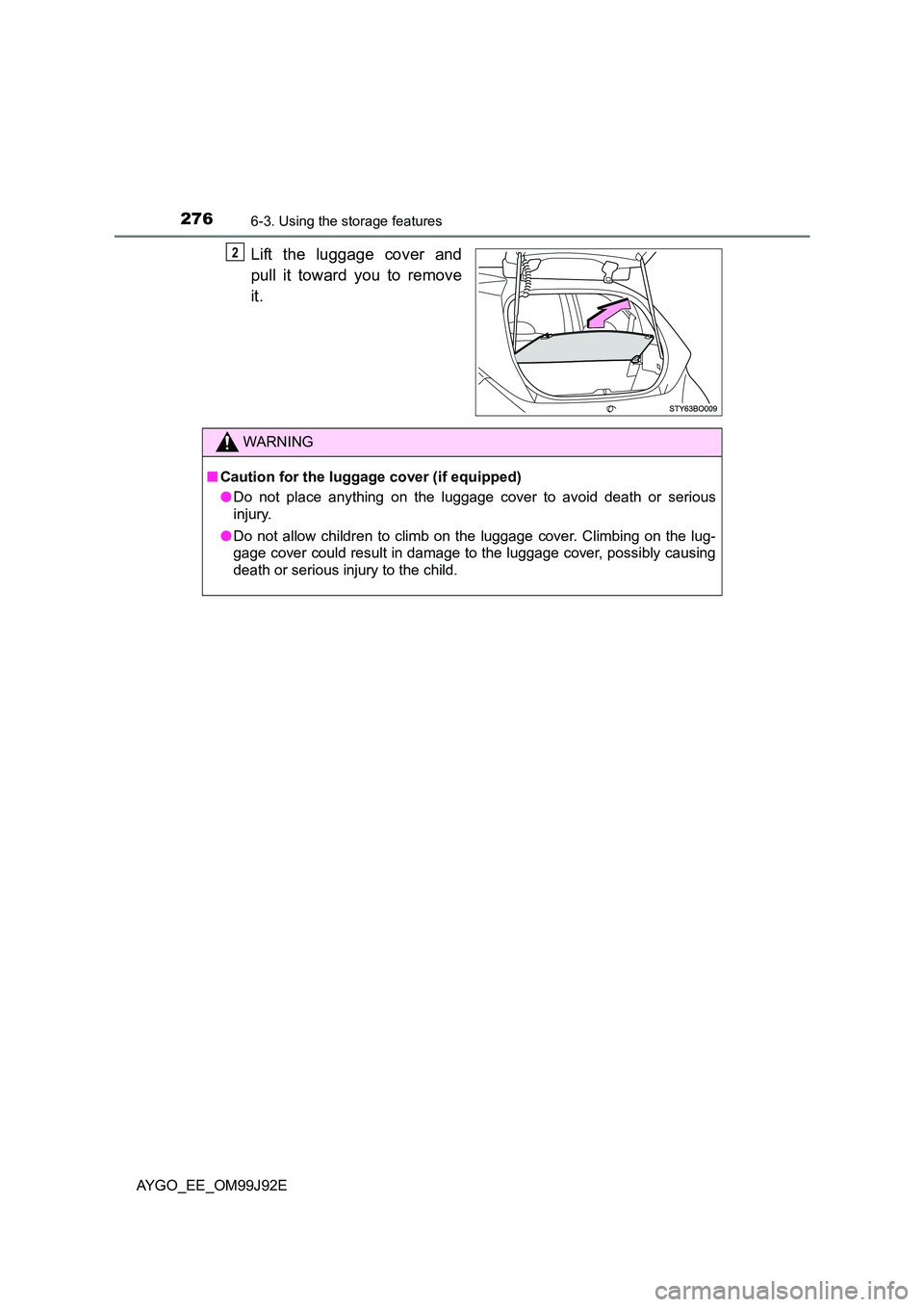

Lift the luggage cover and
pull it toward you to remove
it.
2
WARNING
■ Caution for the luggage cover (if equipped)
● Do not place anything on the luggage cover to avoid death or serious
injury.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.

277
6
6-4. Other interior features
Interior features
AYGO_EE_OM99J92E

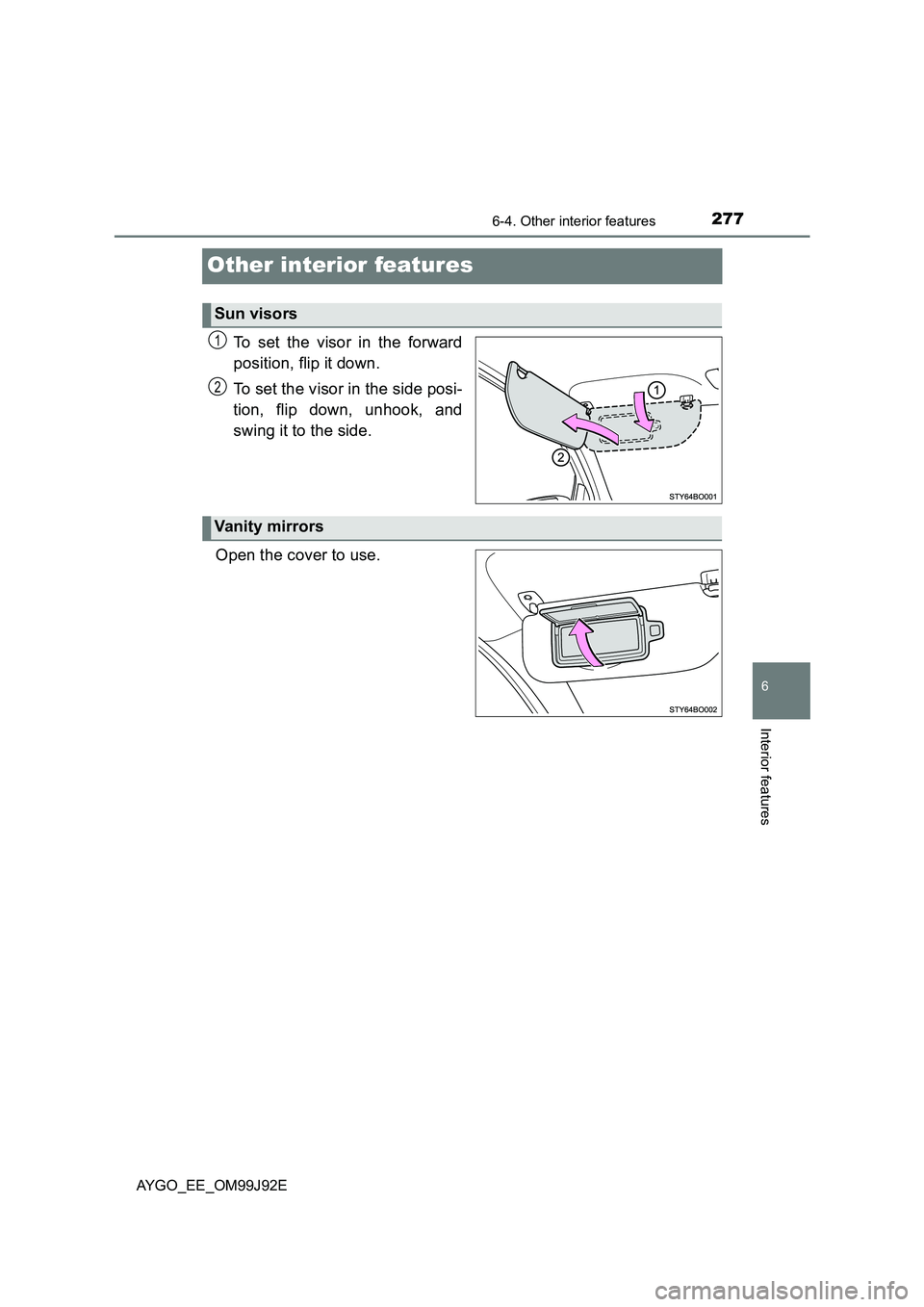

Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Open the cover to use.
Sun visors
1
2
Vanity mirrors

2786-4. Other interior features
AYGO_EE_OM99J92E
XVehicles with a multimedia system
Refer to the “Multimedia owner’s manual”.
XVehicles without a multimedia system
“MENU” knob
“Back” button
Display can be returned to the
previous screen, by pressing the
“Back” button.
■Adjusting the clock
Press the “MENU” knob when the vehicle is stopped.
Select “Clock” on the menu
screen.
Turn the “MENU” knob to adjust the hours.
After adjusting the hours, press the “MENU” knob to input the hours.
Turn the “MENU” knob to adjust the minutes.
After adjusting the minutes, press the “MENU” knob to input the min-
utes.
■ The clock is displayed when
XVehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
XVehicles with a smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
■ When disconnecting and reconnecting battery terminals
The clock data will be reset.
Clock (if equipped)
1
2
1
2
3
4

2796-4. Other interior features
6
Interior features
AYGO_EE_OM99J92E
The temperature display shows temperature within the range of -40°C
(-40°F) to 50°C (122°F).
■ The outside temperature is displayed when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
● When stopped, or driving at low speeds (approximately 25 km/h [16 mph] or
less)
● When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
● When the time the vehicle runs is very short (approximately 2 minutes or
less)
■ When “– –” is displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.
■ When the outside temperature is low
When the outside temperature becomes 3°C (37°F) or lower, the temperature
reading flashes 10 times to warn the driver that roads may be icy.
Type B only: The display automatically switches over to the outside tempera-
ture display. After flashing 10 times or one of the “DISP” buttons is pushing,
the display will return to the previous display.
Outside temperature display
XTy pe AXType B

2806-4. Other interior features
AYGO_EE_OM99J92E

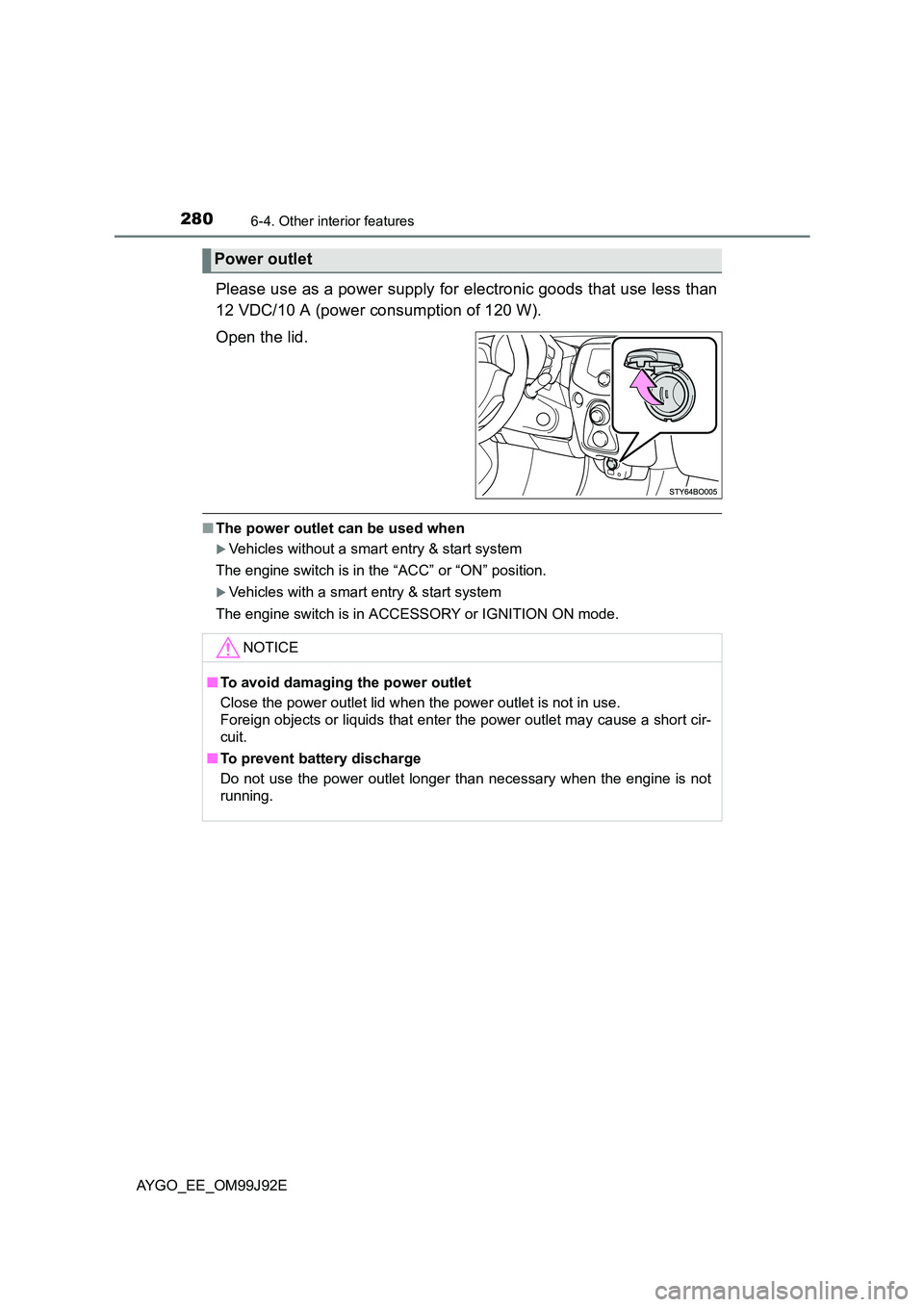

Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
Open the lid.
■ The power outlet can be used when
XVehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
XVehicles with a smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
Power outlet
NOTICE
■ To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.
