2315-5. Using Bluetooth® devices
5
Audio system
AYGO_EE_OM99J92E

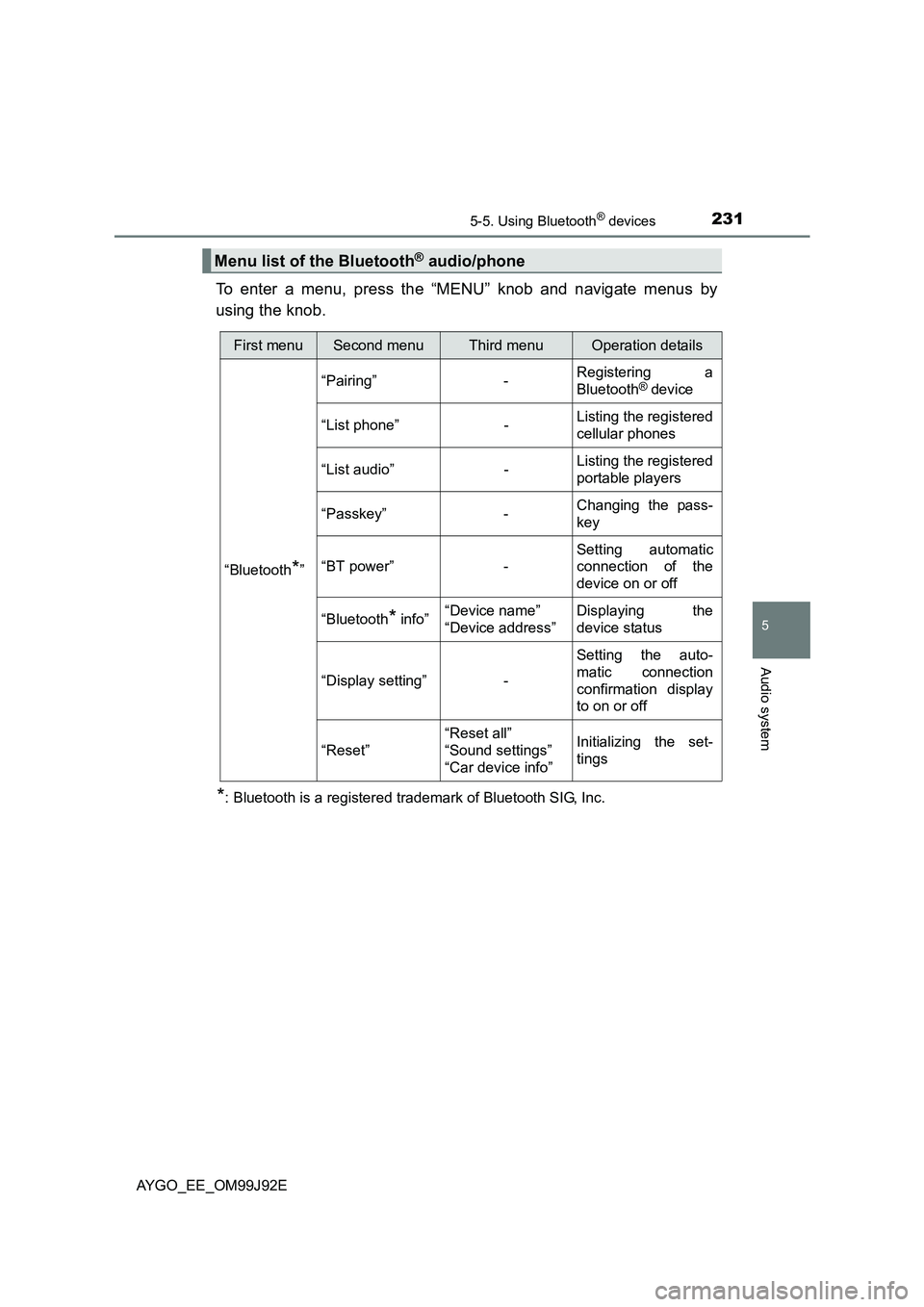

To enter a menu, press the “MENU” knob and navigate menus by
using the knob.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation details
“Bluetooth*”
“Pairing” - Registering a
Bluetooth® device
“List phone” - Listing the registered
cellular phones
“List audio” - Listing the registered
portable players
“Passkey” - Changing the pass-
key
“BT power” -
Setting automatic
connection of the
device on or off
“Bluetooth* info” “Device name”
“Device address”
Displaying the
device status
“Display setting” -
Setting the auto-
matic connection
confirmation display
to on or off
“Reset”
“Reset all”
“Sound settings”
“Car device info”
Initializing the set-
tings

2325-5. Using Bluetooth® devices
AYGO_EE_OM99J92E

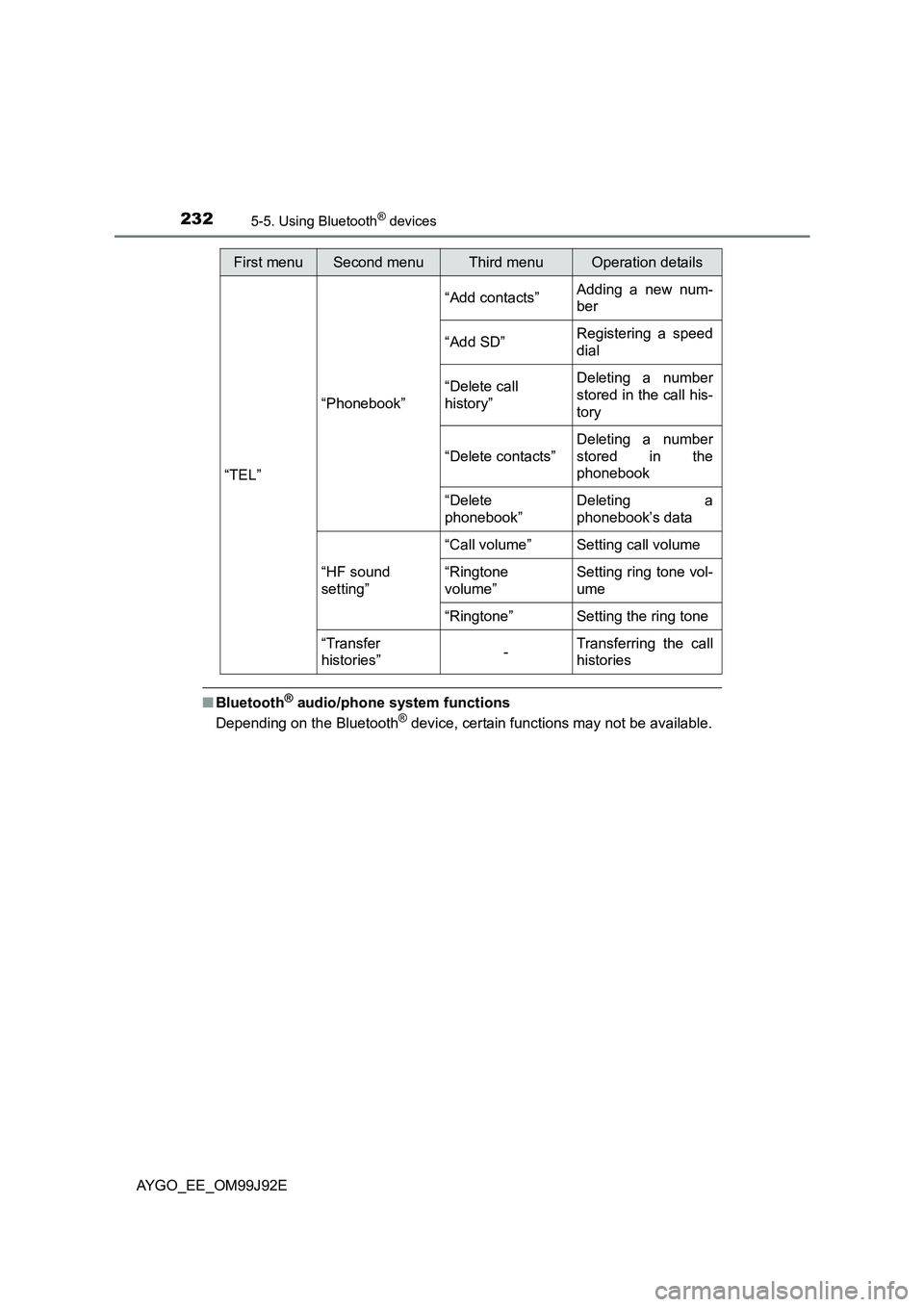

■Bluetooth® audio/phone system functions
Depending on the Bluetooth® device, certain functions may not be available.
First menuSecond menuThird menuOperation details
“TEL”
“Phonebook”
“Add contacts” Adding a new num-
ber
“Add SD” Registering a speed
dial
“Delete call
history”
Deleting a number
stored in the call his-
tory
“Delete contacts”
Deleting a number
stored in the
phonebook
“Delete
phonebook”
Deleting a
phonebook’s data
“HF sound
setting”
“Call volume” Setting call volume
“Ringtone
volume”
Setting ring tone vol-
ume
“Ringtone” Setting the ring tone
“Transfer
histories” - Transferring the call
histories

233
5
5-5. Using Bluetooth® devices
Audio system
AYGO_EE_OM99J92E

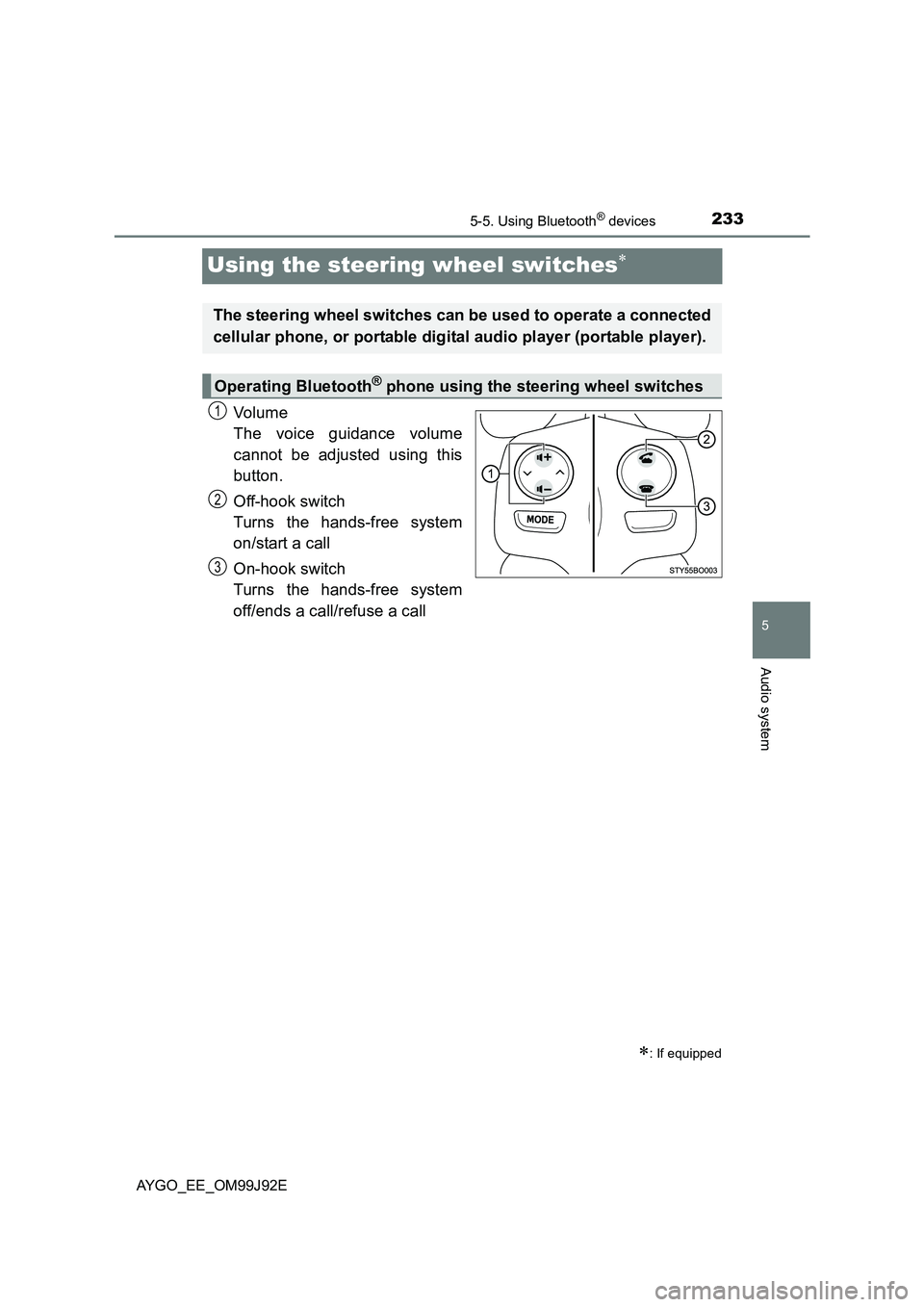

Using the steering wheel switches∗
Vo lu m e
The voice guidance volume
cannot be adjusted using this
button.
Off-hook switch
Turns the hands-free system
on/start a call
On-hook switch
Turns the hands-free system
off/ends a call/refuse a call
∗: If equipped
The steering wheel switches can be used to operate a connected
cellular phone, or portable digital audio player (portable player).
Operating Bluetooth® phone using the steering wheel switches
1
2
3

2345-5. Using Bluetooth® devices
AYGO_EE_OM99J92E

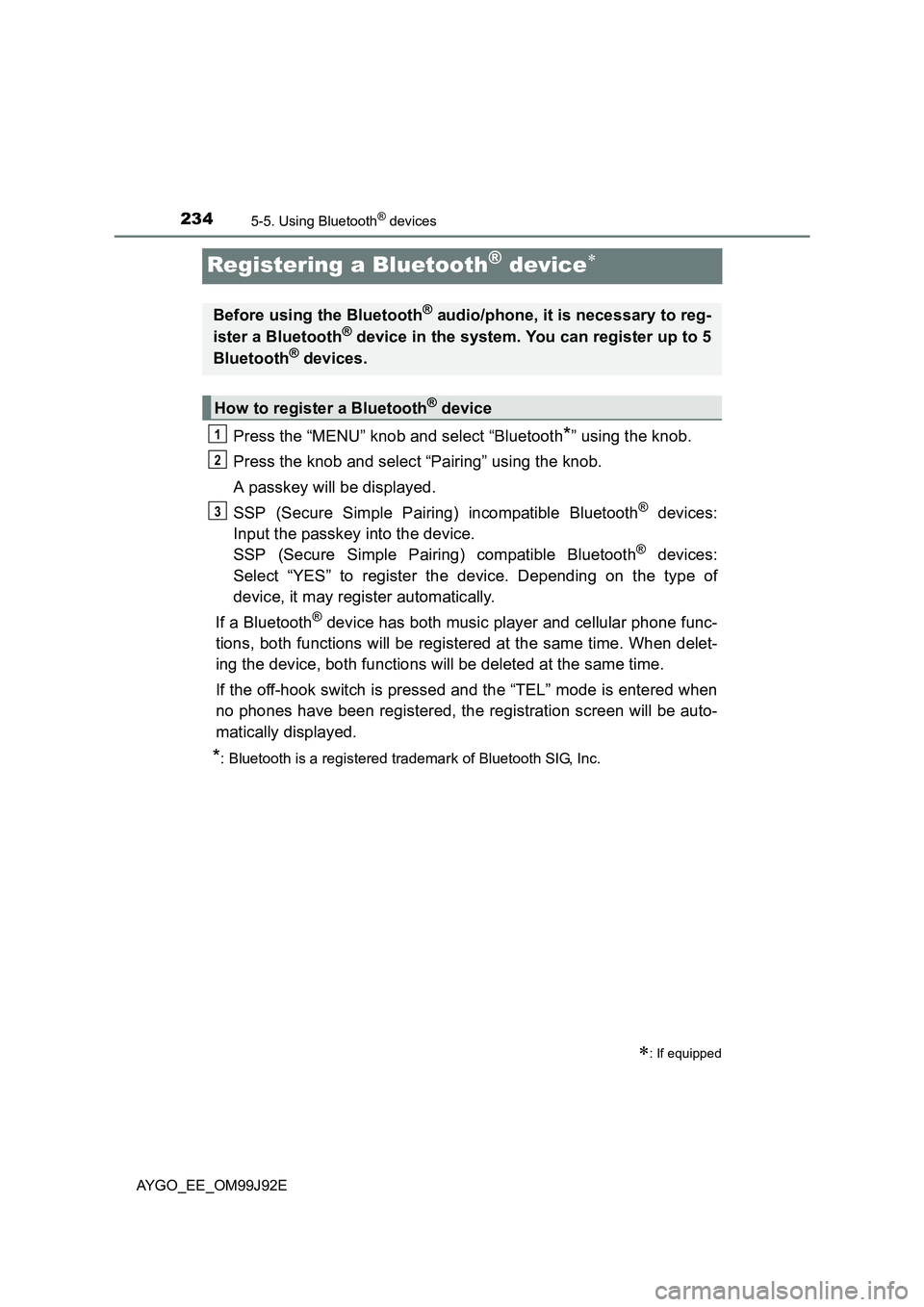

Registering a Bluetooth® device∗
Press the “MENU” knob and select “Bluetooth*” using the knob.
Press the knob and select “Pairing” using the knob.
A passkey will be displayed.
SSP (Secure Simple Pairing) incompatible Bluetooth® devices:
Input the passkey into the device.
SSP (Secure Simple Pairing) compatible Bluetooth® devices:
Select “YES” to register the device. Depending on the type of
device, it may register automatically.
If a Bluetooth® device has both music player and cellular phone func-
tions, both functions will be registered at the same time. When delet-
ing the device, both functions will be deleted at the same time.
If the off-hook switch is pressed and the “TEL” mode is entered when
no phones have been registered, the registration screen will be auto-
matically displayed.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
∗: If equipped
Before using the Bluetooth® audio/phone, it is necessary to reg-
ister a Bluetooth® device in the system. You can register up to 5
Bluetooth® devices.
How to register a Bluetooth® device
1
2
3

235
5

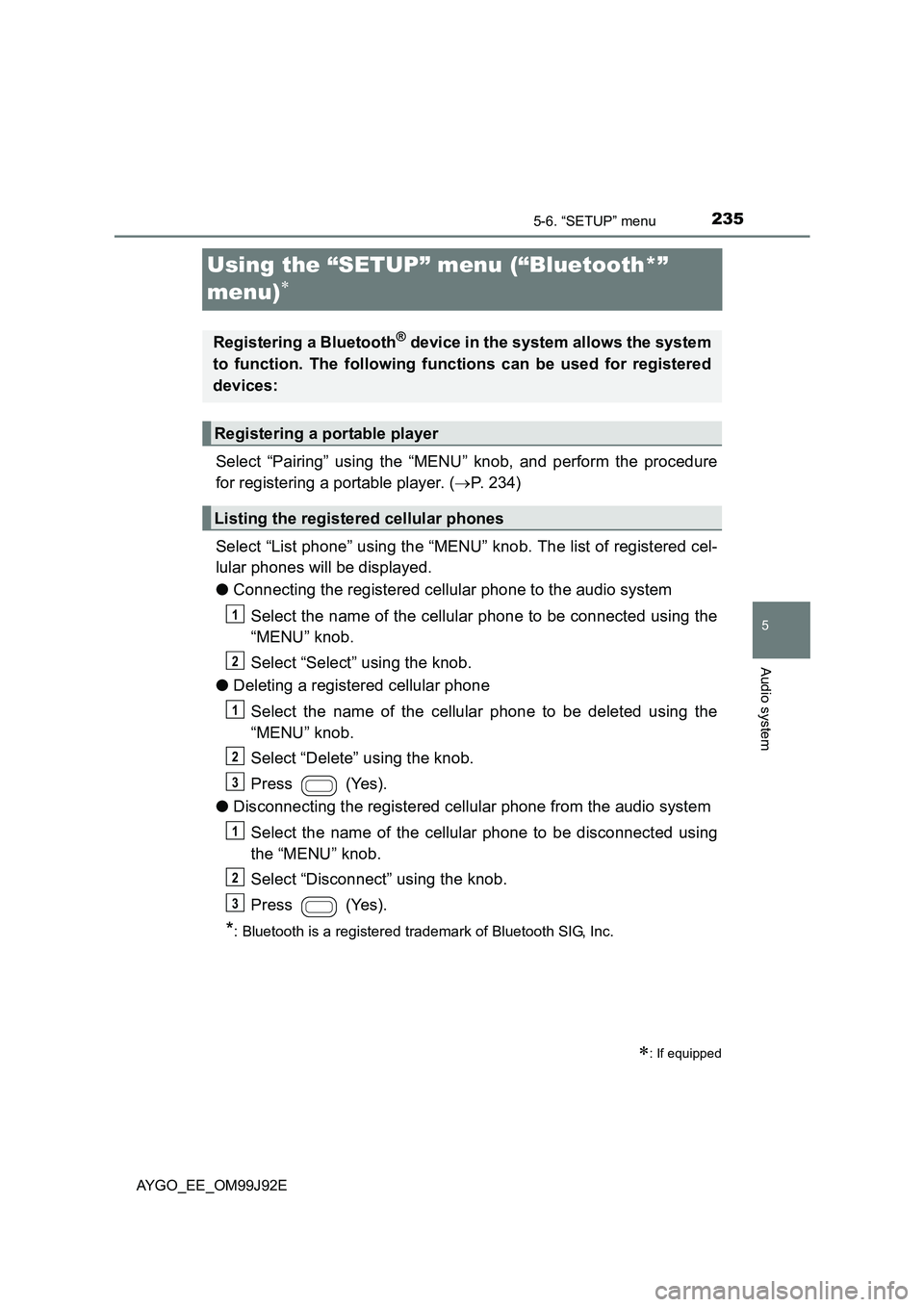

5-6. “SETUP” menu
Audio system
AYGO_EE_OM99J92E
Using the “SETUP” menu (“Bluetooth*”
menu)∗
Select “Pairing” using the “MENU” knob, and perform the procedure
for registering a portable player. ( →P. 234)
Select “List phone” using the “MENU” knob. The list of registered cel-
lular phones will be displayed.
● Connecting the registered cellular phone to the audio system
Select the name of the cellular phone to be connected using the
“MENU” knob.
Select “Select” using the knob.
● Deleting a registered cellular phone
Select the name of the cellular phone to be deleted using the
“MENU” knob.
Select “Delete” using the knob.
Press (Yes).
● Disconnecting the registered cellular phone from the audio system
Select the name of the cellular phone to be disconnected using
the “MENU” knob.
Select “Disconnect” using the knob.
Press (Yes).
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
∗: If equipped
Registering a Bluetooth® device in the system allows the system
to function. The following functions can be used for registered
devices:
Registering a portable player
Listing the registered cellular phones
1
2
1
2
3
1
2
3

2365-6. “SETUP” menu
AYGO_EE_OM99J92E

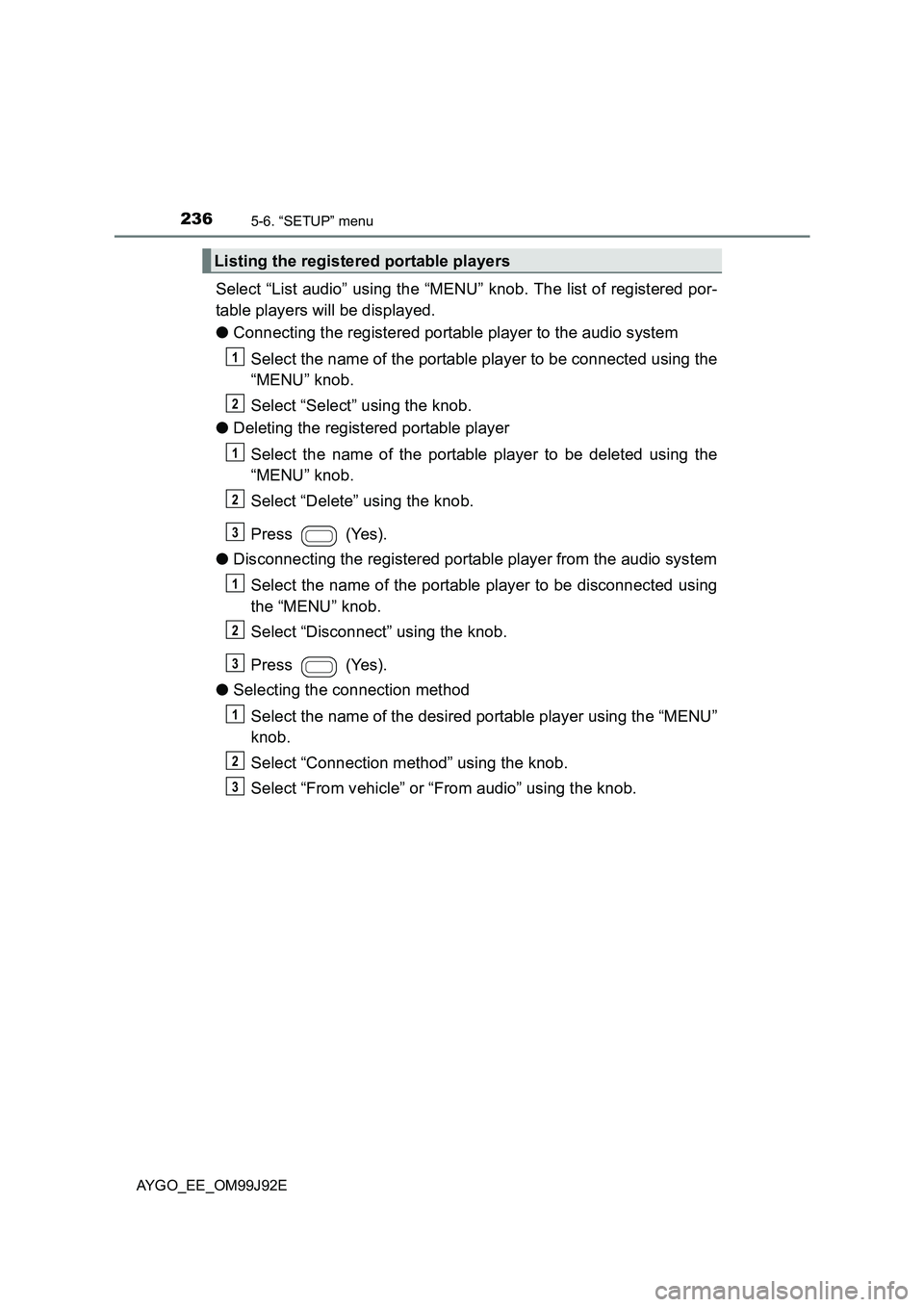

Select “List audio” using the “MENU” knob. The list of registered por-
table players will be displayed.
●Connecting the registered portable player to the audio system
Select the name of the portable player to be connected using the
“MENU” knob.
Select “Select” using the knob.
●Deleting the registered portable player
Select the name of the portable player to be deleted using the
“MENU” knob.
Select “Delete” using the knob.
Press (Yes).
●Disconnecting the registered portable player from the audio system
Select the name of the portable player to be disconnected using
the “MENU” knob.
Select “Disconnect” using the knob.
Press (Yes).
●Selecting the connection method
Select the name of the desired portable player using the “MENU”
knob.
Select “Connection method” using the knob.
Select “From vehicle” or “From audio” using the knob.
Listing the registered portable players
1
2
1
2
3
1
2
3
1
2
3

2375-6. “SETUP” menu
5
Audio system
AYGO_EE_OM99J92E

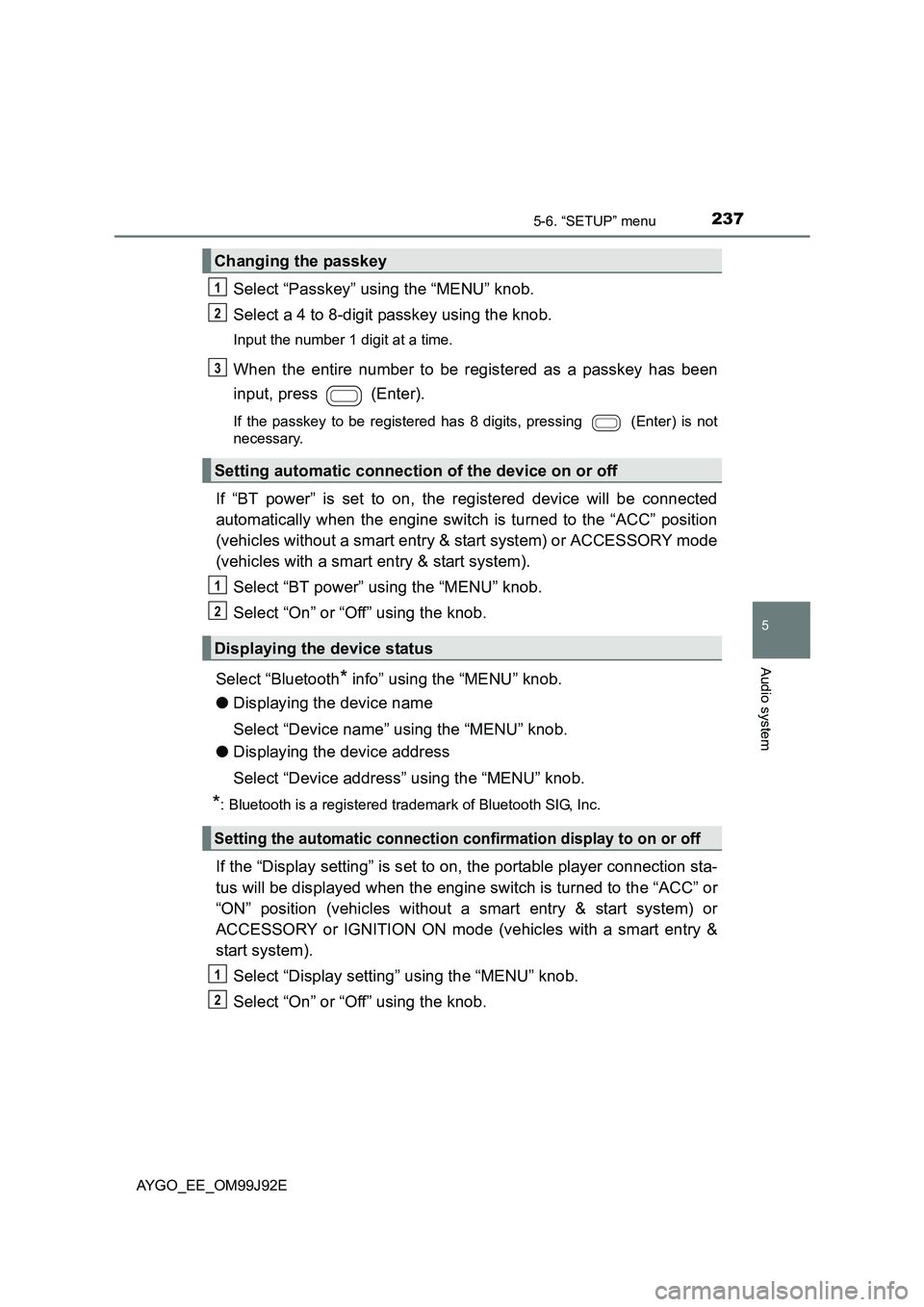

Select “Passkey” using the “MENU” knob.
Select a 4 to 8-digit passkey using the knob.
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press (Enter).
If the passkey to be registered has 8 digits, pressing (Enter) is not
necessary.
If “BT power” is set to on, the registered device will be connected
automatically when the engine switch is turned to the “ACC” position
(vehicles without a smart entry & start system) or ACCESSORY mode
(vehicles with a smart entry & start system).
Select “BT power” using the “MENU” knob.
Select “On” or “Off” using the knob.
Select “Bluetooth* info” using the “MENU” knob.
● Displaying the device name
Select “Device name” using the “MENU” knob.
● Displaying the device address
Select “Device address” using the “MENU” knob.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the engine switch is turned to the “ACC” or
“ON” position (vehicles without a smart entry & start system) or
ACCESSORY or IGNITION ON mode (vehicles with a smart entry &
start system).
Select “Display setting” using the “MENU” knob.
Select “On” or “Off” using the knob.
Changing the passkey
Setting automatic connection of the device on or off
Displaying the device status
Setting the automatic connection confirmation display to on or off
1
2
3
1
2
1
2

2385-6. “SETUP” menu
AYGO_EE_OM99J92E

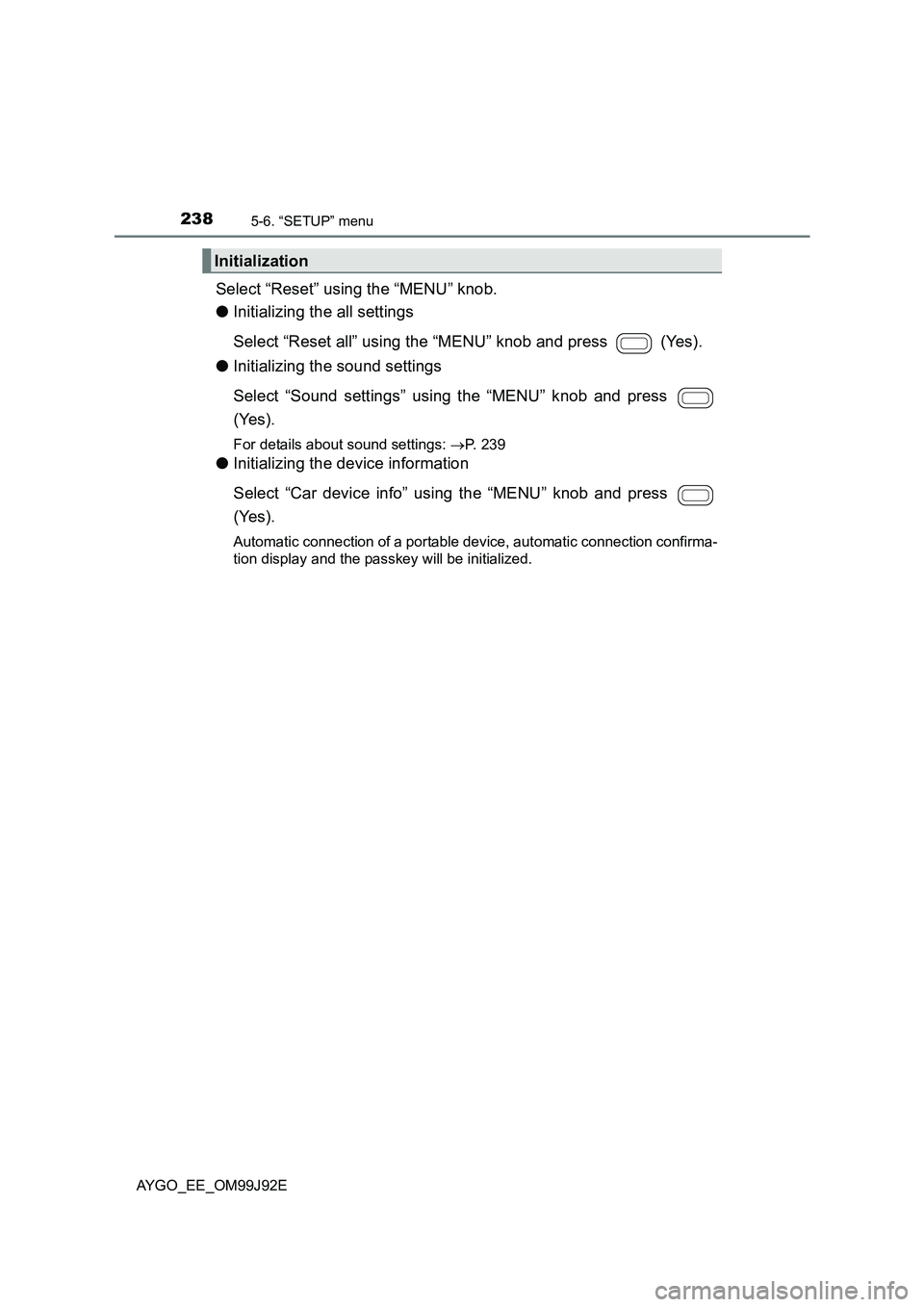

Select “Reset” using the “MENU” knob.
● Initializing the all settings
Select “Reset all” using the “MENU” knob and press (Yes).
● Initializing the sound settings
Select “Sound settings” using the “MENU” knob and press
(Yes).
For details about sound settings: →P. 239
●Initializing the device information
Select “Car device info” using the “MENU” knob and press
(Yes).
Automatic connection of a portable device, automatic connection confirma-
tion display and the passkey will be initialized.
Initialization

239
5

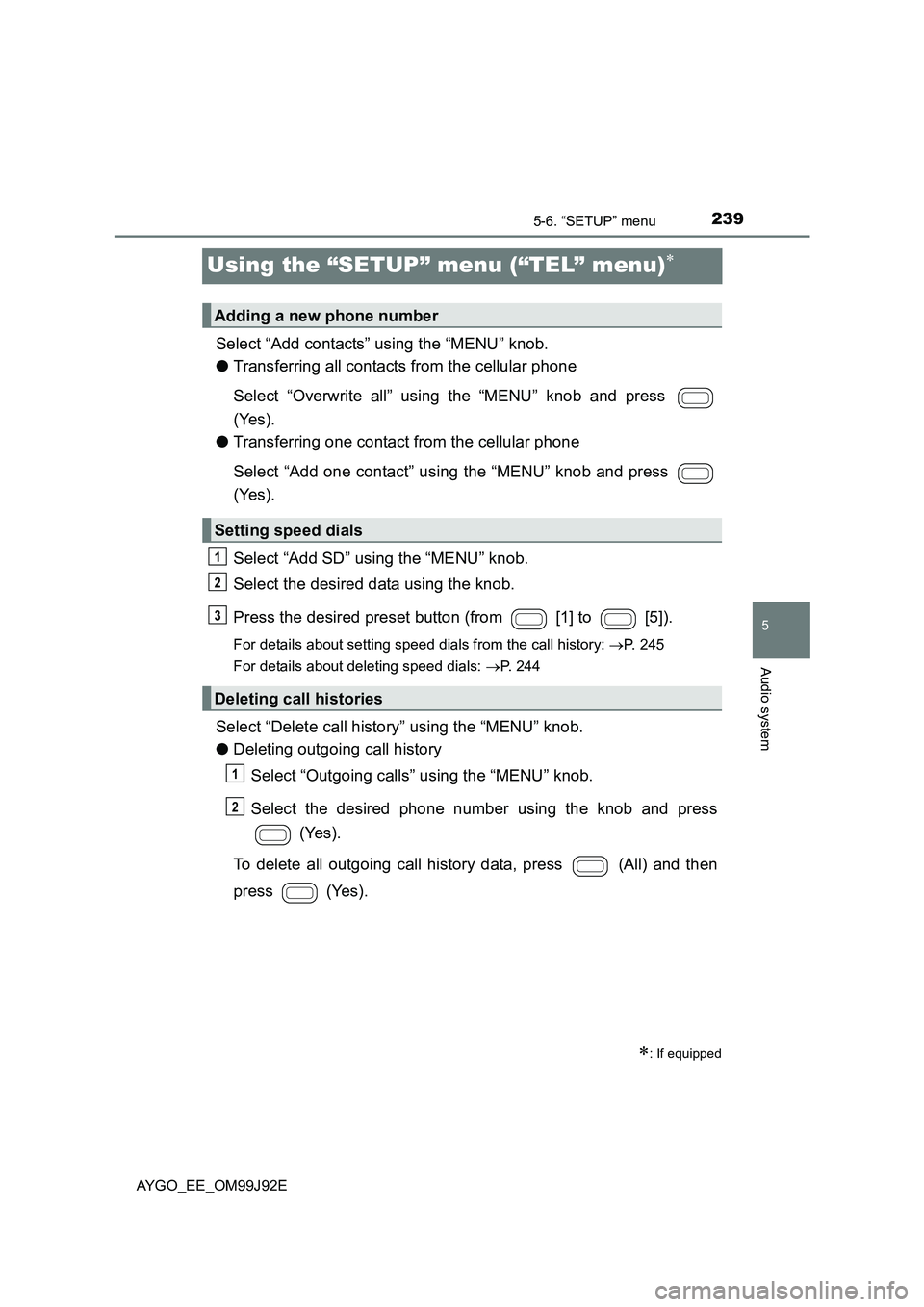

5-6. “SETUP” menu
Audio system
AYGO_EE_OM99J92E
Using the “SETUP” menu (“TEL” menu)∗
Select “Add contacts” using the “MENU” knob.
● Transferring all contacts from the cellular phone
Select “Overwrite all” using the “MENU” knob and press
(Yes).
● Transferring one contact from the cellular phone
Select “Add one contact” using the “MENU” knob and press
(Yes).
Select “Add SD” using the “MENU” knob.
Select the desired data using the knob.
Press the desired preset button (from [1] to [5]).
For details about setting speed dials from the call history: →P. 245
For details about deleting speed dials: →P. 244
Select “Delete call history” using the “MENU” knob.
● Deleting outgoing call history
Select “Outgoing calls” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all outgoing call history data, press (All) and then
press (Yes).
∗: If equipped
Adding a new phone number
Setting speed dials
Deleting call histories
1
2
3
1
2

2405-6. “SETUP” menu
AYGO_EE_OM99J92E

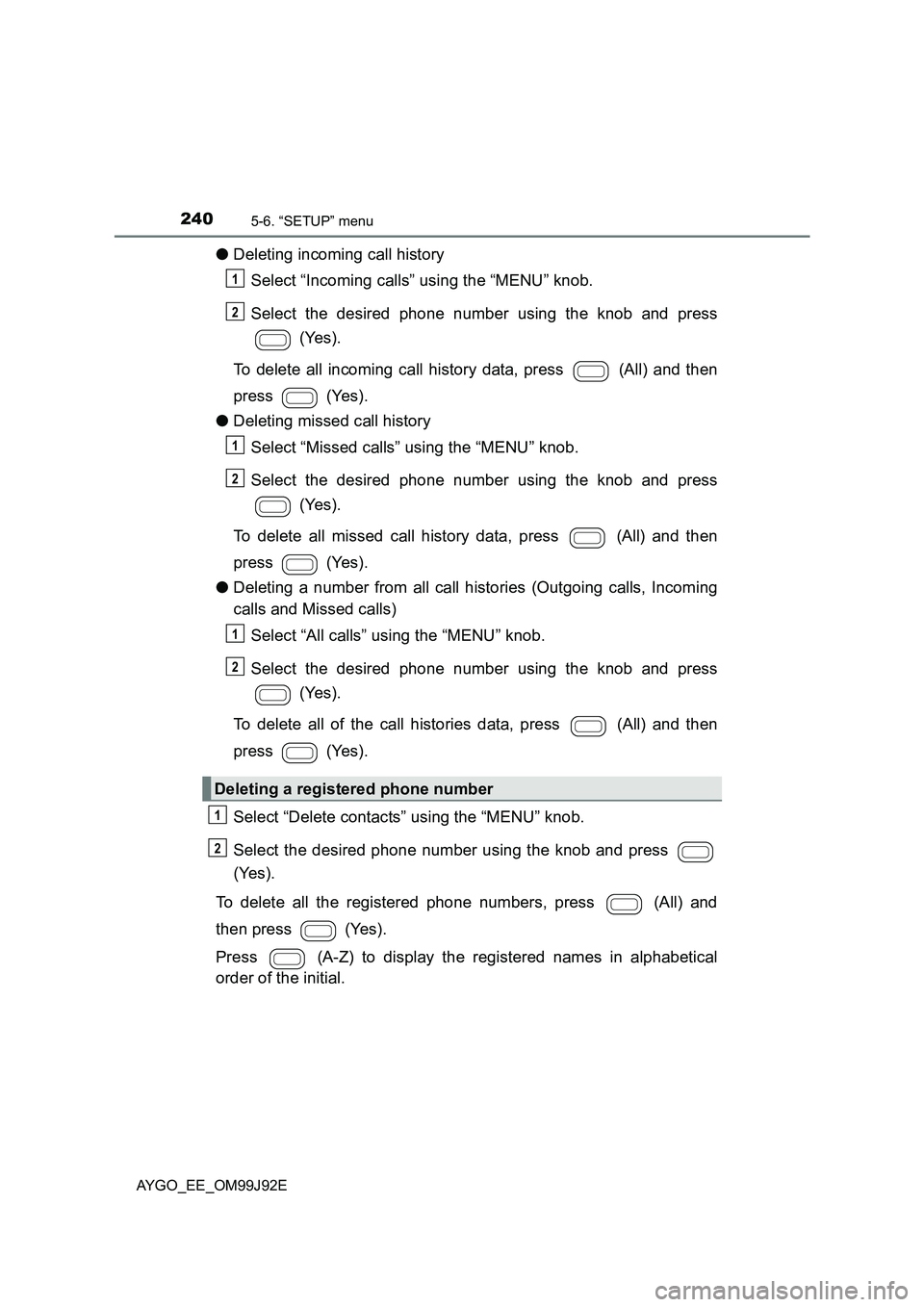

●Deleting incoming call history
Select “Incoming calls” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all incoming call history data, press (All) and then
press (Yes).
● Deleting missed call history
Select “Missed calls” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all missed call history data, press (All) and then
press (Yes).
● Deleting a number from all call histories (Outgoing calls, Incoming
calls and Missed calls)
Select “All calls” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all of the call histories data, press (All) and then
press (Yes).
Select “Delete contacts” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all the registered phone numbers, press (All) and
then press (Yes).
Press (A-Z) to display the registered names in alphabetical
order of the initial.
Deleting a registered phone number
1
2
1
2
1
2
1
2
