TOYOTA AYGO 2021 Owners Manual

1092. Instrument cluster
2
Instrument cluster
AYGO_OM_Europe_OM9A012E

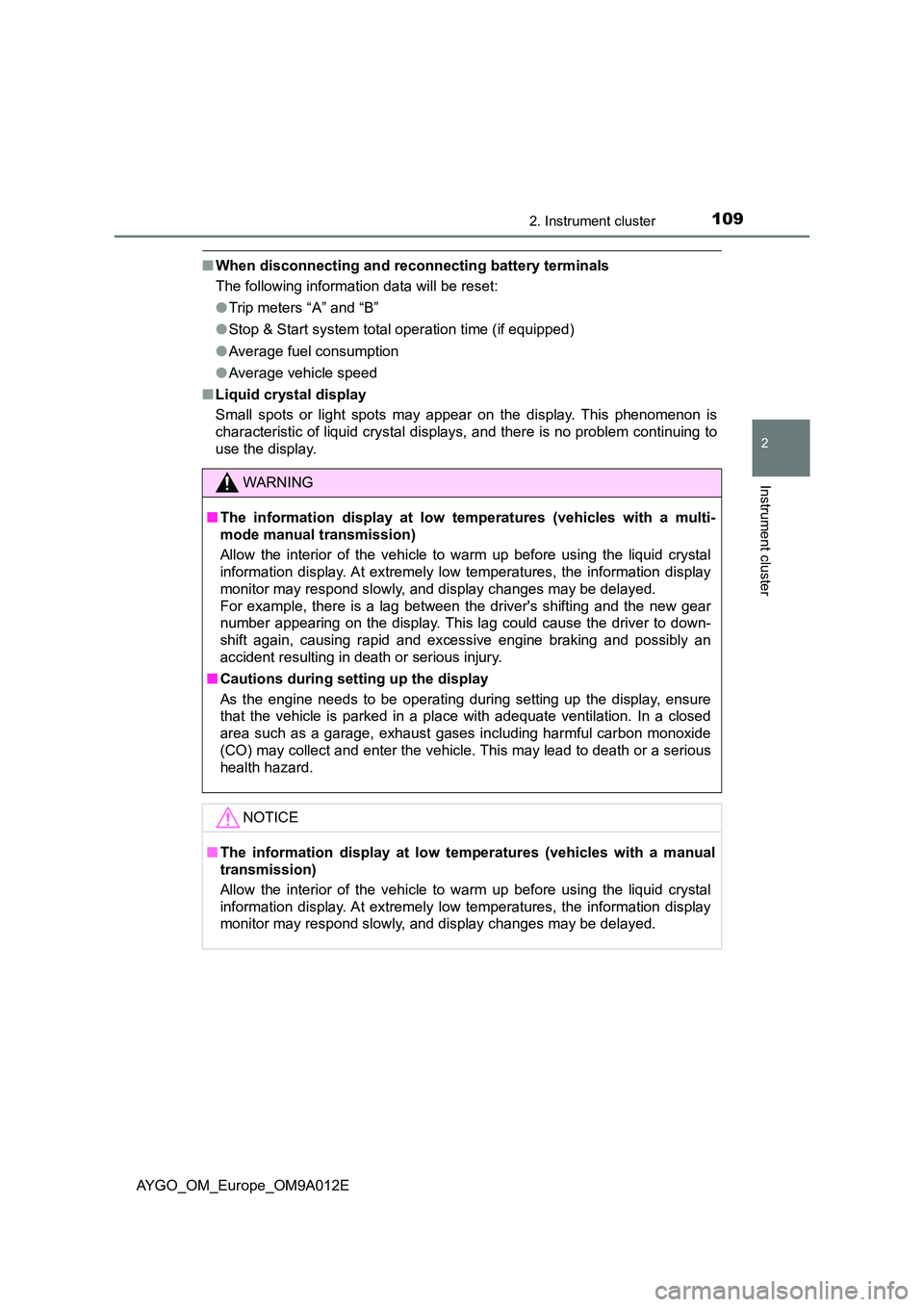

■When disconnecting and reconnecting battery terminals
The following information data will be reset:
● Trip meters “A” and “B”
● Stop & Start system total operation time (if equipped)
● Average fuel consumption
● Average vehicle speed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
WARNING
■ The information display at low temperatures (vehicles with a multi-
mode manual transmission)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver's shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and exce ssive engine braking and possibly an
accident resulting in death or serious injury.
■ Cautions during setting up the display
As the engine needs to be operating during setting up the display, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ The information display at low temperatures (vehicles with a manual
transmission)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

1102. Instrument cluster
AYGO_OM_Europe_OM9A012E

111
3
Operation of
each component
AYGO_OM_Europe_OM9A012E3-1. Key information
Keys ................................... 112
3-2. Opening, closing and
locking the doors
Side doors.......................... 132
Back door........................... 137
Smart entry & start
system ............................. 143
3-3. Adjusting the seats
Front seats ......................... 183
Rear seats ......................... 185
Head restraints .................. 187
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 189
Inside rear view mirror ....... 191
Outside rear view
mirrors ............................. 192
3-5. Opening, closing
the windows and
canvas top
Power windows .................. 194
Rear side windows
(5-door models) ............... 195
Canvas top......................... 197

1123-1. Key information
AYGO_OM_Europe_OM9A012E
Keys
The following keys are provided with the vehicle.
Ty pe A
Keys
Key number plate
Ty pe B
Key (with wireless remote con-
trol function)
Operating the wireless remote con-
trol function
Key (without wireless remote
control function)
Key number plate
Ty pe C
Electronic keys
• Operating the smart entry &
start system (P. 143)
• Operating the wireless remote
control function
Mechanical keys
Key number plate
The keys
1
2
1
2
3
1
2
3

1133-1. Key information
3
Operation of each component
AYGO_OM_Europe_OM9A012E
Ty pe B
Lock the doors (P. 132, 137)
Unlock the doors
(P. 132, 137)
Ty pe C
Lock the doors (P. 132, 137)
Unlock the doors
(P. 132, 137)
Press the button to open the key.
To stow, press the button then fold
the key.
Wireless remote control (if equipped)
1
2
1
2
Using the wireless remote control key (type B)

1143-1. Key information
AYGO_OM_Europe_OM9A012E
To take out the mechanical key,
slide the release knob and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(P. 497)
■If you lose your keys
New genuine keys can be made by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer using a key (type A or type B) or
the other key (type C) and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
■When riding in an aircraft (type B or type C)
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
■Key battery depletion
Type B
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 415)
Type C
P. 148
■Replacing the battery (type B or type C)
P. 415
■Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for details.
Using the mechanical key (type C)

1153-1. Key information
3
Operation of each component
AYGO_OM_Europe_OM9A012E■Certification for wireless remote control

1163-1. Key information
AYGO_OM_Europe_OM9A012E

1173-1. Key information
3
Operation of each component
AYGO_OM_Europe_OM9A012E

1183-1. Key information
AYGO_OM_Europe_OM9A012E
