9Vehicle specifications
AYGO_OM_Europe_OM9A012E9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 510
Fuel information ................. 521
9-2. Customization
Customizable features ....... 523
9-3. Items to initialize
Items to initialize ................ 524

5109-1. Specifications
AYGO_OM_Europe_OM9A012E
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles with raised vehicle height
Dimensions
Overall length3465 mm (136.4 in.)
Overall width1615 mm (63.6 in.)
Overall height*11460 mm (57.5 in.)
1480 mm (58.3 in.)
*2
Wheelbase2340 mm (92.1 in.)
TreadFront1425 mm (56.1 in.)
1420 mm (55.9 in.)
*2
Rear1420 mm (55.9 in.)
Gross vehicle mass1240 kg (2733 lb.)
Maximum permissible
axle capacityFront695 kg (1532 lb.)Rear

5119-1. Specifications
9
Vehicle specifications
AYGO_OM_Europe_OM9A012E
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped under the
right-hand front seat.
3-door models
This number is also on the manu-
facturer’s label on the right-hand
side center pillar.
5-door models
This number is also on the manu-
facturer’s label on the right-hand
side rear pillar.
Vehicle identification number

5129-1. Specifications
AYGO_OM_Europe_OM9A012E
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine
Model1KR-FE
Ty p e3-cylinder in line, 4-cycle, gasoline
Bore and stroke71.0  84.0 mm (2.79  3.30 in.)
Displacement998 cm3 (60.9 cu.in.)
Valve clearance
(engine cold)Intake: 0.145  0.235 mm (0.006  0.009 in.)
Exhaust: 0.275  0.365 mm (0.011  0.014 in.)
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane
number95 or higher
Fuel tank capacity
(Reference)35 L (9.2 gal., 7.7 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filter2.8 L (3.0 qt., 2.5 Imp.qt.)
Without filter2.6 L (2.7 qt., 2.3 Imp.qt.)

5139-1. Specifications
9
Vehicle specifications
AYGO_OM_Europe_OM9A012E■
Engine oil selection
Gasoline Engine —
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserving” or SN PLUS “Resource-Con-
serving” multigrade engine oil
0W-20 and 5W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or SN PLUS “Resource-Conserving”; or
ILSAC multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-16 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-16 oil is not avail-
able, SAE 0W-20 oil may be
used. However, it should be
replaced with SAE 0W-16 at the
next oil change.
Temperature range anticipated
before next oil change
Preferred

5149-1. Specifications
AYGO_OM_Europe_OM9A012E

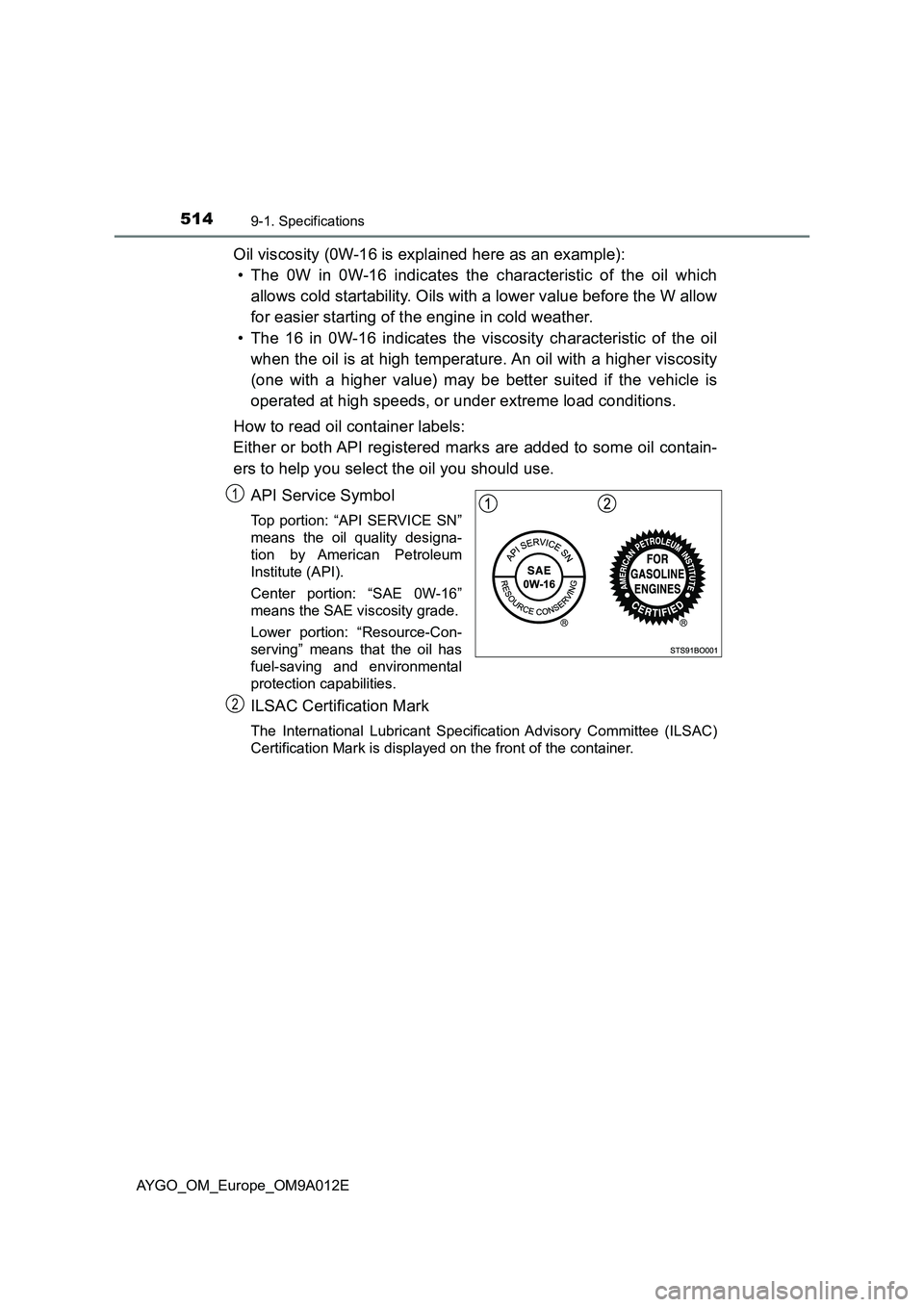

Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-16”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

5159-1. Specifications
9
Vehicle specifications
AYGO_OM_Europe_OM9A012E
*: The identification code is indicated
at the locations shown in the illus-
tration.
Cooling system
Capacity
(Reference)0Q011,
0Q021
*3.7 L (3.9 qt., 3.3 Imp.qt.)
0Q090*4.4 L (4.6 qt., 3.9 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
On the back side

5169-1. Specifications
AYGO_OM_Europe_OM9A012E
Ignition system
Spark plug
MakeDENSO FC16HR-Q8
Gap0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
Battery
Open voltage* at
20 C (68F):
12.3 V or higher
If the specific voltage is lower than the stan-
dard value, charge the battery.
(*: Voltage checked 20 minutes after the
engine and all the lights are turned off)
Charging rates5 A max.

5179-1. Specifications
9
Vehicle specifications
AYGO_OM_Europe_OM9A012E

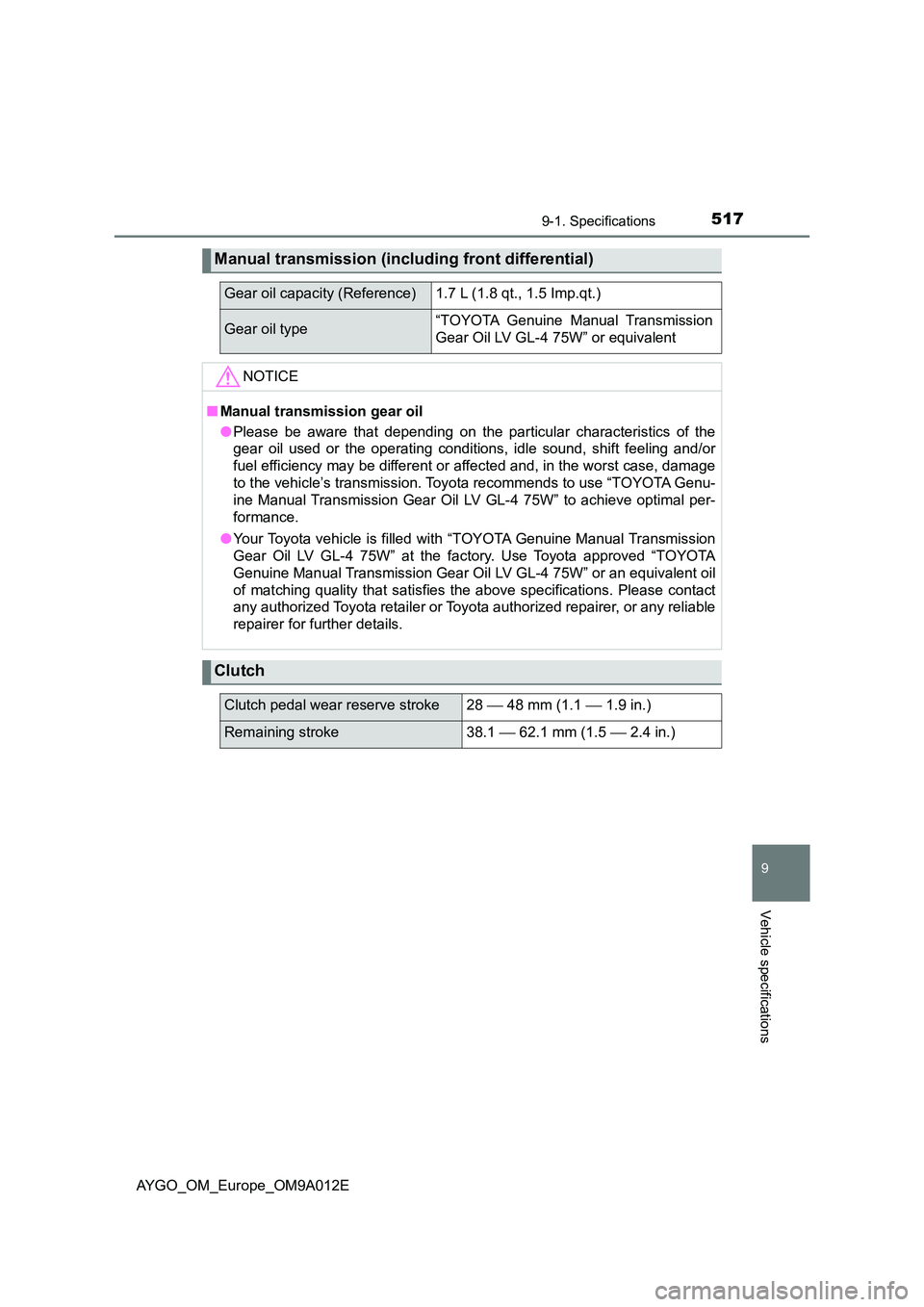

Manual transmission (including front differential)
Gear oil capacity (Reference)1.7 L (1.8 qt., 1.5 Imp.qt.)
Gear oil type“TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” or equivalent
NOTICE
■ Manual transmission gear oil
● Please be aware that depending on the particular characteristics of the
gear oil used or the operating conditions, idle sound, shift feeling and/or
fuel efficiency may be different or affected and, in the worst case, damage
to the vehicle’s transmission. Toyota recommends to use “TOYOTA Genu-
ine Manual Transmission Gear Oil LV GL-4 75W” to achieve optimal per-
formance.
● Your Toyota vehicle is filled with “TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” at the factory. Use Toyota approved “TOYOTA
Genuine Manual Transmission Gear Oil LV GL-4 75W” or an equivalent oil
of matching quality that satisfies the above specifications. Please contact
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for further details.
Clutch
Clutch pedal wear reserve stroke28  48 mm (1.1  1.9 in.)
Remaining stroke38.1  62.1 mm (1.5  2.4 in.)

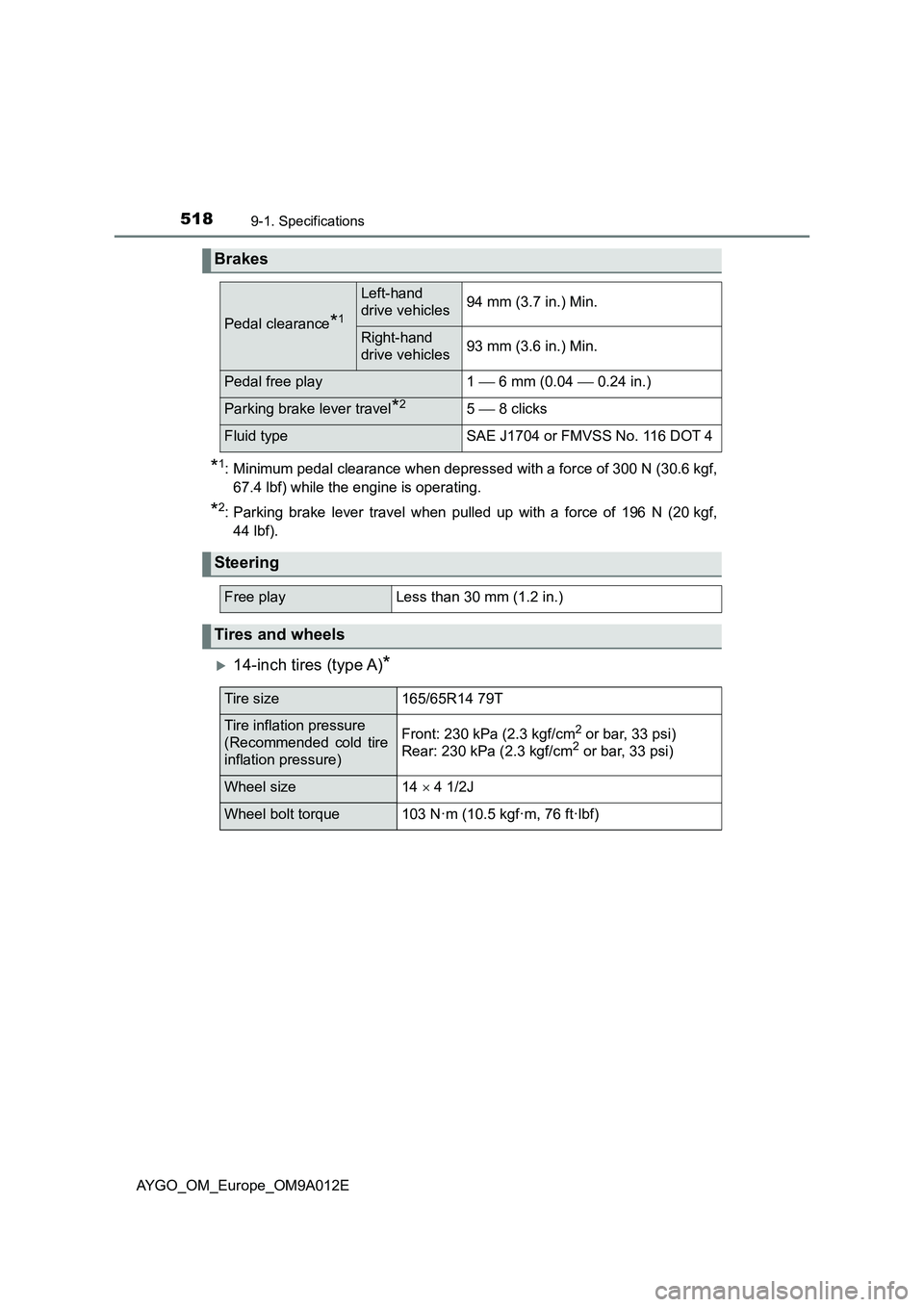

5189-1. Specifications
AYGO_OM_Europe_OM9A012E
*1: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,
67.4 lbf) while the engine is operating.
*2: Parking brake lever travel when pulled up with a force of 196 N (20 kgf,
44 lbf).
14-inch tires (type A)*
Brakes
Pedal clearance*1
Left-hand
drive vehicles94 mm (3.7 in.) Min.
Right-hand
drive vehicles93 mm (3.6 in.) Min.
Pedal free play1  6 mm (0.04  0.24 in.)
Parking brake lever travel*25  8 clicks
Fluid typeSAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)
Tires and wheels
Tire size165/65R14 79T
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear: 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Wheel size14  4 1/2J
Wheel bolt torque103 N·m (10.5 kgf·m, 76 ft·lbf)
