4-2. Driving procedures
Driving
AYGO_OM_Europe_OM9A012E
Turn signal lever
Right turn
Lane change to the right (push
and hold the lever partway)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash until
you release the lever.
Left turn
■Turn signals can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Operating instructions
1
2
3
4

4267-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM9A012E
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 520)
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Preparing for light bulb replacement
Bulb locations
Headlights
Front turn signal lightsFront fog lights (if equipped)1
2
3

4297-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM9A012E■

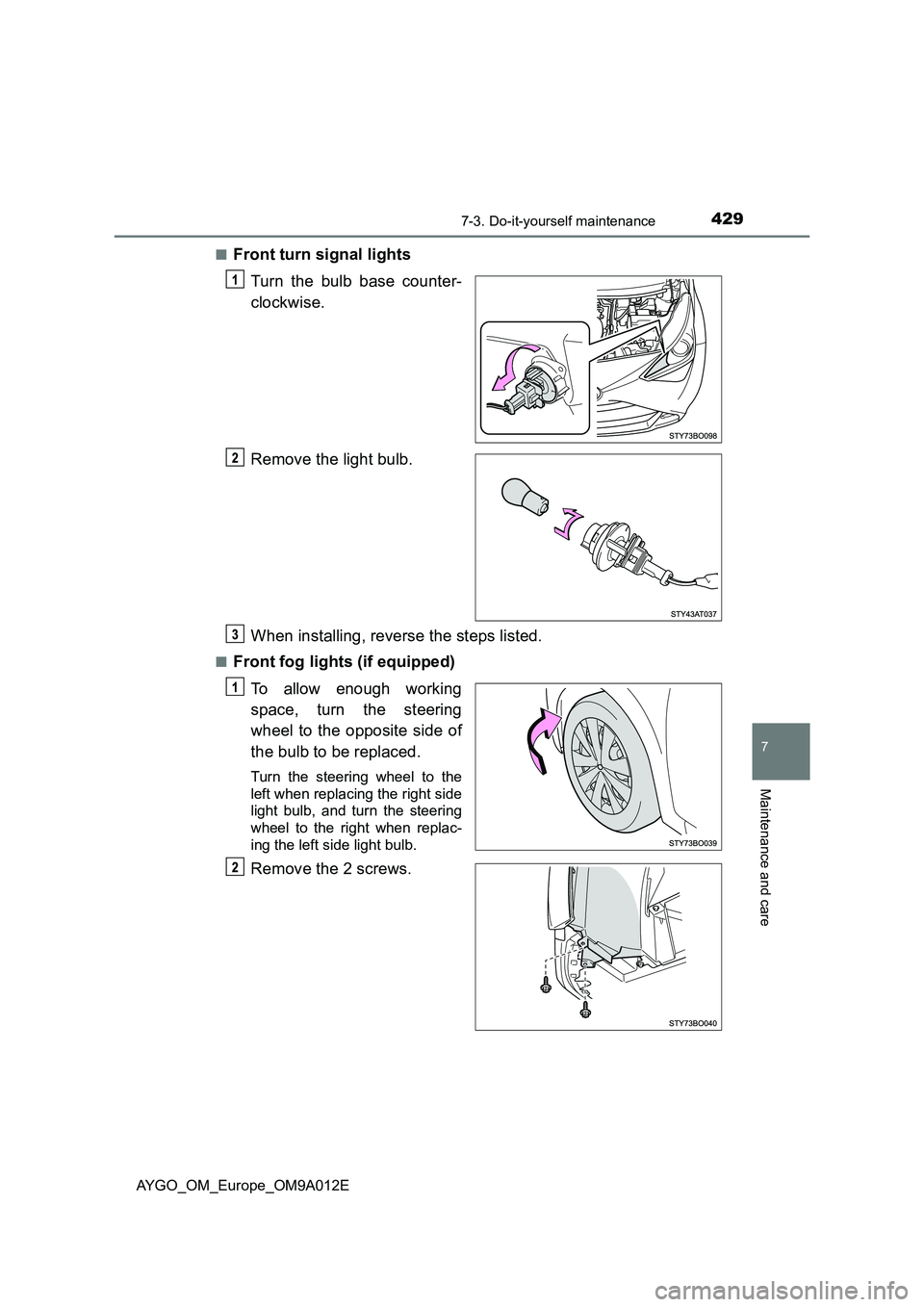

Front turn signal lights
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
■Front fog lights (if equipped)
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Remove the 2 screws.

4327-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM9A012E■

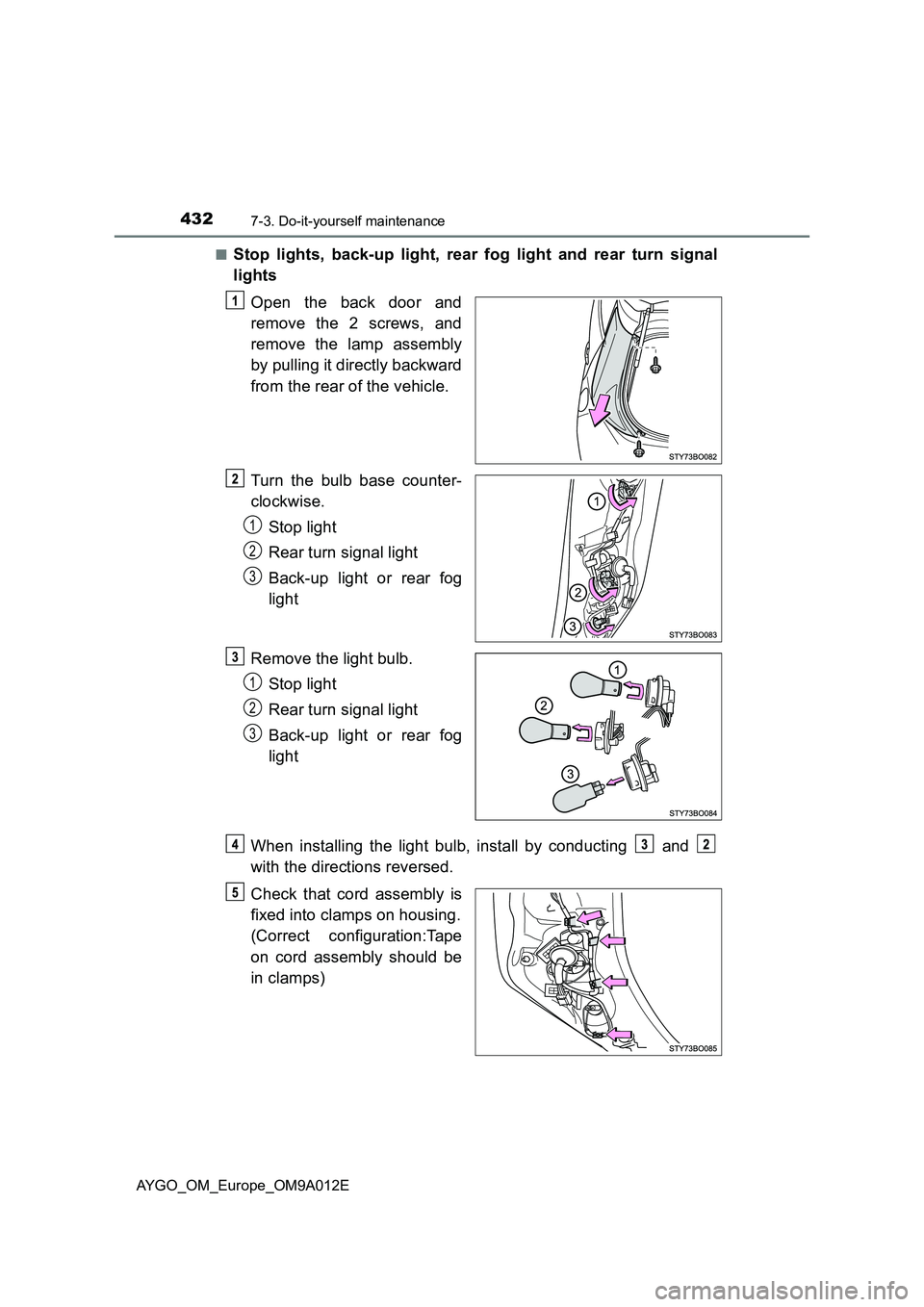

Stop lights, back-up light, rear fog light and rear turn signal
lights
Open the back door and
remove the 2 screws, and
remove the lamp assembly
by pulling it directly backward
from the rear of the vehicle.
Turn the bulb base counter-
clockwise.
Stop light
Rear turn signal light
Back-up light or rear fog
light
Remove the light bulb.
Stop light
Rear turn signal light
Back-up light or rear fog
light
When installing the light bulb, install by conducting and
with the directions reversed.
Check that cord assembly is
fixed into clamps on housing.
(Correct configuration:Tape
on cord assembly should be
in clamps)
1
2
3
1
2
3

4357-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM9A012E

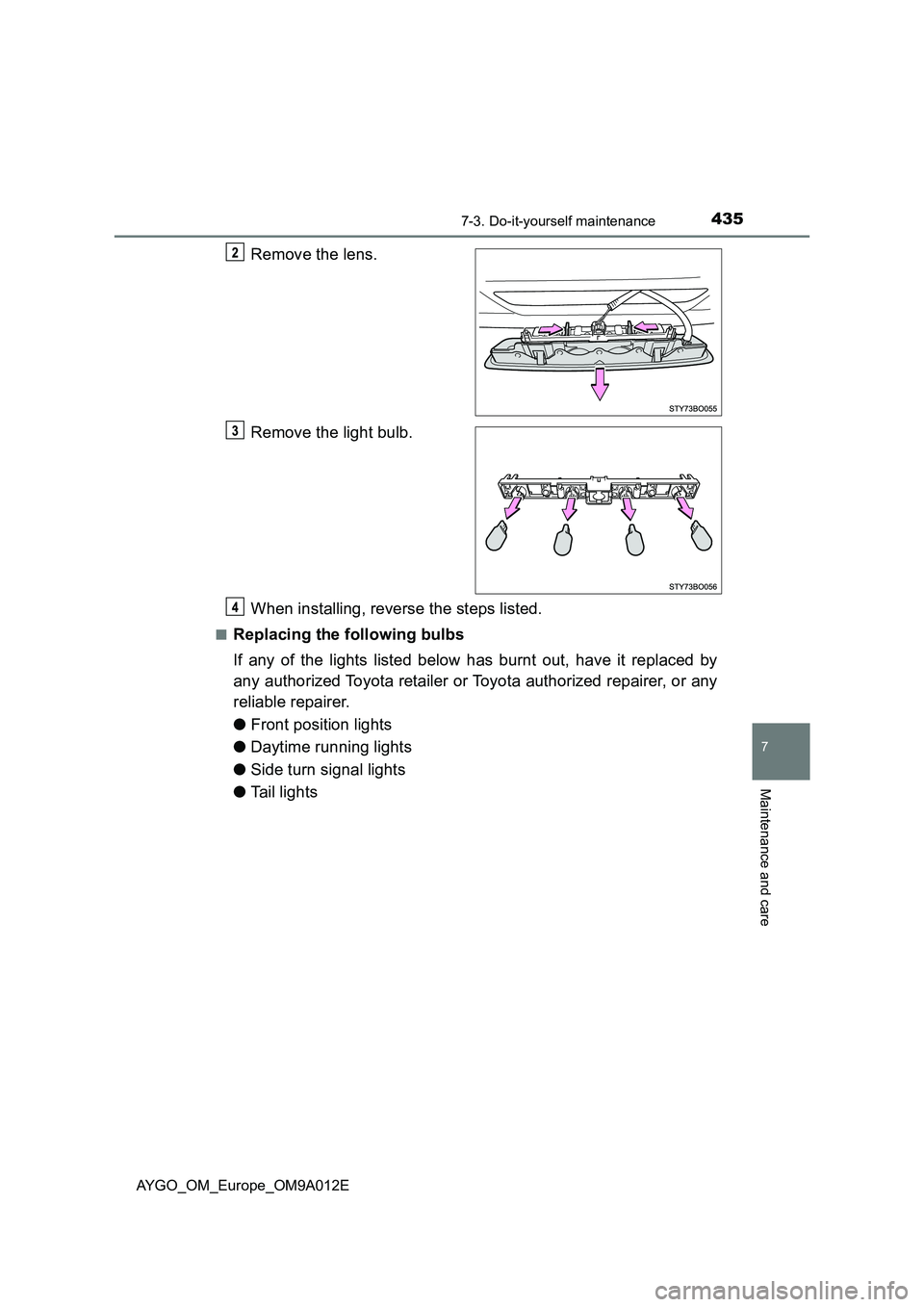

Remove the lens.
Remove the light bulb.
When installing, reverse the steps listed.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
●Front position lights
●Daytime running lights
●Side turn signal lights
●Tail lights

5209-1. Specifications
AYGO_OM_Europe_OM9A012E
Light bulbs
Light bulbsWTy p e
Exterior
Headlights55A
Front fog lights*19B
Front turn signal lights21C
Stop lights21C
Rear turn signal lights21D
Back-up light16E
Rear fog light21E
License plate lights5E
High mounted stoplight5E
InteriorInterior light5E
Luggage compartment light5F
A: HIR2 halogen bulbs
B: H16 halogen bulbs
C: Single end bulbs (clear)
D: Single end bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs (clear)
*: If equipped
