remote control TOYOTA AYGO 2021 Owners Manual

TABLE OF CONTENTS4
AYGO_OM_Europe_OM9A012E5-8. Bluetooth
® Phone
Making a phone call ...........338
Receiving a phone call.......340
Speaking on the phone ......341
5-9. Bluetooth
®
Bluetooth®.........................343
6-1. Using the air conditioning
system and defogger
Manual air conditioning
system .............................352
Automatic air conditioning
system .............................358
Seat heaters ......................364
6-2. Using the interior lights
Interior lights list .................366
• Interior light ....................366
6-3. Using the storage features
List of storage features ......367
• Glove box ......................368
• Card holders ..................368
• Cup holders ...................368
• Bottle holders ................369
Luggage compartment
features............................371
6-4. Other interior features
Other interior features ........373
• Sun visors ......................373
• Vanity mirrors ................373
• Clock .............................374
• Outside temperature
display ...........................375
• Power outlet ..................3767-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 378
Cleaning and protecting
the vehicle interior ........... 382
7-2. Maintenance
Maintenance
requirements ................... 385
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 387
Hood.................................. 390
Positioning a floor jack ...... 392
Engine compartment ......... 393
Clutch pedal (vehicles
with a manual
transmission .................... 403
Tires .................................. 404
Tire inflation pressure........ 410
Wheels .............................. 412
Air conditioning filter .......... 414
Wireless remote control/
electronic key battery ...... 415
Checking and replacing
fuses ............................... 418
Light bulbs ......................... 426
6Interior features
7Maintenance and care

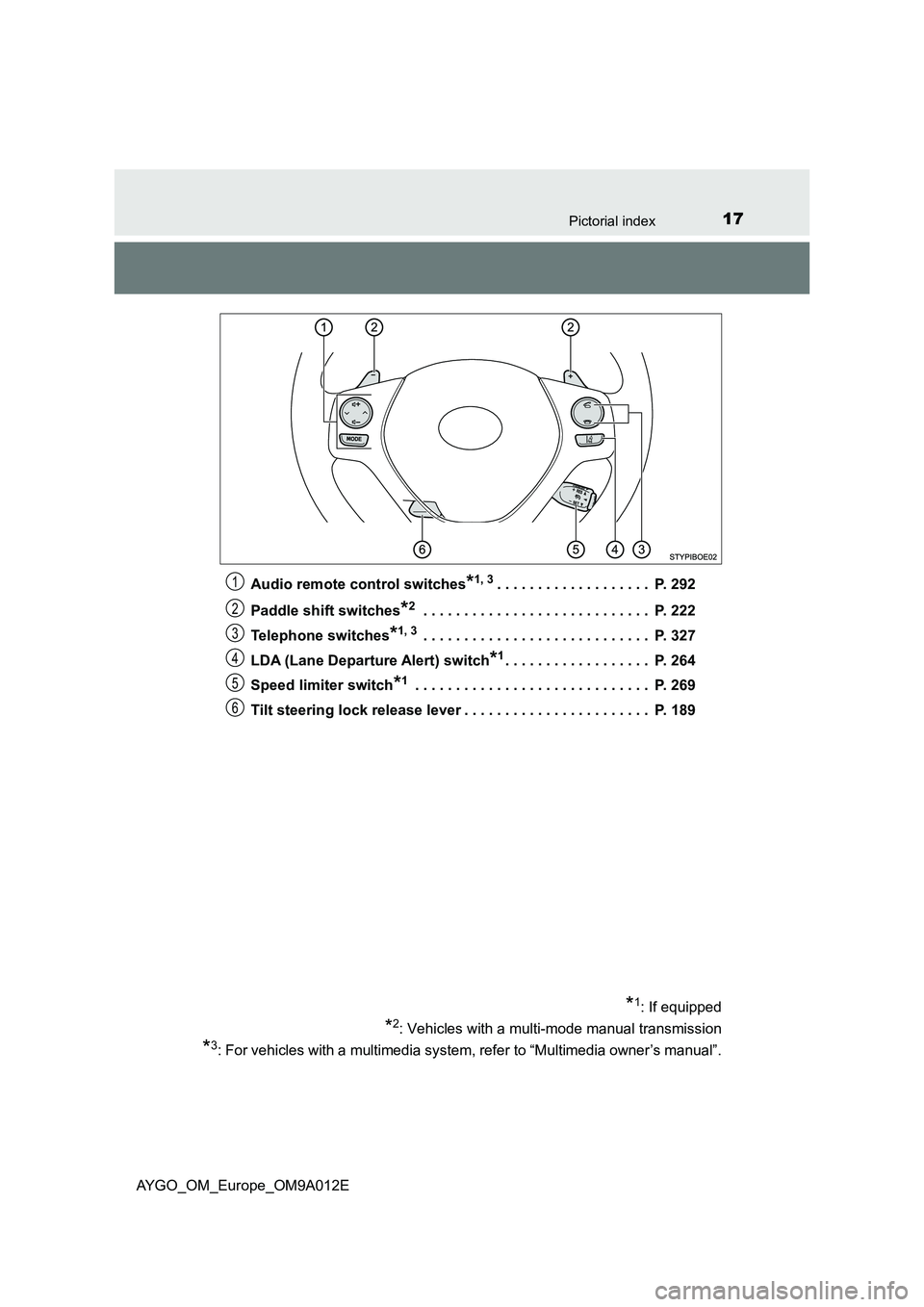

17Pictorial index
AYGO_OM_Europe_OM9A012EAudio remote control switches
*1, 3. . . . . . . . . . . . . . . . . . . P. 292
Paddle shift switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
Telephone switches
*1, 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 327
LDA (Lane Departure Alert) switch
*1. . . . . . . . . . . . . . . . . . P. 264
Speed limiter switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 269
Tilt steering lock release lever . . . . . . . . . . . . . . . . . . . . . . . P. 189
*1: If equipped
*2: Vehicles with a multi-mode manual transmission
*3: For vehicles with a multimedia system, refer to “Multimedia owner’s manual”.
1
2
3
4
5
6

23Pictorial index
AYGO_OM_Europe_OM9A012EAudio remote control switches
*1, 3. . . . . . . . . . . . . . . . . . . P. 292
Paddle shift switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
Telephone switches
*1, 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 327
LDA (Lane Departure Alert) switch
*1. . . . . . . . . . . . . . . . . . P. 264
Speed limiter switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 269
Tilt steering lock release lever . . . . . . . . . . . . . . . . . . . . . . . P. 189
*1: If equipped
*2: Vehicles with a multi-mode manual transmission
*3: For vehicles with a multimedia system, refer to “Multimedia owner’s manual”.
1
2
3
4
5
6

1123-1. Key information
AYGO_OM_Europe_OM9A012E
Keys
The following keys are provided with the vehicle.
Ty pe A
Keys
Key number plate
Ty pe B
Key (with wireless remote con-
trol function)
Operating the wireless remote con-
trol function
Key (without wireless remote
control function)
Key number plate
Ty pe C
Electronic keys
• Operating the smart entry &
start system (P. 143)
• Operating the wireless remote
control function
Mechanical keys
Key number plate
The keys
1
2
1
2
3
1
2
3

1133-1. Key information
3
Operation of each component
AYGO_OM_Europe_OM9A012E
Ty pe B
Lock the doors (P. 132, 137)
Unlock the doors
(P. 132, 137)
Ty pe C
Lock the doors (P. 132, 137)
Unlock the doors
(P. 132, 137)
Press the button to open the key.
To stow, press the button then fold
the key.
Wireless remote control (if equipped)
1
2
1
2
Using the wireless remote control key (type B)

1143-1. Key information
AYGO_OM_Europe_OM9A012E
To take out the mechanical key,
slide the release knob and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(P. 497)
■If you lose your keys
New genuine keys can be made by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer using a key (type A or type B) or
the other key (type C) and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
■When riding in an aircraft (type B or type C)
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
■Key battery depletion
Type B
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 415)
Type C
P. 148
■Replacing the battery (type B or type C)
P. 415
■Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for details.
Using the mechanical key (type C)

1153-1. Key information
3
Operation of each component
AYGO_OM_Europe_OM9A012E■Certification for wireless remote control

1323-2. Opening, closing and locking the doors
AYGO_OM_Europe_OM9A012E
Side doors
◆Key
Vehicles without a power door lock system
Locks the door
Unlocks the door
Vehicles with a power door lock system
Locks all the doors
Unlocks all the doors
Vehicles with a smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. (P. 497)
The vehicle can be locked and unlocked using the key, wireless
remote control or smart entry & start system.
Unlocking and locking the doors from the outside
1
2
1
2

1333-2. Opening, closing and locking the doors
3
Operation of each component
AYGO_OM_Europe_OM9A012E
◆Wireless remote control (if equipped)
Vehicles without a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Vehicles with a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
◆Smart entry & start system (if equipped)
Carry the electronic key to enable this function.
Press the button to lock/unlock
the doors.
Press the button to be certain.
Check that the door is securely
locked.
■Operation signals (vehicles with a wireless remote control system or
smart entry & start system)
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
1
2
1
2

1363-2. Opening, closing and locking the doors
AYGO_OM_Europe_OM9A012E
■Conditions affecting operation of the wireless remote control (if
equipped)
The wireless remote control function may not operate normally in the follow-
ing situations.
● When the wireless key battery is depleted
● Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves
● When carrying a portable radio, cellular phone or other wireless communi-
cation device
● When multiple wireless keys are in the vicinity
● When the wireless key has come into contact with, or is covered by a metal-
lic object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such as a
personal computer
● If window tint with a metallic content or metallic objects are attached to the
rear window
■ Conditions affecting operation of the smart entry & start system (if
equipped)
 P. 146
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out
of the vehicle, resulting in death or serious injury.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● 5-door models: Set the rear door child-protector locks when children are
seated in the rear seats.
