TOYOTA AYGO X 2022 Owners Manual (in English)

359
8
Owner's Manual_Europe_M99V08_en
8-2. Customization
Vehicle specifications
■Toyota parking assist-sensor* (P.204)
*: If equipped
■Automatic air conditioning system* (P.224)
*: If equipped
■Illumination (P.230)
FunctionDefault settingCustomized setting
Toyota parking assist-sen-
sorOnOff—O—
Buzzer volumeLevel2Level1—O—Level3
Detection distance of the
front center sensorFarNear——O
Detection distance of the
rear center sensorFarNear——O
Detection distance of the
corner sensorFarNear——O
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air
mode linked to automatic
mode switch operation
OnOffO—O
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff——O

360
Owner's Manual_Europe_M99V08_en
8-2. Customization
*: If equipped
■Vehicle customization
When the smart entry & start system is
off, Smart door unlocking cannot be cus- tomized.
■In the following situations, custom-ize mode in which the settings can
be changed through the multi-infor- mation display will automatically be turned off
●A warning message appears after the customize mode screen is displayed
●The engine switch is turned off.
●The vehicle begins to move while the customize mode screen is displayed.
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person*
OnOff——O
FunctionDefault settingCustomized setting

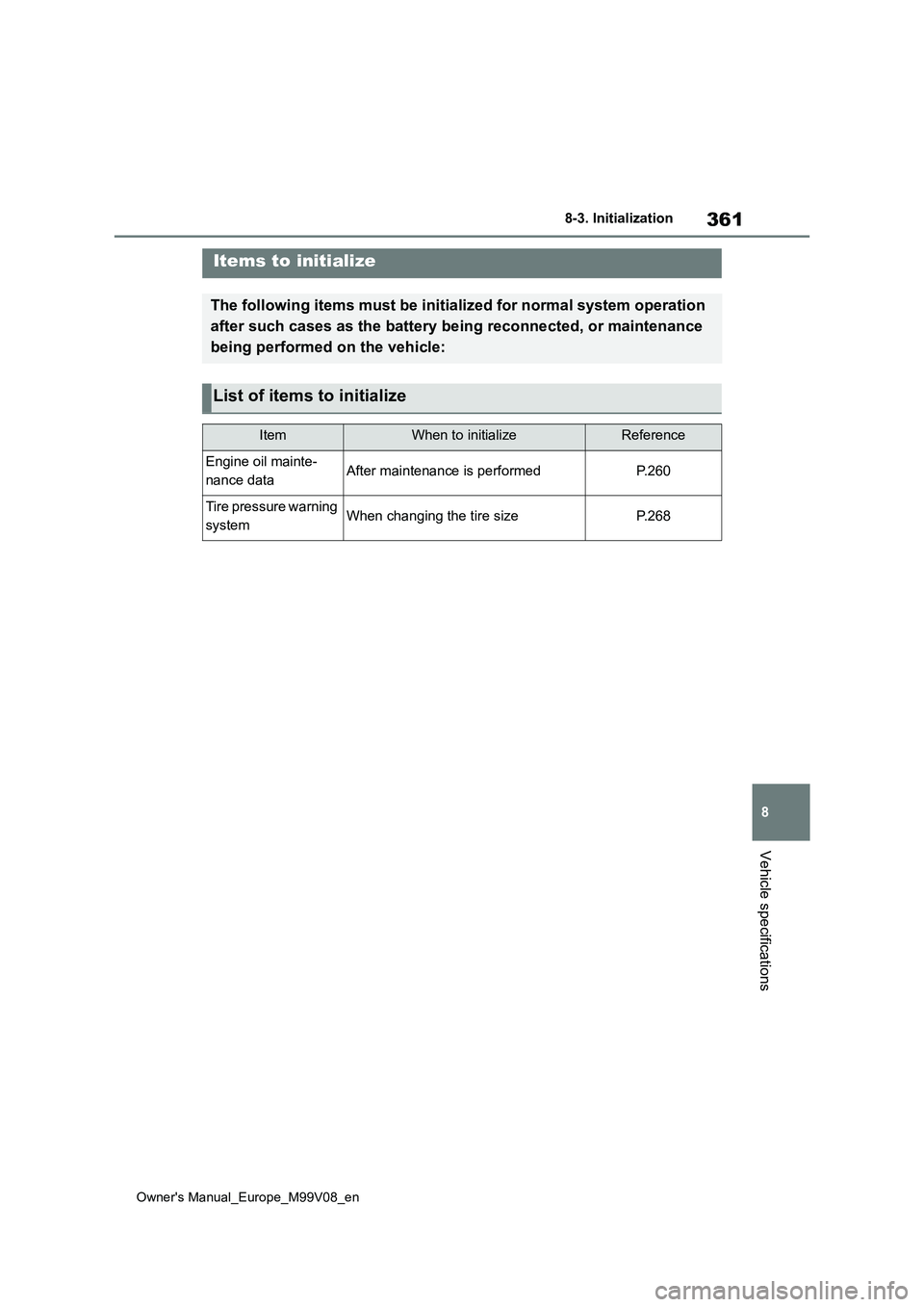

361
8
Owner's Manual_Europe_M99V08_en
8-3. Initialization
Vehicle specifications
8- 3. In it ia li za ti on
Items to initialize
The following items must be initialized for normal system operation
after such cases as the battery being reconnected, or maintenan ce
being performed on the vehicle:
List of items to initialize
ItemWhen to initializeReference
Engine oil mainte-
nance dataAfter maintenance is performedP. 2 6 0
Tire pressure warning
systemWhen changing the tire sizeP. 2 6 8

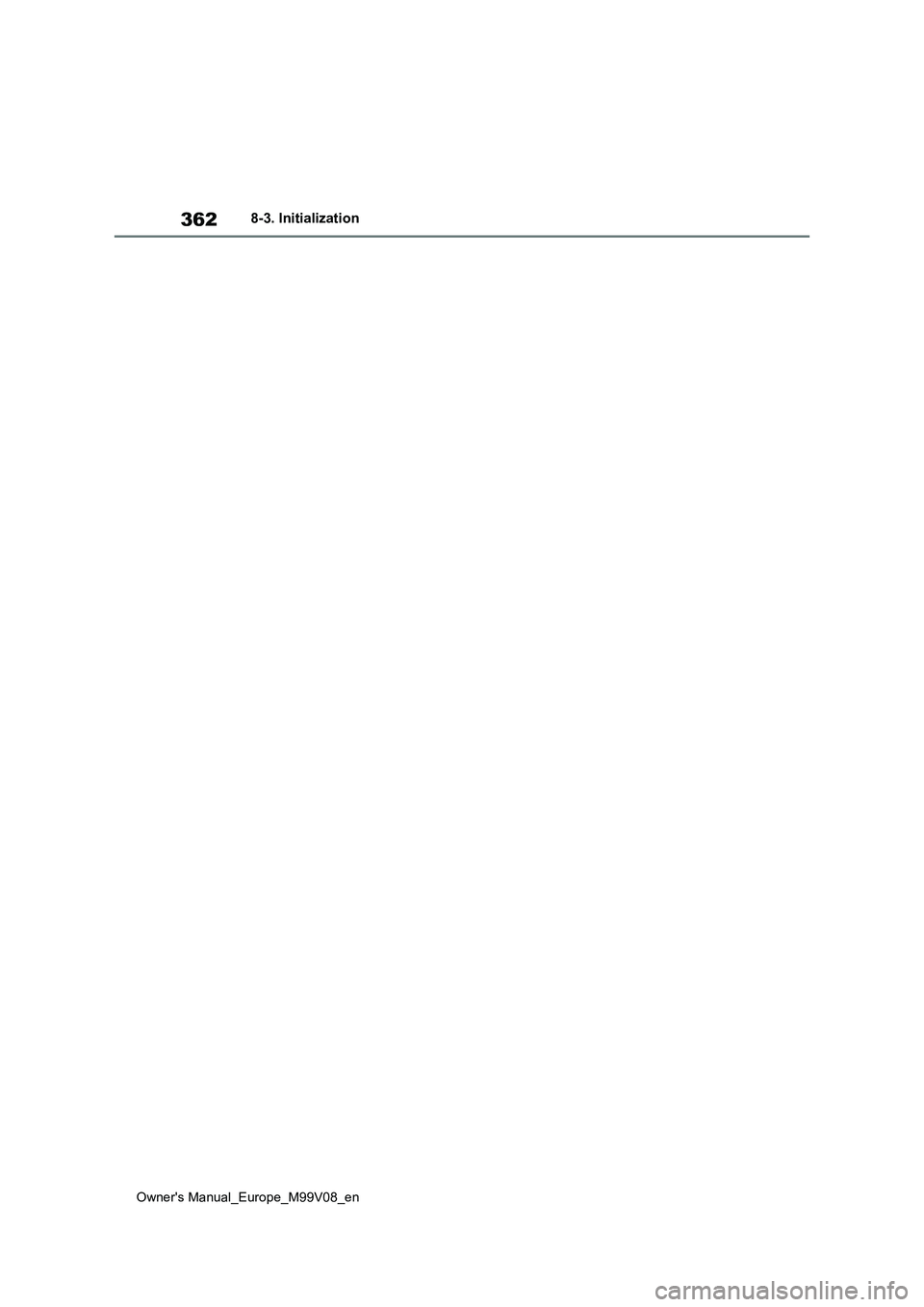

362
Owner's Manual_Europe_M99V08_en
8-3. Initialization

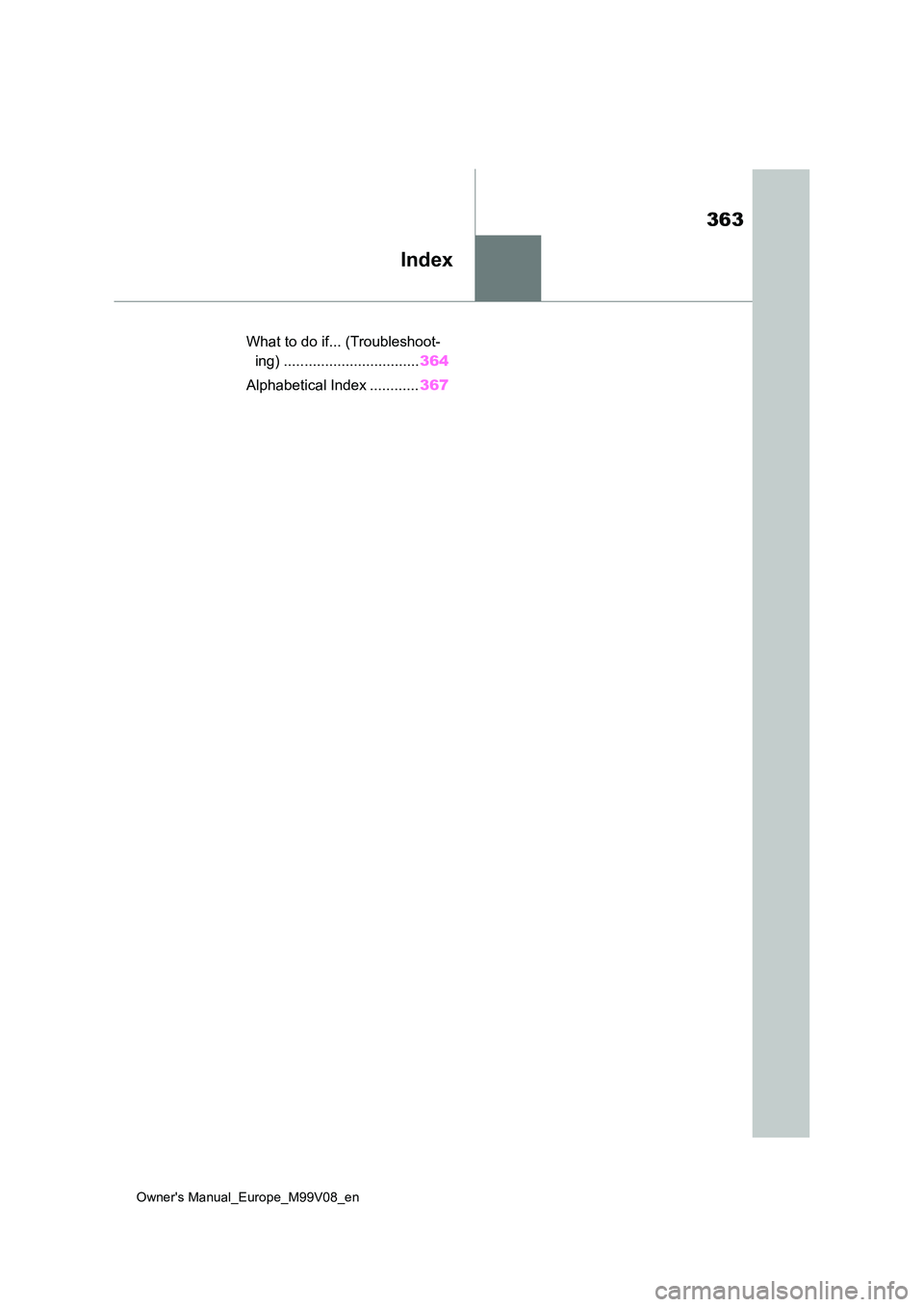

363
Owner's Manual_Europe_M99V08_en
Index
What to do if... (Troubleshoot-
ing) ................................. 364
Alphabetical Index ............ 367

364
Owner's Manual_Europe_M99V08_en
What to do if... (Troubleshooting)
1-1.What to d o if... (Tro ublesho oting)What to do if... (Troubleshooting)
If you lose your keys or mechani-
cal keys, new genuine keys or
mechanical keys can be made
by any authorized Toyota retailer
or Toyota authorized repairer, or
any reliable repairer. ( P.333)
 Vehicles with smart entry & start
system: If you lose your elec-
tronic keys, the risk of vehicle
theft increases significantly. Con-
tact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer
immediately. ( P.334)
 Is the key battery weak or
depleted? ( P.275)
 Vehicles with smart entry & start
system: Is the engine switch in
ON?
When locking the doors, turn the
engine switch off. ( P.133)
Vehicles with smart entry & start
system: Is the electronic key left
inside the vehicle?
When locking the doors, make sure that
you have the electronic key on your
person.
 The function may not operate
properly due to the condition of
the radio wave. ( P.94, 103)
 Is the child-protector lock set?
The rear door cannot be opened from
inside the vehicle when the lock is set.
Open the rear door from outside and
then unlock the child-protector lock.
( P. 9 9)
Multidrive: Is the shift lever in P?
( P.129)
 Manual transmission: Do you
turn the key with the clutch pedal
depressed firmly? ( P.129)
 Is the steering wheel unlocked?
( P.129)
 Is the battery discharged?
( P.335)
If you have a problem, check
the following before contacting
any authorized Toyota retailer
or Toyota authorized repairer,
or any reliable repairer.
The doors cannot be locked,
unlocked, opened or closed
You lose your keys
The doors cannot be locked
or unlocked
The rear door cannot be
opened
If you think something is
wrong
The engine does not start
(vehicles without smart
entry & start system)

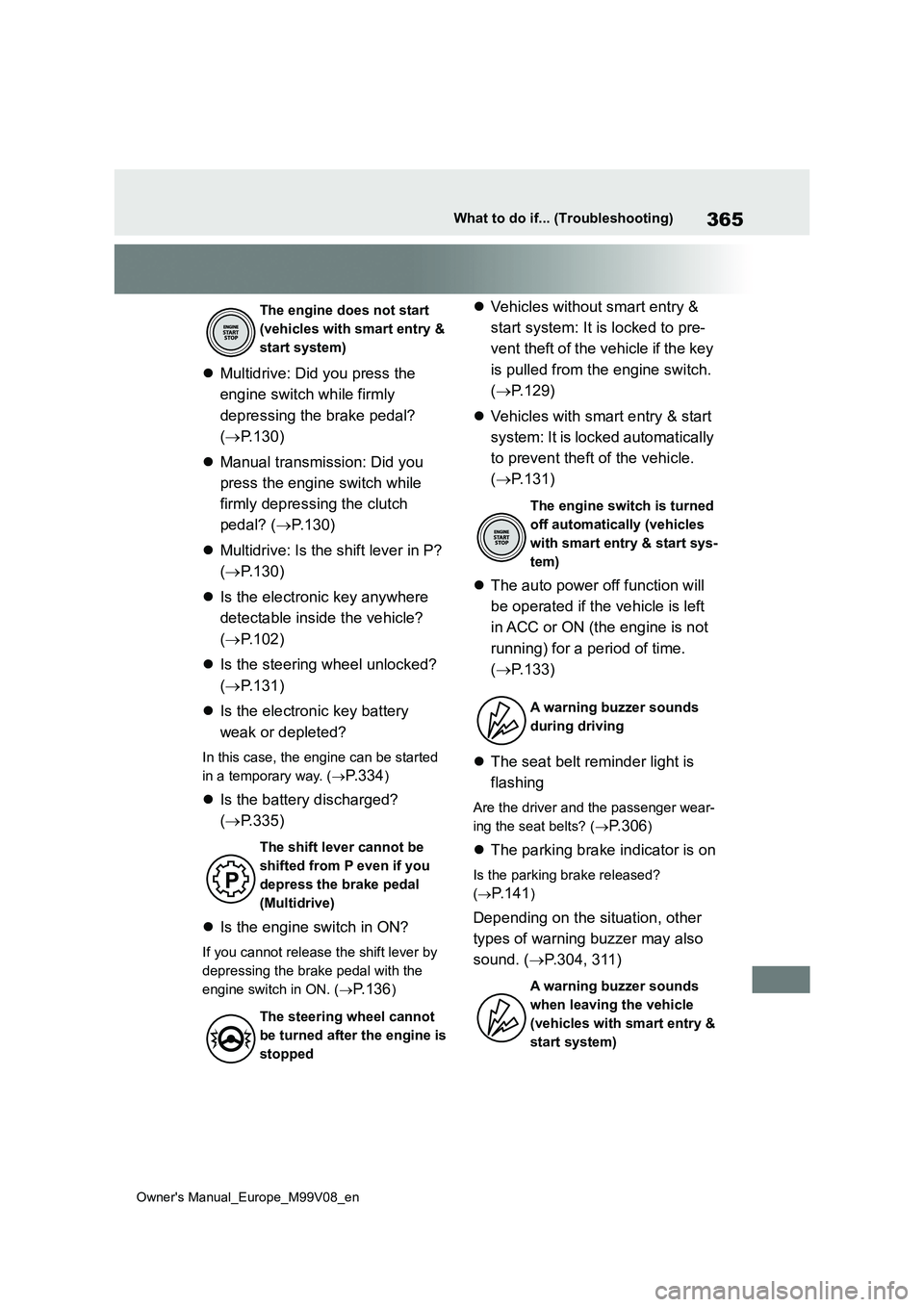

365
Owner's Manual_Europe_M99V08_en
What to do if... (Troubleshooting)
Multidrive: Did you press the
engine switch while firmly
depressing the brake pedal?
( P.130)
 Manual transmission: Did you
press the engine switch while
firmly depressing the clutch
pedal? ( P.130)
 Multidrive: Is the shift lever in P?
( P.130)
 Is the electronic key anywhere
detectable inside the vehicle?
( P.102)
 Is the steering wheel unlocked?
( P.131)
 Is the electronic key battery
weak or depleted?
In this case, the engine can be started
in a temporary way. ( P.334)
Is the battery discharged?
( P.335)
 Is the engine switch in ON?
If you cannot release the shift lever by
depressing the brake pedal with the
engine switch in ON. ( P.136)
Vehicles without smart entry &
start system: It is locked to pre-
vent theft of the vehicle if the key
is pulled from the engine switch.
( P.129)
 Vehicles with smart entry & start
system: It is locked automatically
to prevent theft of the vehicle.
( P.131)
 The auto power off function will
be operated if the vehicle is left
in ACC or ON (the engine is not
running) for a period of time.
( P.133)
 The seat belt reminder light is
flashing
Are the driver and the passenger wear-
ing the seat belts? ( P. 3 0 6)
The parking brake indicator is on
Is the parking brake released?
( P.141)
Depending on the situation, other
types of warning buzzer may also
sound. ( P.304, 311)
The engine does not start
(vehicles with smart entry &
start system)
The shift lever cannot be
shifted from P even if you
depress the brake pedal
(Multidrive)
The steering wheel cannot
be turned after the engine is
stopped
The engine switch is turned
off automatically (vehicles
with smart entry & start sys-
tem)
A warning buzzer sounds
during driving
A warning buzzer sounds
when leaving the vehicle
(vehicles with smart entry &
start system)

366
Owner's Manual_Europe_M99V08_en
What to do if... (Troubleshooting)
Is the electronic key left inside
the vehicle?
Check the message on the multi-infor-
mation display. ( P. 3 1 1)
When a warning light turns on or
a warning message is displayed,
refer to P.304, 311.
 Vehicles with an emergency tire
puncture repair kit: Stop the vehi-
cle in a safe place and repair the
flat tire temporarily with the
emergency tire puncture repair
kit. ( P.313)
 Vehicles with spare tire: Stop the
vehicle in a safe place and
replace the flat tire with the spare
tire. ( P.324)
 Try the procedure for when the
vehicle becomes stuck in mud,
dirt, or snow. ( P.341)
A warning light turns on or a
warning message is dis-
played
When a problem has
occurred
If you have a flat tire
The vehicle becomes stuck

367
Owner's Manual_Europe_M99V08_en
Alphabetical Index
Alphabetical Index
A
A/C
Air conditioning filter................... 273
Automatic air conditioning system
................................................. 224
Manual air conditioning system.. 220
ABS (Anti-lock Brake System) .... 211
Warning light .............................. 305
ACA (Active Cornering Assist) .... 211
Active Cornering Assist (ACA) .... 211
AHB (Automatic High Beam) ....... 145
Air conditioning filter ................... 273
Air conditioning system
Air conditioning filter................... 273
Automatic air conditioning system
................................................. 224
Manual air conditioning system.. 220
Airbag manual on-off system ........ 45
Airbags ............................................ 36
Airbag manual on-off system ....... 45
Airbag operating conditions ......... 38
Airbag precautions for your child . 40
Correct driving posture................. 31
Curtain shield airbag operating con-
ditions ........................................ 38
Curtain shield airbag precautions 40
General airbag precautions.......... 40
Locations of airbags ..................... 36
Modification and disposal of airbags
................................................... 43
Side airbag operating conditions.. 38
Side airbag precautions ............... 40
Side and curtain shield airbags oper-
ating conditions.......................... 38
Side and curtain shield airbags pre-
cautions ..................................... 40
SRS airbags ................................. 36
SRS warning light ...................... 305
Alarm
Warning buzzer .......................... 304
Antennas (smart entry & start sys-
tem) ..............................................102
Anti-lock Brake System (ABS)..... 211
Warning light .............................. 305
Approach warning ........................ 187
Audio system-linked display ......... 86
Automatic air conditioning system
..................................................... 224
Automatic High Beam ..................145
Automatic light control system ... 142
Auxiliary box ................................. 234
Average fuel economy ................... 84
Average vehicle speed ................... 86
B
Back door ........................................ 99
Back-up light
Replacing light bulbs ..................286
Wattage ...................................... 351
Battery ........................................... 262
Battery checking......................... 262
If the battery is discharged ......... 335
Installing the battery ................... 263
Preparing and checking before win-
ter ............................................. 216
Removing the battery ................. 262
Warning light .............................. 304
Brake
Emergency brake signal............. 212
Fluid ........................................... 350
Parking brake .............................141
Warning light .............................. 304
Brake assist................................... 211
Break-in tips .................................. 121
Brightness control
Instrument panel light control ....... 82
Buck up lights
Replacing light bulbs ..................290

368
Owner's Manual_Europe_M99V08_en
Alphabetical Index
C
Canvas top .................................... 116
Care ....................................... 244, 248
Aluminum wheels ....................... 244
Exterior....................................... 244
Interior ........................................ 248
Seat belts ................................... 248
Cargo and luggage ....................... 127
Chains ........................................... 217
Child restraint system .................... 48
Points to remember...................... 48
Riding with children ...................... 47
Child safety ..................................... 47
Airbag precautions ....................... 40
Battery precautions ............ 264, 338
Canvas top ................................. 116
Child restraint system .................. 48
How your child should wear the seat
belt ............................................. 34
Installing child restraints............... 48
Power window precautions ........ 114
Rear door child-protectors ........... 99
Removed electronic key battery pre-
cautions ................................... 277
Seat belt precautions ................... 47
Seat heater precautions ............. 228
Child-protectors.............................. 99
Cleaning ................................ 244, 248
Aluminum wheels ....................... 244
Exterior....................................... 244
Interior ........................................ 248
Radar sensor ............................. 156
Seat belts ................................... 248
Clock .................................... 79, 81, 82
Condenser..................................... 261
Consumption screen ...................... 88
Cooling system ............................. 260
Engine overheating .................... 339
Cruise control
Dynamic radar cruise control ..... 181
Cup holders ...................................233
Current fuel consumption ..............84
Curtain shield airbags ....................36
Customizable features ................. 354
D
Daytime running light system ..... 142
Deck board .................................... 233
Defogger
Outside rear view mirrors ... 221, 225
Rear window ...................... 221, 225
Windshield.......................... 221, 225
Dimensions ...................................344
Display
Dynamic radar cruise control ..... 181
LTA (Lane Tracing Assist)........... 177
Multi-information display ..............83
Speed limiter .............................. 192
Toyota parking assist-sensor...... 204
Warning message ...................... 311
Display change button ................... 81
Distance until next engine oil change
....................................................... 81
Do-it-yourself maintenance ......... 251
Door lock
Back door .....................................99
Side doors .................................... 96
Smart entry & start system ......... 102
Wireless remote control ............... 94
Doors
Back door .....................................99
Door glasses ...................... 114, 115
Door lock ................................ 96, 99
Open door warning buzzer ..... 97, 99
Outside rear view mirrors ........... 112
Rear door child-protectors............ 99
Side doors .................................... 96
Drive distance ................................. 86
Drive information ............................ 86
Drive-start control......................... 126
