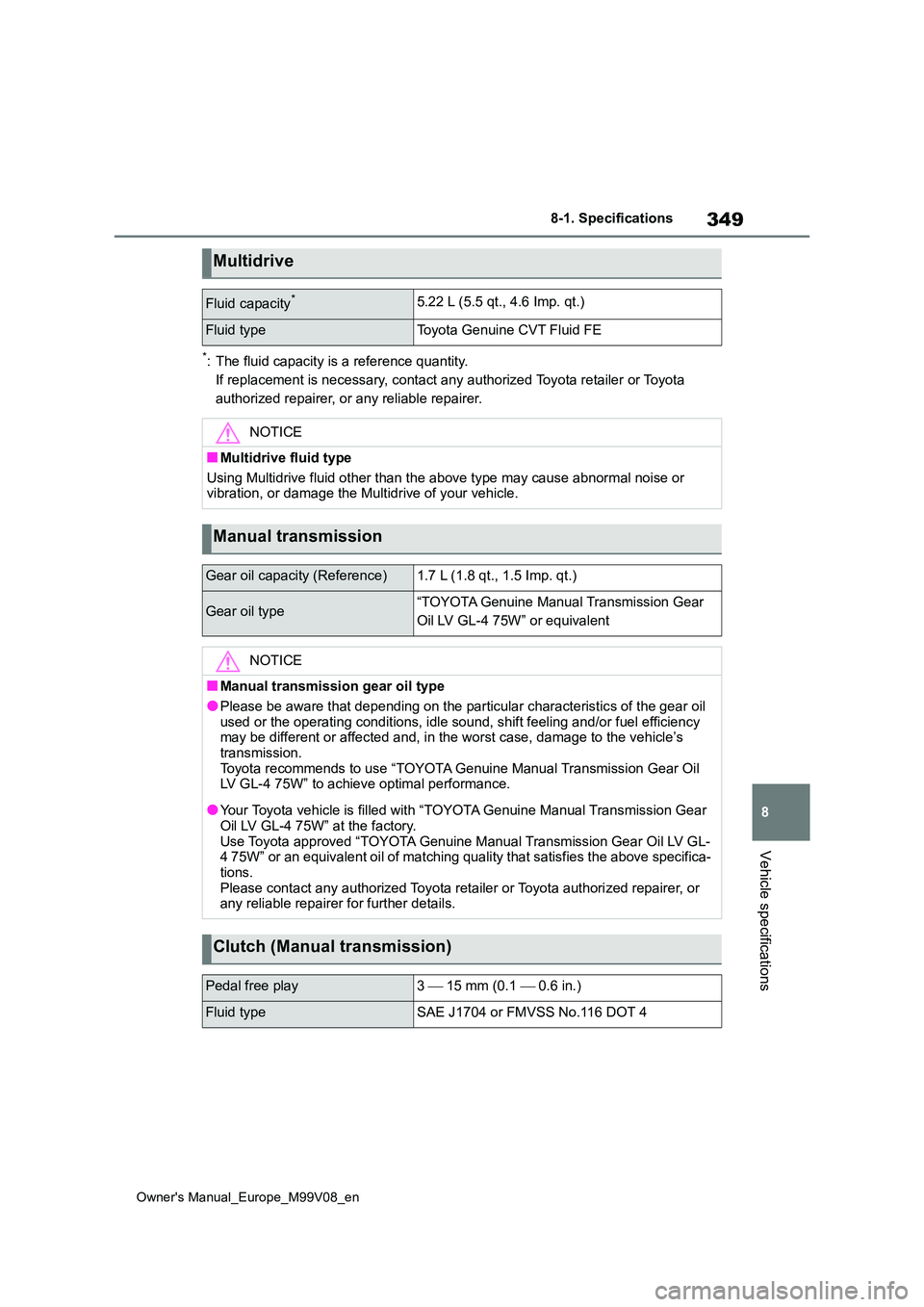

349
8
Owner's Manual_Europe_M99V08_en
8-1. Specifications
Vehicle specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota reta iler or Toyota
authorized repairer, or any reliable repairer.
Multidrive
Fluid capacity*5.22 L (5.5 qt., 4.6 Imp. qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■Multidrive fluid type
Using Multidrive fluid other than the above type may cause abno rmal noise or vibration, or damage the Multidrive of your vehicle.
Manual transmission
Gear oil capacity (Reference)1.7 L (1.8 qt., 1.5 Imp. qt.)
Gear oil type“TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” or equivalent
NOTICE
■Manual transmission gear oil type
●Please be aware that depending on the particular characteristic s of the gear oil used or the operating conditions, idle sound, shift feeling and /or fuel efficiency may be different or affected and, in the worst case, damage to the vehicle’s
transmission. Toyota recommends to use “TOYOTA Genuine Manual Transmission Ge ar Oil LV GL-4 75W” to achieve optimal performance.
●Your Toyota vehicle is filled with “TOYOTA Genuine Manual Trans mission Gear Oil LV GL-4 75W” at the factory.
Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oi l LV GL- 4 75W” or an equivalent oil of matching quality that satisfies the above specifica- tions.
Please contact any authorized Toyota retailer or Toyota authori zed repairer, or any reliable repairer for further details.
Clutch (Manual transmission)
Pedal free play3  15 mm (0.1  0.6 in.)
Fluid typeSAE J1704 or FMVSS No.116 DOT 4

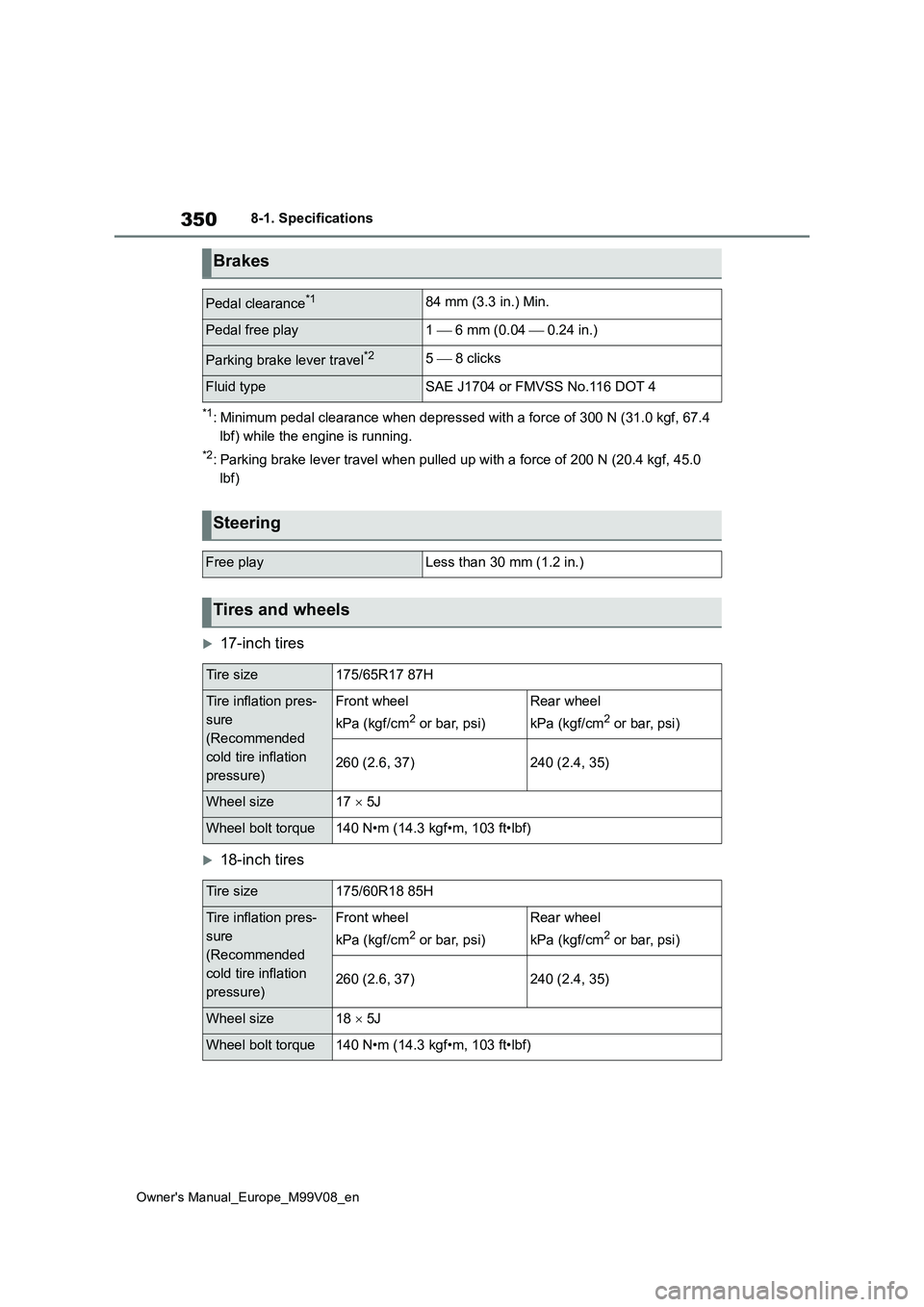

350
Owner's Manual_Europe_M99V08_en
8-1. Specifications
*1: Minimum pedal clearance when depressed with a force of 300 N (31.0 kgf, 67.4
lbf) while the engine is running.
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf, 45.0
lbf)
17-inch tires
18-inch tires
Brakes
Pedal clearance*184 mm (3.3 in.) Min.
Pedal free play1  6 mm (0.04  0.24 in.)
Parking brake lever travel*25  8 clicks
Fluid typeSAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)
Tires and wheels
Tire size175/65R17 87H
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Front wheel
kPa (kgf/cm2 or bar, psi)
Rear wheel
kPa (kgf/cm2 or bar, psi)
260 (2.6, 37)240 (2.4, 35)
Wheel size17  5J
Wheel bolt torque140 N•m (14.3 kgf•m, 103 ft•lbf)
Tire size175/60R18 85H
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Front wheel
kPa (kgf/cm2 or bar, psi)
Rear wheel
kPa (kgf/cm2 or bar, psi)
260 (2.6, 37)240 (2.4, 35)
Wheel size18  5J
Wheel bolt torque140 N•m (14.3 kgf•m, 103 ft•lbf)

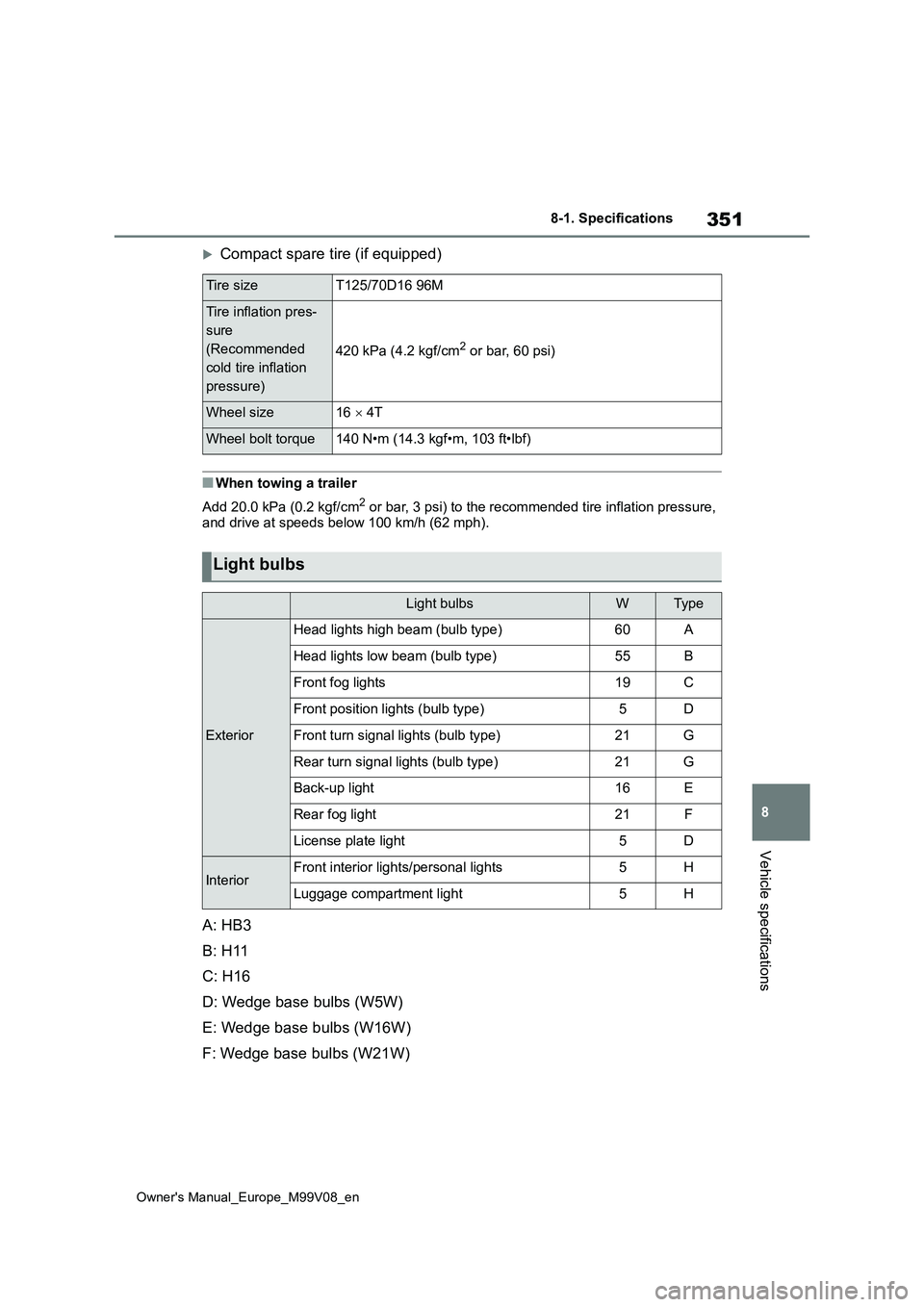

351
8
Owner's Manual_Europe_M99V08_en
8-1. Specifications
Vehicle specifications
Compact spare tire (if equipped)
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation pressure, and drive at speeds below 100 km/h (62 mph).
A: HB3
B: H11
C: H16
D: Wedge base bulbs (W5W)
E: Wedge base bulbs (W16W)
F: Wedge base bulbs (W21W)
Tire sizeT125/70D16 96M
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T
Wheel bolt torque140 N•m (14.3 kgf•m, 103 ft•lbf)
Light bulbs
Light bulbsWTyp e
Exterior
Head lights high beam (bulb type)60A
Head lights low beam (bulb type)55B
Front fog lights19C
Front position lights (bulb type)5D
Front turn signal lights (bulb type)21G
Rear turn signal lights (bulb type)21G
Back-up light16E
Rear fog light21F
License plate light5D
InteriorFront interior lights/personal lights5H
Luggage compartment light5H

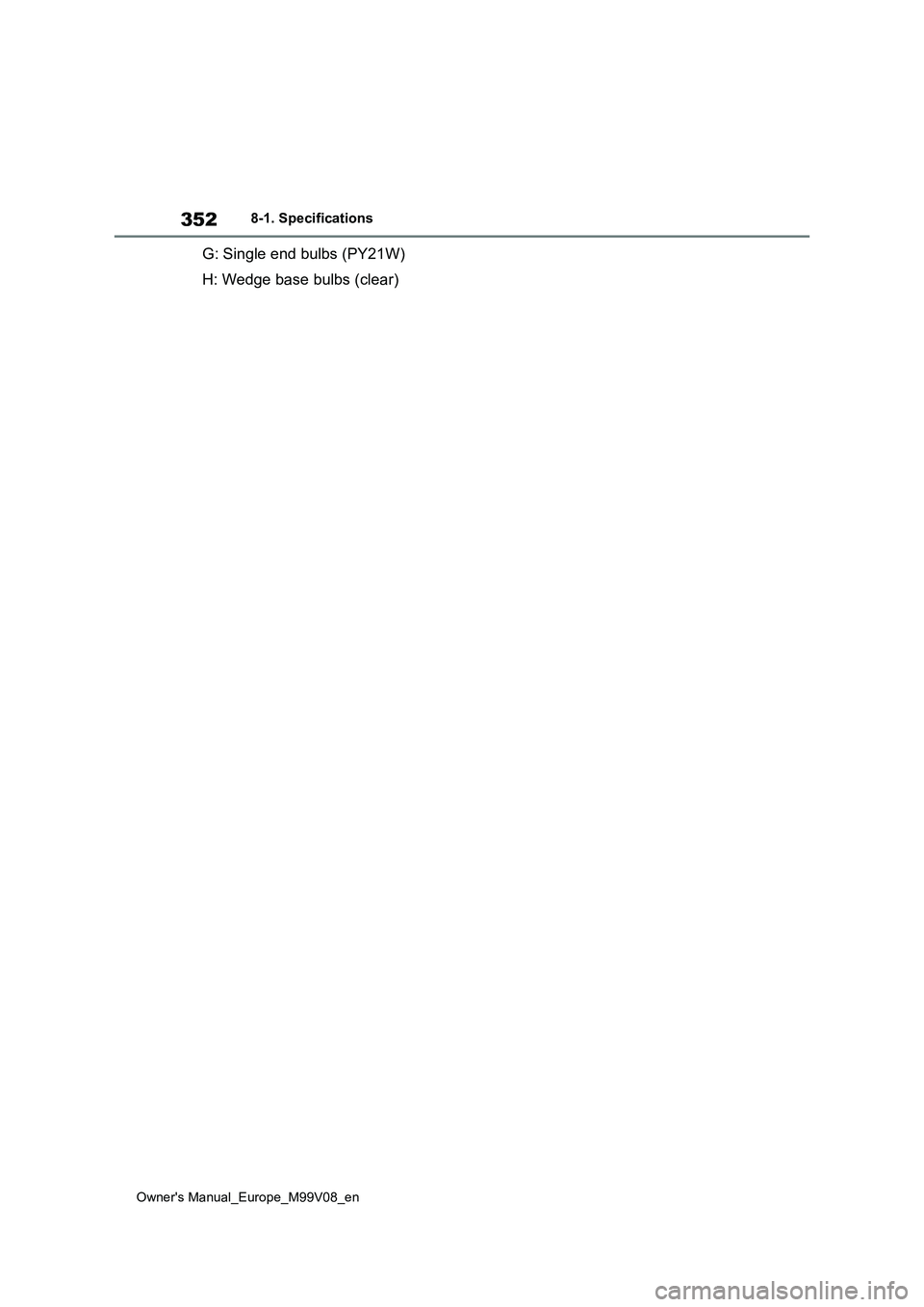

352
Owner's Manual_Europe_M99V08_en
8-1. Specifications
G: Single end bulbs (PY21W)
H: Wedge base bulbs (clear)

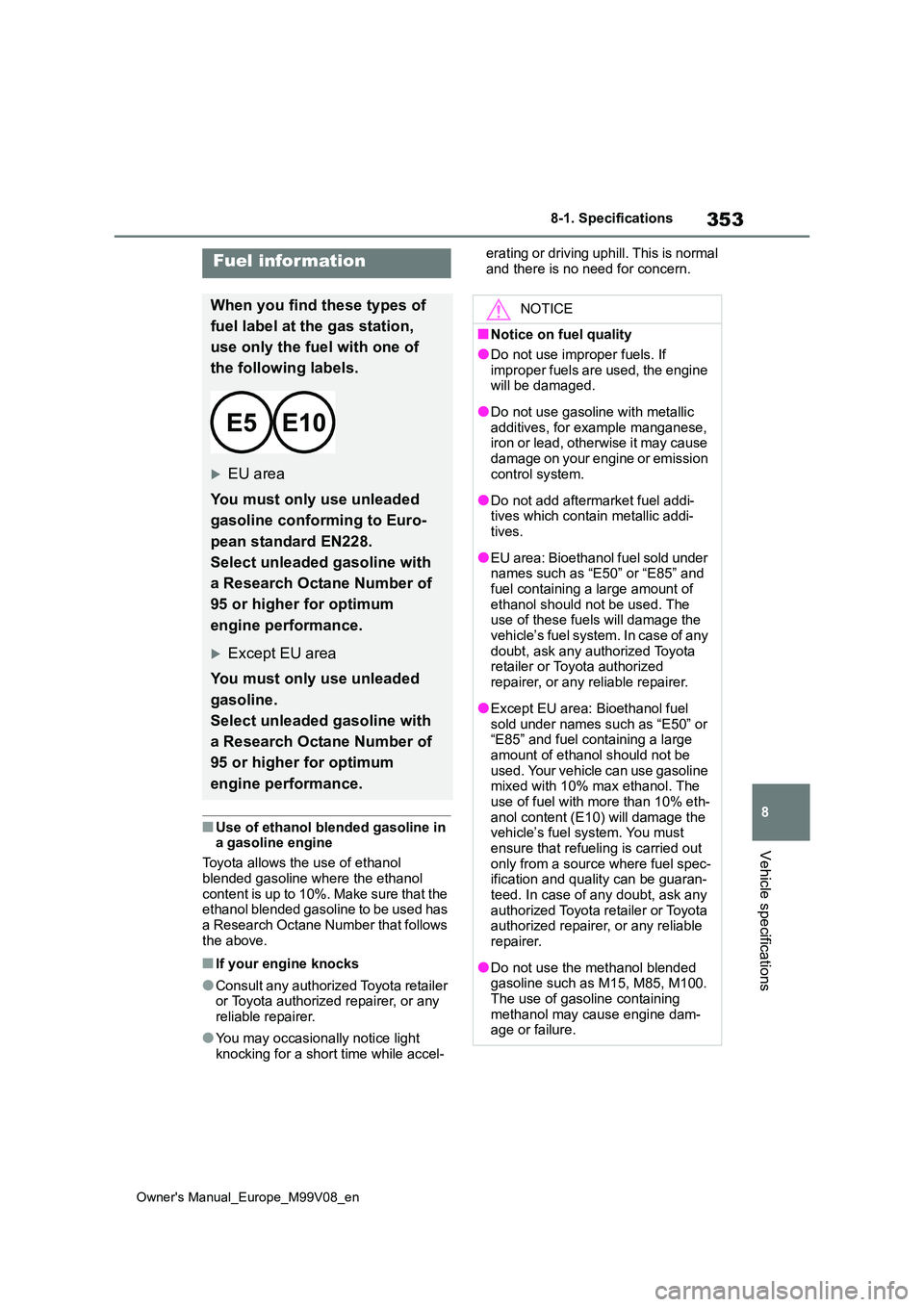

353
8
Owner's Manual_Europe_M99V08_en
8-1. Specifications
Vehicle specifications
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol
blended gasoline where the ethanol content is up to 10%. Make sure that the ethanol blended gasoline to be used has
a Research Octane Number that follows the above.
■If your engine knocks
●Consult any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●You may occasionally notice light
knocking for a short time while accel-
erating or driving uphill. This is normal
and there is no need for concern.Fuel information
When you find these types of
fuel label at the gas station,
use only the fuel with one of
the following labels.
EU area
You must only use unleaded
gasoline conforming to Euro-
pean standard EN228.
Select unleaded gasoline with
a Research Octane Number of
95 or higher for optimum
engine performance.
Except EU area
You must only use unleaded
gasoline.
Select unleaded gasoline with
a Research Octane Number of
95 or higher for optimum
engine performance.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If
improper fuels are used, the engine will be damaged.
●Do not use gasoline with metallic additives, for example manganese, iron or lead, otherwise it may cause
damage on your engine or emission control system.
●Do not add aftermarket fuel addi-tives which contain metallic addi-tives.
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of these fuels will damage the
vehicle’s fuel system. In case of any doubt, ask any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
●Except EU area: Bioethanol fuel
sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be
used. Your vehicle can use gasoline mixed with 10% max ethanol. The use of fuel with more than 10% eth-
anol content (E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried out
only from a source where fuel spec- ification and quality can be guaran-teed. In case of any doubt, ask any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine dam-age or failure.

354
Owner's Manual_Europe_M99V08_en
8-2. Customization
8-2.Customiz ation
■Changing by using the naviga-
tion/multimedia system screen
(vehicles with 7-inch/8-inch
display multimedia system)
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “Vehicle” on the “Setup”
screen.
4 4 Select “Vehicle customiza-
tion”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter
control switches
1 Press / of the meter con-
trol switches to select .
2 Press / of the meter con-
trol switches to select the
desired item to be customized.
3 Press or press and hold .
The available settings will differ
depending on if is pressed or
pressed and held. Follow the instruc-
tions on the display.
Some function settings are changed simultaneously with other fu nctions
being customized. Contact any authorized Toyota retailer or Toy ota autho-
rized repairer, or any reliable repairer for further details.
Settings that can be changed using the 7-inch/8-inch display m ultimedia
Customizable features
Your vehicle includes a variety
of electronic features that can
be personalized to suit your
preferences. The settings of
these features can be changed
using the multi-information
display, the nav igation/multi-
media system screen or at any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
Customizing vehicle fea-
turesWARNING
■During customization
As the engine needs to be running
during customization, ensure that the vehicle is parked in a place with ade-quate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehi-
cle. This may lead to death or a seri- ous health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
Customizable features

355
8
Owner's Manual_Europe_M99V08_en
8-2. Customization
Vehicle specifications
system
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Toyota retailer or Toy ota
authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■Gauges, meters and multi-information display ( P.79, 83)
*1: For details about each function: P. 8 6
*2: The default setting varies according to country.
*3: Spanish, Russian, French, German, Italian, Dutch, Turkish, Polish, Hebrew, Nor-
wegian, Swedish, Danish, Ukrainian, Finnish, Greek, Czech, Port uguese, Roma-
nian, Slovakian, Hungarian, Flemish
Function*1Default settingCustomized setting
Language*2English*3OO—
Units*2L/100 kmkm/LOO—miles (MPG)
Eco Driving Indicator
Light*4OnOff—O—
Fuel economy display
Total average
(Average fuel
consumption
[after reset])
Trip average (Aver-
age fuel consump-
tion [after start])—O—Tank average (Aver-
age fuel consump-
tion [after refuel])
Audio system linked dis-
play*4OnOff—O—
Drive information typeAfter startAfter reset—O—
Drive information items
(First item)Distance
Average vehicle
speed—O—
Elapsed time
Drive information items
(Second item)Elapsed time
Average vehicle
speed—O—
Distance
Pop-up displayOnOff—O—

356
Owner's Manual_Europe_M99V08_en
8-2. Customization
*4: If equipped
■Smart entry & start system* and wireless remote control (P. 9 6 ,
102)
*: If equipped
■Smart entry & start system* ( P.96, 100, 102)
*: If equipped
■Wireless remote control (P.94, 96)
■Rear seat reminder (P. 9 7 )
■Automatic light control system (P.142)
FunctionDefault settingCustomized setting
Operation signal (Emer-
gency flashers)OnOffO—O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzer*OnOff——O
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
FunctionDefault settingCustomized setting
Indication to prevent mis-
placement in the rear seatOnOff—O—
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O

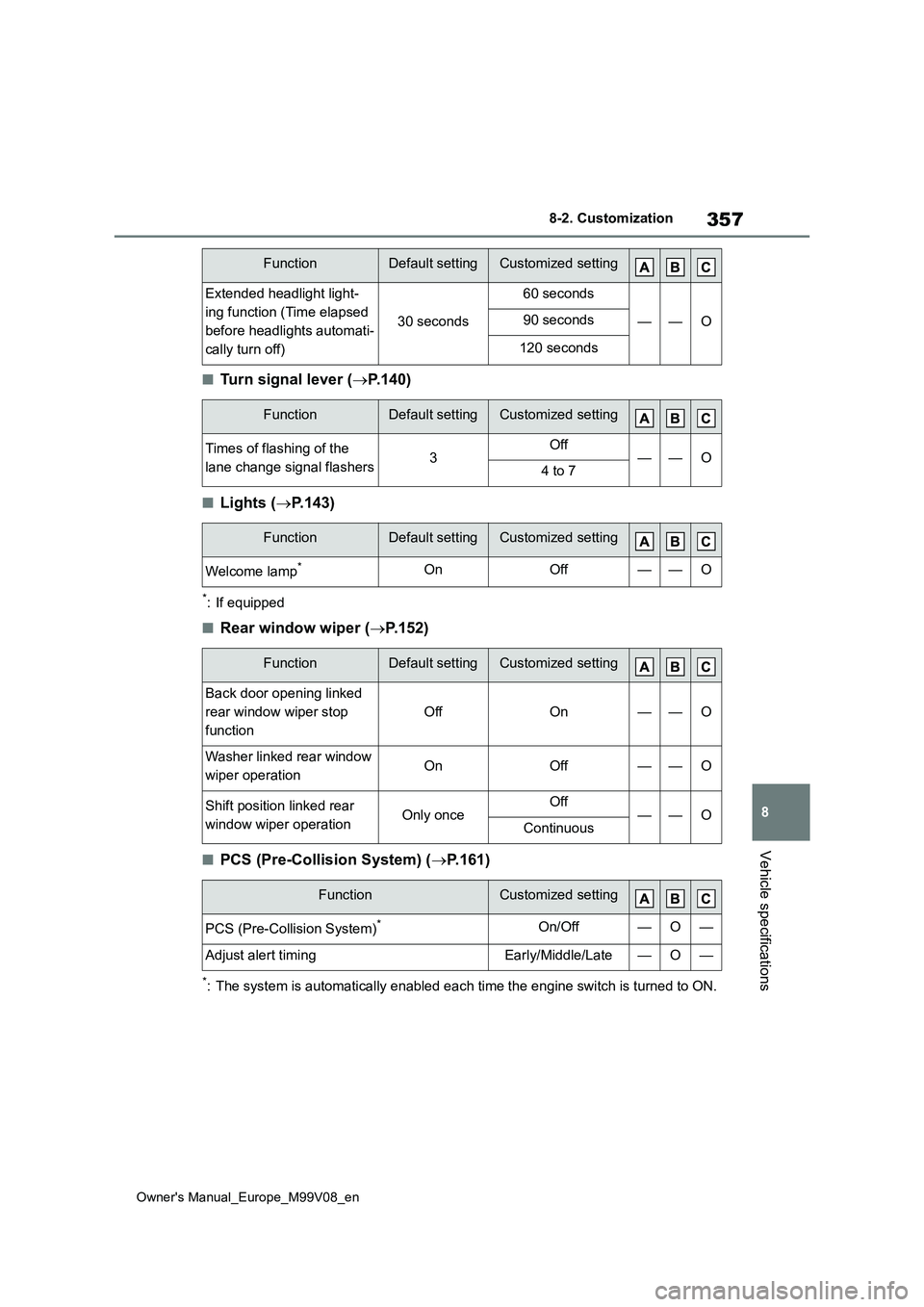

357
8
Owner's Manual_Europe_M99V08_en
8-2. Customization
Vehicle specifications
■Turn signal lever (P.140)
■Lights (P.143)
*: If equipped
■Rear window wiper (P.152)
■PCS (Pre-Collision System) (P.161)
*: The system is automatically enabled each time the engine switch is turned to ON.
Extended headlight light-
ing function (Time elapsed
before headlights automati-
cally turn off)
30 seconds
60 seconds
——O90 seconds
120 seconds
FunctionDefault settingCustomized setting
Times of flashing of the
lane change signal flashers3Off——O4 to 7
FunctionDefault settingCustomized setting
Welcome lamp*OnOff——O
FunctionDefault settingCustomized setting
Back door opening linked
rear window wiper stop
function
OffOn——O
Washer linked rear window
wiper operationOnOff——O
Shift position linked rear
window wiper operationOnly onceOff——OContinuous
FunctionCustomized setting
PCS (Pre-Collision System)*On/Off—O—
Adjust alert timingEarly/Middle/Late—O—
FunctionDefault settingCustomized setting

358
Owner's Manual_Europe_M99V08_en
8-2. Customization
■LTA (Lane Tracing Assist) (P.172)
■RSA (Road Sign Assist)*1 (P.194)
*1: If equipped
*2: RSA function becomes On when the engine switch is turned to ON.
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
■Dynamic radar cruise control ( P.181)
■Stop & Start system (P.198)
FunctionCustomized setting
Lane centering functionOn/Off—O—
Alert sensitivityHigh/Standard—O—
Vehicle sway warning functionOn/Off—O—
Vehicle sway warning sensitivityHigh/Standard/Low—O—
FunctionCustomized setting
RSA (Road Sign Assist)*2On/Off—O—
Excess speed notification method*3Display only/Display
and buzzer/No notifi-
cation
—O—
Excess speed notification level
2 km/h (1 mph)/5
km/h (3 mph)/10 km/h
(5 mph)
—O—
No overtaking notification method
Display only/Display
and buzzer/No notifi-
cation
—O—
FunctionCustomized setting
Radar Cruise Control with Road Sign AssistOff/On—O—
FunctionDefault settingCustomized setting
Change the Stop & Start
system duration when the
A/C is on
StandardExtended—O—
