Page 5 of 494
3
Owner's Manual_Europe_M99V08_en
TABLE OF CONTENTS
1
6
5
4
3
2
8
7
4-2. Driving procedures
Engine (ignition) switch (vehicles
without smart entry & start sys-
tem) .................................. 129
Engine (ignition) switch (vehicles
with smart entry & start system)
.......................................... 130
Multidrive ............................ 135
Manual transmission ........... 139
Turn signal lever ................. 140
Parking brake...................... 141
4-3. Operating the lights and wip-
ers
Headlight switch.................. 142
AHB (Automatic High Beam)
.......................................... 145
Fog light switch ................... 148
Windshield wipers and washer
.......................................... 149
Rear window wiper and washer
.......................................... 152
4-4. Refueling
Opening the fuel tank cap ... 154
4-5. Using the driving support sys-
tems
Toyota Safety Sense ........... 156
PCS (Pre-Collision System) 161
LTA (Lane Tracing Assist) ... 172
Dynamic radar cruise control
.......................................... 181
Speed limiter ....................... 192
RSA (Road Sign Assist) ...... 194
Stop & Start system ............ 198
Toyota parking assist-sensor
.......................................... 204
GPF (Gasoline Particulate Filter)
system .............................. 210
Driving assist systems ........ 211
4-6. Driving tips
Winter driving tips ............... 216
5-1. Using the air conditioning
system and defogger
Manual air conditioning system
.......................................... 220
Automatic air conditioning sys-
tem.................................... 224
Seat heaters ....................... 228
5-2. Using the interior lights
Interior lights list .................. 230
5-3. Using the storage features
List of storage features ....... 232
Luggage compartment features
.......................................... 233
5-4. Other interior features
Other interior features ......... 236
5Interior features
Page 19 of 494
17
Owner's Manual_Europe_M99V08_en
Pictorial index
■Switches (left-hand drive vehicles)
Headlight leveling dial ...................................................................P.144
Automatic High Beam switch ..................................... ..................P.145
VSC OFF switch ................................................. ............................P.212
Stop & Start cancel switch ..................................... .......................P.199
Outside rear view mirror switches*.............................................. P.112
Power window switches .......................................... ...................... P.114
Seat heater switches*............................................................... .....P.228
*: If equipped
Page 26 of 494
24
Owner's Manual_Europe_M99V08_en
Pictorial index
■Switches (right-hand drive vehicles)
Headlight leveling dial ...................................................................P.144
Automatic High Beam switch ..................................... ..................P.145
VSC OFF switch ................................................. ............................P.212
Stop & Start cancel switch ..................................... .......................P.199
Outside rear view mirror switches .............................. ................. P.112
Power window switches .......................................... ...................... P.114
Seat heater switches*............................................................... .....P.228
*: If equipped
Page 221 of 494
5
219
Owner's Manual_Europe_M99V08_en
5
Interior features
Interior features
5-1. Using the air conditioning
system and defogger
Manual air conditioning system
....................................... 220
Automatic air conditioning sys-
tem ................................. 224
Seat heaters ..................... 228
5-2. Using the interior lights
Interior lights list................ 230
5-3. Using the storage features
List of storage features ..... 232
Luggage compartment features
....................................... 233
5-4. Other interior features
Other interior features....... 236
Page 230 of 494
228
Owner's Manual_Europe_M99V08_en
5-1. Using the air conditioning system and defogger
1Direct air flow to the left or right,
up or down
2 Close the vent
*: If equipped
■Seat heaters
Turns seat heaters on/off.
WARNING
■To prevent the windshield defog-
ger from operating improperly
Do not place anything on the instru-
ment panel which may cover the air outlets. Otherwise, air flow may be obstructed, preventing the windshield
defoggers from defogging.
Seat heaters*
Warm up the seat upholstery
WARNING
■To prevent minor burn injuries
Care should be taken if anyone in the following categories comes in contact
with the seats when the heater is on:
●Babies, small children, the elderly,
the sick and the physically chal- lenged
●Persons with sensitive skin
●Persons who are fatigued
●Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
NOTICE
■To prevent damage to the seat heaters
Do not put heavy objects that have an
uneven surface on the seat and do not stick sharp objects (needles, nails, etc.) into the seat.
■To prevent battery discharge
Do not use the functions when the
engine is off.
Operation instructions
Page 231 of 494
229
5
Owner's Manual_Europe_M99V08_en
5-1. Using the air conditioning system and defogger
Interior features
When the seat heater is on, the indica-
tor illuminates on the seat heater
switch.
Turn the seat heater off by pressing the
switch. The indicator will turn off.
*: Vehicles with automatic air condition-
ing system
■The seat heaters can be used when
The engine switch is in ON.
WARNING
■To prevent overheating and minor burn injuries
Observe the following precautions
when using the seat heaters.
●Do not cover the seat with a blanket
or cushion when using the seat heater.
●Do not use seat heater more than necessary.

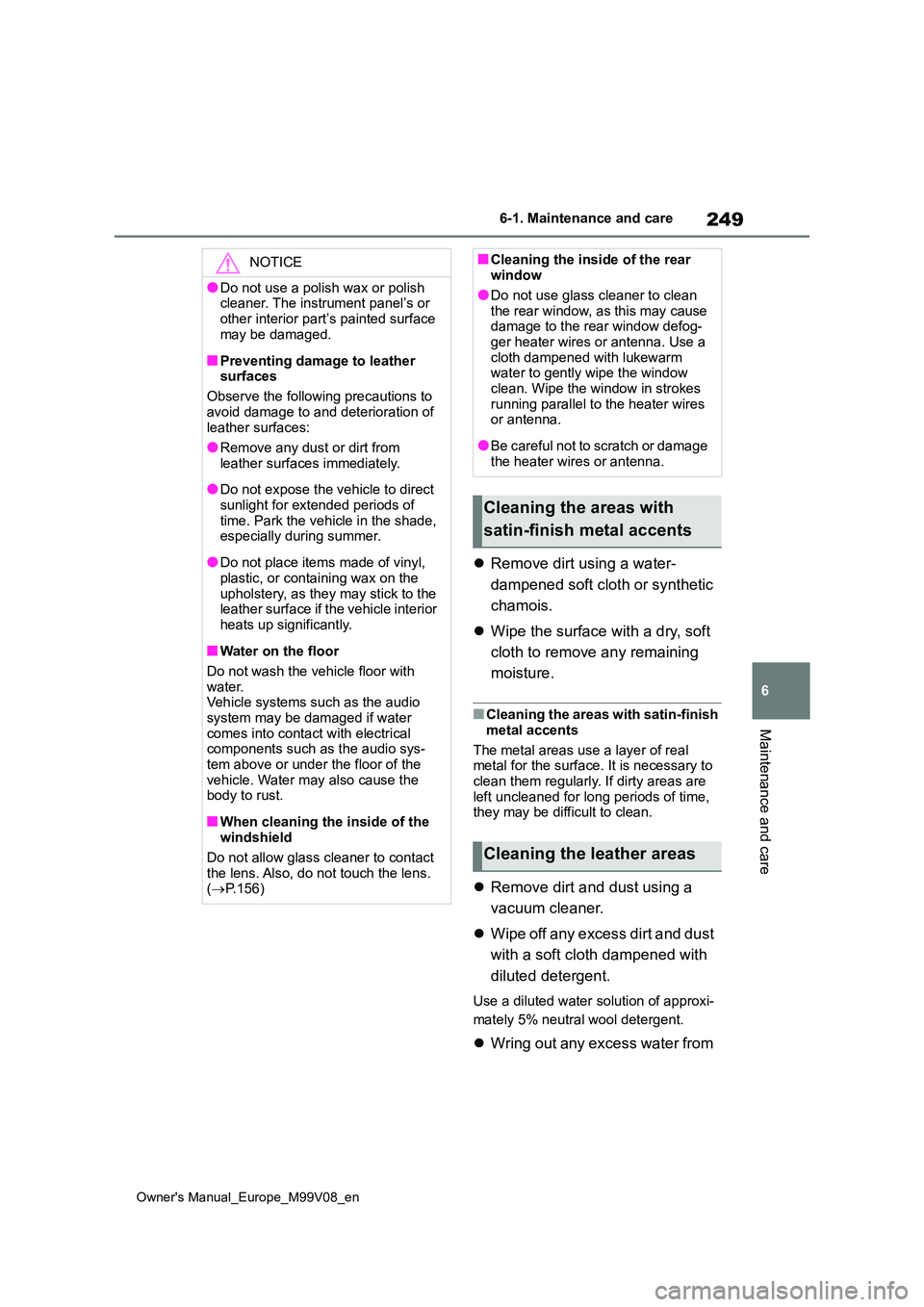

Page 251 of 494
249
6
Owner's Manual_Europe_M99V08_en
6-1. Maintenance and care
Maintenance and care
Remove dirt using a water-
dampened soft cloth or synthetic
chamois.
Wipe the surface with a dry, soft
cloth to remove any remaining
moisture.
■Cleaning the areas with satin-finish
metal accents
The metal areas use a layer of real metal for the surface. It is necessary to
clean them regularly. If dirty areas are left uncleaned for long periods of time, they may be difficult to clean.
Remove dirt and dust using a
vacuum cleaner.
Wipe off any excess dirt and dust
with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of approxi-
mately 5% neutral wool detergent.
Wring out any excess water from
NOTICE
●Do not use a polish wax or polish cleaner. The instrument panel’s or
other interior part’s painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to
avoid damage to and deterioration of leather surfaces:
●Remove any dust or dirt from
leather surfaces immediately.
●Do not expose the vehicle to direct
sunlight for extended periods of time. Park the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the
upholstery, as they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with
water. Vehicle systems such as the audio system may be damaged if water
comes into contact with electrical components such as the audio sys-tem above or under the floor of the
vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windshield
Do not allow glass cleaner to contact
the lens. Also, do not touch the lens. ( P.156)
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean
the rear window, as this may cause damage to the rear window defog-ger heater wires or antenna. Use a
cloth dampened with lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.
Cleaning the areas with
satin-finish metal accents
Cleaning the leather areas
Page 285 of 494
283
6
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
Maintenance and care
10ABS NO.230Anti-lock brake system, vehicle stability con-
trol system
11ST NO.130Starting system
12EFI-MAIN NO.220
Multiport fuel injection system/sequential
multiport fuel injection system, Stop & Start
system
13TOWING B20Bike holder system
14EFI-MAIN NO.120
Multiport fuel injection system/sequential
multiport fuel injection system, Stop & Start
system, Cooling fan
15HORN10Horn
16WIPER30Windshield wiper
17D/C CUT30Multiport injection system
18BBC NO.230Stop & Start system
19EFI NO.310
Multiport fuel injection system/sequential
multiport fuel injection system, Stop & Start
system
20EFI NO.510
Multiport fuel injection system/sequential
multiport fuel injection system, Stop & Start
system
21ECU-IGP NO.310Stop lamp SW, Gateway ECU, immobilizer
ECU, Stop & Start system, Seat heater SW
22ECU-IGP No.17.5Ergonomically control transmission system
23DIM RH15Head lamp system
24BATT-S NO.15Battery sensor
25IGP MAIN25Washer system, Ignition system
26DIM LH15Head lamp system
27EFI NO.17.5
Multiport fuel injection system/sequential
multiport fuel injection system, Stop & Start
system
28ECU-IGP NO.25Shift lock ECU
29INJ7.5IG coil, EFI ECU
30WASHER15Wiper module
FuseAmpereCircuit
Page 370 of 494
368
Owner's Manual_Europe_M99V08_en
Alphabetical Index
C
Canvas top .................................... 116
Care ....................................... 244, 248
Aluminum wheels ....................... 244
Exterior....................................... 244
Interior ........................................ 248
Seat belts ................................... 248
Cargo and luggage ....................... 127
Chains ........................................... 217
Child restraint system .................... 48
Points to remember...................... 48
Riding with children ...................... 47
Child safety ..................................... 47
Airbag precautions ....................... 40
Battery precautions ............ 264, 338
Canvas top ................................. 116
Child restraint system .................. 48
How your child should wear the seat
belt ............................................. 34
Installing child restraints............... 48
Power window precautions ........ 114
Rear door child-protectors ........... 99
Removed electronic key battery pre-
cautions ................................... 277
Seat belt precautions ................... 47
Seat heater precautions ............. 228
Child-protectors.............................. 99
Cleaning ................................ 244, 248
Aluminum wheels ....................... 244
Exterior....................................... 244
Interior ........................................ 248
Radar sensor ............................. 156
Seat belts ................................... 248
Clock .................................... 79, 81, 82
Condenser..................................... 261
Consumption screen ...................... 88
Cooling system ............................. 260
Engine overheating .................... 339
Cruise control
Dynamic radar cruise control ..... 181
Cup holders ...................................233
Current fuel consumption ..............84
Curtain shield airbags ....................36
Customizable features ................. 354
D
Daytime running light system ..... 142
Deck board .................................... 233
Defogger
Outside rear view mirrors ... 221, 225
Rear window ...................... 221, 225
Windshield.......................... 221, 225
Dimensions ...................................344
Display
Dynamic radar cruise control ..... 181
LTA (Lane Tracing Assist)........... 177
Multi-information display ..............83
Speed limiter .............................. 192
Toyota parking assist-sensor...... 204
Warning message ...................... 311
Display change button ................... 81
Distance until next engine oil change
....................................................... 81
Do-it-yourself maintenance ......... 251
Door lock
Back door .....................................99
Side doors .................................... 96
Smart entry & start system ......... 102
Wireless remote control ............... 94
Doors
Back door .....................................99
Door glasses ...................... 114, 115
Door lock ................................ 96, 99
Open door warning buzzer ..... 97, 99
Outside rear view mirrors ........... 112
Rear door child-protectors............ 99
Side doors .................................... 96
Drive distance ................................. 86
Drive information ............................ 86
Drive-start control......................... 126
Page 372 of 494
370
Owner's Manual_Europe_M99V08_en
Alphabetical Index
Engine switch ....................... 129, 130
Auto power off function .............. 133
Changing the engine switch modes
......................................... 129, 133
If your vehicle has to be stopped in
an emergency .......................... 296
EPS (Electric Power Steering) ..... 212
Warning light .............................. 306
Extended headlight lighting function
..................................................... 143
F
Flat tire
Tire pressure warning system .... 267
Vehicles with a spare tire ........... 324
Vehicles without a spare tire ...... 313
Floor mats ....................................... 30
Fluid
Brake.......................................... 350
Clutch ......................................... 349
Multidrive.................................... 349
Washer ....................................... 264
Fog lights
Replacing light bulbs .. 286, 288, 290
Switch ........................................ 148
Wattage ...................................... 351
Front fog lights
Replacing light bulbs .......... 286, 288
Switch ........................................ 148
Wattage ...................................... 351
Front interior lights
Wattage ...................................... 351
Front position lights
Replacing light bulbs .......... 286, 288
Wattage ...................................... 351
Front seats .................................... 106
Adjustment ................................. 106
Cleaning ..................................... 248
Correct driving posture................. 31
Seat heaters............................... 228
Front turn signal lights................. 140
Replacing light bulbs ..........286, 288
Turn signal lever ......................... 140
Wattage ...................................... 351
Fuel ................................................ 154
Capacity ..................................... 345
Fuel gauge ................................... 79
Fuel pump shut off system ......... 303
Information ................................. 353
Refueling .................................... 154
Type ........................................... 345
Warning light .............................. 306
Fuel consumption
Average fuel economy ................. 84
Current fuel consumption ............. 84
Fuel economy.................................. 84
Fuel filler door ............................... 154
Refueling .................................... 154
Fuel gauge ....................................... 79
Fuel pump shut off system .......... 303
Fuses ............................................. 278
G
Gauges............................................. 79
Gear Shift Indicator ...................... 140
Glove box ...................................... 232
GPF (Gasoline Particulate Filter)
system ......................................... 210
H
Head restraints.............................. 108
Headlights
Automatic High Beam system .... 145
Extended headlight lighting function
................................................. 143
Light switch ................................ 142
Replacing light bulbs ..........286, 287
Wattage ...................................... 351
