odometer TOYOTA AYGO X 2022 Owners Manual (in English)

79
2
Owner's Manual_Europe_M99V08_en
2-1. Instrument cluster
Vehicle status information and indicators
■Locations of gauges and meters
The units of measure may differ depending on the intended destination of the vehi-
cle.
Tachometer (if equipped)
Displays the engine speed in revolutions per minute
Multi-information display
Presents the driver with a variety of vehicle data ( P. 8 3 )
Displays warning messages if a malfunction occurs ( P. 3 1 1 )
Speedometer
Clock ( P.81, 82)
Fuel gauge
Displays the fuel level. In the following situations, the actua l fuel level may not be
displayed correctly:
• After refueling only a small amount (approximately 5 L or less )
• When stopped on a hill or other slope
• When driving on a slope or around a curve
Odometer and trip meter display ( P. 8 1 )
Shift position indicator (Multidrive) ( P.135)
Gear Shift Indicator (manual transmission) ( P.140)
Gauges and meters
Meter display

80
Owner's Manual_Europe_M99V08_en
2-1. Instrument cluster
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 60°C (140°F)
■Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:• When stopped, or driving at low
speeds (less than 25 km/h [16 mph]) • When the outside temperature has changed suddenly (at the
entrance/exit of a garage, tunnel, etc.)
●When “--” is displayed, the system
may be malfunctioning. Take your vehicle to any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
■Fuel gauge and driving range dis- play
The fuel gauge and driving range dis-
play are linked. If the fuel gauge and driving range display do not update after refueling a small amount, they can be
updated by performing the following pro- cedure:
1 Stop the vehicle on a level surface.
Wait until the fuel in the fuel tank stabi- lizes.
2 Press or to select of the
multi-information display.
3 Press or to select .
4 Press to change the odometer
and trip meter display to the odome-
ter.
5 Turn the engine switch off.
6 While pressing and holding the
meter control switch, turn the engine
switch to ON.
7 Continue holding the meter
control switch for approximately 5
seconds.
Release the button when the odometer begins blinking.
Updating will be complete when the odometer blinks for approximately 5 seconds and then returns to the normal
display.
■Liquid crystal display
 P. 8 3
■Customization
The gauges and meters can be custom-
ized in of the multi-information dis-
play. ( P.355)
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crys-tal information display. At extremely
low temperatures, the information dis- play monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to downshift again, causing rapid and
excessive engine braking and possi- bly an accident resulting in death or injury.
NOTICE
■To prevent damage to the engine
and its components
Do not let the indicator of the tachom- eter enter the red zone, which indi-
cates the maximum engine speed.

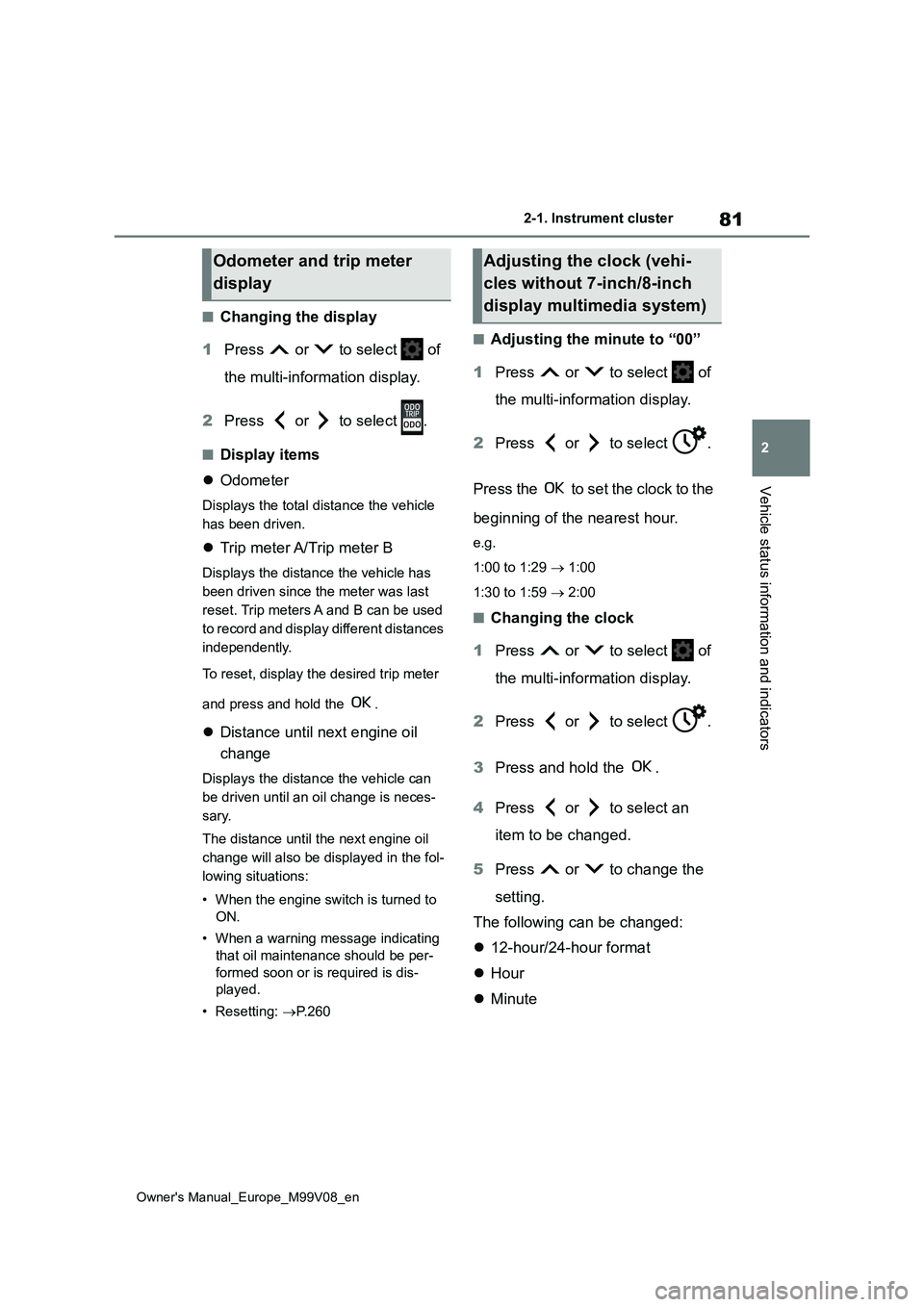

81
2
Owner's Manual_Europe_M99V08_en
2-1. Instrument cluster
Vehicle status information and indicators
■Changing the display
1 Press or to select of
the multi-information display.
2 Press or to select .
■Display items
 Odometer
Displays the total distance the vehicle
has been driven.
 Trip meter A/Trip meter B
Displays the distance the vehicle has
been driven since the meter was last
reset. Trip meters A and B can be used
to record and display different distances
independently.
To reset, display the desired trip meter
and press and hold the .
 Distance until next engine oil
change
Displays the distance the vehicle can
be driven until an oil change is neces-
sary.
The distance until the next engine oil
change will also be displayed in the fol-
lowing situations:
• When the engine switch is turned to
ON.
• When a warning message indicating
that oil maintenance should be per-
formed soon or is required is dis-
played.
• Resetting: P. 2 6 0
■Adjusting the minute to “00”
1 Press or to select of
the multi-information display.
2 Press or to select .
Press the to set the clock to the
beginning of the nearest hour.
e.g.
1:00 to 1:29  1:00
1:30 to 1:59  2:00
■Changing the clock
1 Press or to select of
the multi-information display.
2 Press or to select .
3 Press and hold the .
4 Press or to select an
item to be changed.
5 Press or to change the
setting.
The following can be changed:
 12-hour/24-hour format
 Hour
 Minute
Odometer and trip meter
display
Adjusting the clock (vehi-
cles without 7-inch/8-inch
display multimedia system)

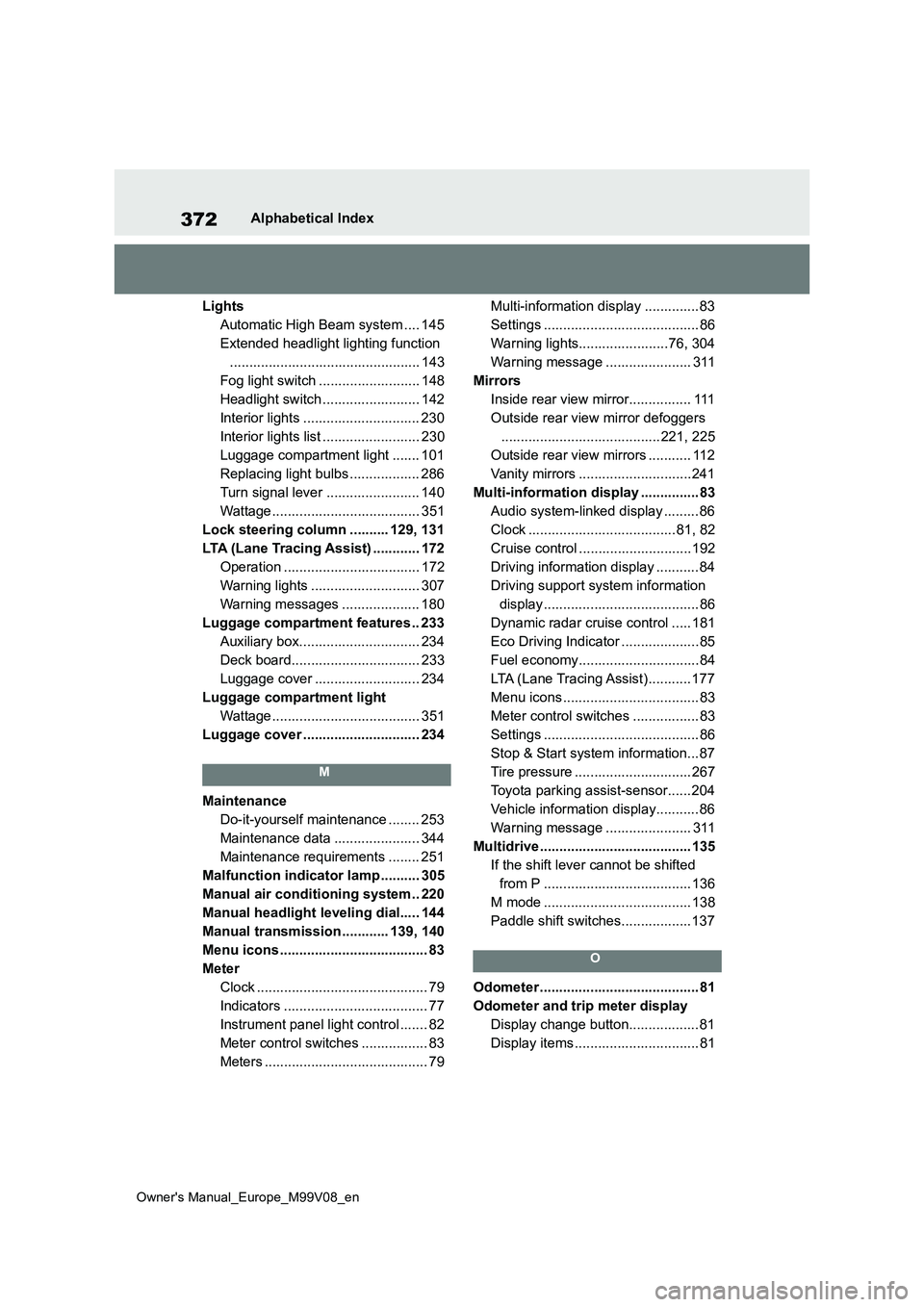

372
Owner's Manual_Europe_M99V08_en
Alphabetical Index
Lights
Automatic High Beam system .... 145
Extended headlight lighting function
................................................. 143
Fog light switch .......................... 148
Headlight switch ......................... 142
Interior lights .............................. 230
Interior lights list ......................... 230
Luggage compartment light ....... 101
Replacing light bulbs .................. 286
Turn signal lever ........................ 140
Wattage ...................................... 351
Lock steering column .......... 129, 131
LTA (Lane Tracing Assist) ............ 172
Operation ................................... 172
Warning lights ............................ 307
Warning messages .................... 180
Luggage compartment features .. 233
Auxiliary box............................... 234
Deck board................................. 233
Luggage cover ........................... 234
Luggage compartment light
Wattage ...................................... 351
Luggage cover .............................. 234
M
Maintenance
Do-it-yourself maintenance ........ 253
Maintenance data ...................... 344
Maintenance requirements ........ 251
Malfunction indicator lamp .......... 305
Manual air conditioning system .. 220
Manual headlight leveling dial..... 144
Manual transmission ............ 139, 140
Menu icons ...................................... 83
Meter
Clock ............................................ 79
Indicators ..................................... 77
Instrument panel light control ....... 82
Meter control switches ................. 83
Meters .......................................... 79
Multi-information display ..............83
Settings ........................................ 86
Warning lights.......................76, 304
Warning message ...................... 311
Mirrors
Inside rear view mirror................ 111
Outside rear view mirror defoggers
......................................... 221, 225
Outside rear view mirrors ........... 112
Vanity mirrors .............................241
Multi-information display ............... 83
Audio system-linked display ......... 86
Clock ...................................... 81, 82
Cruise control .............................192
Driving information display ........... 84
Driving support system information
display ........................................ 86
Dynamic radar cruise control ..... 181
Eco Driving Indicator ....................85
Fuel economy...............................84
LTA (Lane Tracing Assist)........... 177
Menu icons ................................... 83
Meter control switches ................. 83
Settings ........................................ 86
Stop & Start system information...87
Tire pressure .............................. 267
Toyota parking assist-sensor...... 204
Vehicle information display........... 86
Warning message ...................... 311
Multidrive ....................................... 135
If the shift lever cannot be shifted
from P ...................................... 136
M mode ...................................... 138
Paddle shift switches..................137
O
Odometer......................................... 81
Odometer and trip meter display
Display change button.................. 81
Display items ................................ 81
