TOYOTA BZ4X 2022 Owners Manual (in English)

549
8
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
When trouble arises
1Stop the vehicle in a safe place
and turn off the air conditioning
system.
2 Leave the EV system operating
and carefully lift the hood.
3 Check if the cooling fan is oper-
ating.
If the fan is operating:
Wait until the “EV System over-
heated Output power reduced”
message disappears and then
stop the EV system. If the mes-
sage does not disappear, call
any authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
If the fan is not operating:
Stop the EV system immediately
and call any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
4 After the EV system has cooled
down, inspect the hoses and
radiator core (radiator) for any
leaks.
Radiator
Cooling fan
If a large amount of coolant leaks,
immediately contact any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
If your vehicle overheats
When “EV System overheated
Output power reduced” is
shown on the multi-informa-
tion display, your vehicle may
be overheating.
NOTICE
■Cooling system coolant
The radiator coolant is exclusive for radiator usage. Damage may occur when water or any other type of cool-
ant is used, so never use any other fluid. When there is no “Toyota Genu-ine Traction Battery Coolant”, immedi-
ately contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
Correction procedures

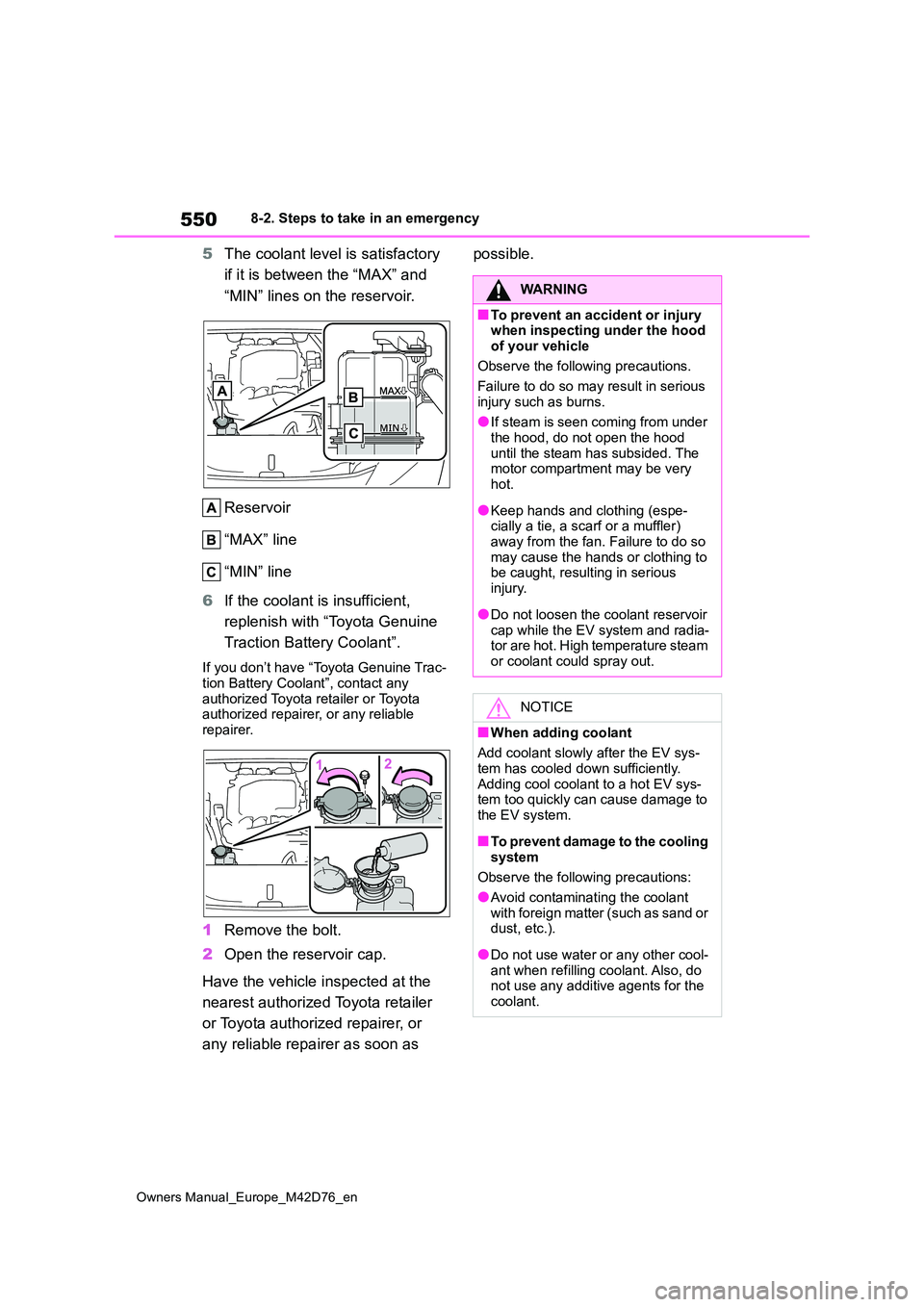

550
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
5The coolant level is satisfactory
if it is between the “MAX” and
“MIN” lines on the reservoir.
Reservoir
“MAX” line
“MIN” line
6 If the coolant is insufficient,
replenish with “Toyota Genuine
Traction Battery Coolant”.
If you don’t have “Toyota Genuine Trac-
tion Battery Coolant”, contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
1 Remove the bolt.
2 Open the reservoir cap.
Have the vehicle inspected at the
nearest authorized Toyota retailer
or Toyota authorized repairer, or
any reliable repairer as soon as
possible.
WARNING
■To prevent an accident or injury when inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood
until the steam has subsided. The motor compartment may be very hot.
●Keep hands and clothing (espe-cially a tie, a scarf or a muffler)
away from the fan. Failure to do so may cause the hands or clothing to be caught, resulting in serious
injury.
●Do not loosen the coolant reservoir
cap while the EV system and radia- tor are hot. High temperature steam or coolant could spray out.
NOTICE
■When adding coolant
Add coolant slowly after the EV sys-
tem has cooled down sufficiently. Adding cool coolant to a hot EV sys-tem too quickly can cause damage to
the EV system.
■To prevent damage to the cooling
system
Observe the following precautions:
●Avoid contaminating the coolant
with foreign matter (such as sand or dust, etc.).
●Do not use water or any other cool-ant when refilling coolant. Also, do not use any additive agents for the
coolant.

551
8
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
When trouble arises
1Stop the EV system. Set the
parking brake and shift the shift
position to P.
2 Remove the mud, snow or sand
from around the front wheels.
3 Place wood, stones or some
other material under the front
wheels to help provide traction.
4 Restart the EV system.
5 Shift the shift position to D or R
and release the parking brake.
Then, while exercising caution,
depress the accelerator pedal.
■When it is difficult to free the vehi-
cle
Press the switch to turn off TRC.
( P.407)
If the vehicle becomes
stuck
Carry out the following proce-
dures if the tires spin or the
vehicle becomes stuck in mud,
dirt or snow:
Recovering procedure
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding area is clear to avoid
striking other vehicles, objects or peo- ple. The vehicle may also lunge for-ward or lunge back suddenly as it
becomes free. Use extreme caution.
■When shifting the shift position
Be careful not to shift the shift position with the accelerator pedal depressed.This may lead to unexpected rapid
acceleration of the vehicle that may cause an accident resulting in death or serious injury.
NOTICE
■To avoid damage to the transmis-sion and other components
●Avoid spinning the tires and depressing the accelerator pedal more than necessary.
●If the vehicle remains stuck even
after these procedures are per- formed, the vehicle may require towing to be freed.

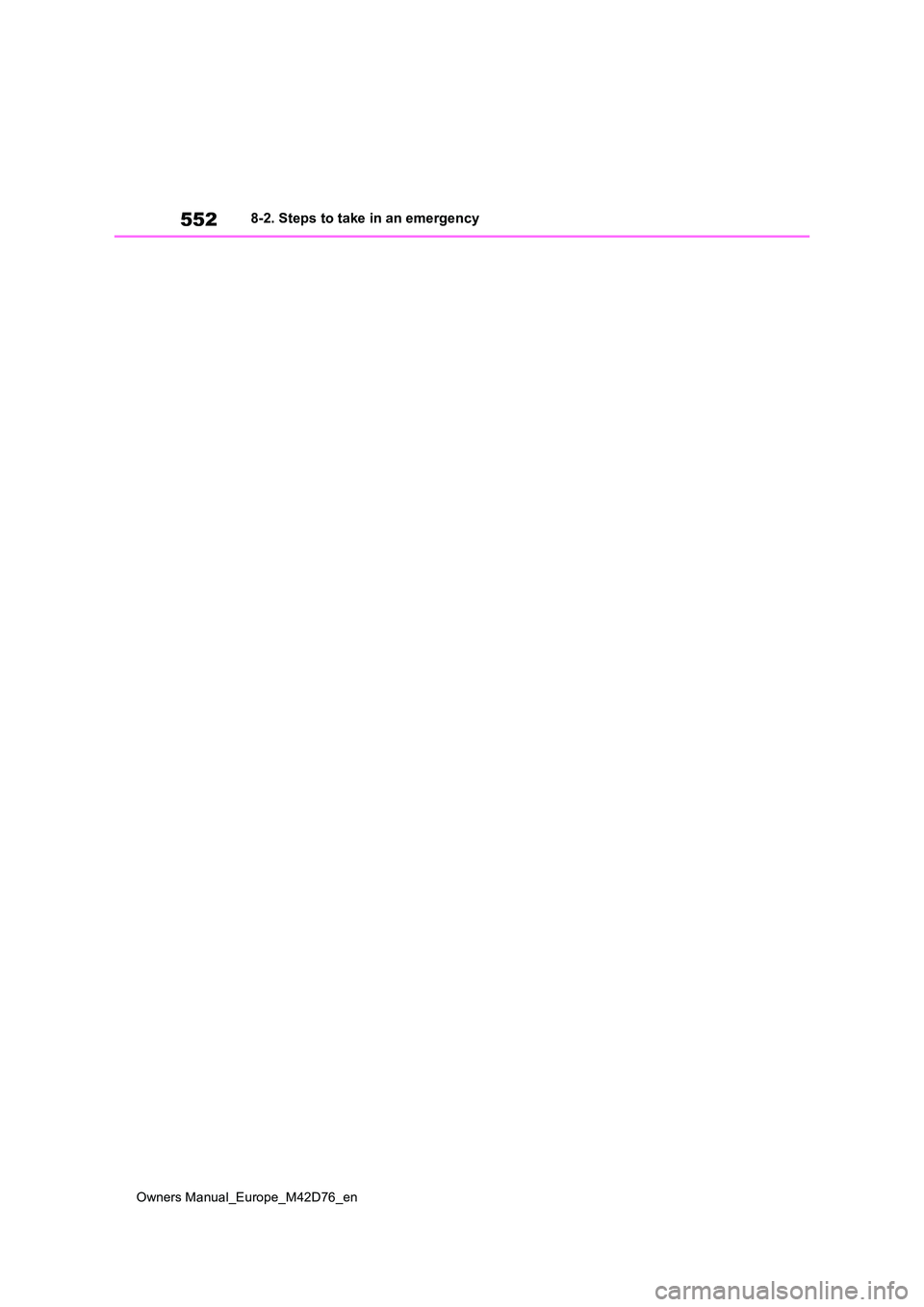

552
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency

9

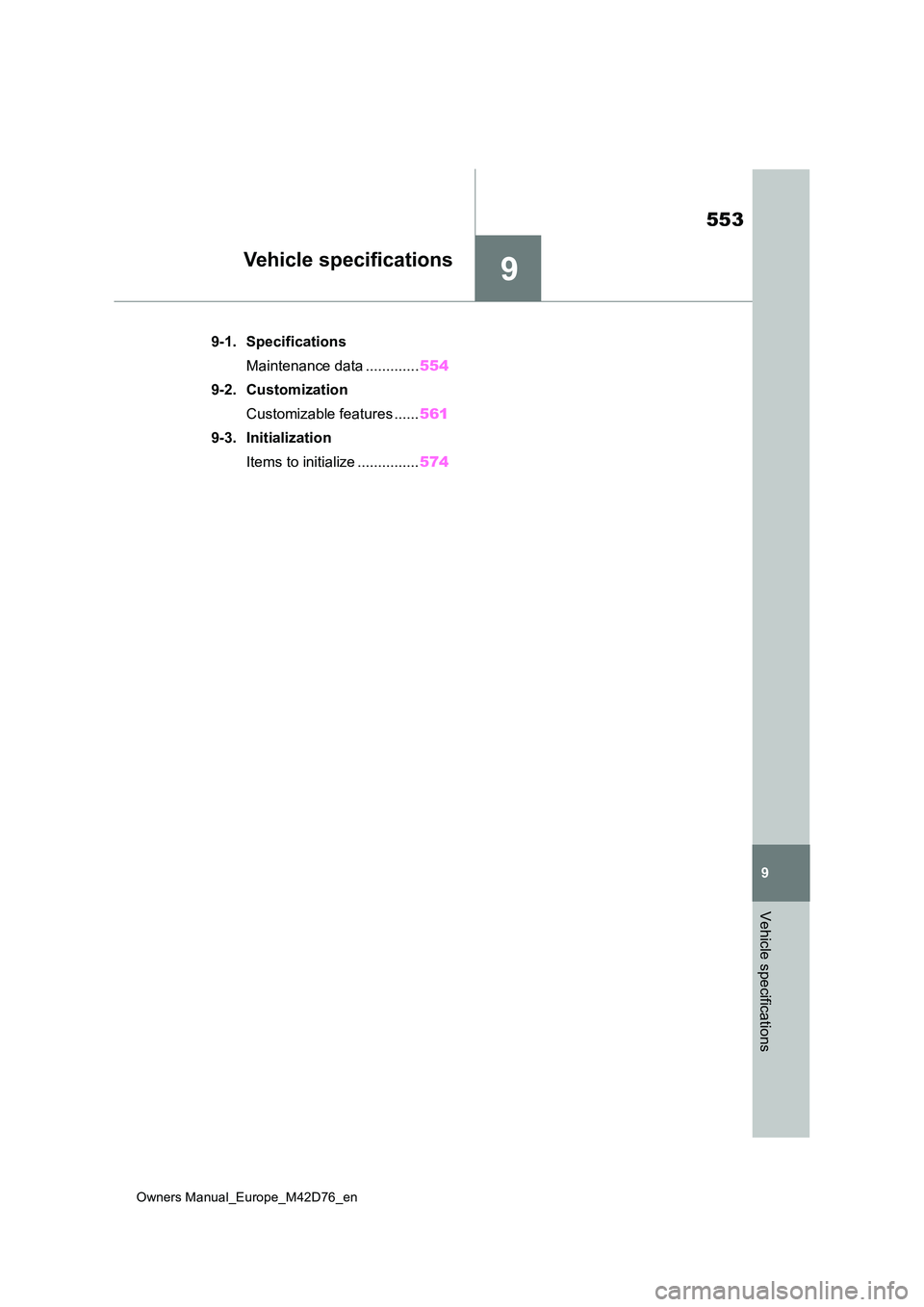

553
Owners Manual_Europe_M42D76_en
9
Vehicle specifications
Vehicle specifications
9-1. Specifications
Maintenance data ............. 554
9-2. Customization
Customizable features ...... 561
9-3. Initialization
Items to initialize ............... 574

554
Owners Manual_Europe_M42D76_en
9-1. Specifications
9-1.Spec ific ations
*1: Unladen vehicle
*2: 2WD models
*3: AWD models
*4: Vehicles with towing packages
■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle.
This is the primary identification
number for your Toyota. It is used in
registering the ownership of your
vehicle.
Right-hand drive vehicles only: This
number is on the top left of the
instrument panel.
Maintenance data
Dimensions and weights
Overall length4690 mm (184.6 in.)
Overall width1860 mm (73.2 in.)
Overall height*11650 mm (65.0 in.)
Wheelbase2850 mm (112.2 in.)
TreadFront1600 mm (63.0 in.)
Rear1610 mm (63.4 in.)
Gross vehicle mass2465 kg (5435 lb.)*2
2550 kg (5623 lb.)*3
Maximum permissi-
ble axle capacity
Front1355 kg (2987 lb.)
Rear1355 kg (2987 lb.)*2
1400 kg (3087 lb.)*3
Drawbar load*475 kg (165 lb.)
Towing capacity*4750 kg (1653 lb.)
Vehicle identification

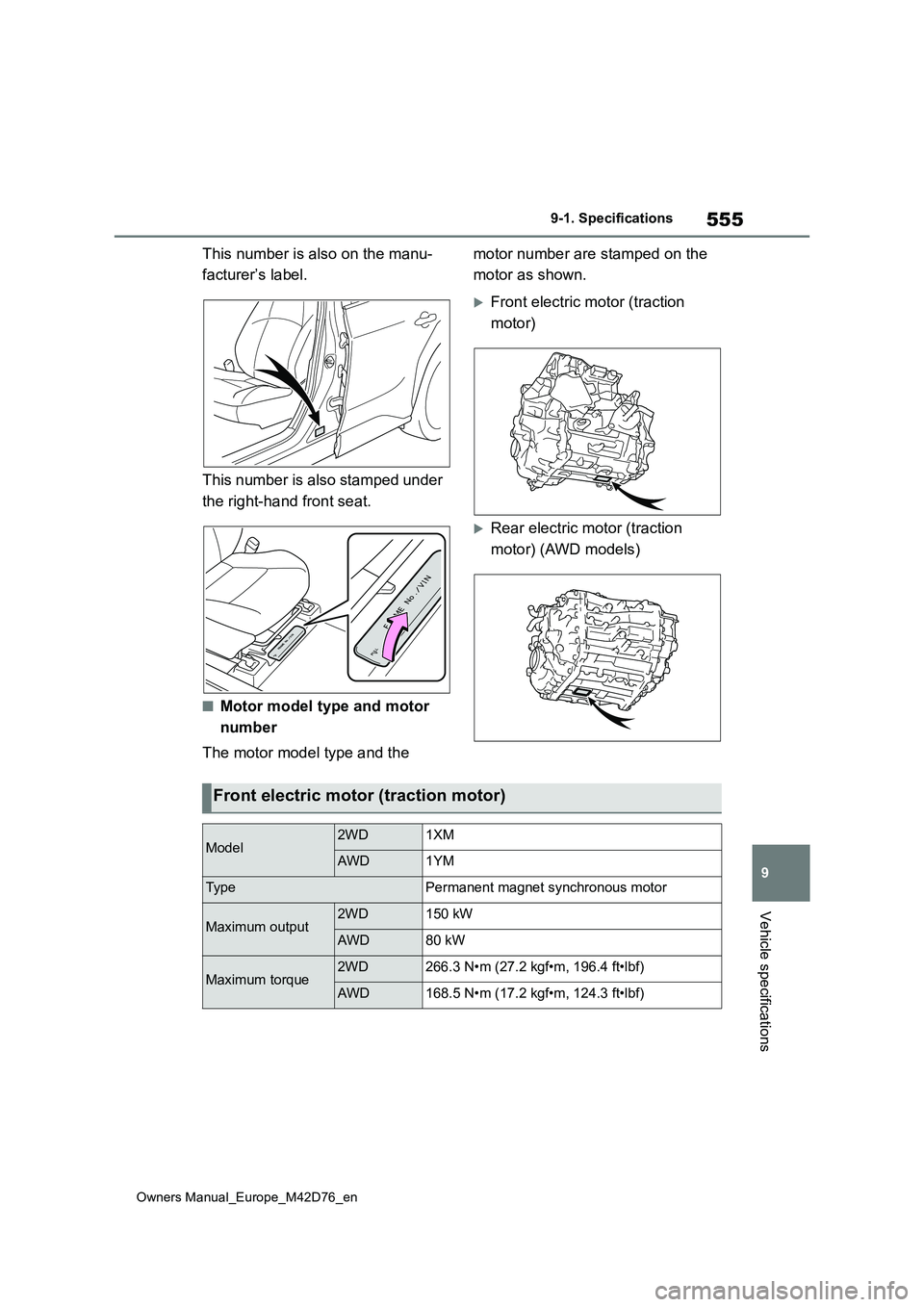

555
9
Owners Manual_Europe_M42D76_en
9-1. Specifications
Vehicle specifications
This number is also on the manu-
facturer’s label.
This number is also stamped under
the right-hand front seat.
■Motor model type and motor
number
The motor model type and the
motor number are stamped on the
motor as shown.
Front electric motor (traction
motor)
Rear electric motor (traction
motor) (AWD models)
Front electric motor (traction motor)
Model2WD1XM
AWD1YM
Typ ePermanent magnet synchronous motor
Maximum output2WD150 kW
AWD80 kW
Maximum torque2WD266.3 N•m (27.2 kgf•m, 196.4 ft•lbf)
AWD168.5 N•m (17.2 kgf•m, 124.3 ft•lbf)

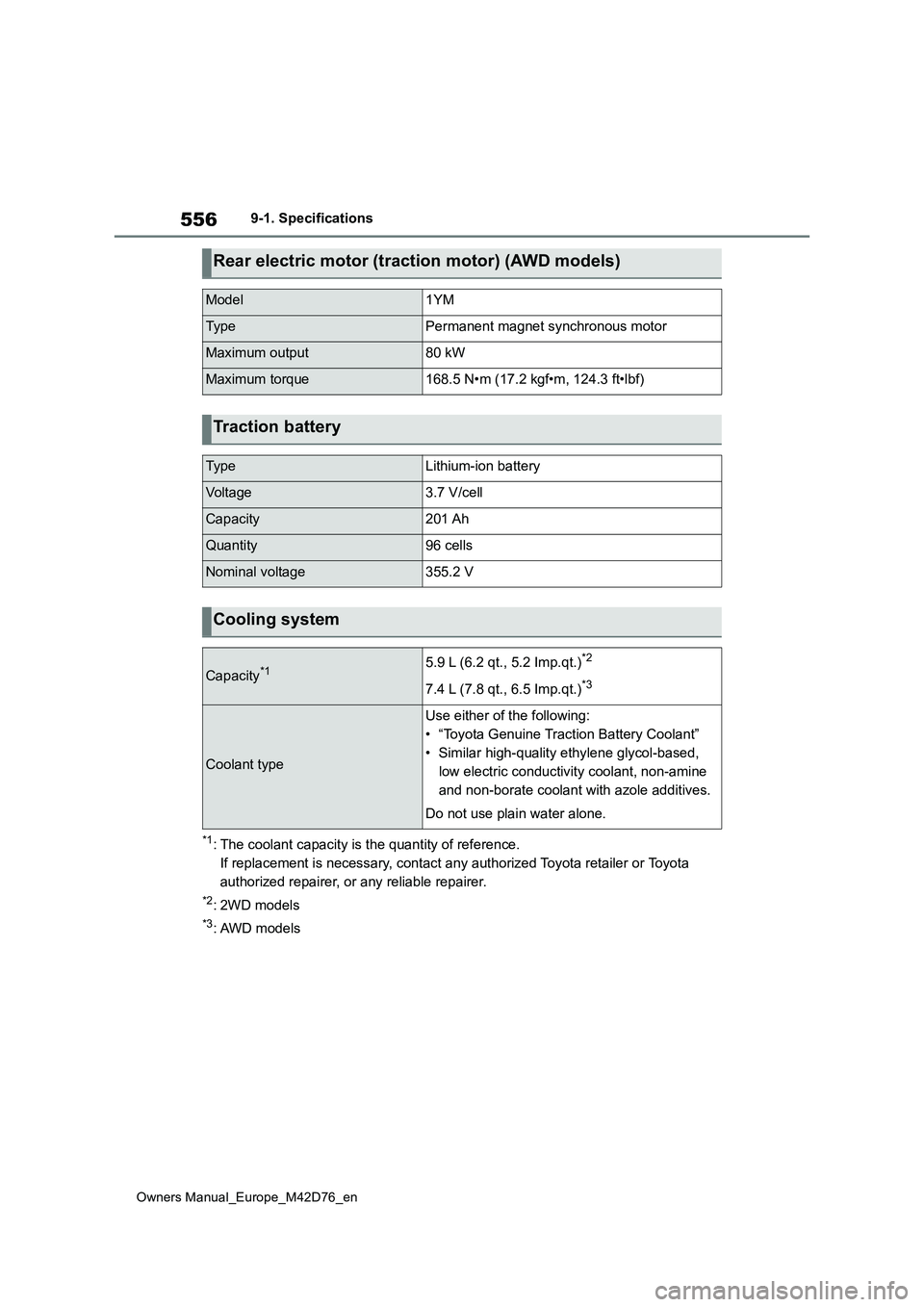

556
Owners Manual_Europe_M42D76_en
9-1. Specifications
*1: The coolant capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota reta iler or Toyota
authorized repairer, or any reliable repairer.
*2: 2WD models
*3: AWD models
Rear electric motor (traction motor) (AWD models)
Model1YM
Typ ePermanent magnet synchronous motor
Maximum output80 kW
Maximum torque168.5 N•m (17.2 kgf•m, 124.3 ft•lbf)
Traction battery
Typ eLithium-ion battery
Vo lt a ge3.7 V/cell
Capacity201 Ah
Quantity96 cells
Nominal voltage355.2 V
Cooling system
Capacity*15.9 L (6.2 qt., 5.2 Imp.qt.)*2
7.4 L (7.8 qt., 6.5 Imp.qt.)*3
Coolant type
Use either of the following:
• “Toyota Genuine Traction Battery Coolant”
• Similar high-quality ethylene glycol-based,
low electric conductivity coolant, non-amine
and non-borate coolant with azole additives.
Do not use plain water alone.

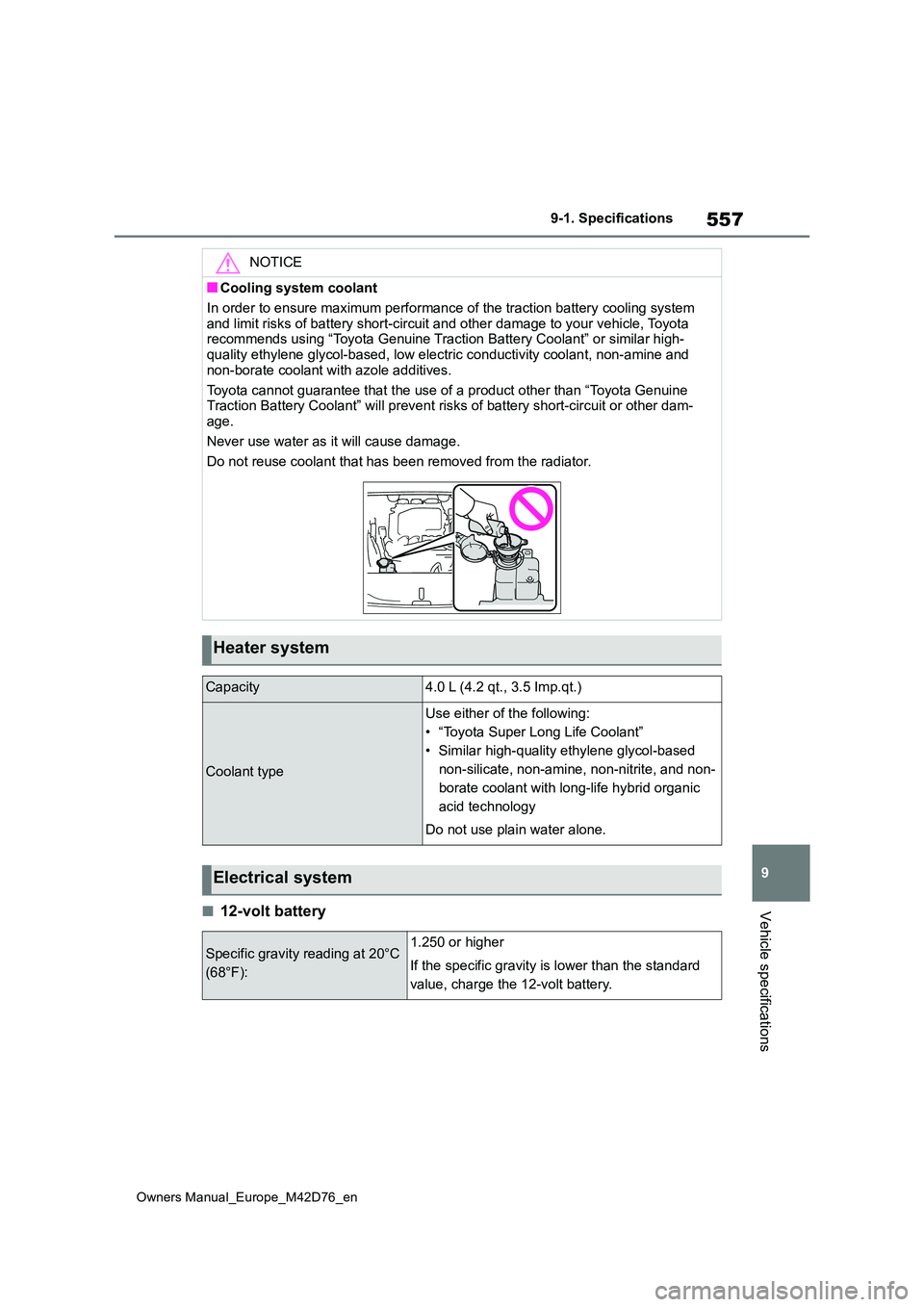

557
9
Owners Manual_Europe_M42D76_en
9-1. Specifications
Vehicle specifications■12-volt battery
NOTICE
■Cooling system coolant
In order to ensure maximum performance of the traction battery cooling system
and limit risks of battery short-circuit and other damage to yo ur vehicle, Toyota recommends using “Toyota Genuine Traction Battery Coolant” or s imilar high- quality ethylene glycol-based, low electric conductivity coolan t, non-amine and
non-borate coolant with azole additives.
Toyota cannot guarantee that the use of a product other than “T oyota Genuine Traction Battery Coolant” will prevent risks of battery short-c ircuit or other dam-
age.
Never use water as it will cause damage.
Do not reuse coolant that has been removed from the radiator.
Heater system
Capacity4.0 L (4.2 qt., 3.5 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Electrical system
Specific gravity reading at 20°C
(68°F):
1.250 or higher
If the specific gravity is lower than the standard
value, charge the 12-volt battery.

558
Owners Manual_Europe_M42D76_en
9-1. Specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota reta iler or Toyota
authorized repairer, or any reliable repairer.
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota reta iler or Toyota
authorized repairer, or any reliable repairer.
Charging rates:
Quick charge
Slow charge
15 A max.
5 A max.
Front eAxle
Fluid capacity*3.9 L (4.1 qt., 3.4 Imp.qt.)
Fluid typee-Transaxle Fluid TE
NOTICE
■Front eAxle fluid type
Using transaxle fluid other than the above type may cause abnor mal noise or
vibration, or ultimately damage the front eAxle of your vehicle .
Rear eAxle (AWD models)
Fluid capacity*3.1 L (3.3 qt., 2.7 Imp. qt.)
Fluid typee-Transaxle Fluid TE
NOTICE
■Rear eAxle fluid type
Using transaxle fluid other than the above type may cause abnor mal noise or
vibration, or ultimately damage the rear eAxle of your vehicle.
Brakes
Pedal clearance*158 mm (2.28 in.) Min.*3
62 mm (2.44 in.) Min.*4
Pedal free play1.0 - 6.0 mm (0.04 - 0.24 in.)
