TOYOTA BZ4X 2022 Owners Manual (in English)

569
9
Owners Manual_Europe_M42D76_en
9-2. Customization
Vehicle specifications
*1: When the set speed is shown in “km/h”
*2: When the set speed is shown in “MPH”
■Speed limiter*1 (P.318)
*1: If equipped
*2: When the set speed is shown in “km/h”
*3: When the set speed is shown in “MPH”
■RSA (Road Sign Assist) (P.304)
■Driver break suggestion (P.299)
Guide messageON/OFFO
Curve speed reductionOFF/High/Mid/LowO
FunctionCustomized setting
Speed setting (short press)•1 km/h/5 km/h/10 km/h*2
•1 mph/5 mph/10 mph*3O
Speed setting (long press)•1 km/h/5 km/h/10 km/h*2
•1 mph/5 mph/10 mph*3O
Speed limit offset-5~+5O
Guide messageON/OFFO
FunctionCustomized setting
Road Sign AssistON/OFFO
Excess speed notification methodNone/Visual/Visual & AudibleO
Other notifications method (For
vehicles with a navigation sys-
tem)
None/Visual/Visual & AudibleO
Excess speed notification level10 km/h (5 mph)/5 km/h (3
mph)/2 km/h (1 mph)O
FunctionCustomized setting
Driver break suggestionON/OFFO
FunctionCustomized setting

570
Owners Manual_Europe_M42D76_en
9-2. Customization
■Driver monitor* (P.282)
*: If equipped
■BSM (Blind Spot Monitor)* (P.324)
*: If equipped
■Toyota parking assist-sensor*1 (P.333)
*1: If equipped
*2: This setting is linked with the buzzer volume of the RCTA (Rear Crossing Traffic
Alert) function.
■RCTA (Rear Crossing Traffic Alert) function*1 ( P.343)
*1: If equipped
*2: This setting is linked with the buzzer volume of the Toyota parking assist-sensor
FunctionCustomized setting
Warning functionON/OFFO
FunctionDefault settingCustomized set-
ting
Outside rear view mirror indica-
tor brightnessBrightDimO
Alert timing for presence of
approaching vehicle (sensitivity)IntermediateEarlyOLate
BSM (Blind Spot Monitor)OnOffO
FunctionDefault settingCustomized set-
ting
Toyota parking assist-sensorOnOffO
Buzzer volume*2Level 2Level 1OLevel 3
FunctionDefault settingCustomized set-
ting
RCTA (Rear Crossing Traffic
Alert) functionOnOffO
Buzzer volume*2Level 2Level 1OLevel 3

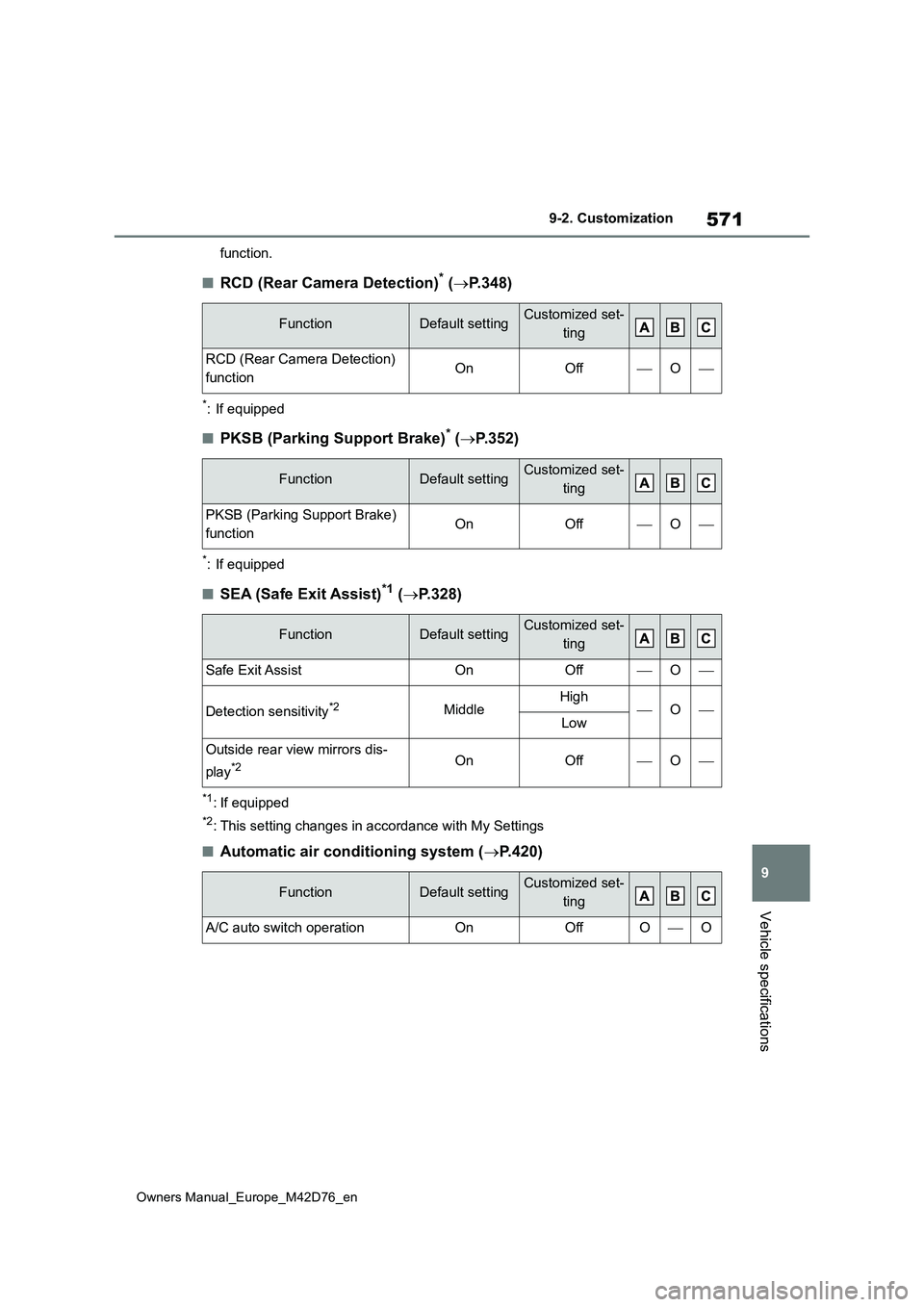

571
9
Owners Manual_Europe_M42D76_en
9-2. Customization
Vehicle specifications
function.
■RCD (Rear Camera Detection)* (P.348)
*: If equipped
■PKSB (Parking Support Brake)* (P.352)
*: If equipped
■SEA (Safe Exit Assist)*1 (P.328)
*1: If equipped
*2: This setting changes in accordance with My Settings
■Automatic air conditioning system (P.420)
FunctionDefault settingCustomized set-
ting
RCD (Rear Camera Detection)
functionOnOffO
FunctionDefault settingCustomized set-
ting
PKSB (Parking Support Brake)
functionOnOffO
FunctionDefault settingCustomized set-
ting
Safe Exit AssistOnOffO
Detection sensitivity*2MiddleHighOLow
Outside rear view mirrors dis-
play*2OnOffO
FunctionDefault settingCustomized set-
ting
A/C auto switch operationOnOffOO

572
Owners Manual_Europe_M42D76_en
9-2. Customization
■Remote Air Conditioning System (P.427)
■Illumination (P.431)
*: If equipped
■Vehicle customization
●When the speed linked door locking function and shift position linked door locking function are both on, the door
lock operates as follows. • When shifting the shift position to any
position other than P, all the doors will be locked.• If the vehicle is started with all the
FunctionDefault settingCustomized set-
ting
Operation using the “A/C” button
on the wireless remote control
Press and
hold for 0.8
seconds
Press once
O
Press twice
Press and hold for
2.4 seconds
Off
Stopping the operation using the
“A/C” button on the wireless
remote control
Press twice
Press once
O
Press and hold for
0.8 seconds
Press and hold for
2.4 seconds
Off
FunctionDefault settingCustomized set-
ting
Time elapsed before the interior
lights turn off15 seconds
Off
OO7.5 seconds
30 seconds
Operation after the power switch
is turned offOnOffO
Operation when the doors are
unlockedOnOffO
Operation when you approach
the vehicle with the electronic
key on your person
OnOffO
Rear interior light and footwell
lights*OnOffO

573
9
Owners Manual_Europe_M42D76_en
9-2. Customization
Vehicle specifications
doors locked, the speed linked door
locking function will not operate. • If the vehicle is started with any door unlocked, the speed linked door lock-
ing function will operate.
●When the Smart entry & start system
is off, the entry unlock function cannot be customized.
●When the doors remain closed after unlocking the doors and the timer acti-vated automatic door lock function
activates, signals will be generated in accordance with the operational sig-nal (Emergency flashers) function set-
ting.

574
Owners Manual_Europe_M42D76_en
9-3. Initialization
9- 3. In it ia li za ti on
*: If equipped
Items to initialize
The following item must be initialized for normal system operation
after such cases as the 12-volt battery being reconnected, or m ain-
tenance being performed on the vehicle:
List of the items to initialize
ItemWhen to initializeReference
Power back door*• After reconnecting or changing
the 12-volt battery
• After changing a fuse
P. 1 9 8
Power window• When functioning abnormallyP. 2 1 9
PKSB (Parking Support Brake)*• After reconnecting or changing
the 12-volt batteryP. 3 5 6
Tire pressure warning system
• When the specified tire inflation
pressure has changed, such as
due to carried load, etc.
• When the tire inflation pressure
is changed such as when the
tire size is changed.
P. 4 8 0
Toyota parking assist monitor*• 12-volt battery has been rein-
stalled
• The steering wheel has been
moved while the 12-volt battery
was being reinstalled
• 12-volt battery power is low
Refer to
“Multimedia
owner’s
manual”.Panoramic view monitor*

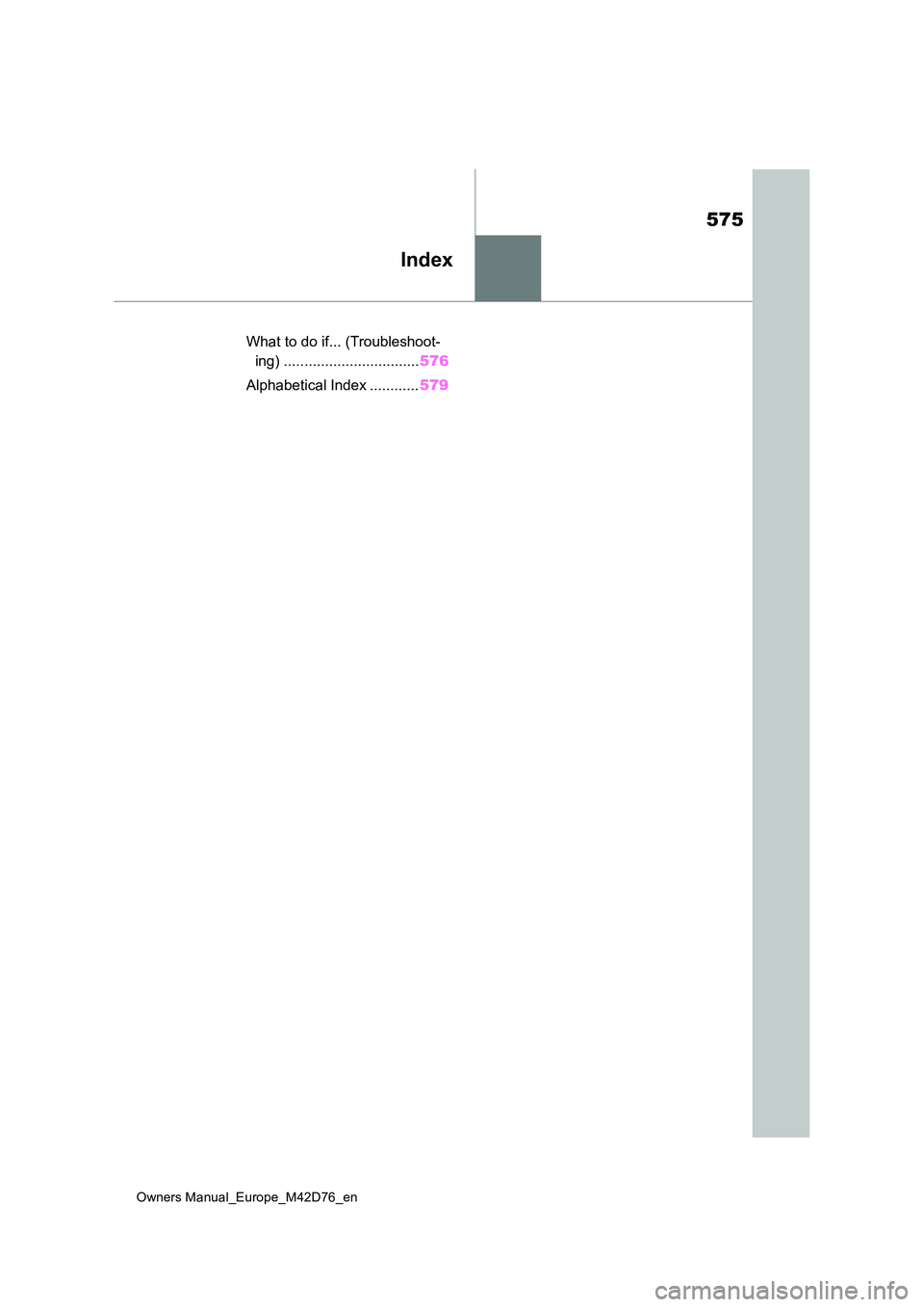

575
Owners Manual_Europe_M42D76_en
Index
What to do if... (Troubleshoot-
ing) ................................. 576
Alphabetical Index ............ 579

576
Owners Manual_Europe_M42D76_en
What to do if... (Troubleshooting)
1-1.What to d o if... (Tro ublesho oting)What to do if... (Troubleshooting)
If you lose your keys, new genu-
ine keys can be made by any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer. ( P.541)
 If you lose your electronic keys,
the risk of vehicle theft increases
significantly. Contact any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer immediately.
( P.541)
 Is the electronic key battery
weak or depleted? ( P.499)
 Is the power switch in ON?
When locking the doors, turn the
power switch off. ( P. 2 4 6 )
 Is the electronic key left inside
the vehicle?
When locking the doors, make
sure that you have the electronic
key on your person.
 The function may not operate
properly due to the condition of
the radio wave. ( P.204)
 Is the child-protector lock set?
The rear door cannot be opened
from inside the vehicle when the
lock is set. Open the rear door
from outside and then unlock the
child-protector lock. ( P.188)
 Is the charging cable attached to
the vehicle? ( P. 1 1 8 )
 Did you press the power switch
while firmly depressing the brake
pedal? ( P.243)
 Is the shift position in P?
( P.243)
 Is the electronic key anywhere
detectable inside the vehicle?
( P.203)
 On some models: Is the steering
wheel unlocked? ( P.244)
 Is the electronic key battery
If you have a problem, check
the following before contact-
ing any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable
repairer.
The doors cannot be locked,
unlocked, opened or closed
You lose your keys
The doors cannot be locked
or unlocked
The rear door cannot be
opened
If you think something is
wrong
The EV system does not
start

577
Owners Manual_Europe_M42D76_en
What to do if... (Troubleshooting)
weak or depleted?
In this case, the EV system can
be started in a temporary way.
( P.543)
 Is the 12-volt battery dis-
charged? ( P.544)
 Is the window lock switch
pressed?
The power window except for the
one at the driver’s seat cannot
be operated if the window lock
switch is pressed. ( P.221)
 The auto power off function will
be operated if the vehicle is left
in ACC or ON (the EV system is
not operating) for a period of
time. ( P.246)
 The seat belt reminder light is
flashing
Are the driver and the passen-
gers wearing the seat belts?
( P.517)
 The parking brake indicator is on
Is the parking brake released?
( P.256)
Depending on the situation, other
types of warning buzzer may also
sound. ( P.515, 523)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the
alarm sounds. ( P.77)
To stop the alarm, start the EV sys-
tem.
 Is the message displayed on the
multi-information display?
Check the message on the multi-
information display. ( P.523)
 When a warning light turns on or
a warning message is displayed,
refer to P.515, 523.
 Stop the vehicle in a safe place
and repair the flat tire temporarily
with the emergency tire puncture
The windows do not open or
close by operating the
power window switches
The power switch is turned
off automatically
A warning buzzer sounds
during driving
An alarm is activated and the
horn sounds (vehicles with
alarm)
A warning buzzer sounds
when leaving the vehicle
A warning light turns on or a
warning message is dis-
played
When a problem has
occurred
If you have a flat tire

578
Owners Manual_Europe_M42D76_en
What to do if... (Troubleshooting)
repair kit. (P.528)
 Try the procedure for when the
vehicle becomes stuck in mud,
dirt, or snow. ( P.551)
The vehicle becomes stuck
