8-2. Steps to take in an emergency
■Stopping the EV system
Set the parking brake, shift the shift
position to P and press the power switch as you normally do when stopping the EV system.
■Electronic key battery
As the above procedure is a temporary measure, it is recommended that the electronic key battery be replaced
immediately when the battery is depleted. ( P.499)
■Alarm (if equipped)
Using the mechanical key to lock the
doors will not set the alarm system. If a door is unlocked using the mechani-cal key when the alarm system is set,
the alarm may be triggered. ( P. 7 7 )
■Changing power switch modes
Release the brake pedal and press the power switch in step 3 above.
The EV system does not start and modes will be changed each time the switch is pressed. ( P.246)
If you have a set of jumper (or
booster) cables and a second vehi-
cle with a 12-volt battery, you can
jump start your vehicle by following
the steps below.
1 Confirm that the electronic key
is being carried.
When connecting the jumper (or
booster) cables, depending on the situ- ation, the alarm may activate and the doors may lock. ( P.78)
2Open the hood (P.467).
3 Open the positive (+) battery ter-
minal cover.
While pressing on the claw, open the
If the 12-volt batter y is
discharged
The following procedures may
be used to start the EV system
if the vehicle’s 12-volt battery
is discharged.
You can also call any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Restarting the EV system

547
8
Owners Manual_Europe_M42D76_en

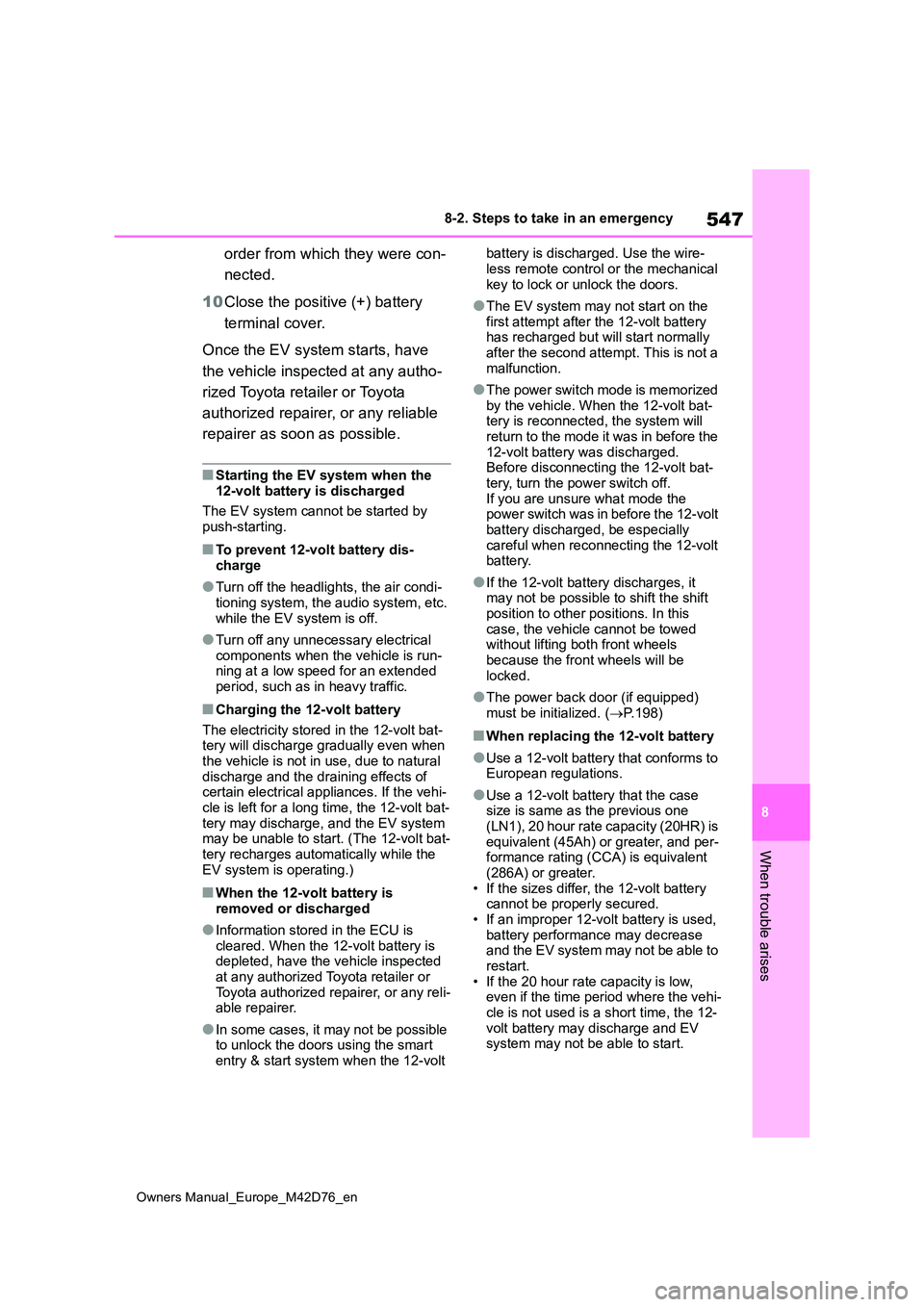

8-2. Steps to take in an emergency
When trouble arises
order from which they were con-
nected.
10 Close the positive (+) battery
terminal cover.
Once the EV system starts, have
the vehicle inspected at any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer as soon as possible.
■Starting the EV system when the 12-volt battery is discharged
The EV system cannot be started by push-starting.
■To prevent 12-volt battery dis-charge
●Turn off the headlights, the air condi-tioning system, the audio system, etc.
while the EV system is off.
●Turn off any unnecessary electrical
components when the vehicle is run- ning at a low speed for an extended period, such as in heavy traffic.
■Charging the 12-volt battery
The electricity stored in the 12-volt bat- tery will discharge gradually even when the vehicle is not in use, due to natural
discharge and the draining effects of certain electrical appliances. If the vehi-cle is left for a long time, the 12-volt bat-
tery may discharge, and the EV system may be unable to start. (The 12-volt bat-tery recharges automatically while the
EV system is operating.)
■When the 12-volt battery is removed or discharged
●Information stored in the ECU is cleared. When the 12-volt battery is depleted, have the vehicle inspected
at any authorized Toyota retailer or Toyota authorized repairer, or any reli-able repairer.
●In some cases, it may not be possible to unlock the doors using the smart
entry & start system when the 12-volt
battery is discharged. Use the wire-
less remote control or the mechanical key to lock or unlock the doors.
●The EV system may not start on the first attempt after the 12-volt battery has recharged but will start normally
after the second attempt. This is not a malfunction.
●The power switch mode is memorized by the vehicle. When the 12-volt bat-tery is reconnected, the system will
return to the mode it was in before the 12-volt battery was discharged. Before disconnecting the 12-volt bat-
tery, turn the power switch off. If you are unsure what mode the power switch was in before the 12-volt
battery discharged, be especially careful when reconnecting the 12-volt battery.
●If the 12-volt battery discharges, it may not be possible to shift the shift
position to other positions. In this case, the vehicle cannot be towed without lifting both front wheels
because the front wheels will be locked.
●The power back door (if equipped) must be initialized. ( P.198)
■When replacing the 12-volt battery
●Use a 12-volt battery that conforms to European regulations.
●Use a 12-volt battery that the case size is same as the previous one (LN1), 20 hour rate capacity (20HR) is
equivalent (45Ah) or greater, and per- formance rating (CCA) is equivalent (286A) or greater.
• If the sizes differ, the 12-volt battery cannot be properly secured.• If an improper 12-volt battery is used,
battery performance may decrease and the EV system may not be able to restart.
• If the 20 hour rate capacity is low, even if the time period where the vehi-cle is not used is a short time, the 12-
volt battery may discharge and EV system may not be able to start.

562
Owners Manual_Europe_M42D76_en
9-2. Customization
Settings that can be changed using the multimedia system
Settings that can be changed using the multi-information displ ay
Settings that can be changed by any authorized Toyota retailer or Toy ota
authorized repairer, or any reliable repairer
Definition of symbols: O = Available,  = Not available
■Alarm (P.77)
■Charging system (P.121, 129)
■Gauges, meters and multi-information display (P.172, 175)
FunctionDefault settingCustomized set-
ting
Deactivates the alarm when the
doors are unlocked using the
mechanical key
OffOn——O
FunctionDefault settingCustomized set-
ting
Charging currentMAX8AOO–16A
Charging limitFull
90%
OO–
80%
70%
60%
50%
DC charging powerMAX
125 kW
OO–100 kW
75 kW
50 kW
Battery coolerOnOffOO–
Function*1Default settingCustomized set-
ting
Language*2EnglishExcept English*3O

564
Owners Manual_Europe_M42D76_en
9-2. Customization
■Door lock (P.185, 542)
■Power back door* (P.192)
*: If equipped
FunctionDefault settingCustomized set-
ting
Unlocking using a mechanical
key
All doors
unlocked in one
step
Driver’s door
unlocked in one
step, all doors
unlocked in two
step
O
Speed linked door locking func-
tionOnOffOO
Shift position linked door locking
functionOffOnOO
Shift position linked door unlock-
ing functionOffOnOO
Driver’s door linked door unlock-
ing functionOnOffOO
FunctionDefault settingCustomized set-
ting
Power back door opening posi-
tion51 to 4O
Power back door operationOnOffO
Buzzer volumeLevel 3Level 1OLevel 2
Operation buzzerOffOnO
Hands Free Power Back Door
(kick sensor)*OnOffOO
Kick in buzzer (kick sensor)*OnOffO
Hands Free Power Back Door
(kick sensor) when the power
switch is OFF*OnOffO

566
Owners Manual_Europe_M42D76_en
9-2. Customization

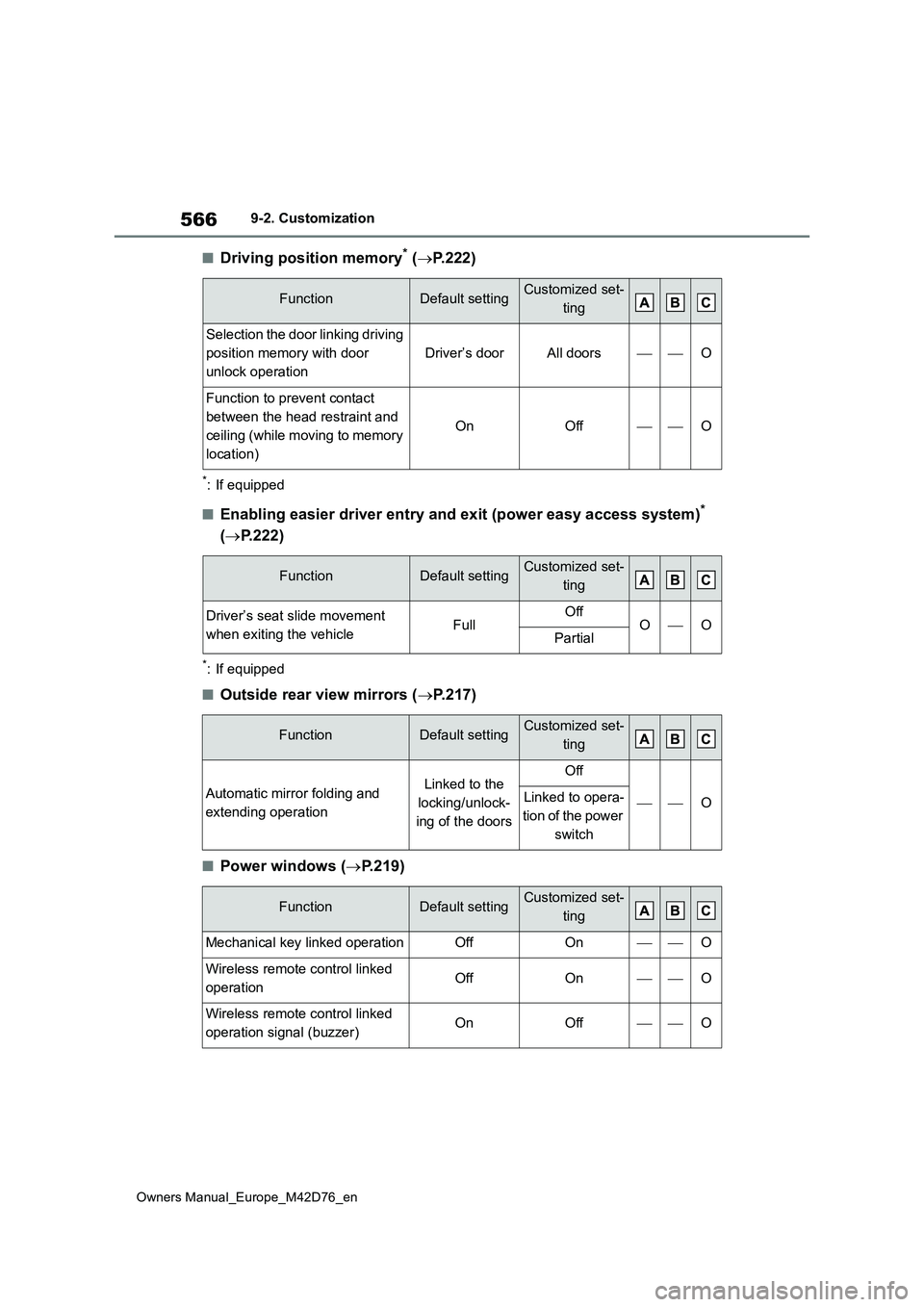

■Driving position memory* (P.222)
*: If equipped
■Enabling easier driver entry and exit (power easy access system)*
( P.222)
*: If equipped
■Outside rear view mirrors (P.217)
■Power windows (P.219)
FunctionDefault settingCustomized set-
ting
Selection the door linking driving
position memory with door
unlock operation
Driver’s doorAll doorsO
Function to prevent contact
between the head restraint and
ceiling (while moving to memory
location)
OnOffO
FunctionDefault settingCustomized set-
ting
Driver’s seat slide movement
when exiting the vehicleFullOffOOPartial
FunctionDefault settingCustomized set-
ting
Automatic mirror folding and
extending operation
Linked to the
locking/unlock-
ing of the doors
Off
OLinked to opera-
tion of the power
switch
FunctionDefault settingCustomized set-
ting
Mechanical key linked operationOffOnO
Wireless remote control linked
operationOffOnO
Wireless remote control linked
operation signal (buzzer)OnOffO

572
Owners Manual_Europe_M42D76_en
9-2. Customization
■Remote Air Conditioning System (P.427)
■Illumination (P.431)
*: If equipped
■Vehicle customization
●When the speed linked door locking function and shift position linked door locking function are both on, the door
lock operates as follows. • When shifting the shift position to any
position other than P, all the doors will be locked.• If the vehicle is started with all the
FunctionDefault settingCustomized set-
ting
Operation using the “A/C” button
on the wireless remote control
Press and
hold for 0.8
seconds
Press once
O
Press twice
Press and hold for
2.4 seconds
Off
Stopping the operation using the
“A/C” button on the wireless
remote control
Press twice
Press once
O
Press and hold for
0.8 seconds
Press and hold for
2.4 seconds
Off
FunctionDefault settingCustomized set-
ting
Time elapsed before the interior
lights turn off15 seconds
Off
OO7.5 seconds
30 seconds
Operation after the power switch
is turned offOnOffO
Operation when the doors are
unlockedOnOffO
Operation when you approach
the vehicle with the electronic
key on your person
OnOffO
Rear interior light and footwell
lights*OnOffO

576
Owners Manual_Europe_M42D76_en

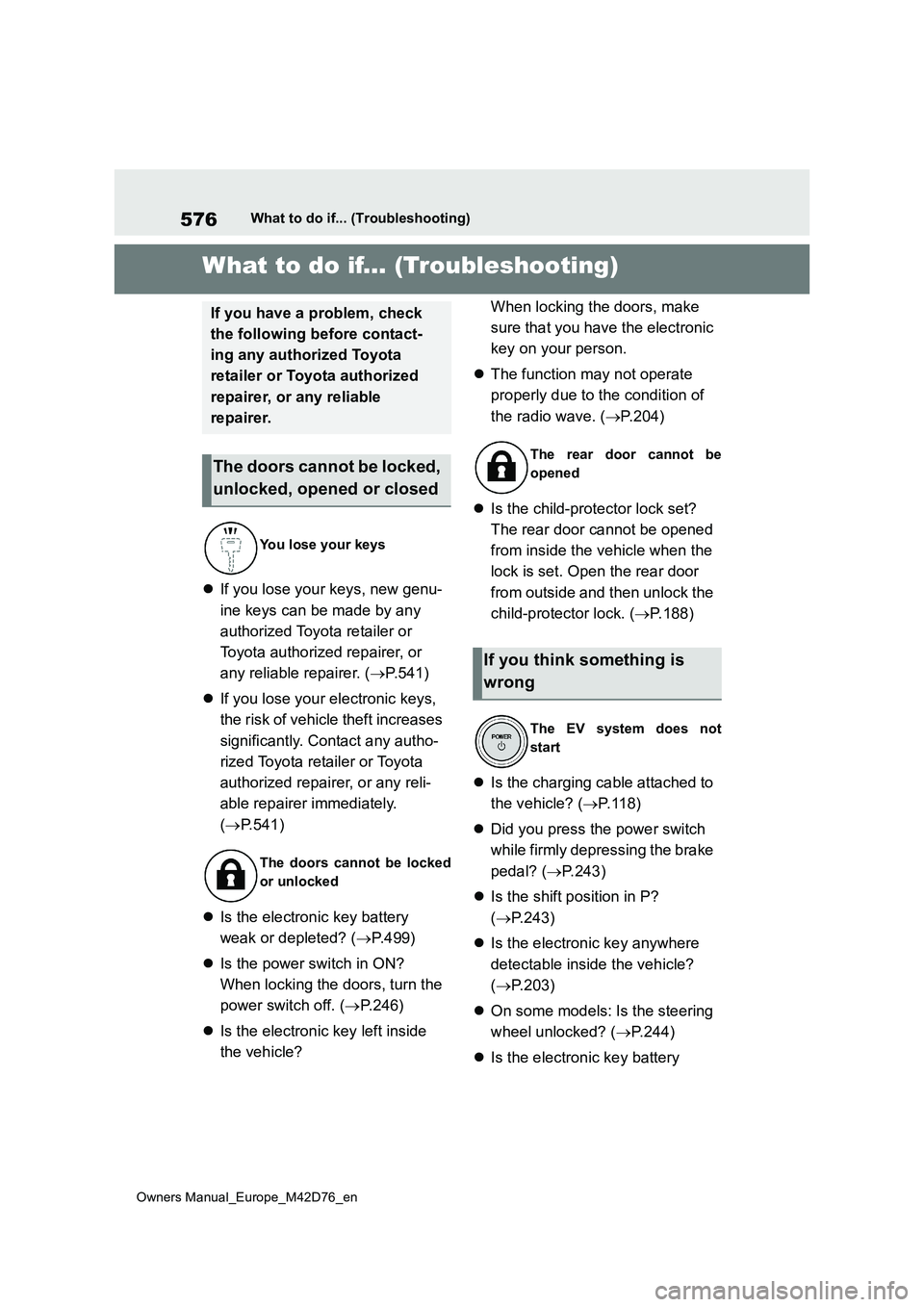

What to do if... (Troubleshooting)

1-1.What to d o if... (Tro ublesho oting)What to do if... (Troubleshooting)
If you lose your keys, new genu-
ine keys can be made by any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer. ( P.541)
 If you lose your electronic keys,
the risk of vehicle theft increases
significantly. Contact any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer immediately.
( P.541)
 Is the electronic key battery
weak or depleted? ( P.499)
 Is the power switch in ON?
When locking the doors, turn the
power switch off. ( P. 2 4 6 )
 Is the electronic key left inside
the vehicle?
When locking the doors, make
sure that you have the electronic
key on your person.
 The function may not operate
properly due to the condition of
the radio wave. ( P.204)
 Is the child-protector lock set?
The rear door cannot be opened
from inside the vehicle when the
lock is set. Open the rear door
from outside and then unlock the
child-protector lock. ( P.188)
 Is the charging cable attached to
the vehicle? ( P. 1 1 8 )
 Did you press the power switch
while firmly depressing the brake
pedal? ( P.243)
 Is the shift position in P?
( P.243)
 Is the electronic key anywhere
detectable inside the vehicle?
( P.203)
 On some models: Is the steering
wheel unlocked? ( P.244)
 Is the electronic key battery
If you have a problem, check
the following before contact-
ing any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable
repairer.
The doors cannot be locked,
unlocked, opened or closed
You lose your keys
The doors cannot be locked
or unlocked
The rear door cannot be
opened
If you think something is
wrong
The EV system does not
start

583
Owners Manual_Europe_M42D76_en
