5415-8. Bluetooth® Audio
5
Audio system
C-HR_OM_Europe_OM10528E

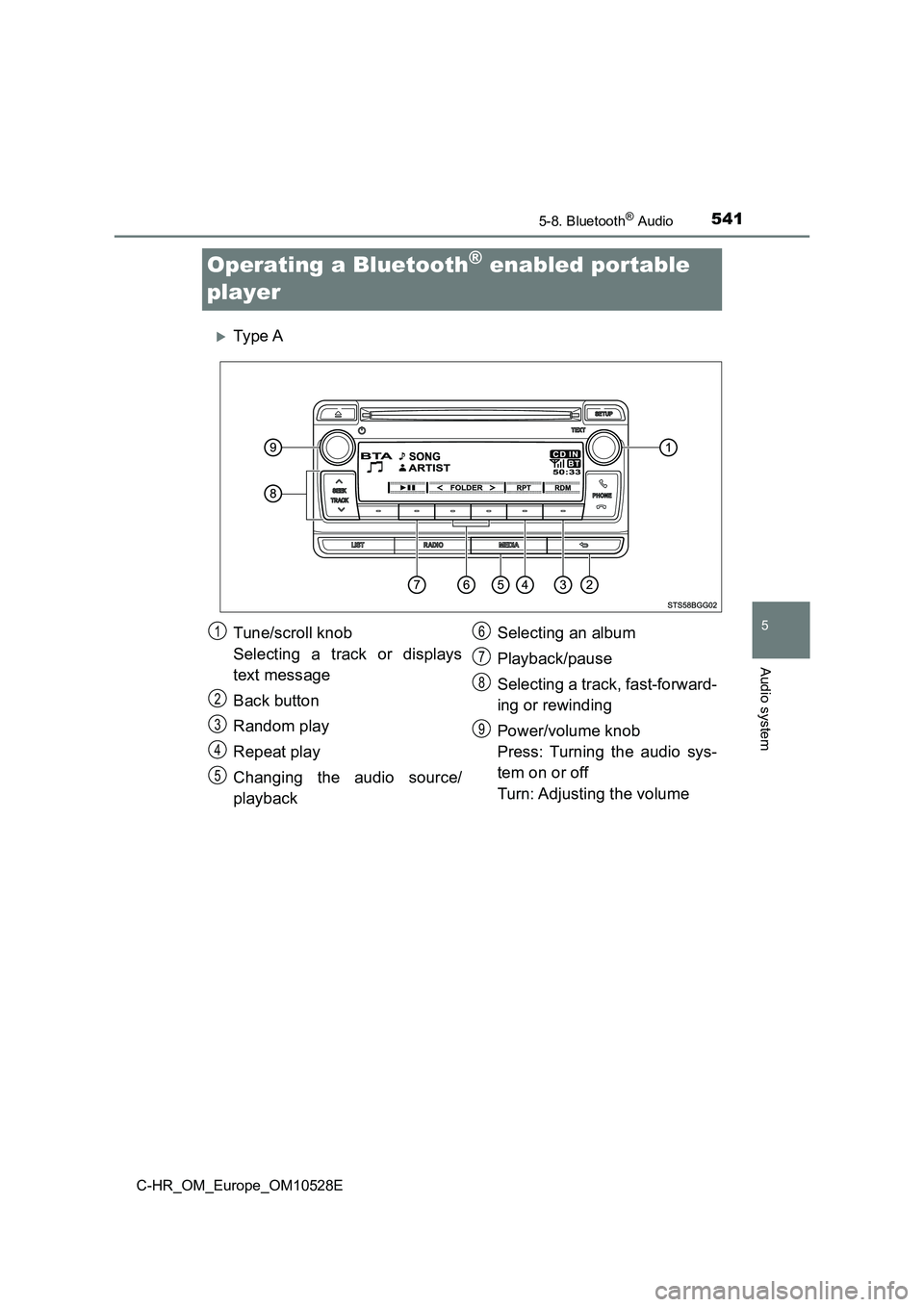

Operating a Bluetooth® enabled portable
player
Ty pe A
Tune/scroll knob
Selecting a track or displays
text message
Back button
Random play
Repeat play
Changing the audio source/
playback
Selecting an album
Playback/pause
Selecting a track, fast-forward-
ing or rewinding
Power/volume knob
Press: Turning the audio sys-
tem on or off
Turn: Adjusting the volume
1
2
3
4
5
6
7
8
9

5425-8. Bluetooth® Audio
C-HR_OM_Europe_OM10528E

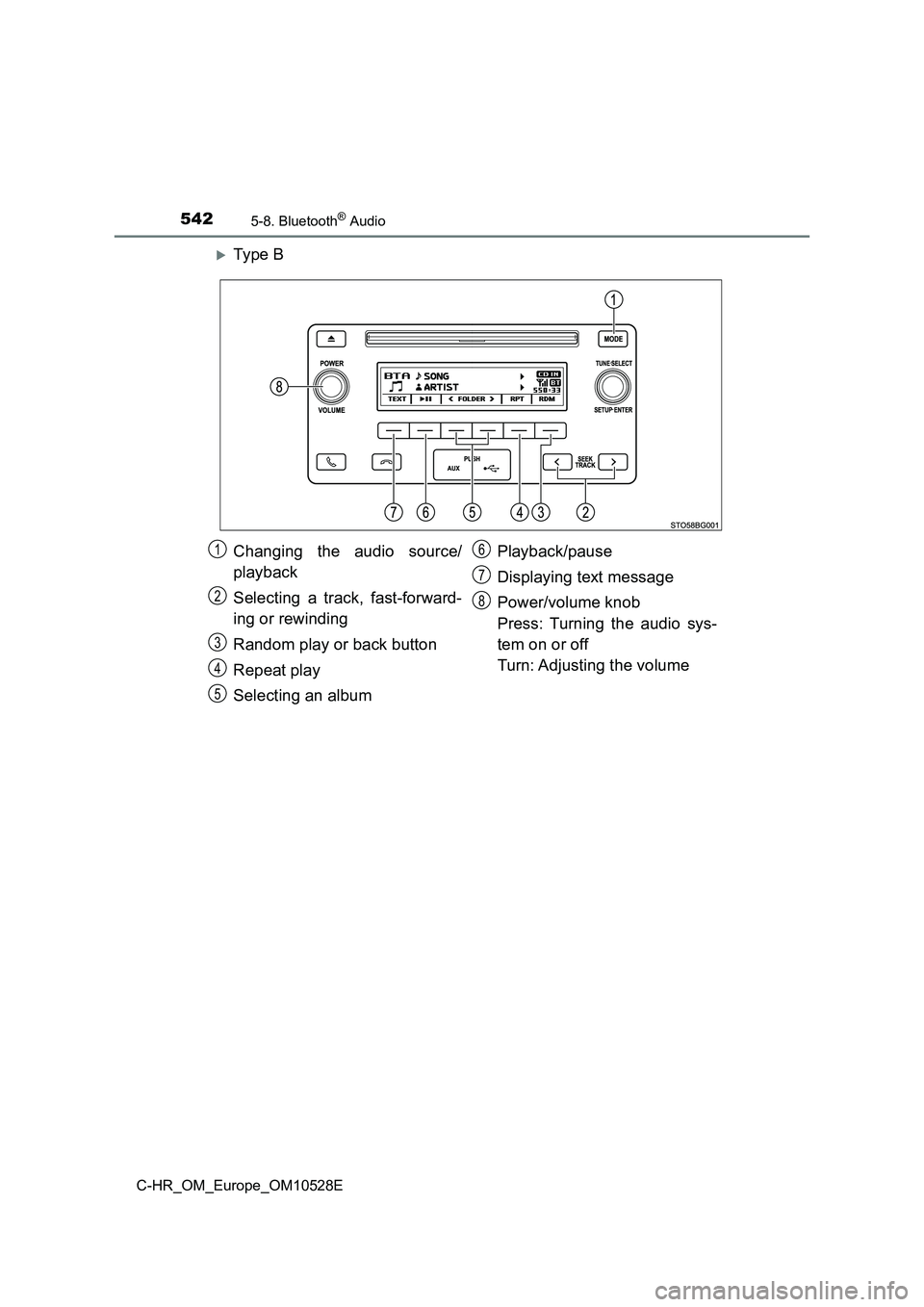

Ty pe B
Changing the audio source/
playback
Selecting a track, fast-forward-
ing or rewinding
Random play or back button
Repeat play
Selecting an album
Playback/pause
Displaying text message
Power/volume knob
Press: Turning the audio sys-
tem on or off
Turn: Adjusting the volume
1
2
3
4
5
6
7
8

5435-8. Bluetooth® Audio
5
Audio system
C-HR_OM_Europe_OM10528E

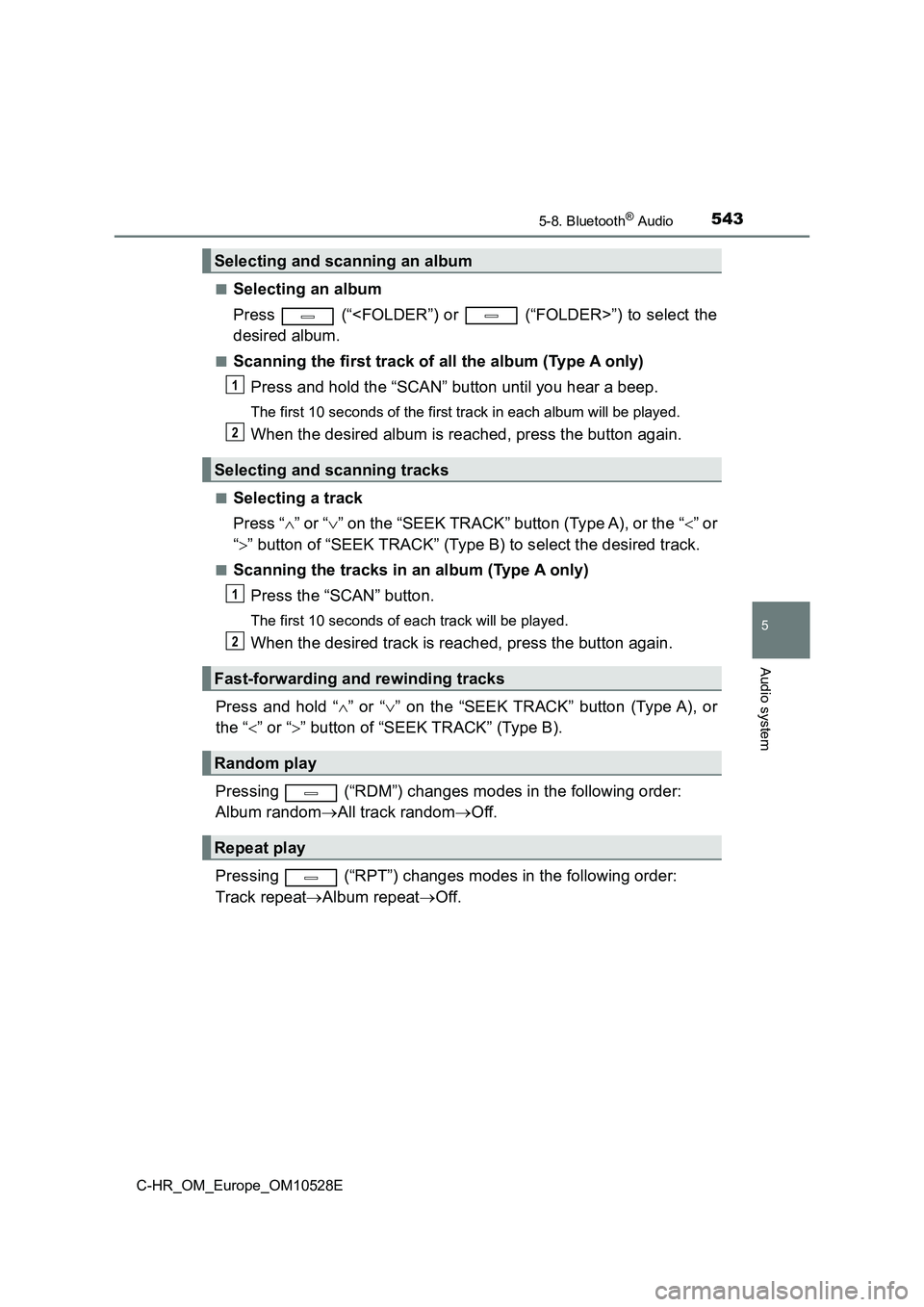

■Selecting an album
Press (“”) to select the
desired album.
■Scanning the first track of all the album (Type A only)
Press and hold the “SCAN” button until you hear a beep.
The first 10 seconds of the first track in each album will be played.
When the desired album is reached, press the button again.
■Selecting a track
Press “ ” or “” on the “SEEK TRACK” button (Type A), or the “” or
“ ” button of “SEEK TRACK” (Type B) to select the desired track.
■Scanning the tracks in an album (Type A only)
Press the “SCAN” button.
The first 10 seconds of each track will be played.
When the desired track is reached, press the button again.
Press and hold “ ” or “” on the “SEEK TRACK” button (Type A), or
the “ ” or “” button of “SEEK TRACK” (Type B).
Pressing (“RDM”) changes modes in the following order:
Album random All track randomOff.
Pressing (“RPT”) changes modes in the following order:
Track repeat Album repeatOff.
Selecting and scanning an album
Selecting and scanning tracks
Fast-forwarding and rewinding tracks
Random play
Repeat play
1
2
1
2

5445-8. Bluetooth® Audio
C-HR_OM_Europe_OM10528E

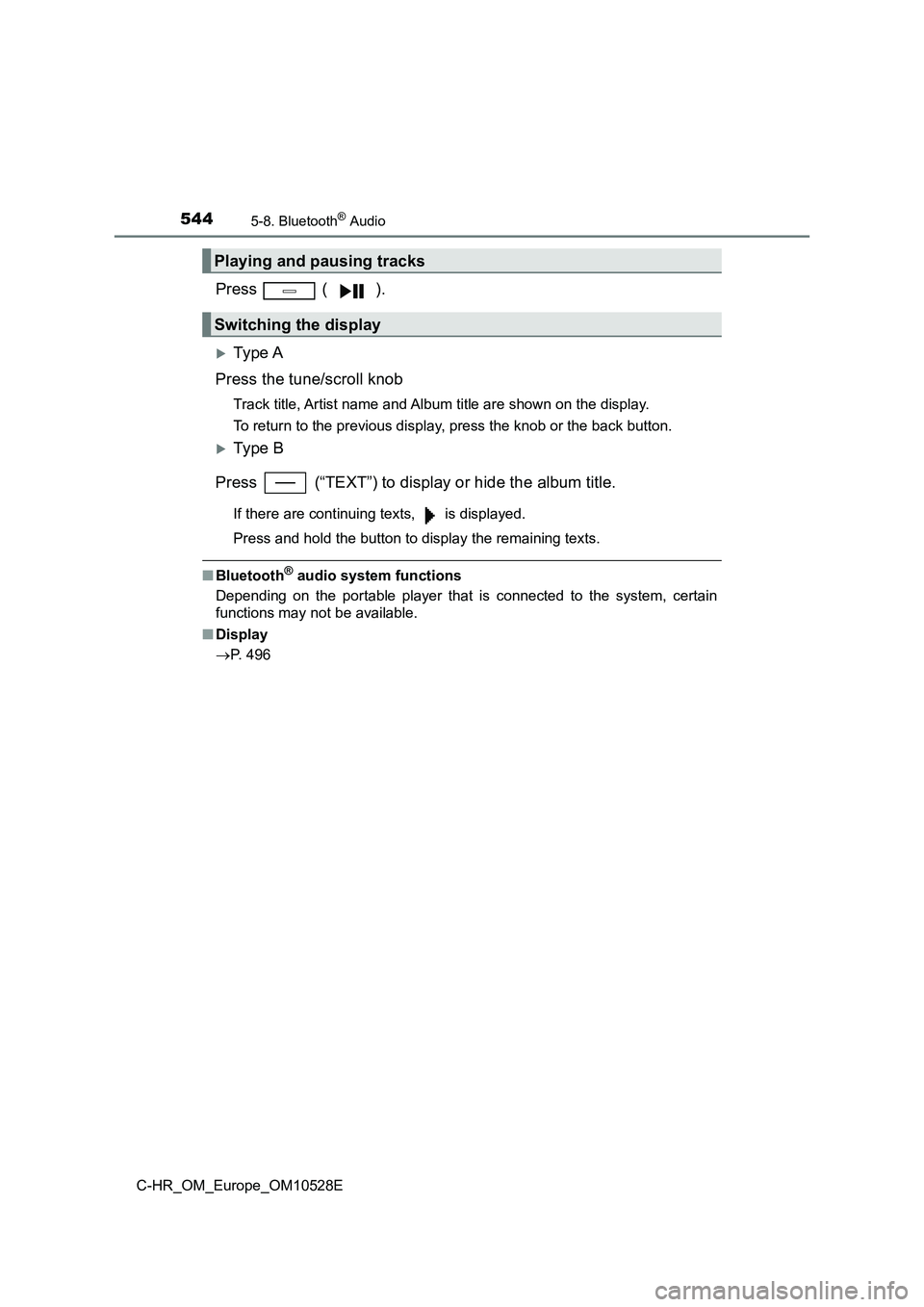

Press ( ).
Ty pe A
Press the tune/scroll knob
Track title, Artist name and Album title are shown on the display.
To return to the previous display, press the knob or the back button.
Ty pe B
Press (“TEXT”) to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold the button to display the remaining texts.
■ Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
■ Display
 P. 496
Playing and pausing tracks
Switching the display

5455-9. Bluetooth® Phone
5
Audio system
C-HR_OM_Europe_OM10528E

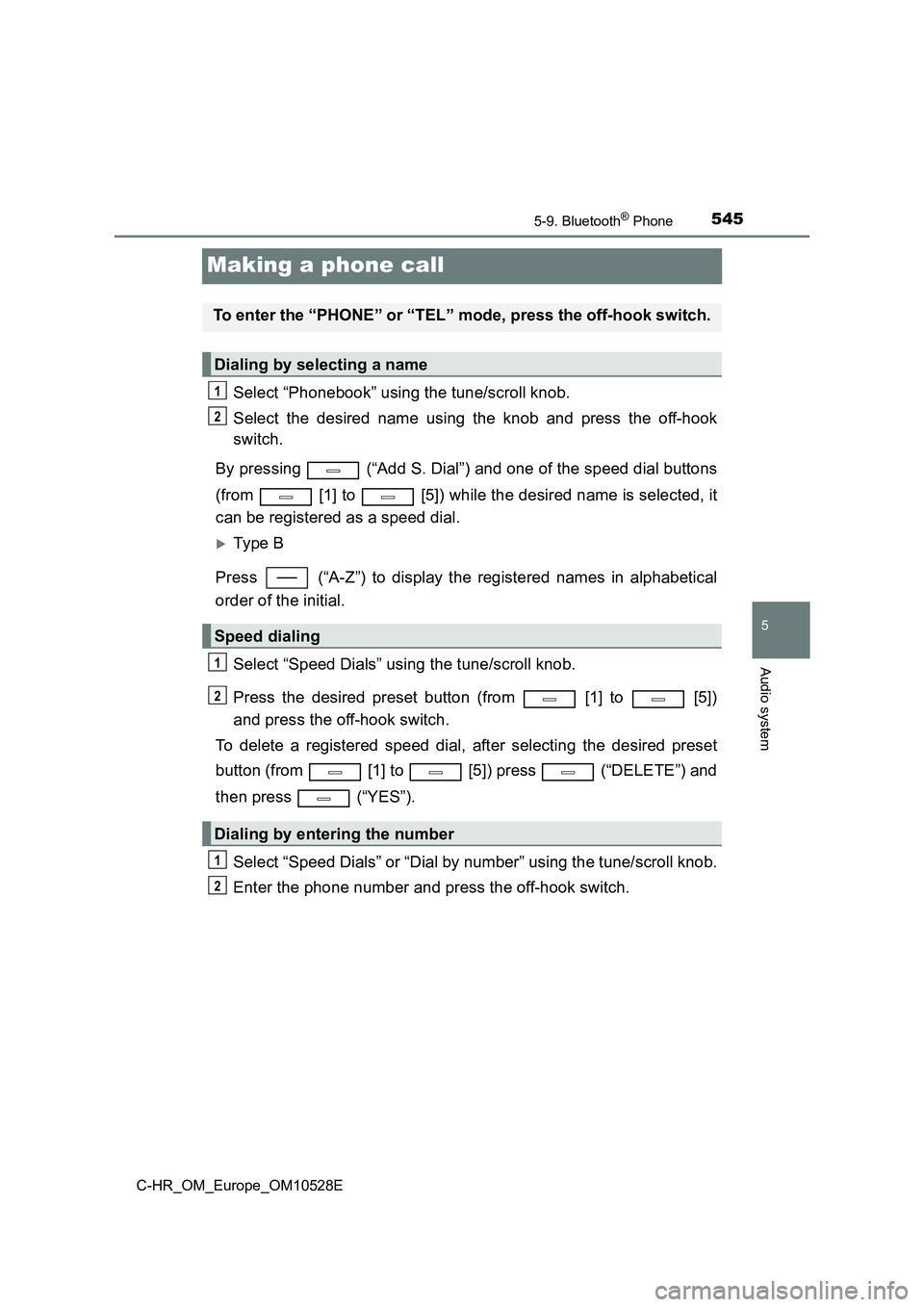

Making a phone call
Select “Phonebook” using the tune/scroll knob.
Select the desired name using the knob and press the off-hook
switch.
By pressing (“Add S. Dial”) and one of the speed dial buttons
(from [1] to [5]) while the desired name is selected, it
can be registered as a speed dial.
Ty pe B
Press (“A-Z”) to display the registered names in alphabetical
order of the initial.
Select “Speed Dials” using the tune/scroll knob.
Press the desired preset button (from [1] to [5])
and press the off-hook switch.
To delete a registered speed dial, after selecting the desired preset
button (from [1] to [5]) press (“DELETE”) and
then press (“YES”).
Select “Speed Dials” or “Dial by number” using the tune/scroll knob.
Enter the phone number and press the off-hook switch.
To enter the “PHONE” or “TEL” mode, press the off-hook switch.
Dialing by selecting a name
Speed dialing
Dialing by entering the number
1
2
1
2
1
2

5465-9. Bluetooth® Phone
C-HR_OM_Europe_OM10528E

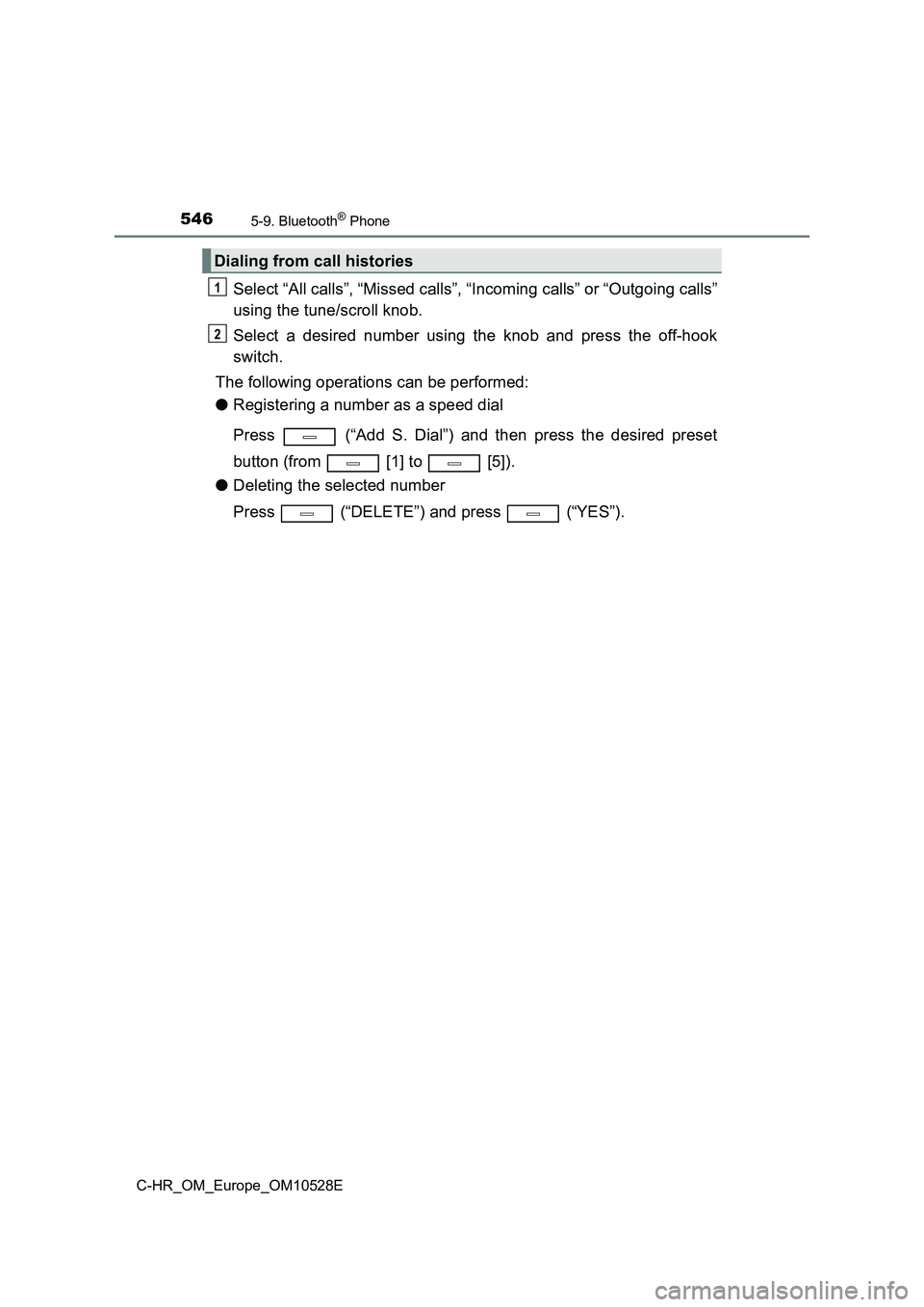

Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing calls”
using the tune/scroll knob.
Select a desired number using the knob and press the off-hook
switch.
The following operations can be performed:
● Registering a number as a speed dial
Press (“Add S. Dial”) and then press the desired preset
button (from [1] to [5]).
● Deleting the selected number
Press (“DELETE”) and press (“YES”).
Dialing from call histories
1
2

5475-9. Bluetooth® Phone
5
Audio system
C-HR_OM_Europe_OM10528E

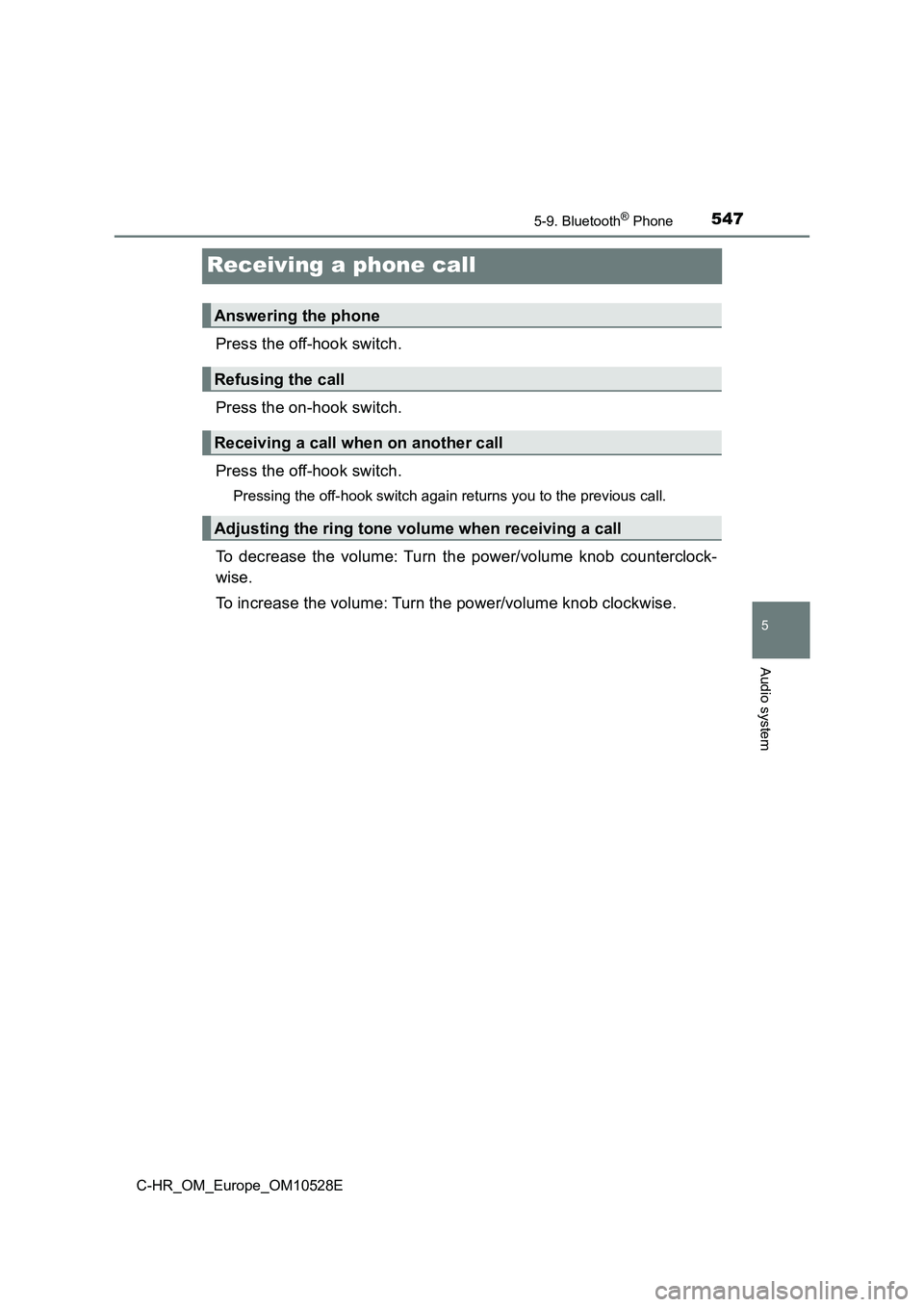

Receiving a phone call
Press the off-hook switch.
Press the on-hook switch.
Press the off-hook switch.
Pressing the off-hook switch again returns you to the previous call.
To decrease the volume: Turn the power/volume knob counterclock-
wise.
To increase the volume: Turn the power/volume knob clockwise.
Answering the phone
Refusing the call
Receiving a call when on another call
Adjusting the ring tone volume when receiving a call

5485-9. Bluetooth® Phone
C-HR_OM_Europe_OM10528E

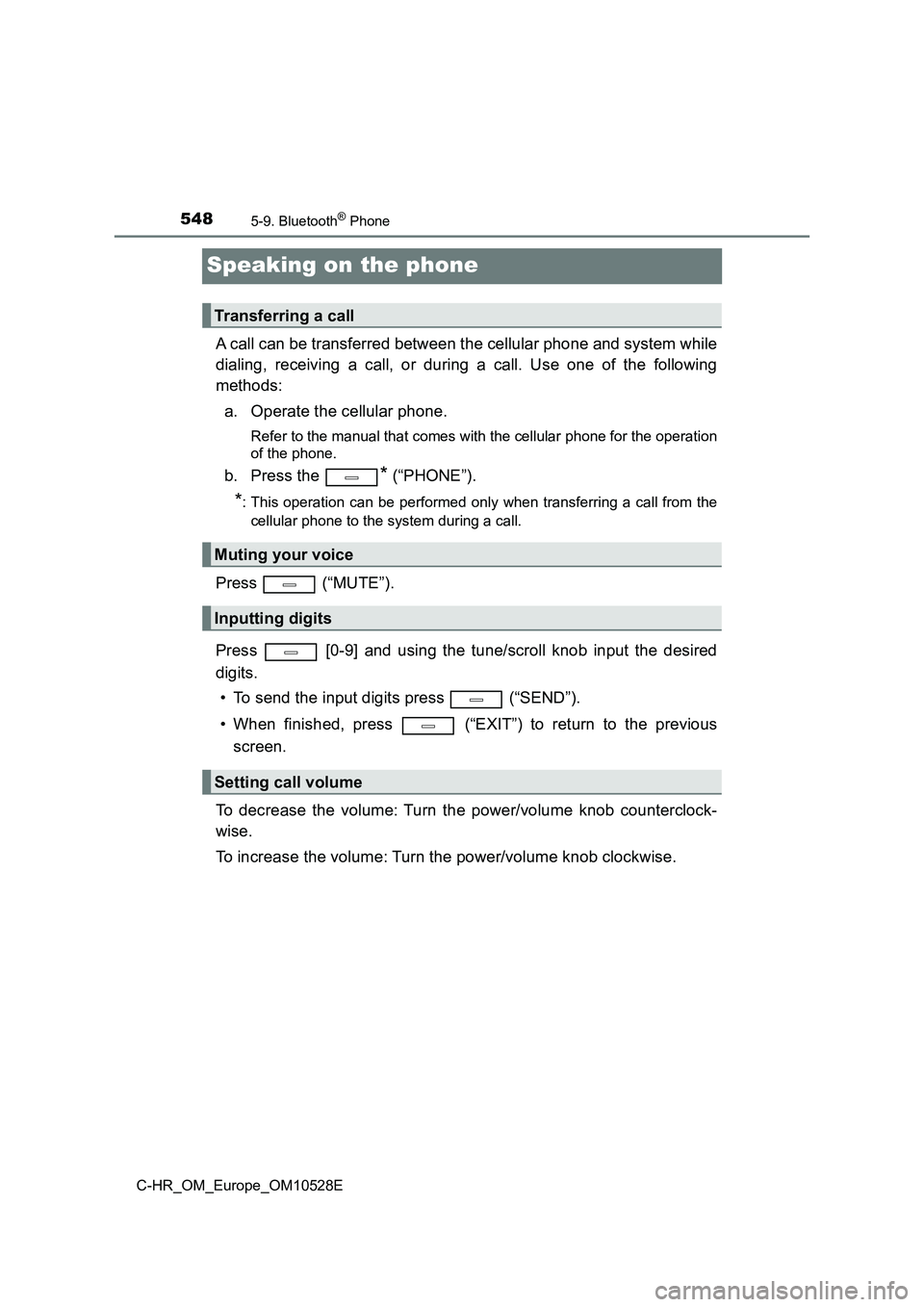

Speaking on the phone
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following
methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation
of the phone.
b. Press the * (“PHONE”).
*: This operation can be performed only when transferring a call from the
cellular phone to the system during a call.
Press (“MUTE”).
Press [0-9] and using the tune/scroll knob input the desired
digits.
• To send the input digits press (“SEND”).
• When finished, press (“EXIT”) to return to the previous
screen.
To decrease the volume: Turn the power/volume knob counterclock-
wise.
To increase the volume: Turn the power/volume knob clockwise.
Transferring a call
Muting your voice
Inputting digits
Setting call volume

5495-9. Bluetooth® Phone
5
Audio system
C-HR_OM_Europe_OM10528E

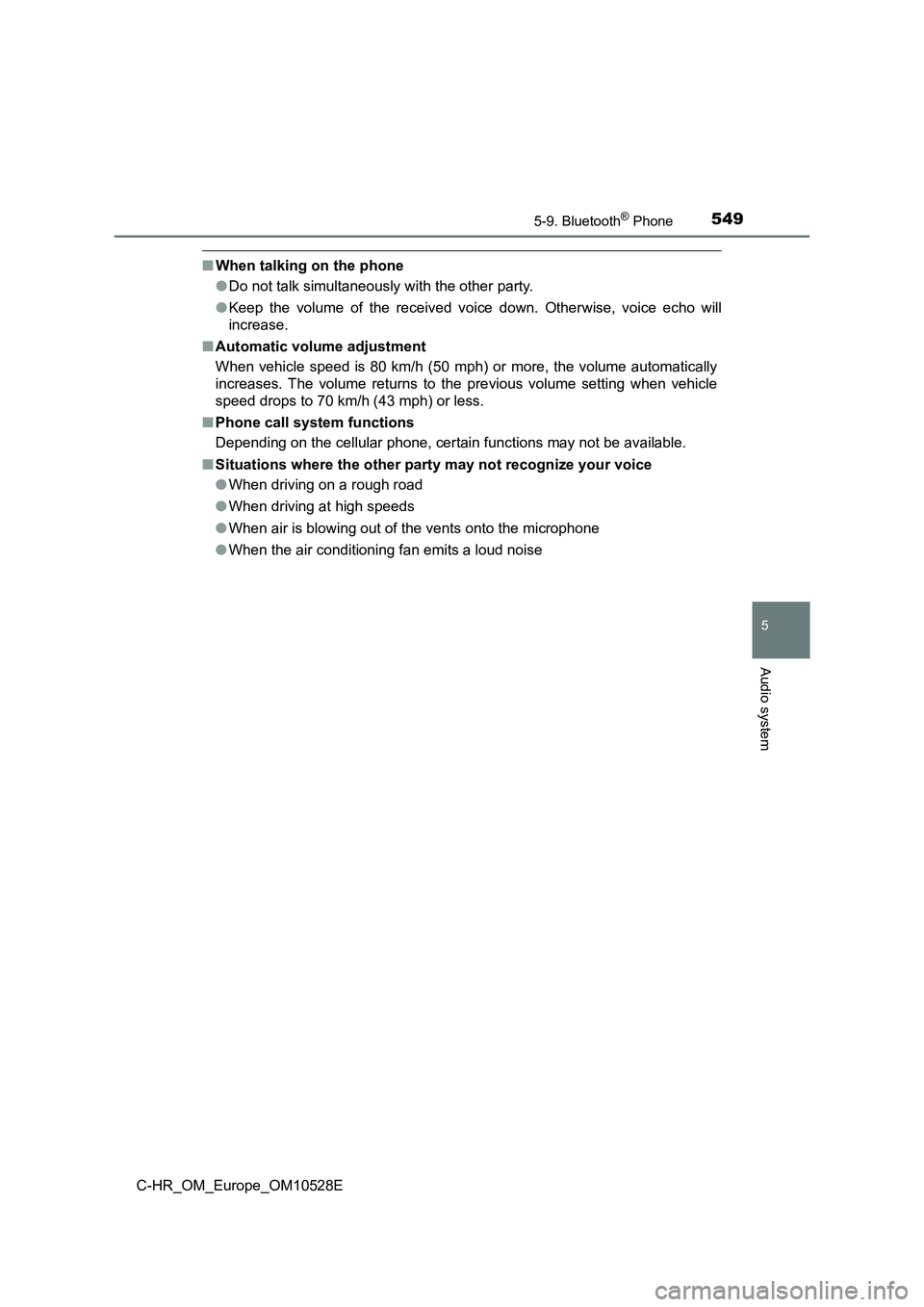

■When talking on the phone
● Do not talk simultaneously with the other party.
● Keep the volume of the received voice down. Otherwise, voice echo will
increase.
■ Automatic volume adjustment
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
■ Phone call system functions
Depending on the cellular phone, certain functions may not be available.
■ Situations where the other party may not recognize your voice
● When driving on a rough road
● When driving at high speeds
● When air is blowing out of the vents onto the microphone
● When the air conditioning fan emits a loud noise

5505-10. Bluetooth®
C-HR_OM_Europe_OM10528E

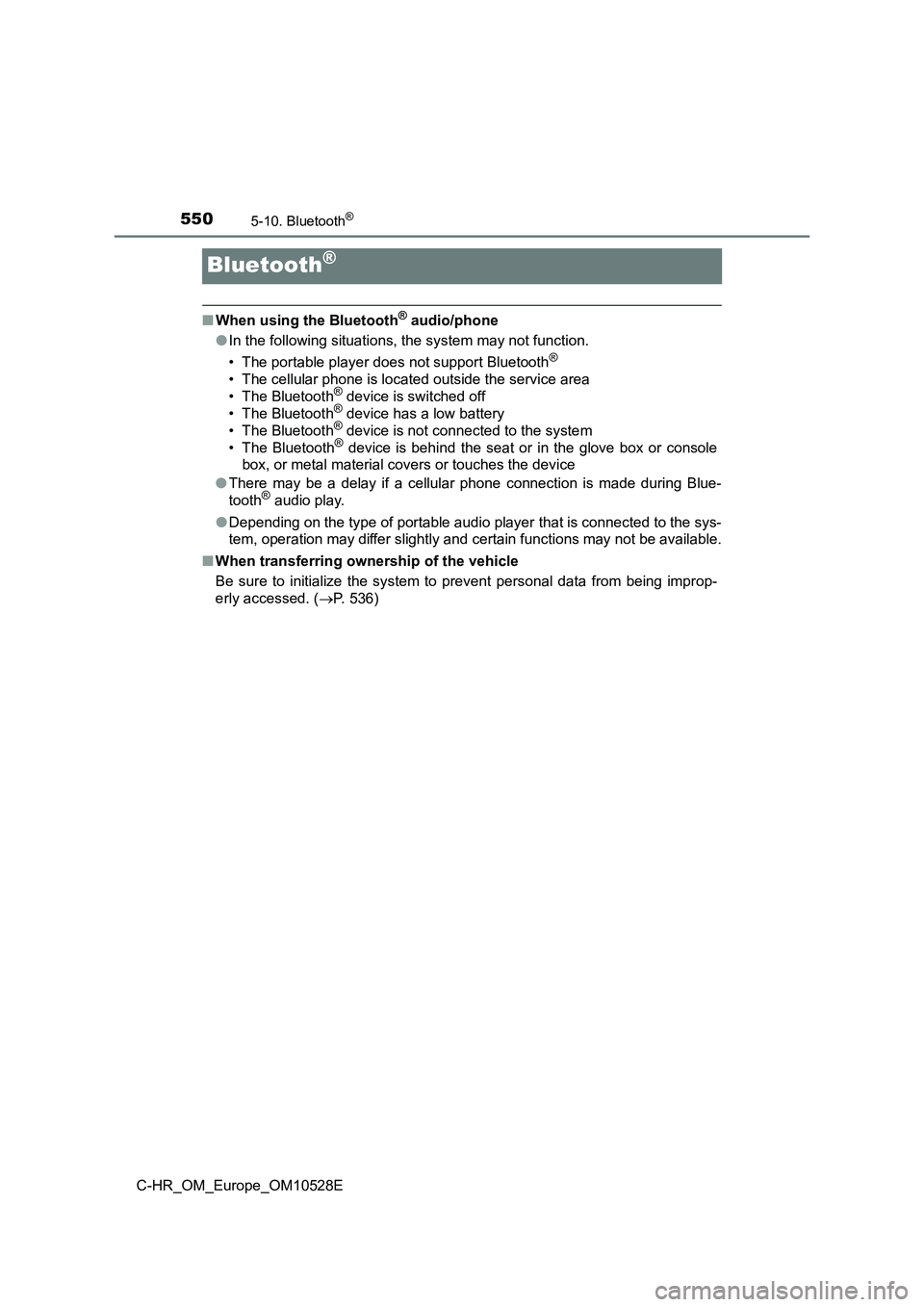

Bluetooth®
■When using the Bluetooth® audio/phone
● In the following situations, the system may not function.
• The portable player does not support Bluetooth®
• The cellular phone is located outside the service area
• The Bluetooth® device is switched off
• The Bluetooth® device has a low battery
• The Bluetooth® device is not connected to the system
• The Bluetooth® device is behind the seat or in the glove box or console
box, or metal material covers or touches the device
● There may be a delay if a cellular phone connection is made during Blue-
tooth® audio play.
● Depending on the type of portable audio player that is connected to the sys-
tem, operation may differ slightly and certain functions may not be available.
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( P. 536)
