Maintenance data (fuel, oil level, etc.) .......... 462
Fuel information ................ 470
Tire information ................. 473
8-2. Customization Customizable features ...... 486
8-3. Items to initialize Items to initialize ............... 496

4628-1. Specifications
C-HR_OM_USA_OM10569U
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicles
*2: Vehicles with 215/60R17 tires
*3: Vehicles with 225/50R18 tires
■
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for you r
Toyota. It is used in registeri ng the ownership of your vehicle .
This number is also stamped on
the top left of the instrument
panel.

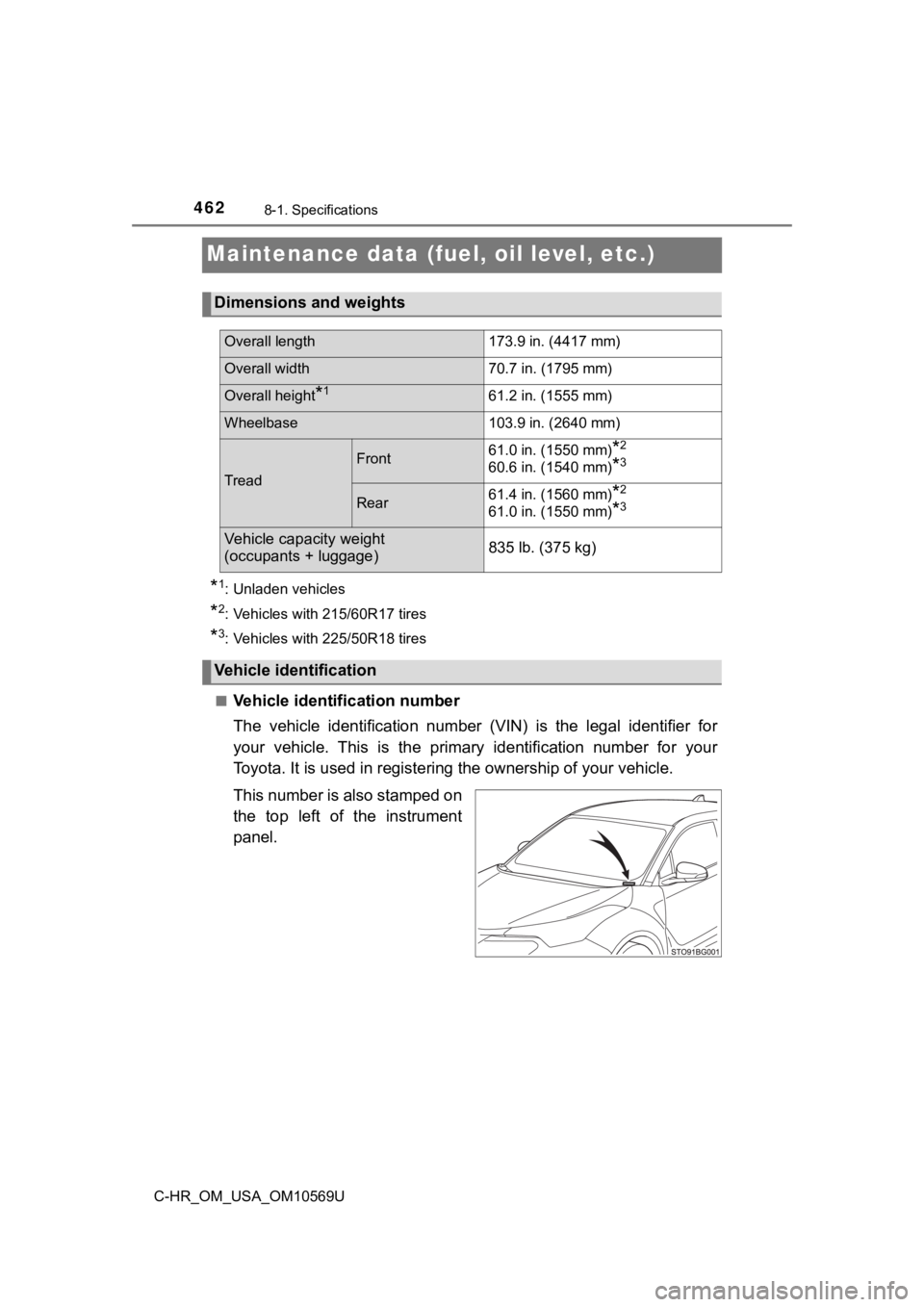

Dimensions and weights
Overall length 173.9 in. (4417 mm)
Overall width 70.7 in. (1795 mm)
Overall height*161.2 in. (1555 mm)
Wheelbase103.9 in. (2640 mm)
Tread
Front61.0 in. (1550 mm)*2
60.6 in. (1540 mm)*3
Rear61.4 in. (1560 mm)*2
61.0 in. (1550 mm)*3
Vehicle capacity weight
(occupants + luggage)
835 lb. (375 kg)
Vehicle identification

4638-1. Specifications
8
Vehicle specifications
C-HR_OM_USA_OM10569U

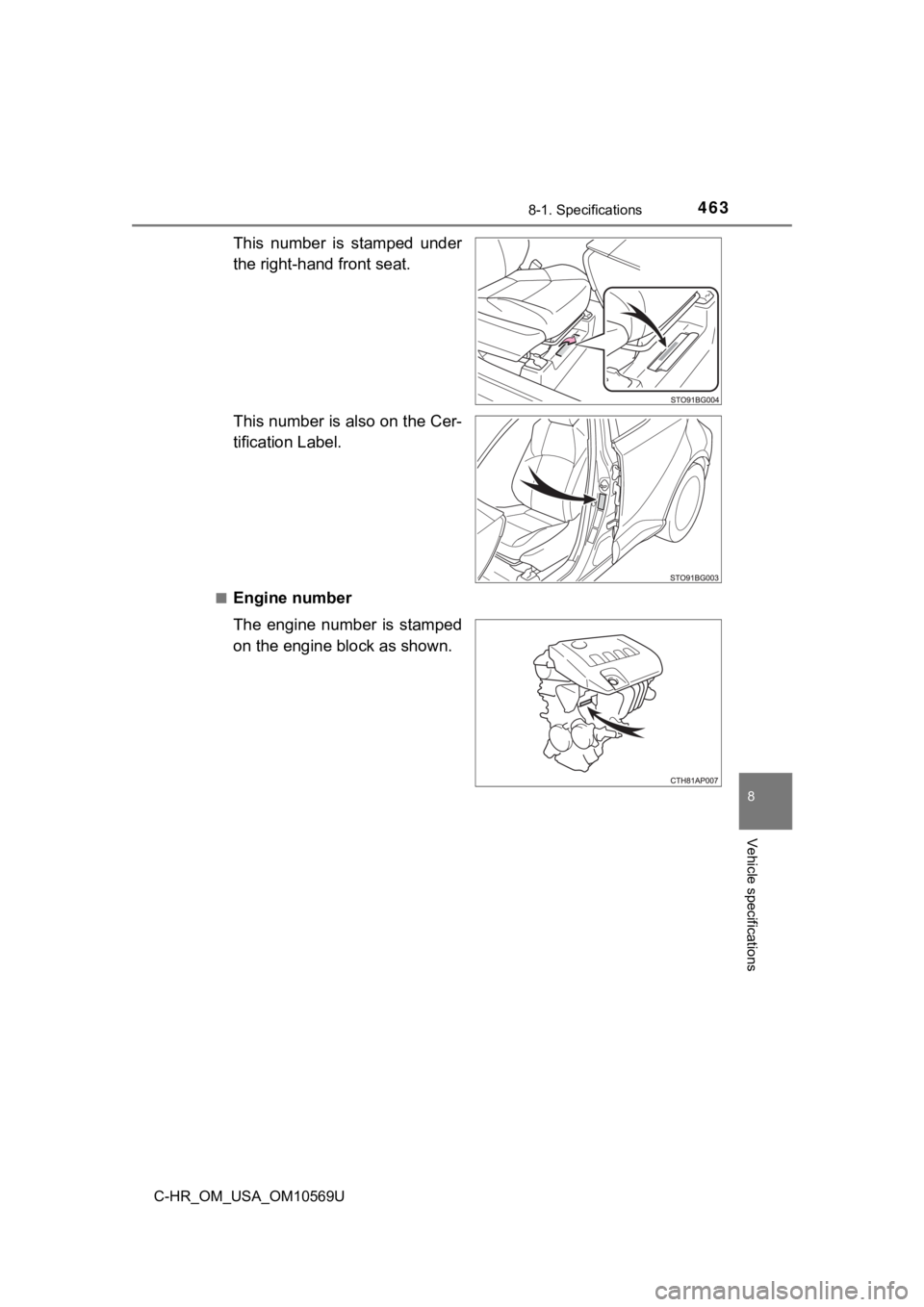

This number is stamped under
the right-hand front seat.
This number is also on the Cer-
tification Label.
■Engine number
The engine number is stamped
on the engine block as shown.

4648-1. Specifications
C-HR_OM_USA_OM10569U
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine
Model 3ZR-FAE
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke 3.17  3.84 in. (80.5  97.6 mm)
Displacement 121.3 cu.in. (1987 cm3)
Valve clearance (engine
cold)Automatic adjustment
Drive belt tension Automatic adjustment
Fuel
Fuel type
Unleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)13.2 gal. (50 L, 11.0 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill

reference
*)
With filter
Without filter 4.4 qt. (4.2 L, 3.7 Imp.qt.)
4.1 qt. (3.9 L, 3.4 Imp.qt.)

4658-1. Specifications
8
Vehicle specifications
C-HR_OM_USA_OM10569U■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
To y -
ota approved “Toyota Genuine Motor Oil” or equivalent to satisf y
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However,
it must be replaced with SAE 0W-
20 at the next oil change.

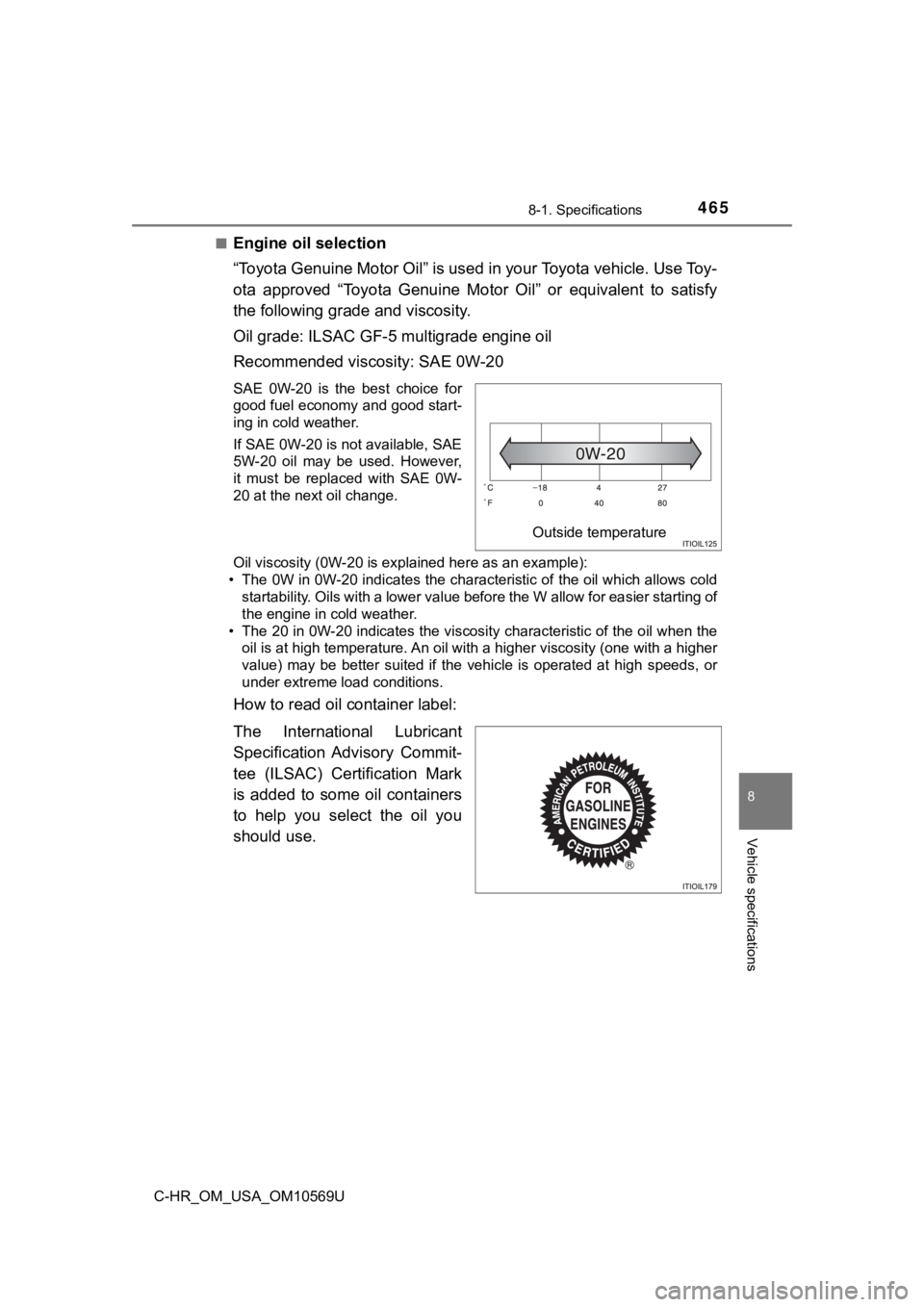

Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for ea sier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark
is added to some oil containers
to help you select the oil you
should use.
Outside temperature

4668-1. Specifications
C-HR_OM_USA_OM10569U

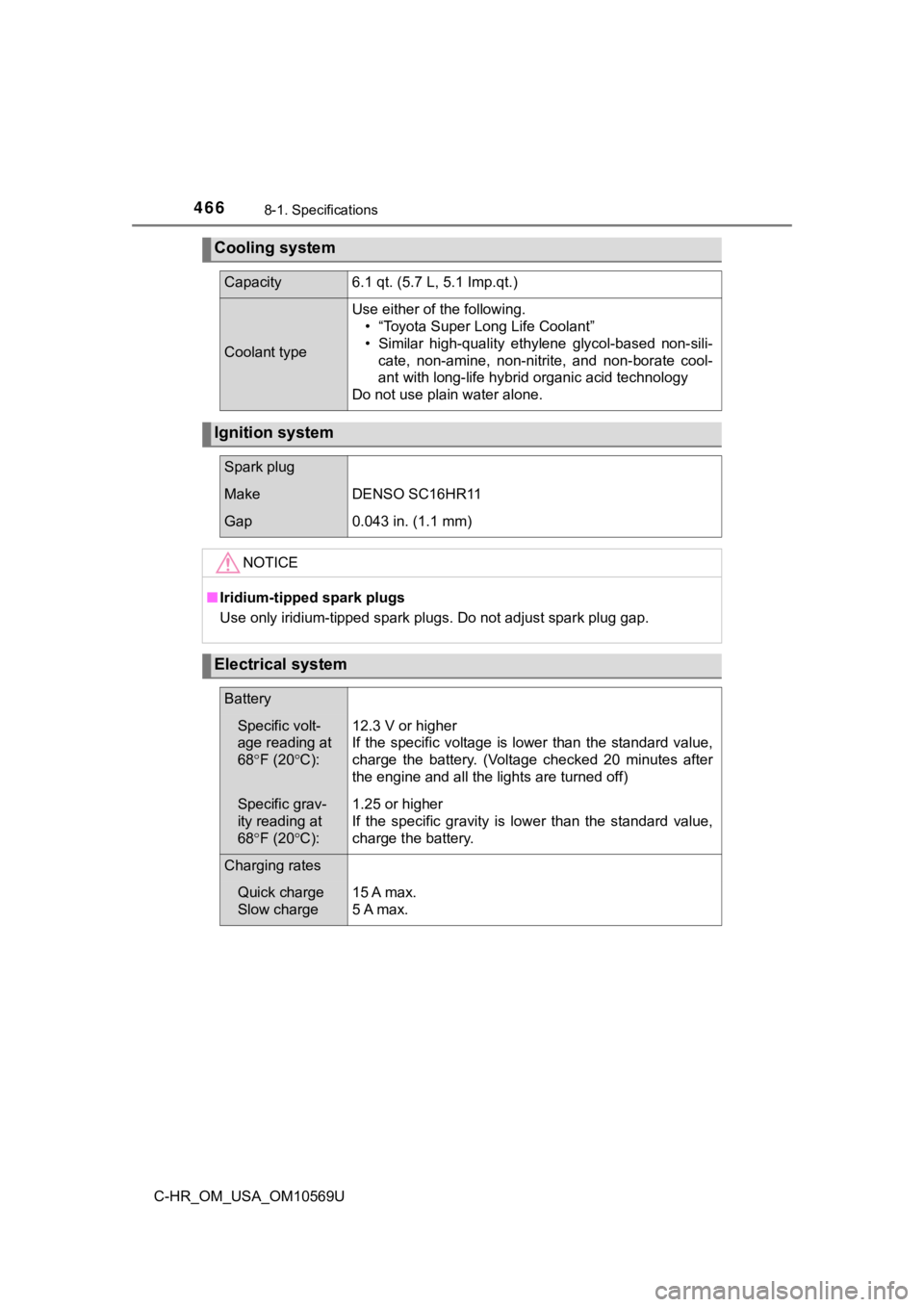

Cooling system
Capacity6.1 qt. (5.7 L, 5.1 Imp.qt.)
Coolant type
Use either of the following.• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO SC16HR11
Gap0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug g ap.
Electrical system
Battery
Specific volt-
age reading at
68F (20 C):12.3 V or higher
If the specific voltage is lower than the standard value,
charge the battery. (Voltage checked 20 minutes after
the engine and all the lights are turned off)
Specific grav-
ity reading at
68 F (20 C):1.25 or higher
If the specific gravity is lower than the standard value,
charge the battery.
Charging rates
Quick charge
Slow charge15 A max.
5 A max.

4678-1. Specifications
8
Vehicle specifications
C-HR_OM_USA_OM10569U
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Toyota dealer.
*: Minimum pedal clearance when depressed with a force of 30.6 kgf (300 N,67.4 lbf) while the engine is running

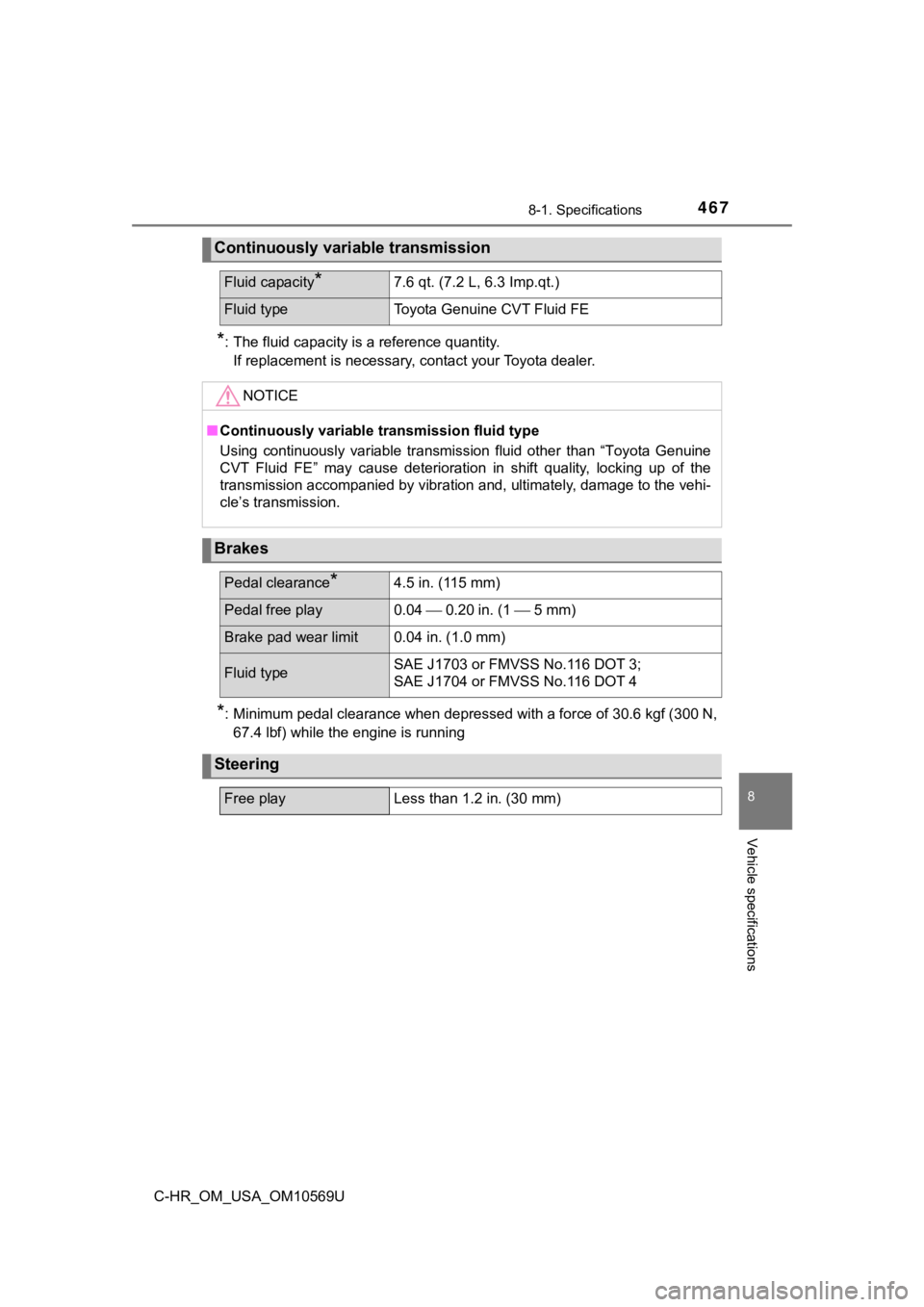

Continuously variable transmission
Fluid capacity*7.6 qt. (7.2 L, 6.3 Imp.qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■ Continuously variable tr ansmission fluid type
Using continuously variable transmission fluid other than “Toyota Genuine
CVT Fluid FE” may cause deterioration in shift quality, locking up of the
transmission accompanied by vibration and, ultimately, damage to the vehi-
cle’s transmission.
Brakes
Pedal clearance*4.5 in. (115 mm)
Pedal free play 0.04  0.20 in. (1  5 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3;
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free play
Less than 1.2 in. (30 mm)

4688-1. Specifications
C-HR_OM_USA_OM10569U

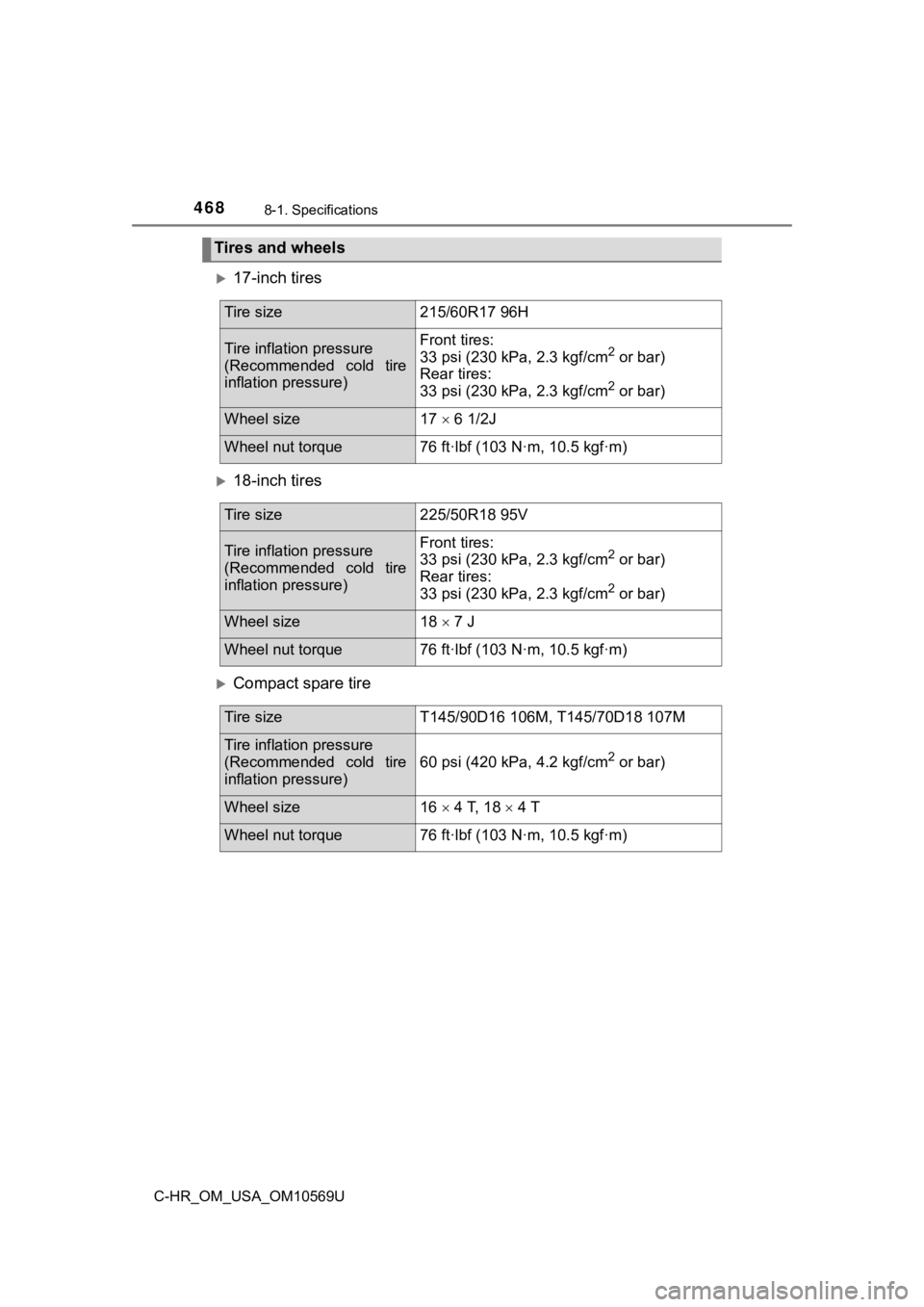

17-inch tires
18-inch tires
Compact spare tire
Tires and wheels
Tire size215/60R17 96H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tires:
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear tires:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size 17  6 1/2J
Wheel nut torque76 ft·lbf (103 N·m, 10.5 kgf·m)
Tire size 225/50R18 95V
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tires:
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear tires:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size 18  7 J
Wheel nut torque76 ft·lbf (103 N·m, 10.5 kgf·m)
Tire size T145/90D16 106M, T145/70D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure) 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size
16  4 T, 18  4 T
Wheel nut torque76 ft·lbf (103 N·m, 10.5 kgf·m)

4698-1. Specifications
8
Vehicle specifications
C-HR_OM_USA_OM10569U
*: If equipped
Light bulbs
Light bulbsBulb No.WTy p e
ExteriorHeadlights 9012 55 A
Front side marker lights ― 5 B
Front turn signal lights ― 21 C
Side turn signal lights ― 5 D
Rear side marker lights ― 5 B
Rear turn signal lights ― 21 D
Back-up lights 921 16 B
License plate lights ― 5 B
Interior
Vanity lights
*―8 B
Front interior lights/
front personal lights ―5 B
Rear interior light ― 8E
Luggage compartment
light ―5 B
A: HIR2 halogen bulbs
C: Single end bulbs (amber) E: Double end bulbs B: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)

4708-1. Specifications
C-HR_OM_USA_OM10569U

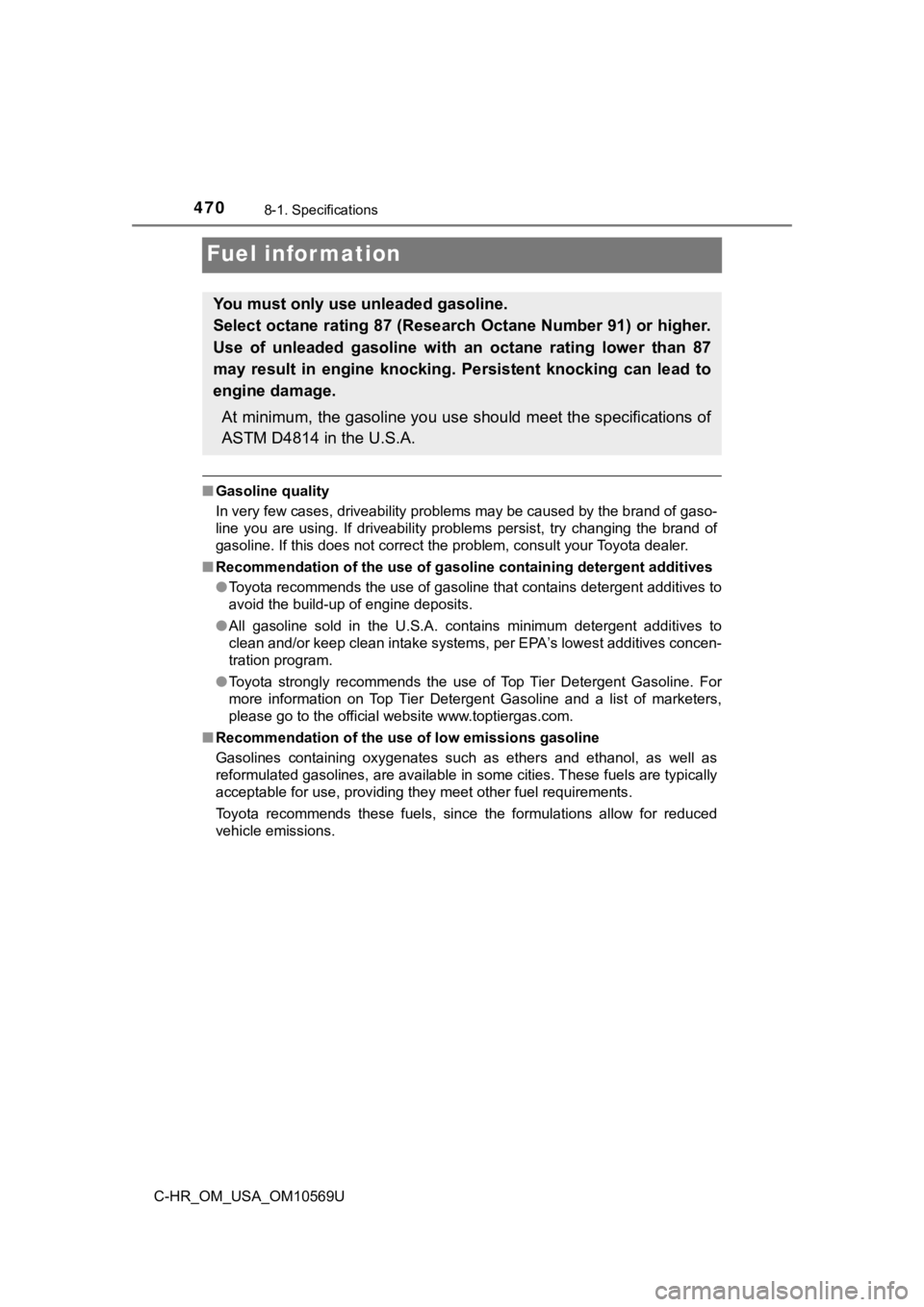

Fuel information
■Gasoline quality
In very few cases, driveability problems may be caused by the b rand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your To yota dealer.
■ Recommendation of the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent a dditives to
avoid the build-up of engine deposits.
● All gasoline sold in the U.S.A. contains minimum detergent addi tives to
clean and/or keep clean intake systems, per EPA’s lowest additi ves concen-
tration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoli ne. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
■ Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fue ls are typically
acceptable for use, providing they meet other fuel requirements .
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.
You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A.
