TOYOTA C-HR 2020 Owners Manual (in English)

1113-1. Key information
3
Operation of each component
C-HR_OM_USA_OM10634U
Vehicles without a smart key system
Locks all the doors
(P. 11 8)
Sounds the alarm ( P. 1 1 2)
Unlocks the door (P. 11 8)
Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Opens the windows* ( P. 1 1 8)
*: These settings must be customized at your Toyota dealer.
Vehicles with a smart key system
Locks all the doors
(P. 11 8)
Sounds the alarm ( P. 1 1 2)
Unlocks the door (P. 11 8)
Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Opens the windows* ( P. 1 1 8)
*: These settings must be customized at your Toyota dealer.
Press the button to open the key.
To stow, press the button then fold
the key.
Wireless remote control
Using the key (vehicles without a smart key system)

1123-1. Key information
C-HR_OM_USA_OM10634U
To take out the mechanical key,
slide the release lever and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electro nic key bat-
tery is depleted or the entry function does not operate properl y, you will
need the mechanical key. ( P. 449)
■Panic mode
■ If you lose your keys
New genuine keys can be made by your Toyota dealer using the ot her key
(vehicles without a smart key system) or mechanical key (vehicles with a
smart key system) and the key number stamped on your key number plate.
Keep the plate in a safe place such as your wallet, not in the vehicle.
Using the mechanical key (vehicles with a smart key system)
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
key (with a wireless remote control func-
tion) or electronic key.

1133-1. Key information
3
Operation of each component
C-HR_OM_USA_OM10634U■
When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag, etc., ensure th at the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
■ Conditions affecting the operation of the smart key system or w ireless
remote control
Vehicles without a smart key system
The wireless remote control function may not operate normally i n the follow-
ing situations:
● When the wireless key battery is depleted
● Near a TV tower, electric power plant, gas station, radio stati on, large dis-
play, airport or other facility that generates strong radio wav es or electrical
noise
● When carrying a portable radio, cellular phone or other wireles s communi-
cation devices
● When multiple wireless keys are in the vicinity
● When the wireless key is in contact with, or is covered by a me tallic object
● When a wireless key (that emits radio waves) is being used near by
● When the wireless key has been left near an electrical applianc e such as a
personal computer
● If window tint with a metallic content or metallic objects are attached to the
rear window
Vehicles with a smart key system
P. 134

1143-1. Key information
C-HR_OM_USA_OM10634U■
Key battery depletion
Vehicles without a smart key system
If the wireless remote control function does not operate, the b attery may be
depleted. Replace the battery when necessary. ( P. 383)
Vehicles with a smart key system
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin wh en the engine
stops. ( P. 383)
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( P. 383)
• The smart key system or the wireless remote control does not o perate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
The battery can be exchanged by the users. ( P. 383) However, as there
may be damage to the key when exchanging, it is recommended to have
the battery exchanged at your Toyota Dealer.
● To avoid serious deterioration, do not leave the electronic key within 3 ft.
(1 m) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■ When the key battery is fully depleted
P. 383
■ Confirmation of the registered key number (vehicles with a smar t key
system)
The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.
■ Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 492)

1153-1. Key information
3
Operation of each component
C-HR_OM_USA_OM10634U■

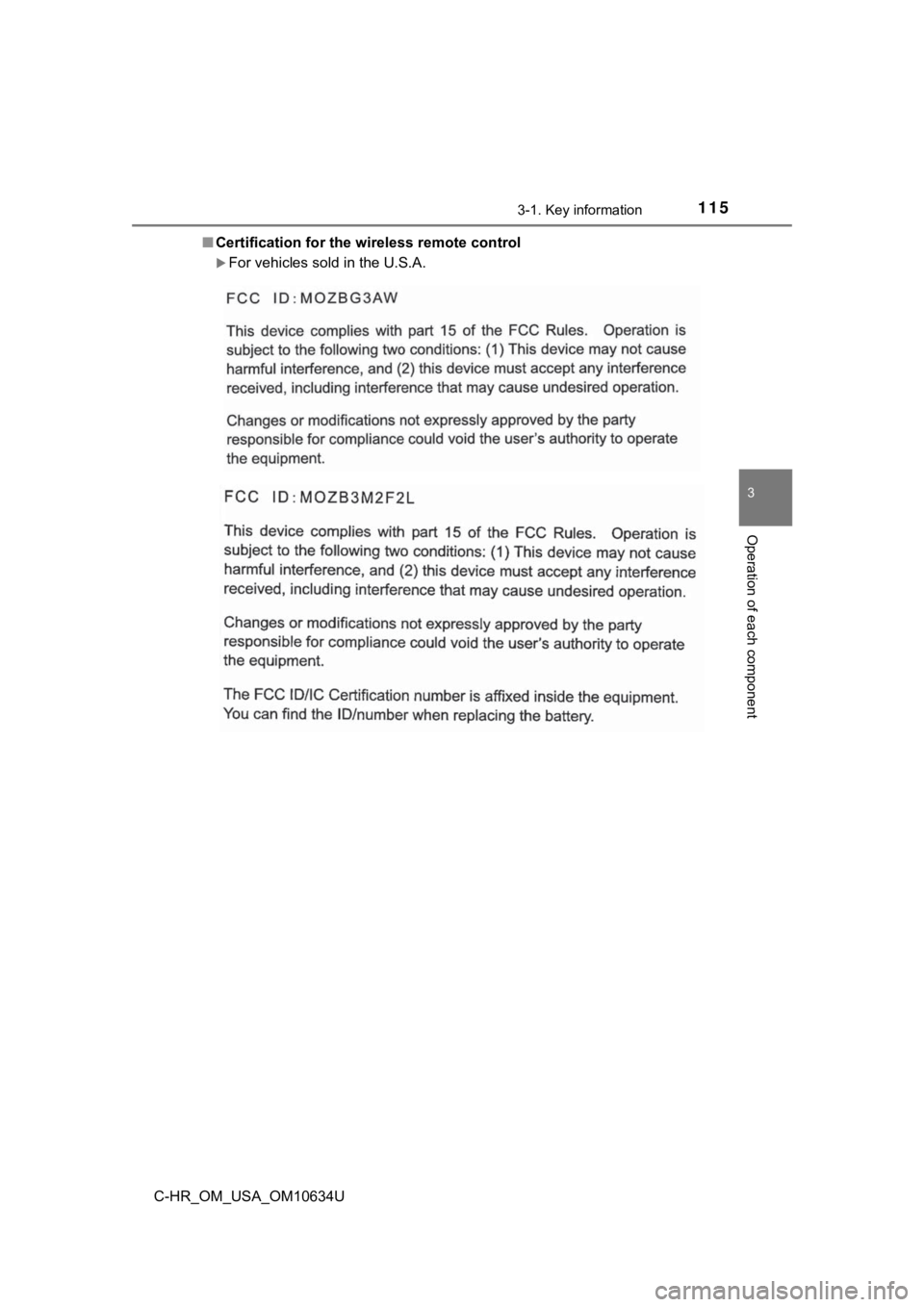

Certification for the wireless remote control
For vehicles sold in the U.S.A.

1163-1. Key information
C-HR_OM_USA_OM10634U

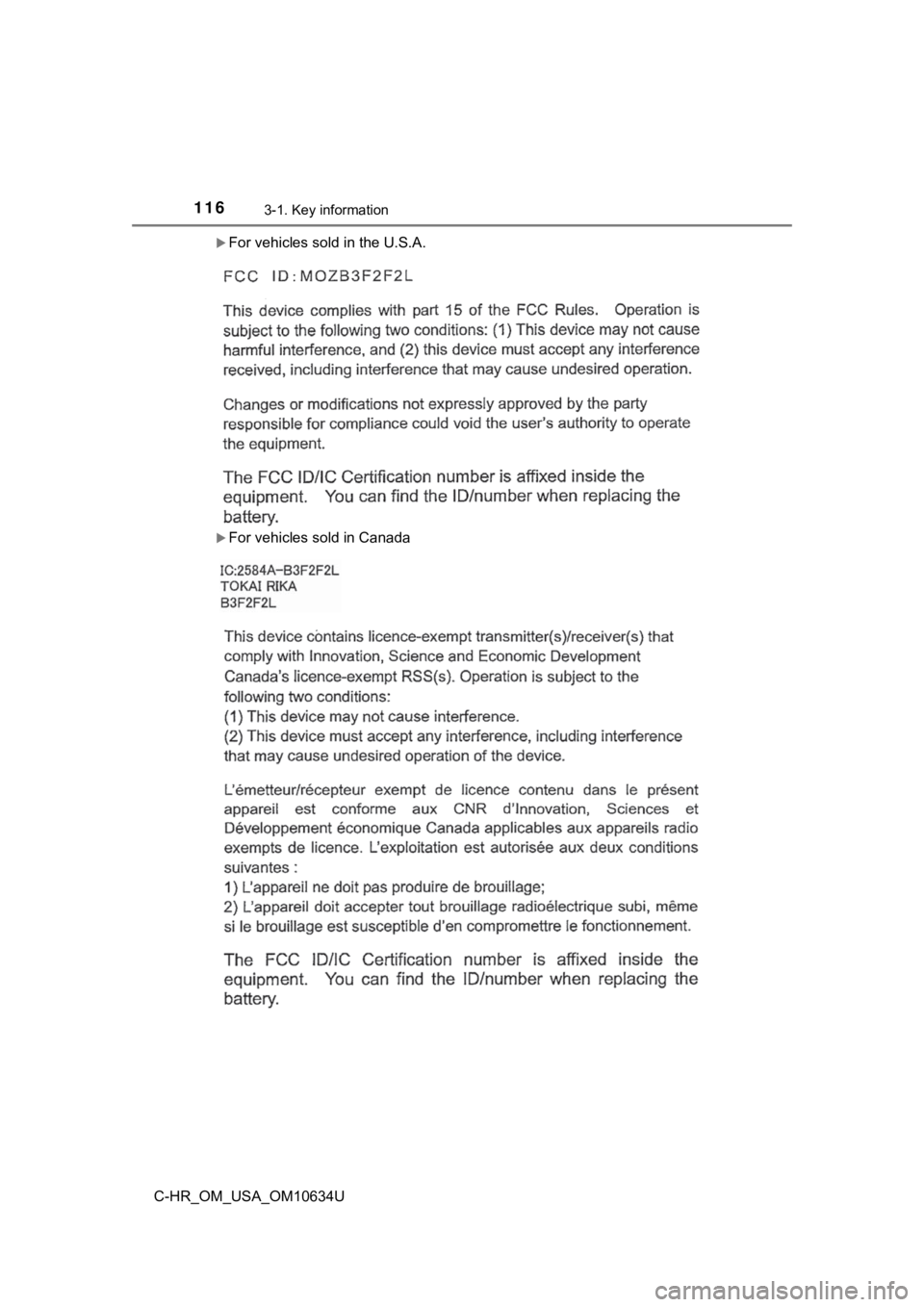

For vehicles sold in the U.S.A.
For vehicles sold in Canada

1173-1. Key information
3
Operation of each component
C-HR_OM_USA_OM10634U
NOTICE
■To prevent key damage
● Do not drop the keys, subject them to strong shocks, or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer, e tc.
● Do not attach metallic or magnetic materials to the keys or pla ce the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key
and key (with a wireless remote control function).
● Vehicles with a smart key system: Do not place the keys near ob jects that
produce magnetic fields, such as TVs, audio systems and inducti on cook-
ers, or medical electrical equipment, such as low-frequency the rapy equip-
ment.
■ Carrying the electronic key on your person (vehicles with a sma rt key
system)
Carry the electronic key 3.9 in. (10 cm) or more away from elec tric appli-
ances that are turned on. Radio waves emitted from electric app liances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart key system malfunction or other key-related prob-
lems (vehicles with a smart key system)
Take your vehicle with all the electronic keys provided with yo ur vehicle to
your Toyota dealer.
■ When an electronic key is lost (vehicles with a smart key system)
If the electronic key remains lost, the risk of vehicle theft i ncreases signifi-
cantly. Visit your Toyota dealer immediately with all remaining electronic
keys that were provided with your vehicle.

1183-2. Opening, closing and locking the doors
C-HR_OM_USA_OM10634U
Side doors
◆Entry function (vehicles with a smart key system)
Carry the electronic key to enable this function.
Grip the driver’s door handle
to unlock the door. Grip the
passenger’s door handle to
unlock all the doors.*
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Touch the lock sensor (the indent ation on the side of the front
door handle) to lock all the doors.
Check that the door is securely locked.
*: The door unlock settings can be changed. ( P. 123, 493)
◆Wireless remote control
Vehicles without a smart key system
Locks all the doors
Check that the door is securely
locked.
Unlocks the door
Pressing the button unlocks the
driver’s door.
Pressing the button again within
3 seconds unlocks the other
doors.
Press and hold to open the windows
*
*
: These settings must be customized at your Toyota dealer.
Unlocking and locking the doors from the outside

1193-2. Opening, closing and locking the doors
3
Operation of each component
C-HR_OM_USA_OM10634U
Vehicles with a smart key system
Locks all the doors
Check that the door is securely
locked.
Unlocks the door
Pressing the button unlocks the
driver’s door.
Pressing the button again within
3 seconds unlocks the other
doors.
Press and hold to open the windows
*
*
: These settings must be customized at your Toyota dealer.
◆Key
Turning the key operates the doors as follows:
Vehicles without a smart key system
Locks all the doors
Turn and hold to close the win-
dows
*
Unlocks the door
Turning the key unlocks the
driver’s door. Turning the key
again unlocks the other doors.
Turn and hold to open the win-
dows
*
*
: These settings must be customized at your Toyota dealer.
Vehicles with a smart key system
The doors can also be locked and unlocked with the mechanical k ey.
( P. 449)

1203-2. Opening, closing and locking the doors
C-HR_OM_USA_OM10634U
■Operation signals
Doors:
A buzzer sounds and the emergency flashers flash to indicate th at the doors
have been locked/unlocked using the wireless remote control.
(Locked: once; Unlocked: twice)
Windows:
A buzzer sounds to indicate that the windows are operating.
■ Security feature
Vehicles without a smart key system
If a door is not opened within approximately 60 seconds after t he vehicle is
unlocked using the wireless remote control, the security feature automatically
locks the vehicle again.
Vehicles with a smart key system
If a door is not opened within approximately 60 seconds after t he vehicle is
unlocked using the entry function or wireless remote control, t he security fea-
ture automatically locks the vehicle again.
■ When the door cannot be locked by the lock sensor on the surface of the
front door handle (vehicl es with a smart key system)
■ Door lock buzzer
Vehicles without a smart key system
If an attempt to lock the doors using the wireless remote contr ol is made
when a door is not fully closed, a buzzer will sound continuous ly for 5 sec-
onds. Fully close the door to stop the buzzer, and lock the doors again.
Vehicles with a smart key system
If an attempt to lock the doors using the entry function or wir eless remote
control is made when a door is not fully closed, a buzzer will sound continu-
ously for 5 seconds. Fully close the door to stop the buzzer, a nd lock the
doors again.
■ If the smart key system or wireless remote control does not ope rate
properly
● Vehicles with a smart key system: Use the mechanical key to lock and
unlock the doors. ( P. 449)
● Replace the battery with a new one if it is depleted. ( P. 383)
Use your palm to touch the lock sensor.
