TOYOTA C-HR 2021 (in English) User Guide

9
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Engine maintenance
Washer fluid tank
Engine coolant reservoirEngine oil filler cap
Engine oil level dipstick
Instrument panel light control
Brighter
Darker
64380_Txt_MY21_C-HR.indd 97/21/20 10:32 AM

10

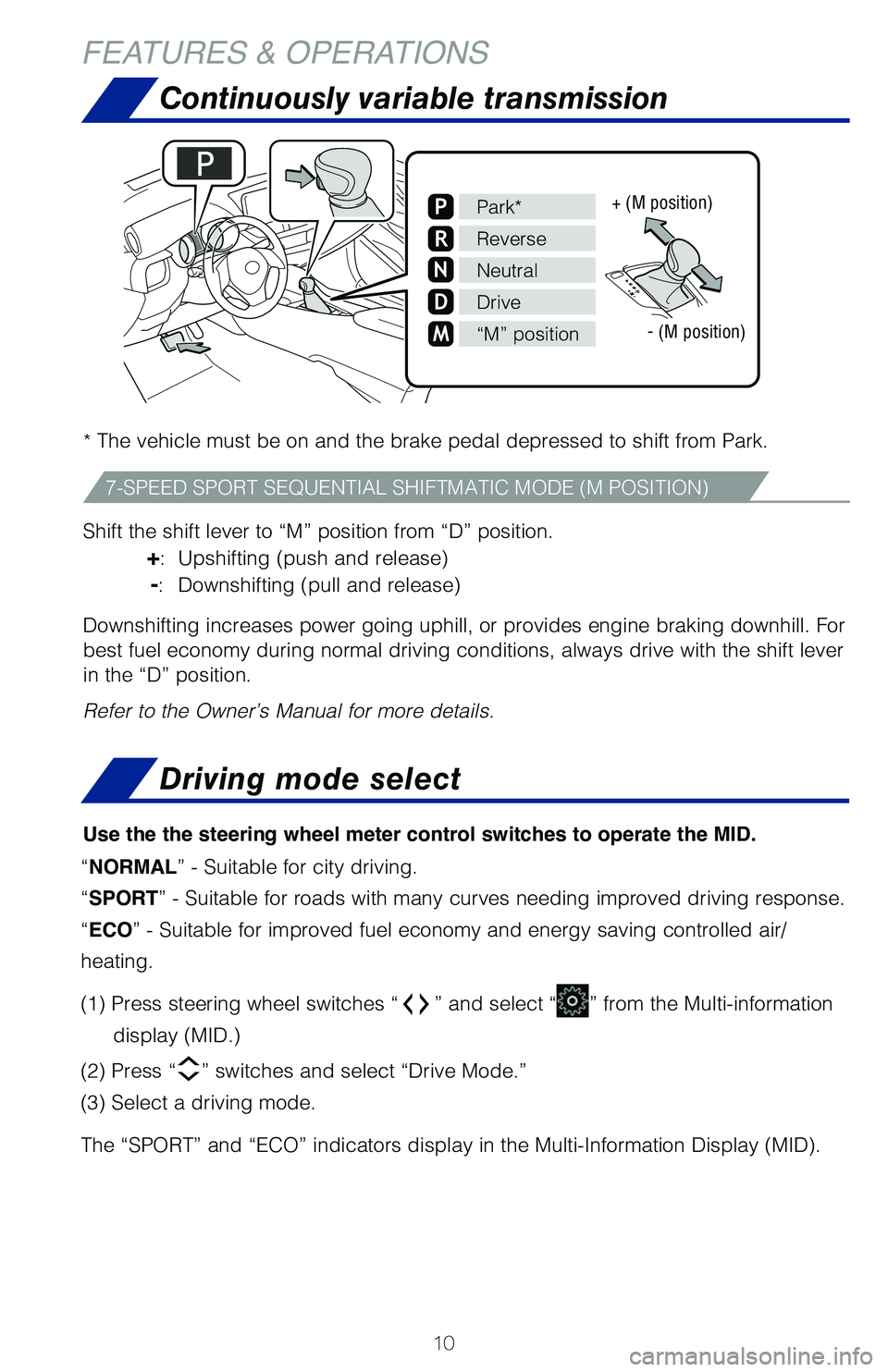

Continuously variable transmission
* The vehicle must be on and the brake pedal depressed to shift from Park.
Shift the shift lever to “M” position from “D” position.
+: Upshifting (push and release)

-: Downshifting (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
Refer to the Owner’s Manual for more details.
FEATURES & OPERATIONS
7-SPEED SPORT SEQUENTIAL SHIFTMATIC MODE (M POSITION)
M
P
R
N
D
Park*
Reverse
Neutral
Drive
“M” position
+ (M position)
- (M position)
Use the the steering wheel meter control switches to operate the MID.
Driving mode select
“NORMAL” - Suitable for city driving.
“SPORT” - Suitable for roads with many curves needing improved driving response.
“ECO” - Suitable for improved fuel economy and energy saving controlled air/
heating.
(1) Press steering wheel switches “
” and select “” from the Multi-information
display (MID.)
(2) Press “
” switches and select “Drive Mode.”
(3) Select a driving mode.
The “SPORT” and “ECO” indicators display in the Multi-Information Display (MID).
64380_Txt_MY21_C-HR.indd 107/21/20 10:32 AM

11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

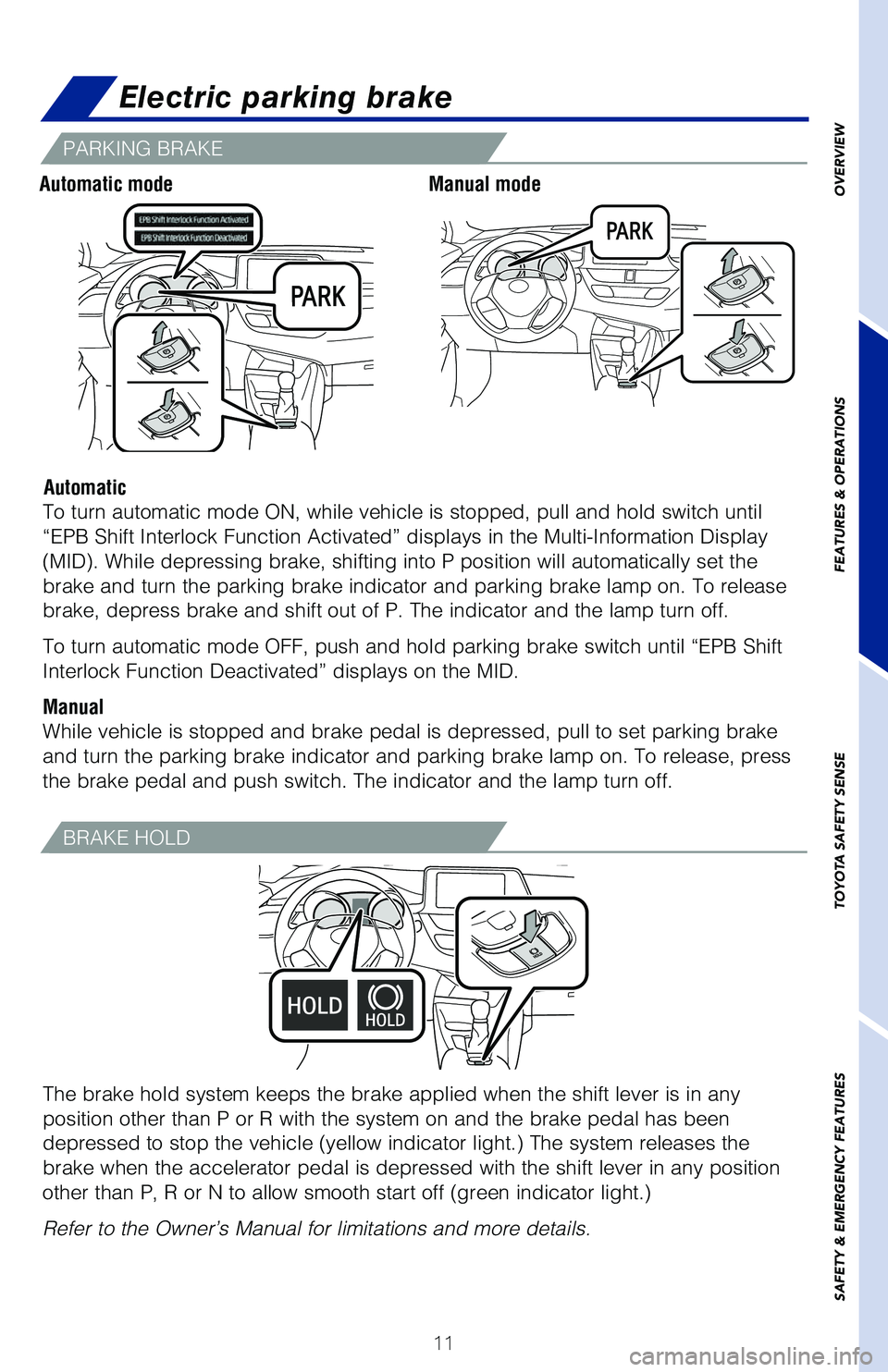

PARKING BRAKE
Electric parking brake
Automatic modeManual mode
Automatic
To turn automatic mode ON, while vehicle is stopped, pull and hold switch until
“EPB Shift Interlock Function Activated” displays in the Multi-Information Display
(MID). While depressing brake, shifting into P position will automatically set the
brake and turn the parking brake indicator and parking brake lamp on. To release
brake, depress brake and shift out of P. The indicator and the lamp turn off.
To turn automatic mode OFF, push and hold parking brake switch until “EPB Shift
Interlock Function Deactivated” displays on the MID.
Manual
While vehicle is stopped and brake pedal is depressed, pull to set parking brake
and turn the parking brake indicator and parking brake lamp on. To release, press
the brake pedal and push switch. The indicator and the lamp turn off.
The brake hold system keeps the brake applied when the shift lever is in any
position other than P or R with the system on and the brake pedal has been
depressed to stop the vehicle (yellow indicator light.) The system releases the
brake when the accelerator pedal is depressed with the shift lever in any position
other than P, R or N to allow smooth start off (green indicator light.)
Refer to the Owner’s Manual for limitations and more details.
BRAKE HOLD
64380_Txt_MY21_C-HR.indd 117/21/20 10:32 AM

12
FEATURES & OPERATIONS
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at night.
Automatic light cut off system Automatically turns lights off after 30 second
delay, or lock switch on the remote is pushed after all doors are locked.Automatic High Beams (AHB) system Automatically switches between high
and low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ 2.5 (TSS 2.5) in this guide or the Owner’s Manual
for more details on the Automatic High Beams feature.
* Operating conditions must be met. Refer to the Owner’s Manual for details.
High beam (Push)
or
Automatic High Beams*
Front fog lights come on only when the headlights are on low beam.
Turn
OFF
FRONT FOG LIGHTS (IF EQUIPPED)

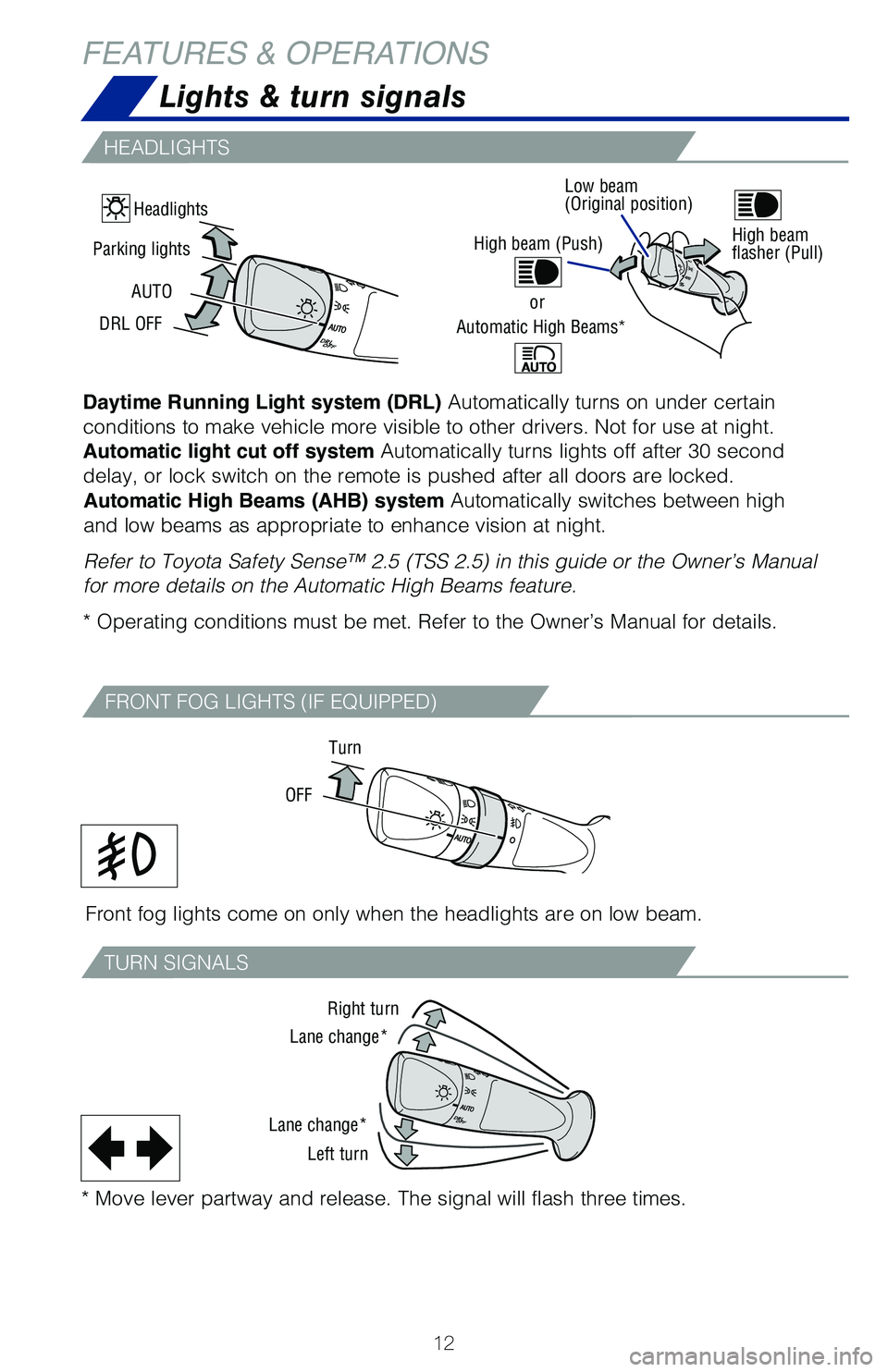

Lights & turn signals
HEADLIGHTS
TURN SIGNALS
Right turn
Lane change*
Lane change* Left turn
* Move lever partway and release. The signal will flash three times.
High beam
flasher (Pull)
Headlights
Parking lights
DRL OFF AUTO
Low beam
(Original position)
64380_Txt_MY21_C-HR.indd 127/21/20 10:32 AM

13
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Push to wash and wipe
1 Intermittent windshield wiper
frequency adjustment
Rotate to increase/decrease wiper
frequency.
Refer to the Owner’s Manual for more information.
Pull to wash and wipe
Mist and single wipe
OFF
Interval wipe
Slow
Fast
Adjust frequency
1
REAR
WITH INTERMITTENT WIPER
OFF
Wipe
Interval wipe

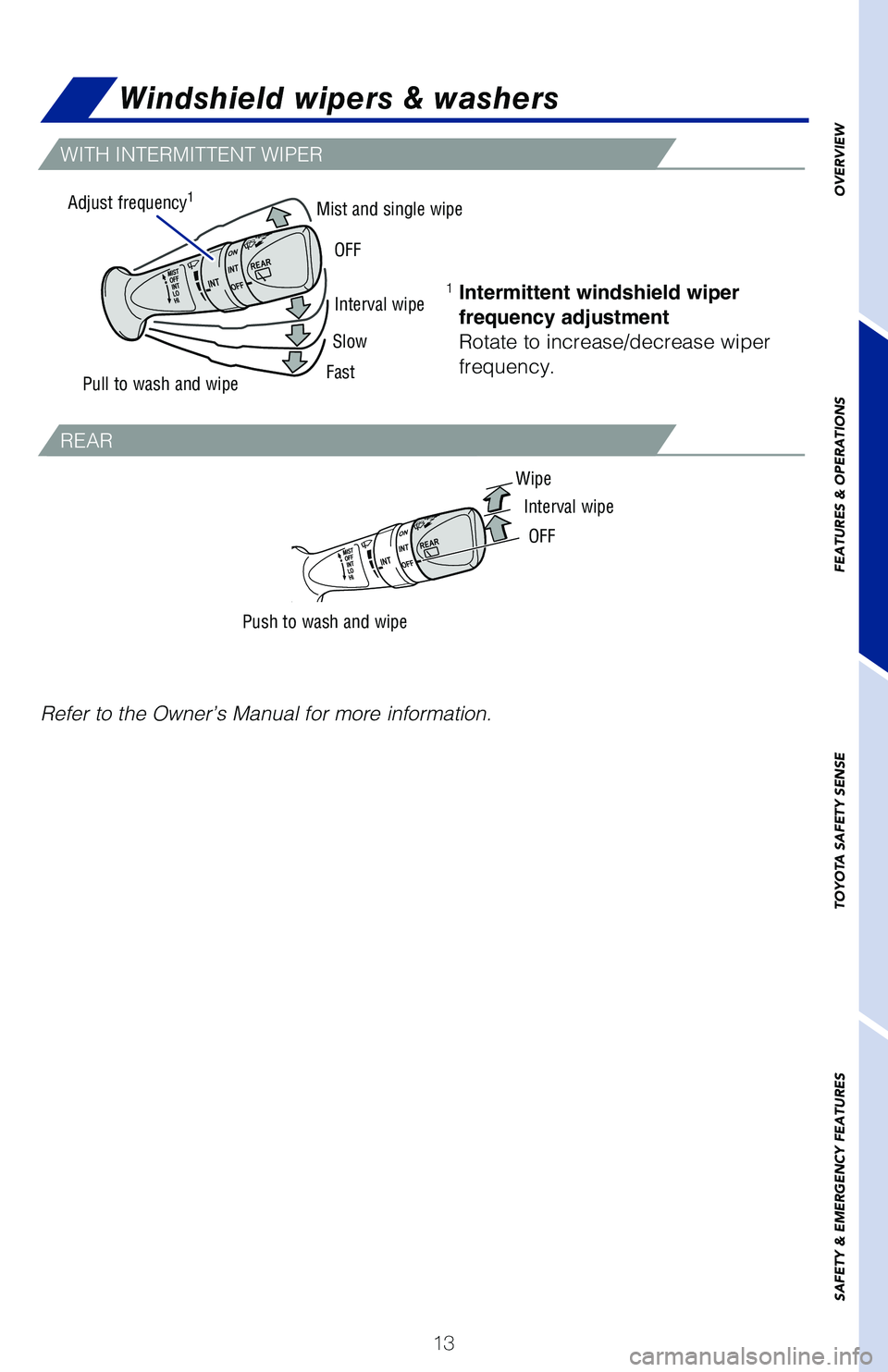

Windshield wipers & washers
64380_Txt_MY21_C-HR.indd 137/21/20 10:32 AM

14
FEATURES & OPERATIONS

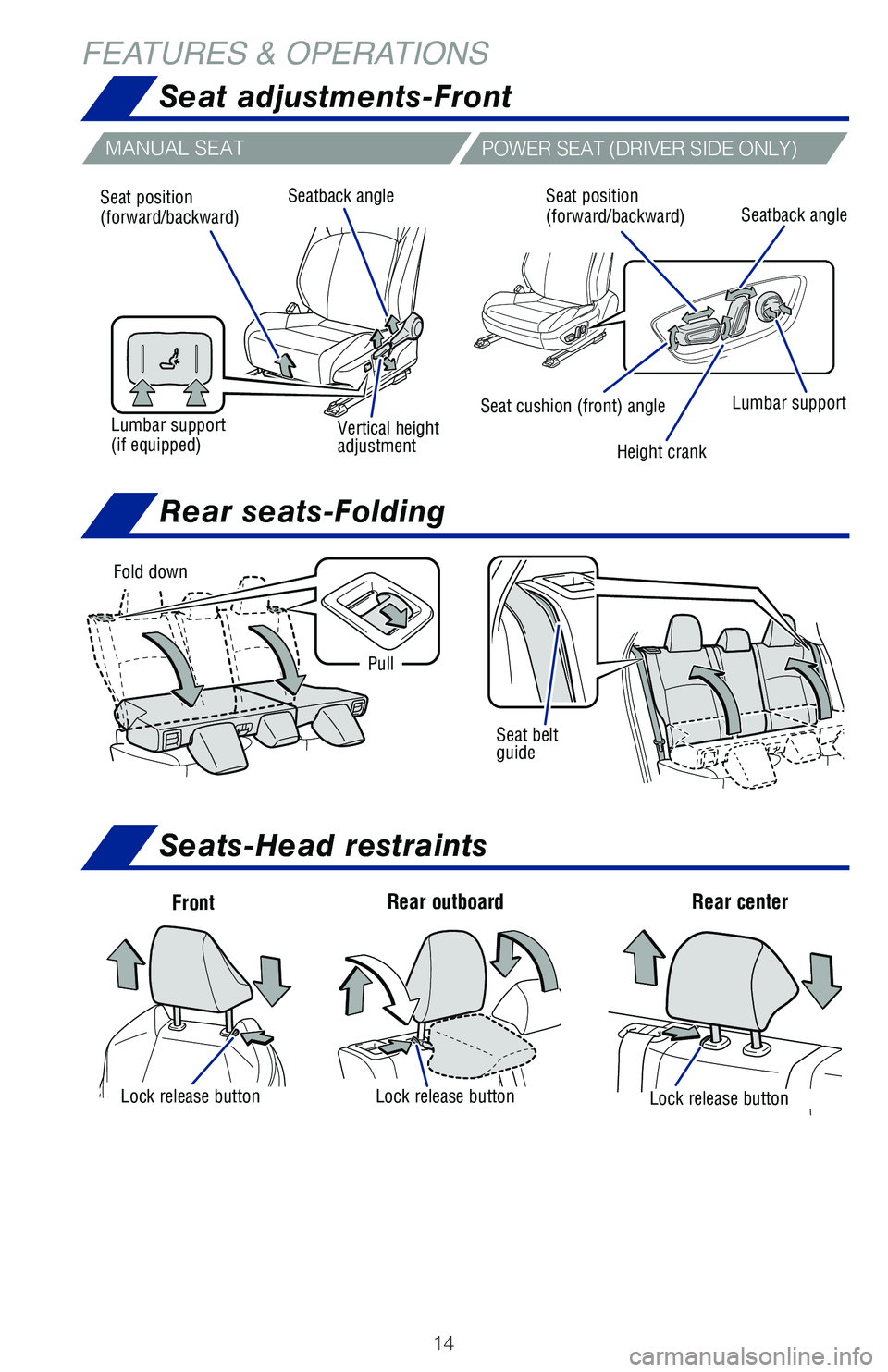

Seat adjustments-Front
FrontRear center
Rear outboard
Lock release buttonLock release buttonLock release button
Fold down
Seat belt
guide
Pull
MANUAL SEAT
POWER SEAT (DRIVER SIDE ONLY)
Seat position
(forward/backward)
Vertical height
adjustment
Seatback angle
Lumbar support
(if equipped)
Height crank Seatback angle
Seat position
(forward/backward)
Lumbar support
Seat cushion (front) angle
Rear seats-Folding
Seats-Head restraints
64380_Txt_MY21_C-HR.indd 147/21/20 10:32 AM

15
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

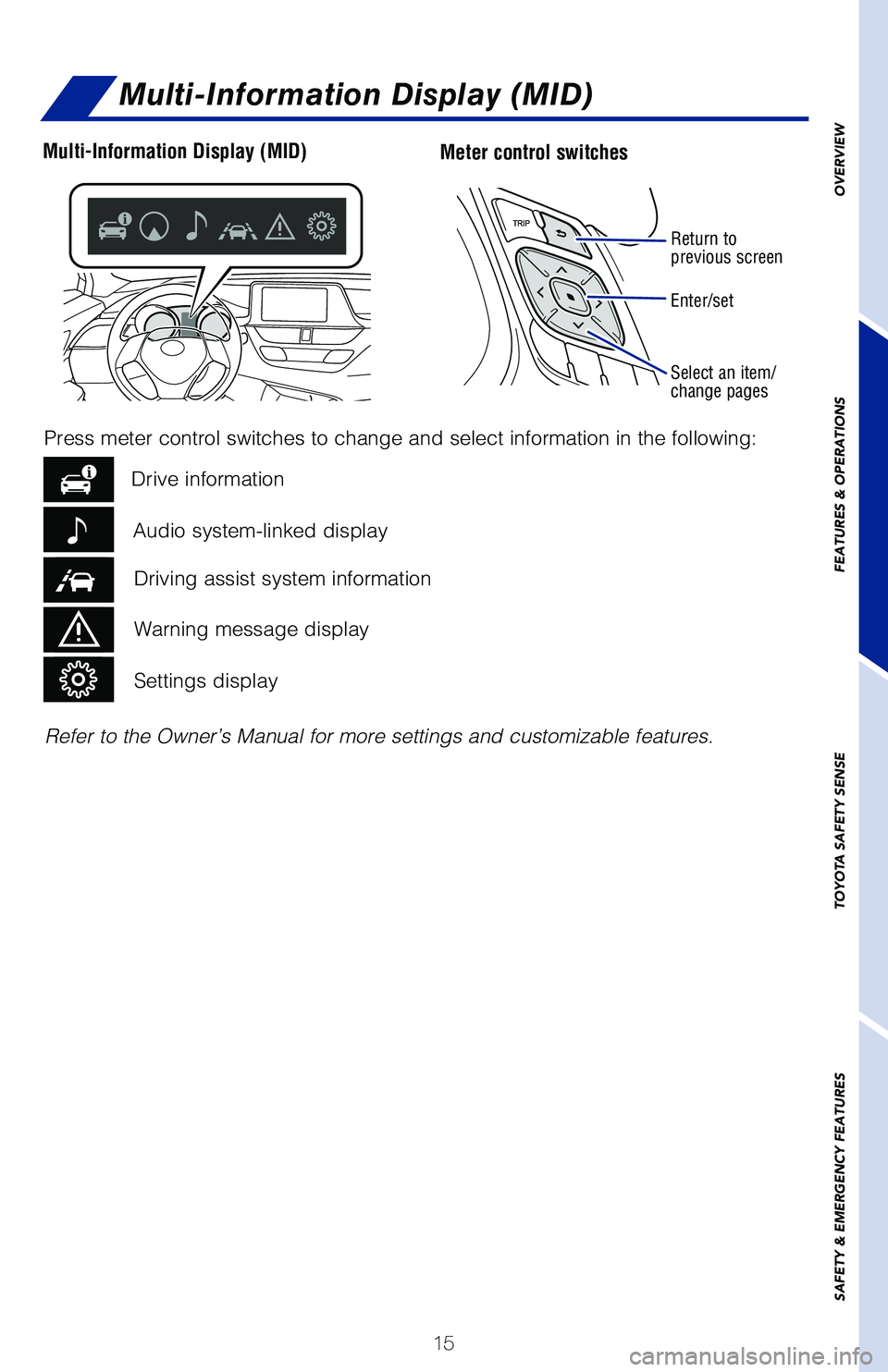

Multi-Information Display (MID)
Meter control switchesMulti-Information Display (MID)
Return to
previous screen
Enter/set
Select an item/
change pages
Refer to the Owner’s Manual for more settings and customizable features.
Press meter control switches to change and select information in the following:
Drive information
Driving assist system information
Audio system-linked display
Warning message display
Settings display
64380_Txt_MY21_C-HR.indd 157/21/20 10:32 AM

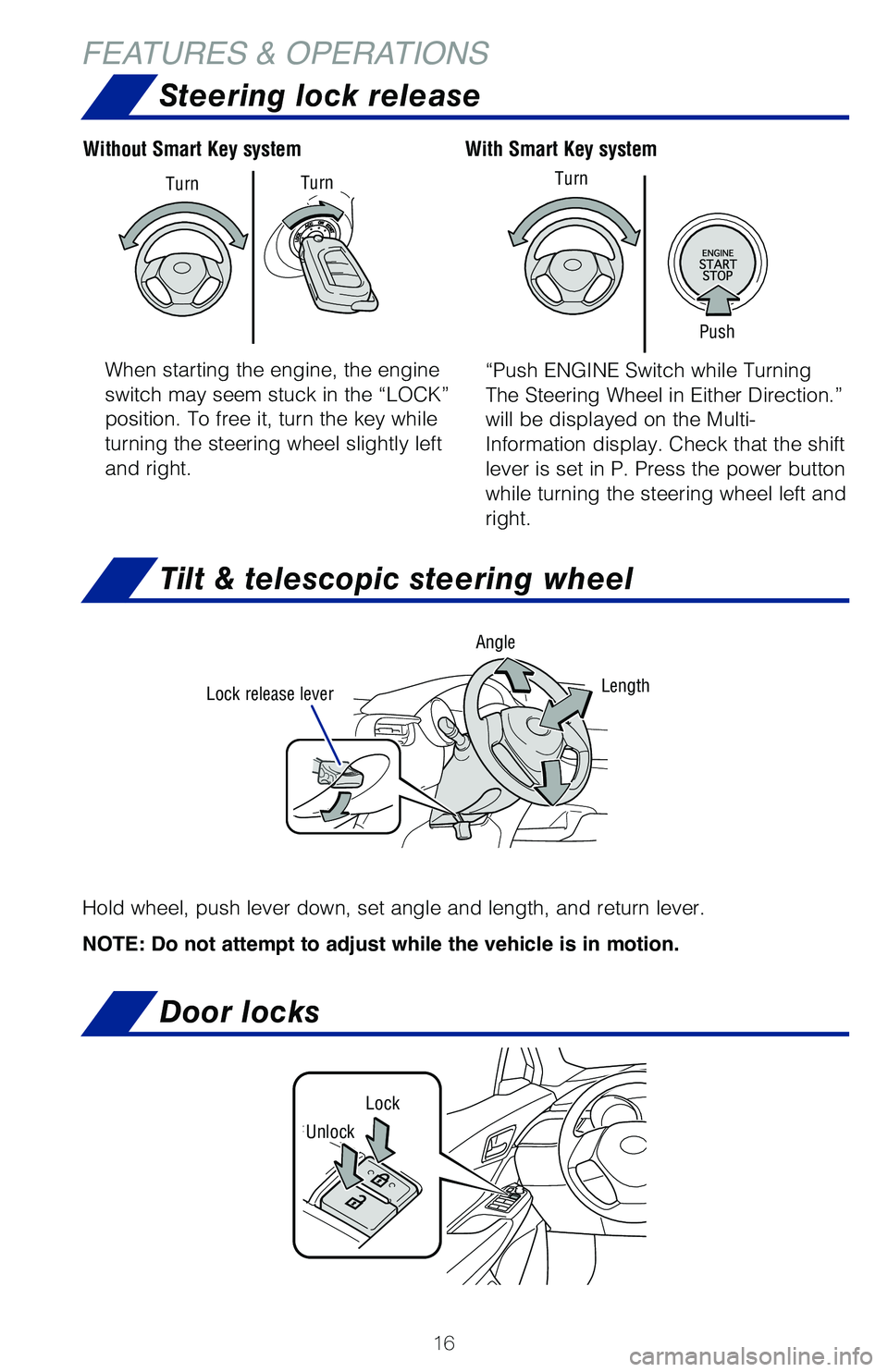

16
FEATURES & OPERATIONSTilt & telescopic steering wheel
Lock release lever AngleLength
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while
turning the steering wheel slightly left
and right. “Push ENGINE Switch while Turning
The Steering Wheel in Either Direction.”
will be displayed on the Multi-
Information display. Check that the shift
lever is set in P. Press the power button
while turning the steering wheel left and
right.
With Smart Key system
Without Smart Key system
Push
Turn
Turn
Turn
Steering lock release
Door locks
Lock
Unlock
64380_Txt_MY21_C-HR.indd 167/21/20 10:32 AM

17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Adjust size

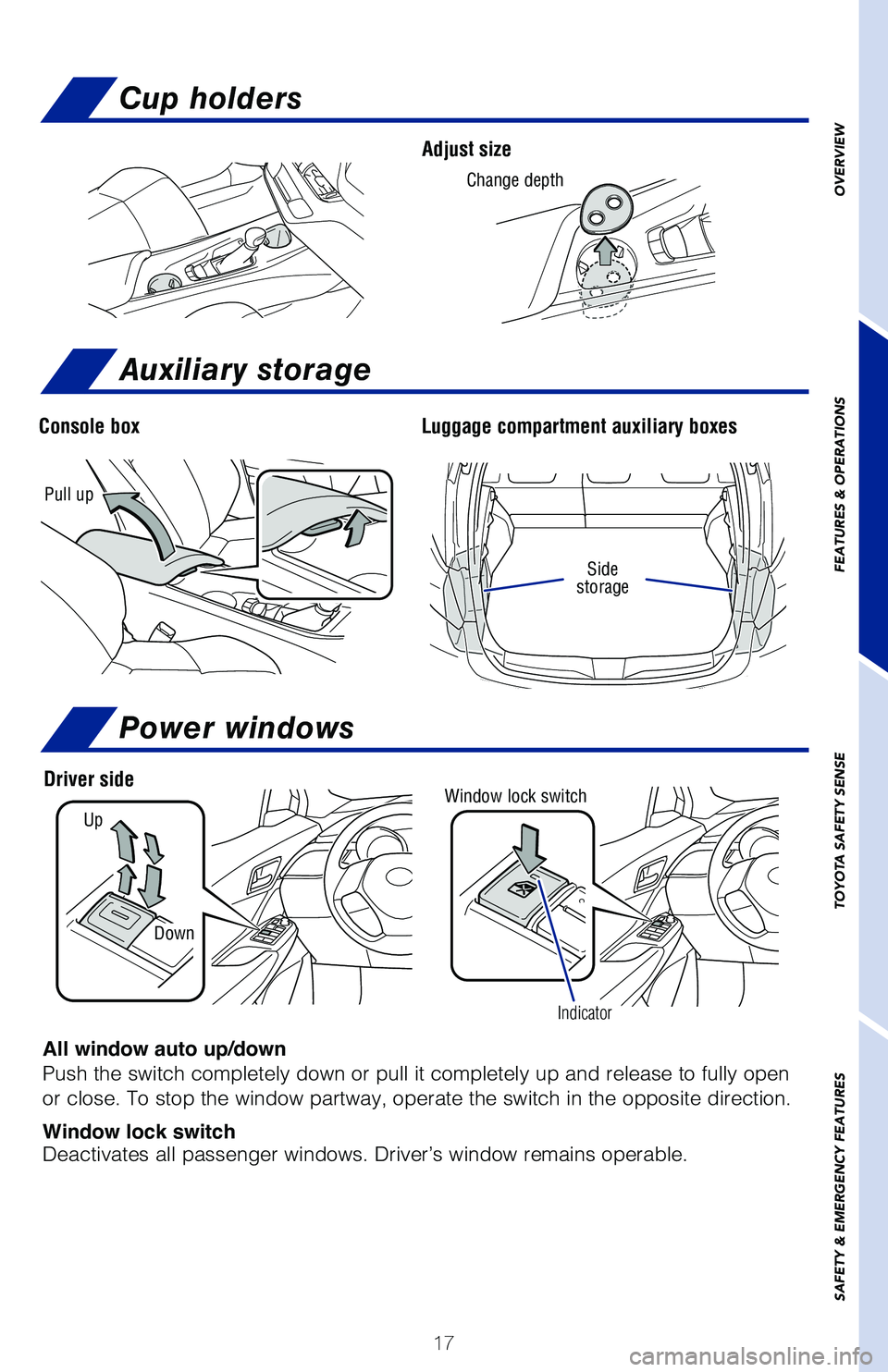

Cup holders
Auxiliary storage
Console box Luggage compartment auxiliary boxes
Pull up
Side
storage
Change depth
Power windows
Up
Down
Driver sideWindow lock switch
All window auto up/down
Push the switch completely down or pull it completely up and release to fully open
or close. To stop the window partway, operate the switch in the opposite direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable.
Indicator
64380_Txt_MY21_C-HR.indd 177/21/20 10:32 AM

18

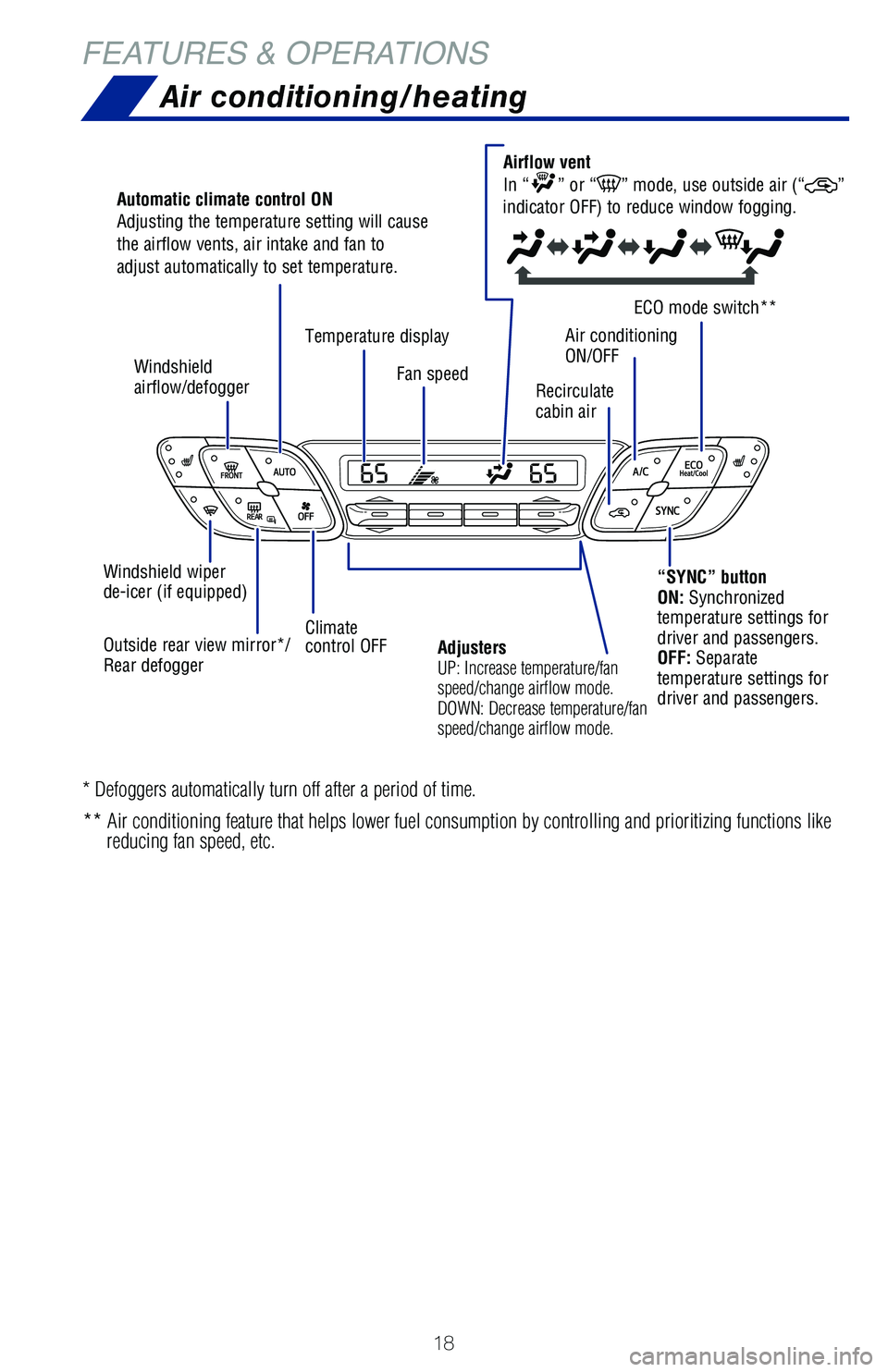

FEATURES & OPERATIONSAir conditioning/heating
“SYNC” button
ON: Synchronized
temperature settings for
driver and passengers.
OFF: Separate
temperature settings for
driver and passengers.
ECO mode switch**
Air conditioning
ON/OFF
Temperature display
Recirculate
cabin air
Climate
control OFF
Outside rear view mirror*/
Rear defogger Windshield wiper
de-icer (if equipped) Fan speed
Windshield
airflow/defogger
Automatic climate control ON
Adjusting the temperature setting will cause
the airflow vents, air intake and fan to
adjust automatically to set temperature.
Airflow vent
In “” or “” mode, use outside air (“”
indicator OFF) to reduce window fogging.
Adjusters
UP: Increase temperature/fan
speed/change airflow mode.
DOWN: Decrease temperature/fan
speed/change airflow mode.
* Defoggers automatically turn off after a period of time.
** Air conditioning feature that helps lower fuel consumption by controlling and prioritizing functions like reducing fan speed, etc.
64380_Txt_MY21_C-HR.indd 187/21/20 10:32 AM
