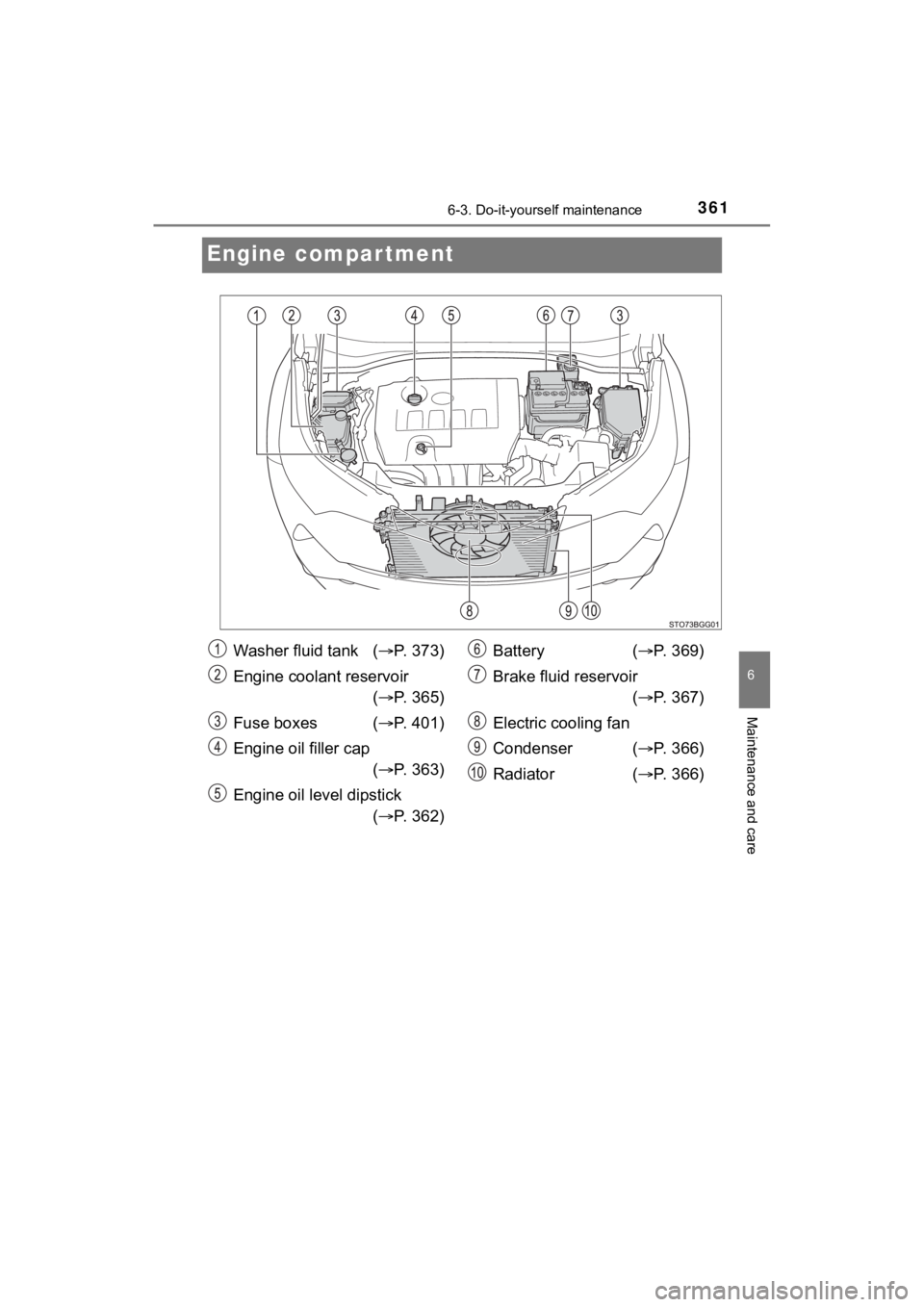

Engine compartment
Washer fluid tank (P. 373)
Engine coolant reservoir ( P. 365)
Fuse boxes ( P. 401)
Engine oil filler cap ( P. 363)
Engine oil level dipstick ( P. 362) Battery
( P. 369)
Brake fluid reservoir ( P. 367)
Electric cooling fan
Condenser ( P. 366)
Radiator ( P. 366)

4016-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10684U
Checking and replacing fuses
Turn the engine switch off.
Open the fuse box cover.
Engine compartment type A fuse box
While pushing the 2 claws, lift
up the cover.
When closing the cover, make sure
to attach the 2 claws.
Engine compartment type B fuse box
While pushing the 3 claws, lift
up the cover.
When closing the cover, make sure
to attach the 3 claws.
Engine compartment type C fuse box
While pushing the 2 claws, lift
up the cover.
When closing the cover, make sure
to attach the 2 claws.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2

4036-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10684U
Check if the fuse is blown.Normal fuse
Blown fuse
Except for type E:
Replace the blown fuse with a new fuse of an appropriate ampera ge rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact your Toyota dealer.

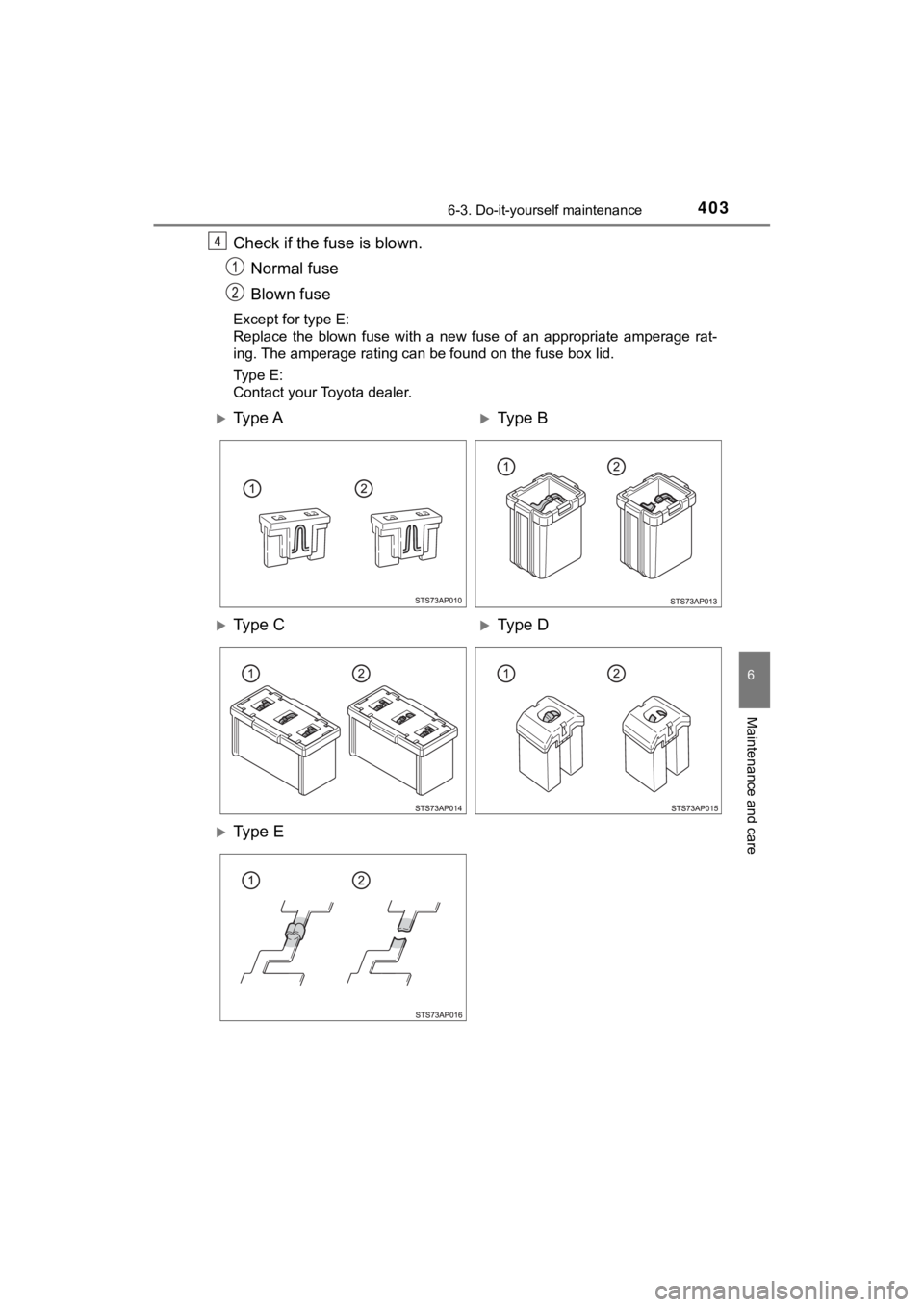

4
Ty p e AType B
Ty p e CType D
Ty p e E

4046-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10684U
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been repla ced, a bulb may
need replacement. ( P. 407)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness f rom damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicate d, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired b y your
Toyota dealer as soon as possible.
