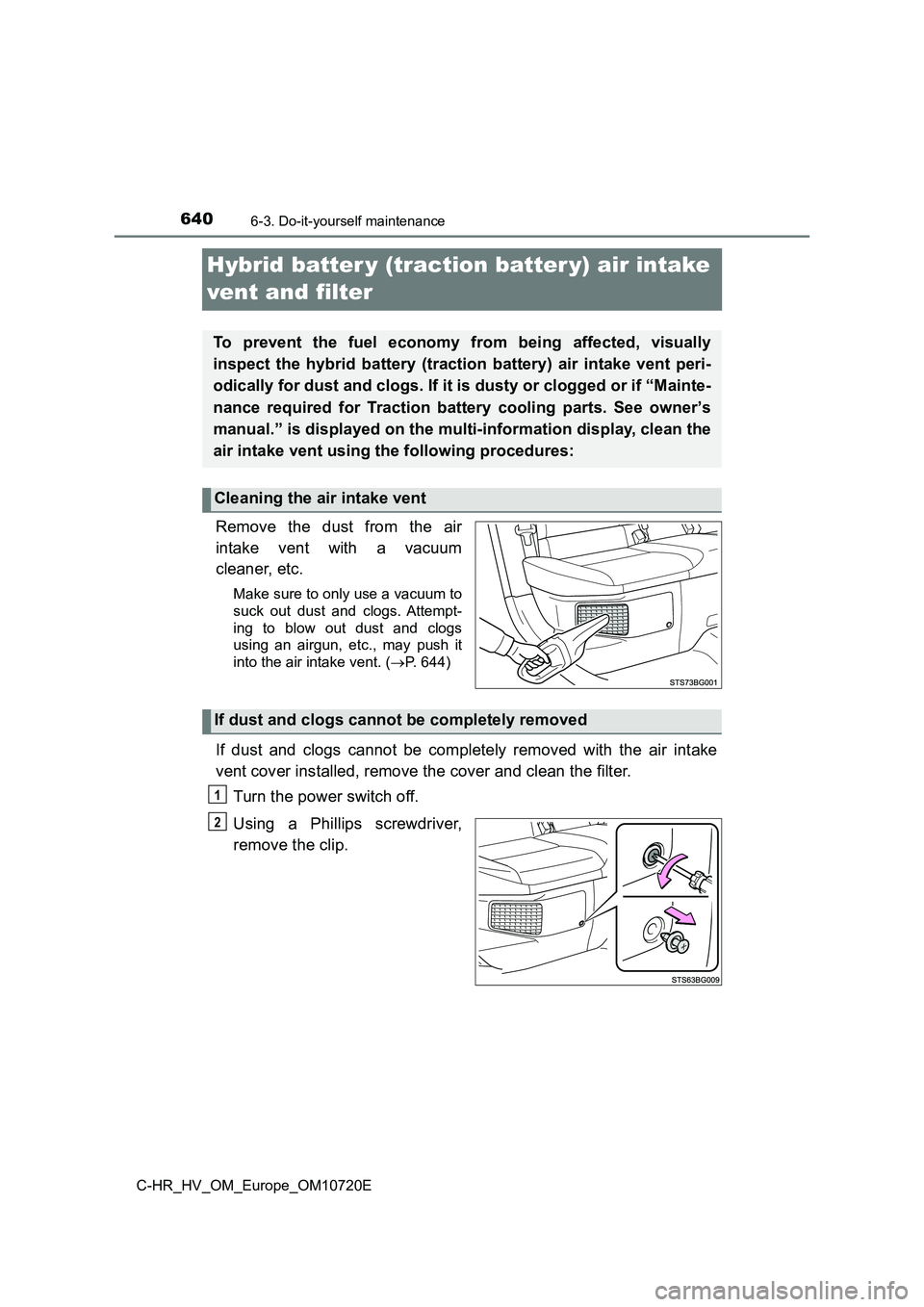

display TOYOTA C-HR 2022 Owners Manual

6406-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
Hybrid batter y (traction batter y) air intake
vent and filter
Remove the dust from the air
intake vent with a vacuum
cleaner, etc.
Make sure to only use a vacuum to
suck out dust and clogs. Attempt-
ing to blow out dust and clogs
using an airgun, etc., may push it
into the air intake vent. ( P. 644)
If dust and clogs cannot be completely removed with the air intake
vent cover installed, remove the cover and clean the filter.
Turn the power switch off.
Using a Phillips screwdriver,
remove the clip.
To prevent the fuel economy from being affected, visually
inspect the hybrid battery (traction battery) air intake vent p eri-
odically for dust and clogs. If it is dusty or clogged or if “M ainte-
nance required for Traction battery cooling parts. See owner’s
manual.” is displayed on the multi-information display, clean t he
air intake vent using the following procedures:
Cleaning the air intake vent
If dust and clogs cannot be completely removed
1
2

6436-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
6
Maintenance and care

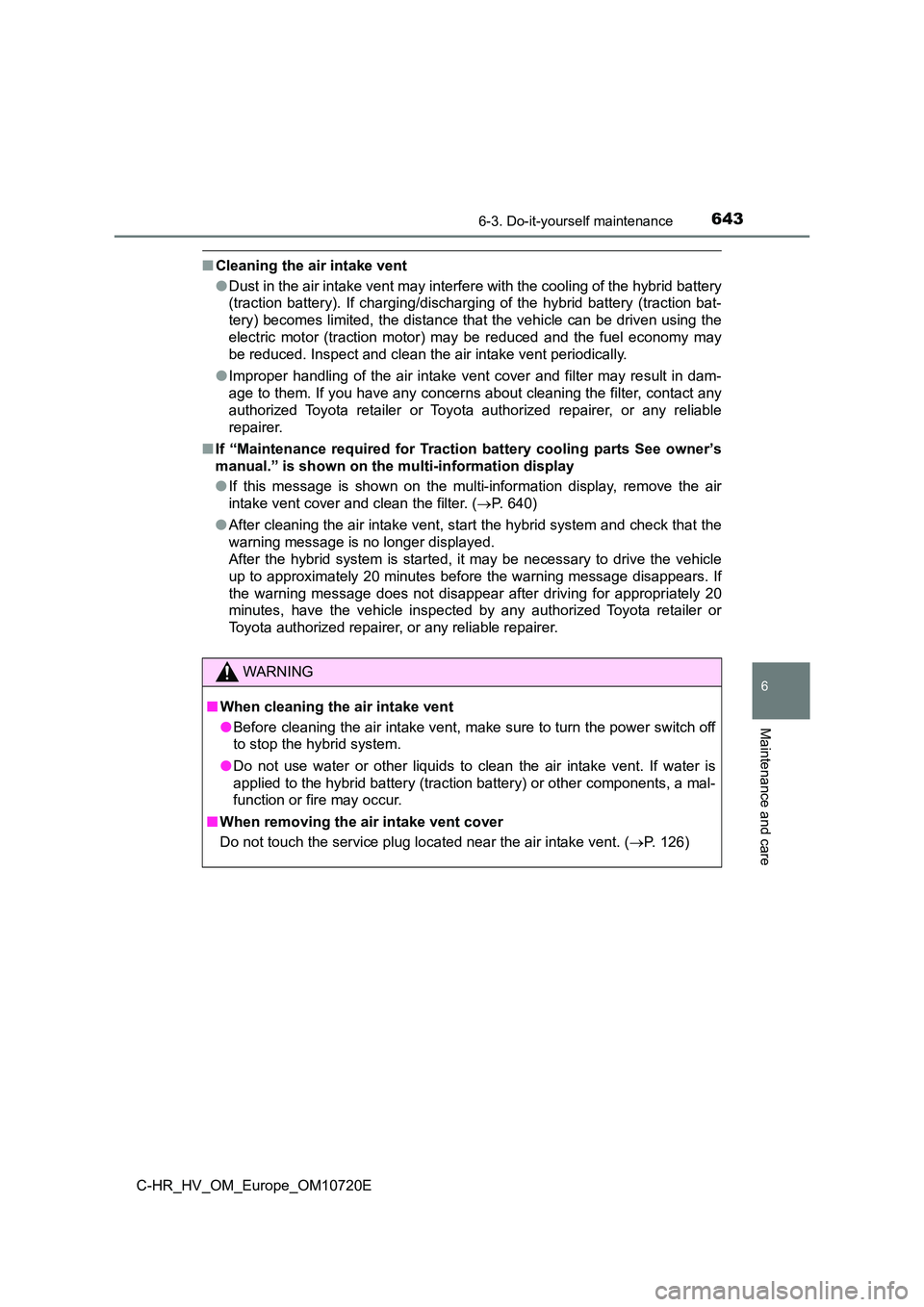

■Cleaning the air intake vent
● Dust in the air intake vent may interfere with the cooling of the hybrid battery
(traction battery). If charging/discharging of the hybrid batte ry (traction bat-
tery) becomes limited, the distance that the vehicle can be dri ven using the
electric motor (traction motor) may be reduced and the fuel eco nomy may
be reduced. Inspect and clean the air intake vent periodically.
● Improper handling of the air intake vent cover and filter may result in dam-
age to them. If you have any concerns about cleaning the filter , contact any
authorized Toyota retailer or Toyota authorized repairer, or an y reliable
repairer.
■ If “Maintenance required for Traction battery cooling parts See owner’s
manual.” is shown on the multi-information display
● If this message is shown on the multi-information display, remove the air
intake vent cover and clean the filter. ( P. 640)
● After cleaning the air intake vent, start the hybrid system and check that the
warning message is no longer displayed.
After the hybrid system is started, it may be necessary to driv e the vehicle
up to approximately 20 minutes before the warning message disap pears. If
the warning message does not disappear after driving for approp riately 20
minutes, have the vehicle inspected by any authorized Toyota re tailer or
Toyota authorized repairer, or any reliable repairer.
WARNING
■ When cleaning the air intake vent
● Before cleaning the air intake vent, make sure to turn the power switch off
to stop the hybrid system.
● Do not use water or other liquids to clean the air intake vent. If water is
applied to the hybrid battery (traction battery) or other compo nents, a mal-
function or fire may occur.
■ When removing the air intake vent cover
Do not touch the service plug located near the air intake vent. (P. 126)

6446-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E

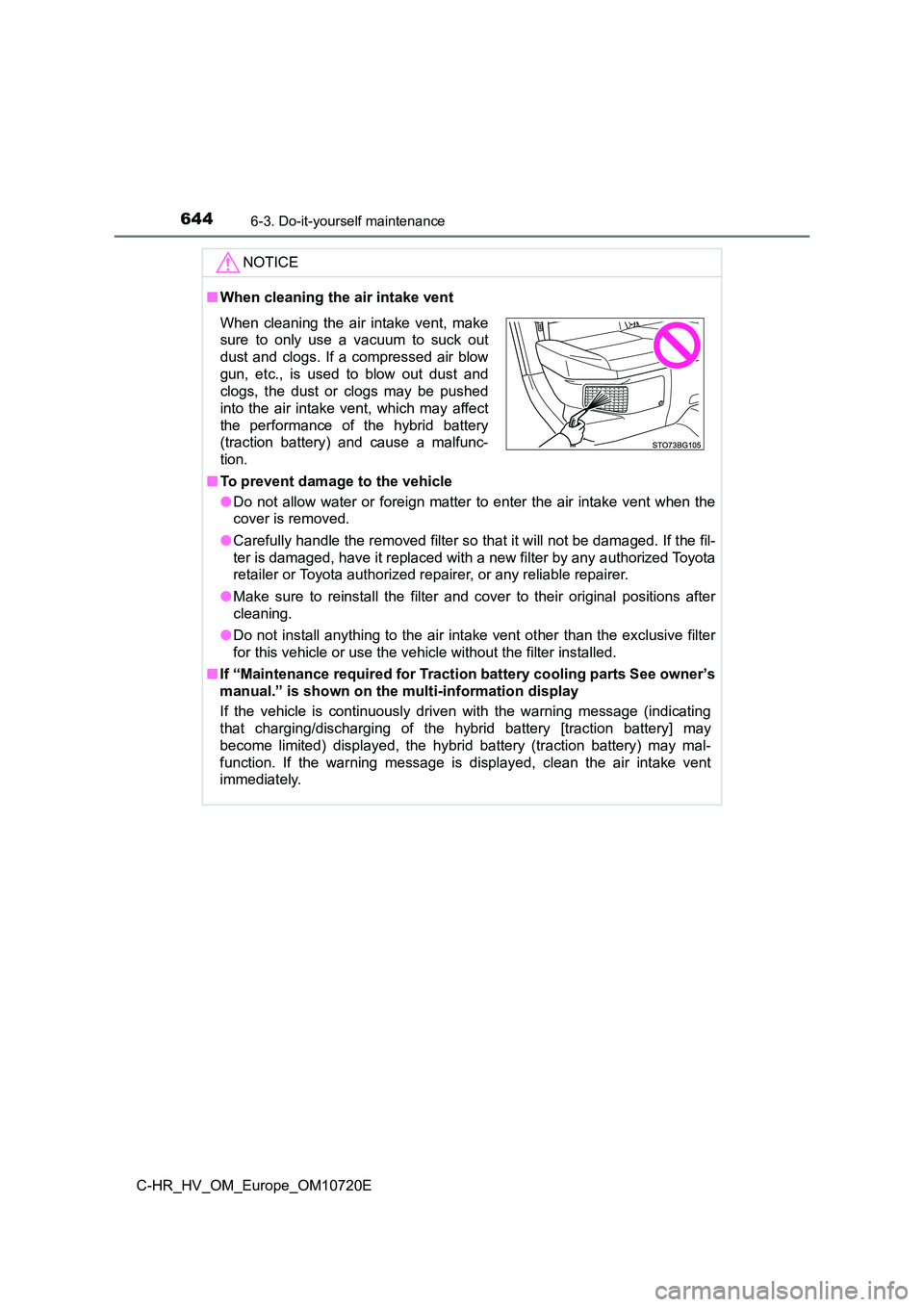

NOTICE
■When cleaning the air intake vent
■ To prevent damage to the vehicle
● Do not allow water or foreign matter to enter the air intake vent when the
cover is removed.
● Carefully handle the removed filter so that it will not be damaged. If the fil-
ter is damaged, have it replaced with a new filter by any autho rized Toyota
retailer or Toyota authorized repairer, or any reliable repaire r.
● Make sure to reinstall the filter and cover to their original positions after
cleaning.
● Do not install anything to the air intake vent other than the exclusive filter
for this vehicle or use the vehicle without the filter installe d.
■ If “Maintenance required for Traction battery cooling parts See owner’s
manual.” is shown on the multi-information display
If the vehicle is continuously driven with the warning message (indicating
that charging/discharging of the hybrid battery [traction batte ry] may
become limited) displayed, the hybrid battery (traction battery ) may mal-
function. If the warning message is displayed, clean the air in take vent
immediately.
When cleaning the air intake vent, make
sure to only use a vacuum to suck out
dust and clogs. If a compressed air blow
gun, etc., is used to blow out dust and
clogs, the dust or clogs may be pushed
into the air intake vent, which may affect
the performance of the hybrid battery
(traction battery) and cause a malfunc-
tion.

669
7When trouble arises
C-HR_HV_OM_Europe_OM10720E
7-1. Essential information

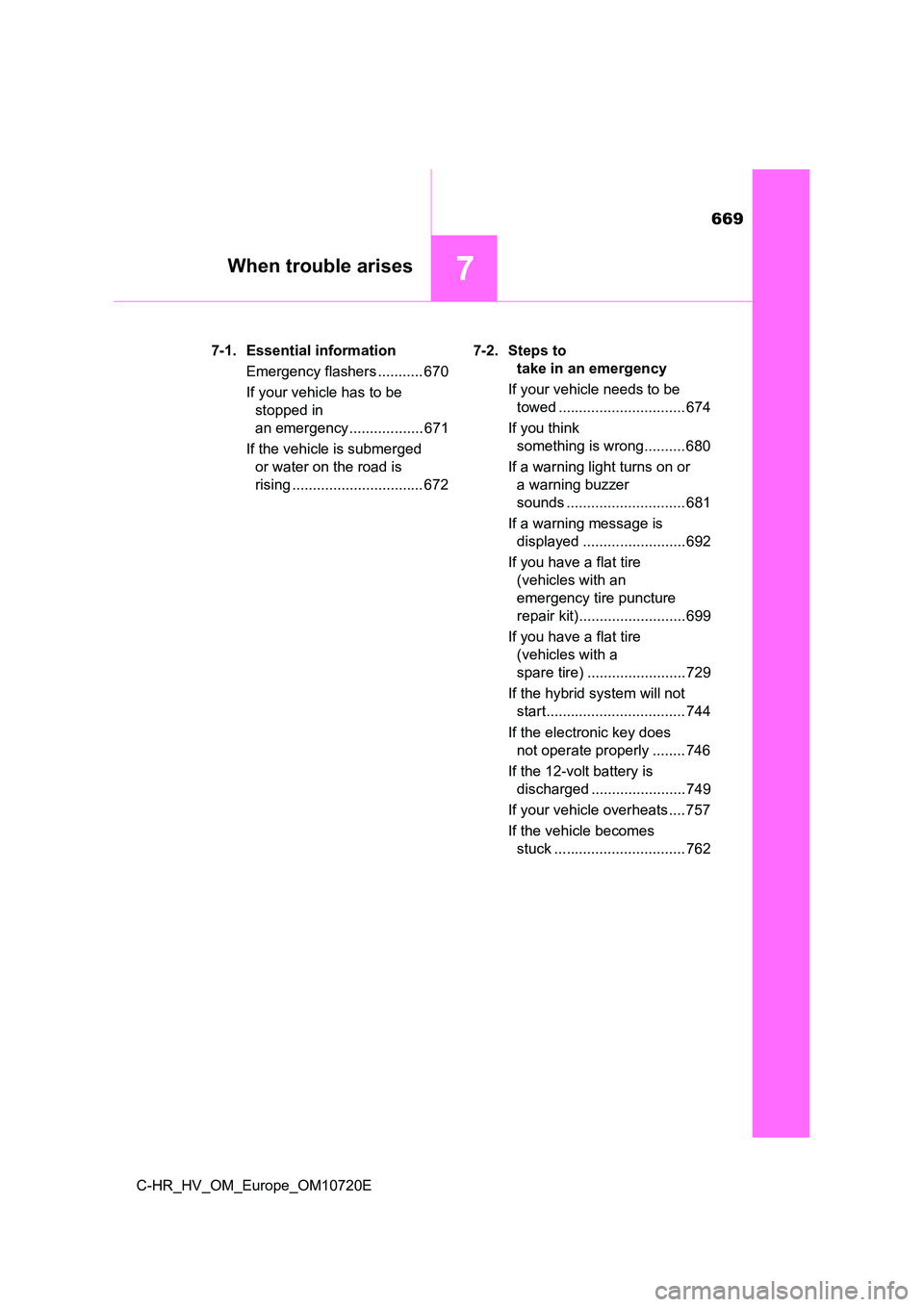

Emergency flashers ........... 670
If your vehicle has to be
stopped in
an emergency .................. 671
If the vehicle is submerged
or water on the road is
rising ................................ 672
7-2. Steps to
take in an emergency
If your vehicle needs to be
towed ............................... 674
If you think
something is wrong.......... 680
If a warning light turns on or
a warning buzzer
sounds ............................. 681
If a warning message is
displayed ......................... 692
If you have a flat tire
(vehicles with an
emergency tire puncture
repair kit).......................... 699
If you have a flat tire
(vehicles with a
spare tire) ........................ 729
If the hybrid system will not
start.................................. 744
If the electronic key does
not operate properly ........ 746
If the 12-volt battery is
discharged ....................... 749
If your vehicle overheats .... 757
If the vehicle becomes
stuck ................................ 762

6747-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E

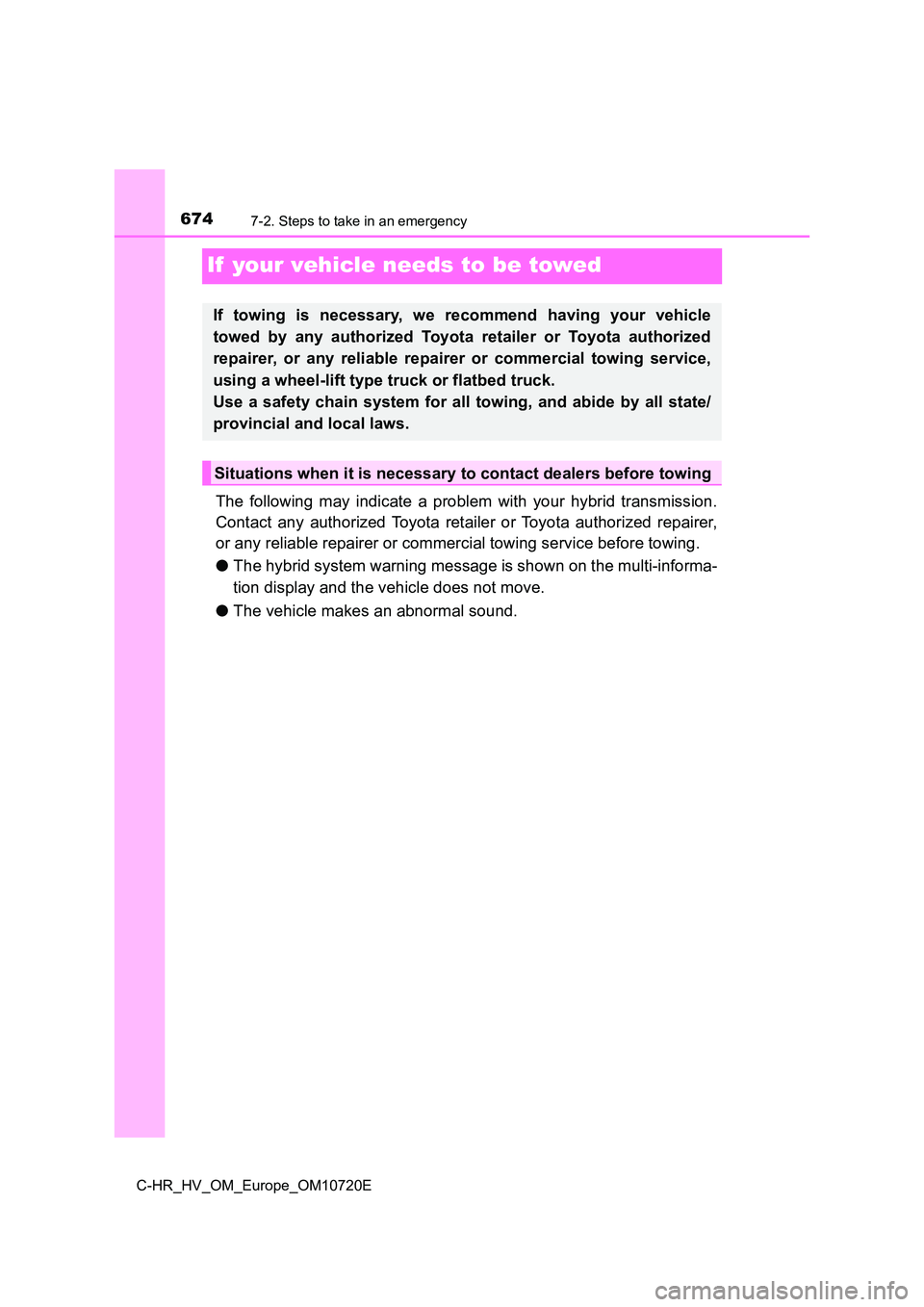

If your vehicle needs to be towed
The following may indicate a problem with your hybrid transmission.
Contact any authorized Toyota retailer or Toyota authorized rep airer,
or any reliable repairer or commercial towing service before to wing.
● The hybrid system warning message is shown on the multi-informa-
tion display and the vehicle does not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle
towed by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer or commercial towing service ,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all stat e/
provincial and local laws.
Situations when it is necessary to contact dealers before towin g

6837-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
(Flashes)

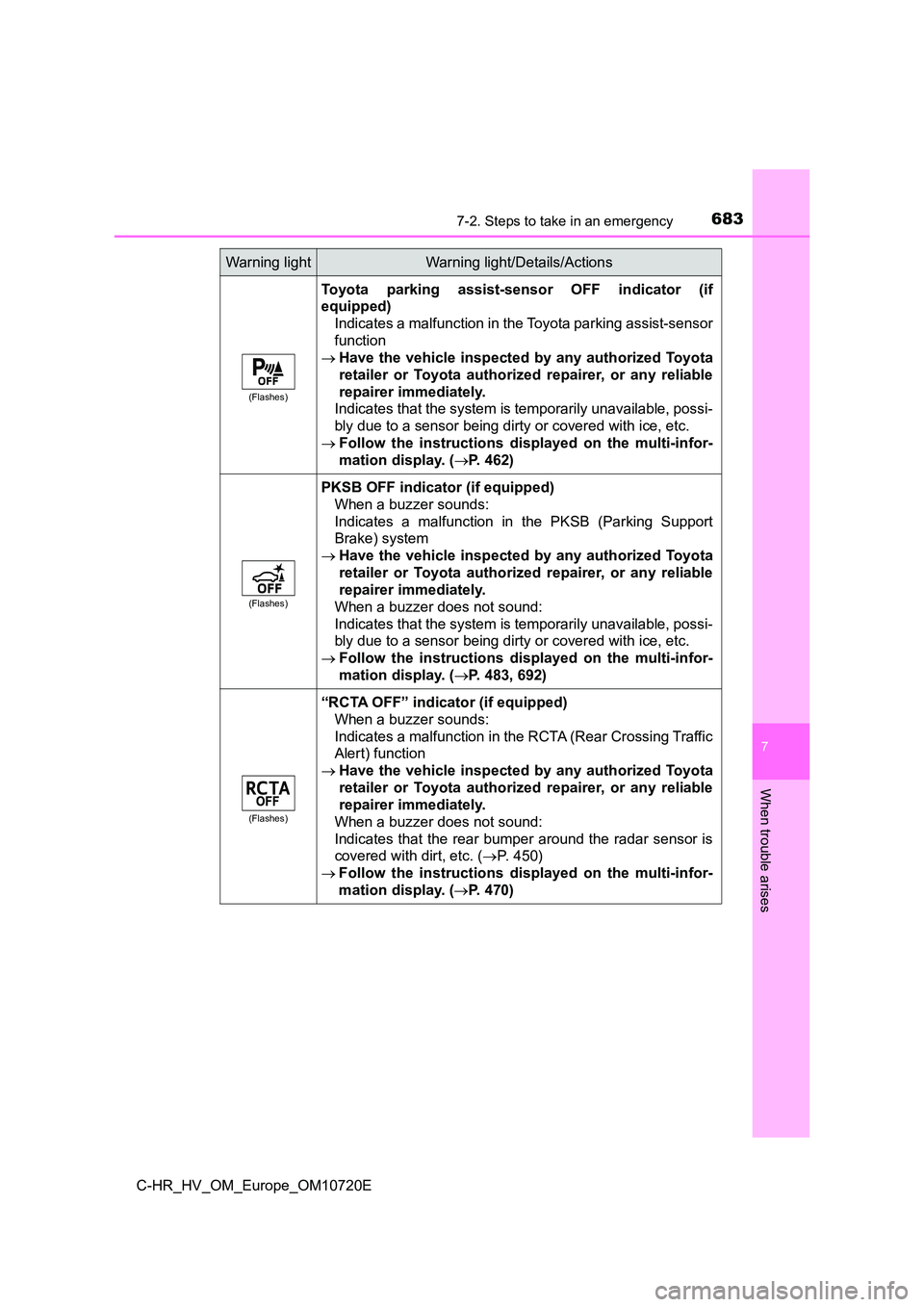

Toyota parking assist-sensor OFF indicator (if
equipped)
Indicates a malfunction in the Toyota parking assist-sensor
function
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Indicates that the system is temporarily unavailable, possi-
bly due to a sensor being dirty or covered with ice, etc.
 Follow the instructions displayed on the multi-infor-
mation display. ( P. 462)
(Flashes)
PKSB OFF indicator (if equipped)
When a buzzer sounds:
Indicates a malfunction in the PKSB (Parking Support
Brake) system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
When a buzzer does not sound:
Indicates that the system is temporarily unavailable, possi-
bly due to a sensor being dirty or covered with ice, etc.
 Follow the instructions displayed on the multi-infor-
mation display. ( P. 483, 692)
(Flashes)
“RCTA OFF” indicator (if equipped)
When a buzzer sounds:
Indicates a malfunction in the RCTA (Rear Crossing Traffic
Alert) function
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
When a buzzer does not sound:
Indicates that the rear bumper around the radar sensor is
covered with dirt, etc. ( P. 450)
 Follow the instructions displayed on the multi-infor-
mation display. ( P. 470)
Warning lightWarning light/Details/Actions

6847-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E

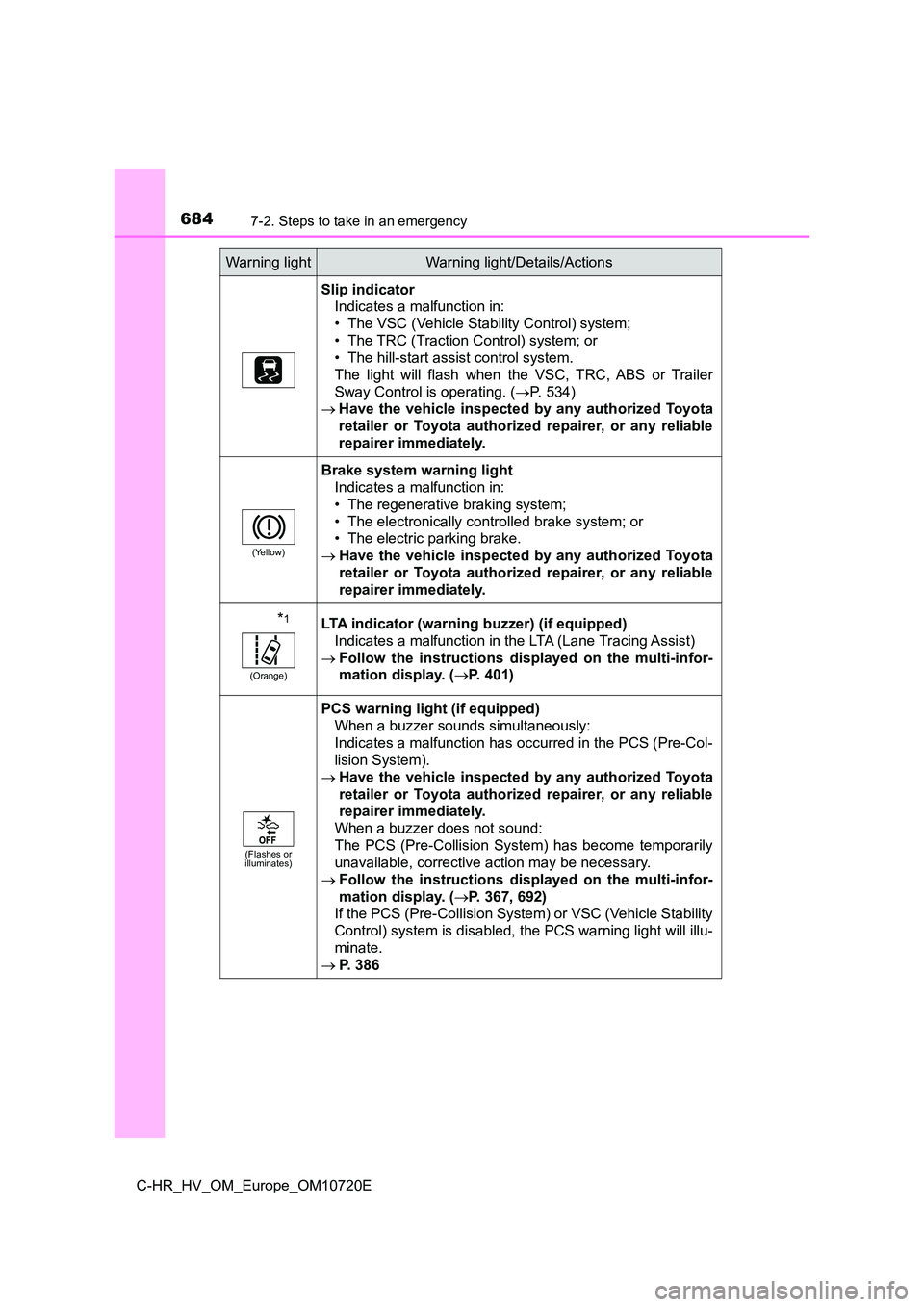

Slip indicator
Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRC (Traction Control) system; or
• The hill-start assist control system.
The light will flash when the VSC, TRC, ABS or Trailer
Sway Control is operating. ( P. 534)
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
(Yellow)
Brake system warning light
Indicates a malfunction in:
• The regenerative braking system;
• The electronically controlled brake system; or
• The electric parking brake.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
*1
(Orange)
LTA indicator (warning buzzer) (if equipped)
Indicates a malfunction in the LTA (Lane Tracing Assist)
 Follow the instructions displayed on the multi-infor-
mation display. ( P. 401)
(Flashes or illuminates)
PCS warning light (if equipped)
When a buzzer sounds simultaneously:
Indicates a malfunction has occurred in the PCS (Pre-Col-
lision System).
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
When a buzzer does not sound:
The PCS (Pre-Collision System) has become temporarily
unavailable, corrective action may be necessary.
 Follow the instructions displayed on the multi-infor-
mation display. ( P. 367, 692)
If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.
 P. 386
Warning lightWarning light/Details/Actions

6877-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
*1: This light illuminates on the multi-information display.
*2: Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of appr oximately
5 km/h (3 mph) or more.
*3: Driver’s and front passenger’s seat belt warning buzzer:
The driver’s and front passenger’s seat belt warning buzzer sou nds to alert
the driver and front passenger that his or her seat belt is not fastened. If
the seat belt is unfastened, the buzzer sounds intermittently f or a certain
period of time after the vehicle reaches a certain speed.
Rear passengers’ seat belt warning buzzer:
The rear passengers’ seat belt warning buzzer sounds to alert t he rear
passenger that his or her seat belt is not fastened. If the sea t belt is unfas-
tened, the buzzer sounds intermittently for a certain period of time, after
the seat belt is fastened and unfastened and the vehicle reache s a certain
speed.
*1

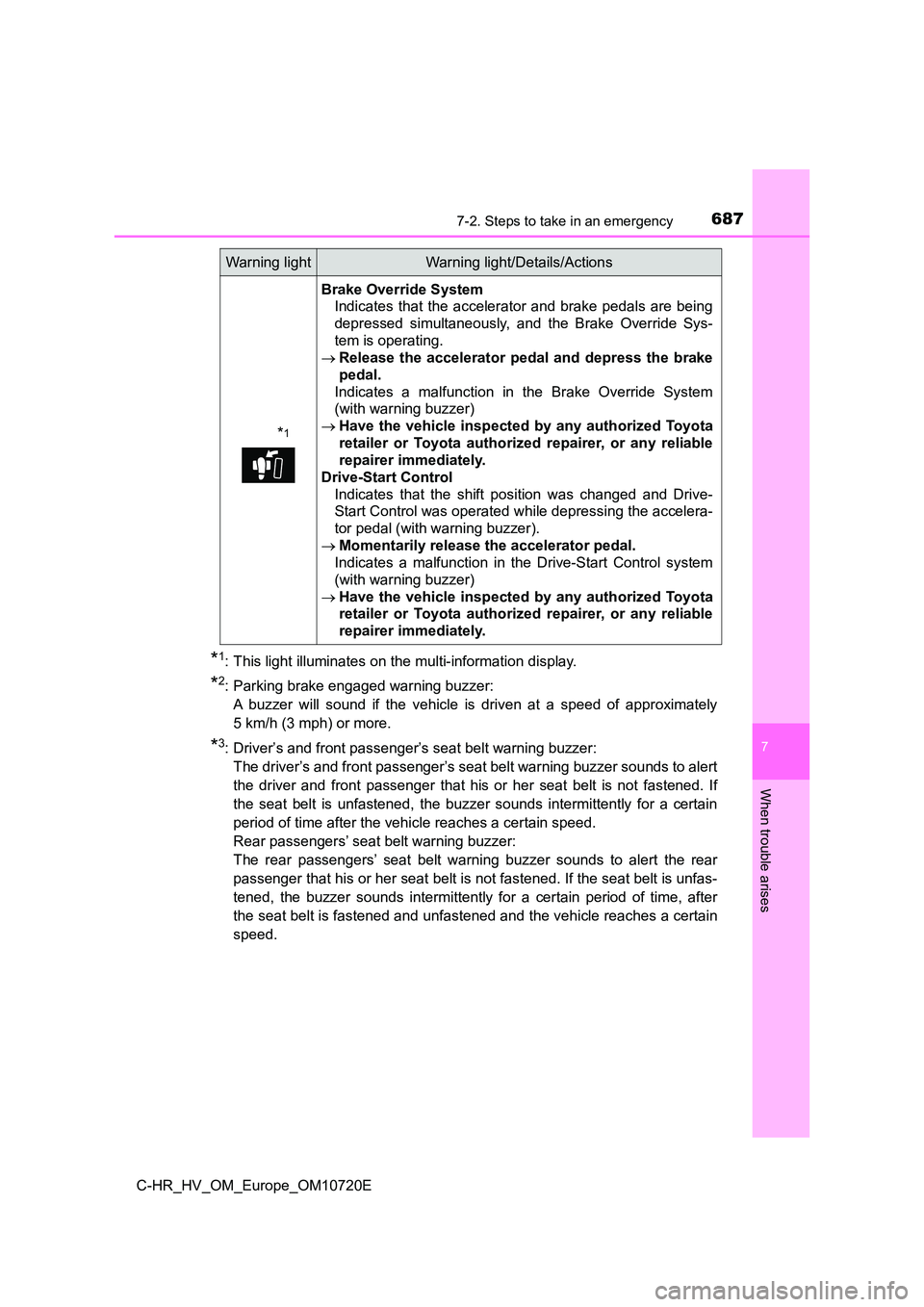

Brake Override System
Indicates that the accelerator and brake pedals are being
depressed simultaneously, and the Brake Override Sys-
tem is operating.
 Release the accelerator pedal and depress the brake
pedal.
Indicates a malfunction in the Brake Override System
(with warning buzzer)
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Drive-Start Control
Indicates that the shift position was changed and Drive-
Start Control was operated while depressing the accelera-
tor pedal (with warning buzzer).
 Momentarily release the accelerator pedal.
Indicates a malfunction in the Drive-Start Control system
(with warning buzzer)
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightWarning light/Details/Actions

6927-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E

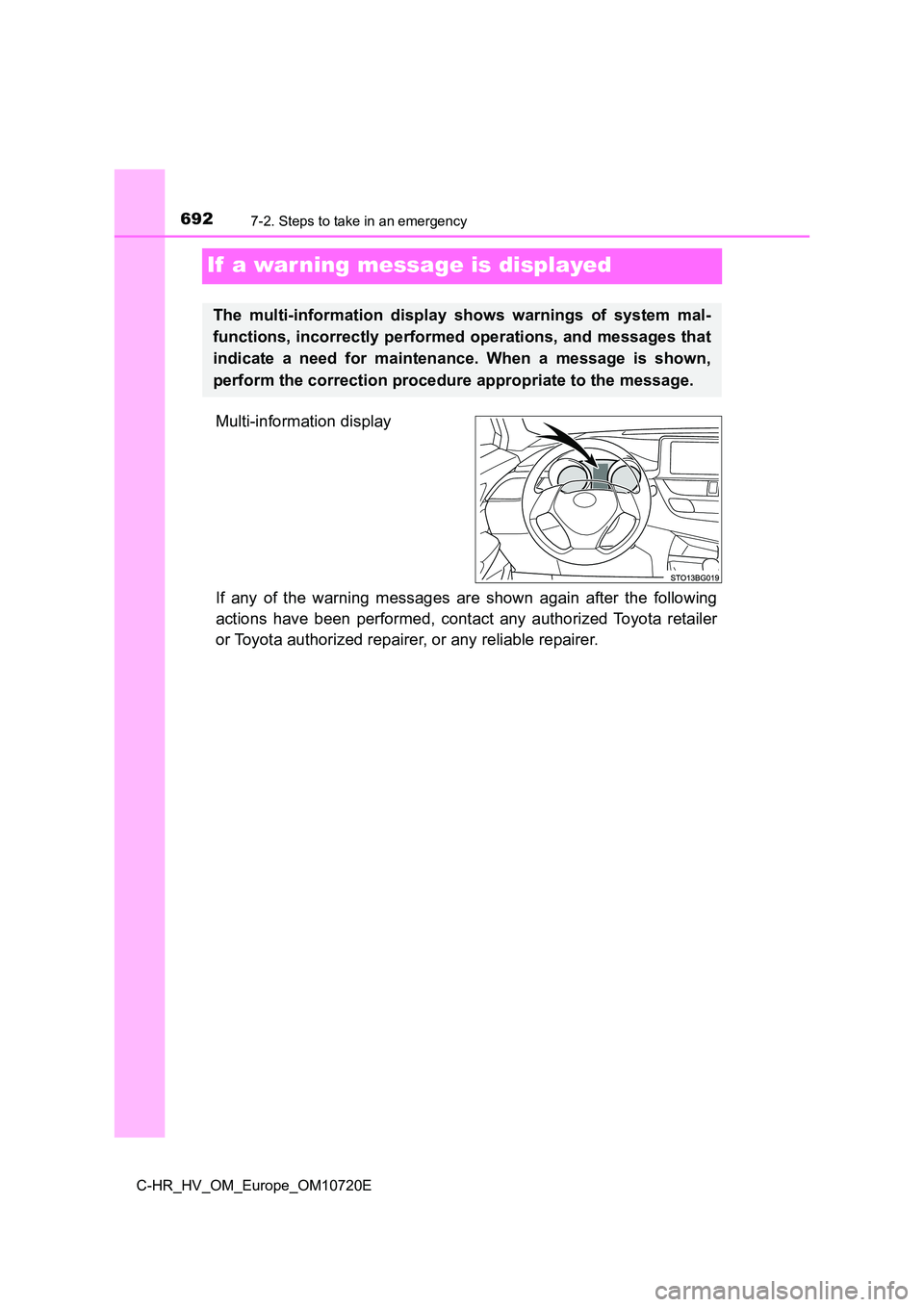

If a war ning message is displayed
Multi-information display
If any of the warning messages are shown again after the follow ing
actions have been performed, contact any authorized Toyota reta iler
or Toyota authorized repairer, or any reliable repairer.
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.

6937-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises

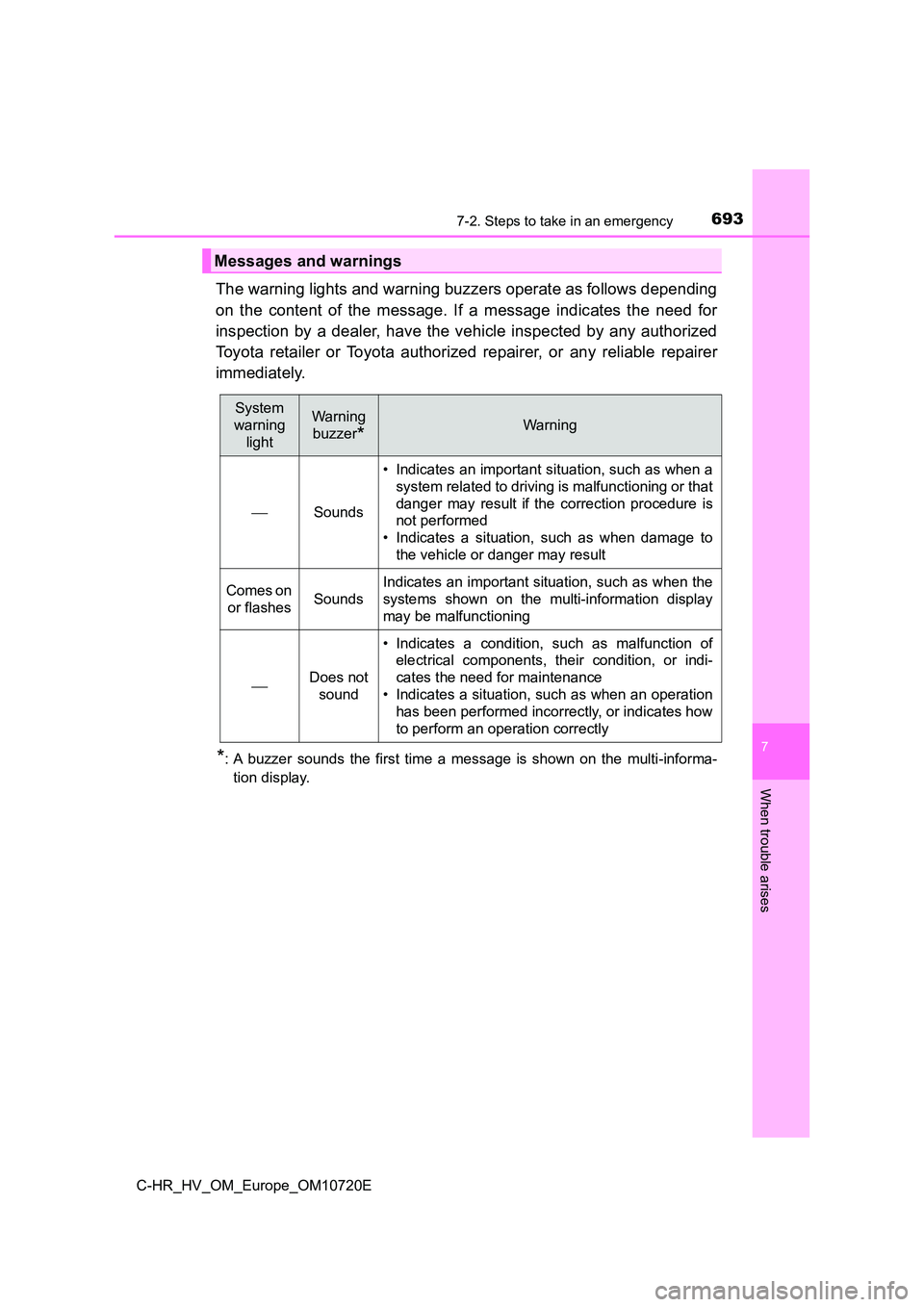

The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by any autho rized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
immediately.
*: A buzzer sounds the first time a message is shown on the multi -informa-
tion display.
Messages and warnings
System
warning
light
Warning
buzzer*War ning
Sounds
• Indicates an important situation, such as when a
system related to driving is malfunctioning or that
danger may result if the correction procedure is
not performed
• Indicates a situation, such as when damage to
the vehicle or danger may result
Comes on
or flashesSounds
Indicates an important situation, such as when the
systems shown on the multi-information display
may be malfunctioning
Does not
sound
• Indicates a condition, such as malfunction of
electrical components, their condition, or indi-
cates the need for maintenance
• Indicates a situation, such as when an operation
has been performed incorrectly, or indicates how
to perform an operation correctly
