Page 762 of 818

7607-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E

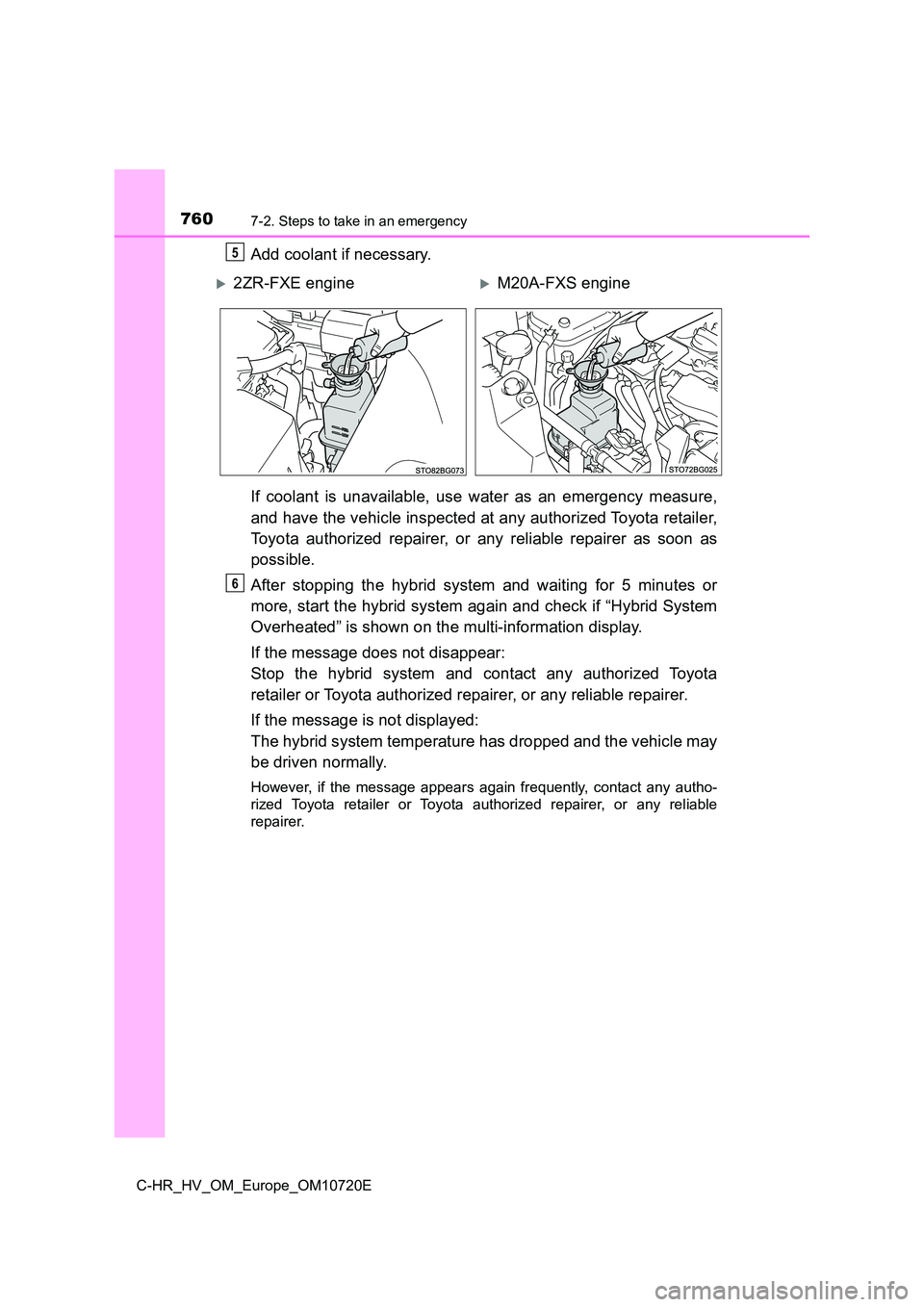

Add coolant if necessary.
If coolant is unavailable, use water as an emergency measure,
and have the vehicle inspected at any authorized Toyota retaile r,
Toyota authorized repairer, or any reliable repairer as soon as
possible.
After stopping the hybrid system and waiting for 5 minutes or
more, start the hybrid system again and check if “Hybrid System
Overheated” is shown on the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repaire r.
If the message is not displayed:
The hybrid system temperature has dropped and the vehicle may
be driven normally.
However, if the message appears again frequently, contact any a utho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable
repairer.
5
2ZR-FXE engineM20A-FXS engine
6
Page 764 of 818

7627-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E

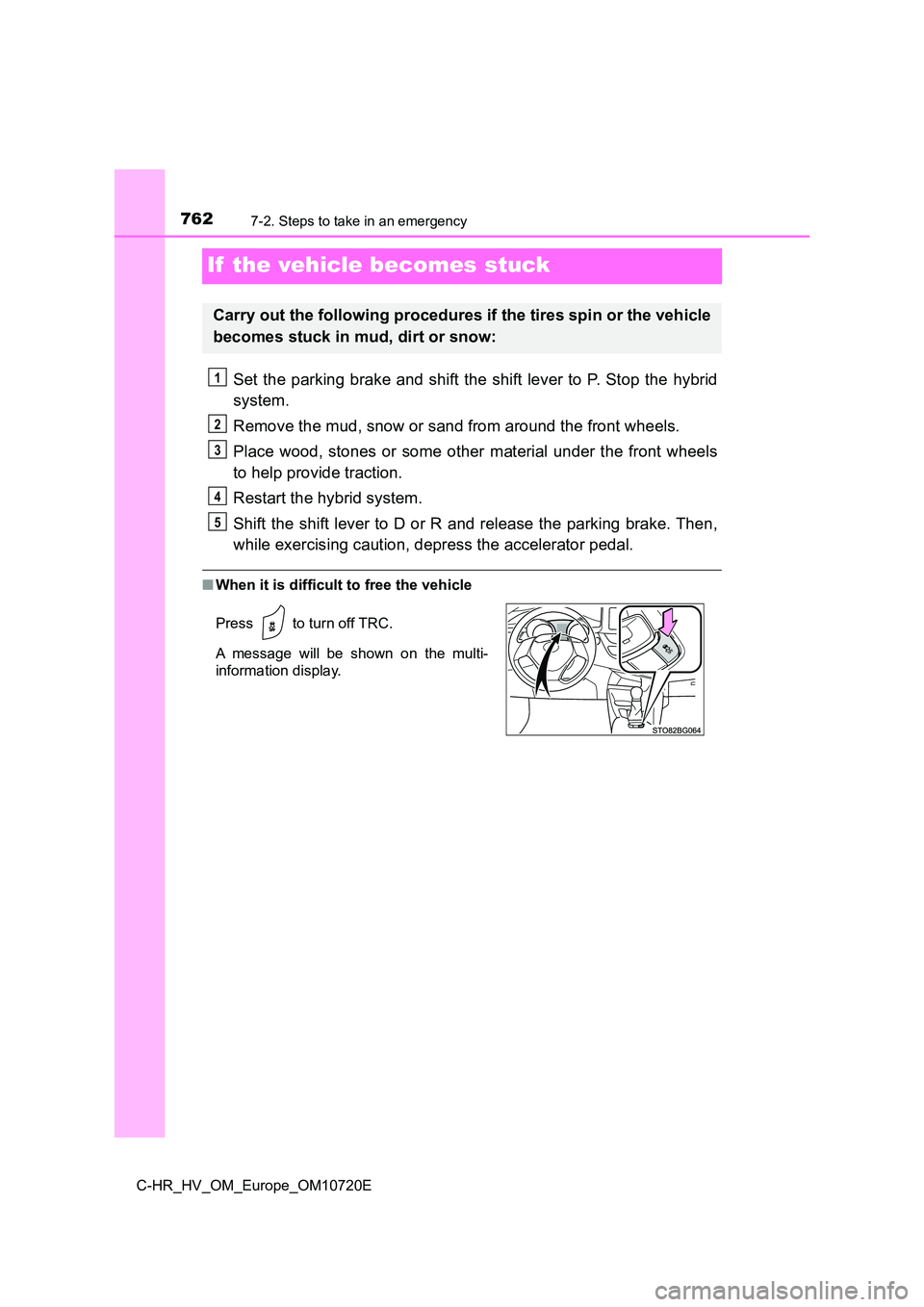

If the vehicle becomes stuck
Set the parking brake and shift the shift lever to P. Stop the hybrid
system.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheel s
to help provide traction.
Restart the hybrid system.
Shift the shift lever to D or R and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.
■ When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRC.
A message will be shown on the multi-
information display.
1
2
3
4
5
Page 774 of 818

7728-1. Specifications
C-HR_HV_OM_Europe_OM10720E

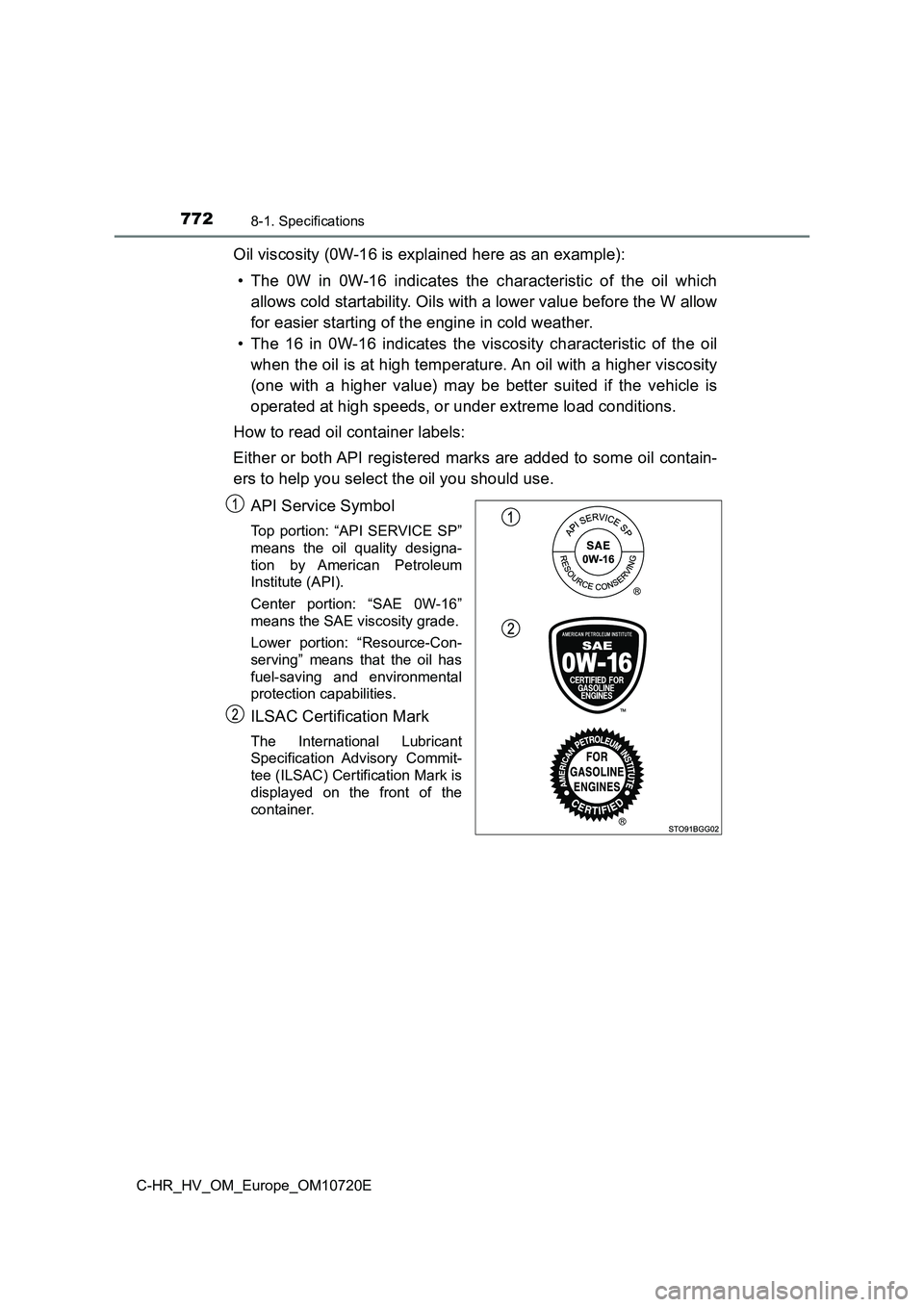

Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher visco sity
(one with a higher value) may be better suited if the vehicle i s
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil conta in-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SP”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-16”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
displayed on the front of the
container.
Page 783 of 818

7818-2. Customization
C-HR_HV_OM_Europe_OM10720E
8
Vehicle specifications

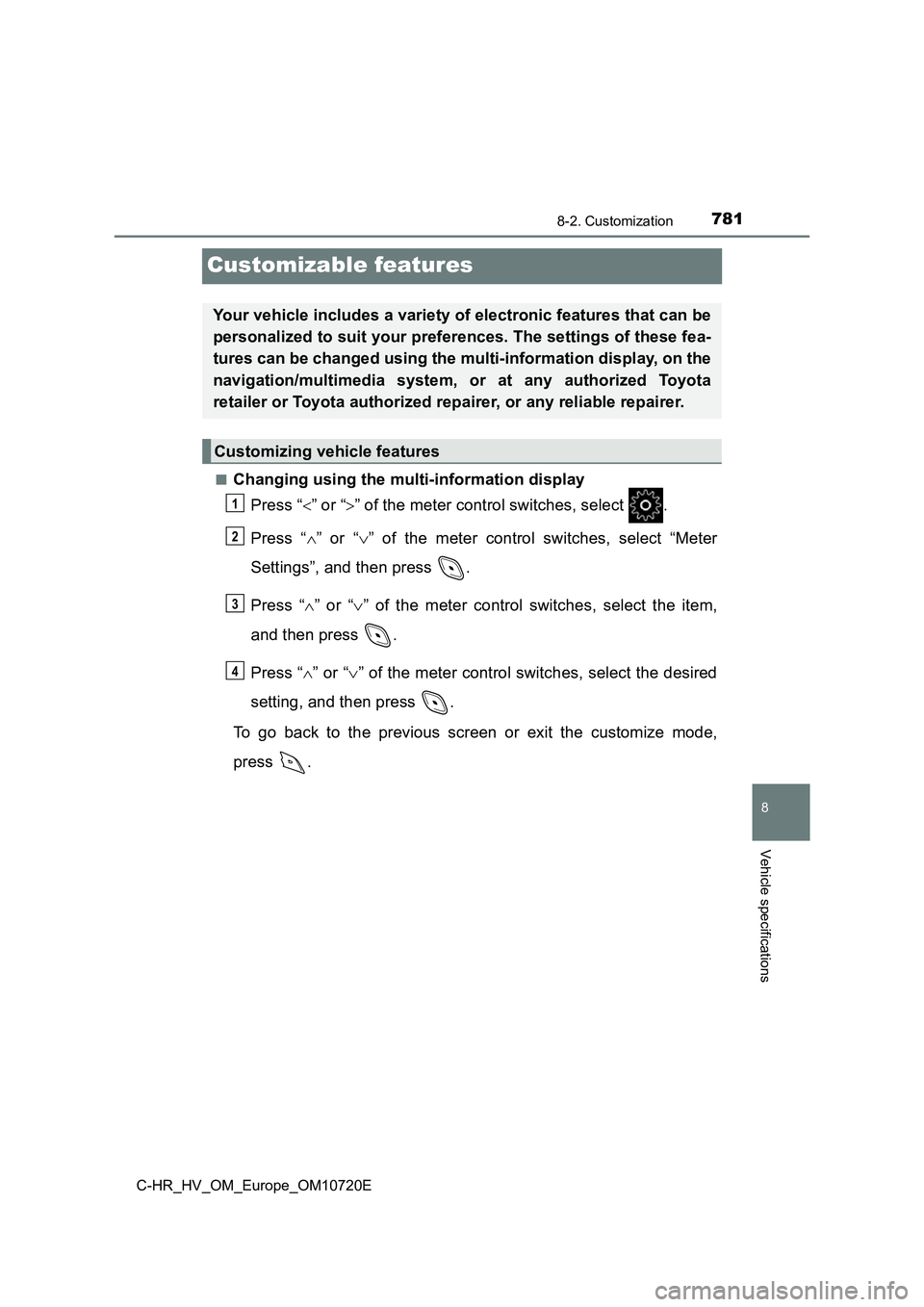

Customizable features
■Changing using the multi-information display
Press “ ” or “” of the meter control switches, select .
Press “ ” or “” of the meter control switches, select “Meter
Settings”, and then press .
Press “ ” or “” of the meter control switches, select the item,
and then press .
Press “ ” or “” of the meter control switches, select the desired
setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fe a-
tures can be changed using the multi-information display, on th e
navigation/multimedia system, or at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repaire r.
Customizing vehicle features
1
2
3
4
Page 785 of 818

7838-2. Customization
C-HR_HV_OM_Europe_OM10720E
8
Vehicle specifications

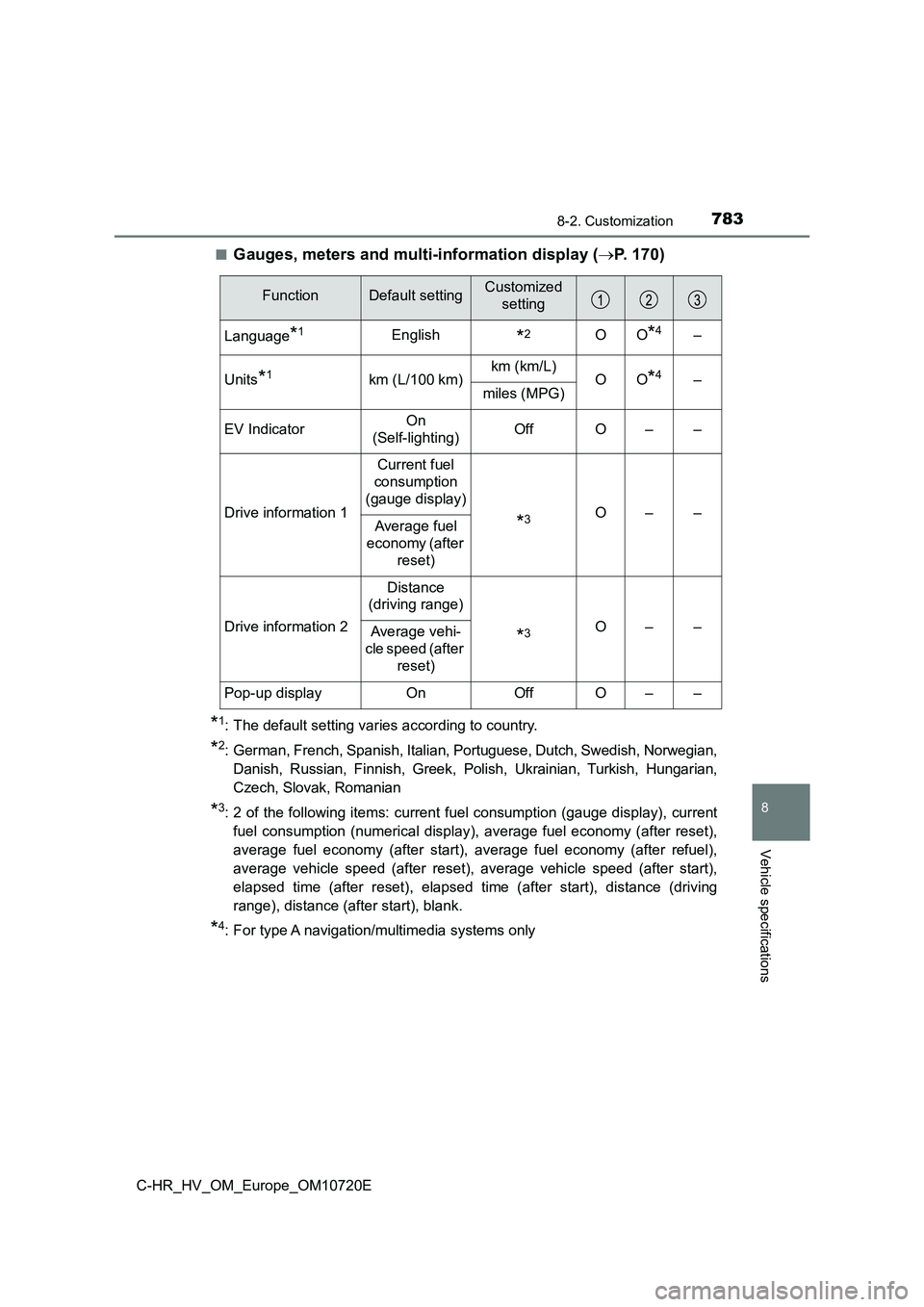

■Gauges, meters and multi-information display (P. 170)
*1: The default setting varies according to country.
*2: German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Norwegian,
Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish, Hu ngarian,
Czech, Slovak, Romanian
*3: 2 of the following items: current fuel consumption (gauge disp lay), current
fuel consumption (numerical display), average fuel economy (aft er reset),
average fuel economy (after start), average fuel economy (after refuel),
average vehicle speed (after reset), average vehicle speed (aft er start),
elapsed time (after reset), elapsed time (after start), distanc e (driving
range), distance (after start), blank.
*4: For type A navigation/multimedia systems only
FunctionDefault settingCustomized
setting
Language*1English*2OO*4–
Units*1km (L/100 km)km (km/L)OO*4–miles (MPG)
EV IndicatorOn
(Self-lighting)OffO––
Drive information 1
Current fuel
consumption
(gauge display)
*3O––Average fuel
economy (after
reset)
Drive information 2
Distance
(driving range)
*3O––Average vehi-
cle speed (after
reset)
Pop-up displayOnOffO––
Page 791 of 818

7898-2. Customization
C-HR_HV_OM_Europe_OM10720E
8
Vehicle specifications

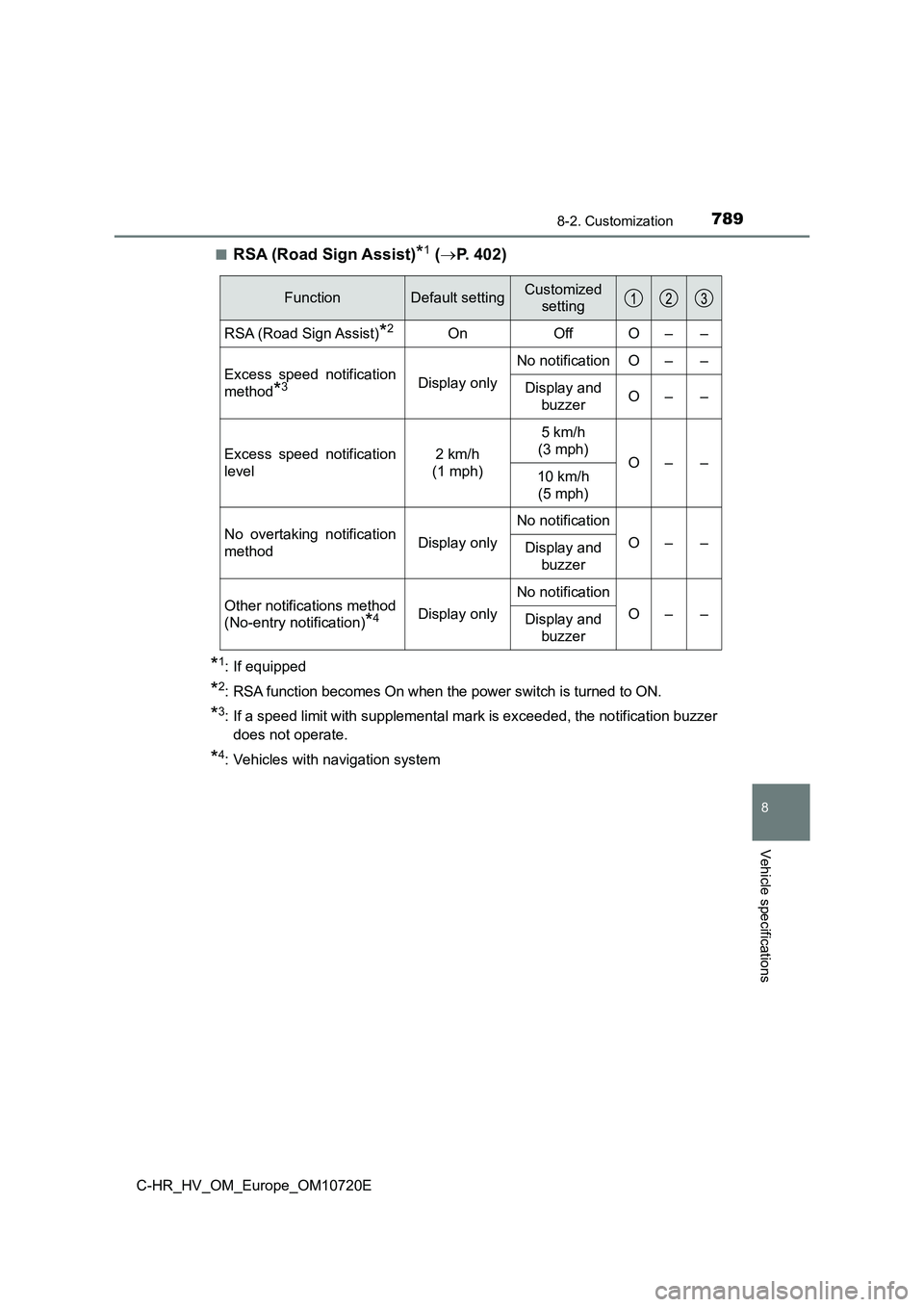

■RSA (Road Sign Assist)*1 (P. 402)
*1: If equipped
*2: RSA function becomes On when the power switch is turned to ON.
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer
does not operate.
*4: Vehicles with navigation system
FunctionDefault settingCustomized
setting
RSA (Road Sign Assist)*2OnOffO––
Excess speed notification
method*3Display only
No notificationO––
Display and
buzzerO––
Excess speed notification
level
2km/h
(1 mph)
5km/h
(3 mph)O––10 km/h
(5 mph)
No overtaking notification
methodDisplay only
No notification
O––Display and
buzzer
Other notifications method
(No-entry notification)*4Display only
No notification
O––Display and
buzzer
Page 794 of 818

7928-2. Customization
C-HR_HV_OM_Europe_OM10720E

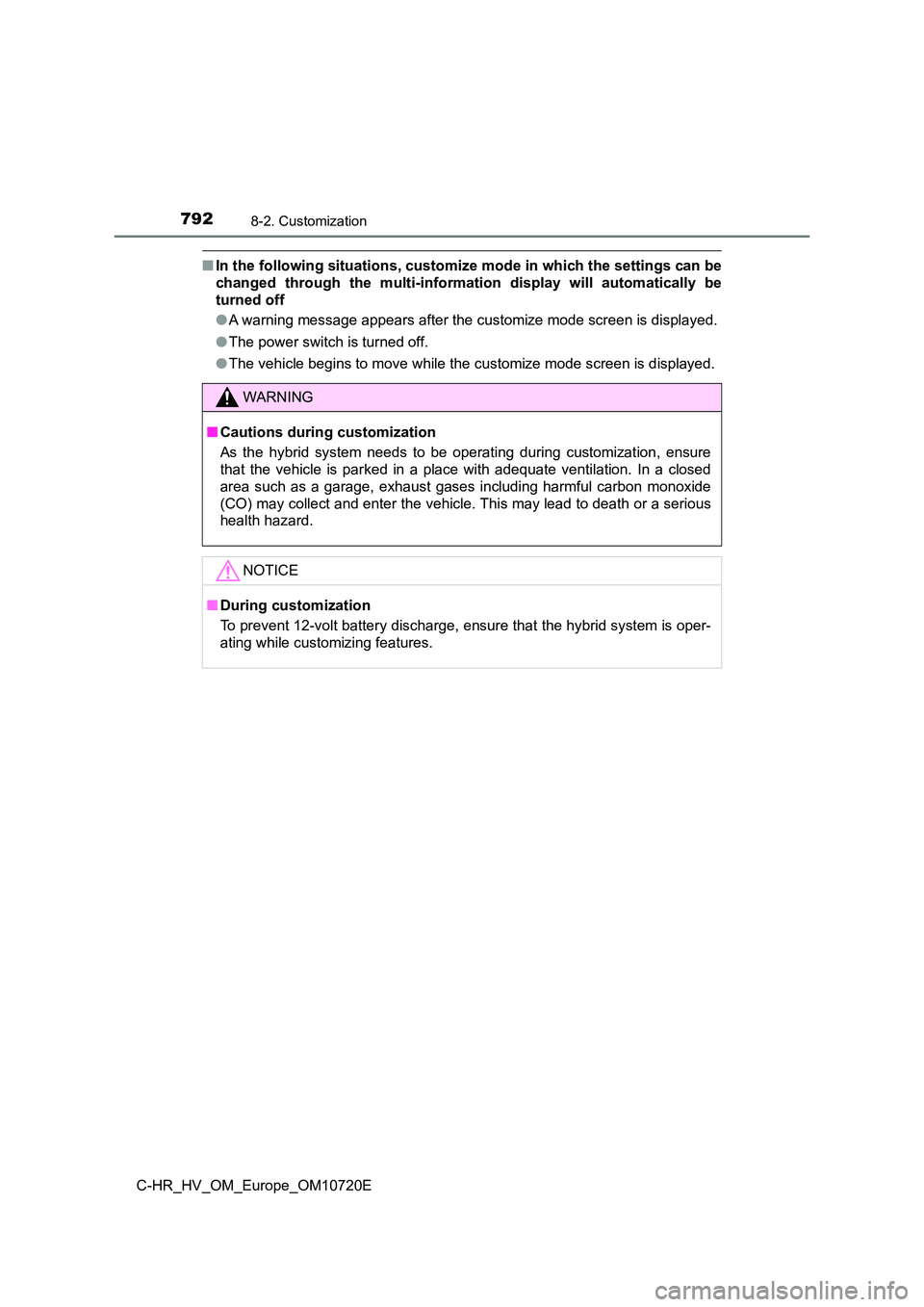

■In the following situations, customize mode in which the settings can be
changed through the multi-information display will automaticall y be
turned off
● A warning message appears after the customize mode screen is displayed.
● The power switch is turned off.
● The vehicle begins to move while the customize mode screen is displayed.
WARNING
■Cautions during customization
As the hybrid system needs to be operating during customization , ensure
that the vehicle is parked in a place with adequate ventilation . In a closed
area such as a garage, exhaust gases including harmful carbon m onoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ensure that the hybrid sy stem is oper-
ating while customizing features.
Page 800 of 818

798What to do if... (Troubleshooting)
C-HR_HV_OM_Europe_OM10720E

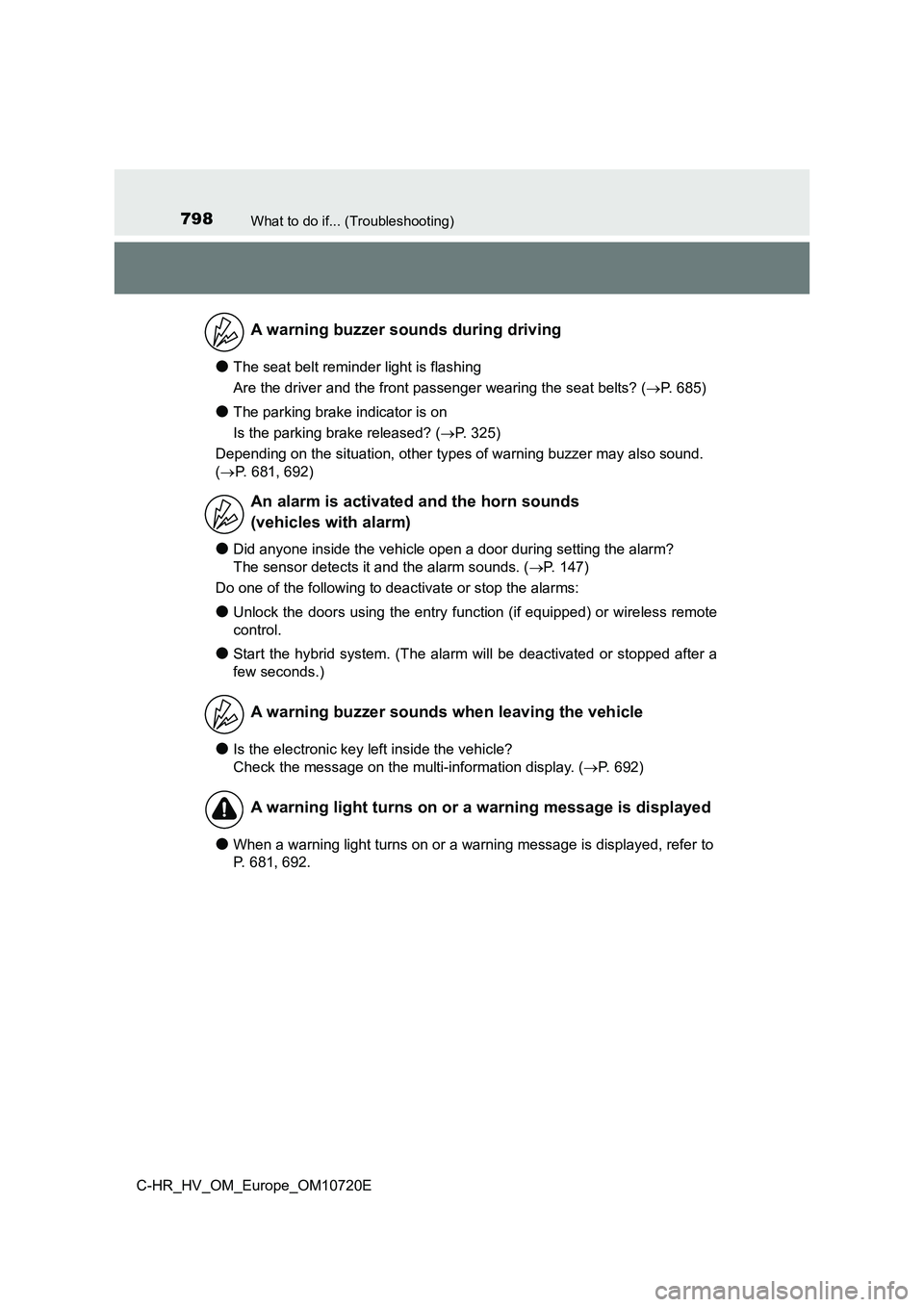

●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (P. 685)
●The parking brake indicator is on
Is the parking brake released? ( P. 325)
Depending on the situation, other types of warning buzzer may a lso sound.
( P. 681, 692)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 147)
Do one of the following to deactivate or stop the alarms:
●Unlock the doors using the entry function (if equipped) or wire less remote
control.
●Start the hybrid system. (The alarm will be deactivated or stop ped after a
few seconds.)
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display. ( P. 692)
●When a warning light turns on or a warning message is displayed, refer to
P. 681, 692.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed
Page 805 of 818

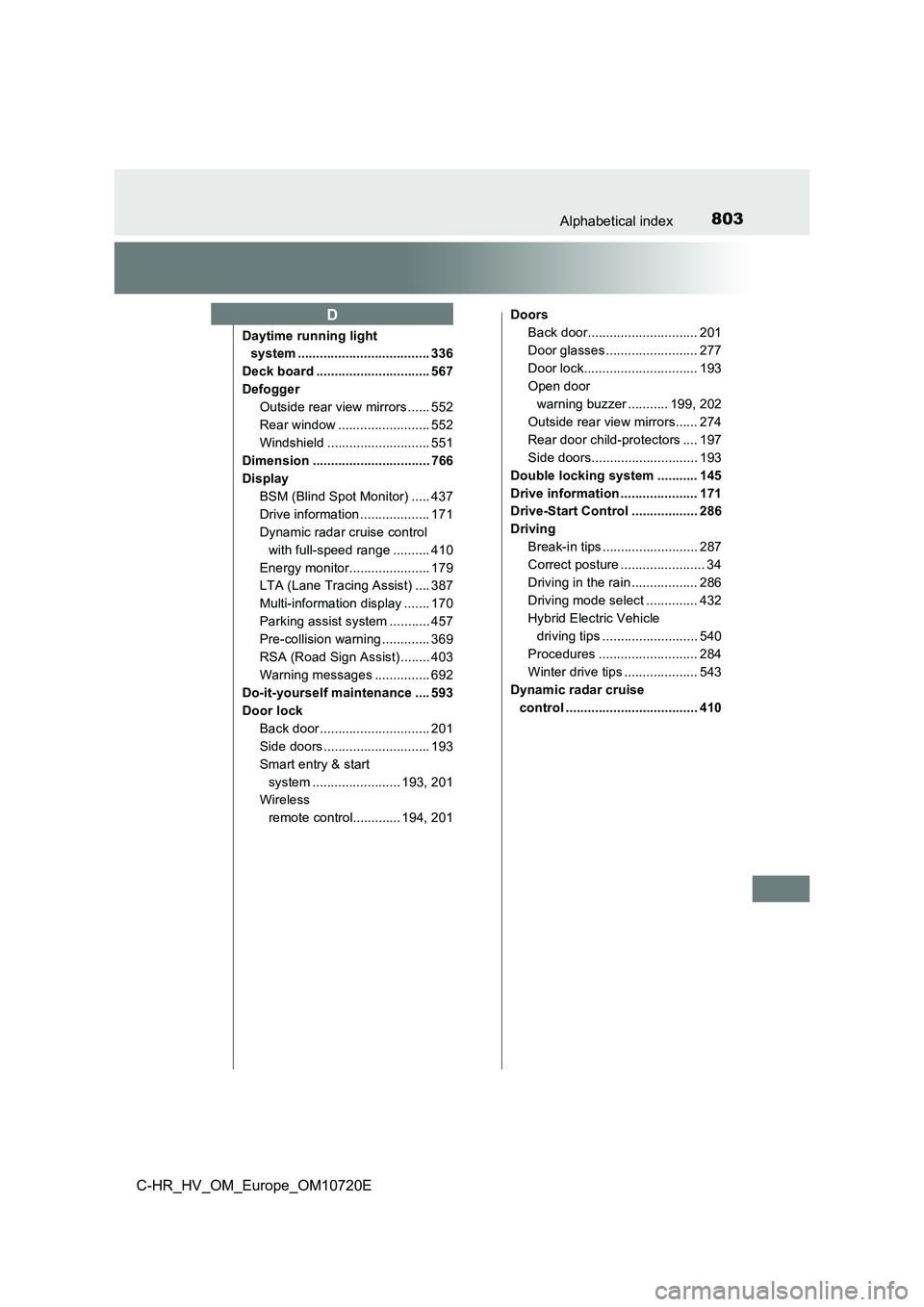

803Alphabetical index
C-HR_HV_OM_Europe_OM10720E
Daytime running light
system .................................... 336
Deck board ............................... 567
Defogger
Outside rear view mirrors ...... 552
Rear window ......................... 552
Windshield ............................ 551
Dimension ................................ 766
Display
BSM (Blind Spot Monitor) ..... 437
Drive information ................... 171
Dynamic radar cruise control
with full-speed range .......... 410
Energy monitor...................... 179
LTA (Lane Tracing Assist) .... 387
Multi-information display ....... 170
Parking assist system ........... 457
Pre-collision warning ............. 369
RSA (Road Sign Assist) ........ 403
Warning messages ............... 692
Do-it-yourself maintenance .... 593
Door lock
Back door .............................. 201
Side doors ............................. 193
Smart entry & start
system ........................ 193, 201
Wireless
remote control............. 194, 201
Doors
Back door.............................. 201
Door glasses ......................... 277
Door lock............................... 193
Open door
warning buzzer ........... 199, 202
Outside rear view mirrors...... 274
Rear door child-protectors .... 197
Side doors............................. 193
Double locking system ........... 145
Drive information ..................... 171
Drive-Start Control .................. 286
Driving
Break-in tips .......................... 287
Correct posture ....................... 34
Driving in the rain .................. 286
Driving mode select .............. 432
Hybrid Electric Vehicle
driving tips .......................... 540
Procedures ........................... 284
Winter drive tips .................... 543
Dynamic radar cruise
control .................................... 410
D
Page 806 of 818

804Alphabetical index
C-HR_HV_OM_Europe_OM10720E

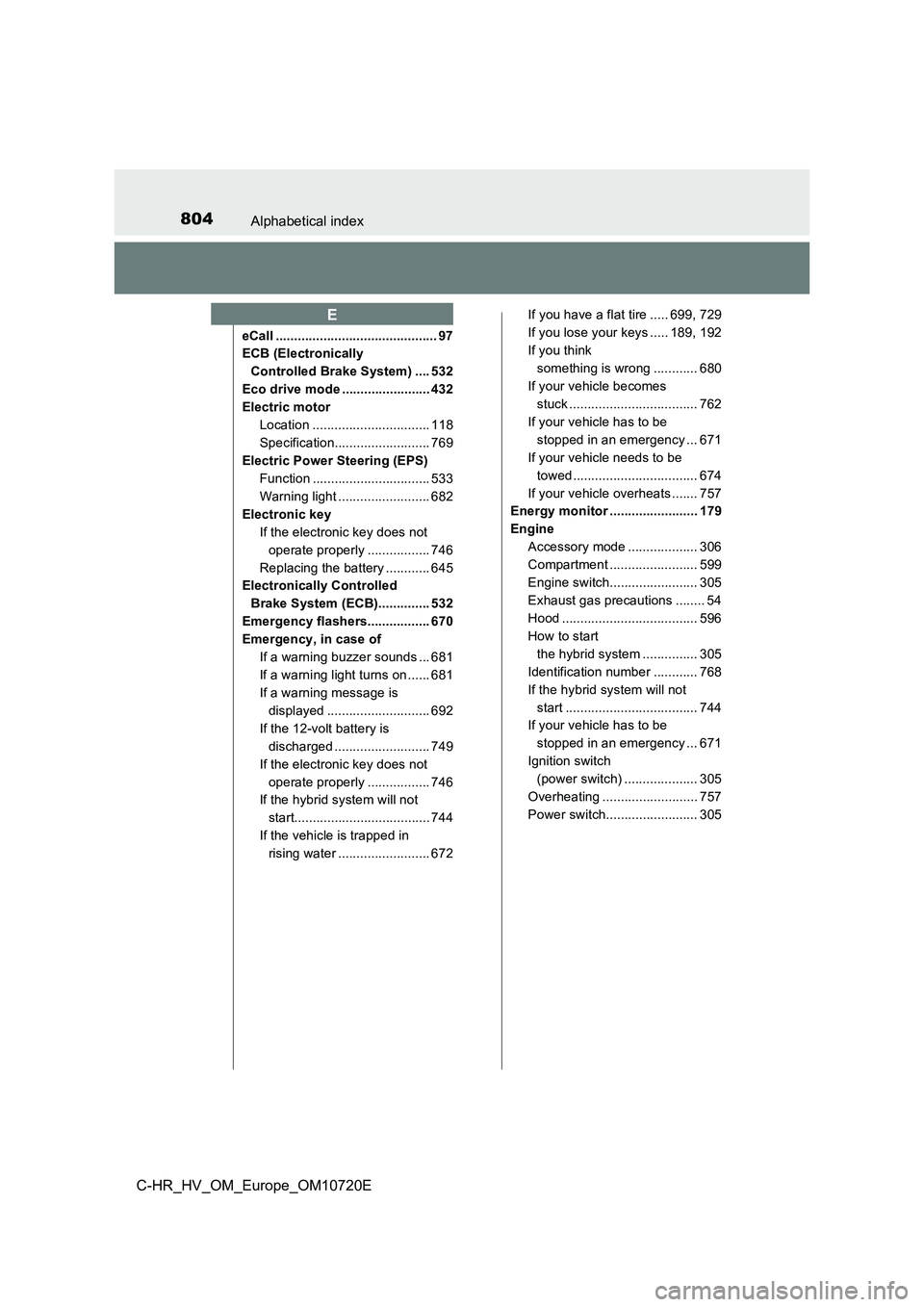

eCall ............................................ 97
ECB (Electronically
Controlled Brake System) .... 532
Eco drive mode ........................ 432
Electric motor
Location ................................ 118
Specification.......................... 769
Electric Power Steering (EPS)
Function ................................ 533
Warning light ......................... 682
Electronic key
If the electronic key does not
operate properly ................. 746
Replacing the battery ............ 645
Electronically Controlled
Brake System (ECB).............. 532
Emergency flashers................. 670
Emergency, in case of
If a warning buzzer sounds ... 681
If a warning light turns on ...... 681
If a warning message is
displayed ............................ 692
If the 12-volt battery is
discharged .......................... 749
If the electronic key does not
operate properly ................. 746
If the hybrid system will not
start..................................... 744
If the vehicle is trapped in
rising water ......................... 672
If you have a flat tire ..... 699, 729
If you lose your keys ..... 189, 192
If you think
something is wrong ............ 680
If your vehicle becomes
stuck ................................... 762
If your vehicle has to be
stopped in an emergency ... 671
If your vehicle needs to be
towed .................................. 674
If your vehicle overheats ....... 757
Energy monitor ........................ 179
Engine
Accessory mode ................... 306
Compartment ........................ 599
Engine switch........................ 305
Exhaust gas precautions ........ 54
Hood ..................................... 596
How to start
the hybrid system ............... 305
Identification number ............ 768
If the hybrid system will not
start .................................... 744
If your vehicle has to be
stopped in an emergency ... 671
Ignition switch
(power switch) .................... 305
Overheating .......................... 757
Power switch......................... 305
E
