TOYOTA C-HR 2022 Owners Manual

1592. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10720E
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
Warning lightsPages
*1Brake system warning light (red) P. 681
*1Malfunction indicator lamp P. 682
*1SRS warning light P. 682
*1ABS warning light P. 682
*1Electric power steering system warning light
(red) P. 6 8 2
*1Electric power steering system warning light
(yellow) P. 6 8 2
*1, 2Toyota parking assist-sensor OFF indicator
(if equipped) P. 6 8 3
*1, 2PKSB OFF indicator (if equipped) P. 683
*2“RCTA OFF” indicator (if equipped) P. 683
*1, 3Slip indicator light P. 684
*1Brake system warning light (yellow) P. 684

1602. Instrument cluster
C-HR_HV_OM_Europe_OM10720E
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a mal function in
a system if a light does not come on, or if the lights do not t urn off. Have
the vehicle inspected by any authorized Toyota retailer or Toyo ta autho-
rized repairer, or any reliable repairer.
*2: The light flashes to indicate a malfunction.
*3: The light comes on to indicate a malfunction.
*4: The light flashes or illuminates to indicate a malfunction.
*1, 4PCS warning light (if equipped) P. 684
*2Parking brake indicator P. 685
Low fuel level warning light P. 685
Driver’s and front passenger’s seat belt
reminder light P. 6 8 5
Rear passengers’ seat belt reminder lights (on
the center panel) P. 6 8 5
*1Tire pressure warning light P. 686
Warning lightsPages

1612. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10720E
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
IndicatorsPages
Turn signal indicator P. 324
Tail light indicator P. 333
Headlight high beam indicator P. 334
“READY” indicator P. 305
Front fog light indicator (if equipped) P. 343
Rear fog light indicator P. 343
Automatic High Beam indi cator (if equipped) P. 339
Parking brake indicator P. 325

1622. Instrument cluster
C-HR_HV_OM_Europe_OM10720E
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a mal function in
a system if a light does not come on, or if the lights do not t urn off. Have
the vehicle inspected by any authorized Toyota retailer or Toyo ta autho-
rized repairer, or any reliable repairer.
*2: The light turns on when the system is off.
*3: The light flashes to indicate that the system is operating.
*1, 2Toyota parking assist-sensor OFF indicator
(if equipped) P. 4 5 7
*1, 2PKSB OFF indicator (if equipped) P. 478
S-IPA indicator (if equipped) P. 494
*1, 2BSM OFF indicator (if equipped) P. 437
*1BSM outside rear view mirror indicator
(on the outside rear vie w mirrors) (if equipped)
P. 437,
469
*2“RCTA OFF” indicator (if equipped) P. 469
Security indicator (on the center panel) P. 130,
147
*1, 3Slip indicator light P. 534
*1, 2VSC off indicator P. 535
*1, 2PCS warning light (if equipped) P. 369
*1“PASSENGER AIR BAG” indicator (on the
center panel) (if equipped) P. 55
IndicatorsPages

1632. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10720E
Indicators and symbols displayed on the multi-information dis-
play
IndicatorsPages
*1, 2, 3
Brake hold operated indicator P. 330,
685
*1
Brake hold standby indicator P. 330
*4
LTA indicator (if equipped) P. 387,
684
Speed limiter indicator (if equipped) P. 434
Cruise control indicator P. 410,
427
Cruise control “SET” indicator P. 410,
427
Radar cruise control indicator (if equipped) P. 410
“SPORT” indicator P. 432
“ECO MODE” indicator P. 432

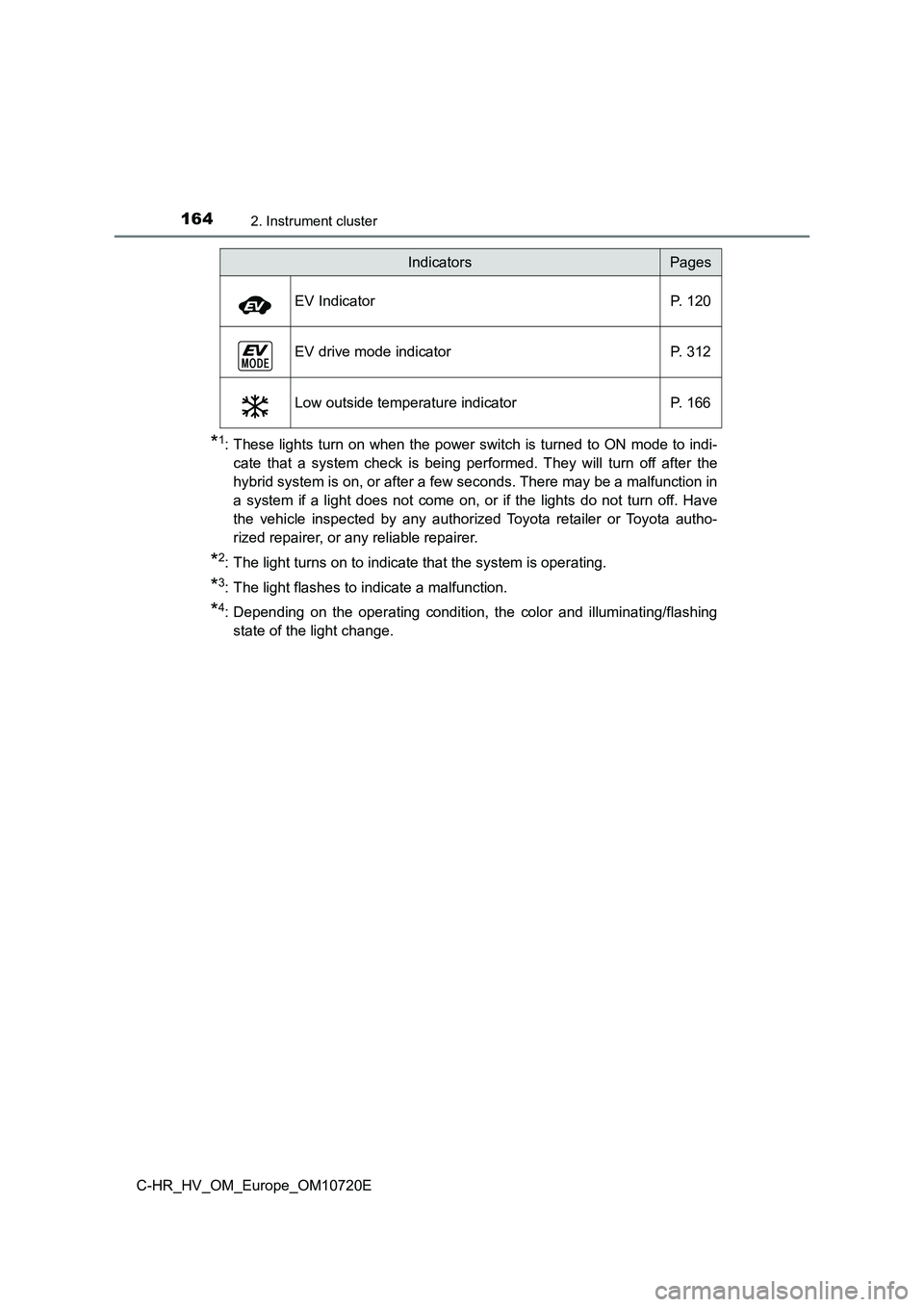

1642. Instrument cluster
C-HR_HV_OM_Europe_OM10720E
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a mal function in
a system if a light does not come on, or if the lights do not t urn off. Have
the vehicle inspected by any authorized Toyota retailer or Toyo ta autho-
rized repairer, or any reliable repairer.
*2: The light turns on to indicate that the system is operating.
*3: The light flashes to indicate a malfunction.
*4: Depending on the operating condition, the color and illuminati ng/flashing
state of the light change.
EV Indicator P. 120
EV drive mode indicator P. 312
Low outside temperature indicator P. 166
IndicatorsPages

1652. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10720E
Symbols on multi-information displayPages
Charging system warning light P. 681
Low engine oil pressure warning light P. 681
High engine coolant temperature warning light P. 686
Smart entry & start system P. 305
Hybrid system overheat warning light P. 759
Brake Override System/Drive-Start Control P. 687
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as ABS and SRS airbag warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, whic h could result
in death or serious injury. Have the vehicle inspected by any a uthorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

1662. Instrument cluster
C-HR_HV_OM_Europe_OM10720E
Gauges and meters
The units used on the speedometer may differ depending on the tar-
get region.
Hybrid System Indicator
Displays hybrid system output or regeneration level.
Multi-information display
Presents the driver with a variety of driving-related data. ( P. 170)
Displays warning messages in case of a malfunction. ( P. 692)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Outside temperature display
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the am bient
temperature is 3°C (37°F) or lower.

1672. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10720E
Odometer and trip meter display:
Displays the following items.
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the met er was last
reset. Trip meters A and B can be used to record and display di fferent dis-
tances independently.
Shift position and shift range display
Displays the selected shift position or selected shift range. ( P. 315, 319)
Engine coolant temperature gauge
Displays the engine coolant temperature.
Switches the items of the odome-
ter and trip meter display by
pressing the “TRIP” switch.
When the trip meter is displayed,
pressing and holding the “TRIP”
switch will reset the trip meter.
Changing the display

1682. Instrument cluster
C-HR_HV_OM_Europe_OM10720E
■The meters and display illuminate when
The power switch is turned to ON mode.
■ Hybrid System Indicator
Eco area
Shows that the vehicle is being driven in an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving range is being exceeded (dur ing full
power driving, etc.)
● In the following situation, the Hybrid System Indicator does not operate.
• “READY” indicator is not illuminated.
• The shift position is in a range P, R or N.
● By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
● Charge area indicates regeneration* status. Regenerated energy will be
used to charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conver sion of
energy created by the movement of the vehicle into electrical e nergy.
Charge area
Shows that energy is being recovered
via the regenerative brake.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
