TOYOTA C-HR 2023 Owners Manual

1792. Instrument cluster
2
Instrument cluster
C-HR_HEV_OM_Europe_OM10764E

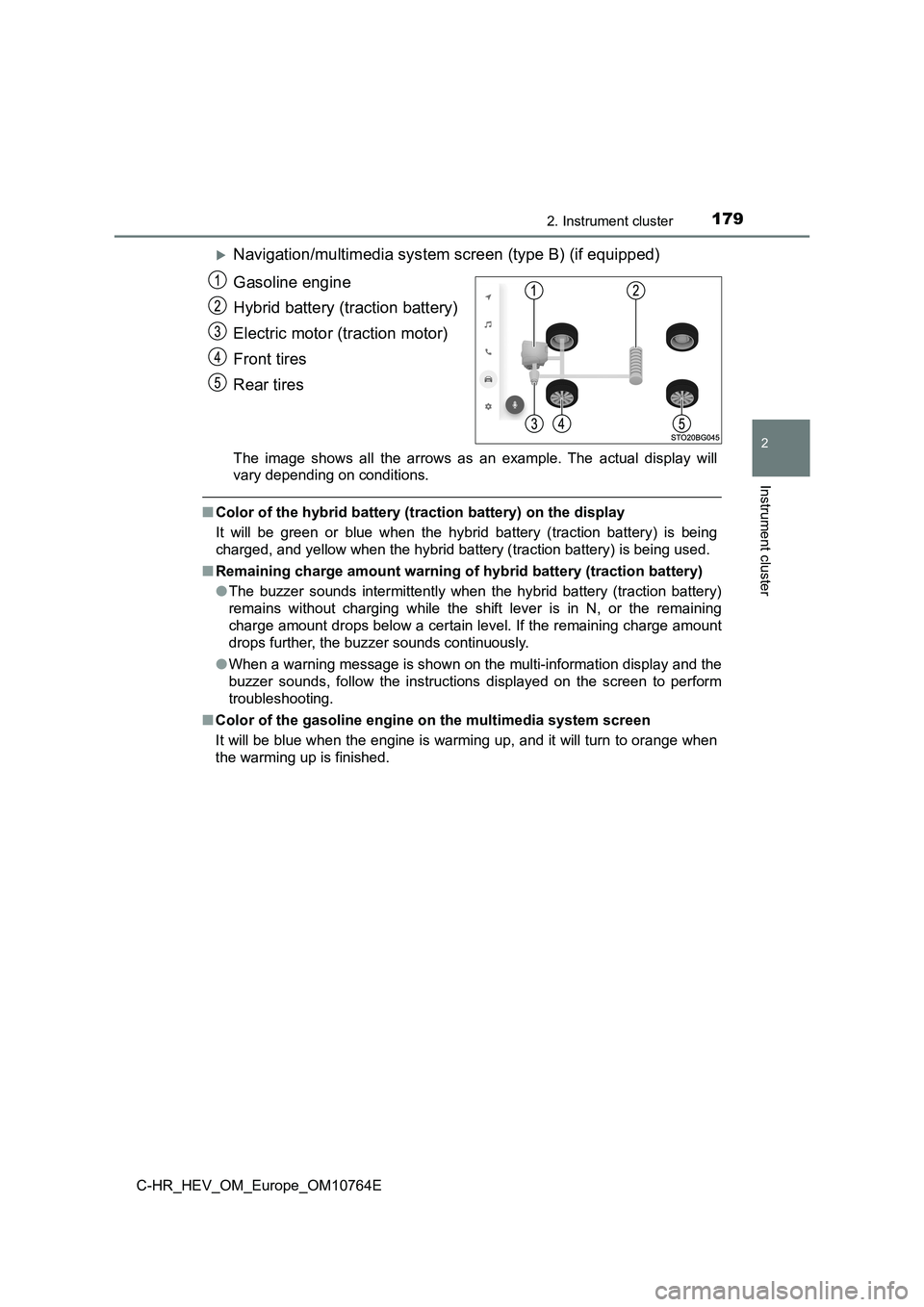

Navigation/multimedia system screen (type B) (if equipped)
Gasoline engine
Hybrid battery (traction battery)
Electric motor (traction motor)
Front tires
Rear tires
The image shows all the arrows as an example. The actual displa y will
vary depending on conditions.
■ Color of the hybrid battery (traction battery) on the display
It will be green or blue when the hybrid battery (traction batt ery) is being
charged, and yellow when the hybrid battery (traction battery) is being used.
■ Remaining charge amount warning of hybrid battery (traction battery)
● The buzzer sounds intermittently when the hybrid battery (traction battery)
remains without charging while the shift lever is in N, or the remaining
charge amount drops below a certain level. If the remaining cha rge amount
drops further, the buzzer sounds continuously.
● When a warning message is shown on the multi-information display and the
buzzer sounds, follow the instructions displayed on the screen to perform
troubleshooting.
■ Color of the gasoline engine on the multimedia system screen
It will be blue when the engine is warming up, and it will turn to orange when
the warming up is finished.

1802. Instrument cluster
C-HR_HEV_OM_Europe_OM10764E
Navigation/multimedia system screen (vehicles without navigation
system)
Press the “MENU” button.
Select “Info” on the “Menu” screen.
If a screen other than the desired one is displayed, select “Tr ip information”
or “History” on the screen.
Navigation/multimedia system screen (vehicles with navigation s ys-
tem)
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.
If a screen other than the desired one is displayed, select “Tr ip information”
or “History” on the screen.

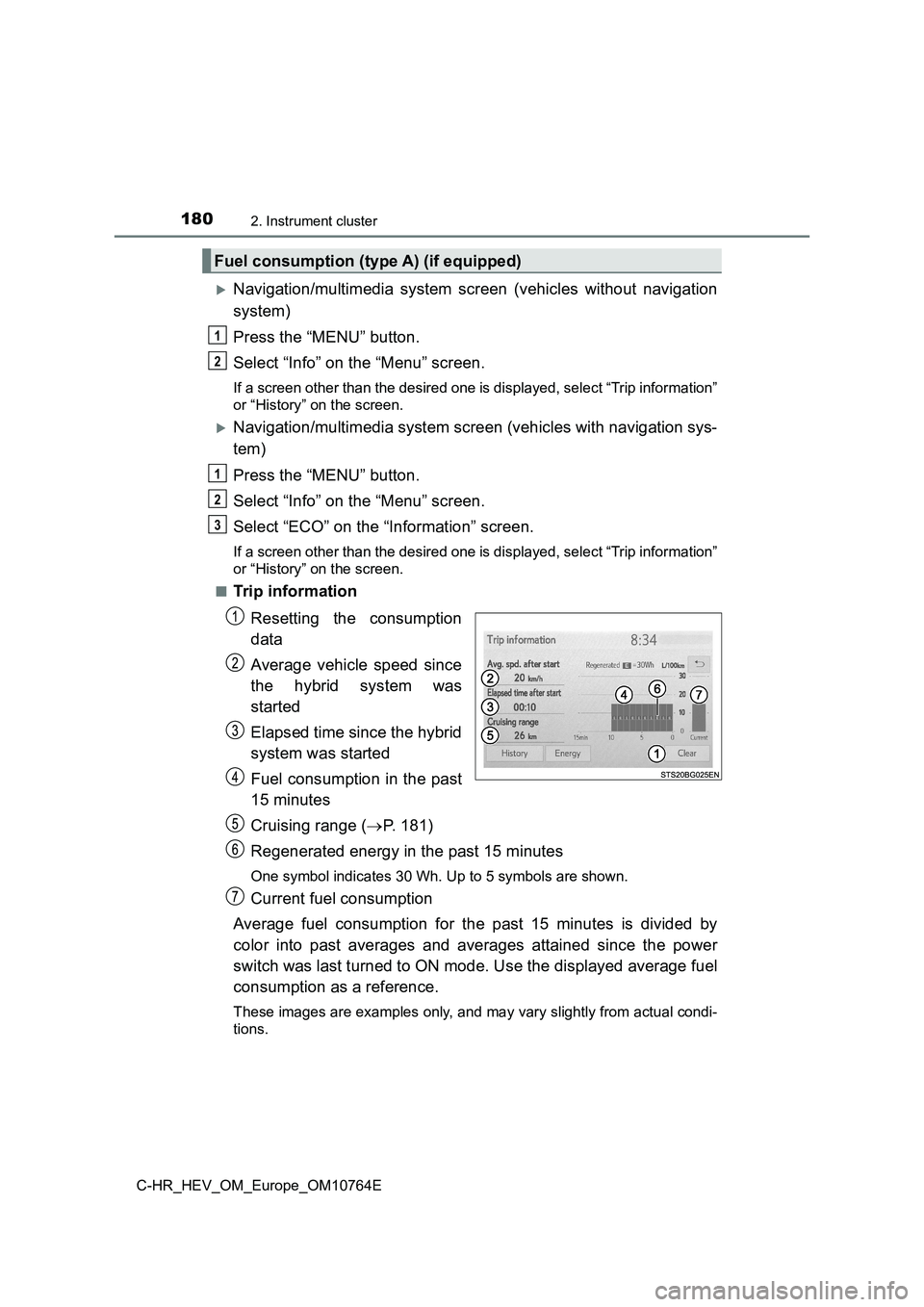

■Trip information
Resetting the consumption
data
Average vehicle speed since
the hybrid system was
started
Elapsed time since the hybrid
system was started
Fuel consumption in the past
15 minutes
Cruising range ( P. 181)
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.
Current fuel consumption
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fu el
consumption as a reference.
These images are examples only, and may vary slightly from actu al condi-
tions.
Fuel consumption (type A) (if equipped)
1
2
1
2
3

1812. Instrument cluster
2
Instrument cluster
C-HR_HEV_OM_Europe_OM10764E

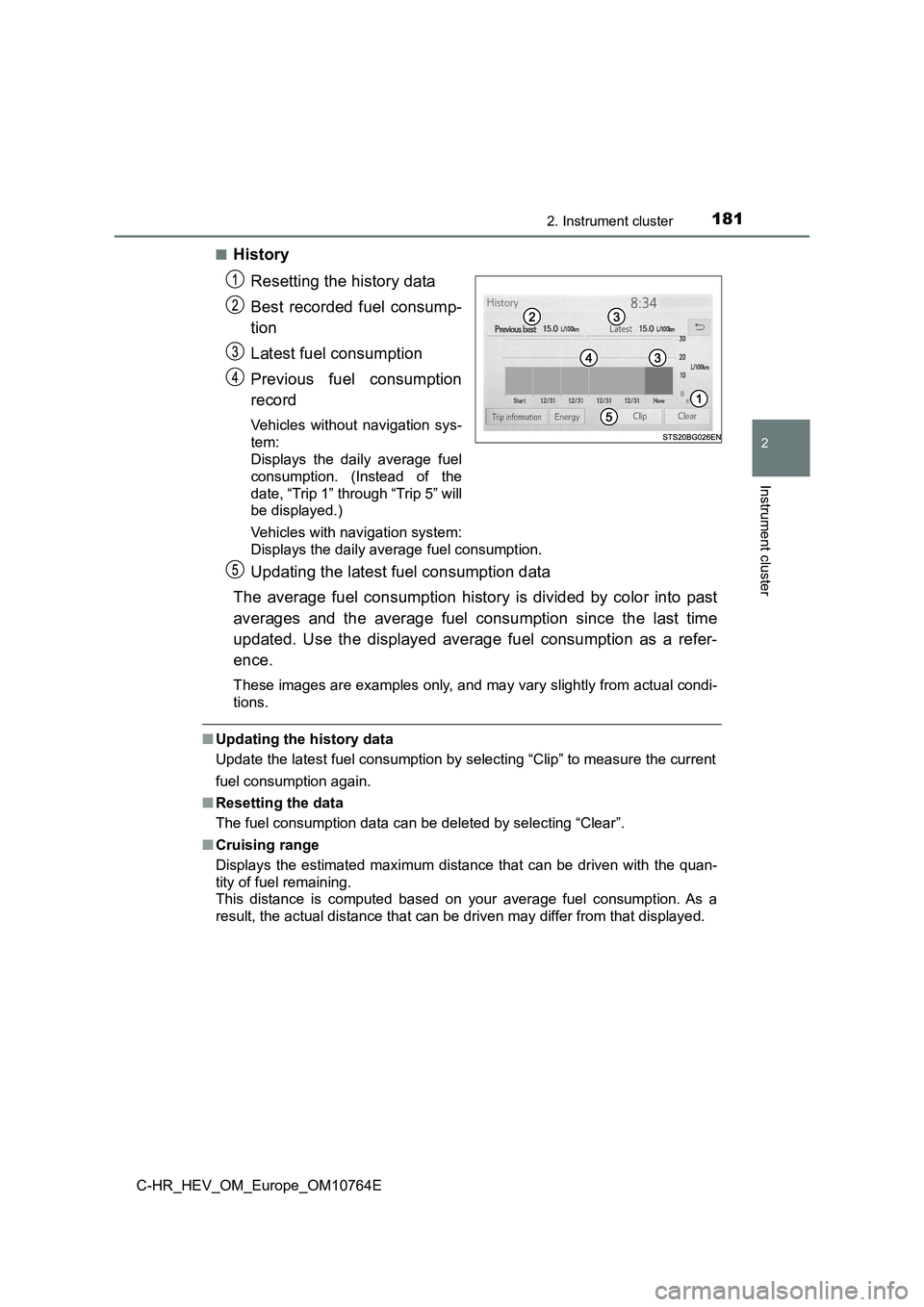

■History
Resetting the history data
Best recorded fuel consump-
tion
Latest fuel consumption
Previous fuel consumption
record
Vehicles without navigation sys-
tem:
Displays the daily average fuel
consumption. (Instead of the
date, “Trip 1” through “Trip 5” will
be displayed.)
Vehicles with navigation system:
Displays the daily average fuel consumption.
Updating the latest fuel consumption data
The average fuel consumption history is divided by color into p ast
averages and the average fuel consumption since the last time
updated. Use the displayed average fuel consumption as a refer-
ence.
These images are examples only, and may vary slightly from actu al condi-
tions.
■ Updating the history data
Update the latest fuel consumption by selecting “Clip” to measu re the current
fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumptio n. As a
result, the actual distance that can be driven may differ from that displayed.

1822. Instrument cluster
C-HR_HEV_OM_Europe_OM10764E

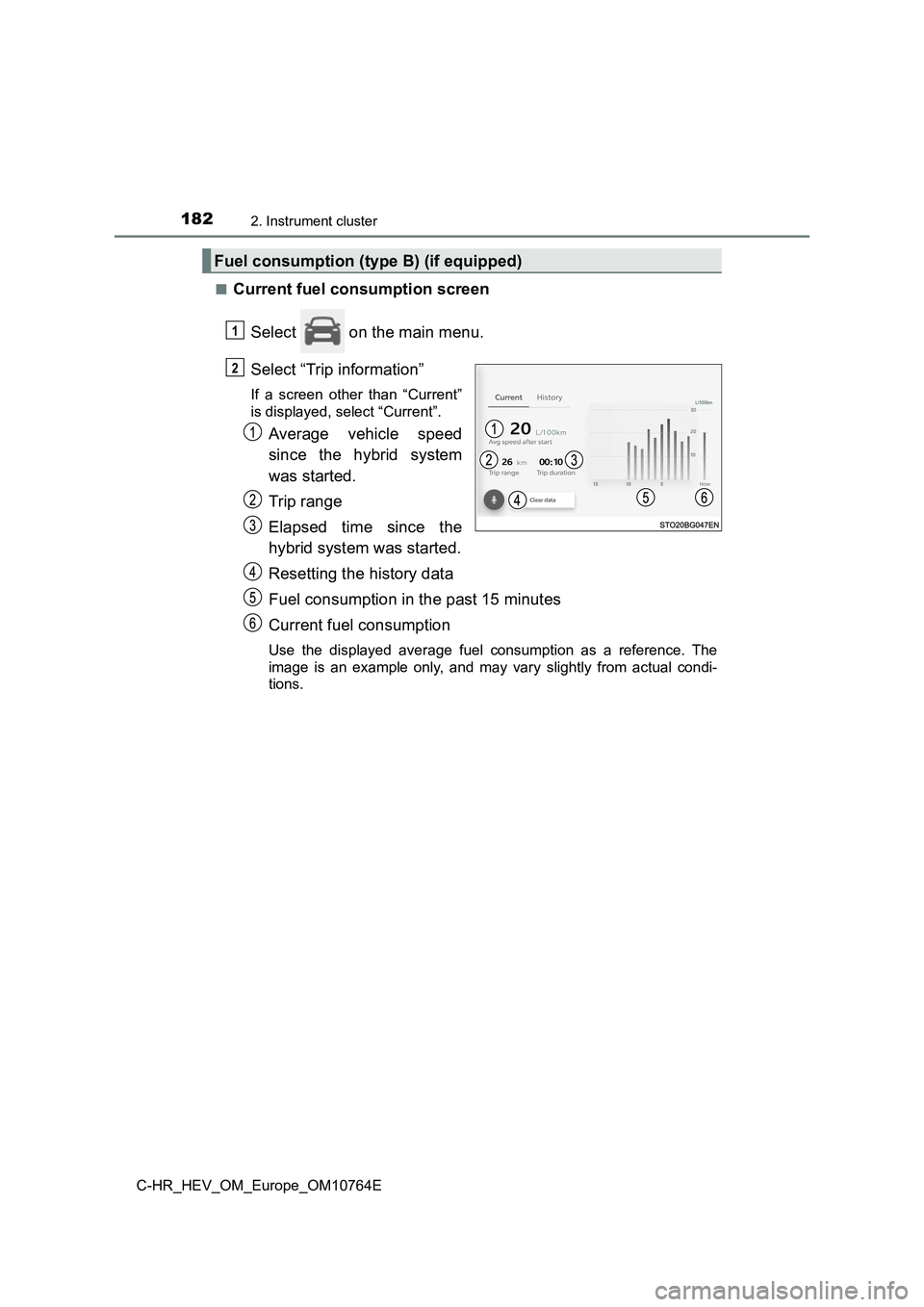

■Current fuel consumption screen
Select on the main menu.
Select “Trip information”
If a screen other than “Current”
is displayed, select “Current”.
Average vehicle speed
since the hybrid system
was started.
Trip range
Elapsed time since the
hybrid system was started.
Resetting the history data
Fuel consumption in the past 15 minutes
Current fuel consumption
Use the displayed average fuel consumption as a reference. The
image is an example only, and may vary slightly from actual con di-
tions.
Fuel consumption (type B) (if equipped)
1
2

1832. Instrument cluster
2
Instrument cluster
C-HR_HEV_OM_Europe_OM10764E

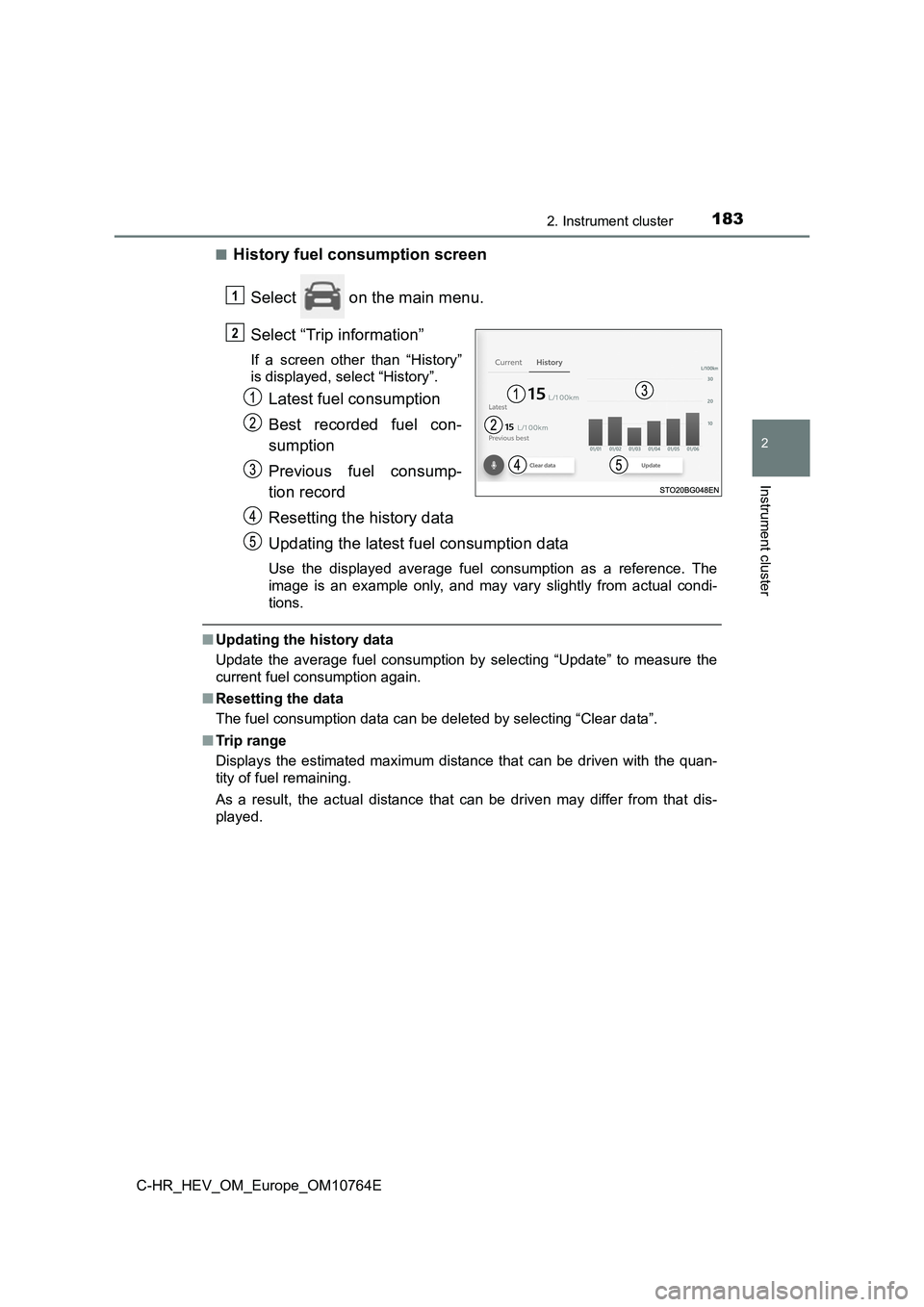

■History fuel consumption screen
Select on the main menu.
Select “Trip information”
If a screen other than “History”
is displayed, select “History”.
Latest fuel consumption
Best recorded fuel con-
sumption
Previous fuel consump-
tion record
Resetting the history data
Updating the latest fuel consumption data
Use the displayed average fuel consumption as a reference. The
image is an example only, and may vary slightly from actual con di-
tions.
■ Updating the history data
Update the average fuel consumption by selecting “Update” to me asure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear da ta”.
■ Trip range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
As a result, the actual distance that can be driven may differ from that dis-
played.
1
2

1842. Instrument cluster
C-HR_HEV_OM_Europe_OM10764E

185
3
Operation of
each component
C-HR_HEV_OM_Europe_OM10764E
3-1. Key information
Keys ................................... 186
3-2. Opening, closing and
locking the doors
Side doors.......................... 191
Back door........................... 199
Smart entry & start
system ............................. 205
3-3. Adjusting the seats
Front seats ......................... 260
Rear seats ......................... 262
Head restraints .................. 264
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 268
Inside rear view mirror ....... 270
Outside rear view
mirrors ............................. 272
3-5. Opening and closing the
windows
Power windows .................. 275

1863-1. Key information
C-HR_HEV_OM_Europe_OM10764E
Keys

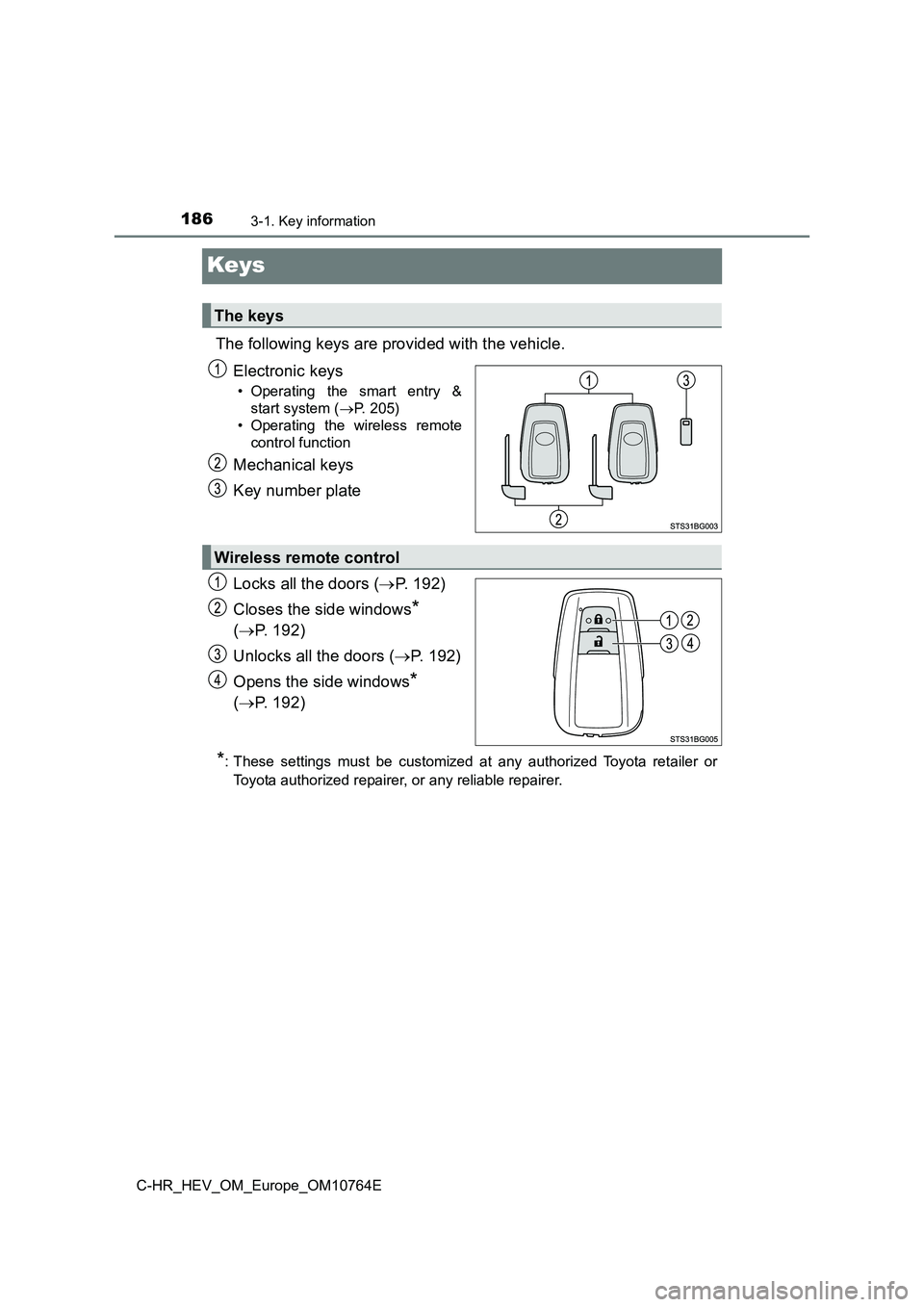

The following keys are provided with the vehicle.
Electronic keys
• Operating the smart entry &
start system ( P. 205)
• Operating the wireless remote
control function
Mechanical keys
Key number plate
Locks all the doors ( P. 192)
Closes the side windows*
( P. 192)
Unlocks all the doors ( P. 1 9 2 )
Opens the side windows*
( P. 192)
*: These settings must be customized at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
The keys
Wireless remote control

1873-1. Key information
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E

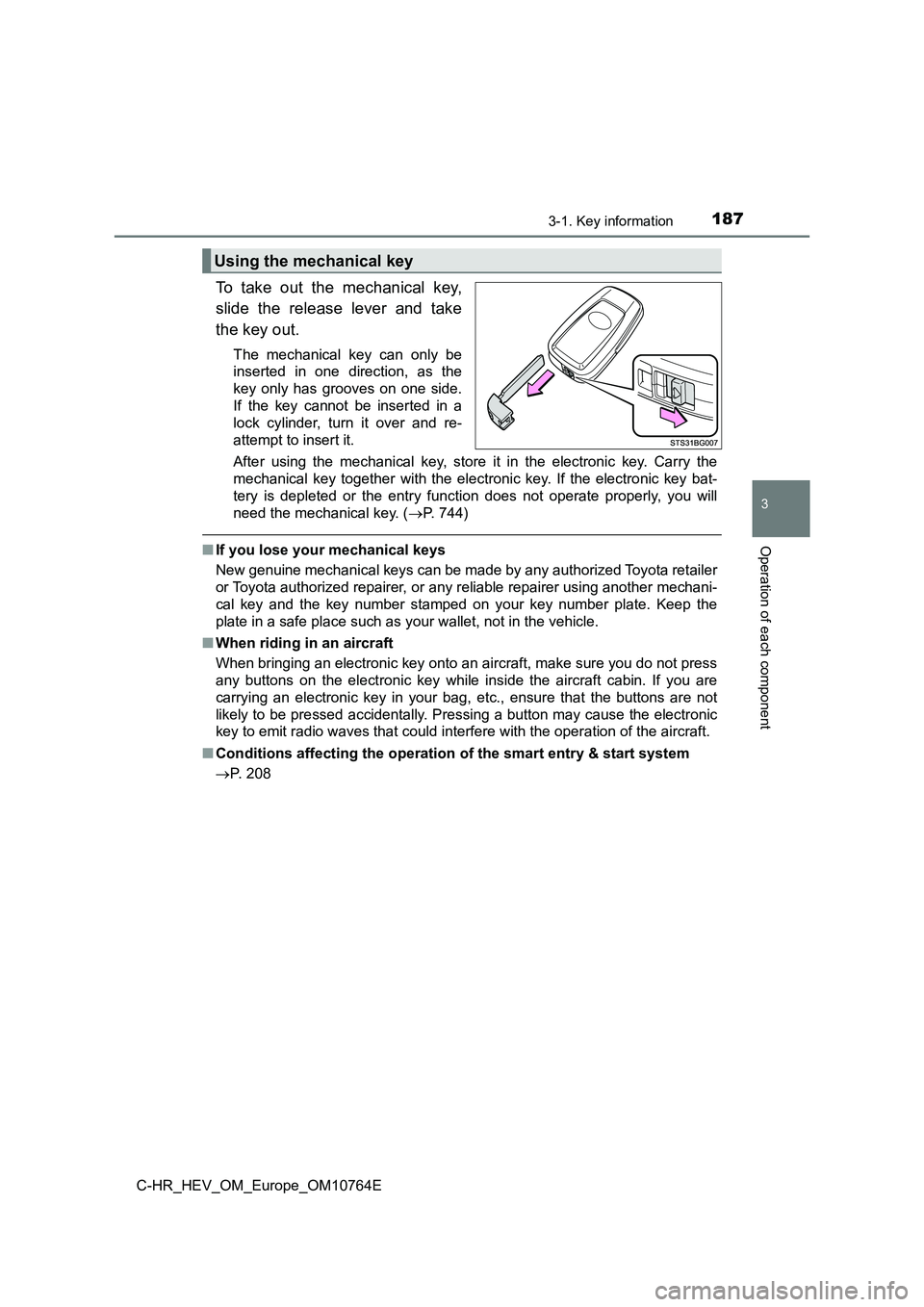

To take out the mechanical key,
slide the release lever and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electro nic key bat-
tery is depleted or the entry function does not operate properl y, you will
need the mechanical key. ( P. 744)
■If you lose your mechanical keys
New genuine mechanical keys can be made by any authorized Toyot a retailer
or Toyota authorized repairer, or any reliable repairer using a nother mechani-
cal key and the key number stamped on your key number plate. Ke ep the
plate in a safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press
any buttons on the electronic key while inside the aircraft cab in. If you are
carrying an electronic key in your bag, etc., ensure that the b uttons are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the aircraft.
■ Conditions affecting the operation of the smart entry & start system
 P. 208
Using the mechanical key

1883-1. Key information
C-HR_HEV_OM_Europe_OM10764E

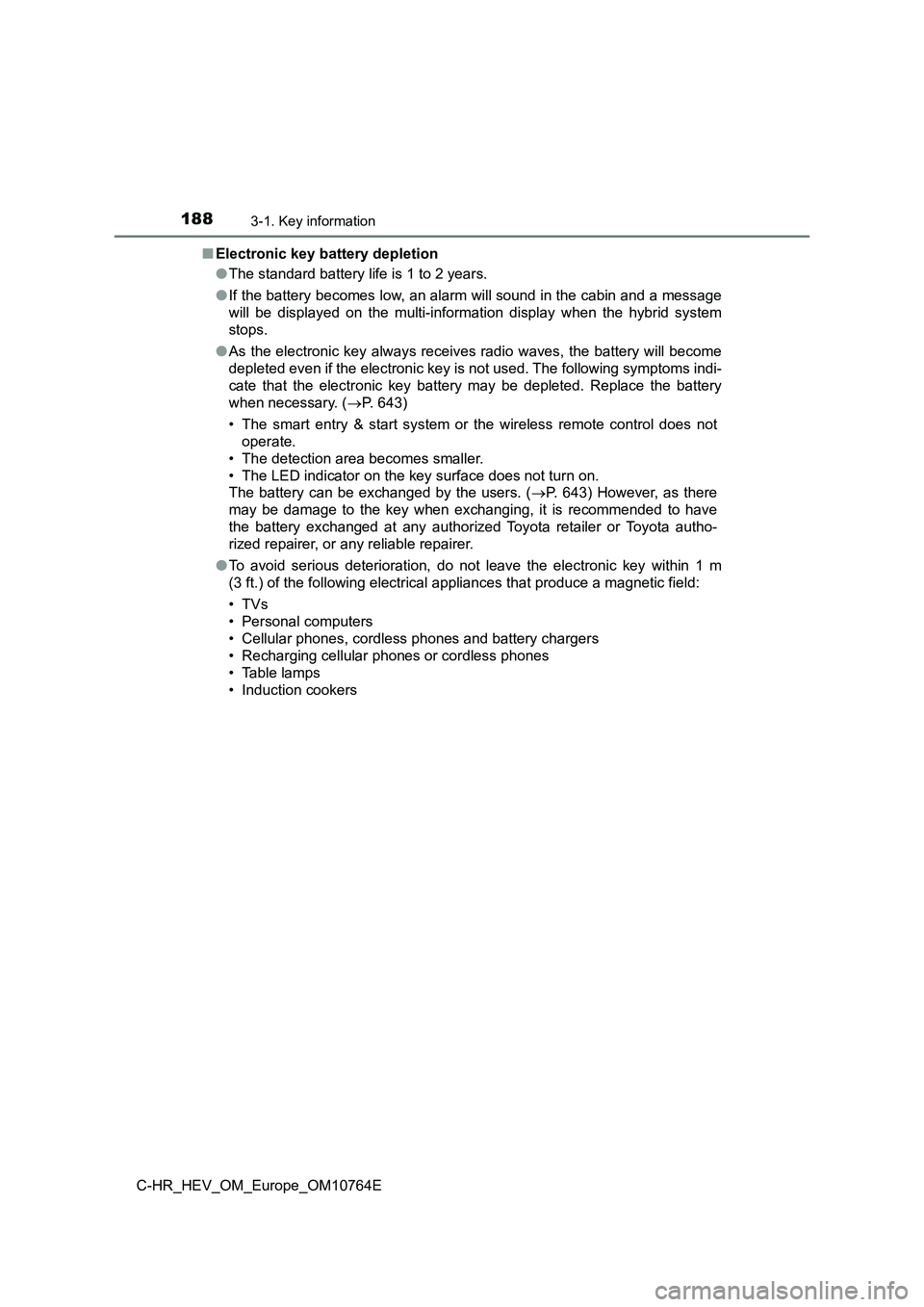

■ Electronic key battery depletion
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin and a message
will be displayed on the multi-information display when the hyb rid system
stops.
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace t he battery
when necessary. ( P. 643)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
The battery can be exchanged by the users. ( P. 643) However, as there
may be damage to the key when exchanging, it is recommended to have
the battery exchanged at any authorized Toyota retailer or Toyo ta autho-
rized repairer, or any reliable repairer.
● To avoid serious deterioration, do not leave the electronic key within 1 m
(3 ft.) of the following electr ical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
