TOYOTA C-HR 2023 Owners Manual

1893-1. Key information
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E
■ When the key battery is fully depleted
 P. 643
■ Confirmation of the registered key number
The number of keys already registered to the vehicle can be con firmed. Ask
any authorized Toyota retailer or Toyota authorized repairer, o r any reliable
repairer for details.
■ If a wrong key is used
On some models, the key cylinder rotates freely to isolate insi de mechanism.
■ Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 779)
■ Certification for the wireless remote control
 P. 212

1903-1. Key information
C-HR_HEV_OM_Europe_OM10764E
NOTICE
■To prevent key damage
● Do not drop the keys, subject them to strong shocks, or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer, etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers, or medical electrical equip-
ment, such as low-frequency therapy equipment.
● Do not place the keys near medical electrical equipment such as low-fre-
quency therapy equipment or microwave therapy equipment, and do not
receive medical attention with the keys on your person.
■ Carrying the electronic key on your person
Carry the electronic key 10 cm (3.9 in.) or more away from elec tric appli-
ances that are turned on. Radio waves emitted from electric app liances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart entry & start system malfunction or other key-related
problems
Take your vehicle with all the electronic keys provided with yo ur vehicle to
any authorized Toyota retailer or Toyota authorized repairer, o r any reliable
repairer.
■ When an electronic key is lost
If the electronic key remains lost, the risk of vehicle theft i ncreases signifi-
cantly. Visit any authorized Toyota retailer or Toyota authoriz ed repairer, or
any reliable repairer immediately with all remaining electronic keys that
were provided with your vehicle.

191
3
3-2. Opening, closing and locking the doors
Operation of each component
C-HR_HEV_OM_Europe_OM10764E
Side doors
◆Entry function (vehicles with a smart entry & start system
equipped with entry function)
Carry the electronic key to enable this function.
Grip the front door handle to
unlock all the doors.*
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Touch the lock sensor (the
indentation on the surface of
the front door handle) to lock
all the doors.
Check that the door is securely locked.
*: The door unlock settings can be changed. ( P. 196)
Unlocking and locking the doors from the outside

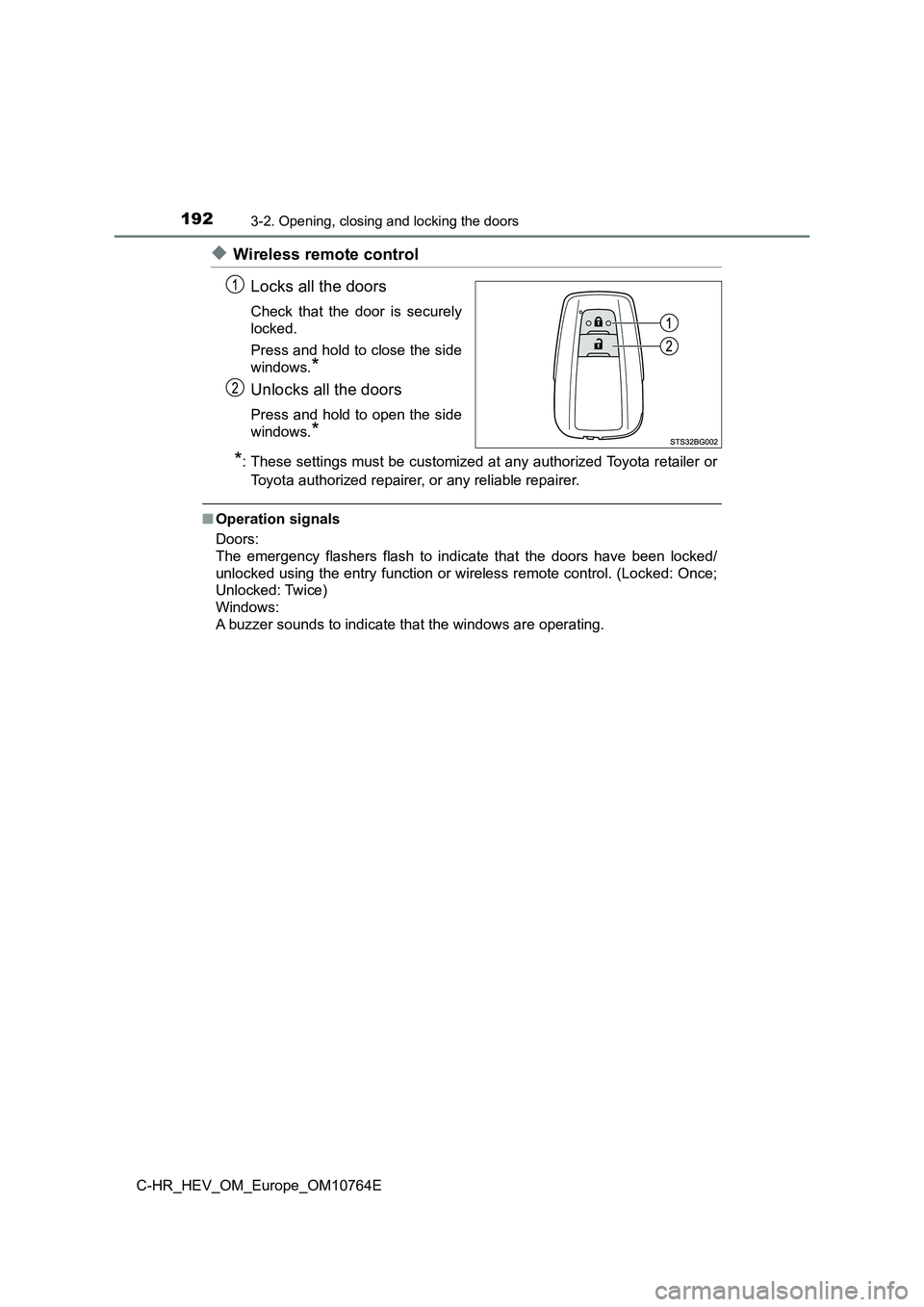

1923-2. Opening, closing and locking the doors
C-HR_HEV_OM_Europe_OM10764E
◆Wireless remote control
Locks all the doors
Check that the door is securely
locked.
Press and hold to close the side
windows.*
Unlocks all the doors
Press and hold to open the side
windows.*
*: These settings must be customized at any authorized Toyota ret ailer or
Toyota authorized repairer, or any reliable repairer.
■Operation signals
Doors:
The emergency flashers flash to indicate that the doors have be en locked/
unlocked using the entry function or wireless remote control. ( Locked: Once;
Unlocked: Twice)
Windows:
A buzzer sounds to indicate that the windows are operating.

1933-2. Opening, closing and locking the doors
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E
■ Security feature
If a door is not opened within approximately 30 seconds after t he vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ When the door cannot be locked by the lock sensor on the surface of the
front door handle (vehicl es with an entry function)
■ Door lock buzzer
If an attempt to lock the doors using the entry function or wir eless remote
control is made when a door is not fully closed, a buzzer will sound continu-
ously for 5 seconds. Fully close the door to stop the buzzer, a nd lock the
doors again.
■ Setting the alarm (if equipped)
Lock the doors will set the alarm system. ( P. 146)
■ If the smart entry & start system or the wireless remote control does not
operate properly
● Use the mechanical key to lock and unlock the doors. (P. 744)
● Replace the key battery with a new one if it is depleted. (P. 643)
Use your palm to touch the lock sensor.

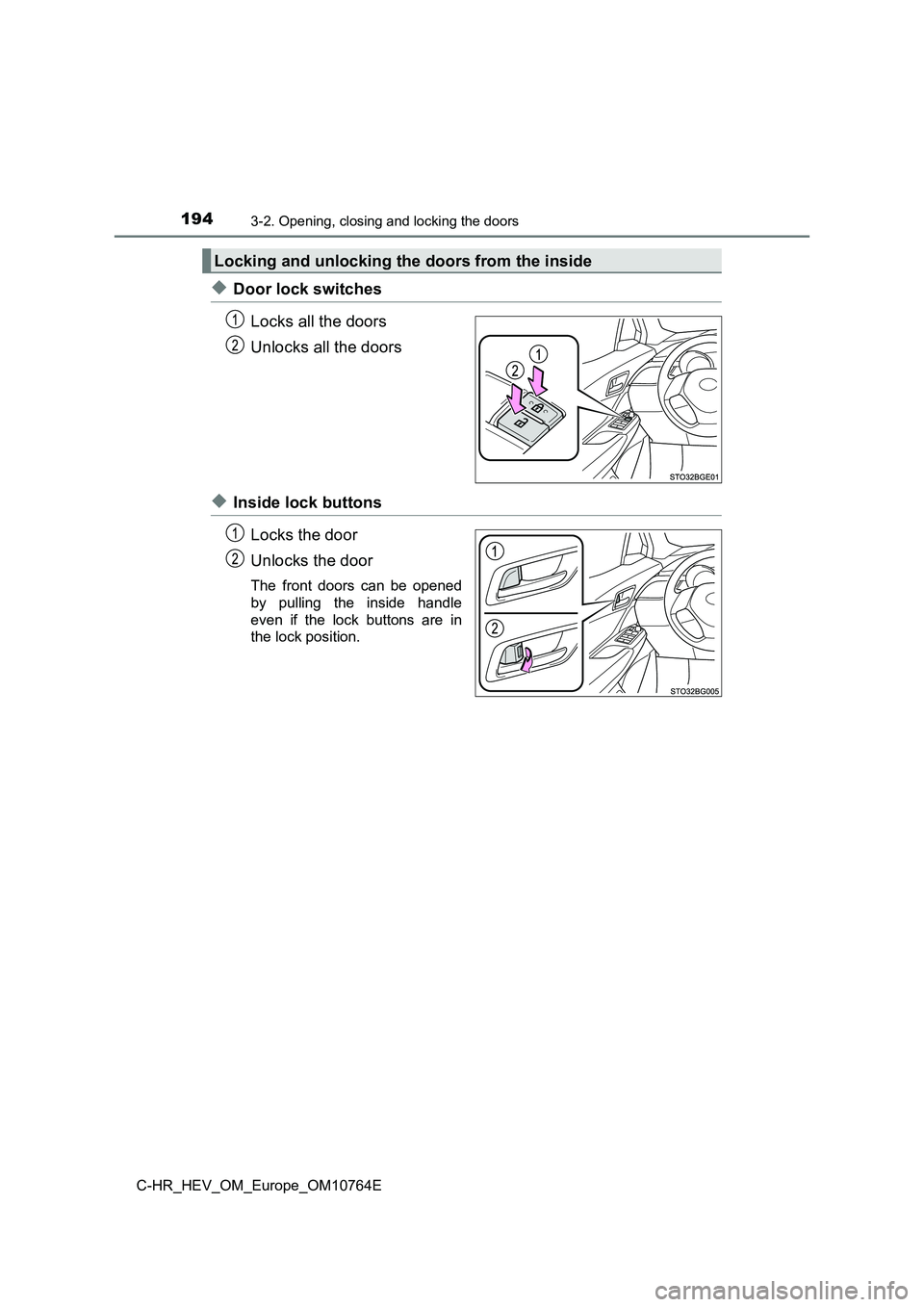

1943-2. Opening, closing and locking the doors
C-HR_HEV_OM_Europe_OM10764E
◆Door lock switches
Locks all the doors
Unlocks all the doors
◆Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Locking and unlocking the doors from the inside

1953-2. Opening, closing and locking the doors
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
The door cannot be locked if the power switch is in ACCESSORY o r
ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locke d.
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
Locking the front doors from the outside without a key
Rear door child-protector lock
1
2

1963-2. Opening, closing and locking the doors
C-HR_HEV_OM_Europe_OM10764E
■Switching the door unlock function (vehicles with a smart entry & start
system equipped with entry function)
It is possible to set which doors the entry function unlocks us ing the wireless
remote control.
Turn the power switch off.
Cancel the intrusion sensor of the alarm system to prevent unin tended trig-
gering of the alarm while c hanging the settings. (if equipped) (P. 150)
When the indicator light on the key surface is not on, press an d hold for
approximately 5 seconds while pressing and holding .
The setting changes each time an operation is performed, as sho wn below.
(When changing the setting continuously, release the buttons, w ait for at least
5 seconds, and repeat step .)
For vehicles with an alarm: To prevent unintended triggering of the alarm,
unlock the doors using the wireless remote control and open and close a door
once after the settings have been changed. (If a door is not op ened within 30
seconds after is pressed, the doors will be locked again and t he alarm will
automatically be set.)
In a case that the alarm is triggered, immediately stop the ala rm. (P. 146)
1
2
3
3
Multi-information
displayUnlocking functionBeep
(Left-hand drive
vehicles)
Holding the driver’s
door handle unlocks
only the driver’s door.
Exterior: Beeps 3 times
Interior: Pings once
(Right-hand drive
vehicles)
Holding the front pas-
senger’s door handle
unlocks all the doors.
Holding a door handle
unlocks all the doors.
Exterior: Beeps twice
Interior: Pings once

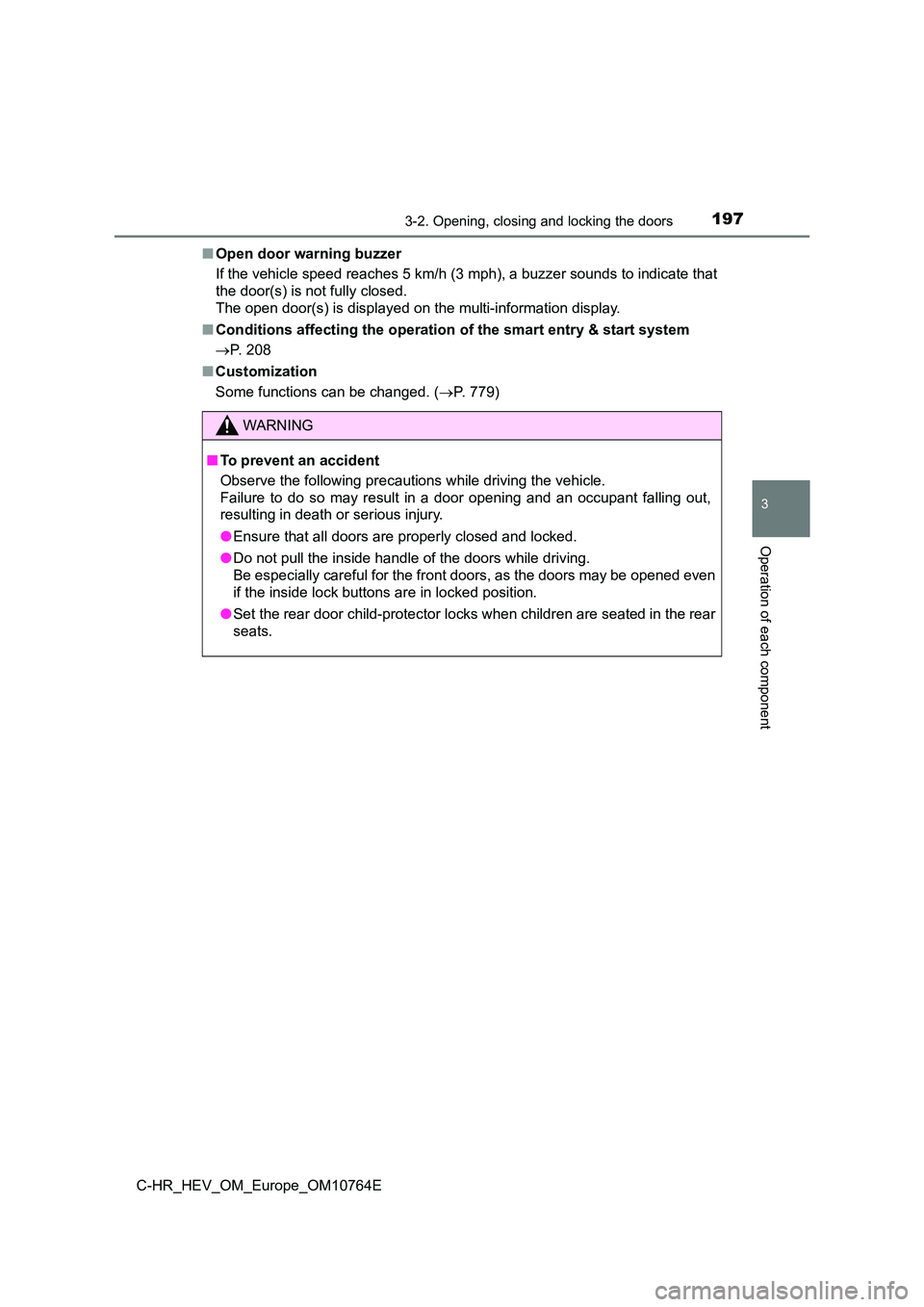

1973-2. Opening, closing and locking the doors
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E
■ Open door warning buzzer
If the vehicle speed reaches 5 km/h (3 mph), a buzzer sounds to indicate that
the door(s) is not fully closed.
The open door(s) is displayed on the multi-information display.
■ Conditions affecting the operation of the smart entry & start system
 P. 208
■ Customization
Some functions can be changed. ( P. 779)
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant f alling out,
resulting in death or serious injury.
● Ensure that all doors are properly closed and locked.
● Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seats.

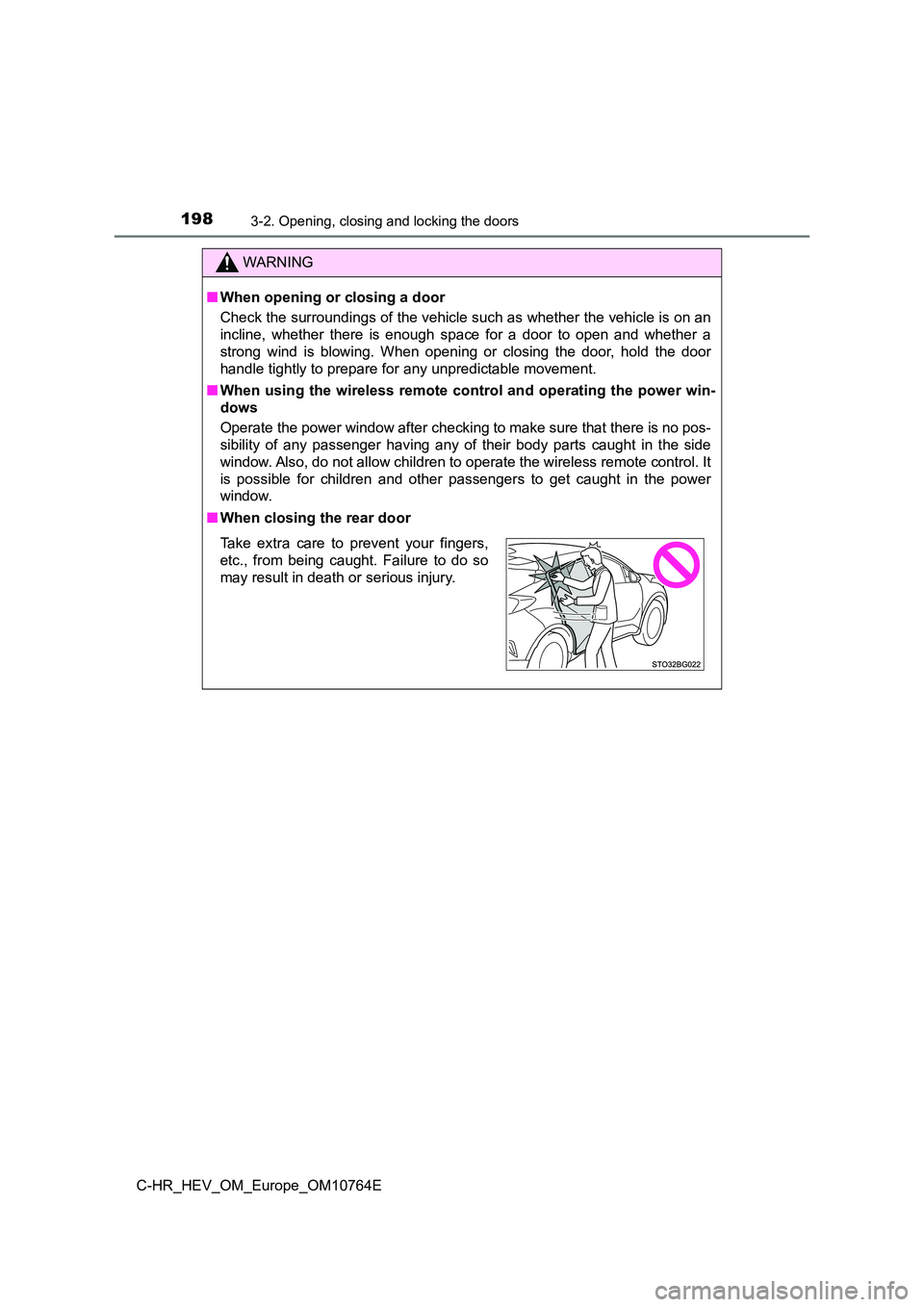

1983-2. Opening, closing and locking the doors
C-HR_HEV_OM_Europe_OM10764E
WARNING
■When opening or closing a door
Check the surroundings of the vehicle such as whether the vehic le is on an
incline, whether there is enough space for a door to open and w hether a
strong wind is blowing. When opening or closing the door, hold the door
handle tightly to prepare for any unpredictable movement.
■ When using the wireless remote control and operating the power win-
dows
Operate the power window after checking to make sure that there is no pos-
sibility of any passenger having any of their body parts caught in the side
window. Also, do not allow children to operate the wireless rem ote control. It
is possible for children and other passengers to get caught in the power
window.
■ When closing the rear door
Take extra care to prevent your fingers,
etc., from being caught. Failure to do so
may result in death or serious injury.
