TOYOTA C-HR 2023 Owners Manual

1491-5. Theft deterrent system
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

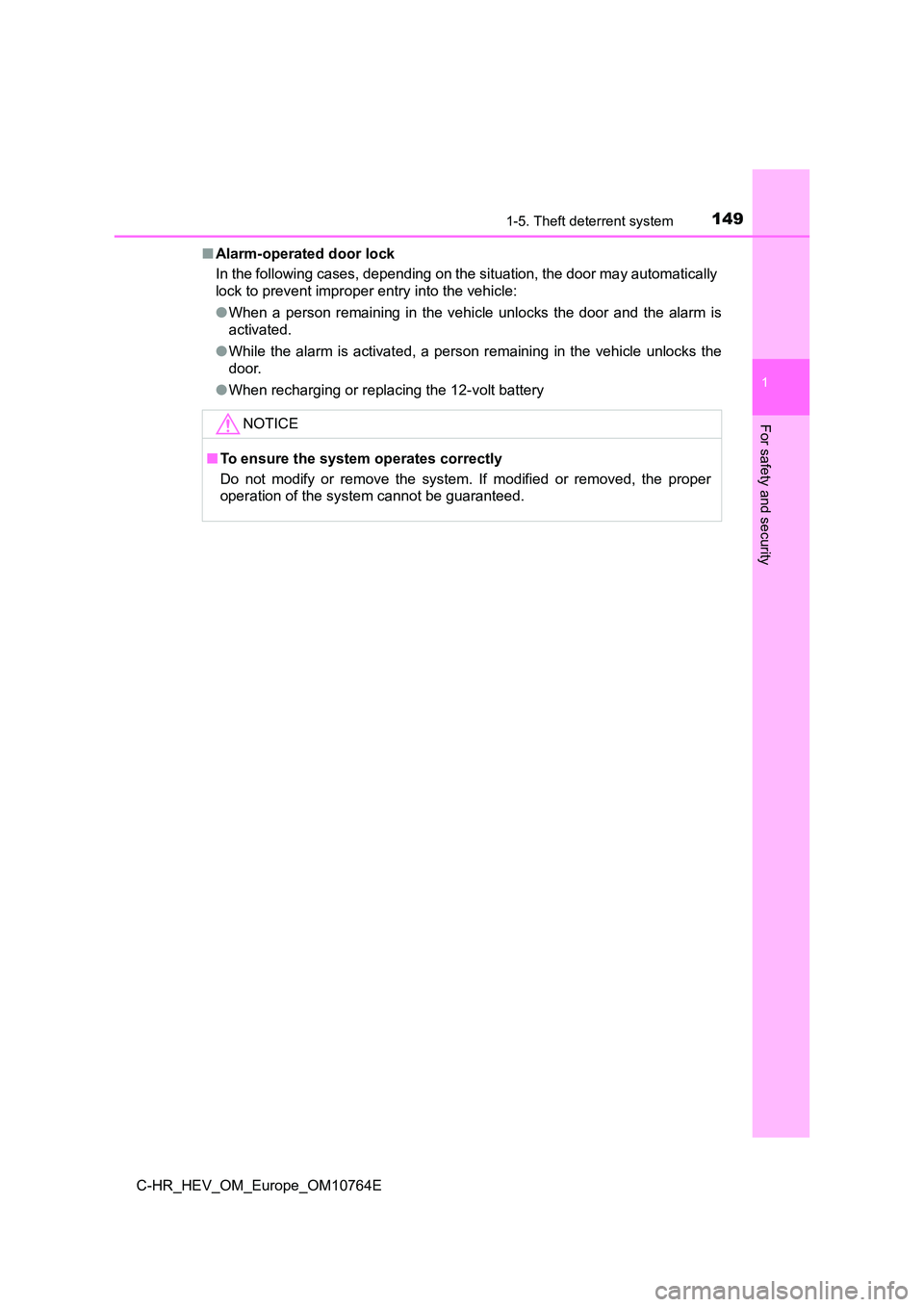

■ Alarm-operated door lock
In the following cases, depending on the situation, the door ma y automatically
lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm is
activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the
door.
● When recharging or replacing the 12-volt battery
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

1501-5. Theft deterrent system
C-HR_HEV_OM_Europe_OM10764E
The intrusion sensor detects intruders or movement in the vehicle.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm i s set.
( P. 146)
■Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehic le,
make sure to disable the intrusion sensor before setting the al arm,
as it will respond to movement inside the vehicle.
Turn the power switch off.
Press the theft sensor off
switch.
A message will be shown on
the multi-information display.
The intrusion sensor will revert
to on each time the power
switch is turned to ON mode.
Intrusion sensor (if equipped)
1
2

1511-5. Theft deterrent system
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E
■Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● After the intrusion sensor is canceled, pressing the power switch or unlock-
ing the doors using the entry function (if equipped) or wireles s remote con-
trol will re-enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
■ Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
• The movement of people outside the vehicle
● People or pets are in the vehicle.
● A side window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles

1521-5. Theft deterrent system
C-HR_HEV_OM_Europe_OM10764E

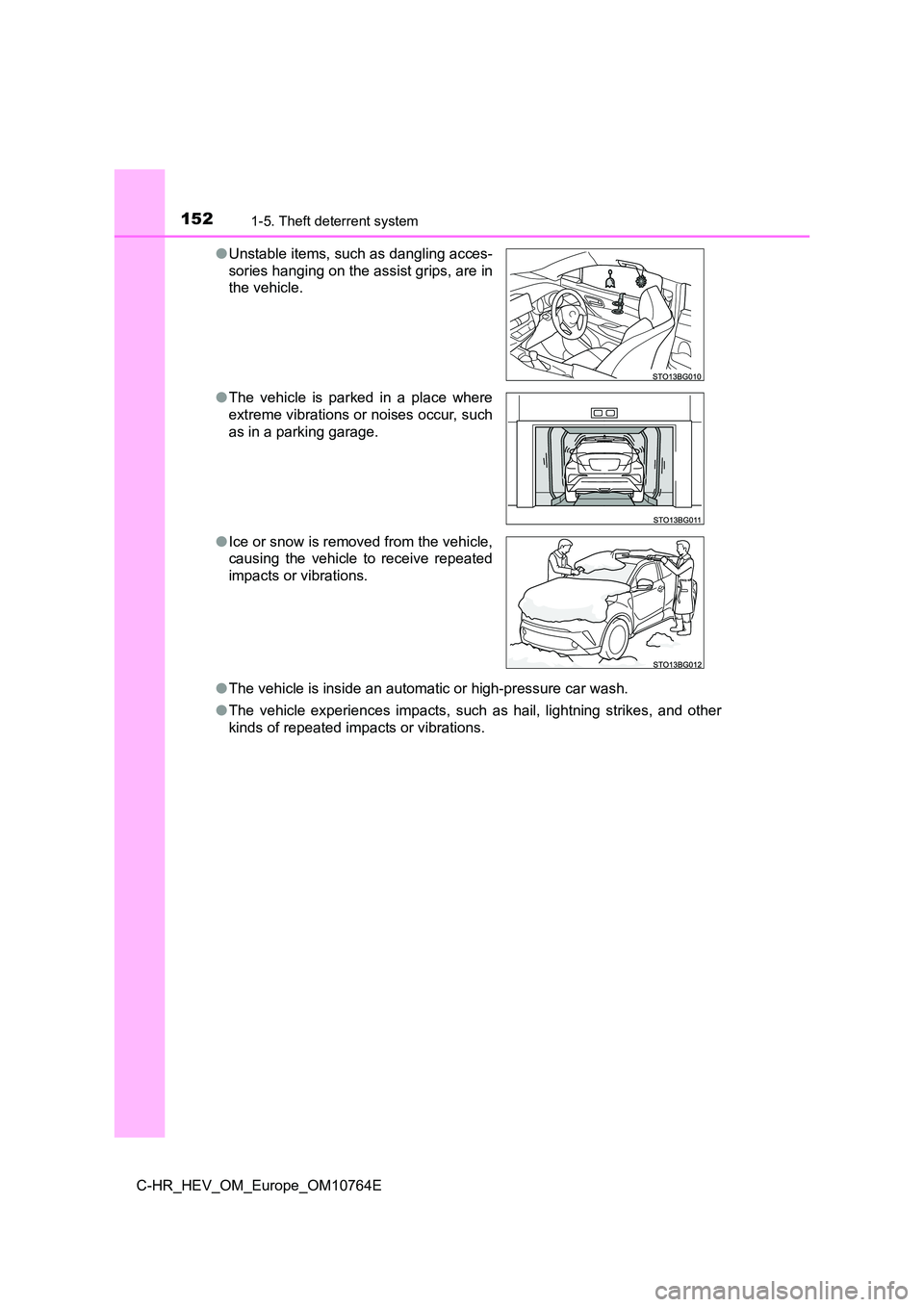

● The vehicle is inside an automatic or high-pressure car wash.
● The vehicle experiences impacts, such as hail, lightning strikes, and other
kinds of repeated impacts or vibrations.
● Unstable items, such as dangling acces-
sories hanging on the assist grips, are in
the vehicle.
● The vehicle is parked in a place where
extreme vibrations or noises occur, such
as in a parking garage.
● Ice or snow is removed from the vehicle,
causing the vehicle to receive repeated
impacts or vibrations.

1531-5. Theft deterrent system
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E
NOTICE
■To ensure the intrusion sensor functions correctly
● Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
● To ensure that the sensors operate
properly, do not touch or cover them.
● Do not spray air fresheners or other
products directly into the sensor holes.

1541-5. Theft deterrent system
C-HR_HEV_OM_Europe_OM10764E

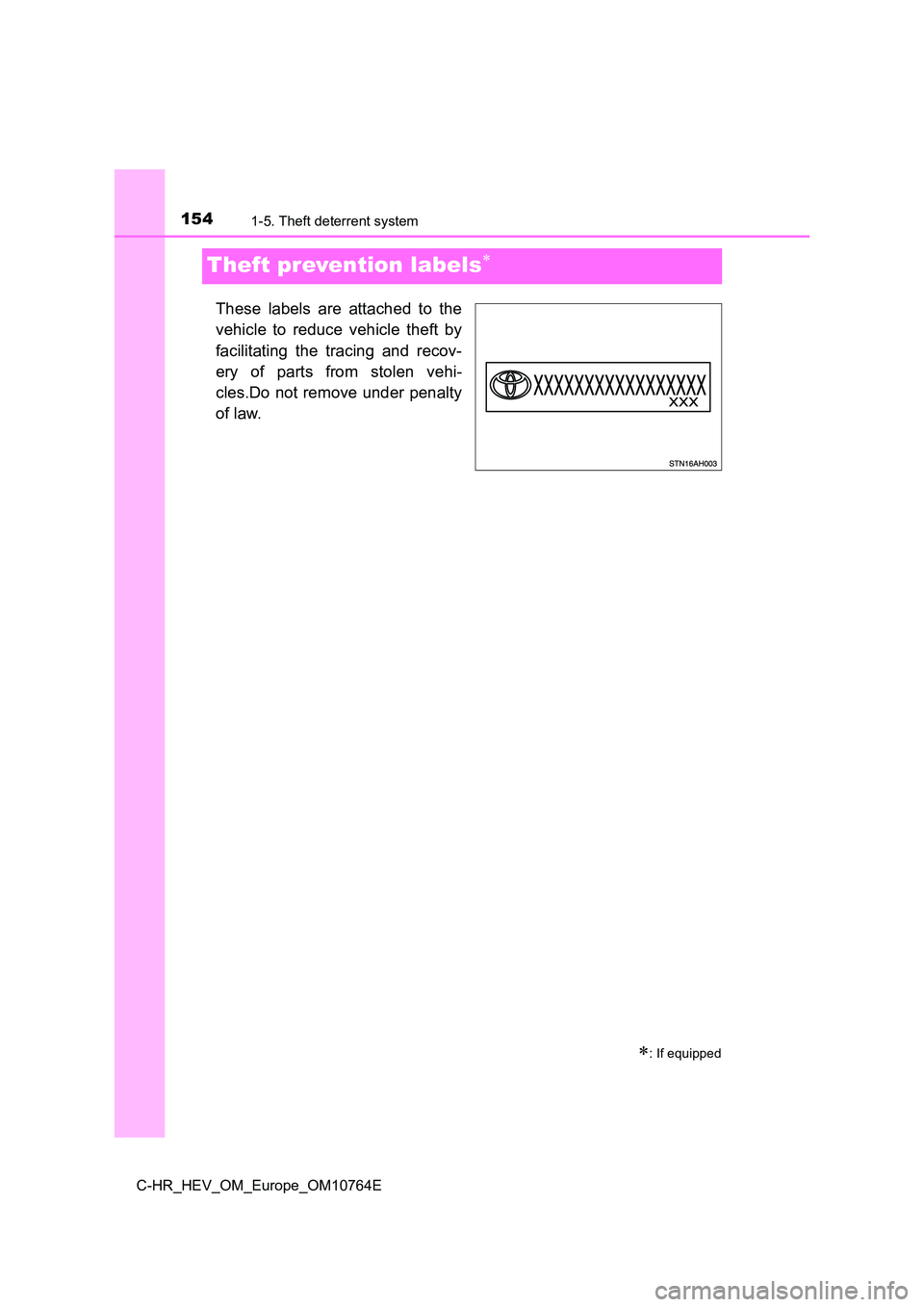

Theft prevention labels
These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehi-
cles.Do not remove under penalty
of law.
: If equipped

155

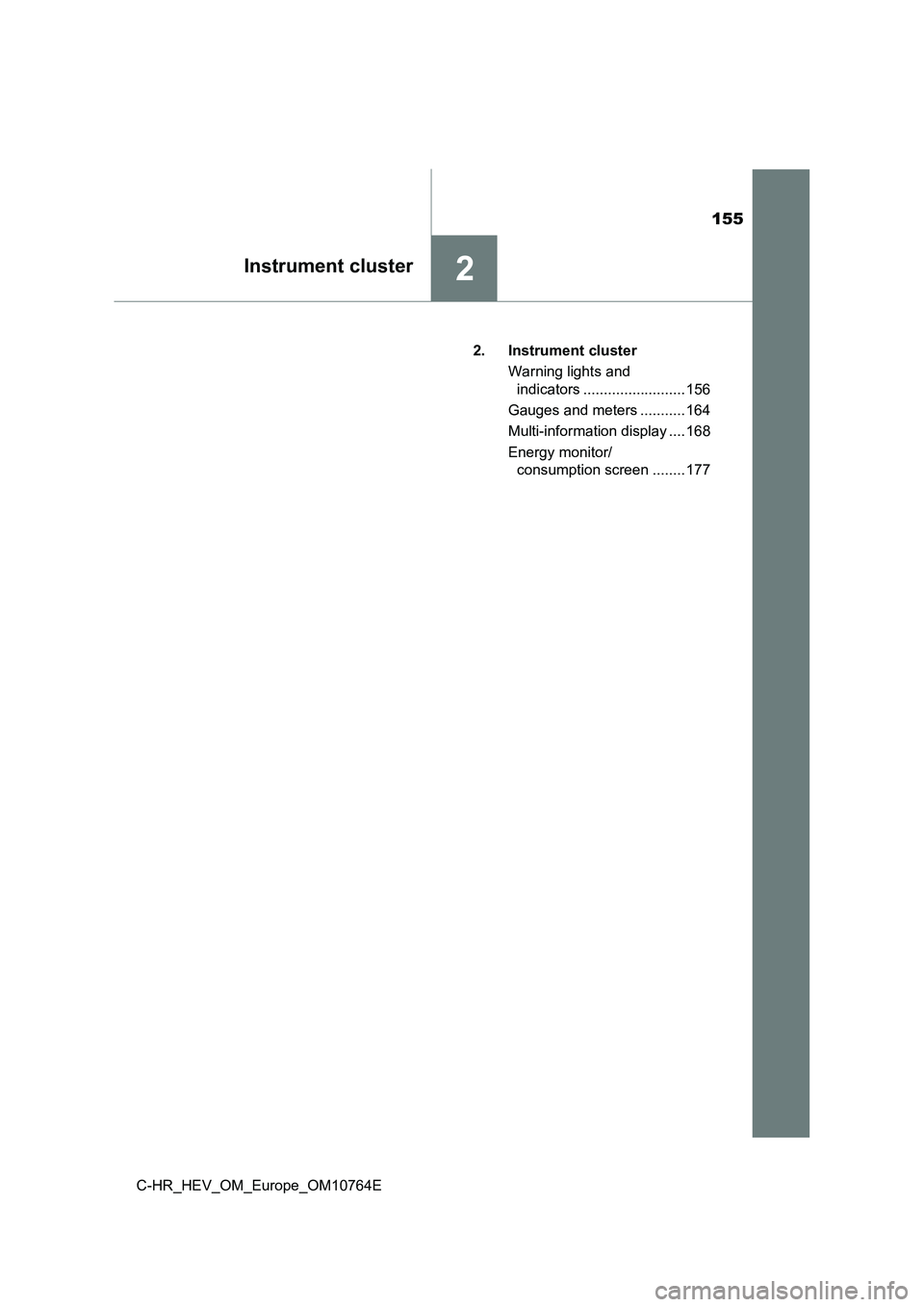

2Instrument cluster
C-HR_HEV_OM_Europe_OM10764E
2. Instrument cluster
Warning lights and
indicators ......................... 156
Gauges and meters ........... 164
Multi-information display .... 168
Energy monitor/
consumption screen ........ 177

1562. Instrument cluster
C-HR_HEV_OM_Europe_OM10764E

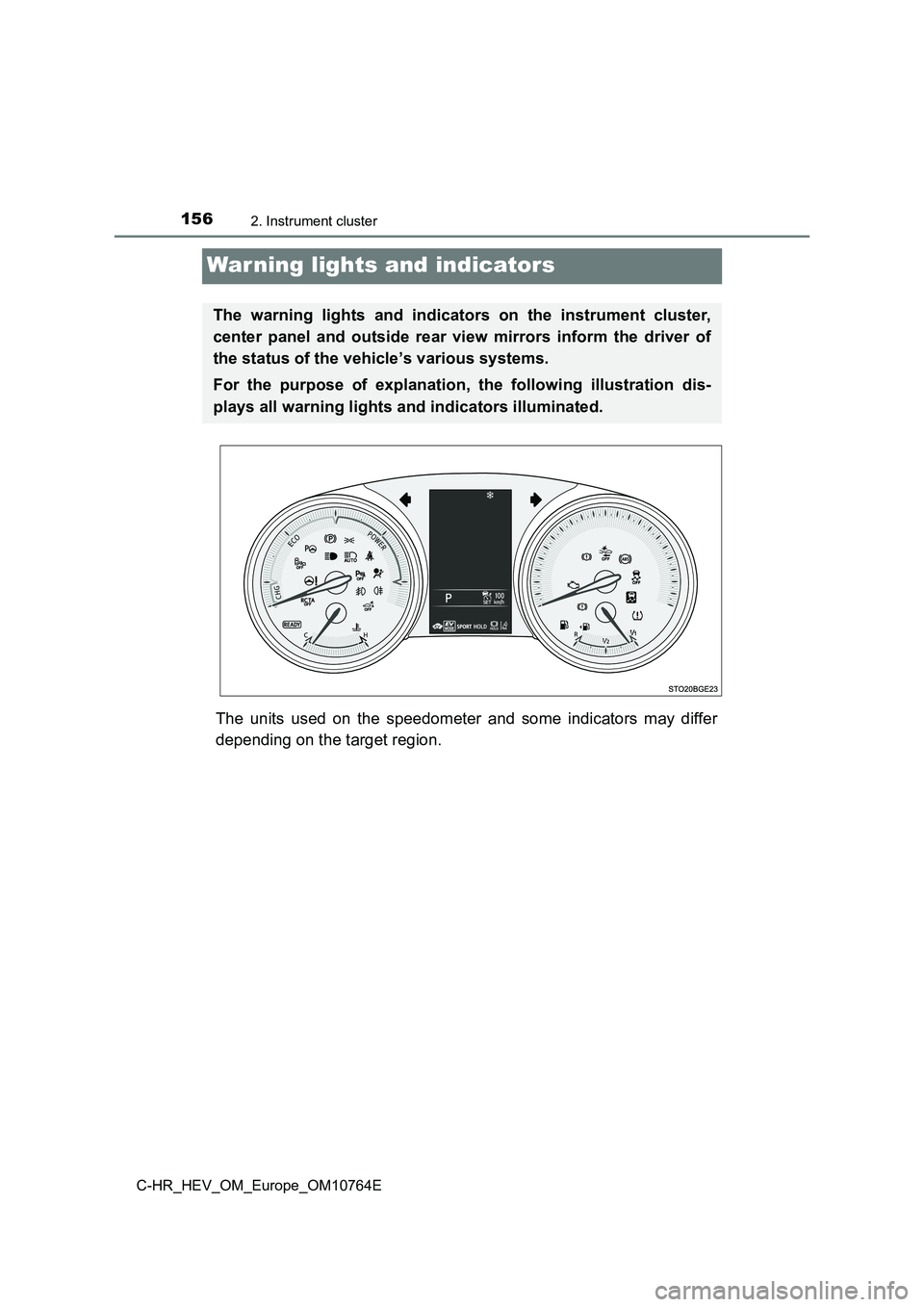

War ning lights and indicators
The units used on the speedometer and some indicators may differ
depending on the target region.
The warning lights and indicators on the instrument cluster,
center panel and outside rear view mirrors inform the driver of
the status of the vehicle’s various systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

1572. Instrument cluster
2
Instrument cluster
C-HR_HEV_OM_Europe_OM10764E

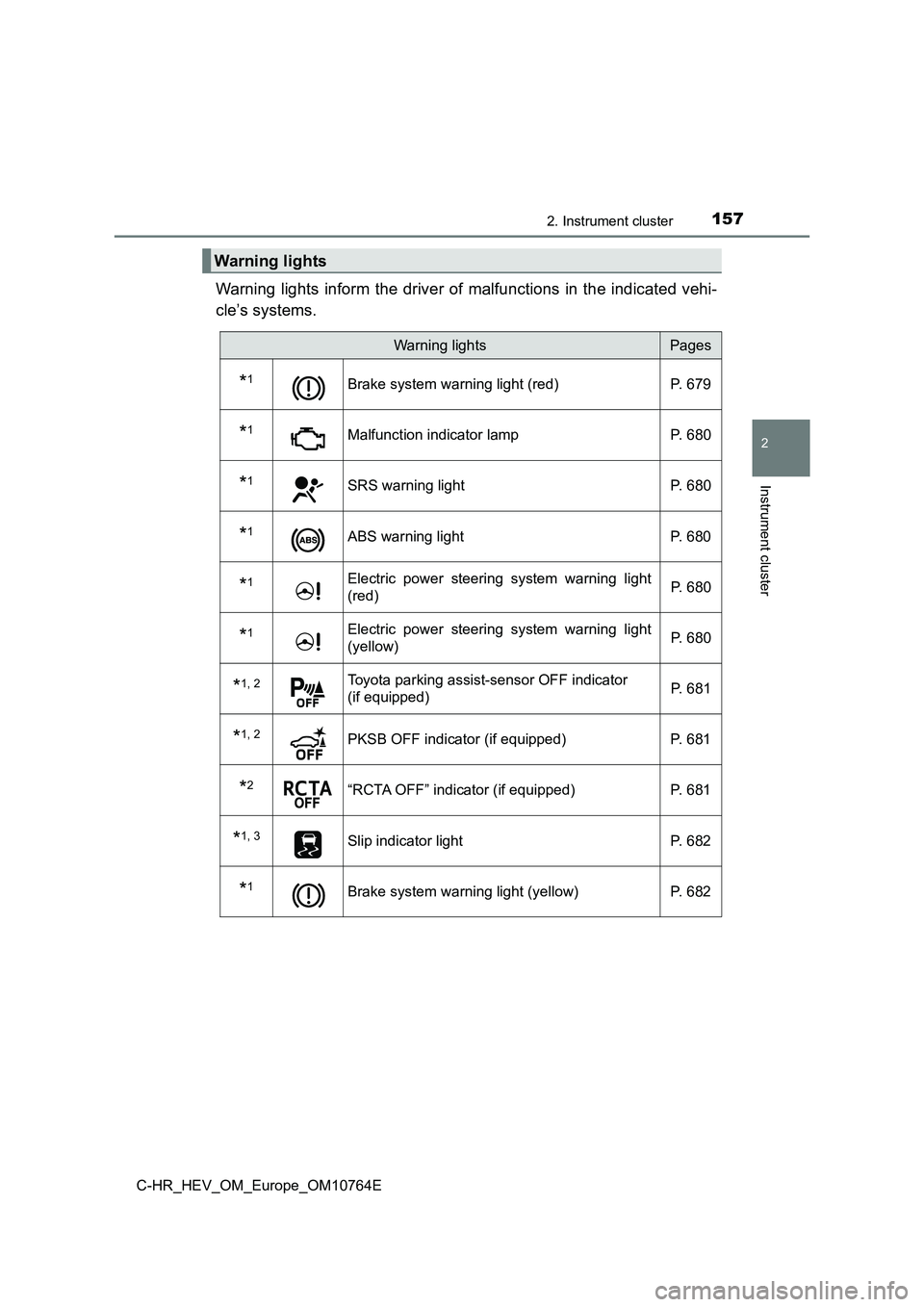

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
Warning lightsPages
*1Brake system warning light (red) P. 679
*1Malfunction indicator lamp P. 680
*1SRS warning light P. 680
*1ABS warning light P. 680
*1Electric power steering system warning light
(red) P. 6 8 0
*1Electric power steering system warning light
(yellow) P. 6 8 0
*1, 2Toyota parking assist-sensor OFF indicator
(if equipped) P. 6 8 1
*1, 2PKSB OFF indicator (if equipped) P. 681
*2“RCTA OFF” indicator (if equipped) P. 681
*1, 3Slip indicator light P. 682
*1Brake system warning light (yellow) P. 682

1582. Instrument cluster
C-HR_HEV_OM_Europe_OM10764E

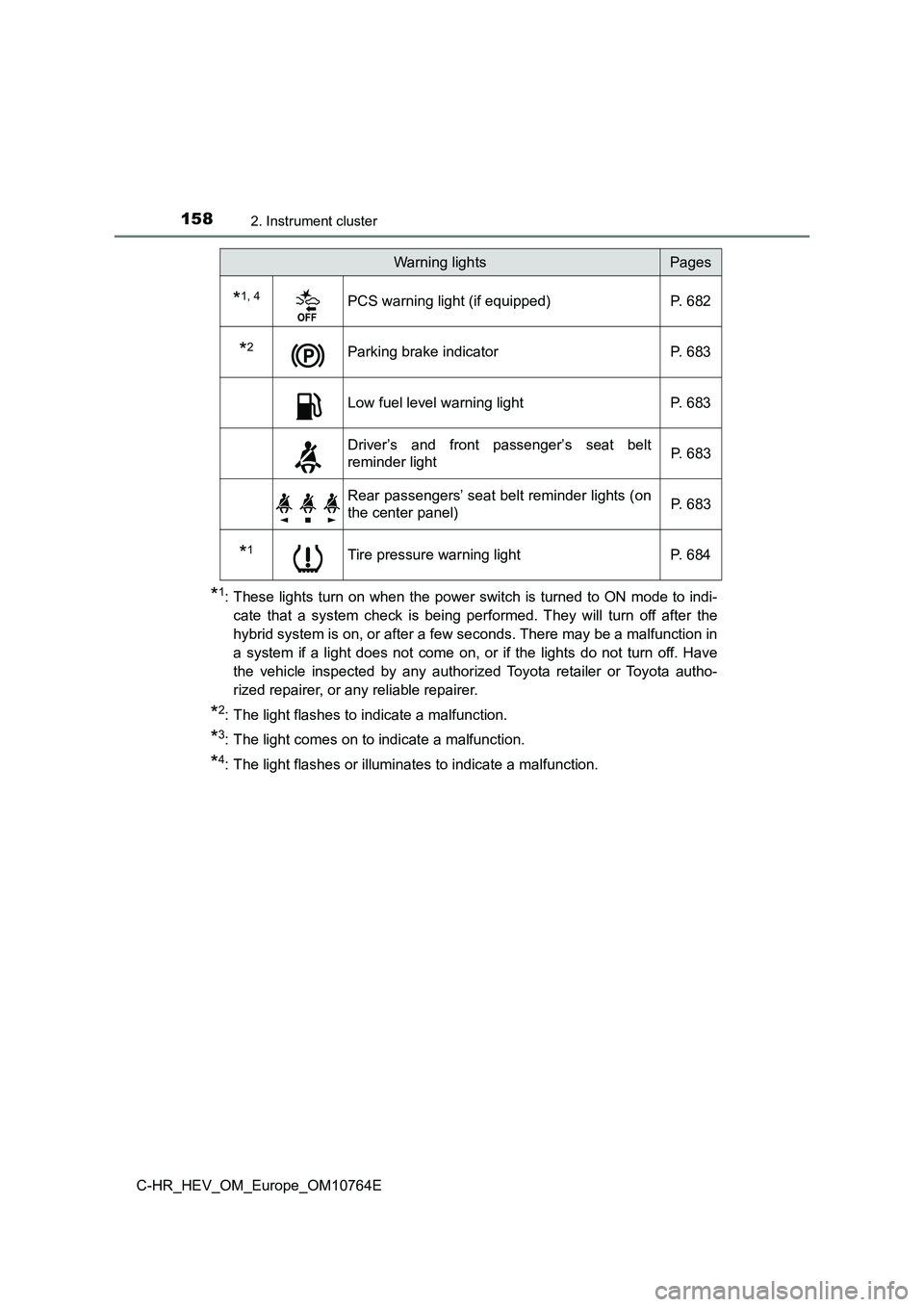

*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a mal function in
a system if a light does not come on, or if the lights do not t urn off. Have
the vehicle inspected by any authorized Toyota retailer or Toyo ta autho-
rized repairer, or any reliable repairer.
*2: The light flashes to indicate a malfunction.
*3: The light comes on to indicate a malfunction.
*4: The light flashes or illuminates to indicate a malfunction.
*1, 4PCS warning light (if equipped) P. 682
*2Parking brake indicator P. 683
Low fuel level warning light P. 683
Driver’s and front passenger’s seat belt
reminder light P. 6 8 3
Rear passengers’ seat belt reminder lights (on
the center panel) P. 6 8 3
*1Tire pressure warning light P. 684
Warning lightsPages
