“Narrow Space”
The S-IPA switch is operated when there is
not enough space to the front and rear of the
vehicle when departing fr om a parallel park-
ing spot.
 The vehicle cannot depart using assist
control as there is not enough space to
the front and rear of the vehicle. Con-
firm the safety of your surroundings
before departing.
“Unavailable”
The S-IPA switch is operated in an area
where there are no obstacles to the front of
the vehicle, or there are obstacles to the
sides and the vehicle cannot depart from the
parallel parking spot.
 Assist control cannot be used for
departure, as there are obstacles to the
sides of the vehicle or departure can
easily be performed manually. Confirm
the safety of your surroundings before
departing.
“Pressure Applied to Steer-
ing Wheel”
Assist control is started while the steering
wheel is held.
 Rest your hands on the steering wheel
without applying any force. Assist con-
trol will start.
“Stop the Vehicle”
The vehicle is moved and assist control is
started while the steering wheel is held.
 Stop the vehicle and follow the guid-
ance provided by the system to start
assist control.
MessageSituation/Handling method

5204-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E

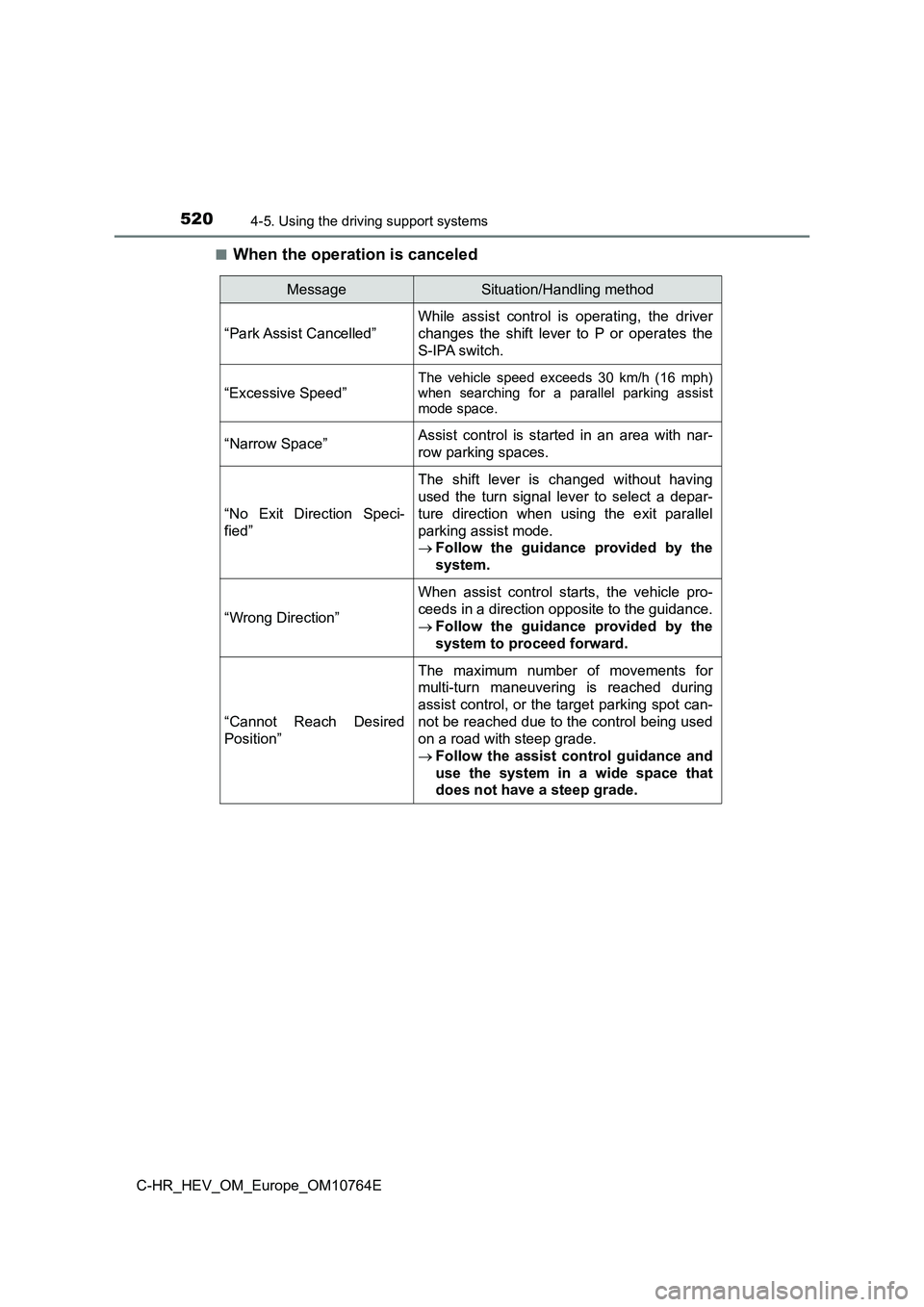

■When the operation is canceled
MessageSituation/Handling method
“Park Assist Cancelled”
While assist control is operating, the driver
changes the shift lever to P or operates the
S-IPA switch.
“Excessive Speed”
The vehicle speed exceeds 30 km/h (16 mph) when searching for a parallel parking assist
mode space.
“Narrow Space”Assist control is started in an area with nar-
row parking spaces.
“No Exit Direction Speci-
fied”
The shift lever is changed without having
used the turn signal lever to select a depar-
ture direction when using the exit parallel
parking assist mode.
 Follow the guidance provided by the
system.
“Wrong Direction”
When assist control starts, the vehicle pro-
ceeds in a direction opposite to the guidance.
 Follow the guidance provided by the
system to proceed forward.
“Cannot Reach Desired
Position”
The maximum number of movements for
multi-turn maneuvering is reached during
assist control, or the target parking spot can-
not be reached due to the control being used
on a road with steep grade.
 Follow the assist control guidance and
use the system in a wide space that
does not have a steep grade.

5214-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
■When the operation is suspended
MessageSituation/Handling method
“Steering Wheel Turned”
The driver holds the steering wheel during
assist control.
 Stop the vehicle and rest your hands on
the steering wheel without applying any
force. Then, press the S-IPA switch to
restart assist control.
“Excessive Speed”
The vehicle speed exceeds 7 km/h (4 mph)
during assist control.
 Stop the vehicle and rest your hands on
the steering wheel without applying any
force. Then, press the S-IPA switch to
restart assist control.
“Pressure Applied to Steer-
ing Wheel”
The S-IPA switch is pressed while assist con-
trol is temporarily stopped and the steering
wheel is firmly held.
 Rest your hands on the steering wheel
without applying any force. Then stop
the vehicle to restart assist control.
“Stop the Vehicle”
The S-IPA switch is pressed while assist con-
trol is temporarily stopped and the vehicle is
moving.
 Rest your hands on the steering wheel
without applying any force. Then stop
the vehicle to restart assist control.

5224-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
■Sensors
Detect the vehicle to help determine the parking spot.
Front side sensors
Rear side sensors
“Resume”
Assist control is temporarily stopped (able to
be restarted)
 Stop the vehicle and rest your hands on
the steering wheel without applying any
force. Then press the S-IPA switch to
restart assist control.
“Too Close to Obstacle at
Front”
“Back Up”
The vehicle moved too close to an obstacle in
front of the vehicle.
 Press the S-IPA switch after changing
the shift lever to R to restart assist con-
trol.
“Too Close to Obstacle at
Rear”
“Go Forward”
The vehicle moved too close to an obstacle
to the rear of the vehicle.
 Press the S-IPA switch after changing
the shift lever to D to restart assist con-
trol.
MessageSituation/Handling method
Precautions during use

5234-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
●When there is a parked vehicle behind the target parking spot, it may not be
detected due to the distance. Also, depending on the shape of t he vehicle
and other conditions, the detectable range may shorten or detec tion may
not be possible.

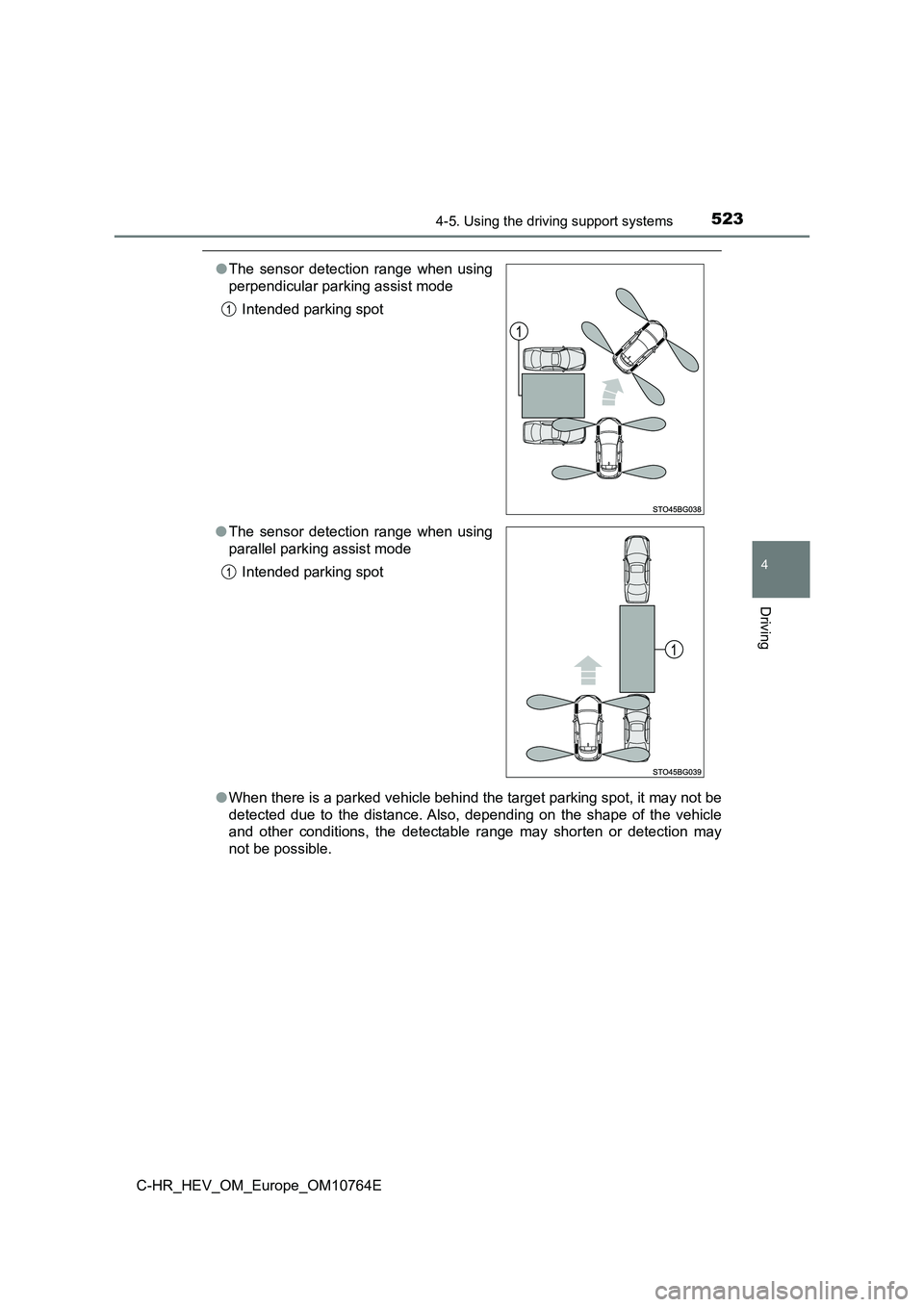

● The sensor detection range when using
perpendicular parking assist mode
Intended parking spot
● The sensor detection range when using
parallel parking assist mode
Intended parking spot

5244-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
● The Simple Intelligent Parking Assist System may not operate if grating, dia-
mond plates or similar materials are detected on the surface of the parking
space.

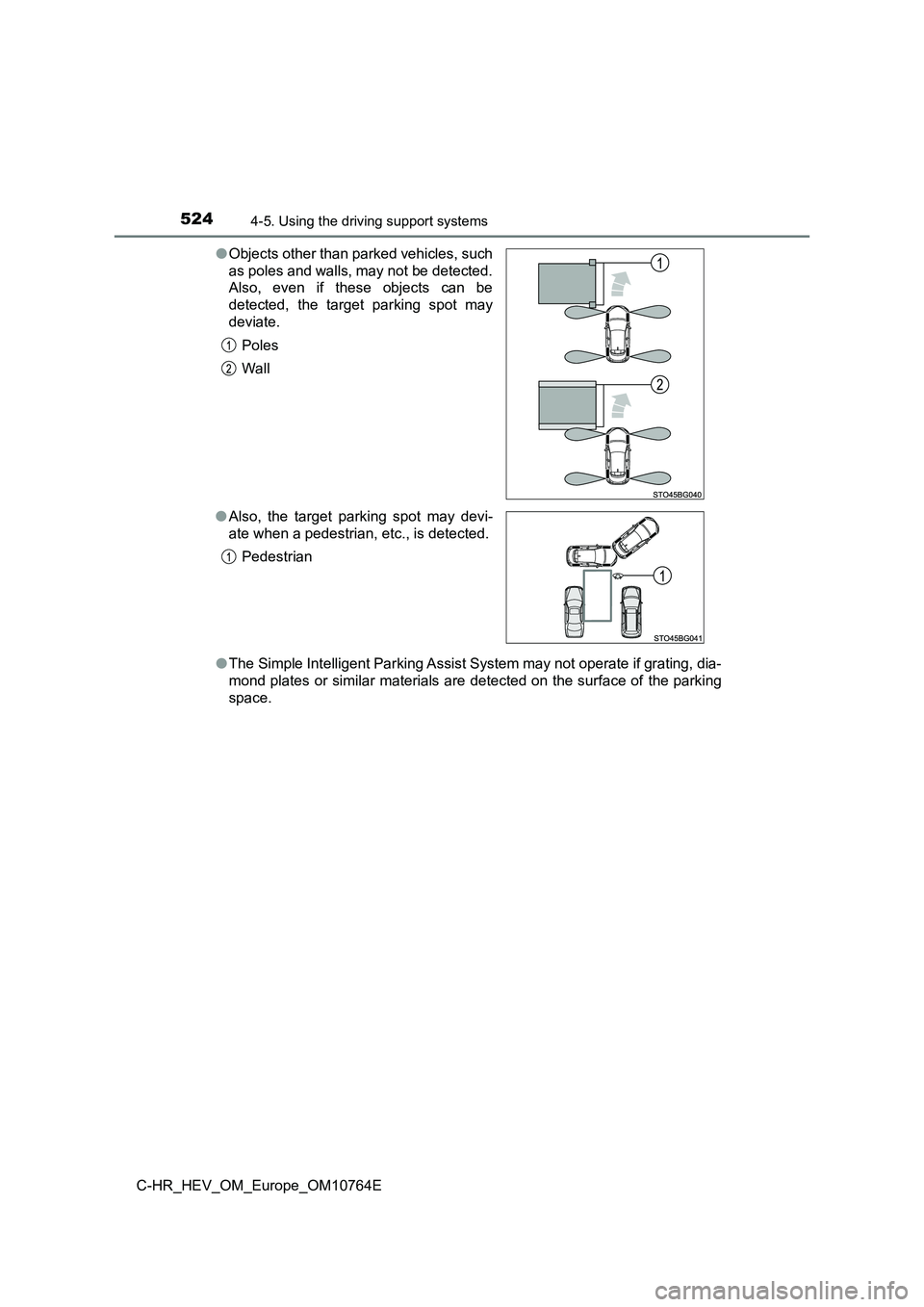

● Objects other than parked vehicles, such
as poles and walls, may not be detected.
Also, even if these objects can be
detected, the target parking spot may
deviate.
Poles
Wal l
● Also, the target parking spot may devi-
ate when a pedestrian, etc., is detected.
Pedestrian

5254-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E

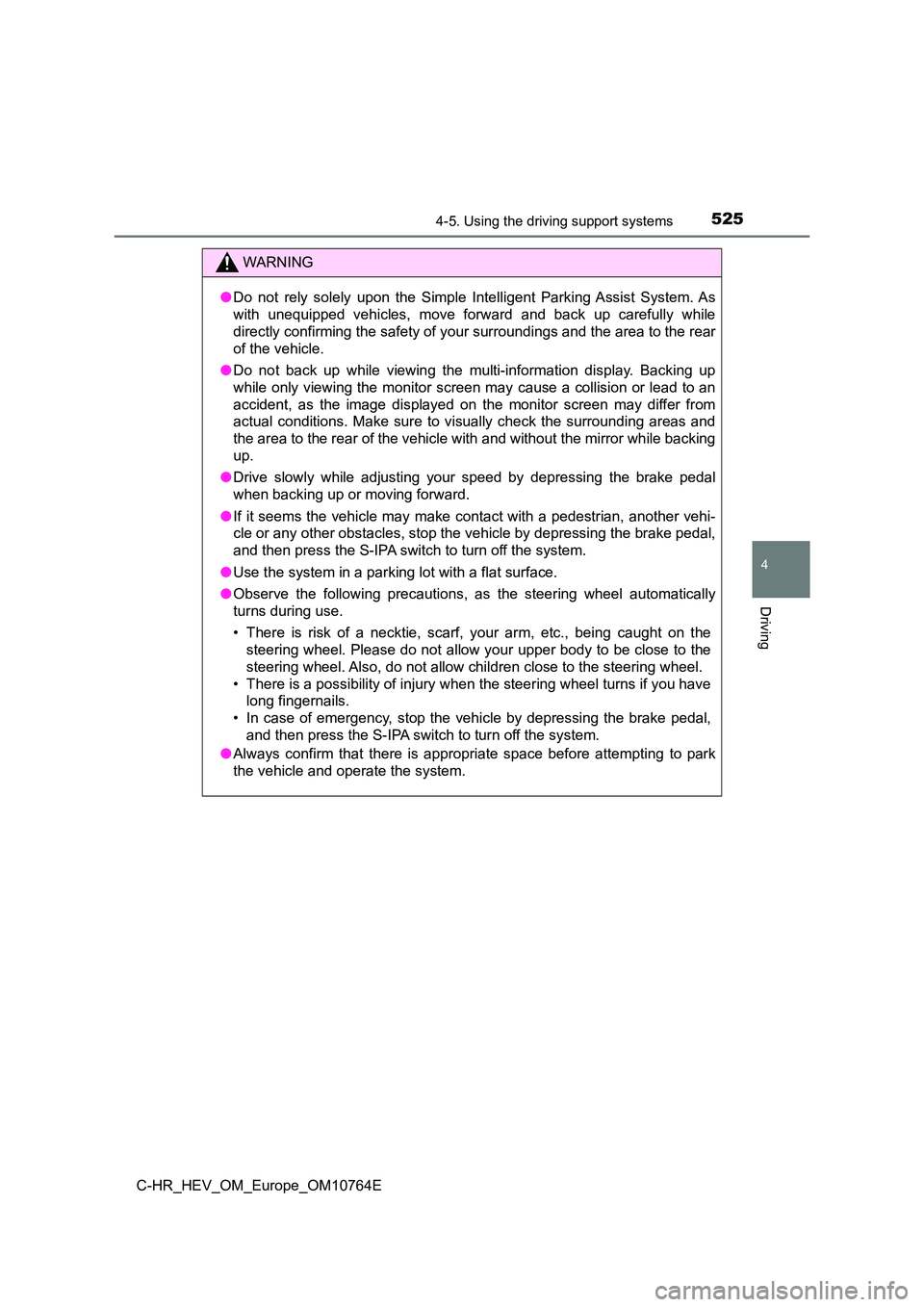

WARNING
●Do not rely solely upon the Simple Intelligent Parking Assist System. As
with unequipped vehicles, move forward and back up carefully wh ile
directly confirming the safety of your surroundings and the are a to the rear
of the vehicle.
● Do not back up while viewing the multi-information display. Backing up
while only viewing the monitor screen may cause a collision or lead to an
accident, as the image displayed on the monitor screen may diff er from
actual conditions. Make sure to visually check the surrounding areas and
the area to the rear of the vehicle with and without the mirror while backing
up.
● Drive slowly while adjusting your speed by depressing the brake pedal
when backing up or moving forward.
● If it seems the vehicle may make contact with a pedestrian, another vehi-
cle or any other obstacles, stop the vehicle by depressing the brake pedal,
and then press the S-IPA switch to turn off the system.
● Use the system in a parking lot with a flat surface.
● Observe the following precautions, as the steering wheel automatically
turns during use.
• There is risk of a necktie, scarf, your arm, etc., being caugh t on the
steering wheel. Please do not allow your upper body to be close to the
steering wheel. Also, do not allow children close to the steeri ng wheel.
• There is a possibility of injury when the steering wheel turns if you have
long fingernails.
• In case of emergency, stop the vehicle by depressing the brake pedal,
and then press the S-IPA switch to turn off the system.
● Always confirm that there is appropriate space before attempting to park
the vehicle and operate the system.

5264-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
WARNING
●Do not use the system in the following situations, as the system may be
unable to correctly assist you in reaching the target parking s pot and may
lead to an unexpected accident.
• In an area that is not a parking lot
• A parking lot that is not paved and has no parking space lines , such as
a sand or gravel parking lot
• A parking lot that has a slope or undulations in the road
• A frozen, snow-covered or slippery road
• The asphalt is melting due to hot weather
• There is an obstacle between the vehicle and the target parkin g spot
• Using tire chains or compact spare tire (if equipped)
● Do not use tire other than that provided by the manufacturer. The system
may not operate properly. When replacing tires, contact any aut horized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
● The system may not be able position the vehicle in the set location in the
following situations.
• The tires are extremely worn or the tire pressure is low
• The vehicle is carrying very heavy load
• The vehicle is tilted due to having luggage, etc., located on one side of
the vehicle
• There are road heaters installed in the parking lot to prevent the road
surface from freezing.
In any other situations when the set position and vehicle posit ion greatly
differ, have the vehicle inspected by any authorized Toyota ret ailer or
Toyota authorized repairer, or any reliable repairer.

5274-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
WARNING
●Make sure to observe the following precautions regarding the exit parallel
parking assist mode.
Exit parallel parking assist mode is a function used when depar ting from a
parallel parking spot. However, this function may not be usable if obsta-
cles or people are detected in front of the vehicle. Only use t his function
when departing from a parallel parking spot. In the event that the steering
control operates, either turn the system off using the S-IPA sw itch or oper-
ate the steering wheel to stop the control.
● If exit parallel parking assist mode is mistakenly used in the following situ-
ations, the vehicle may make contact with an obstacle.
The departure function is operated in a direction where an obst acle is
present, but the obstacle is not detected by the side sensors ( situations
such as when the vehicle is directly beside a pole).
● Observe the following precautions, as the sensors may stop functioning
properly which may lead to an accident.
• Do not subject the sensor to strong shocks by hitting it, etc. The sen-
sors may not function properly.
• When using a high-pressure washer to wash the vehicle, do not spray
water directly on the sensors. Equipment may not function prope rly if
subjected to an impact from strong water pressure. If the vehic le
bumper strikes something, equipm ent may not operate properly due to
a sensor malfunction. Have the vehicle inspected at any authori zed
Toyota retailer or Toyota author ized repairer, or any reliable repairer.

5284-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
WARNING
●In the following situations, the sensors may not operate normally and may
lead to an accident. Drive carefully.
• Obstacles cannot be detected in the side areas until a scan of the side
areas is completed. ( P. 461)
• Even after the scan of the side areas is completed, obstacles such as
other vehicles, people or animals that approach from the sides cannot
be detected.
• The sensor is frozen (if it thaws, the system returns to norma l).
A warning message may display at particularly low temperatures due to
the sensor freezing and it may not detect parked vehicles.
• The sensor is blocked by someone’s hand.
• The vehicle is tilted a large amount.
• The temperature is extremely hot or cold.
• The vehicle is driven on undulating roads, slopes, gravel road s, in areas
with tall grass, etc.
• An ultrasonic wave source is nearby, such as the horn or senso rs of
another vehicle, a motorcycle engine or the air brake of a larg e vehicle.
• Heavy rain or a water strikes the vehicle.
• The angle of the sensor may be deviated when assist control st arts
even if there is a parked vehicle in the target parking spot. H ave the
vehicle inspected at any authorized Toyota retailer or Toyota a uthorized
repairer, or any reliable repairer.
• Do not install any accessories within the sensor detection ran ge.
