TOYOTA C-HR 2023 Owners Manual

5394-6. Driving tips
4
Driving
C-HR_HEV_OM_Europe_OM10764E
◆When braking
Make sure to operate the brakes gently and in a timely manner. A
greater amount of electrical energy can be regenerated when slo w-
ing down.
◆Delays
Repeated acceleration and deceleration, as well as long waits a t
traffic lights, will lead to bad fuel economy. Check traffic re ports
before leaving and avoid delays as much as possible. When drivi ng
in a traffic jam, gently release the brake pedal to allow the v ehicle to
move forward slightly while avoiding overuse of the accelerator
pedal. Doing so can help control excessive gasoline consumption .
◆Highway driving
Control and maintain the vehicle at a constant speed. Before st op-
ping at a toll booth or similar, allow plenty of time to releas e the
accelerator and gently apply the brakes. A greater amount of el ec-
trical energy can be regenerated when slowing down.
◆Air conditioning
Use the air conditioning only when necessary. Doing so can help
reduce excessive gasoline consumption.
In summer: When the ambient temperature is high, use the recirc u-
lated air mode. Doing so will help to reduce the burden on the air
conditioning system and reduce fuel consumption as well.
In winter: Because the gasoline engine will not automatically c ut out
until it and the interior of the vehicle are warm, it will cons ume fuel.
Fuel consumption can be improved by avoiding overuse of the
heater.

5404-6. Driving tips
C-HR_HEV_OM_Europe_OM10764E

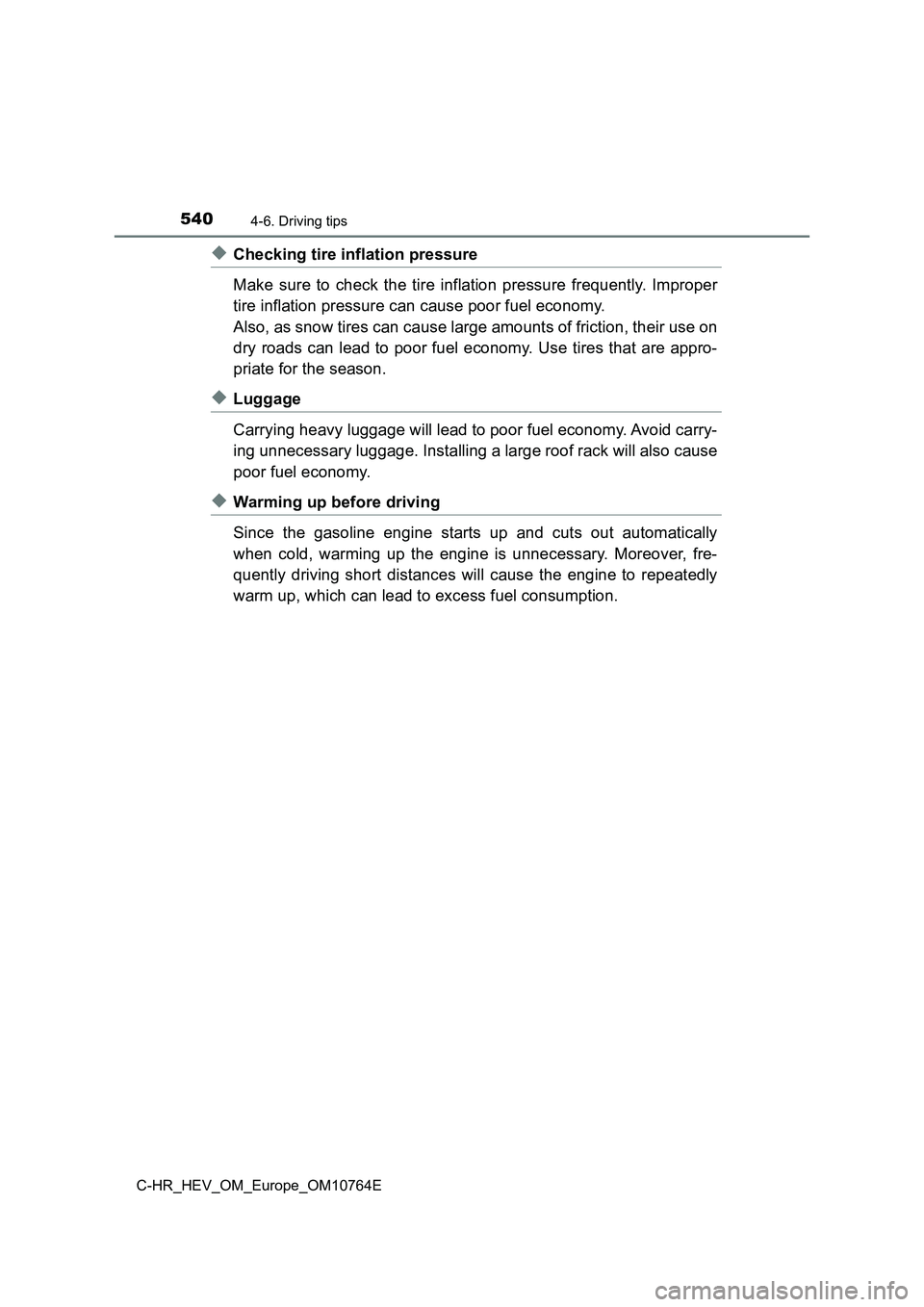

◆Checking tire inflation pressure
Make sure to check the tire inflation pressure frequently. Impr oper
tire inflation pressure can cause poor fuel economy.
Also, as snow tires can cause large amounts of friction, their use on
dry roads can lead to poor fuel economy. Use tires that are app ro-
priate for the season.
◆Luggage
Carrying heavy luggage will lead to poor fuel economy. Avoid ca rry-
ing unnecessary luggage. Installing a large roof rack will also cause
poor fuel economy.
◆Warming up before driving
Since the gasoline engine starts up and cuts out automatically
when cold, warming up the engine is unnecessary. Moreover, fre-
quently driving short distances will cause the engine to repeat edly
warm up, which can lead to excess fuel consumption.

541
4
4-6. Driving tips
Driving
C-HR_HEV_OM_Europe_OM10764E
Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
● Have a service technician inspect the condition of the 12-volt bat-
tery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires*.
Ensure that all tires are the same size and brand, and that cha ins match
the size of the tires.
*: Tire chains cannot be mounted on 18-inch tires or 19-inch tir es.
Perform the following according to the driving conditions:
● Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a ma n-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

5424-6. Driving tips
C-HR_HEV_OM_Europe_OM10764E

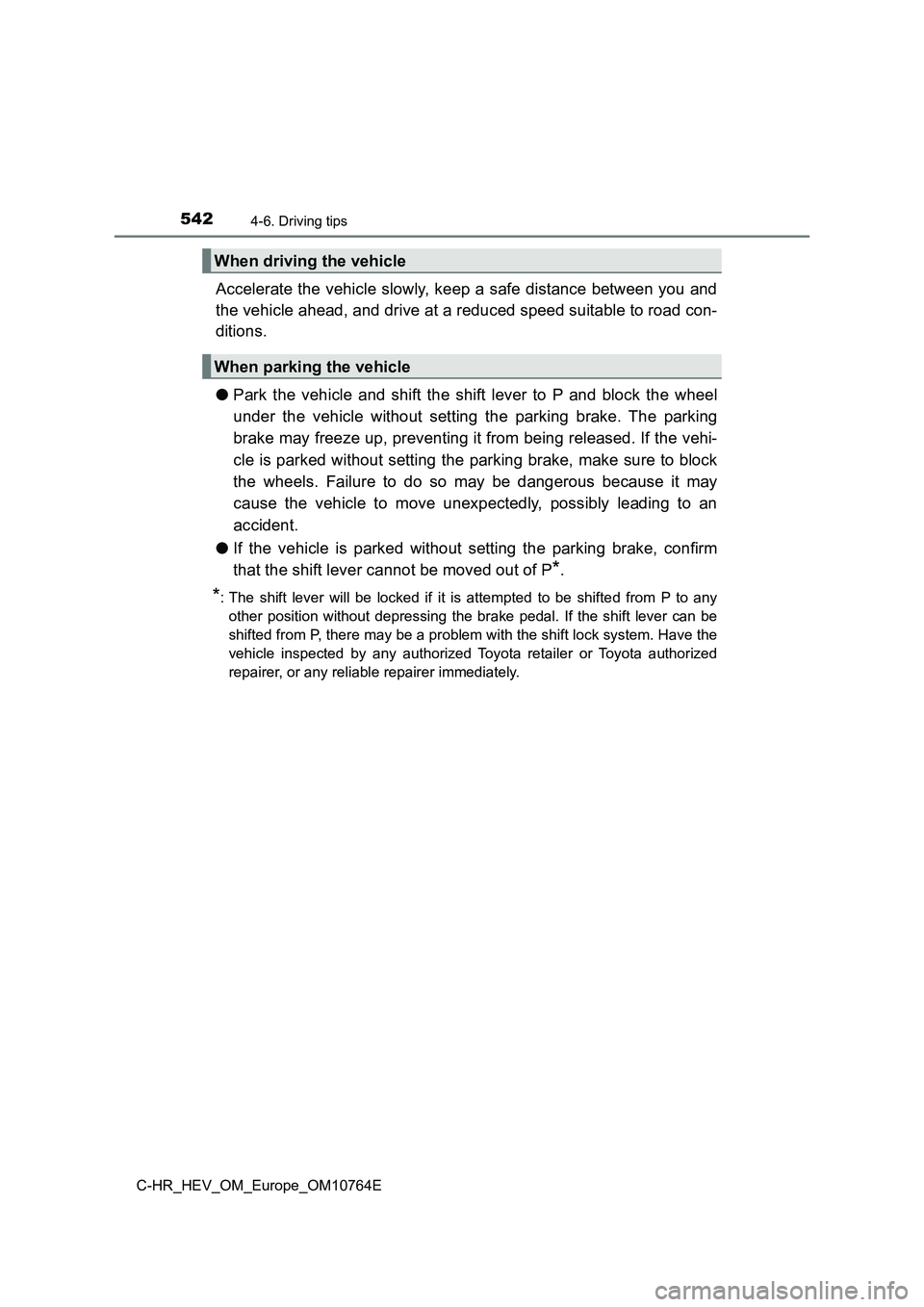

Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to roa d con-
ditions.
● Park the vehicle and shift the shift lever to P and block the wheel
under the vehicle without setting the parking brake. The parkin g
brake may freeze up, preventing it from being released. If the vehi-
cle is parked without setting the parking brake, make sure to b lock
the wheels. Failure to do so may be dangerous because it may
cause the vehicle to move unexpectedly, possibly leading to an
accident.
● If the vehicle is parked without setting the parking brake, confirm
that the shift lever cannot be moved out of P*.
*: The shift lever will be locked if it is attempted to be shifte d from P to any
other position without depressing the brake pedal. If the shift lever can be
shifted from P, there may be a problem with the shift lock syst em. Have the
vehicle inspected by any authorized Toyota retailer or Toyota a uthorized
repairer, or any reliabl e repairer immediately.
When driving the vehicle
When parking the vehicle

5434-6. Driving tips
4
Driving
C-HR_HEV_OM_Europe_OM10764E
17-inch tires
Use the correct tire chain size when mounting the tire chains. Chain
size is regulated for each tire size.
Side chain
3 mm (0.12 in.) in diameter
10 mm (0.39 in.) in width
30 mm (1.18 in.) in length
Cross chain
4 mm (0.16 in.) in diameter
14 mm (0.55 in.) in width
25 mm (0.98 in.) in length
18-inch tires or 19-inch tires
Tire chains cannot be mounted as the space between the tire and
body is too narrow.
Snow tires should be used instead.
Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before in stalling
chains.
■ Tire chain installation
Observe the following precautions when installing and removing chains:
● Install and remove tire chains in a safe location.
● Install tire chains on the front tires only. Do not install tire chains on the rear
tires.
● Install tire chains on front tires as tightly as possible. Retighten chains after
driving 0.5 - 1.0 km (1/4 - 1/2 mile).
● Install tire chains following the instructions provided with the tire chains.
Selecting tire chains
Regulations on the use of tire chains

5444-6. Driving tips
C-HR_HEV_OM_Europe_OM10764E
WARNING
■Driving with snow tires
Observe the following precautions to reduce the risk of acciden ts.
Failure to do so may result in a loss of vehicle control and ca use death or
serious injury.
● Use tires of the specified size.
● Maintain the recommended level of air pressure.
● Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
● Use snow tires on all, not just some wheels.
■ Driving with tire chains
Observe the following precautions to reduce the risk of acciden ts.
Failure to do so may result in the vehicle being unable to be d riven safely,
and may cause death or serious injury.
● Do not drive in excess of the speed limit specified for the tire chains being
used, or 50 km/h (30 mph), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
NOTICE
■ Repairing or replacing snow tires
Request repairs or replacement of snow tires from any authorize d Toyota
retailer or Toyota authorized repairer, or any reliable repaire r or legitimate
tire retailers.
This is because the removal and attachment of snow tires affect s the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains
The tire pressure warning valves and transmitters may not funct ion correctly
when tire chains are fitted.

545

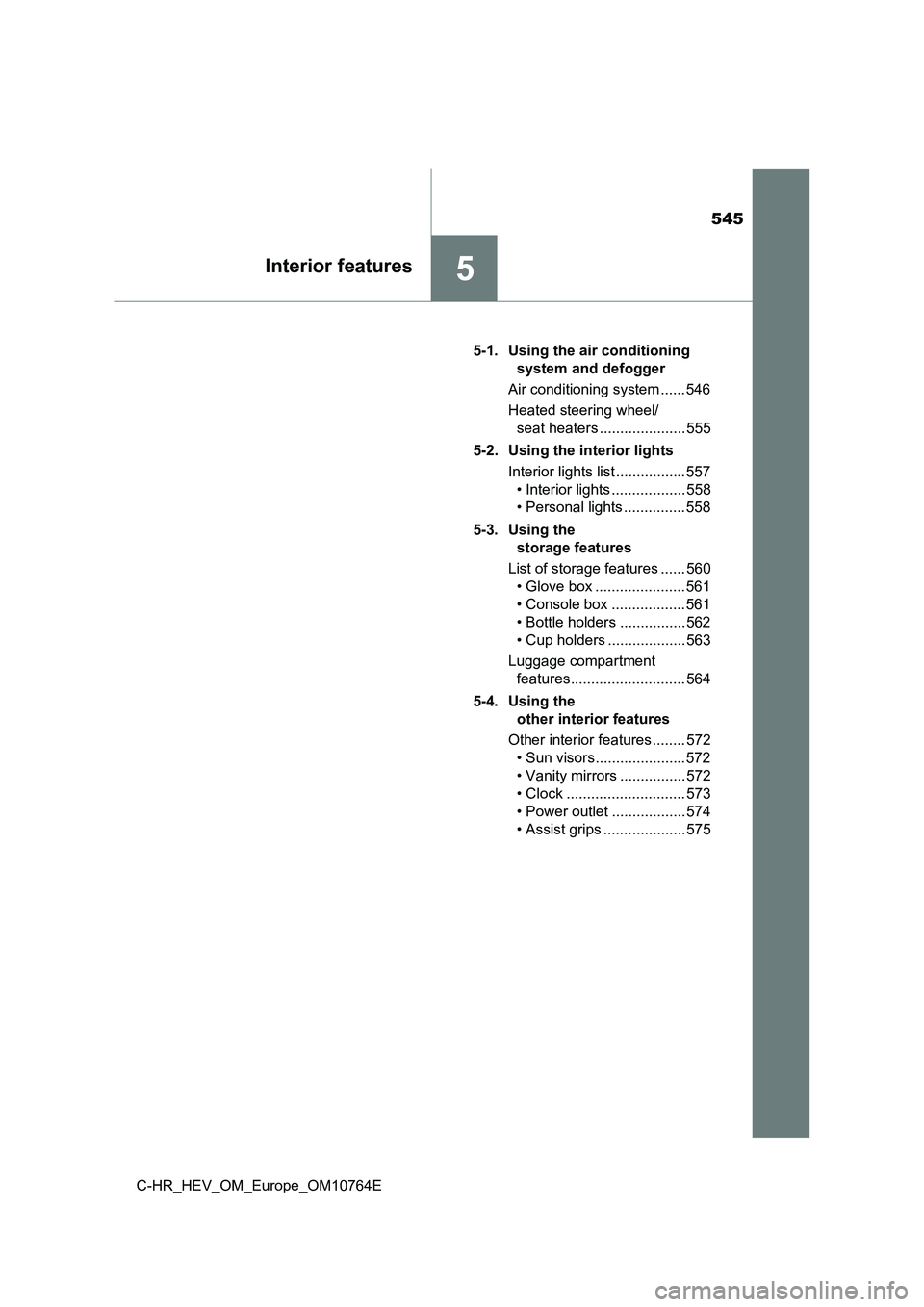

5Interior features
C-HR_HEV_OM_Europe_OM10764E
5-1. Using the air conditioning
system and defogger
Air conditioning system ...... 546
Heated steering wheel/
seat heaters ..................... 555
5-2. Using the interior lights
Interior lights list ................. 557
• Interior lights .................. 558
• Personal lights ............... 558
5-3. Using the
storage features
List of storage features ...... 560
• Glove box ...................... 561
• Console box .................. 561
• Bottle holders ................ 562
• Cup holders ................... 563
Luggage compartment
features............................ 564
5-4. Using the
other interior features
Other interior features ........ 572
• Sun visors...................... 572
• Vanity mirrors ................ 572
• Clock ............................. 573
• Power outlet .................. 574
• Assist grips .................... 575

5465-1. Using the air conditioning system and defogger
C-HR_HEV_OM_Europe_OM10764E

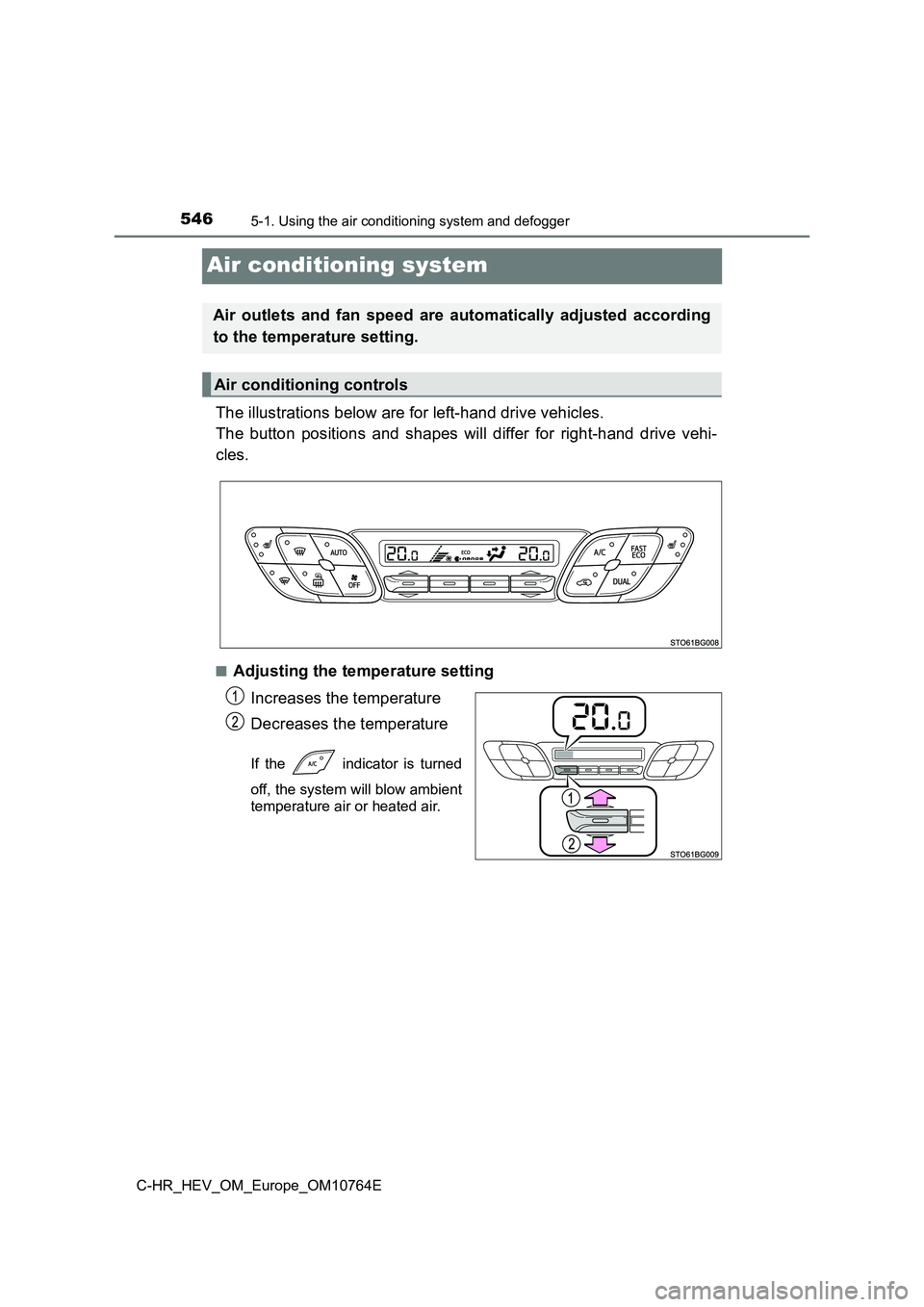

Air conditioning system
The illustrations below are for left-hand drive vehicles.
The button positions and shapes will differ for right-hand driv e vehi-
cles.
■Adjusting the temperature setting
Increases the temperature
Decreases the temperature
If the indicator is turned
off, the system will blow ambient
temperature air or heated air.
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Air conditioning controls

5475-1. Using the air conditioning system and defogger
C-HR_HEV_OM_Europe_OM10764E
5
Interior features

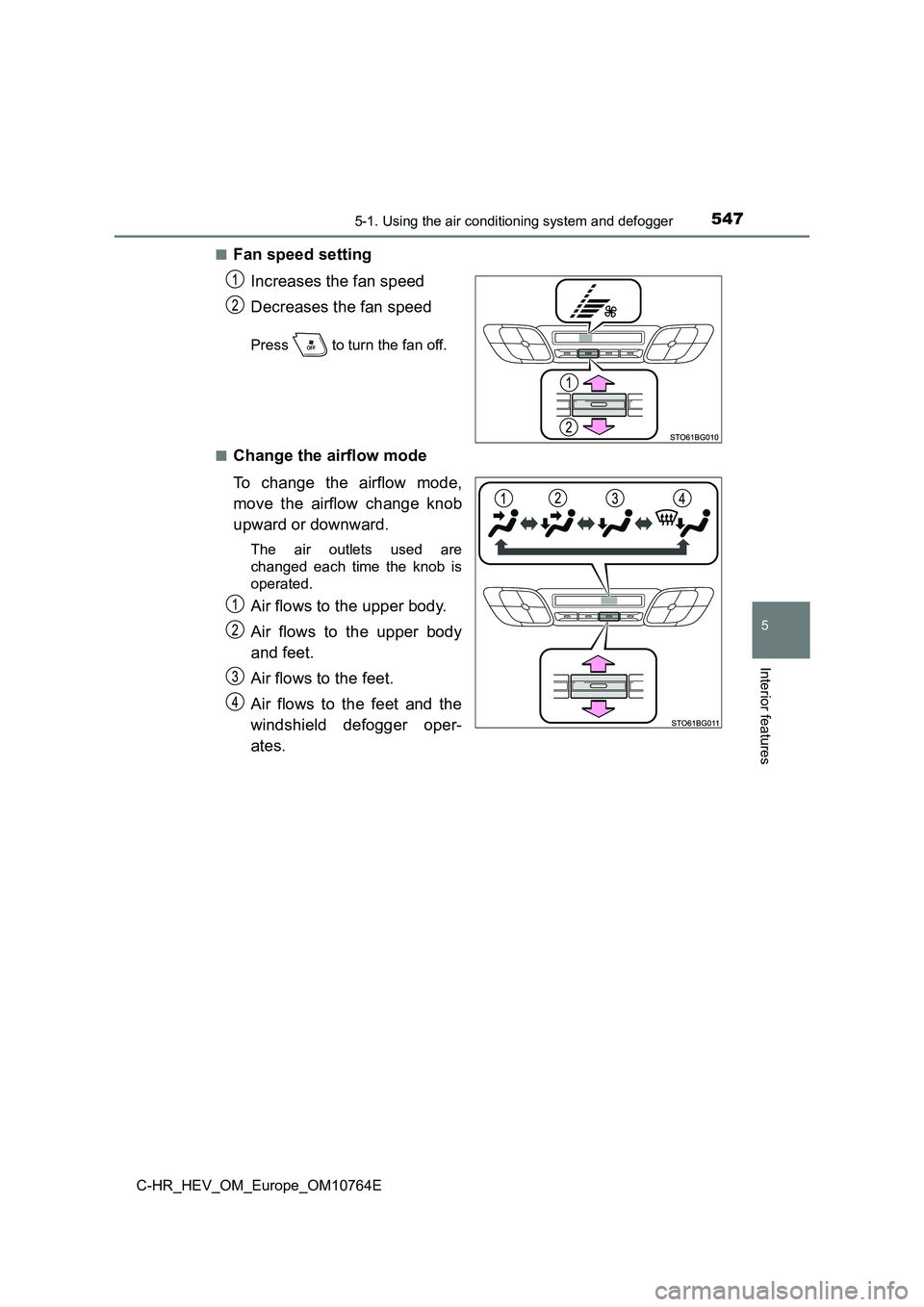

■Fan speed setting
Increases the fan speed
Decreases the fan speed
Press to turn the fan off.
■Change the airflow mode
To change the airflow mode,
move the airflow change knob
upward or downward.
The air outlets used are
changed each time the knob is
operated.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger oper-
ates.

5485-1. Using the air conditioning system and defogger
C-HR_HEV_OM_Europe_OM10764E

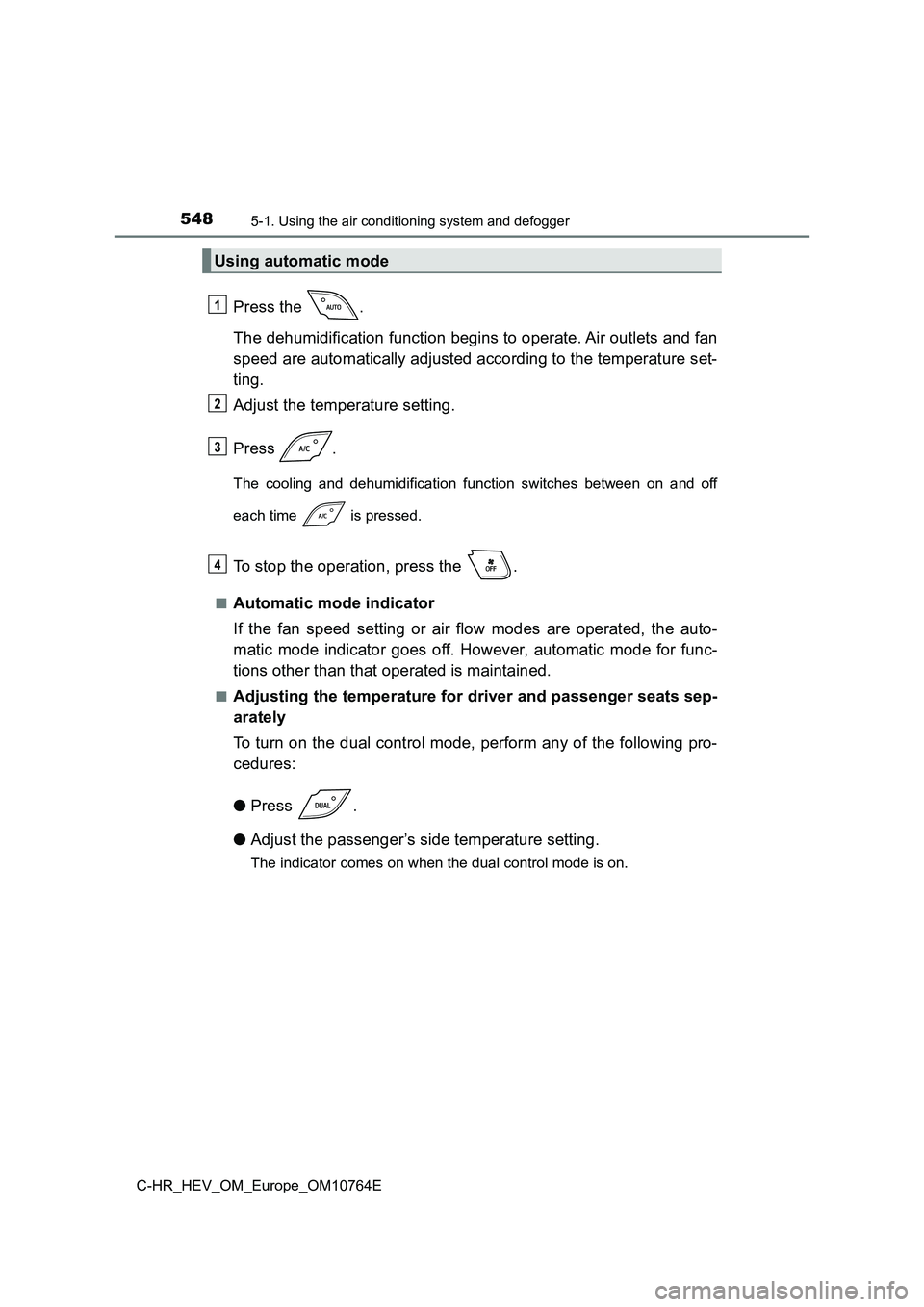

Press the .
The dehumidification function begins to operate. Air outlets an d fan
speed are automatically adjusted according to the temperature s et-
ting.
Adjust the temperature setting.
Press .
The cooling and dehumidification function switches between on a nd off
each time is pressed.
To stop the operation, press the .
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the au to-
matic mode indicator goes off. However, automatic mode for func -
tions other than that operated is maintained.
■Adjusting the temperature for driver and passenger seats sep-
arately
To turn on the dual control mode, perform any of the following pro-
cedures:
● Press .
● Adjust the passenger’s side temperature setting.
The indicator comes on when the dual control mode is on.
Using automatic mode
1
2
3
4
