TOYOTA C-HR 2023 Owners Manual

5595-2. Using the interior lights
C-HR_HEV_OM_Europe_OM10764E
5
Interior features
■Illuminated entry system
When the interior light switch is in the door position, the int erior lights and
power switch light automatically turn on/off according to power switch mode,
the presence of the electronic key, whether the doors are locke d/unlocked
and whether the doors are open/closed.
■ Outer mirror illumination (if equipped)
The illumination automatically turns on according to the presen ce of the elec-
tronic key (vehicles with a smart entry & start system), or the doors are
unlocked.
■ To prevent 12-volt battery discharge
The following lights will turn off automatically after 20 minut es:
● Interior light/front personal lights
● Rear interior light
● Luggage compartment light
● Vanity lights
■ Customization
Settings (e.g. the time elapsed before lights turn off) can be changed. (Cus-
tomizable features: P. 779)

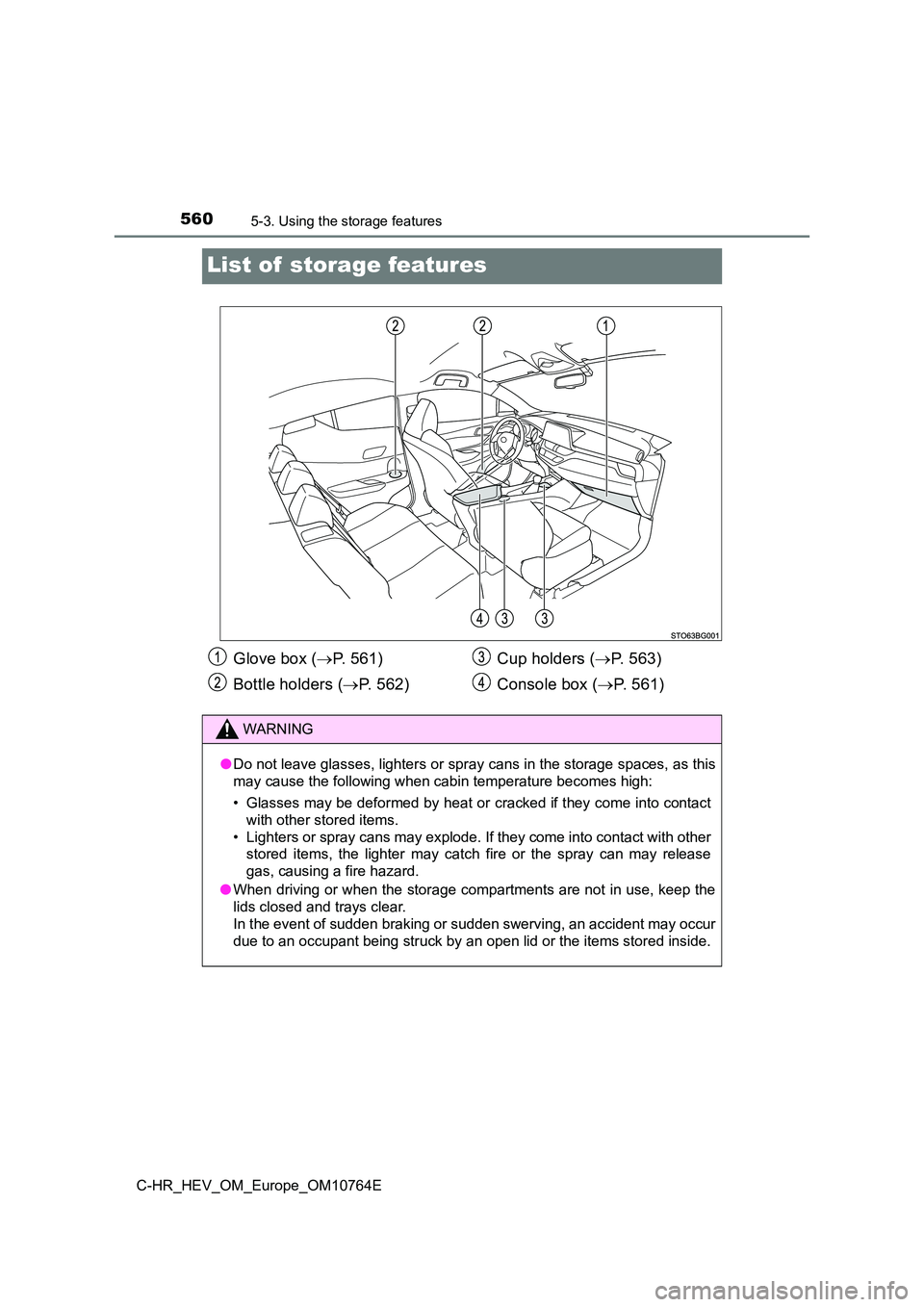

5605-3. Using the storage features
C-HR_HEV_OM_Europe_OM10764E
List of storage features
Glove box (P. 561)
Bottle holders ( P. 5 6 2 )
Cup holders ( P. 5 6 3 )
Console box ( P. 561)
WARNING
●Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into c ontact
with other stored items.
• Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may r elease
gas, causing a fire hazard.
● When driving or when the storage compartments are not in use, keep the
lids closed and trays clear.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items sto red inside.

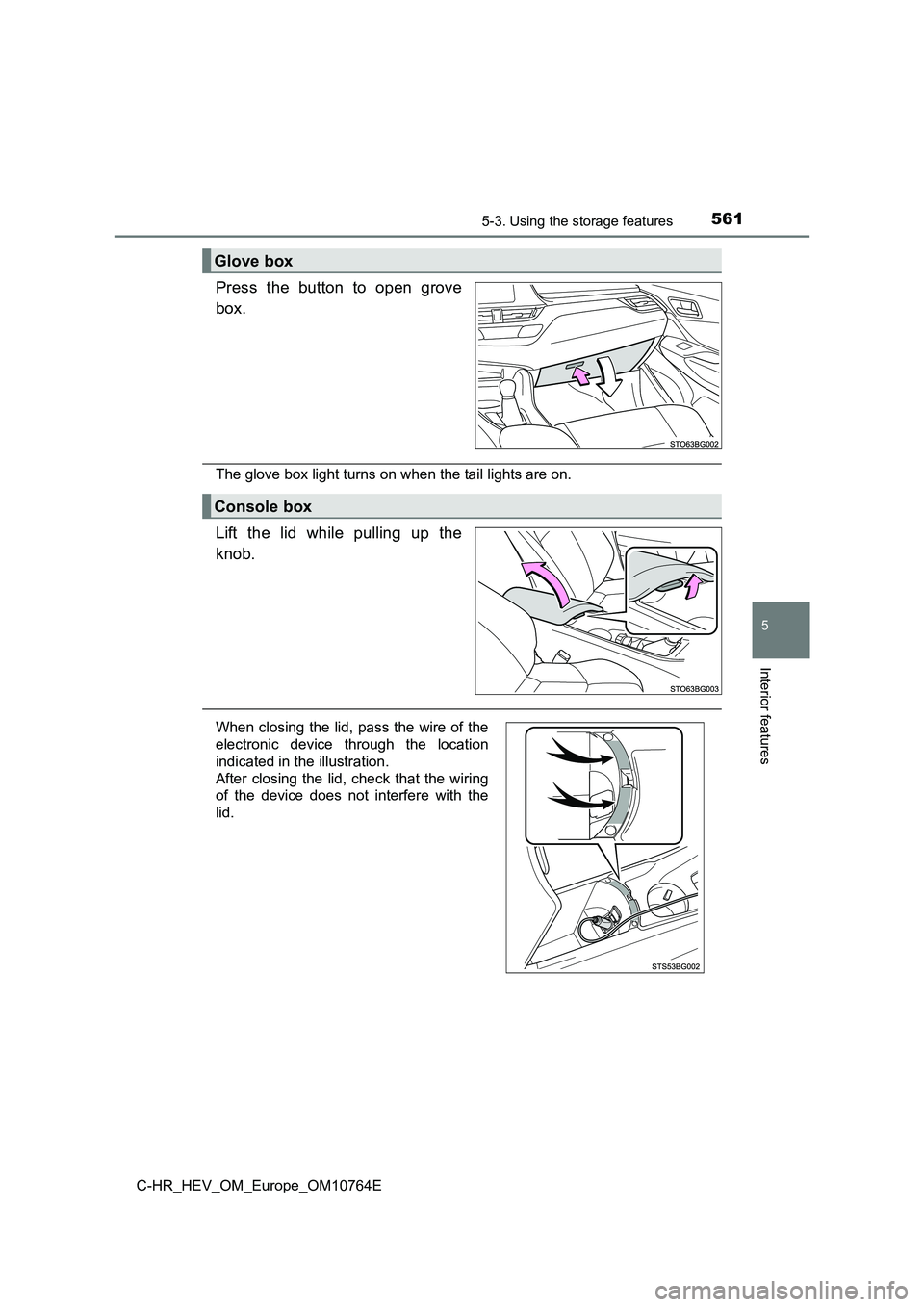

5615-3. Using the storage features
C-HR_HEV_OM_Europe_OM10764E
5
Interior features
Press the button to open grove
box.
The glove box light turns on when the tail lights are on.
Lift the lid while pulling up the
knob.
Glove box
Console box
When closing the lid, pass the wire of the
electronic device through the location
indicated in the illustration.
After closing the lid, check that the wiring
of the device does not interfere with the
lid.

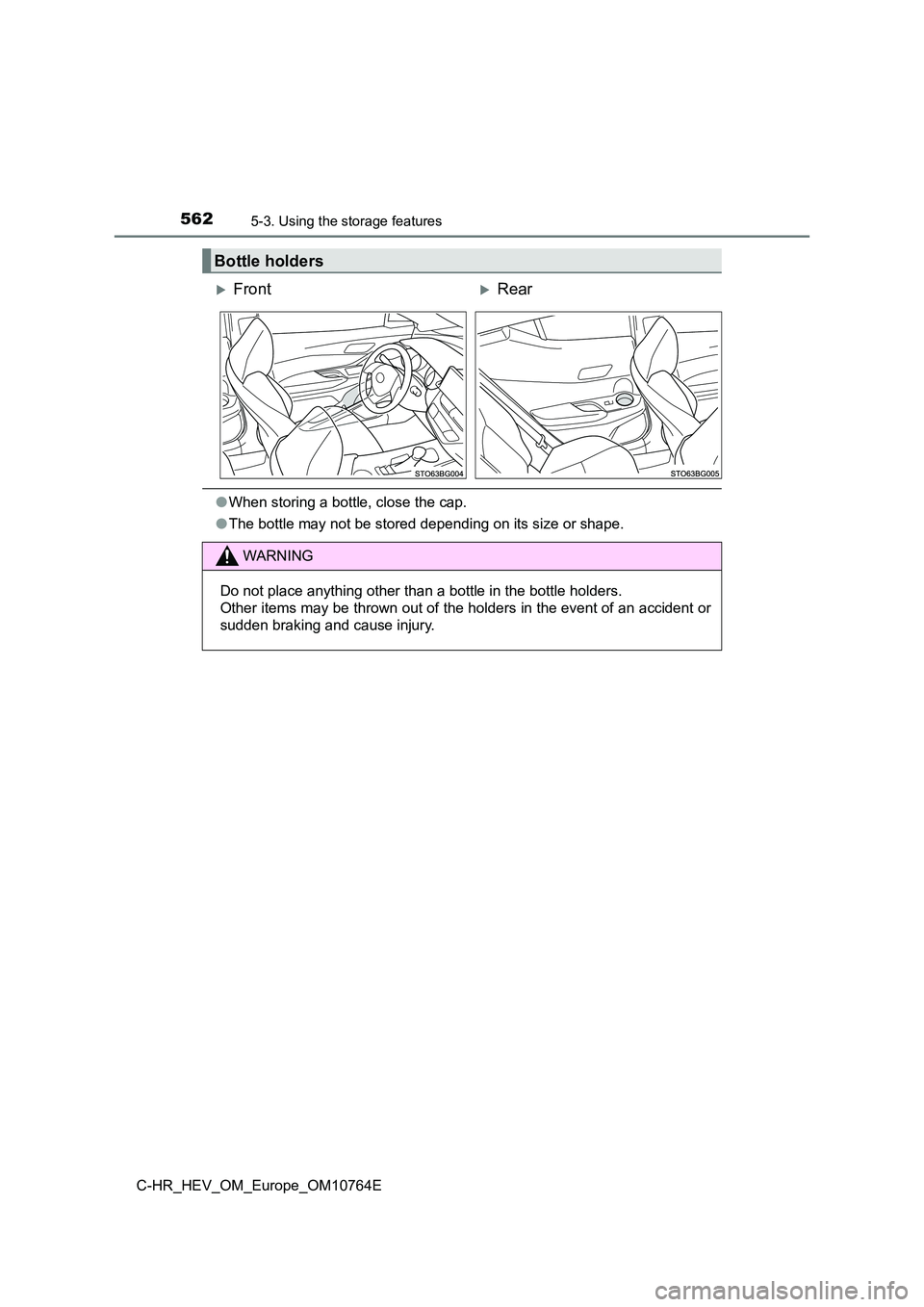

5625-3. Using the storage features
C-HR_HEV_OM_Europe_OM10764E
●When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
Bottle holders
FrontRear
WARNING
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.

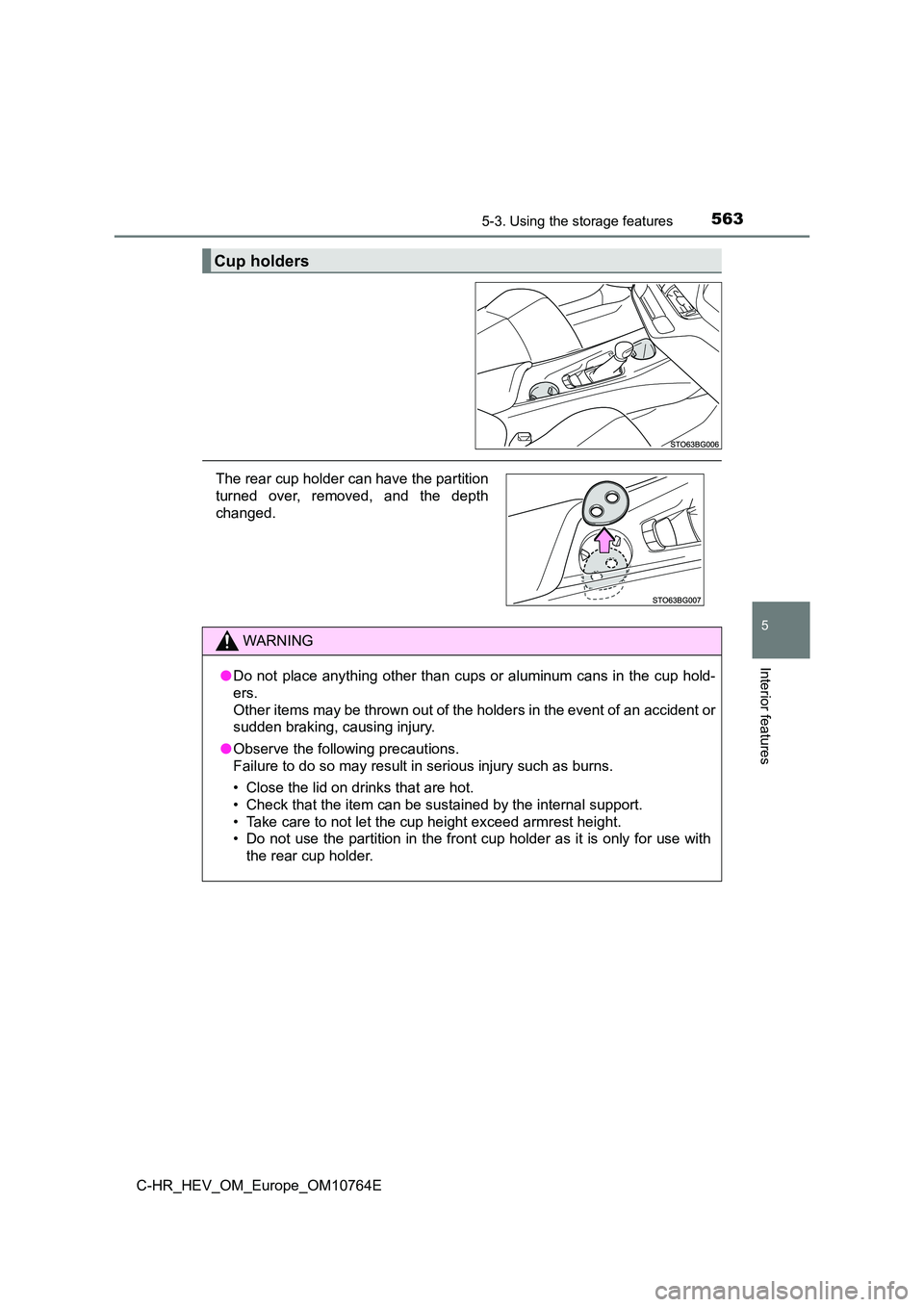

5635-3. Using the storage features
C-HR_HEV_OM_Europe_OM10764E
5
Interior features
Cup holders
The rear cup holder can have the partition
turned over, removed, and the depth
changed.
WARNING
● Do not place anything other than cups or aluminum cans in the cup hold-
ers.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury.
● Observe the following precautions.
Failure to do so may result in serious injury such as burns.
• Close the lid on drinks that are hot.
• Check that the item can be sustained by the internal support.
• Take care to not let the cup height exceed armrest height.
• Do not use the partition in the front cup holder as it is only for use with
the rear cup holder.

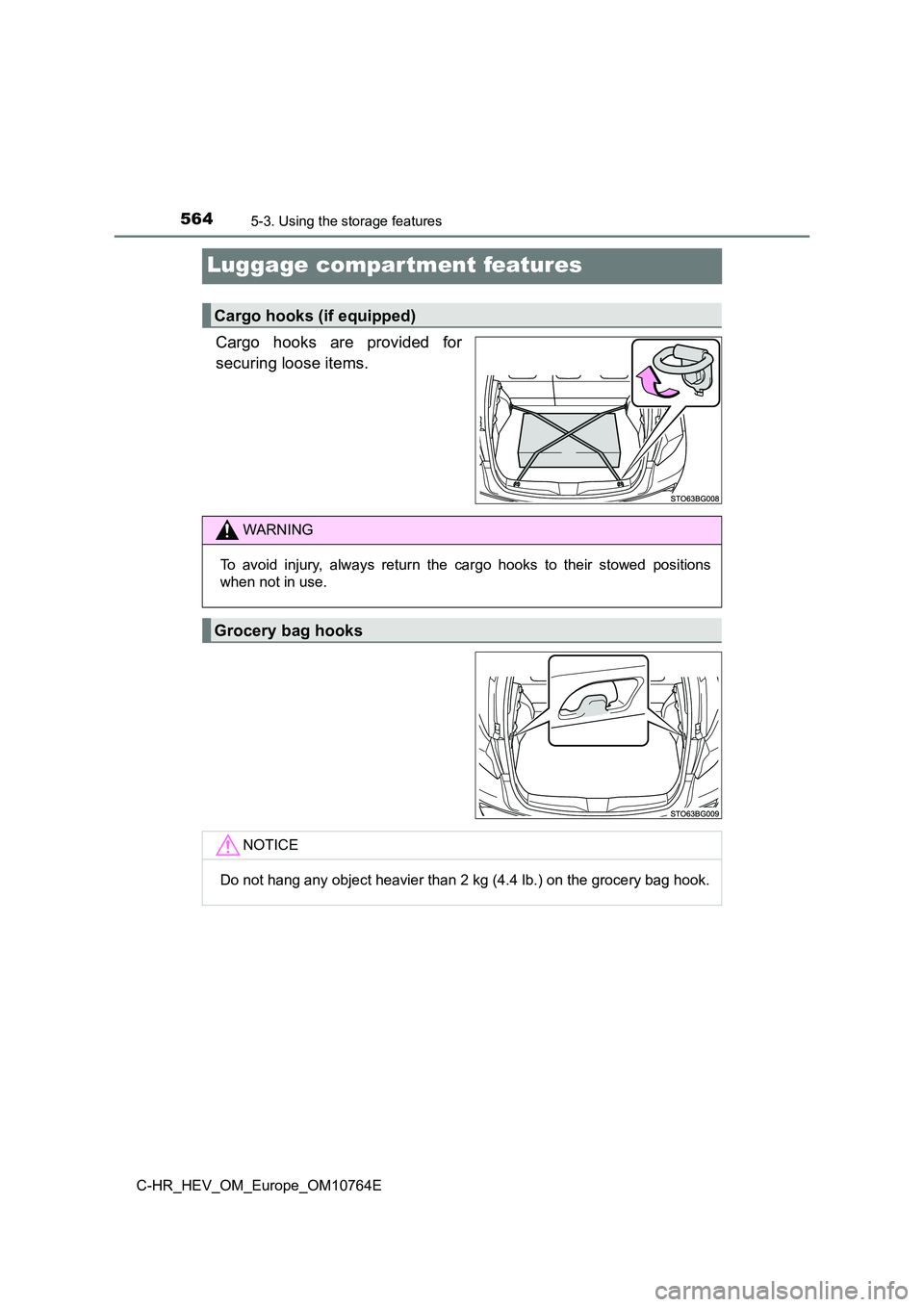

5645-3. Using the storage features
C-HR_HEV_OM_Europe_OM10764E
Luggage compartment features
Cargo hooks are provided for
securing loose items.
Cargo hooks (if equipped)
WARNING
To avoid injury, always return the cargo hooks to their stowed positions
when not in use.
Grocery bag hooks
NOTICE
Do not hang any object heavier than 2 kg (4.4 lb.) on the groce ry bag hook.

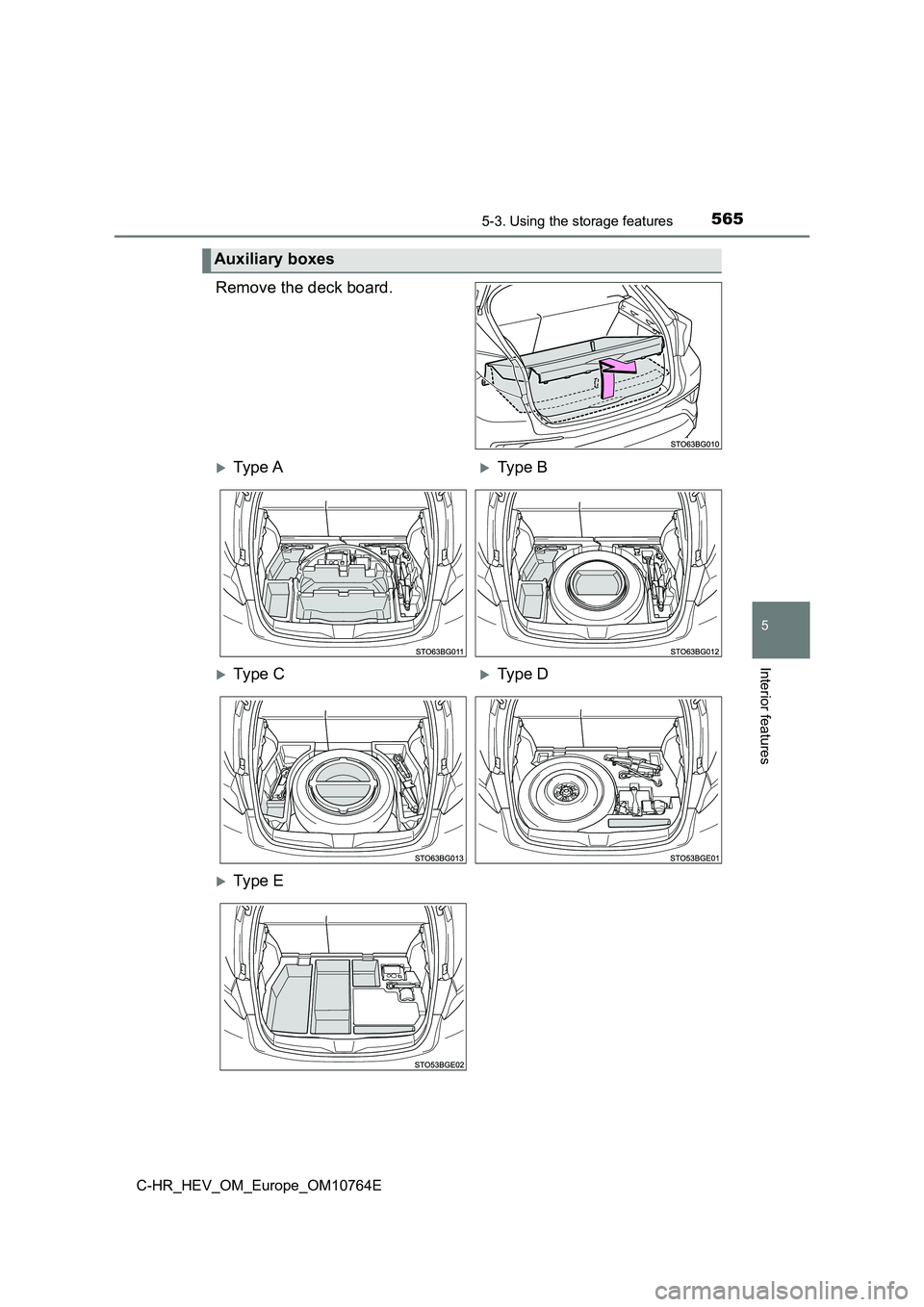

5655-3. Using the storage features
C-HR_HEV_OM_Europe_OM10764E
5
Interior features
Remove the deck board.
Auxiliary boxes
Ty pe AType B
Ty pe CType D
Ty pe E

5665-3. Using the storage features
C-HR_HEV_OM_Europe_OM10764E
Ty pe A
Ty pe B
Turn the knob and open the lid.
Side auxiliary boxes

5675-3. Using the storage features
C-HR_HEV_OM_Europe_OM10764E
5
Interior features
■Open and secure the deck board (type D only)
First-aid kit storage space
Ty pe AType B
Ty pe CType D
The deck board can be secured while
raised, as shown in the illustration.

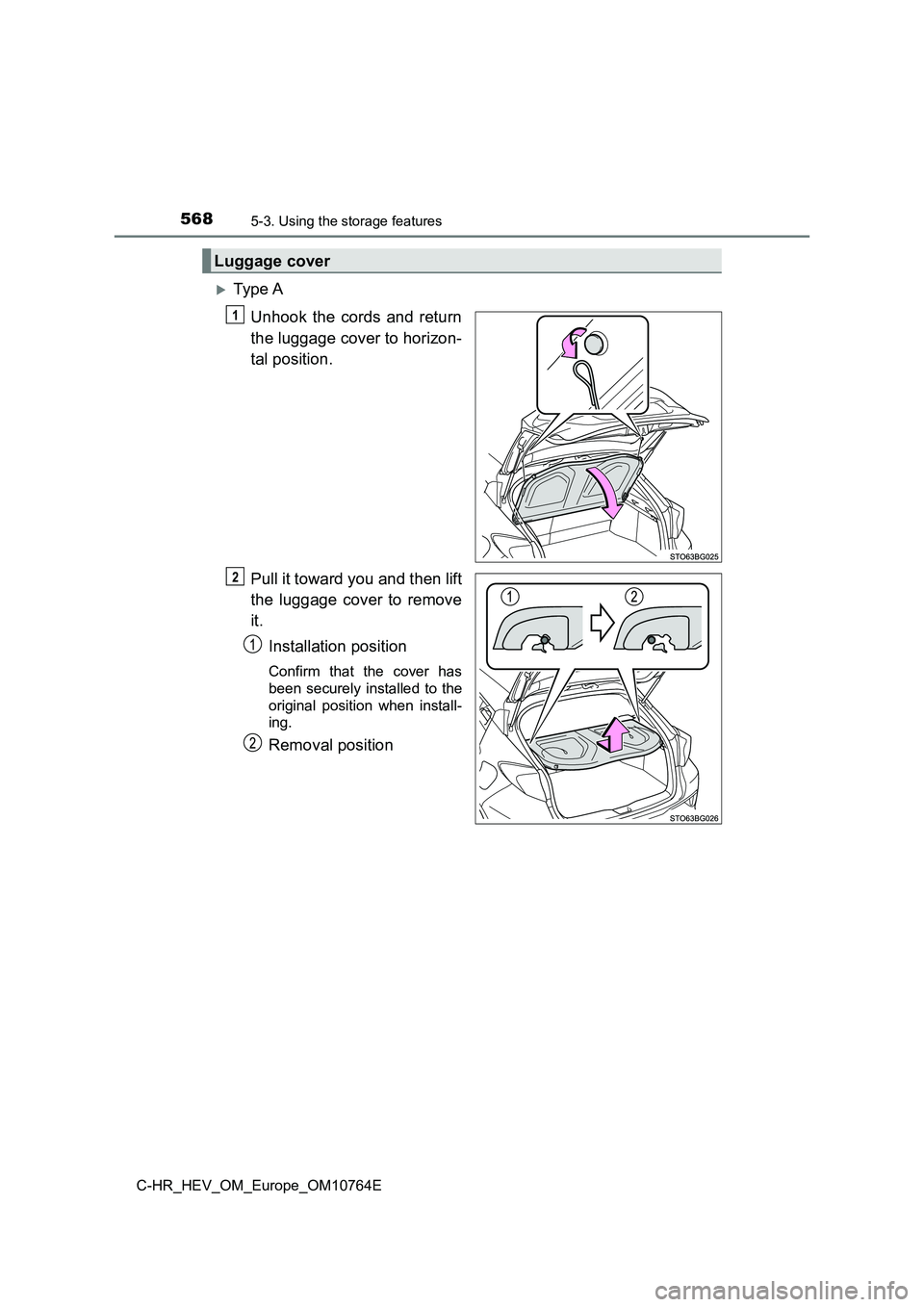

5685-3. Using the storage features
C-HR_HEV_OM_Europe_OM10764E
Ty pe A
Unhook the cords and return
the luggage cover to horizon-
tal position.
Pull it toward you and then lift
the luggage cover to remove
it.
Installation position
Confirm that the cover has
been securely installed to the
original position when install-
ing.
Removal position
Luggage cover
1
2
