TOYOTA C-HR 2023 Owners Manual

5695-3. Using the storage features
C-HR_HEV_OM_Europe_OM10764E
5
Interior features
Ty pe B
■Removing the luggage cover
Unhook the cords.
Unhook the hook to the hook
brackets.
■Stowing the luggage cover
Hold the luggage cover with
both hands. Point your
thumbs in opposite direc-
tions.
1
2
1

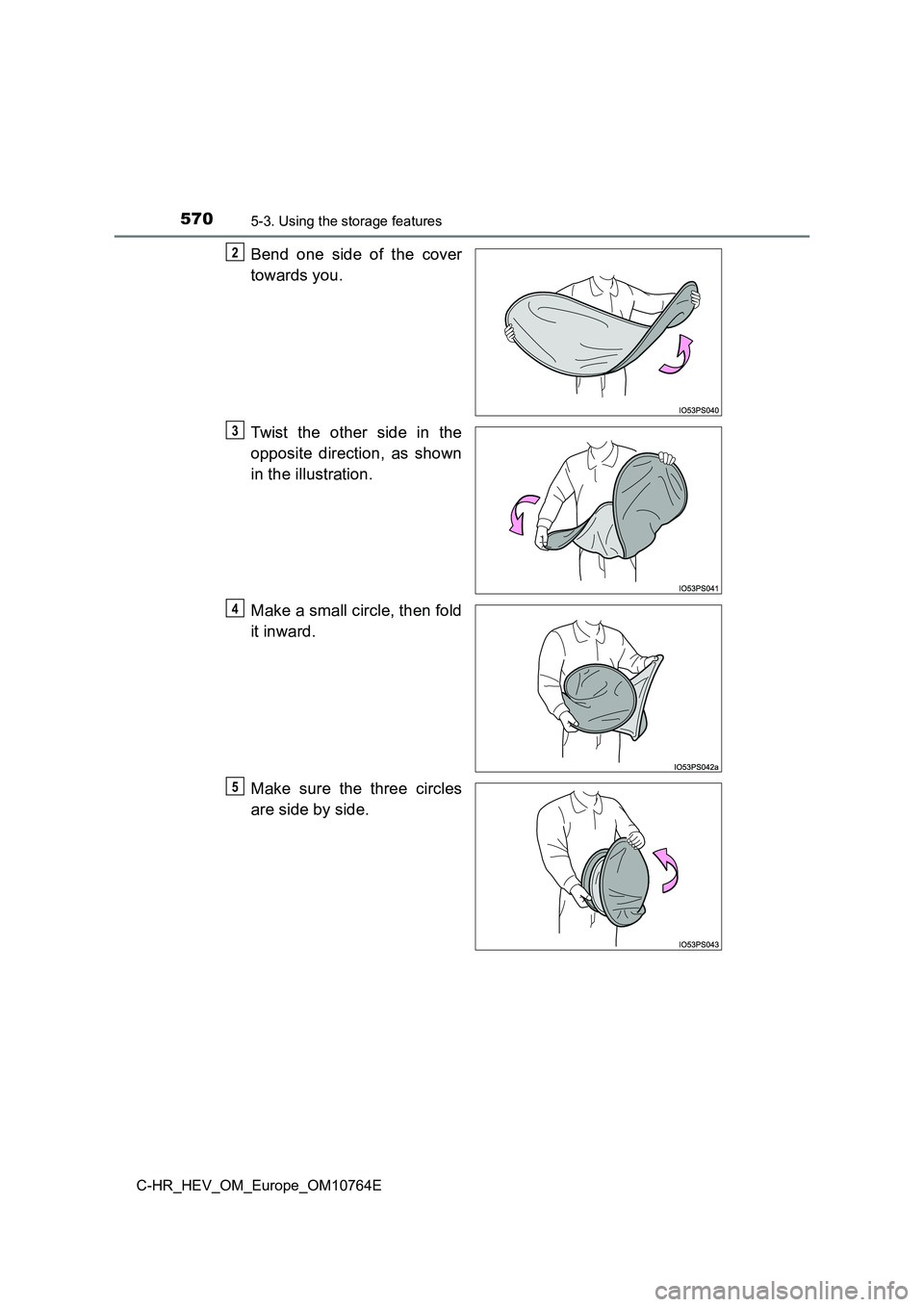

5705-3. Using the storage features
C-HR_HEV_OM_Europe_OM10764E
Bend one side of the cover
towards you.
Twist the other side in the
opposite direction, as shown
in the illustration.
Make a small circle, then fold
it inward.
Make sure the three circles
are side by side.
2
3
4
5

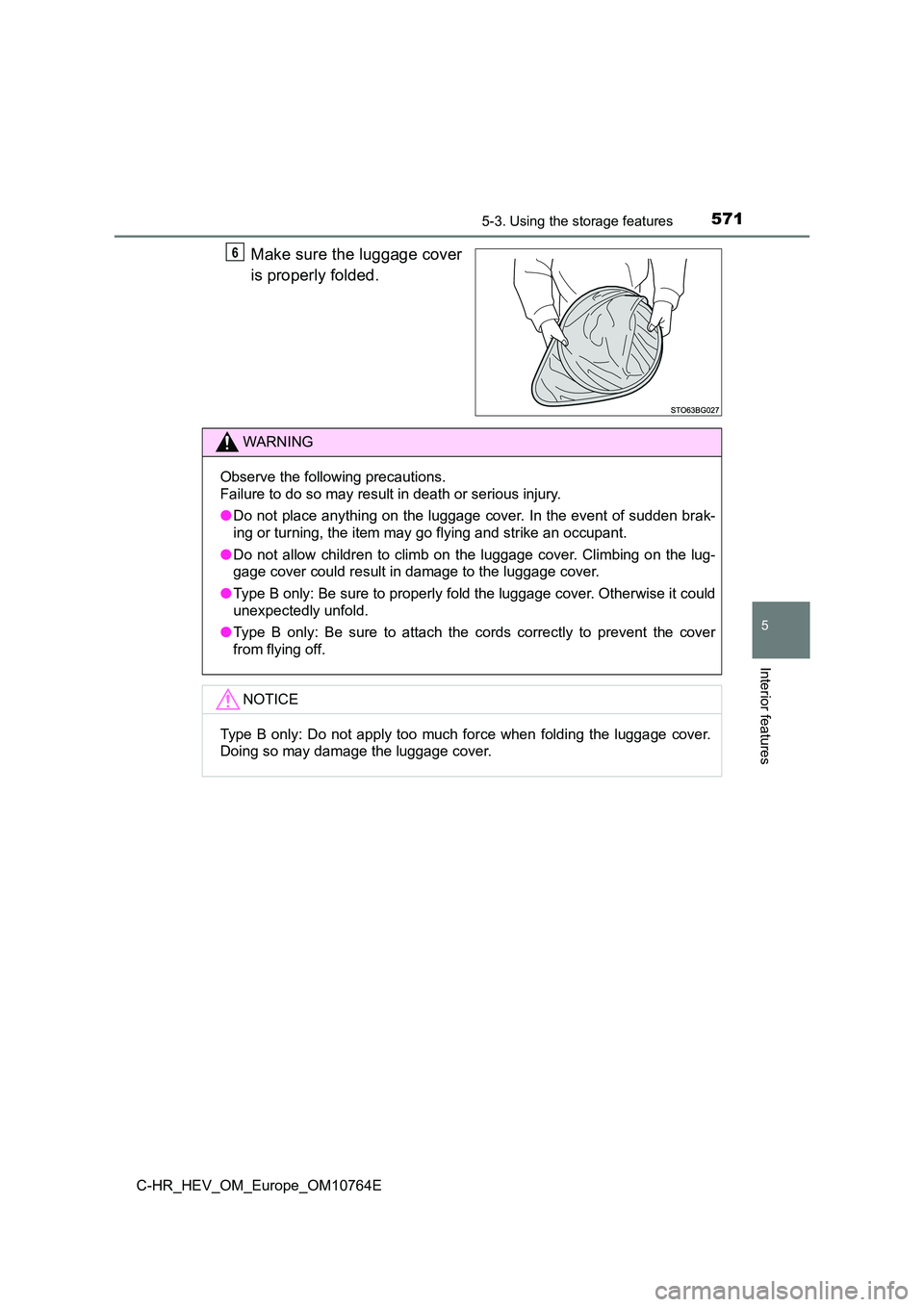

5715-3. Using the storage features
C-HR_HEV_OM_Europe_OM10764E
5
Interior features
Make sure the luggage cover
is properly folded.
6
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not place anything on the luggage cover. In the event of sudden brak-
ing or turning, the item may go flying and strike an occupant.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover.
● Type B only: Be sure to properly fold the luggage cover. Otherwise it could
unexpectedly unfold.
● Type B only: Be sure to attach the cords correctly to prevent the cover
from flying off.
NOTICE
Type B only: Do not apply too much force when folding the lugga ge cover.
Doing so may damage the luggage cover.

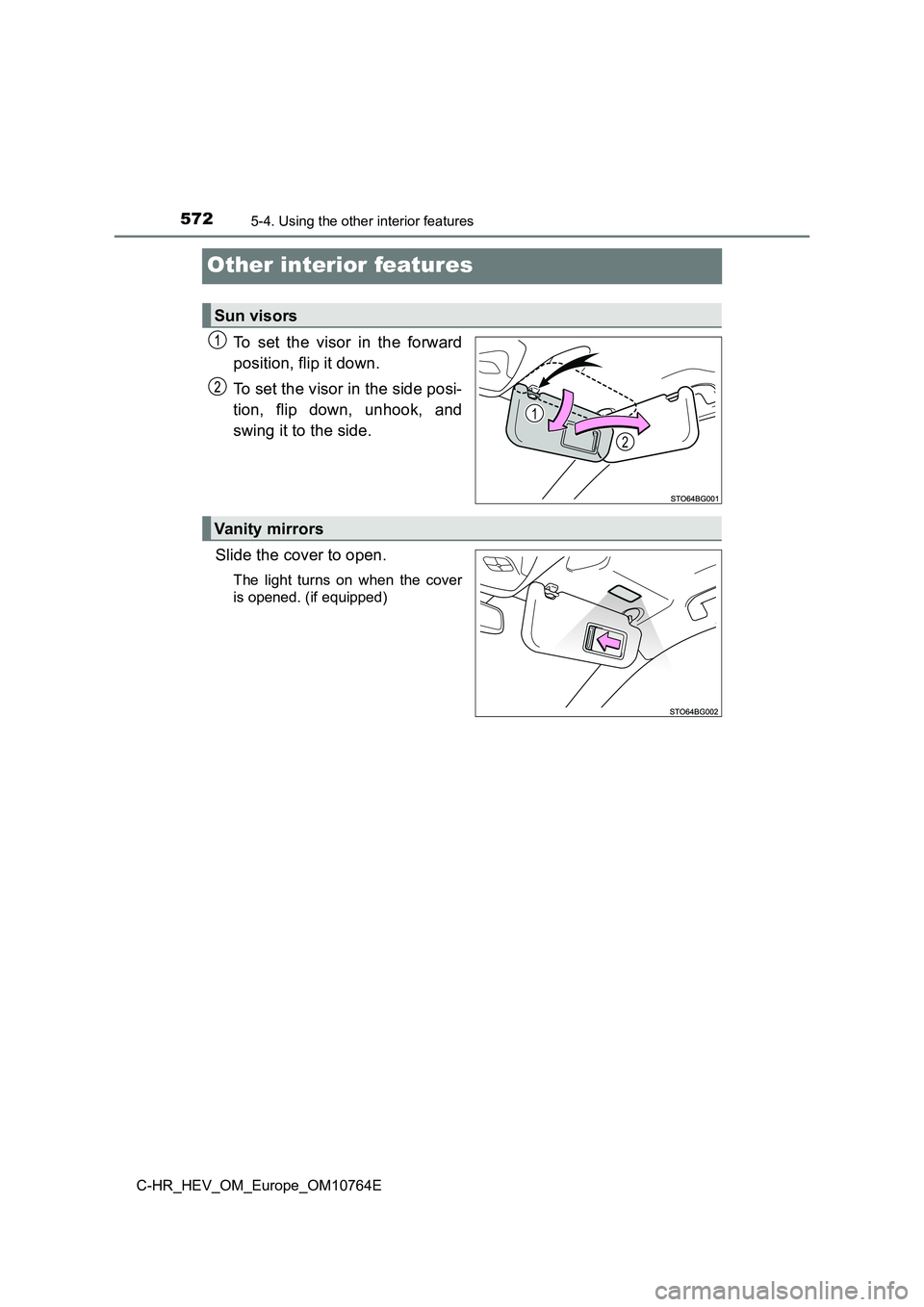

5725-4. Using the other interior features
C-HR_HEV_OM_Europe_OM10764E
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The light turns on when the cover
is opened. (if equipped)
Sun visors
2
1
9DQLW\PLUURUV

5735-4. Using the other interior features
C-HR_HEV_OM_Europe_OM10764E
5
Interior features
The clock can be adjusted by pressing and holding the buttons.
Adjusts the hours
Adjusts the minutes
● The clock is displayed when the power switch is in ACCESSORY or ON
mode.
● When the 12-volt battery terminals are disconnected and reconnected, the
clock will automatically be set to 1:00.
Clock (if equipped)

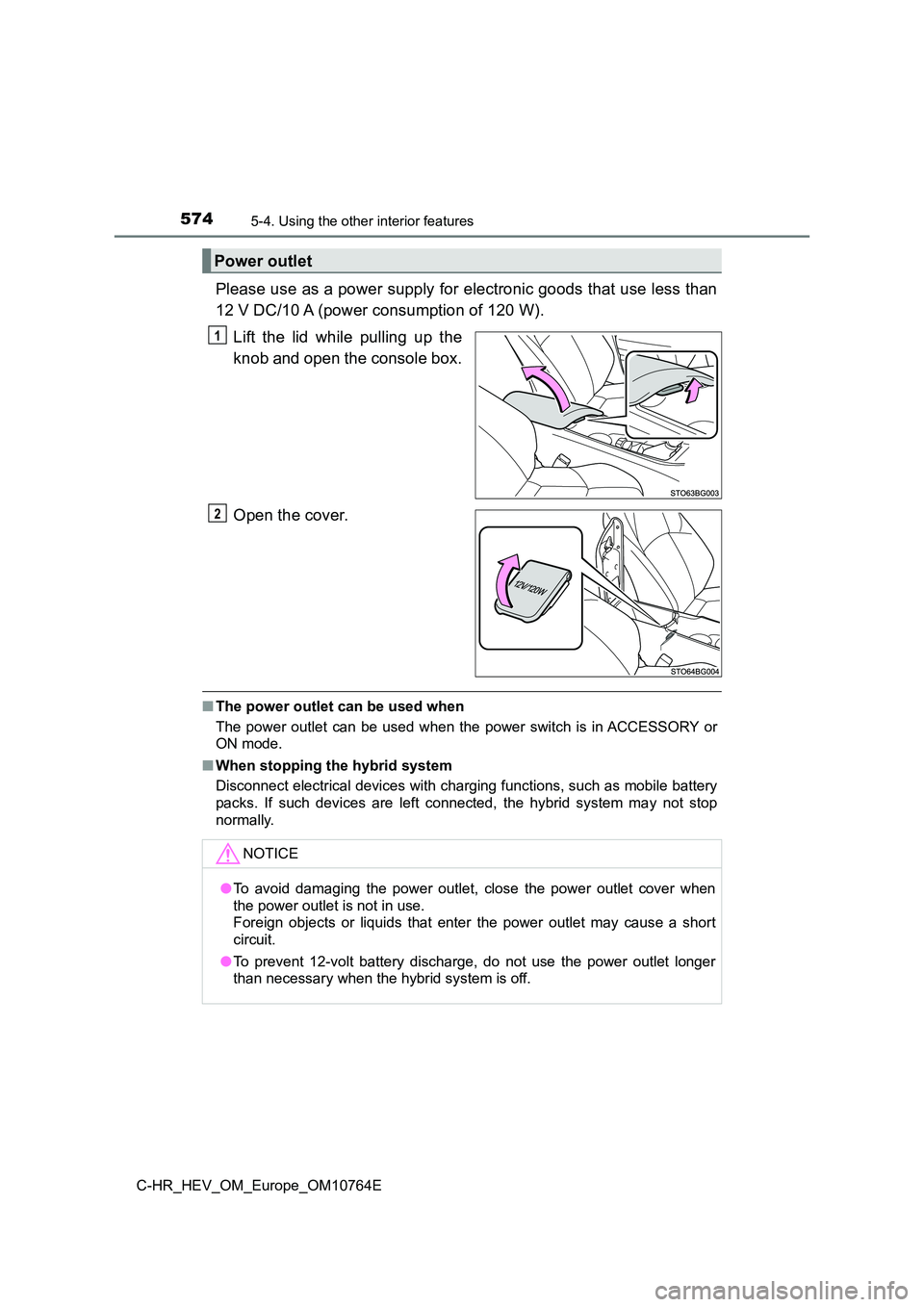

5745-4. Using the other interior features
C-HR_HEV_OM_Europe_OM10764E
Please use as a power supply for electronic goods that use less than
12 V DC/10 A (power consumption of 120 W).
Lift the lid while pulling up the
knob and open the console box.
Open the cover.
■ The power outlet can be used when
The power outlet can be used when the power switch is in ACCESS ORY or
ON mode.
■ When stopping the hybrid system
Disconnect electrical devices with charging functions, such as mobile battery
packs. If such devices are left connected, the hybrid system ma y not stop
normally.
Power outlet
1
2
NOTICE
● To avoid damaging the power outlet, close the power outlet cover when
the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may caus e a short
circuit.
● To prevent 12-volt battery discharge, do not use the power outlet longer
than necessary when the hybrid system is off.

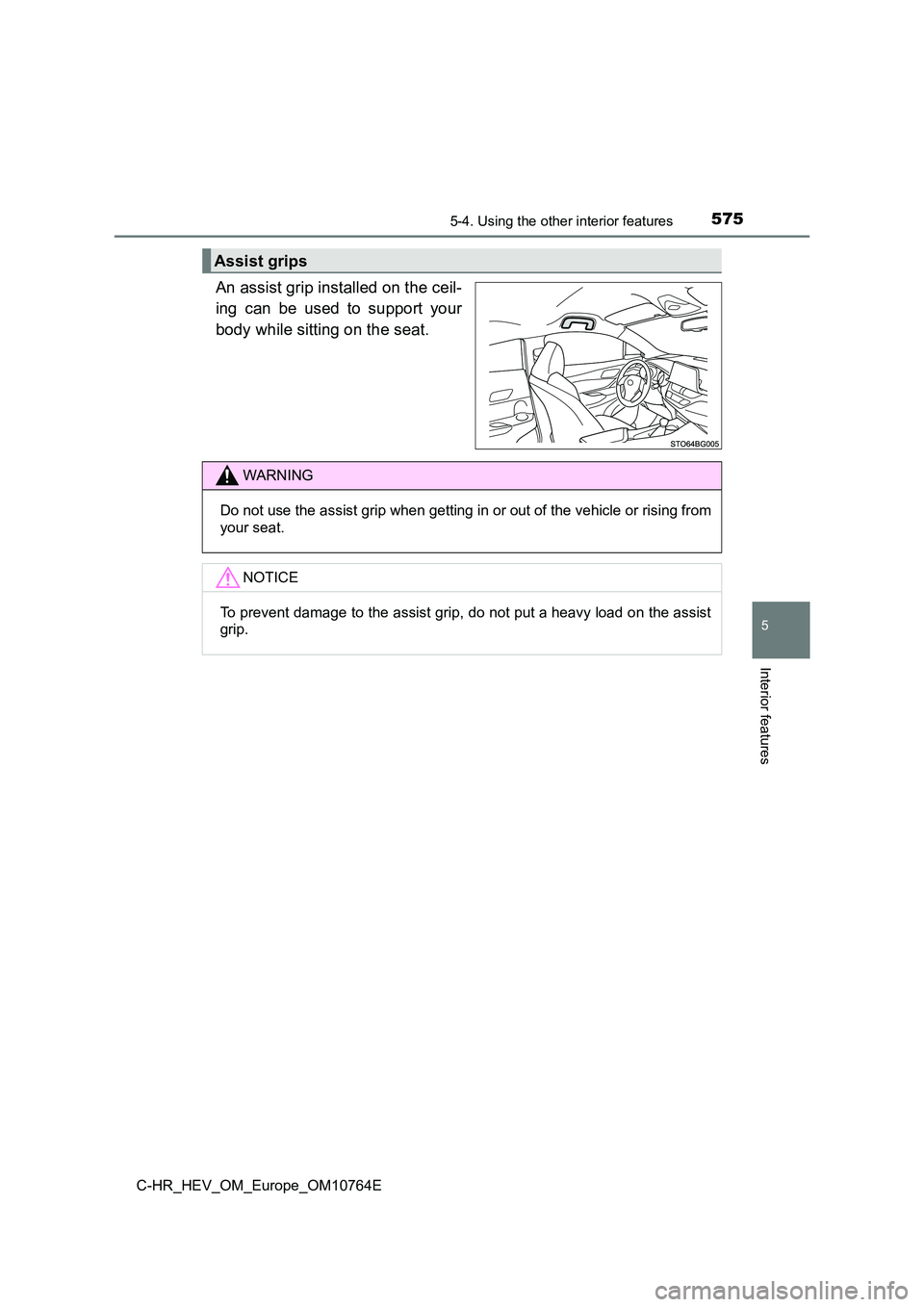

5755-4. Using the other interior features
C-HR_HEV_OM_Europe_OM10764E
5
Interior features
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicl e or rising from
your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load o n the assist
grip.

5765-4. Using the other interior features
C-HR_HEV_OM_Europe_OM10764E

577
6Maintenance and care
C-HR_HEV_OM_Europe_OM10764E
6-1. Maintenance and care
Cleaning and protecting the
vehicle exterior ................ 578
Cleaning and protecting the
vehicle interior ................. 584
6-2. Maintenance
Maintenance
requirements.................... 588
6-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ...................... 591
Hood .................................. 594
Positioning a floor jack ....... 596
Engine compartment.......... 597
12-volt battery
(M20A-FXS engine) ......... 610
Tires ................................... 614
Tire inflation pressure ........ 630
Wheels ............................... 632
Air conditioning filter .......... 635
Hybrid battery
(traction battery) air intake
vent and filter ................... 638
Electronic key battery ........ 643
Checking and replacing
fuses ................................ 646
Light bulbs ......................... 651

5786-1. Maintenance and care
C-HR_HEV_OM_Europe_OM10764E
Cleaning and protecting the vehicle exterior
●Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any di rt
and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
■ Self-restoring coat
The vehicle body has a self-restoring coating that is resistant to small surface
scratches caused in a car wash, etc.
● The coating lasts for 5 to 8 years from when the vehicle is delivered from the
plant.
● The restoration time differs depending on the depth of the scratch and out-
side temperature.
The restoration time may become shorter when the coating is war med by
applying warm water.
● Deep scratches caused by keys, coins, etc., cannot be restored.
● Do not use wax that contain abrasives.
Perform the following to protect the vehicle and maintain it in
prime condition:
