591-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

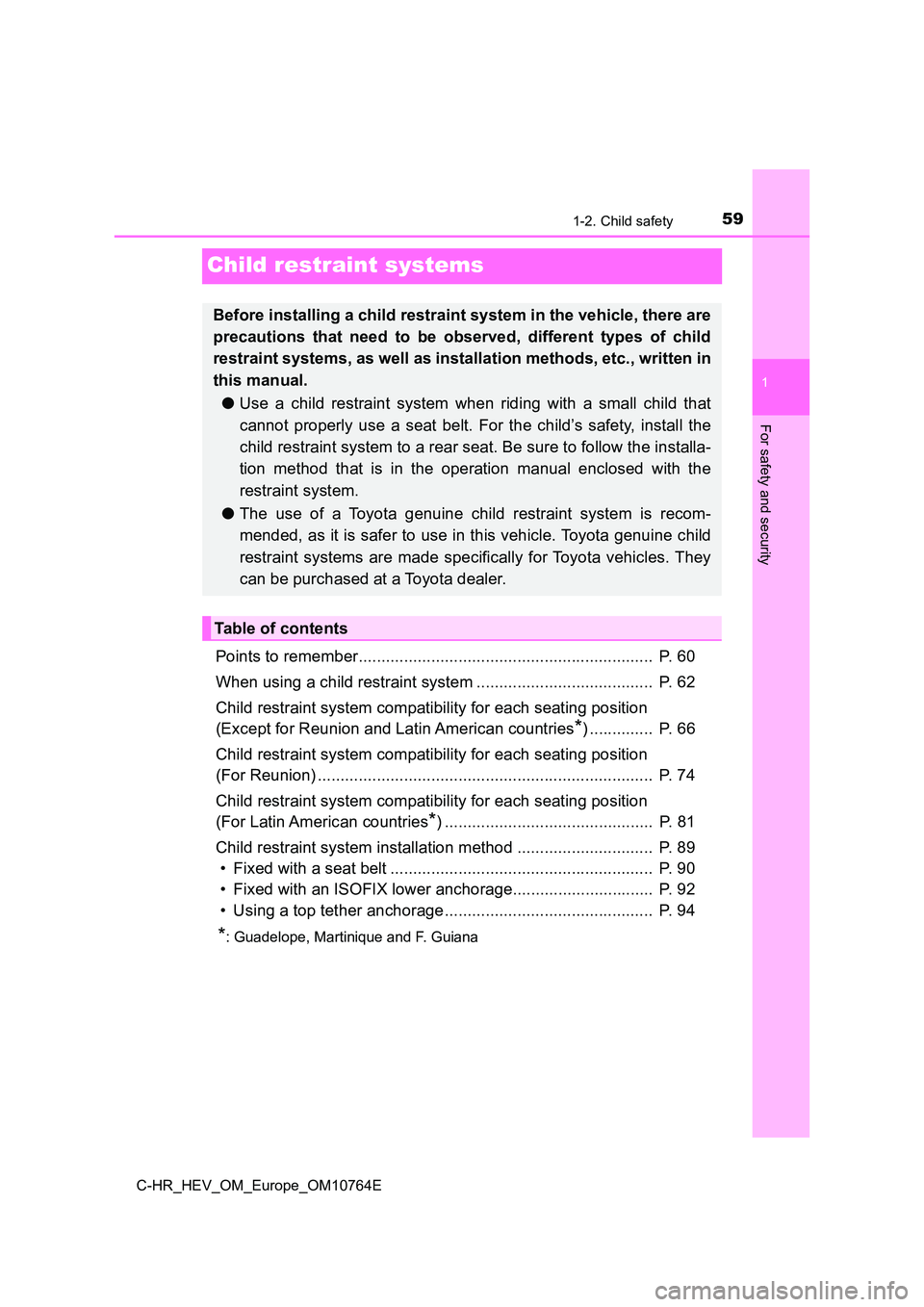

Child restraint systems
Points to remember................................................................. P. 60
When using a child restraint system ............................ ........... P. 62
Child restraint system compatibility for each seating position
(Except for Reunion and Latin American countries*) .............. P. 66
Child restraint system compatibility for each seating position
(For Reunion) .................................................. ........................ P. 74
Child restraint system compatibility for each seating position
(For Latin American countries*) .............................................. P. 81
Child restraint system installation method ..................... ......... P. 89
• Fixed with a seat belt ........................................ .................. P. 90
• Fixed with an ISOFIX lower anchorage.......................... ..... P. 92
• Using a top tether anchorage .................................. ............ P. 94
*: Guadelope, Martinique and F. Guiana
Before installing a child restraint system in the vehicle, there are
precautions that need to be observed, different types of child
restraint systems, as well as installation methods, etc., writt en in
this manual.
● Use a child restraint system when riding with a small child that
cannot properly use a seat belt. For the child’s safety, instal l the
child restraint system to a rear seat. Be sure to follow the in stalla-
tion method that is in the operation manual enclosed with the
restraint system.
● The use of a Toyota genuine child restraint system is recom-
mended, as it is safer to use in this vehicle. Toyota genuine c hild
restraint systems are made specifically for Toyota vehicles. Th ey
can be purchased at a Toyota dealer.
Table of contents

601-2. Child safety
C-HR_HEV_OM_Europe_OM10764E

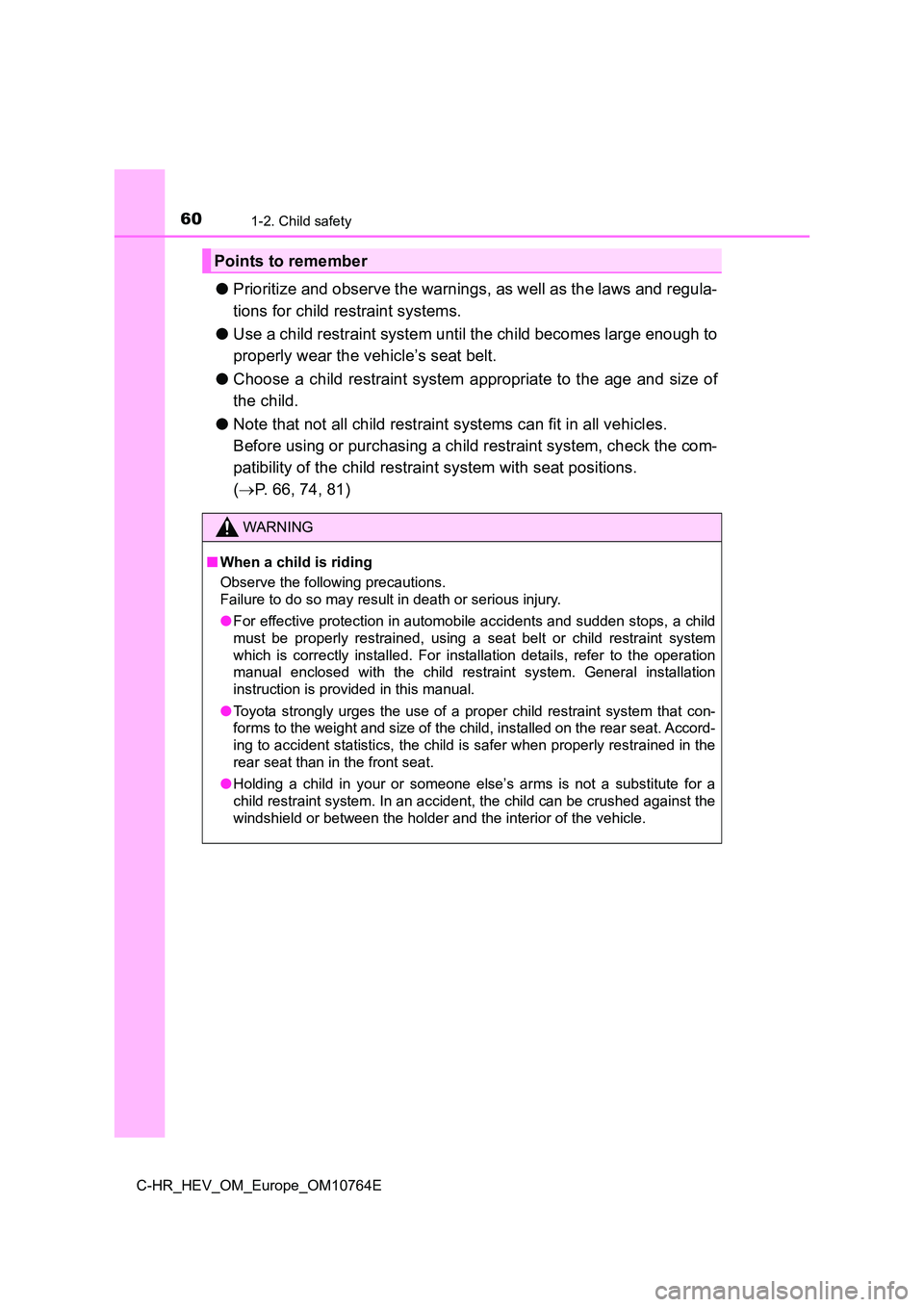

●Prioritize and observe the warnings, as well as the laws and regula-
tions for child restraint systems.
● Use a child restraint system until the child becomes large enough to
properly wear the vehicle’s seat belt.
● Choose a child restraint system appropriate to the age and size of
the child.
● Note that not all child restraint systems can fit in all vehicles.
Before using or purchasing a child restraint system, check the com-
patibility of the child restraint system with seat positions.
( P. 66, 74, 81)
Points to remember
WARNING
■When a child is riding
Observe the following precautions.
Failure to do so may result in death or serious injury.
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restrai nt system
which is correctly installed. For installation details, refer t o the operation
manual enclosed with the child restraint system. General instal lation
instruction is provided in this manual.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the weight and size of the child, installed on the rea r seat. Accord-
ing to accident statistics, the child is safer when properly re strained in the
rear seat than in the front seat.
● Holding a child in your or someone else’s arms is not a substitute for a
child restraint system. In an accident, the child can be crushe d against the
windshield or between the holder and the interior of the vehicl e.

611-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E
WARNING

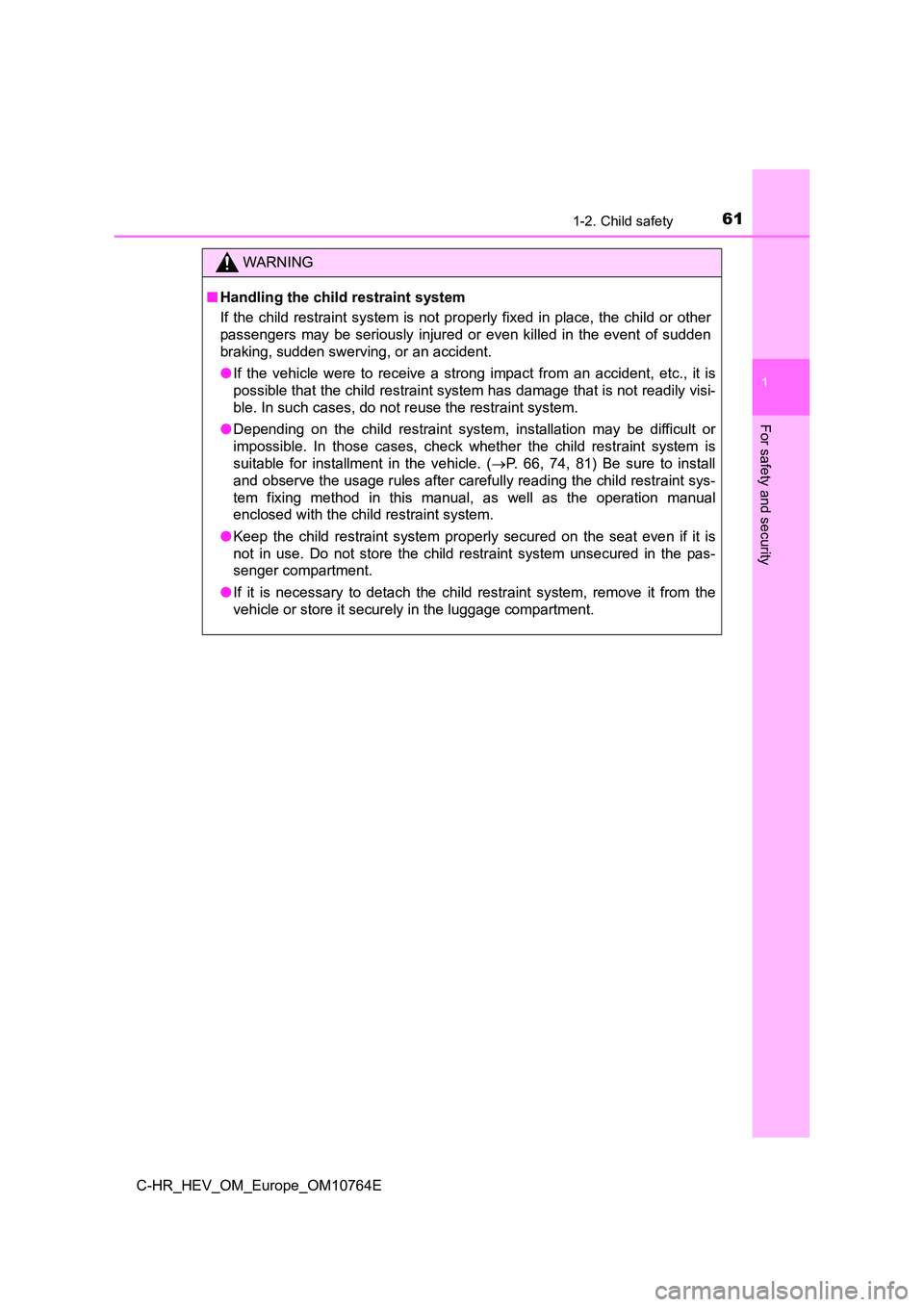

■Handling the child restraint system
If the child restraint system is not properly fixed in place, t he child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving, or an accident.
● If the vehicle were to receive a strong impact from an accident, etc., it is
possible that the child restraint system has damage that is not readily visi-
ble. In such cases, do not reuse the restraint system.
● Depending on the child restraint system, installation may be difficult or
impossible. In those cases, check whether the child restraint s ystem is
suitable for installment in the vehicle. ( P. 66, 74, 81) Be sure to install
and observe the usage rules after carefully reading the child r estraint sys-
tem fixing method in this manual, as well as the operation manu al
enclosed with the child restraint system.
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured i n the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment.

621-2. Child safety
C-HR_HEV_OM_Europe_OM10764E

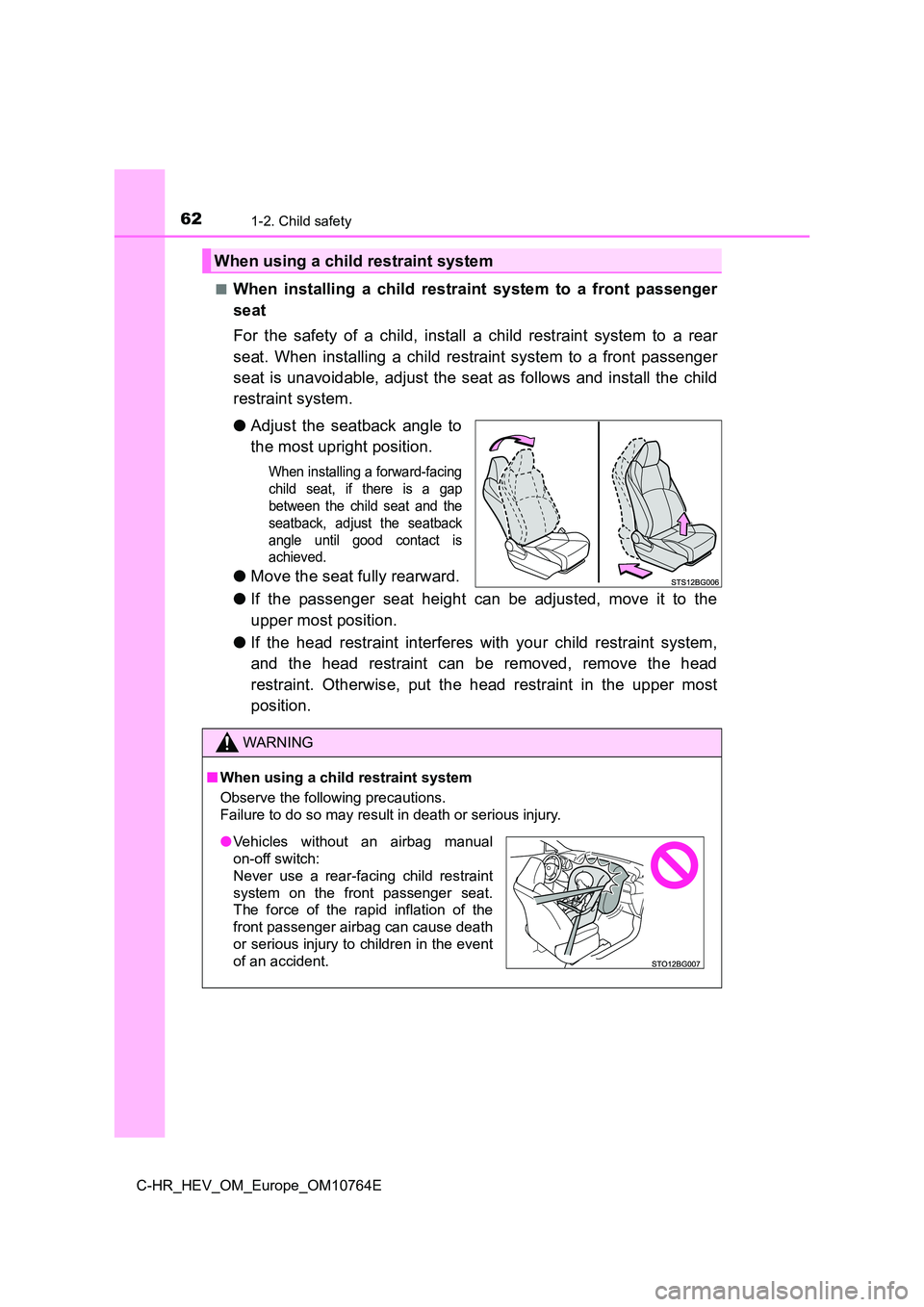

■When installing a child restraint system to a front passenger
seat
For the safety of a child, install a child restraint system to a rear
seat. When installing a child restraint system to a front passe nger
seat is unavoidable, adjust the seat as follows and install the child
restraint system.
● Adjust the seatback angle to
the most upright position.
When installing a forward-facing
child seat, if there is a gap
between the child seat and the
seatback, adjust the seatback
angle until good contact is
achieved.
● Move the seat fully rearward.
● If the passenger seat height can be adjusted, move it to the
upper most position.
● If the head restraint interferes with your child restraint system,
and the head restraint can be removed, remove the head
restraint. Otherwise, put the head restraint in the upper most
position.
When using a child restraint system
WARNING
■ When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Vehicles without an airbag manual
on-off switch:
Never use a rear-facing child restraint
system on the front passenger seat.
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.

631-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E
WARNING
■When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.

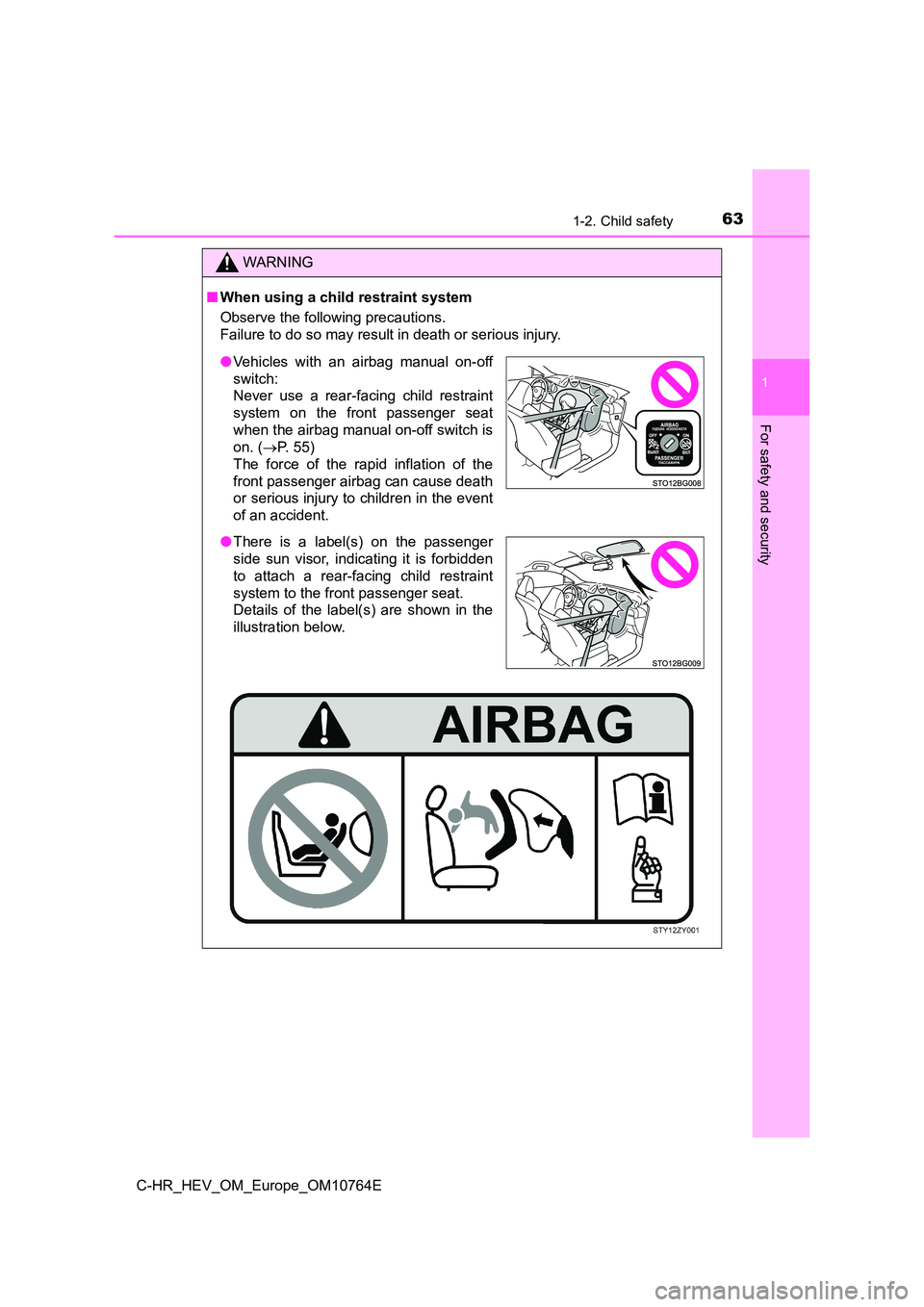

● Vehicles with an airbag manual on-off
switch:
Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. ( P. 55)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
● There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.

641-2. Child safety
C-HR_HEV_OM_Europe_OM10764E
WARNING
■When using a child restraint system

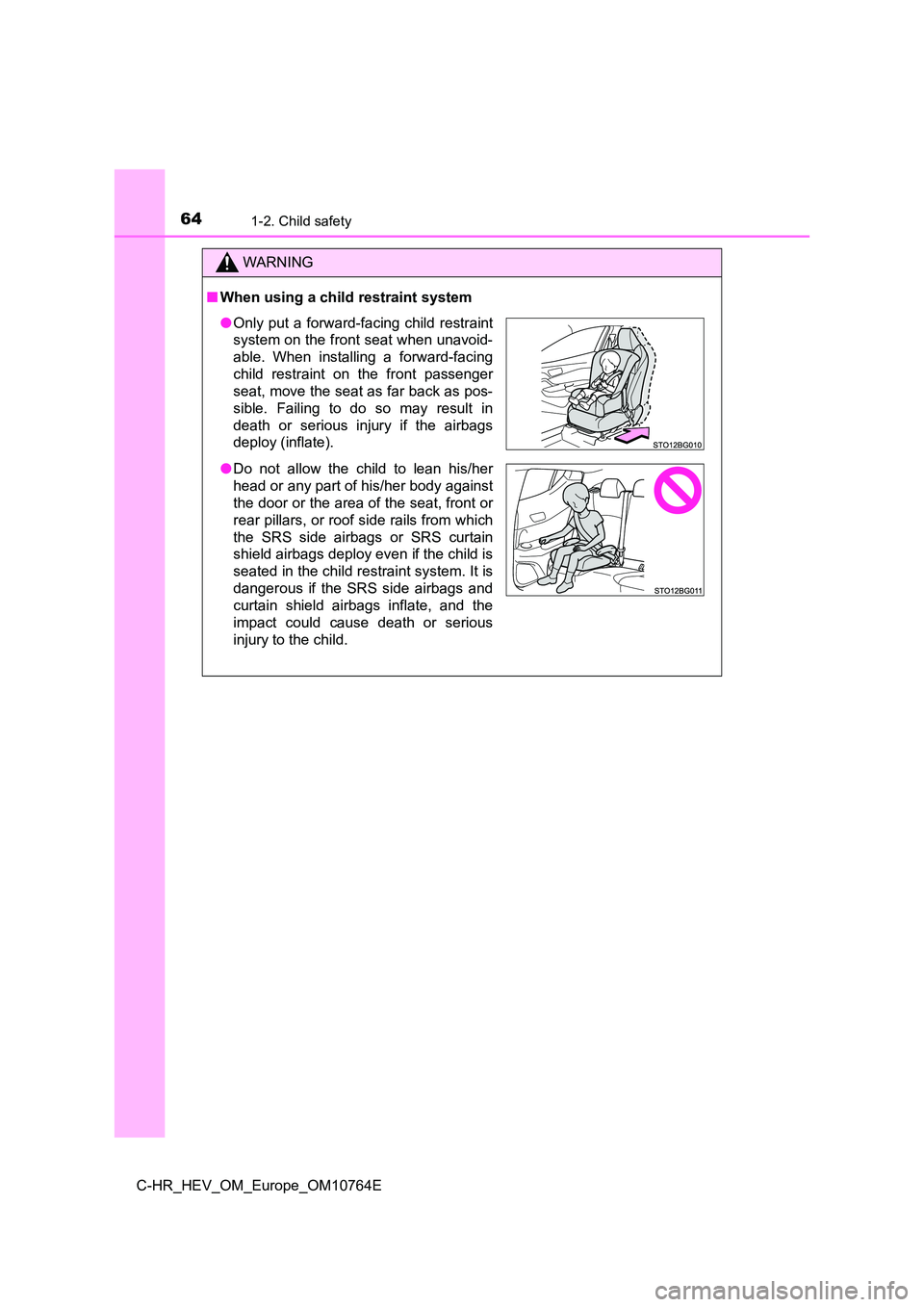

●Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible. Failing to do so may result in
death or serious injury if the airbags
deploy (inflate).
● Do not allow the child to lean his/her
head or any part of his/her body against
the door or the area of the seat, front or
rear pillars, or roof side rails from which
the SRS side airbags or SRS curtain
shield airbags deploy even if the child is
seated in the child restraint system. It is
dangerous if the SRS side airbags and
curtain shield airbags inflate, and the
impact could cause death or serious
injury to the child.

651-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E
WARNING
■When using a child restraint system
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat (left-hand drive vehicles) or
the left-hand rear seat (right-hand drive
vehicles). ( P. 70, 80, 88)

661-2. Child safety
C-HR_HEV_OM_Europe_OM10764E
*: Guadelope, Martinique and F. Guiana
■Child restraint system compatibility for each seating position
Compatibility of each seating position with child restraint sys tems
( P. 68) displays the type of child restraint systems that can be
used and possible seating positions for installation using symb ols.
Also, the recommended child restraint system that is suitable f or
your child can be selected.
Otherwise, check [Recommended child restraint systems and Com-
patibility table] for recommended child restraint systems. ( P. 7 3 )
Check the selected child restraint system together with the fol low-
ing [Before confirming the compatibility of each seating positi on
with child restraint systems].
■Before confirming the compatibility of each seating position
with child restraint systems
Checking the child restraint system standards.
Use a child restraint system that conforms to UN(ECE) R44*1 or
UN(ECE) R129*1, 2.
The following approval mark is displayed on child restraint sys -
tems which are conformed.
Check for an approval mark attached to the child restraint sys-
tem.
Child restraint system compatibility for each seating position
(Except for Reunion and Latin American countries*)
1

671-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E
Example of the displayed
regulation number
UN(ECE) R44 approval
mark*3
The weight range of the
child who is applicable for
an UN(ECE) R44 approval
mark is indicated.
UN(ECE) R129 approval
mark*3
The height range of the
child who is applicable as
well as available weights
for an UN(ECE) R129
approval mark is indicated.
*1: UN(ECE) R44 and UN(ECE) R129 are U.N. regulations for child
restraint systems.
*2: The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
*3: The displayed mark may differ depending on the product.
Checking the category of the child restraint system.
Check the approval mark of the child restraint system for which
of the following categories the child restraint system is suita ble.
Also, if there are any uncertainties, check the user’s guide
included with the child restraint system or contact the retaile r of
the child restraint system.
•“universal”
• “semi-universal”
• “restricted”
• “vehicle specific”
2

681-2. Child safety
C-HR_HEV_OM_Europe_OM10764E

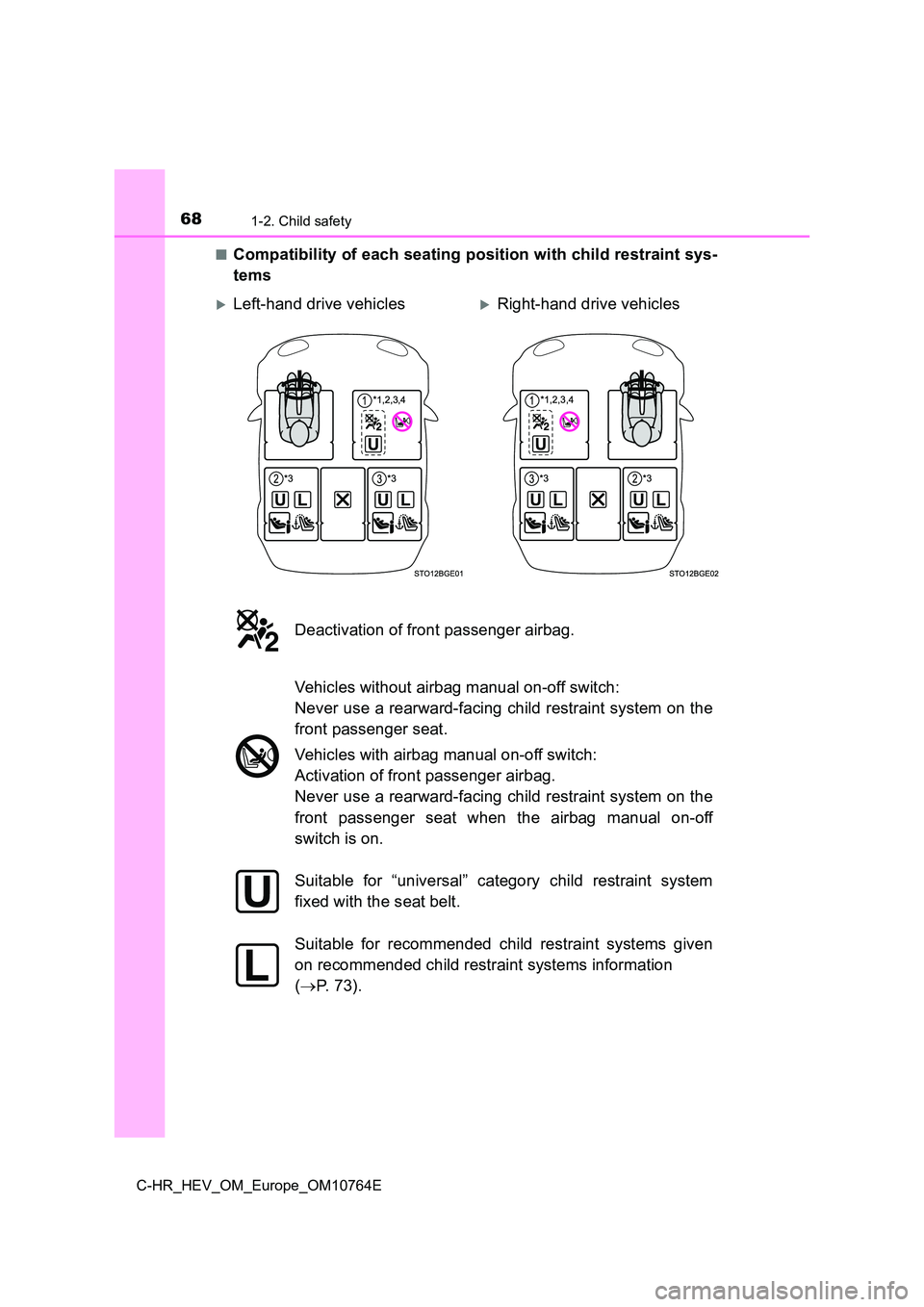

■Compatibility of each seating position with child restraint sys -
tems
Left-hand drive vehiclesRight-hand drive vehicles
Deactivation of front passenger airbag.
Vehicles without airbag manual on-off switch:
Never use a rearward-facing child restraint system on the
front passenger seat.
Vehicles with airbag manual on-off switch:
Activation of front passenger airbag.
Never use a rearward-facing child restraint system on the
front passenger seat when the airbag manual on-off
switch is on.
Suitable for “universal” category child restraint system
fixed with the seat belt.
Suitable for recommended child restraint systems given
on recommended child restraint systems information
( P. 73).
