791-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E
When securing some types of child restraint systems in rear seat, it
may not be possible to properly use the seat belts in positions next
to the child restraint without interfering with it or affecting seat belt
effectiveness. Be sure your seat belt fits snugly across your s houl-
der and low on your hips. If it does not, or if it interferes w ith the
child restraint, move to a different position.
Failure to do so may result in death or serious injury.
FixtureDescription
F3Full-height, forward-facing child restraint systems
F2Reduced-height forward-facing child restraint systems
F2XReduced-height forward-facing child restraint systems
R3Full-size, rearward-facing child restraint systems
R2Reduced-size, rearward-facing child restraint systems
R2XReduced-size, rearward-facing child restraint systems
R1Rearward-facing infant seat
L1Left lateral-facing (carrycot) infant seat
L2Right lateral-facing (carrycot) infant seat
B2Junior seat
B3Junior seat

801-2. Child safety
C-HR_HEV_OM_Europe_OM10764E

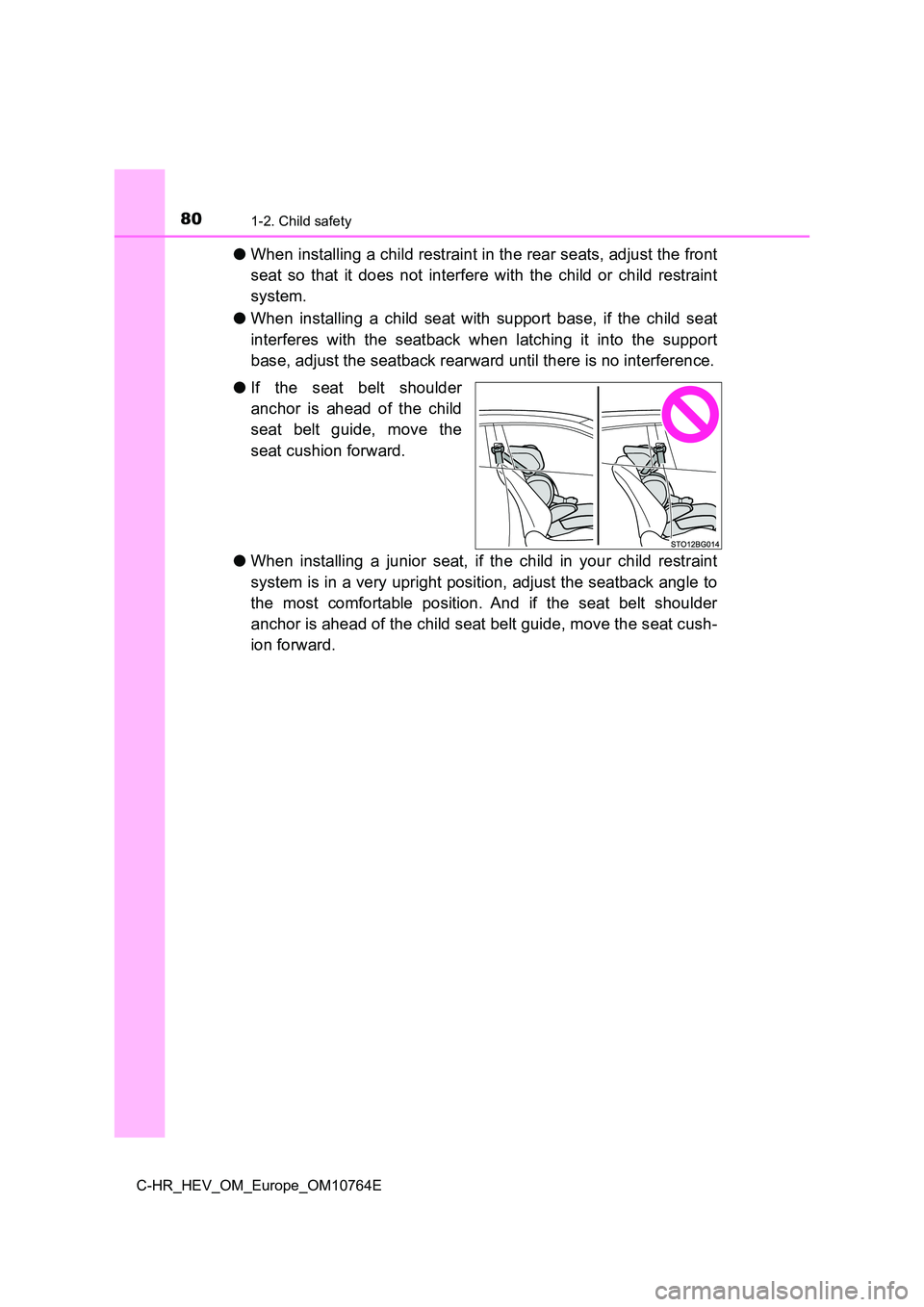

●When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child rest raint
system.
● When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interferen ce.
● If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the
seat cushion forward.
● When installing a junior seat, if the child in your child restraint
system is in a very upright position, adjust the seatback angle to
the most comfortable position. And if the seat belt shoulder
anchor is ahead of the child seat belt guide, move the seat cus h-
ion forward.

811-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

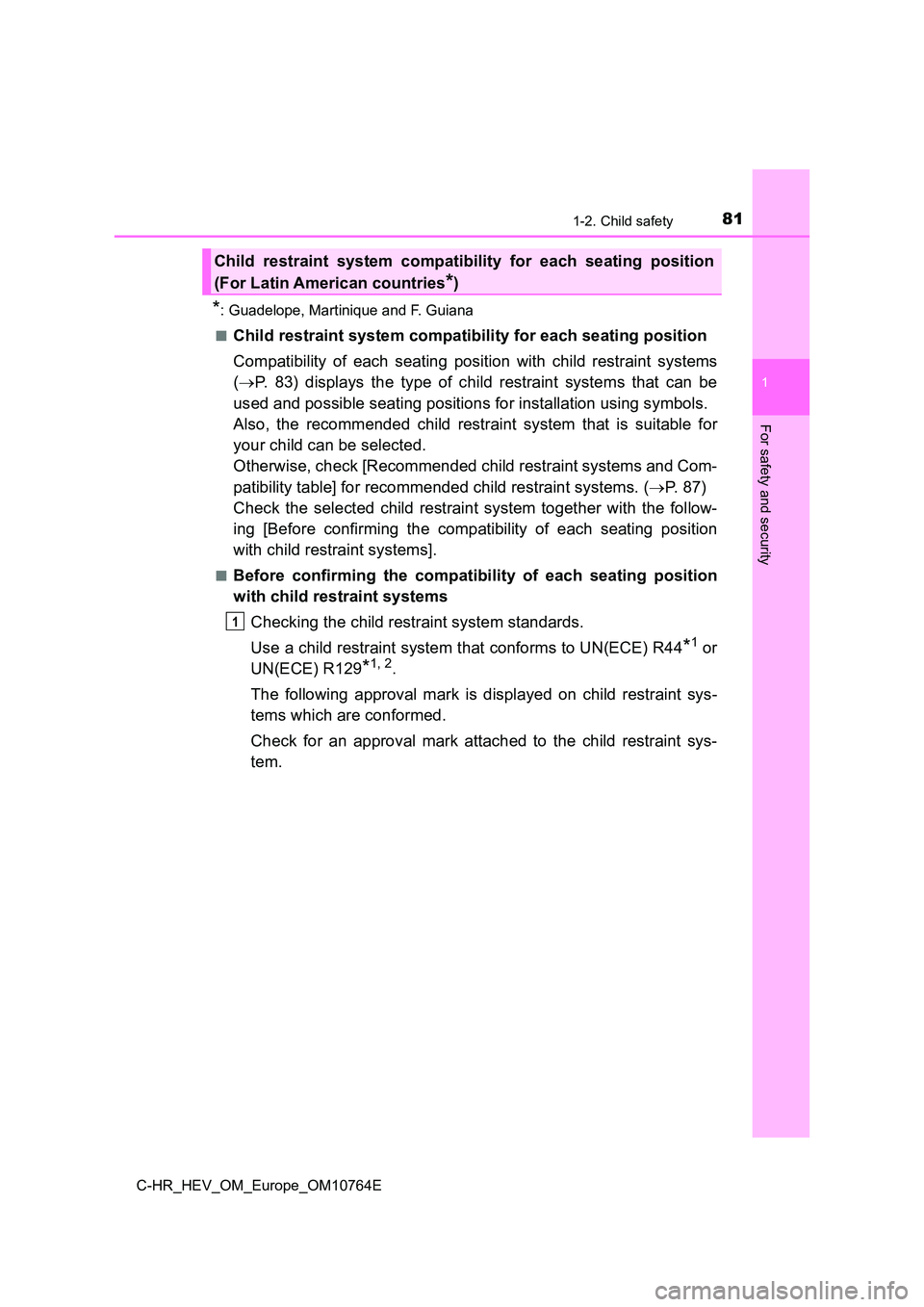

*: Guadelope, Martinique and F. Guiana
■Child restraint system compatibility for each seating position
Compatibility of each seating position with child restraint sys tems
( P. 83) displays the type of child restraint systems that can be
used and possible seating positions for installation using symb ols.
Also, the recommended child restraint system that is suitable f or
your child can be selected.
Otherwise, check [Recommended child restraint systems and Com-
patibility table] for recommended child restraint systems. ( P. 8 7 )
Check the selected child restraint system together with the fol low-
ing [Before confirming the compatibility of each seating positi on
with child restraint systems].
■Before confirming the compatibility of each seating position
with child restraint systems
Checking the child restraint system standards.
Use a child restraint system that conforms to UN(ECE) R44*1 or
UN(ECE) R129*1, 2.
The following approval mark is displayed on child restraint sys -
tems which are conformed.
Check for an approval mark attached to the child restraint sys-
tem.
Child restraint system compatibility for each seating position
(For Latin American countries*)
1

821-2. Child safety
C-HR_HEV_OM_Europe_OM10764E

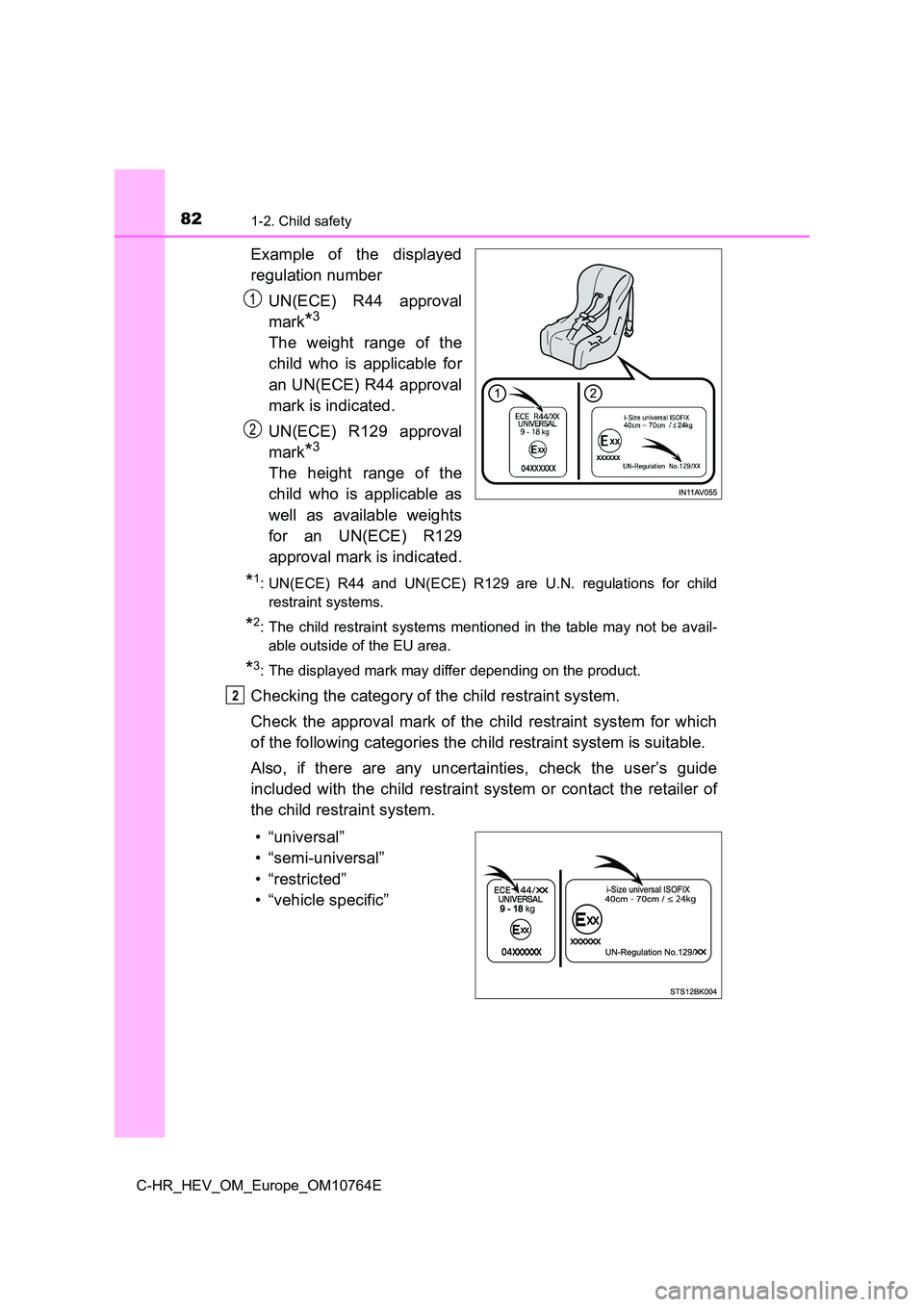

Example of the displayed
regulation number
UN(ECE) R44 approval
mark*3
The weight range of the
child who is applicable for
an UN(ECE) R44 approval
mark is indicated.
UN(ECE) R129 approval
mark*3
The height range of the
child who is applicable as
well as available weights
for an UN(ECE) R129
approval mark is indicated.
*1: UN(ECE) R44 and UN(ECE) R129 are U.N. regulations for child
restraint systems.
*2: The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
*3: The displayed mark may differ depending on the product.
Checking the category of the child restraint system.
Check the approval mark of the child restraint system for which
of the following categories the child restraint system is suita ble.
Also, if there are any uncertainties, check the user’s guide
included with the child restraint system or contact the retaile r of
the child restraint system.
•“universal”
• “semi-universal”
• “restricted”
• “vehicle specific”
2

831-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

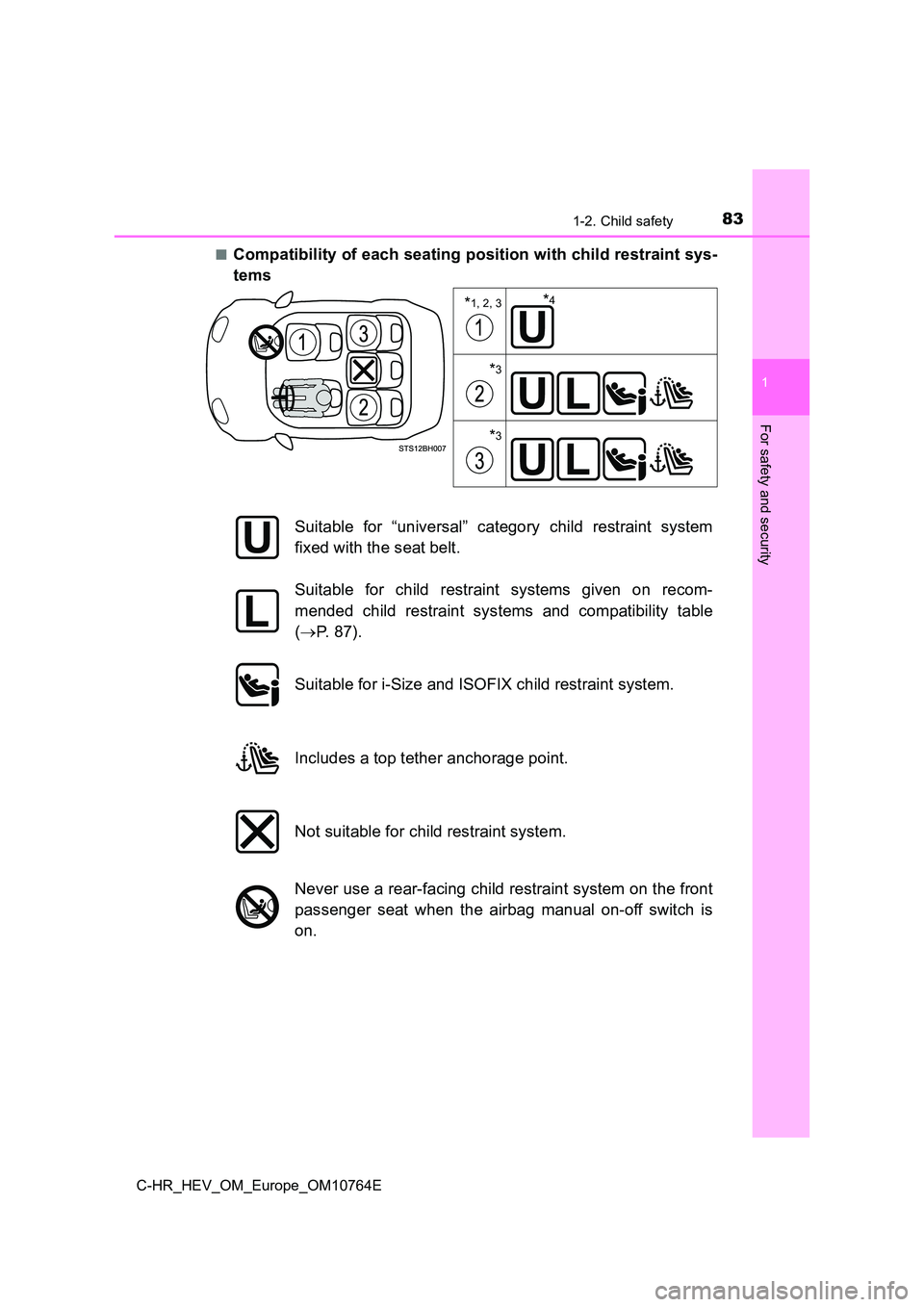

■Compatibility of each seating position with child restraint sys -
tems
*1, 2, 3
*3
*3
*4
Suitable for “universal” category child restraint system
fixed with the seat belt.
Suitable for child restraint systems given on recom-
mended child restraint systems and compatibility table
( P. 87).
Suitable for i-Size and ISOFIX child restraint system.
Includes a top tether anchorage point.
Not suitable for child restraint system.
Never use a rear-facing child restraint system on the front
passenger seat when the airbag manual on-off switch is
on.

841-2. Child safety
C-HR_HEV_OM_Europe_OM10764E

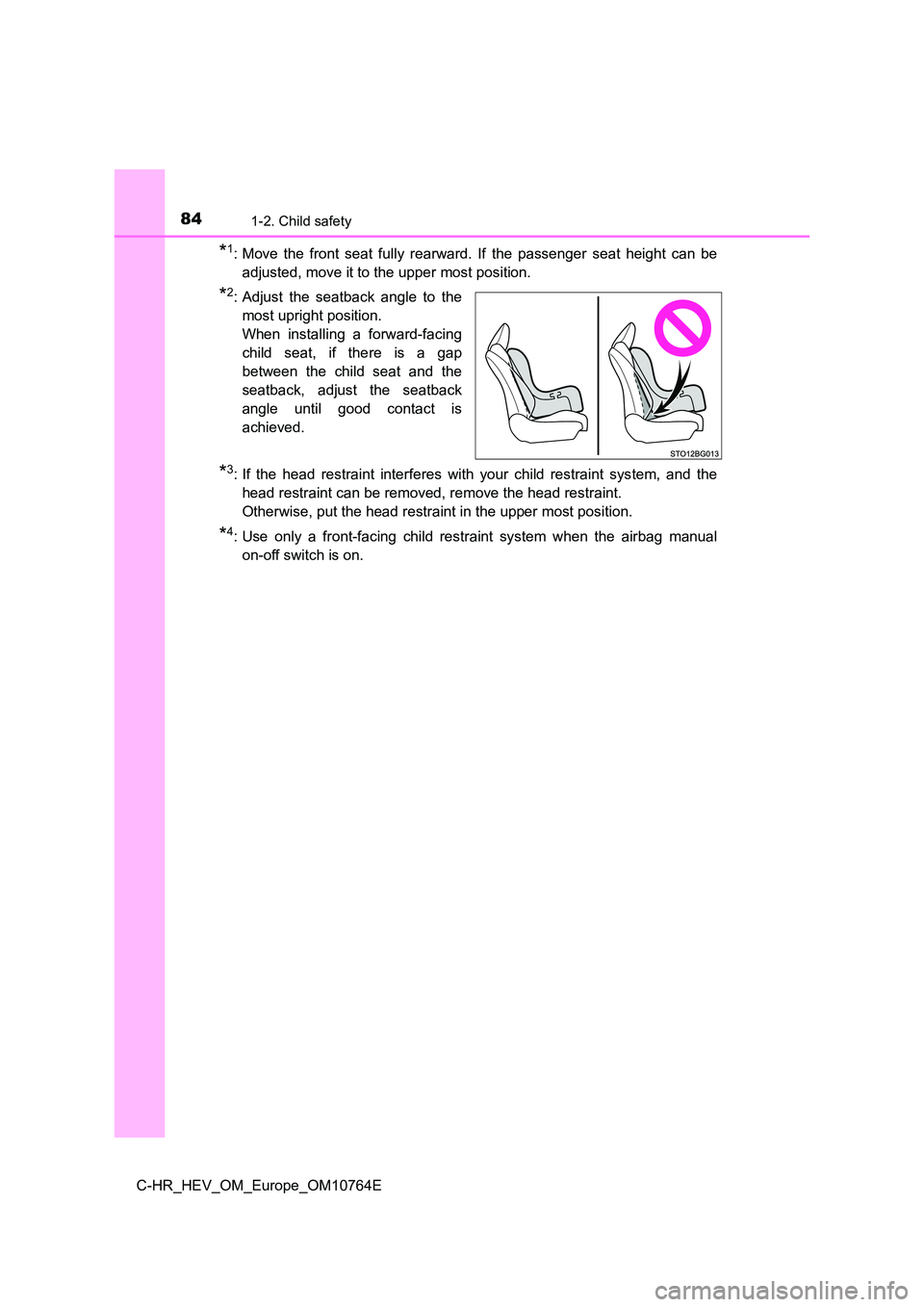

*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap
between the child seat and the
seatback, adjust the seatback
angle until good contact is
achieved.
*3: If the head restraint interferes with your child restraint sys tem, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Use only a front-facing child restraint system when the airbag manual
on-off switch is on.

851-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

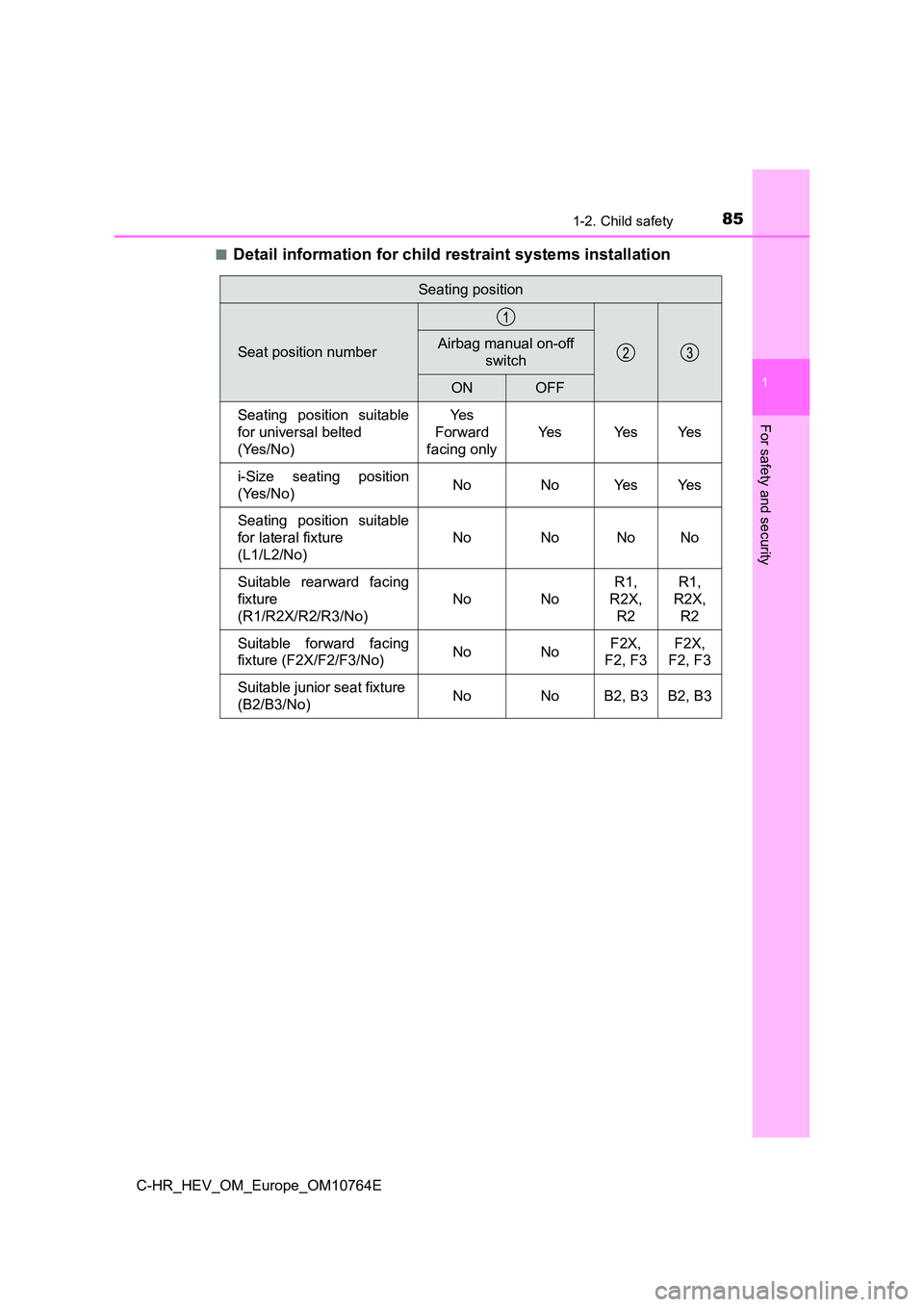

■Detail information for child restraint systems installation
Seating position
Seat position numberAirbag manual on-off
switch
ONOFF
Seating position suitable
for universal belted
(Yes/No)
Ye s
Forward
facing only
Ye sYe sYe s
i-Size seating position
(Yes/No)NoNoYe sYe s
Seating position suitable
for lateral fixture
(L1/L2/No)
NoNoNoNo
Suitable rearward facing
fixture
(R1/R2X/R2/R3/No)
NoNo
R1,
R2X,
R2
R1,
R2X,
R2
Suitable forward facing
fixture (F2X/F2/F3/No)NoNoF2X,
F2, F3
F2X,
F2, F3
Suitable junior seat fixture
(B2/B3/No)NoNoB2, B3B2, B3

861-2. Child safety
C-HR_HEV_OM_Europe_OM10764E

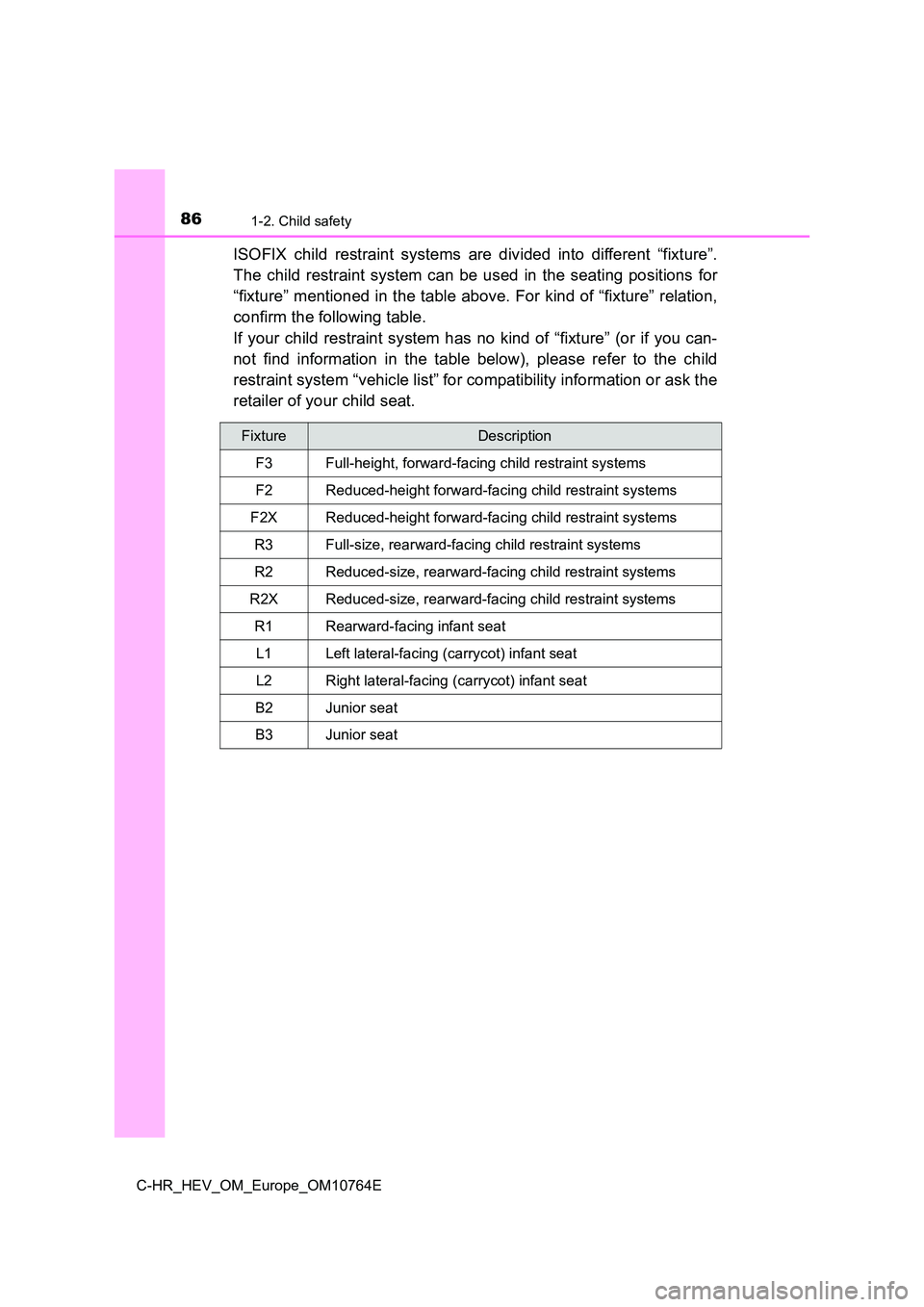

ISOFIX child restraint systems are divided into different “fixture”.
The child restraint system can be used in the seating positions for
“fixture” mentioned in the table above. For kind of “fixture” r elation,
confirm the following table.
If your child restraint system has no kind of “fixture” (or if you can-
not find information in the table below), please refer to the c hild
restraint system “vehicle list” for compatibility information o r ask the
retailer of your child seat.
FixtureDescription
F3Full-height, forward-facing child restraint systems
F2Reduced-height forward-facing child restraint systems
F2XReduced-height forward-facing child restraint systems
R3Full-size, rearward-facing child restraint systems
R2Reduced-size, rearward-facing child restraint systems
R2XReduced-size, rearward-facing child restraint systems
R1Rearward-facing infant seat
L1Left lateral-facing (carrycot) infant seat
L2Right lateral-facing (carrycot) infant seat
B2Junior seat
B3Junior seat

871-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

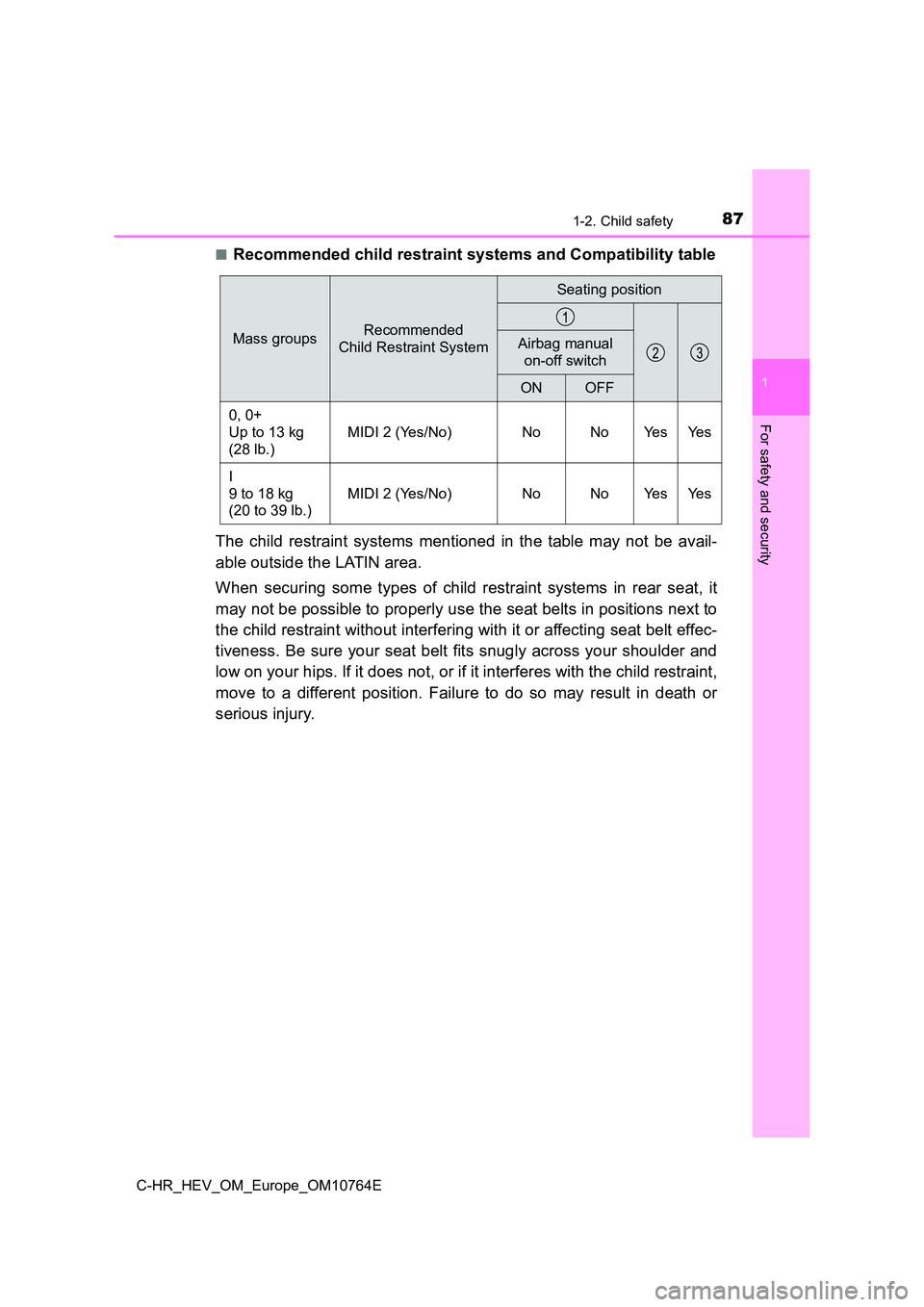

■Recommended child restraint systems and Compatibility table
The child restraint systems mentioned in the table may not be a vail-
able outside the LATIN area.
When securing some types of child restraint systems in rear sea t, it
may not be possible to properly use the seat belts in positions next to
the child restraint without interfering with it or affecting se at belt effec-
tiveness. Be sure your seat belt fits snugly across your should er and
low on your hips. If it does not, or if it interferes with the child restraint,
move to a different position. Failure to do so may result in de ath or
serious injury.
Mass groupsRecommended
Child Restraint System
Seating position
Airbag manual
on-off switch
ONOFF
0, 0+
Up to 13 kg
(28 lb.)
MIDI 2 (Yes/No)NoNoYe sYe s
I
9 to 18 kg
(20 to 39 lb.)
MIDI 2 (Yes/No)NoNoYe sYe s

881-2. Child safety
C-HR_HEV_OM_Europe_OM10764E
●When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child rest raint
system.
● When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interferen ce.
● If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the
seat cushion forward.
● When installing a junior seat, if the child in your child restraint
system is in a very upright position, adjust the seatback angle to
the most comfortable position. And if the seat belt shoulder
anchor is ahead of the child seat belt guide, move the seat cus h-
ion forward.
