7297-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E
7
When trouble arises

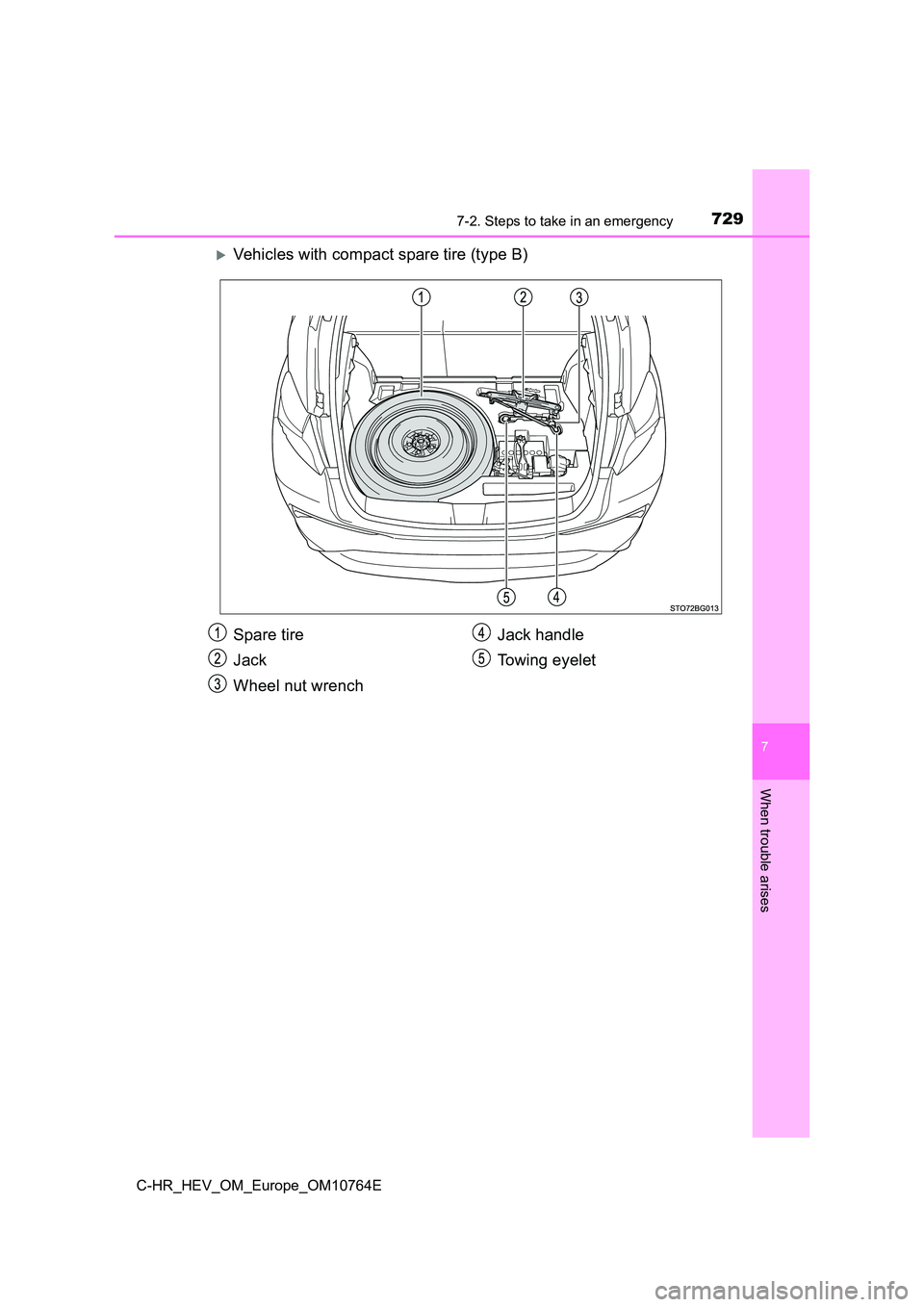

Vehicles with compact spare tire (type B)
Spare tire
Jack
Wheel nut wrench
Jack handle
To w i n g e y e l e t

7307-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E

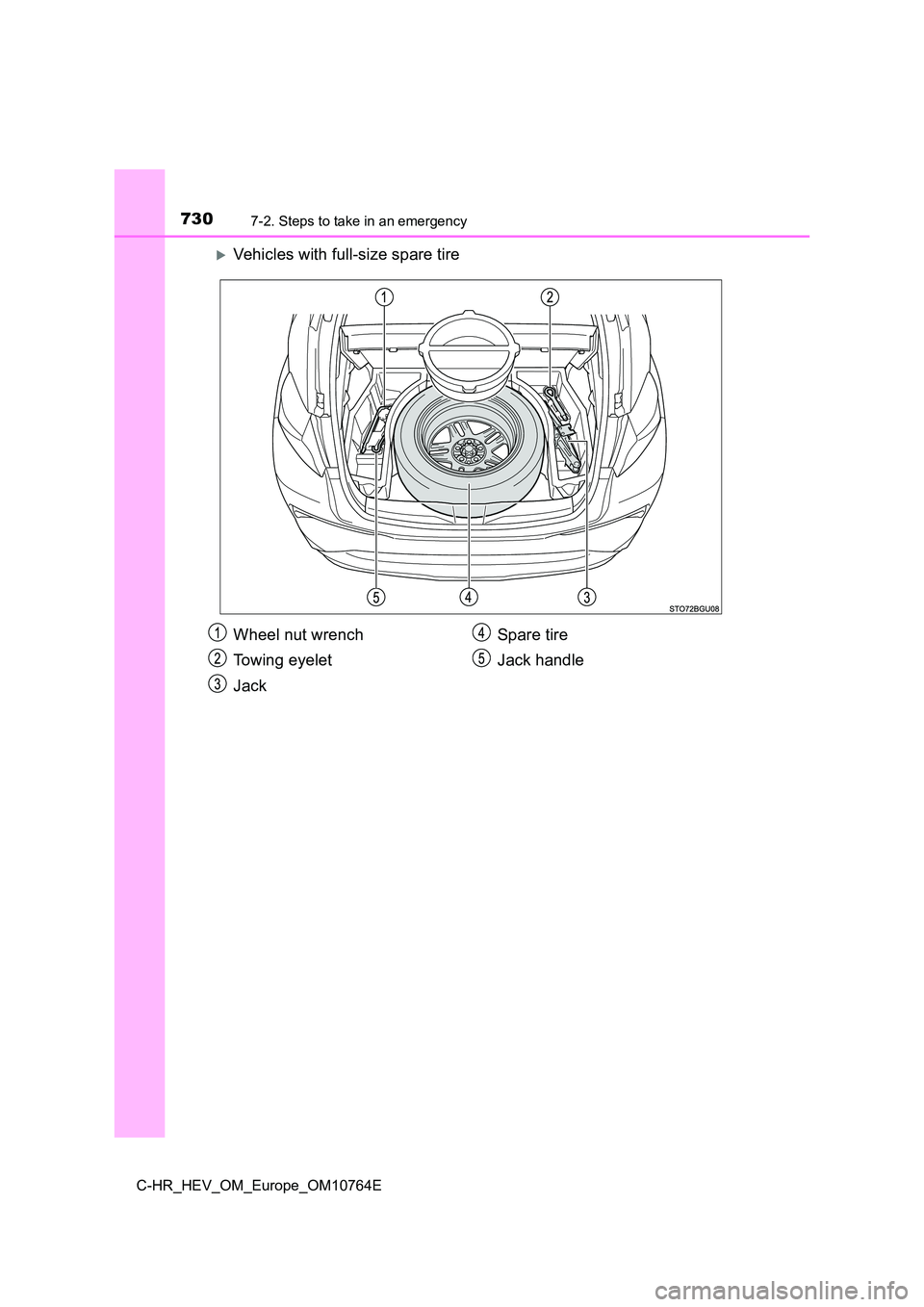

Vehicles with full-size spare tire
Wheel nut wrench
Towing eyelet
Jack
Spare tire
Jack handle

7317-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E
7
When trouble arises
WARNING

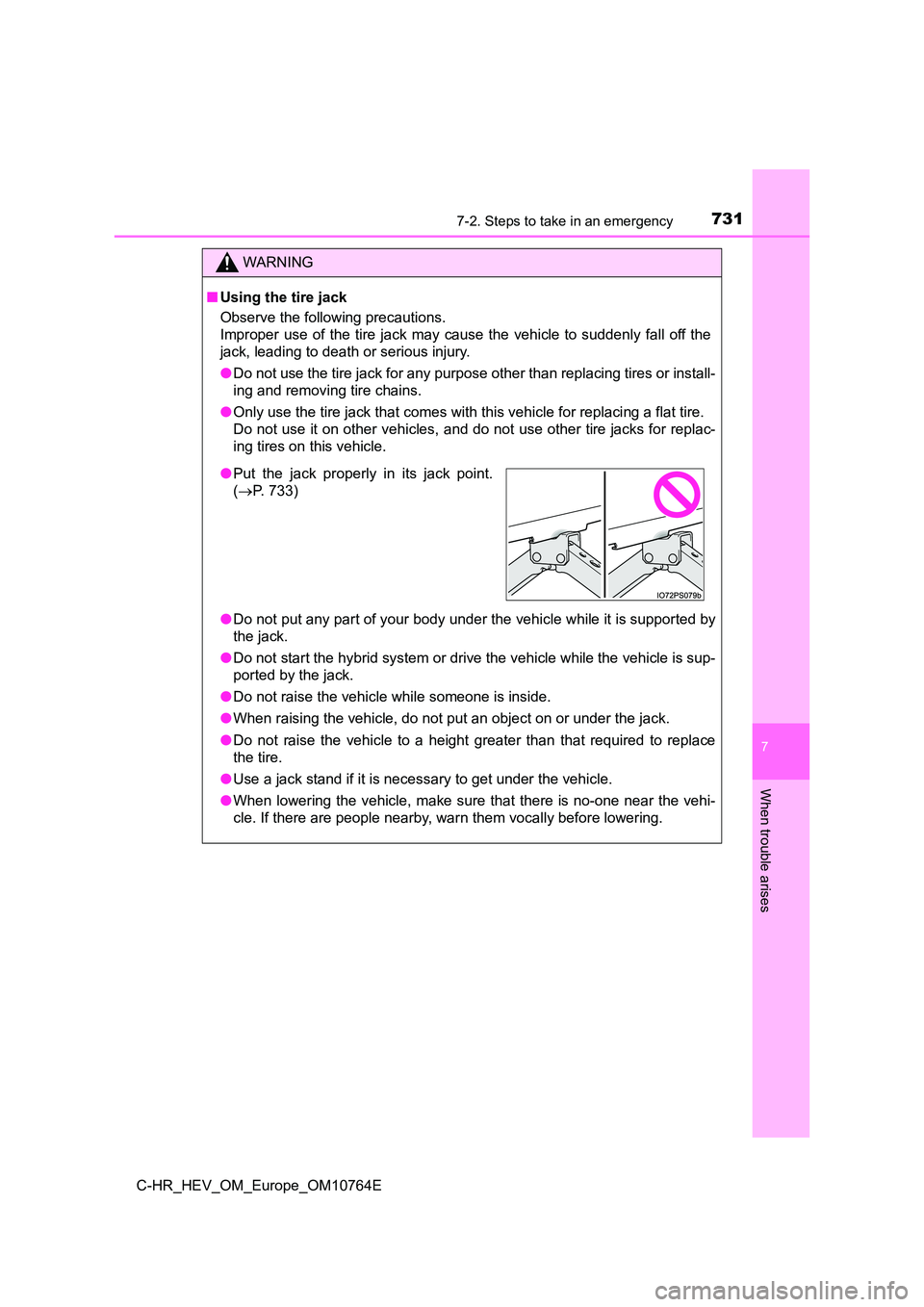

■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
● Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
● Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jack s for replac-
ing tires on this vehicle.
● Do not put any part of your body under the vehicle while it is supported by
the jack.
● Do not start the hybrid system or drive the vehicle while the vehicle is sup-
ported by the jack.
● Do not raise the vehicle while someone is inside.
● When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to replace
the tire.
● Use a jack stand if it is necessary to get under the vehicle.
● When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lower ing.
●Put the jack properly in its jack point.
( P. 733)

7327-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E

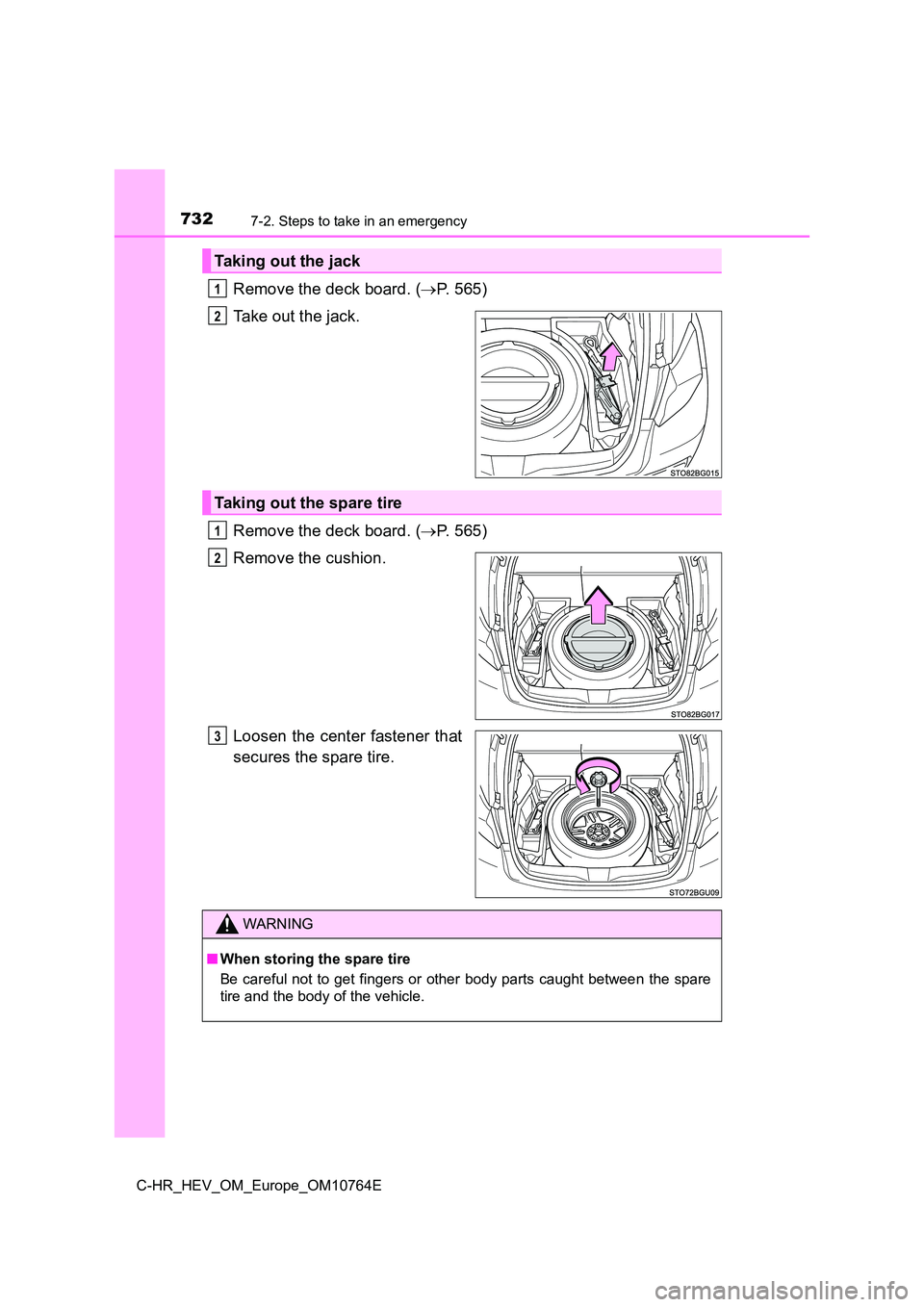

Remove the deck board. (P. 5 6 5 )
Take out the jack.
Remove the deck board. ( P. 5 6 5 )
Remove the cushion.
Loosen the center fastener that
secures the spare tire.
Taking out the jack
1
2
Taking out the spare tire
1
2
3
WARNING
■ When storing the spare tire
Be careful not to get fingers or other body parts caught betwee n the spare
tire and the body of the vehicle.

7337-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E
7
When trouble arises
Chock the tires.
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion by
hand until the center of the
recessed portion of the jack is
in contact with the center of the
jack point.

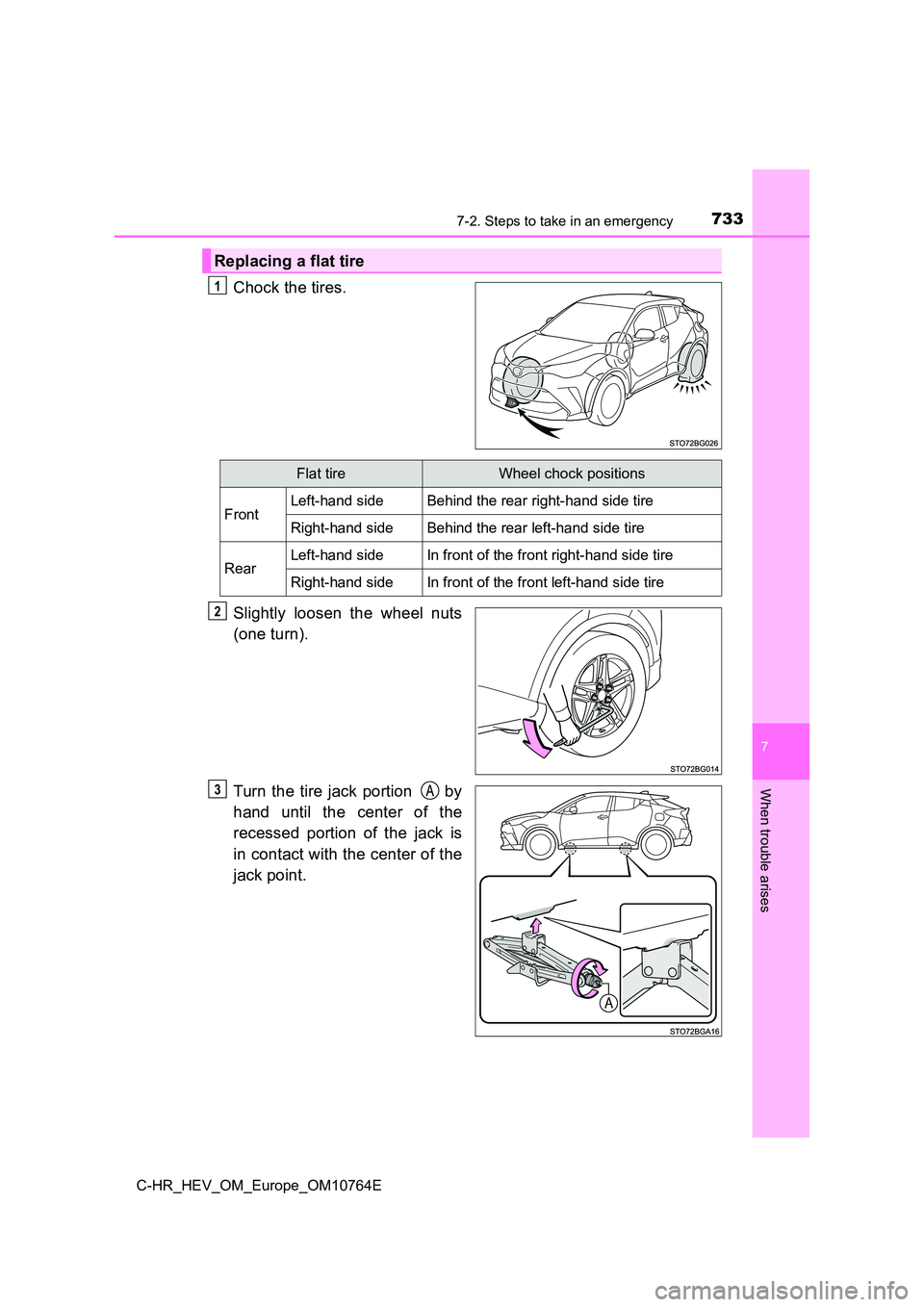

Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3

7347-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E

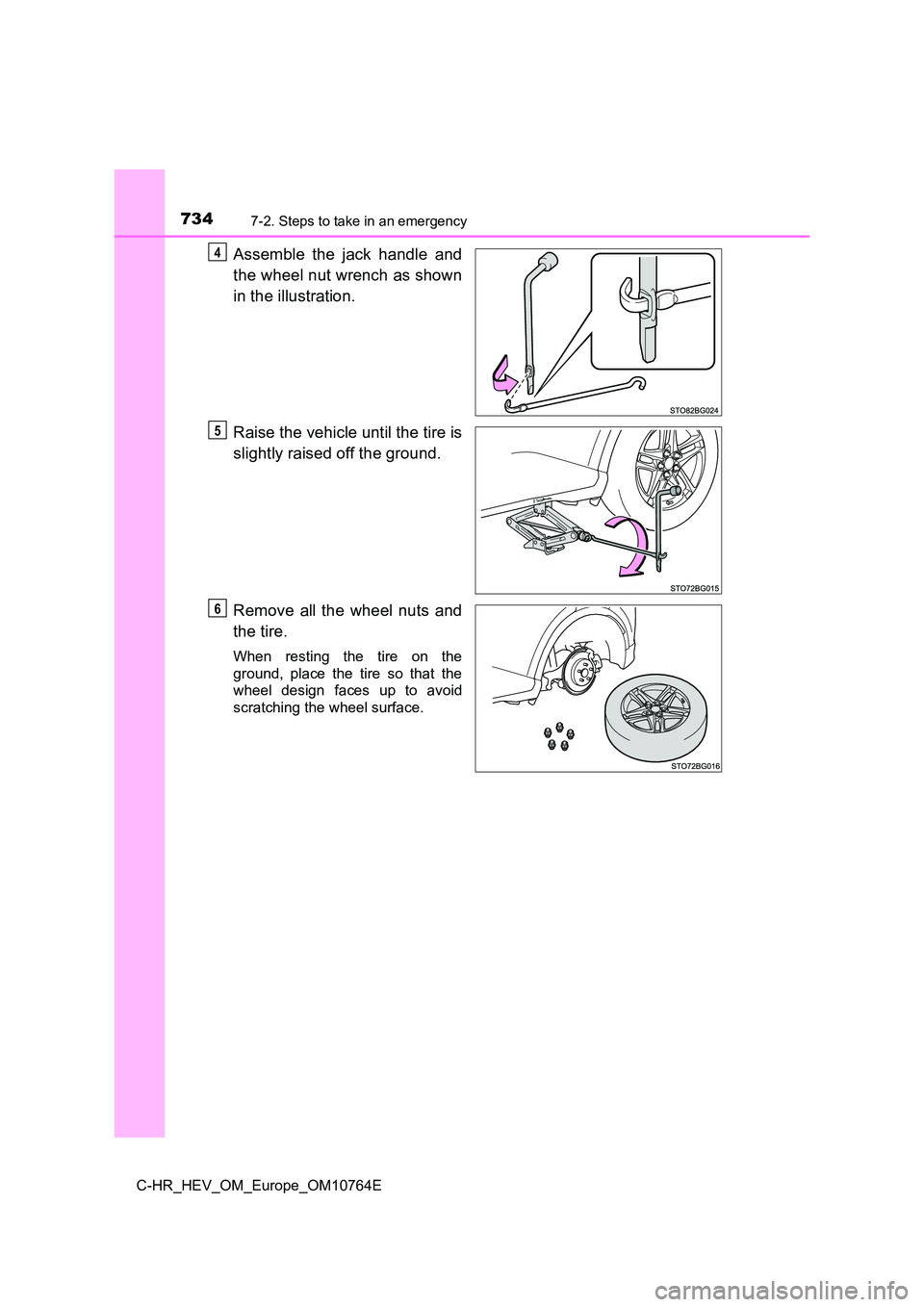

Assemble the jack handle and
the wheel nut wrench as shown
in the illustration.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
4
5
6

7357-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E
7
When trouble arises
WARNING

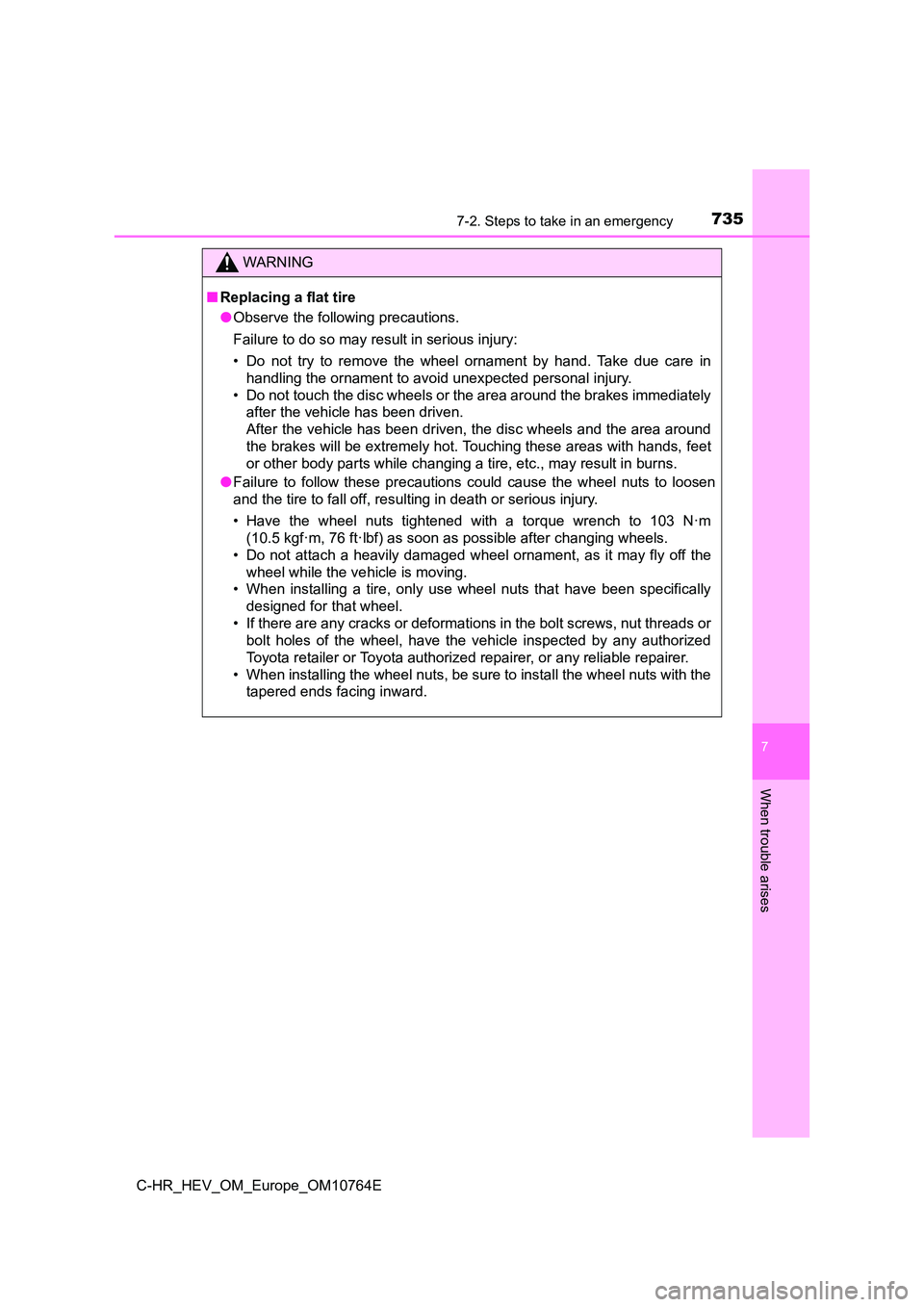

■Replacing a flat tire
● Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes imm ediately
after the vehicle has been driven.
After the vehicle has been driven, the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with han ds, feet
or other body parts while changing a tire, etc., may result in burns.
● Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 103 N·m
(10.5 kgf·m, 76 ft·lbf) as soon as possible after changing wheels .
• Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been spe cifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nu t threads or
bolt holes of the wheel, have the vehicle inspected by any auth orized
Toyota retailer or Toyota author ized repairer, or any reliable repairer.
• When installing the wheel nuts, be sure to install the wheel n uts with the
tapered ends facing inward.

7367-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E

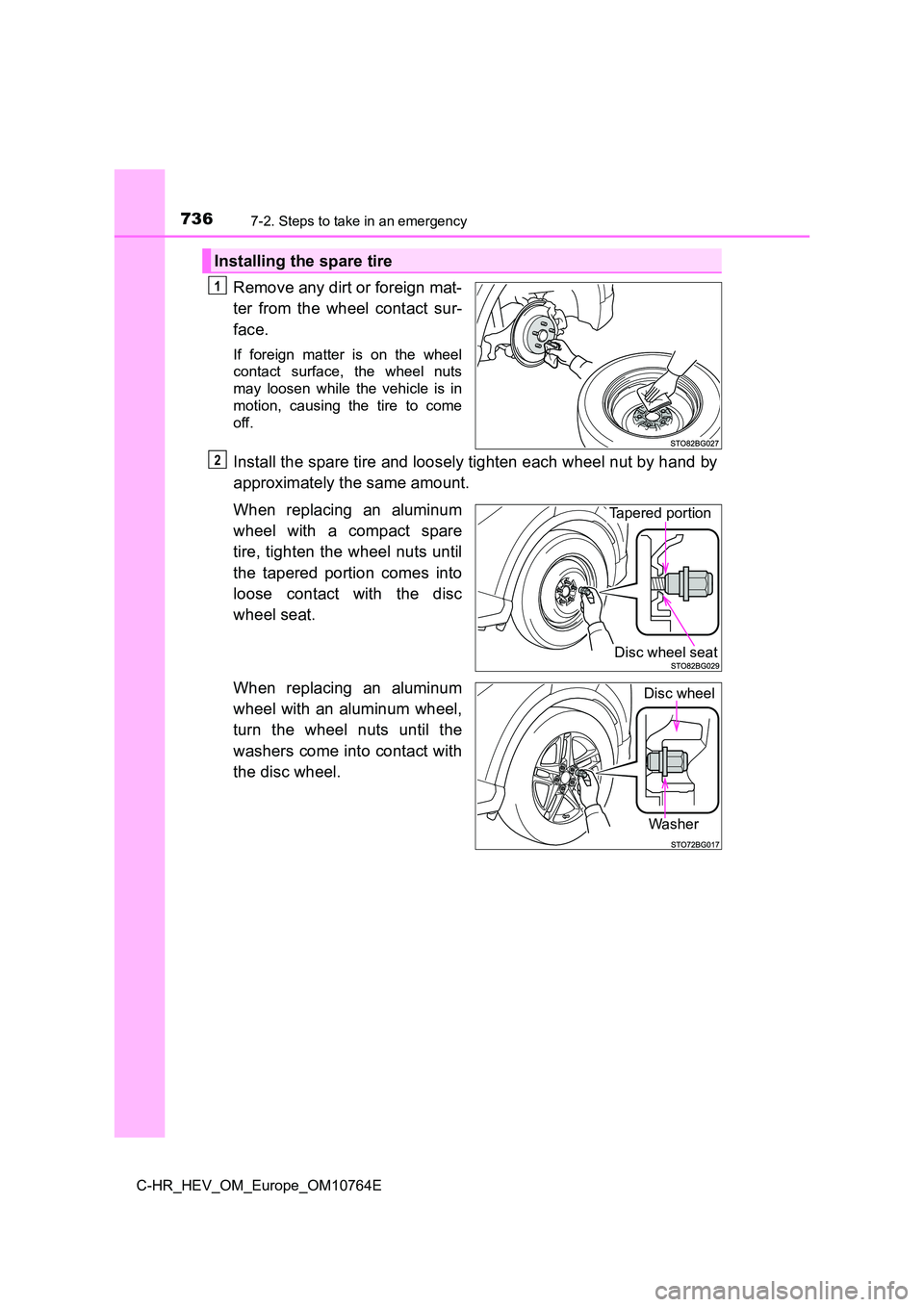

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the spare tire and loosely tighten each wheel nut by ha nd by
approximately the same amount.
When replacing an aluminum
wheel with a compact spare
tire, tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc
wheel seat.
When replacing an aluminum
wheel with an aluminum wheel,
turn the wheel nuts until the
washers come into contact with
the disc wheel.
Installing the spare tire
1
2
Tapered portion
Disc wheel seat
Washer
Disc wheel

7377-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E
7
When trouble arises

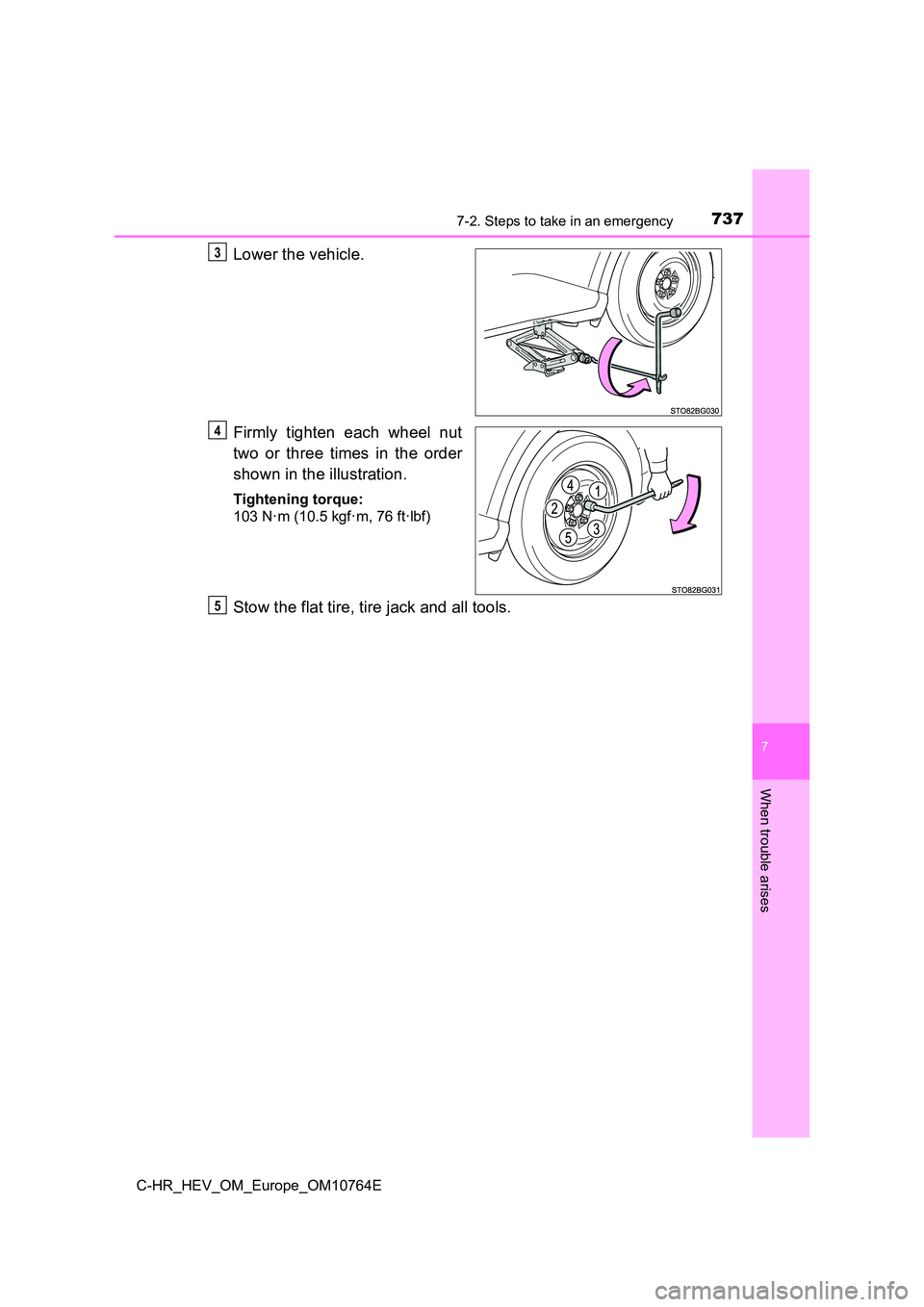

Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
103 N·m (10.5 kgf·m, 76 ft·lbf)
Stow the flat tire, tire jack and all tools.
3
4
5

7387-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E
■The compact spare tire (if equipped)
● The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergenc y.
● Make sure to check the tire inflation pressure of the compact spare tire.
( P. 774)
■ When using the compact spare tire (if equipped)
As the compact spare tire is not equipped with a tire pressure warning valve
and transmitter, low inflation pressure of the spare tire will not be indicated by
the tire pressure warning system. Also, if you replace the comp act spare tire
after the tire pressure warning light comes on, the light remai ns on.
■ When the compact spare tire is equipped (if equipped)
The vehicle height may become lower when driving with the compa ct spare
tire compared to when driving with standard tires.
■ If you have a flat front tire on a road covered with snow or ice (vehicles
with compact spare tire)
Install the compact spare tire on one of the rear wheels of the vehicle. Per-
form the following steps and fit tire chains to the front tires :
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehicle.
Fit tire chains to the front tires.
1
2
